Manufacturer
GE
Model Number
HDF310PGR3WW
Description

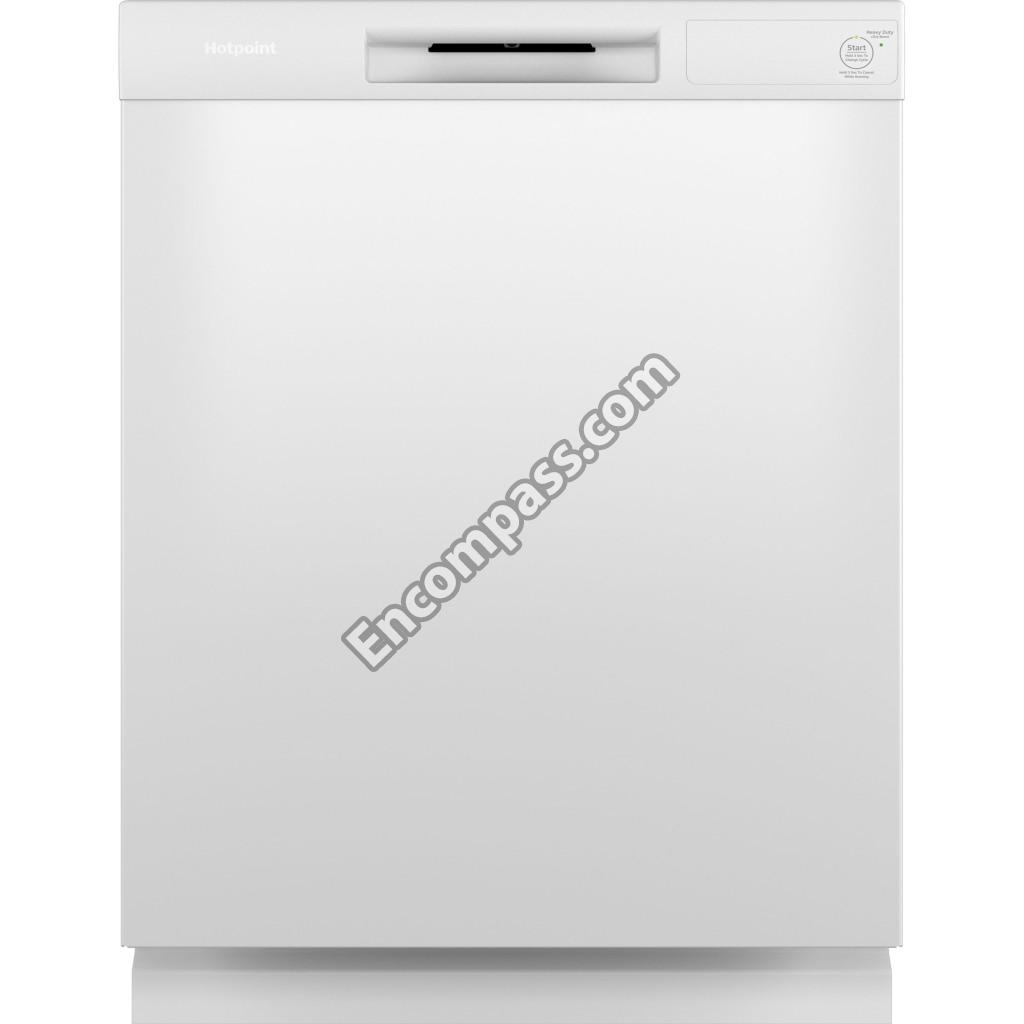

Dishwasher
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC HARNESS ASM |
|
|
BALL FILTER ORANGE |
|
|
CLAMP |
|
|
CLAMP |
|
|
CLAMP HOSE |
|
|
CLIP BRACKET |
|
|
CLIP HEATER TWIST LOCK |
|
|
COMPLETE SERVICE RACK |
|
|
CONFIGURED MACHINE CONTROL BOARD |
|
|
CONFIGURED SERVICE UI CONTROL |
|
|
CONTROL BOARD FUSE 4.1 AMP |
|
|
CONTROL BOX BOTTOM |
|
|
CONTROL BOX TOP |
|
|
COUNTERTOP BRACKET |
|
|
COUNTERTOP BRACKET SCREWS ASSE |
|
|
COVER JUNCTION BOX |
|
|
COVER ROLLER LH |
|
|
COVER ROLLER LH |
|
|
DC HARNESS |
|
|
DETERGENT MODULE |
|
|
DIVERTER ASM |
|
|
DOOR HINGE ASSEMBLY LEFT |
|
|
DOOR HINGE ASSEMBLY RIGHT |
|
|
DOOR LATCH |
|
|
DOOR SPRING |
|
|
DRAIN PUMP ASM |
|
|
ENDCAP |
|
|
EXTENSION DRAIN HOSE |
|
|
FILL FUNEL |
|
|
FILL FUNNEL HOSE |
|
|
FLOATING SEAL ASM |
|
|
FRICTION WASHER |
|
|
GASKET BEACH PLASTIC |
|
|
GASKET TUB PLASTIC |
|
|
GROUNDING PLATE |
|
|
HEATER NUT |
|
|
HEATING ELEMENT |
|
|
HUB |
|
|
IMPELLER |
|
|
INNER DOOR ASSEMBLY |
|
|
INSERT MINI MANUAL |
|
|
JUMPER HARNESS |
|
|
LOWER RACK ROLLER |
|
|
LOWER RACK ROLLER AND STUD ASS |
|
|
LOWER SPRAY ARM ASSEMBLY |
|
|
MAIN CONDUIT |
|
|
MAIN CONDUIT ASM |
|
|
MAIN CONDUIT ASM |
|
|
MID CONDUIT ASM |
|
|
MID CONDUIT ASM |
|
|
MID CONDUIT DOCKING PORT |
|
|
MID SPRAY ARM ASEMBLY |
|
|
NUT TOWER HEATER |
|
|
O-RING |
|
|
PLASTIC COURSE FILTER |
|
|
PLATE DETERGENT |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM MINI MANUAL AND WIRING |
|
|
PM OWNERS MANUAL |
|
|
PM QUICK OWNERS MANUAL |
|
|
PRESSURE SENSOR ASM |
|
|
PULLEY CABLE |
|
|
PULLEY HINGE |
|
|
PUMP ISOLATOR HANGER |
|
|
RACK BRACKET 2 WHEELS |
|
|
RACK LOWER ASM COMPLETE |
|
|
RACK SLIDE |
|
|
RACK UPPER ASM COATED |
|
|
RACK UPPER ASM COATED |
|
|
ROLLER RACK |
|
|
SCR 10-32 GX IHXW 9/16 S |
|
|
SCR 10-32 TT CB 1/4 ZN |
|
|
SCR 1032 GX HXW 3/8 |
|
|
SCREW 10-32 GXTT FLP 595 S |
|
|
SCREW 8-16 HXW 1/2 SS |
|
|
SCREW 8-18 AB PNP 3/4 SS |
|
|
SCREW 8-18 PL HXW 1/2 |
|
|
SCREW LEVELING |
|
|
SILVERWARE BASKET |
|
|
STRIKER LATCH |
|
|
SUMP LATCH |
|
|
SUMP OVERMOLD AND GASKET SERVI |
|
|
THERMISTOR |
|
|
TUB ROLLER AND STUD ASM |
|
|
UI HARNESS ASM |
|
|
UPPER RACK ROLLER AND STUD ASS |
|
|
USER CLEANABLE FINE FILTER AND |
|
|
VENT SPACER |
|
|
WASH PUMP SERVICE KIT |
|
|
WATER VALVE ASM |
|
|
WHITE CONTROL PANEL ASSEMBLY |
|
|
WHITE CONTROL PANEL OVERLAY |
|
|
WHITE OUTER DOOR ASSEMBLY |
|
|
WHITE TOE KICK |
