Model Image
Manufacturer

GE

Model Number

HPN12XHM

Description

12,000 Btu Portable Heat/cool Ac, Electronic W/ Re

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WJ71X22334 WJ71X22334 AIR FILTER
WJ73X24144 WJ73X24144 BLADE
WJ88X22300 WJ88X22300 BLOWER WHEELCONDENSER
WJ76X22273 WJ76X22273 CAP
WJ01X24007 WJ01X24007 CAP
WJ20X24140 WJ20X24140 CAPACITOR
WJ20X24139 WJ20X24139 CAPACITOR
WJ01X22325 WJ01X22325 CASTERS
WJ88X22344 WJ88X22344 CONDENSER FAN MOTOR
WJ76X24001 WJ76X24001 CONNECTOR - EXHAUST
WJ27X22317 WJ27X22317 FLOAT SWITCH
WJ71X22295 WJ71X22295 FLOW VENT
WJ71X23997 WJ71X23997 GRILL

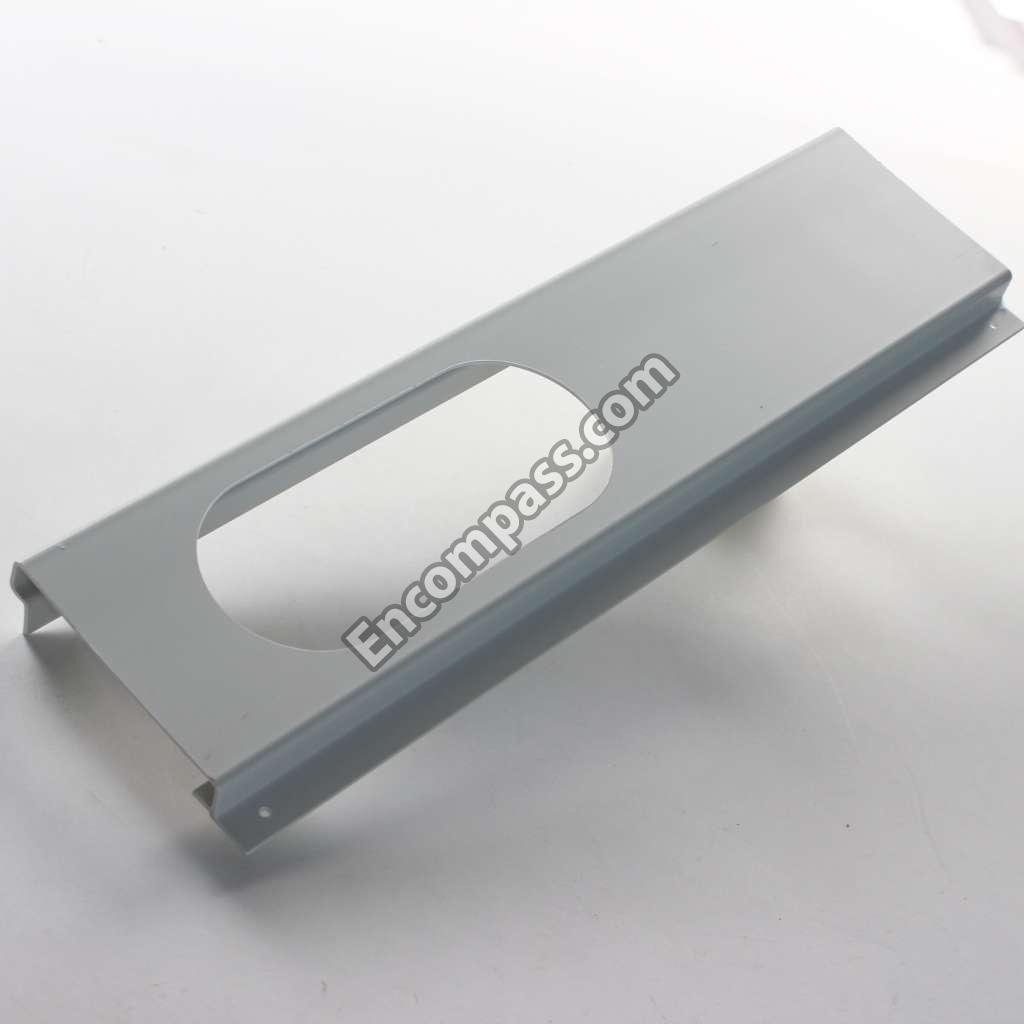

WJ71X23749 WJ71X23749 GRILL - WINDOW PLATE
WJ71X24006 WJ71X24006 GRILL EXHAUST
WJ71X23748 WJ71X23748 GRILL FAN HOUSING
WJ35X23750 WJ35X23750 HOSE-EXHAUST

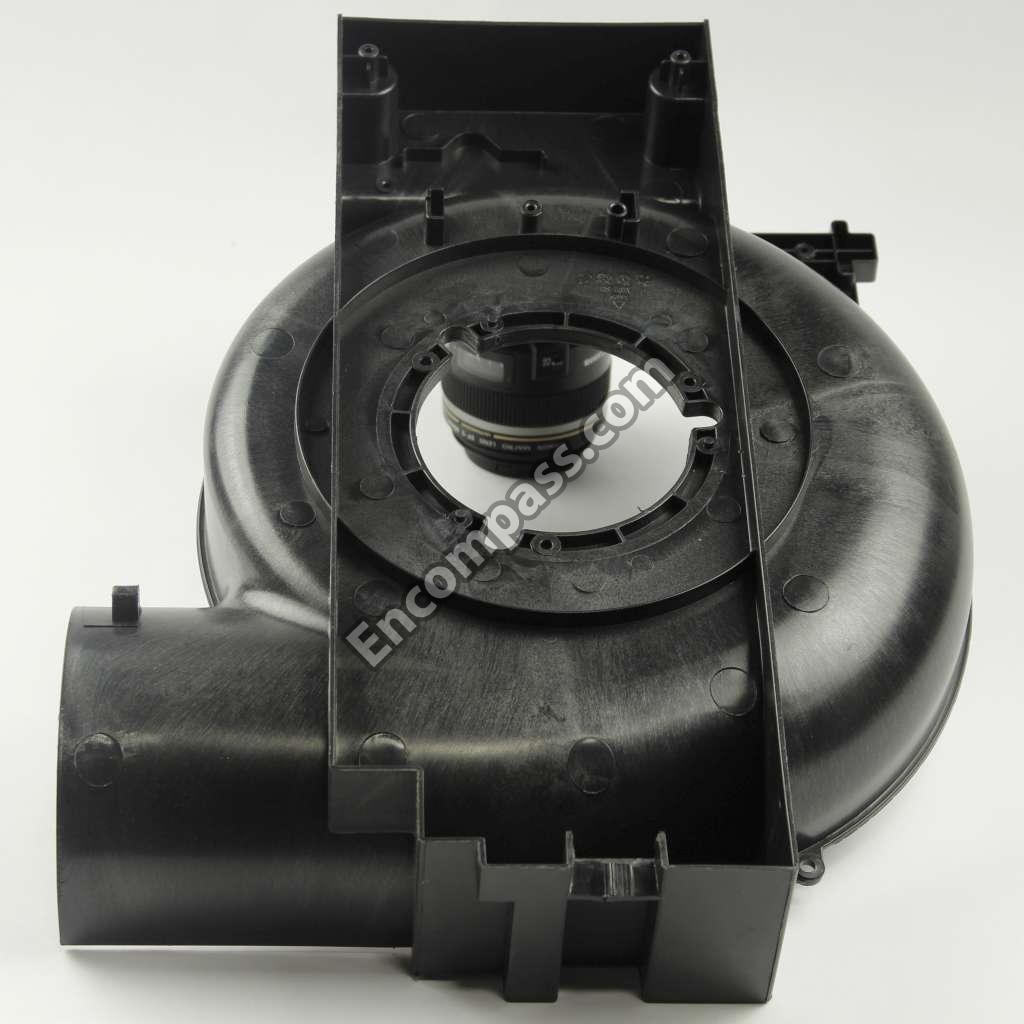

WJ76X24142 WJ76X24142 HOUSING

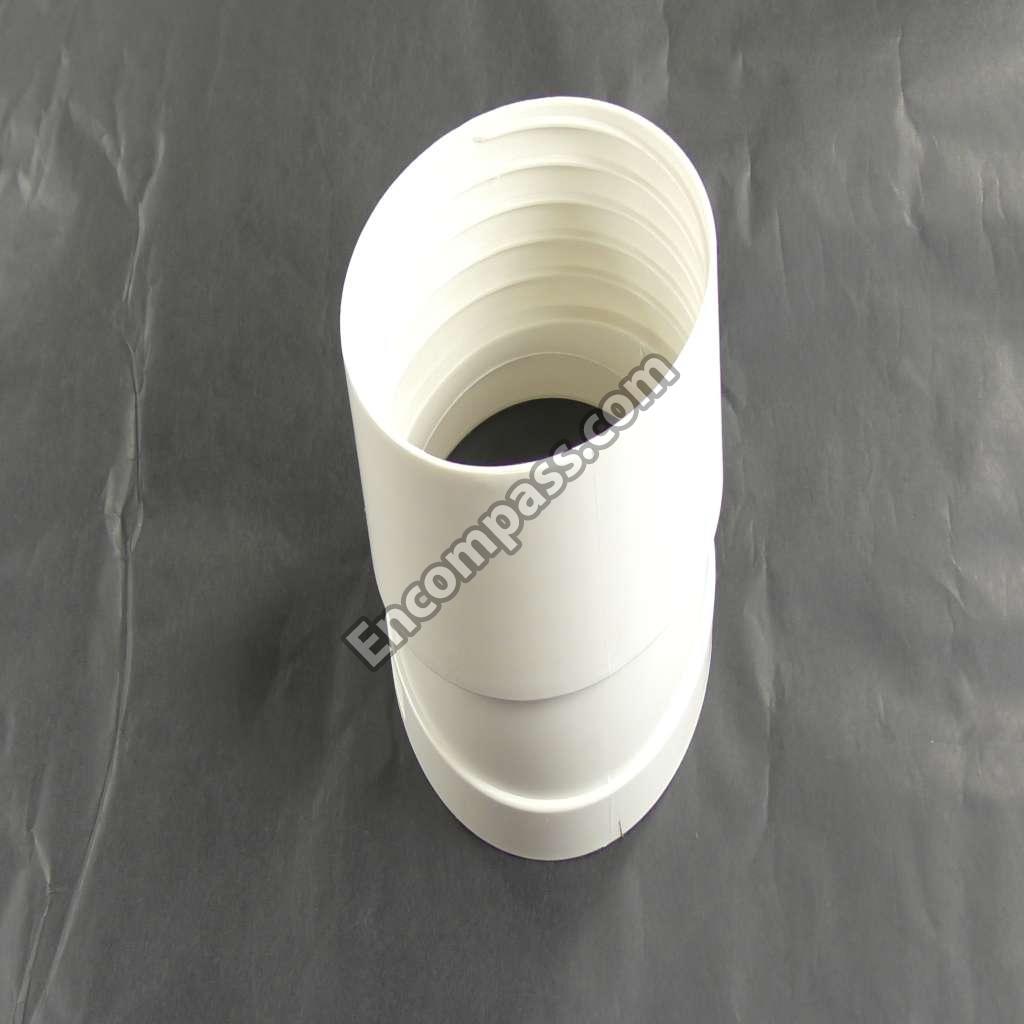

WJ53X22347 WJ53X22347 INCREASER
WJ26X22322 WJ26X22322 INDOOR SENSOR

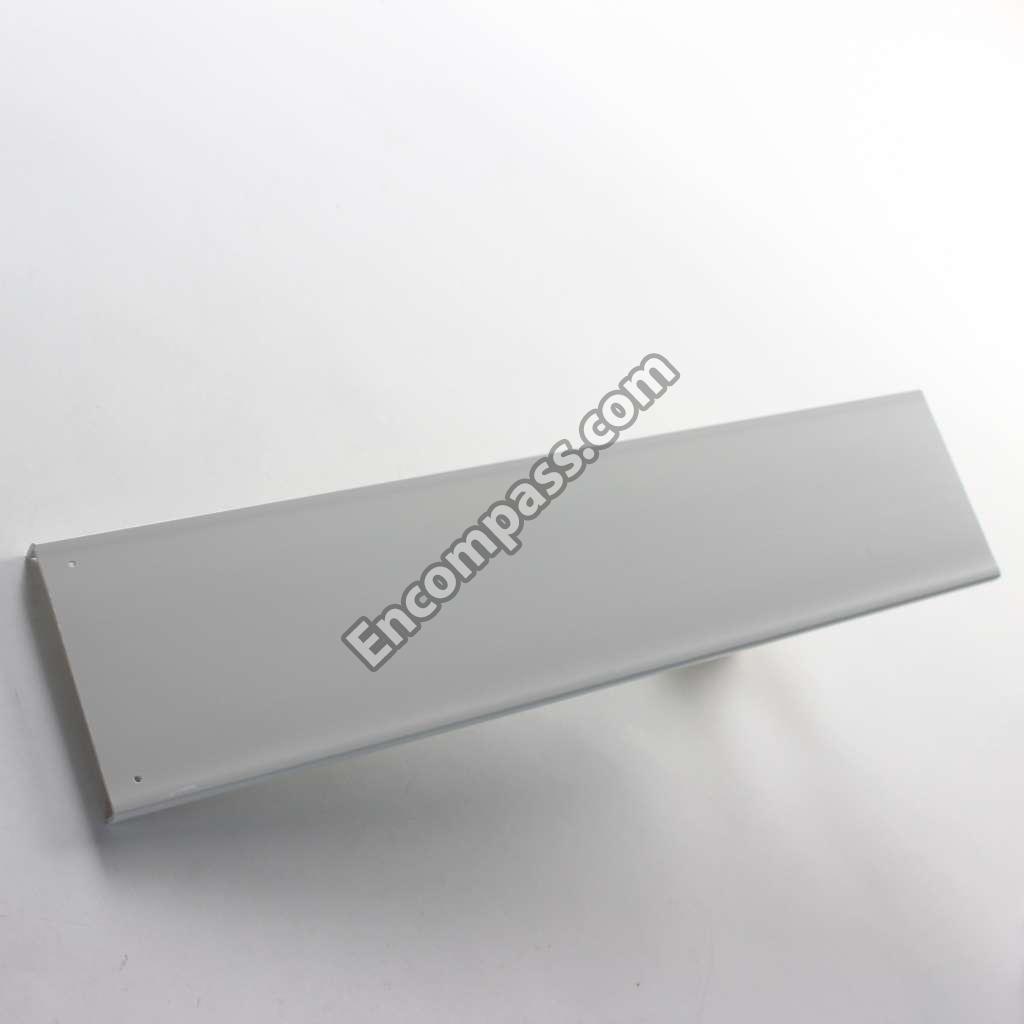

WJ65X23751 WJ65X23751 LONG PLATE (NO HOLES)
WJ98X24146 WJ98X24146 MOTOR - FAN (LS-16T3
WJ26X24686 WJ26X24686 P.C.B. - CONTROL
WJ26X22318 WJ26X22318 PC BOARD
WJ65X23782 WJ65X23782 PLATE
WJ65X23781 WJ65X23781 PLATE

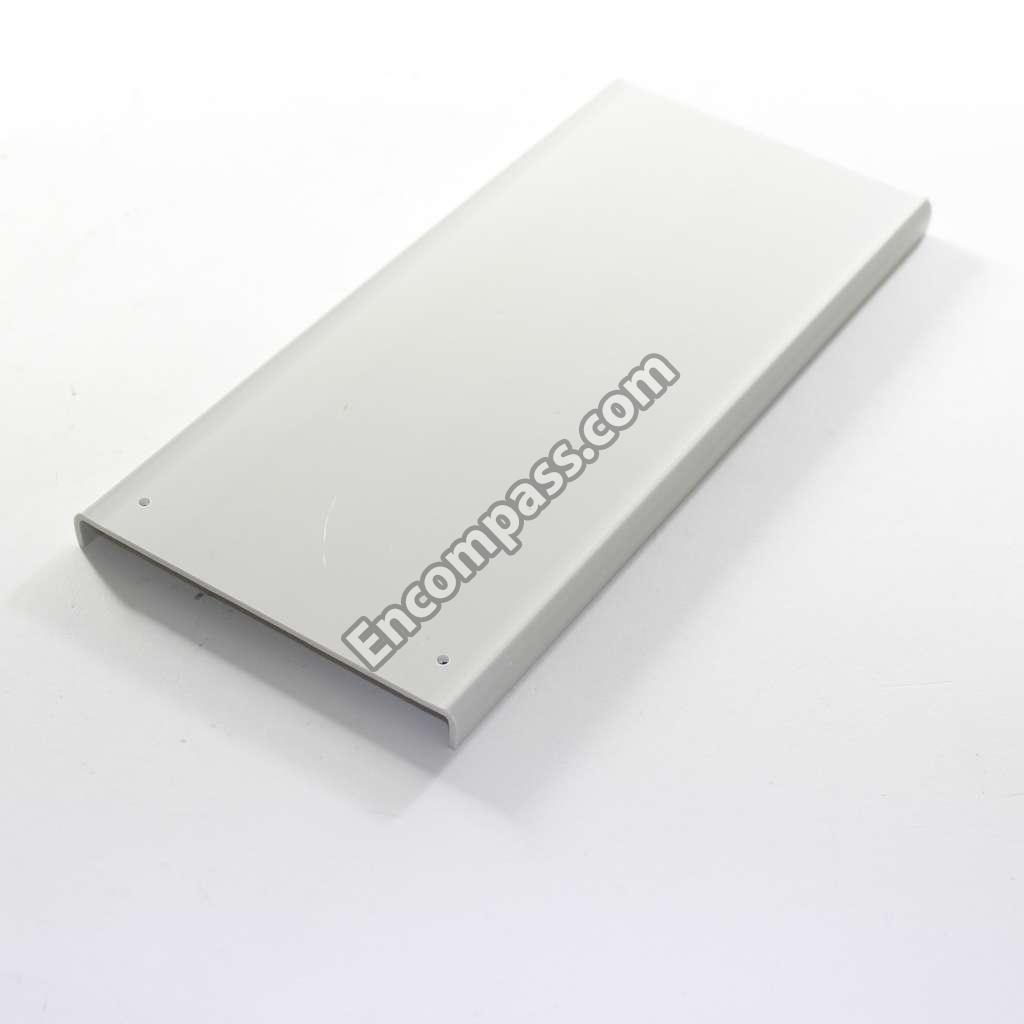

WJ65X23752 WJ65X23752 PLATE - HALF WIDTH
WJ65X23753 WJ65X23753 PLATE - SOLID
WJ65X23757 WJ65X23757 PLATE - WINDOW NO HOLES
WJ01X23783 WJ01X23783 PLUG
WJ01X22289 WJ01X22289 PLUG
WJ01X22288 WJ01X22288 PLUG

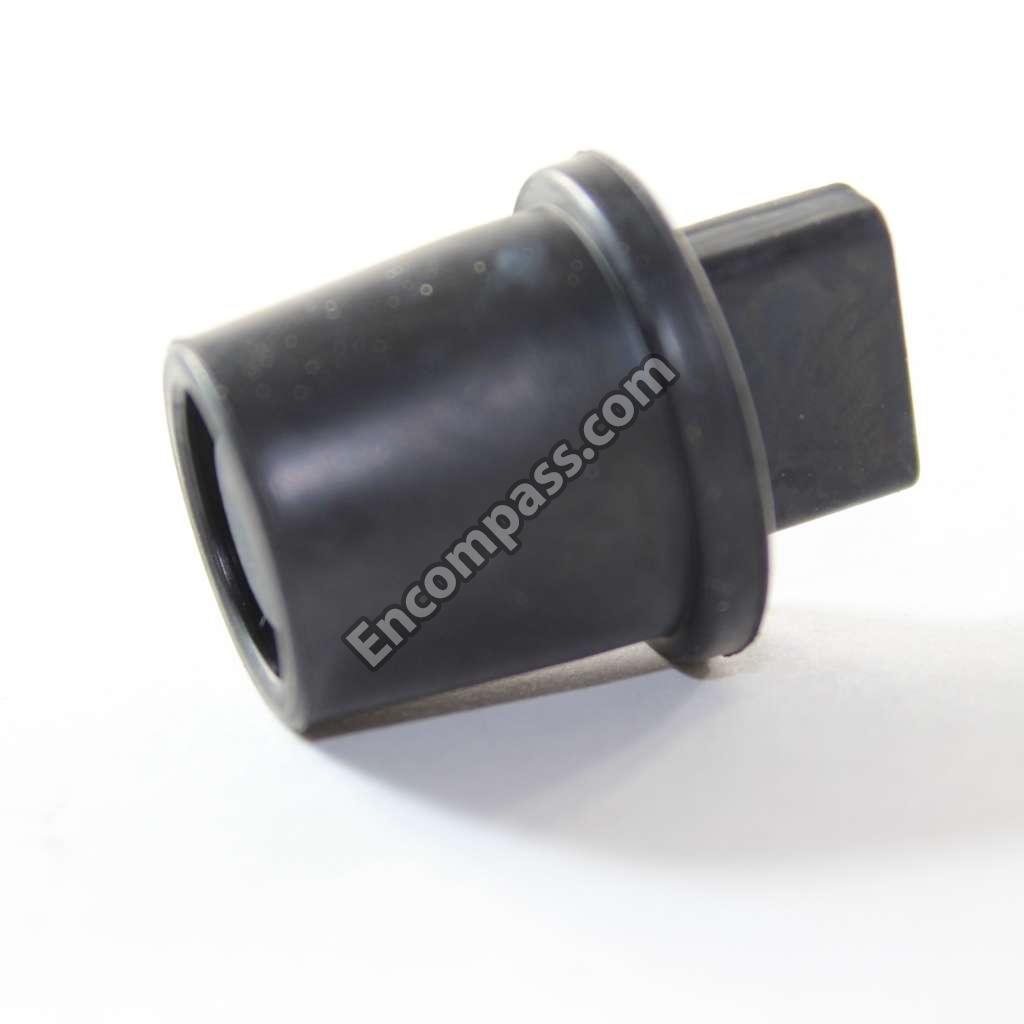

WJ01X24015 WJ01X24015 PLUG - DRAIN
WJ26X23991 WJ26X23991 REMOTE CONTROL
