Manufacturer
GE
Model Number
HRT18RCPW1
Description

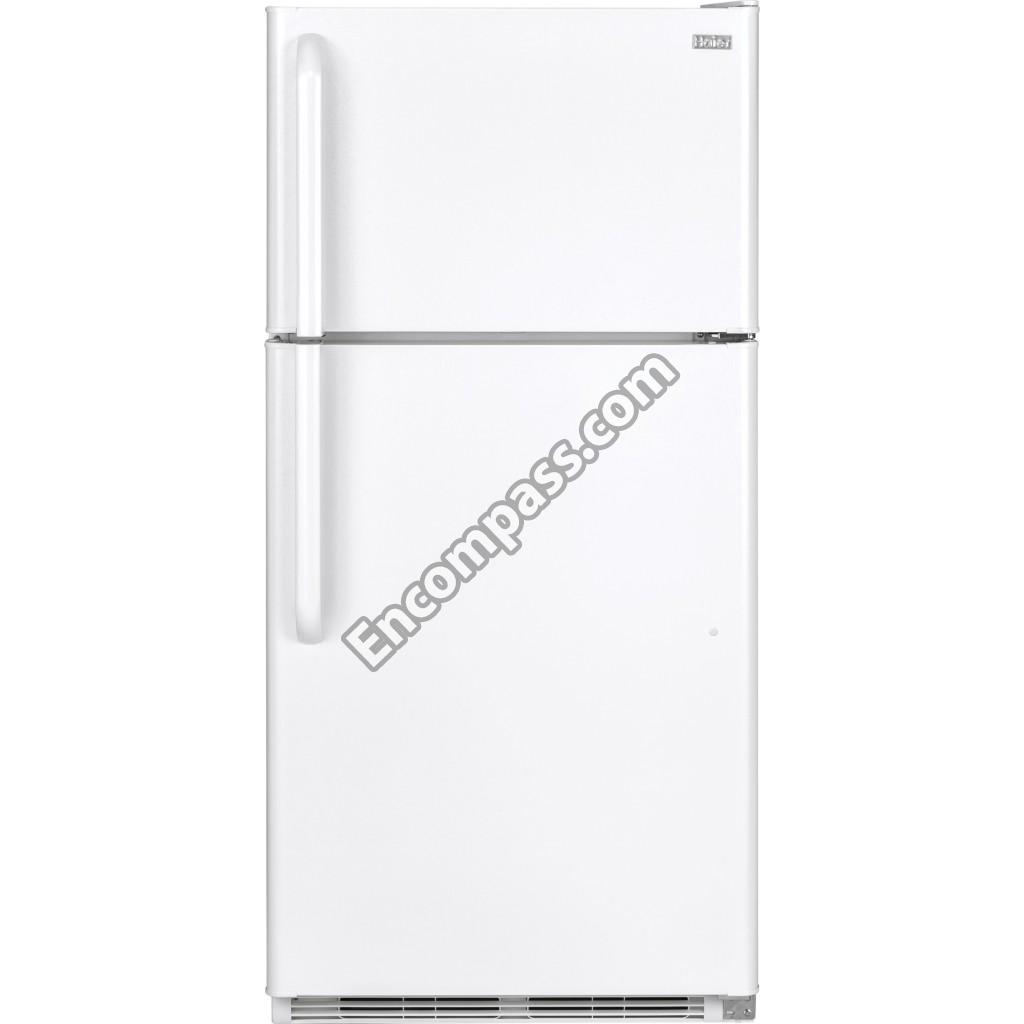

Top-freezer Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
0060221315A |
|
|
18 COMPRESSOR COVER |
|
|
18 FF/21FZ DOOR RACK WHITE |
|
|
60234203 |
|
|
AIR TOWER ASSEMBLY |
|
|
BLADE COND FAN ASSEMBLY |
|
|
BRACKET COND FAN |
|
|
BRACKET EVAPORATOR FAN REAR |
|
|
BULB |
|
|
CAP DOOR LH WW |
|
|
CAP DOOR RH WW |
|
|
CENTER HINGE PIN |
|
|
CENTER HINGE SHIM |
|
|
CENTER HINGE UNPAINTED |
|
|
CLIP RETAINER COMBO |
|
|
COLD CONTROL HARNESS SOCKET |
|
|
COLD CONTROL HOUSING - 2015 |
|
|
COMPRESSOR JUMPER CABLE |
|
|
COMPRESSOR WASHER |
|
|
CONDENSER FORMED ASSEMBLY |
|
|
COVER DAIRY BIN |
|
|
COVER VEGETABLE PAN ASSEMBLY |
|
|
DEFROST DRAIN TRAY |
|
|
DOOR-FREEZER |
|
|
DOOR-FRESH FOOD |
|
|
DRYER |
|
|
EM3Z50HLT COMPRESSOR |
|
|
EVAPORATOR AND HEATER |
|
|
EVAPORATOR COVER |
|
|
EVAPORATOR COVER SCREW AND WASHER |
|
|
EVAPORATOR FAN INNER BRACKET |
|
|
EXTENSION DRAIN TUBE |
|
|
FREEZER DOOR GASKET WHITE |
|
|
FRESH FOOD DOOR GASKET WHITE |
|
|
GROUND SCREW #8-32 X 3/8-INCH |
|
|
GROUND SCREW STAR WASHER |
|
|
HANDLE WHITE 2015 |
|
|
HINGE BOTTOM |
|
|
JUMPER MOTOR EVAPORATOR FAN |
|
|
LEVELING LEG |
|
|
NAME BADGE 2015 |
|
|
NOZZLE SUPPLY FOAM |
|
|
PIN COMPRESSOR |
|
|
PLUG BTN WHT |
|
|
PLUG BUTTON THIMBLE WH |
|
|
PLUG BUTTON WW |
|
|
PLUG DOOR RVSBL |
|
|
POWER CORD ASSEMBLY |
|
|
REFR. FREEZER AIR VENT KNOB - WHITE |
|
|
REFRIGERATOR CAPACITOR |
|
|
REFRIGERATOR COLD CONTROL KNOB |
|
|
REFRIGERATOR CONDENSER MOTOR |
|
|
REFRIGERATOR DEFROST CONTROL BOARD |
|
|
REFRIGERATOR DEFROST THERMOSTAT |
|
|
REFRIGERATOR EVAPORATOR FAN BLADE |
|
|
REFRIGERATOR EVAPORATOR FAN MOTOR |
|
|
REFRIGERATOR LIGHT SWITCH |
|
|
SCREW #8 X 3/8-INCH |
|
|
SCREW #8 X 5/8-INCH |
|
|
SCREW #8 X 9/16-INCH |
|
|
SCREW #8-32 X 3/8-INCH |
|
|
SCREW 1/4-INCH X 3/4-INCH |
|
|
SCREW 3.9MM X 11MM |
|
|
SCREW 3.9MM X 16MM |
|
|
SCREW DOVE TAIL |
|
|
SCREW M6 X 16MM |
|
|
SCREW PH ST 3.9X19 |
|
|
SHELF DOOR FULL FF WHITE |
|
|
SHELF DOOR HALF FZ WHITE |
|
|
SHELF-GLASS |
|
|
SHELF-WIRE |
|
|
SHIELD DEFLECTOR |
|
|
SOCKET LAMP |
|
|
STOP DOOR FF |
|
|
STOP DOOR FZ |
|
|
THERMOSTAT DEFROST |
|
|
THIMBLE DOOR WW |
|
|
TOP HINGE |
|
|
TOP HINGE COVER WHITE |
|
|
TSD W/O BALE STRAP |
|
|
VEGETABLE PAN |
|
|
VEGETABLE PAN COVER GLASS |
|
|
WASHER HINGE PIN |
|
|
WHEEL COVER VEGETABLE PAN |
|
|
WHEEL MOBILITY ASSEMBLY LH |
|
|
WHEEL MOBILITY ASSEMBLY RH |
