Model Image
Manufacturer

GE

Model Number

HTR17BBRFLWW

Description

Hotpoint 17.2 Cu. Ft. Top-freezer Refrigerator

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB

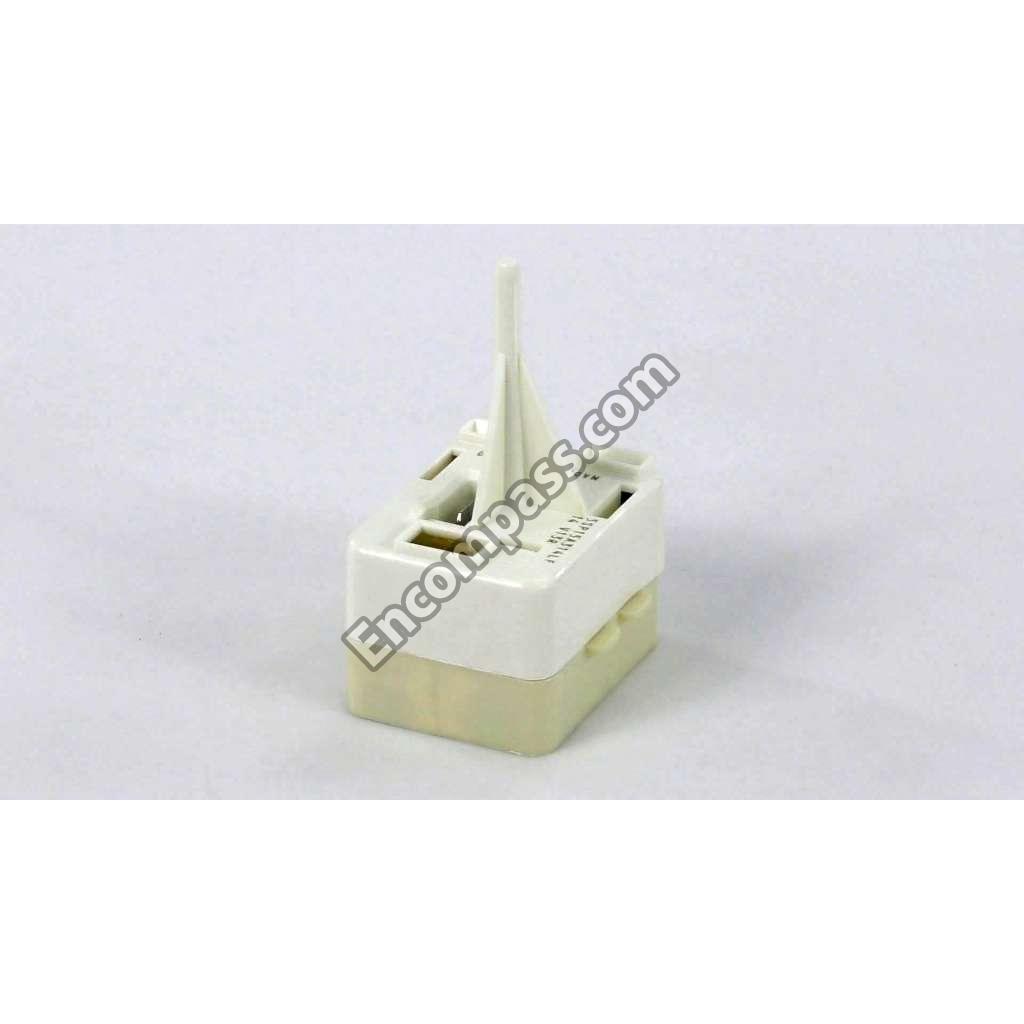

WR09X10105 WR09X10105 5SP OVERLOAD/PTC
WR02X11796 WR02X11796 ACTUATOR AIR
WR17X11225 WR17X11225 BAFFLE FAN ASSEMBLY

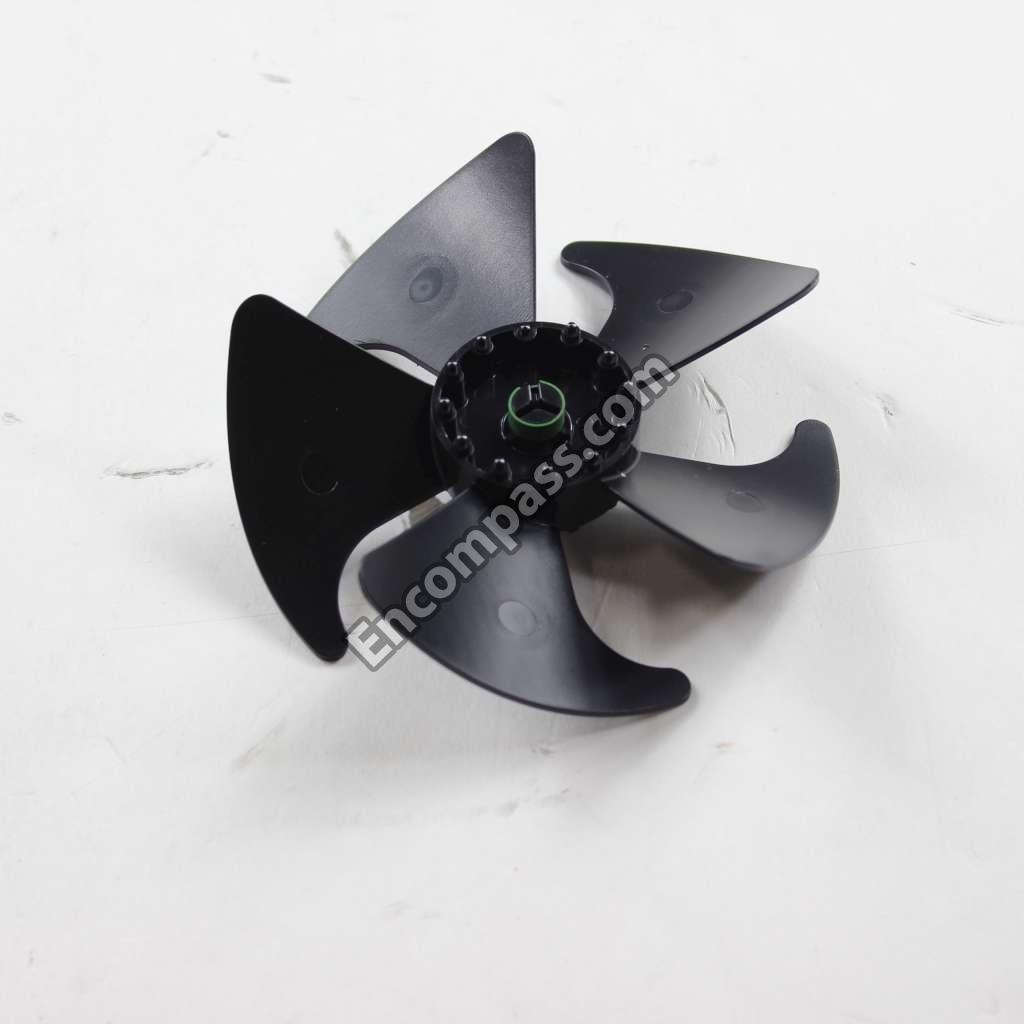

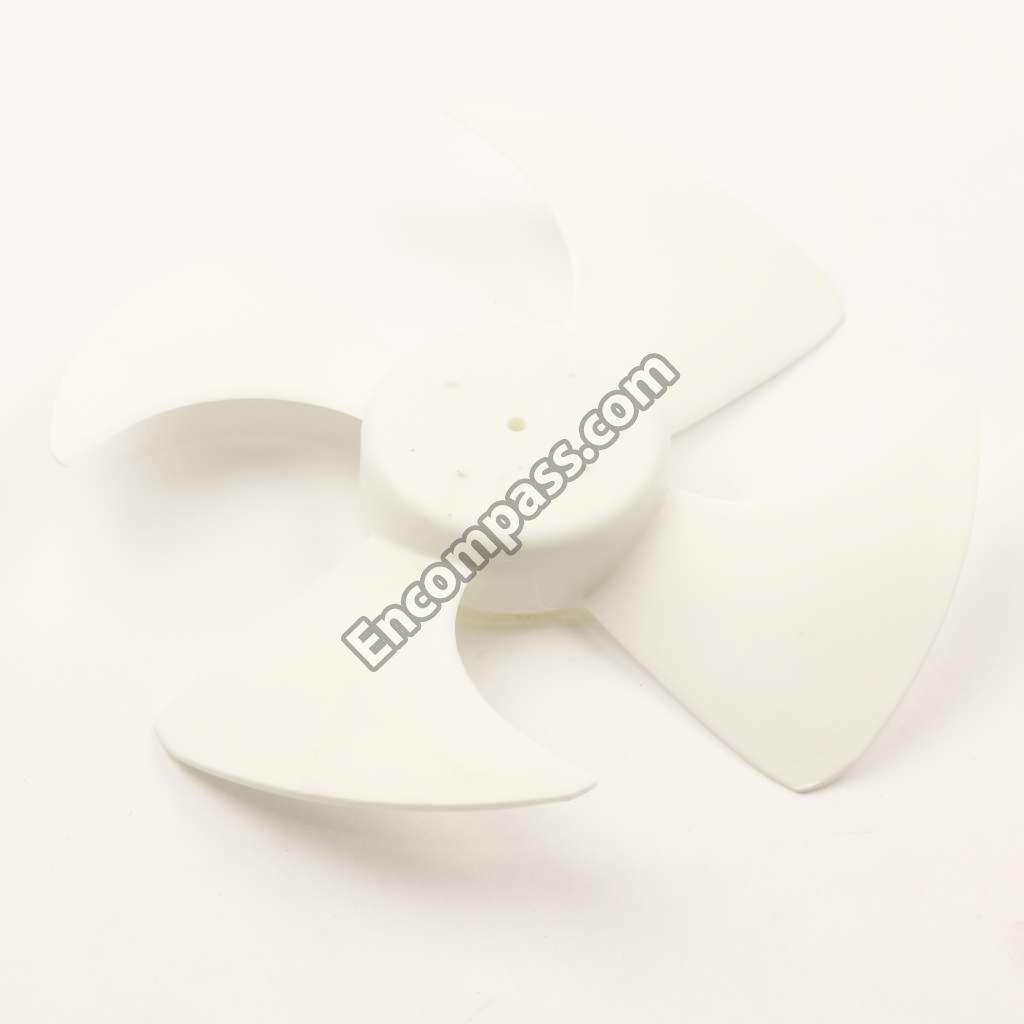

WR60X10207 WR60X10207 BLADE COND FAN ASSEMBLY
WR60X10204 WR60X10204 BLADE EVAP FAN ASM

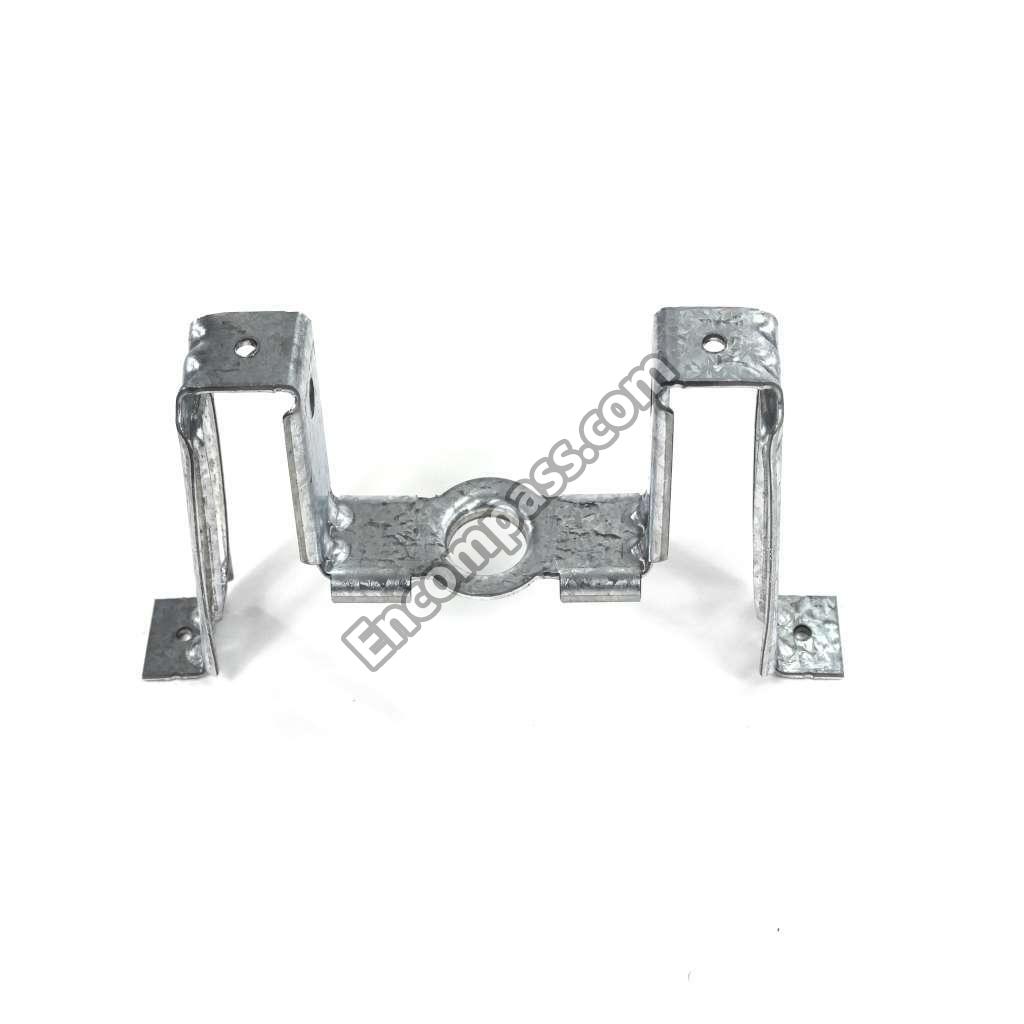

WR21X30022 WR21X30022 BRACKET EVAPORATOR FAN REAR
WR02X10100 WR02X10100 BRACKET EVAPORATOR FAN SM
WR02X10540 WR02X10540 BUMPER LID
WR2X7051 WR2X7051 BUTTON PLUG
WR1X5278 WR1X5278 CABLE CLAMP

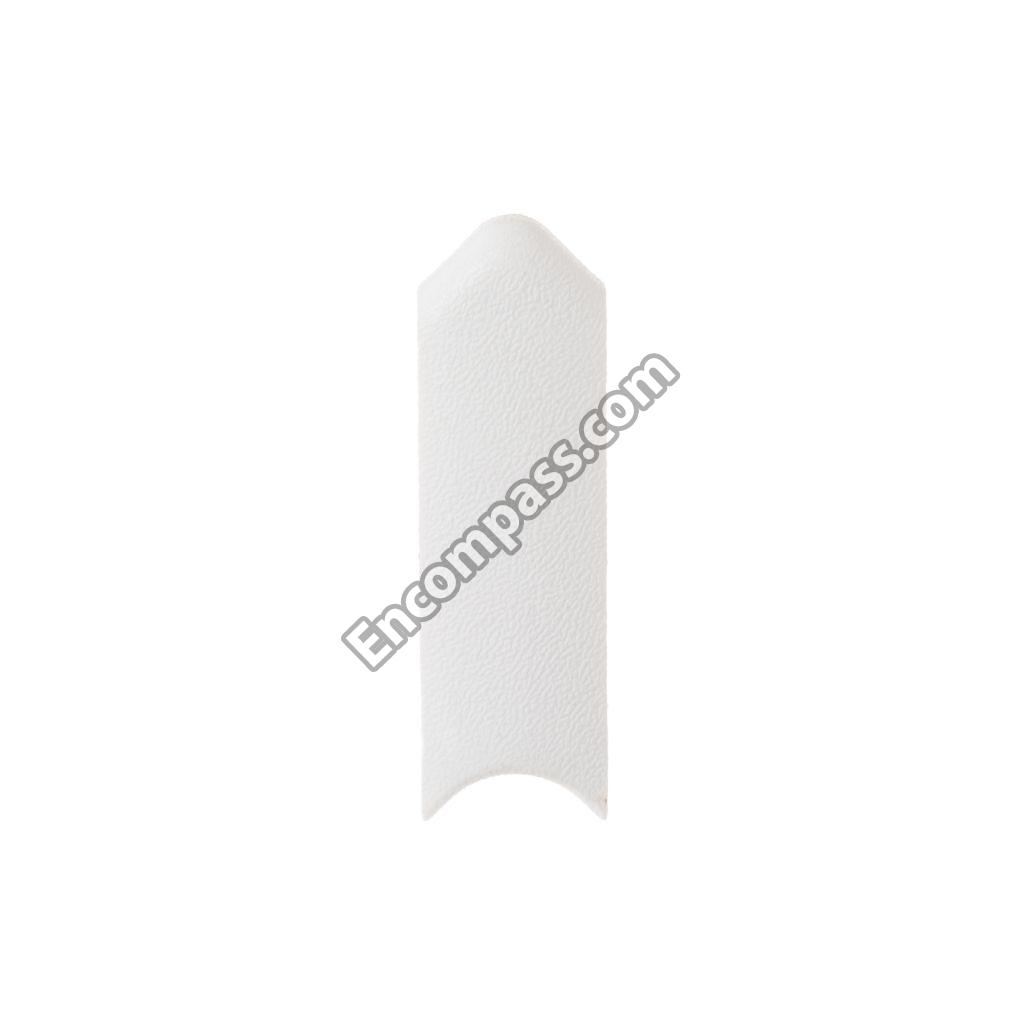

WR02X10703 WR02X10703 CAP CORNER OC WHITE

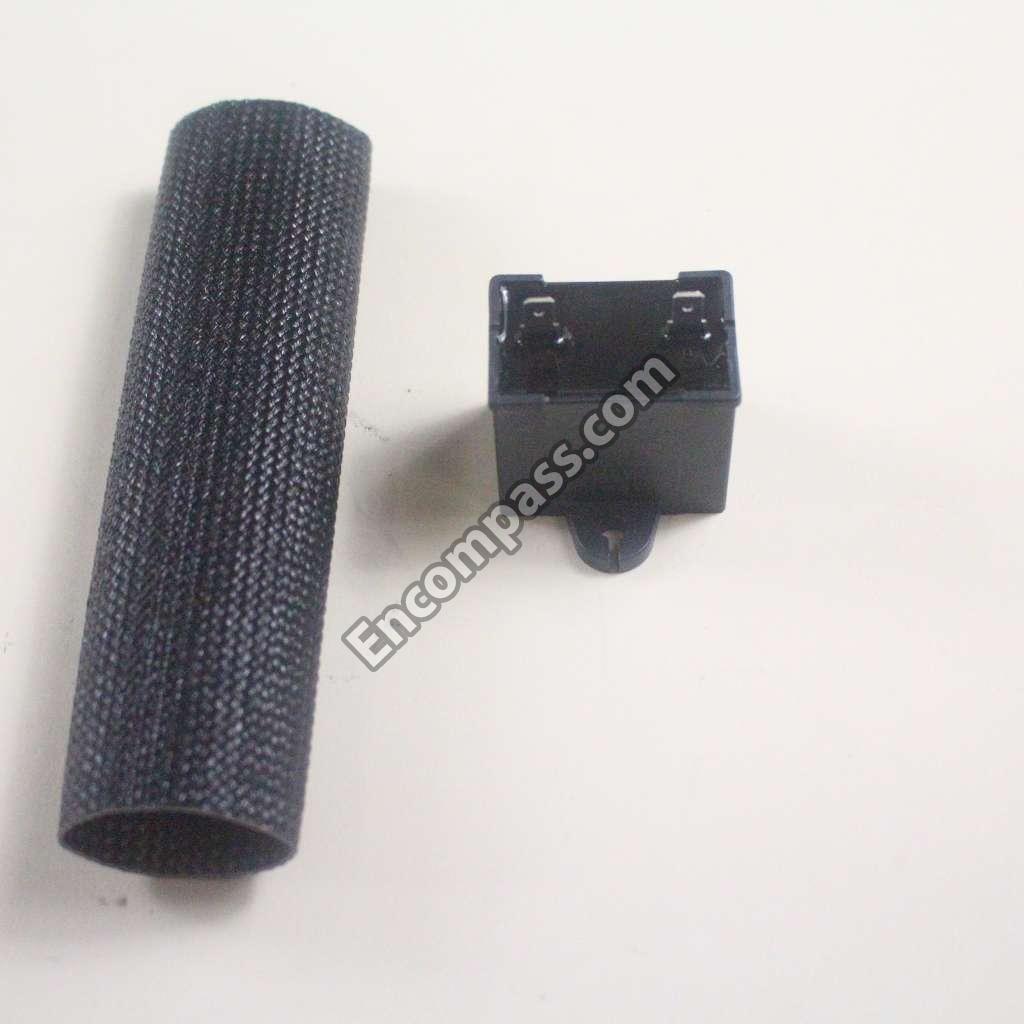

WR55X24064 WR55X24064 CAPACITOR
WR2X8583 WR2X8583 CLIP

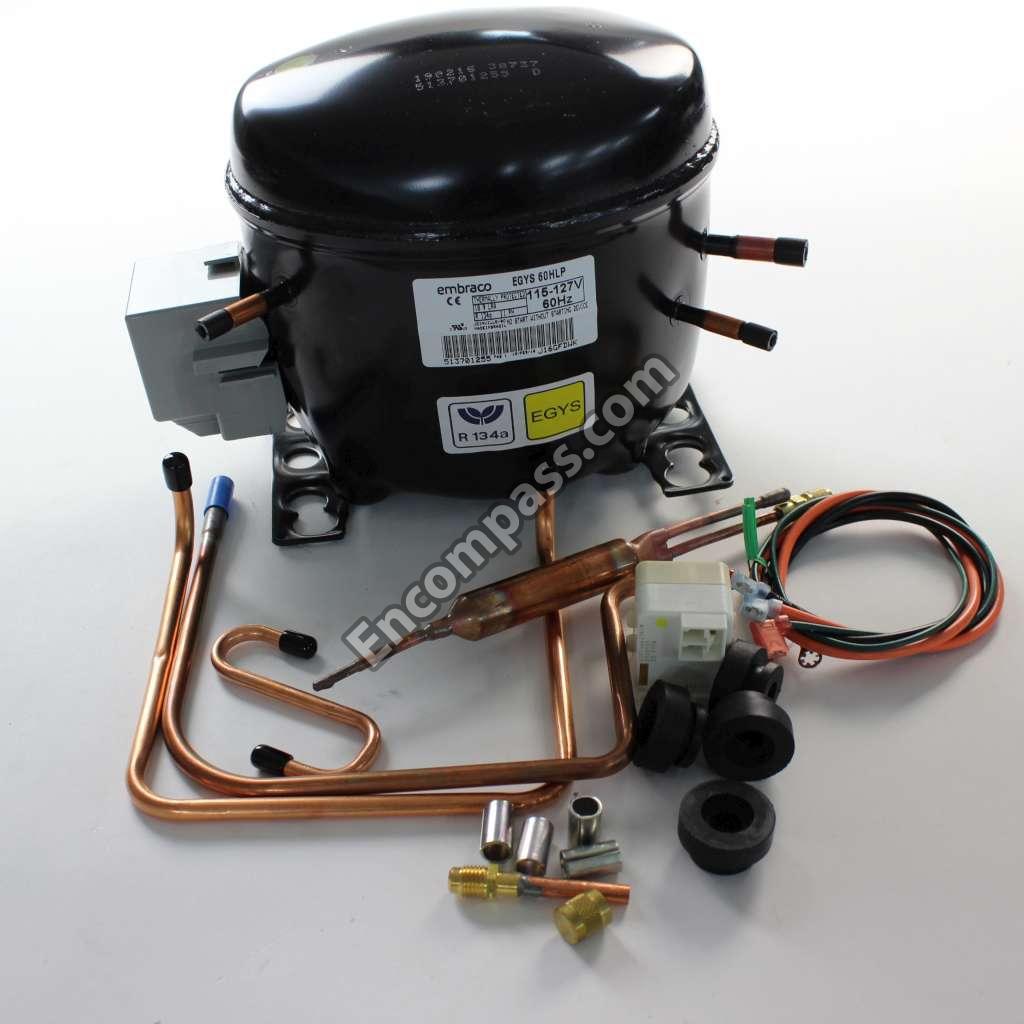

WR87X10224 WR87X10224 COMPRESSOR KIT EGYS60
WR9X502 WR9X502 CONTROL DEFROST
WR23X10300 WR23X10300 CORD POWER ASSEMBLY
WR17X11660 WR17X11660 COVER EVAPORATOR ASSEMBLY

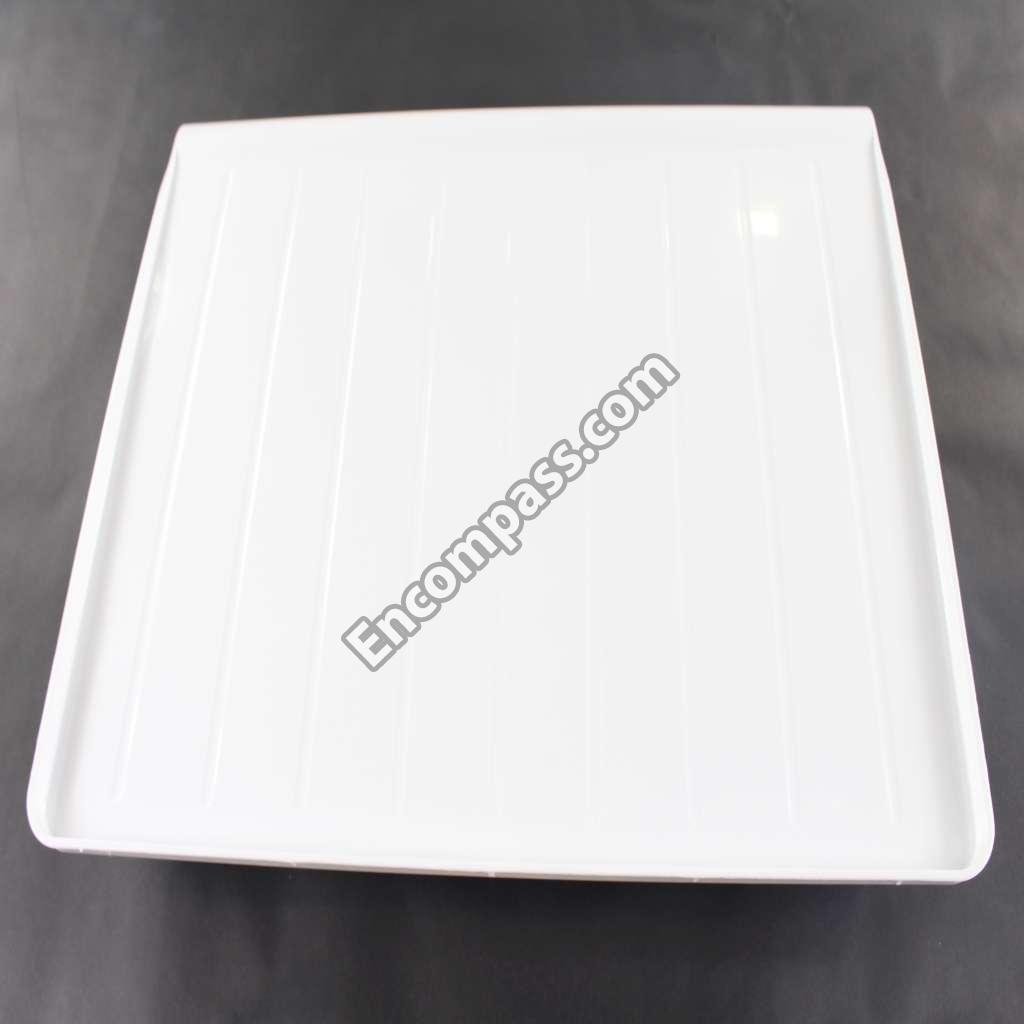

WR32X10398 WR32X10398 COVER VEGETABLE PAN

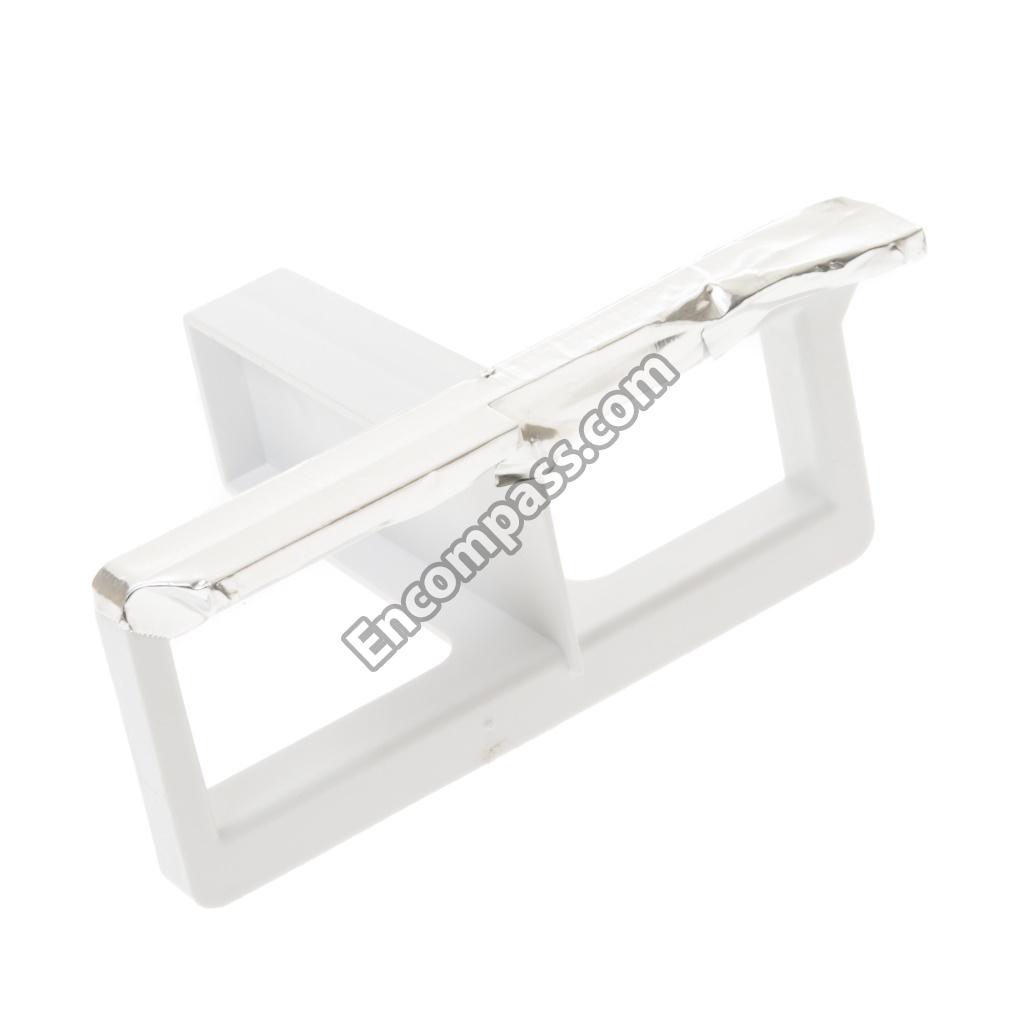

WR02X11793 WR02X11793 DIFFUSER AIR FF
WR78X10330 WR78X10330 DOOR FOAM ASSEMBLY FF
WR32X10455 WR32X10455 DPO DRAIN PAN
WR17X11659 WR17X11659 DUCT AIR FZ
WR02X11791 WR02X11791 DUCT FOAM

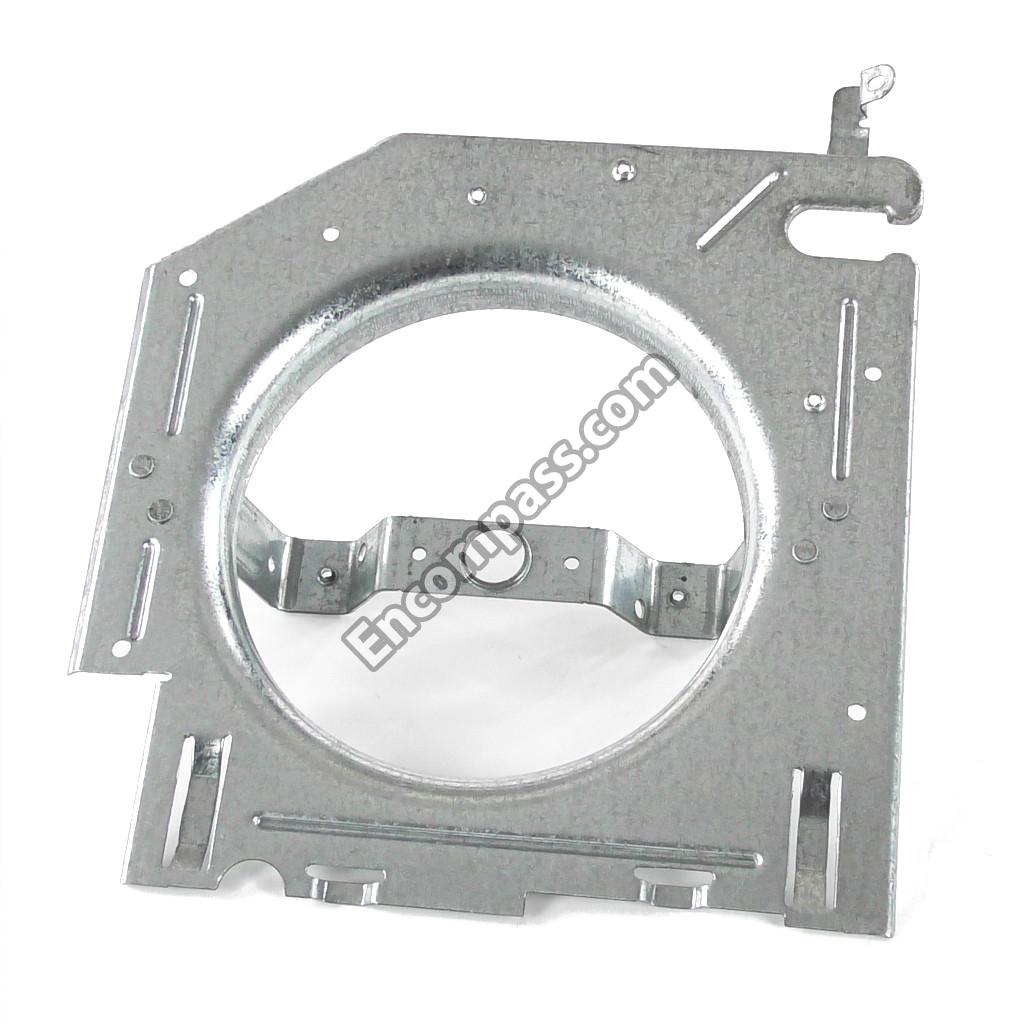

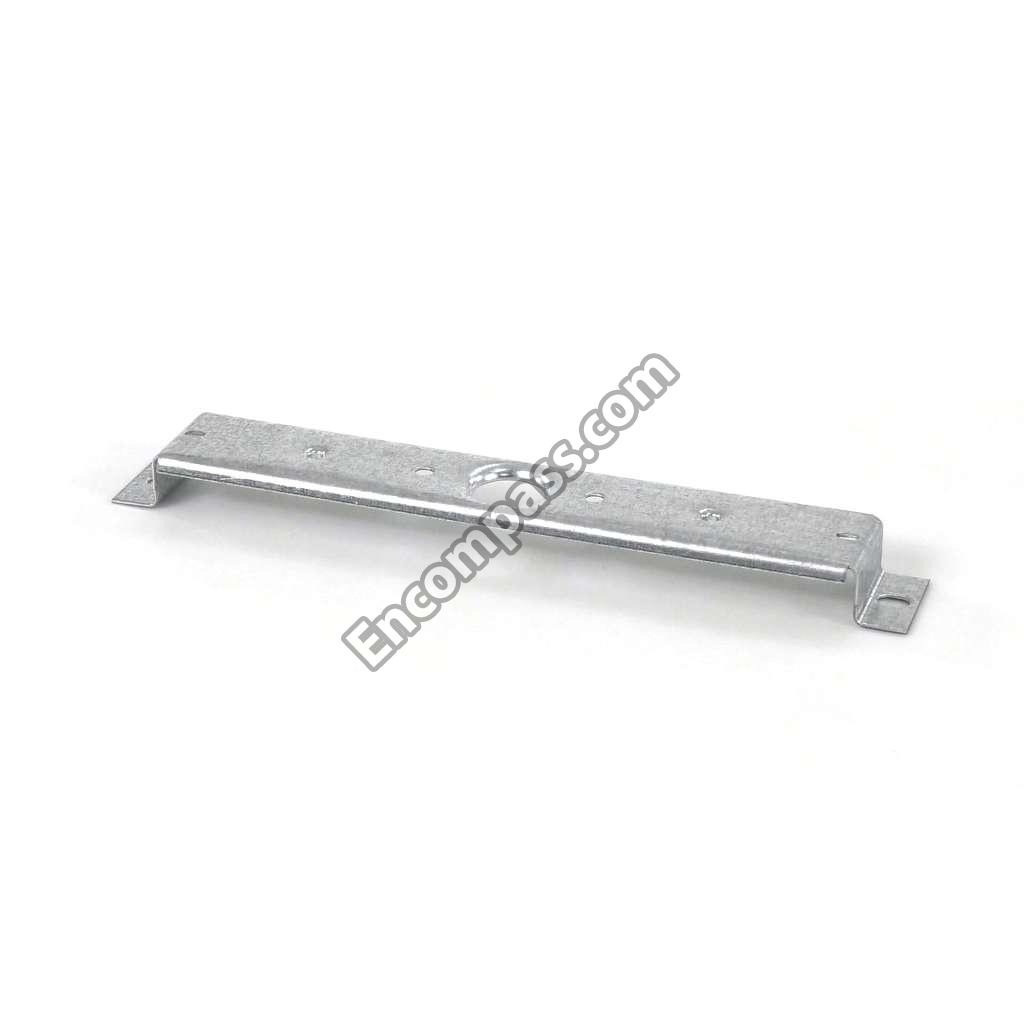

WR21X30013 WR21X30013 EVAPORATOR FAN FRONT BRACKET
WR17X12210 WR17X12210 FAN HOUSING ASSEMBLY

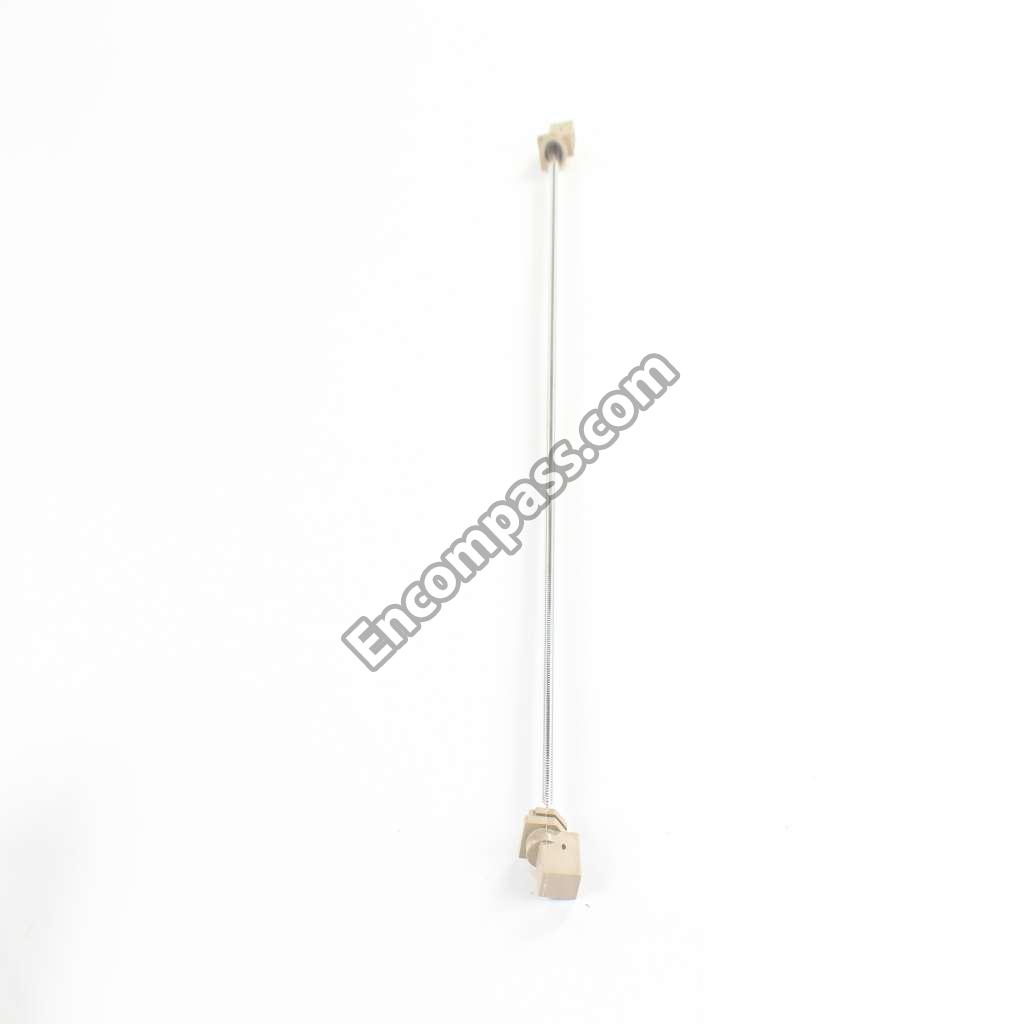

WR17X3691 WR17X3691 FRONT DOOR SHELF FF
WR17X3692 WR17X3692 FRONT DOOR SHELF FZ

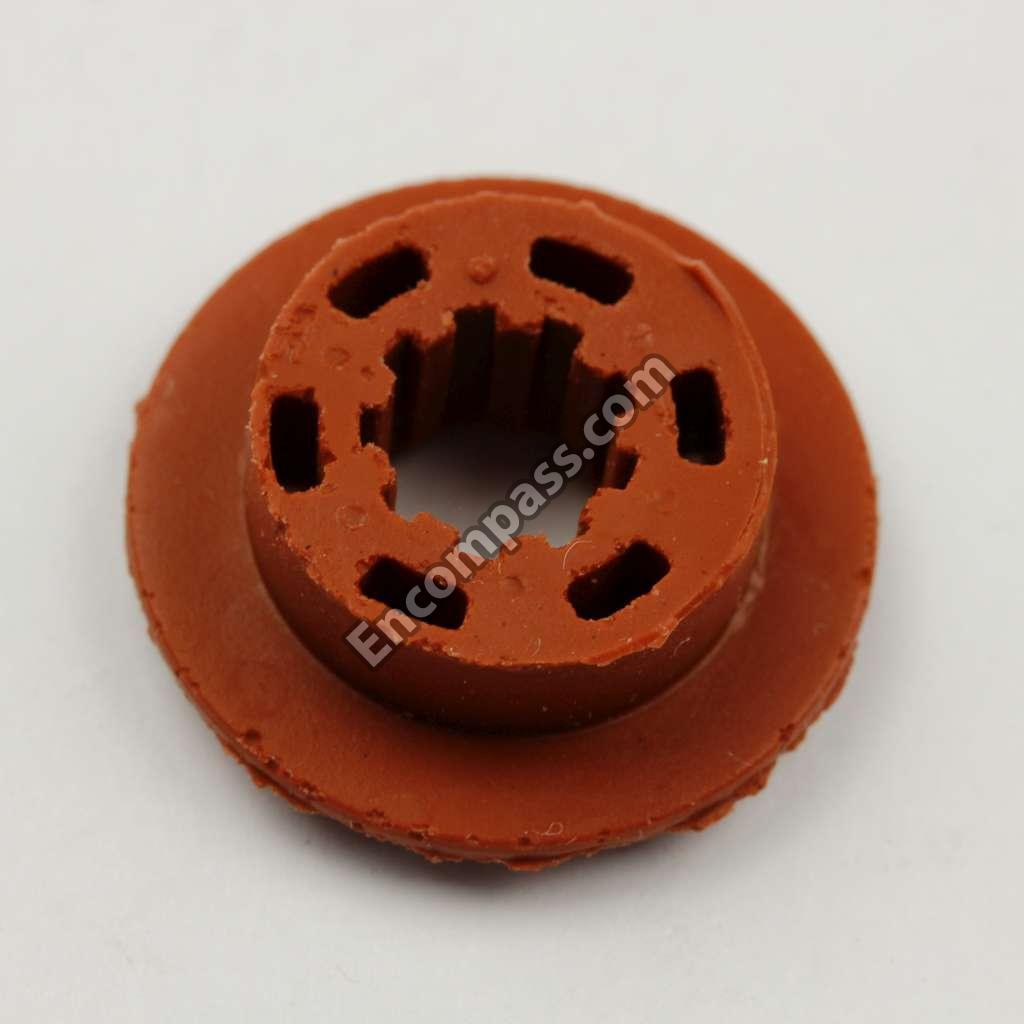

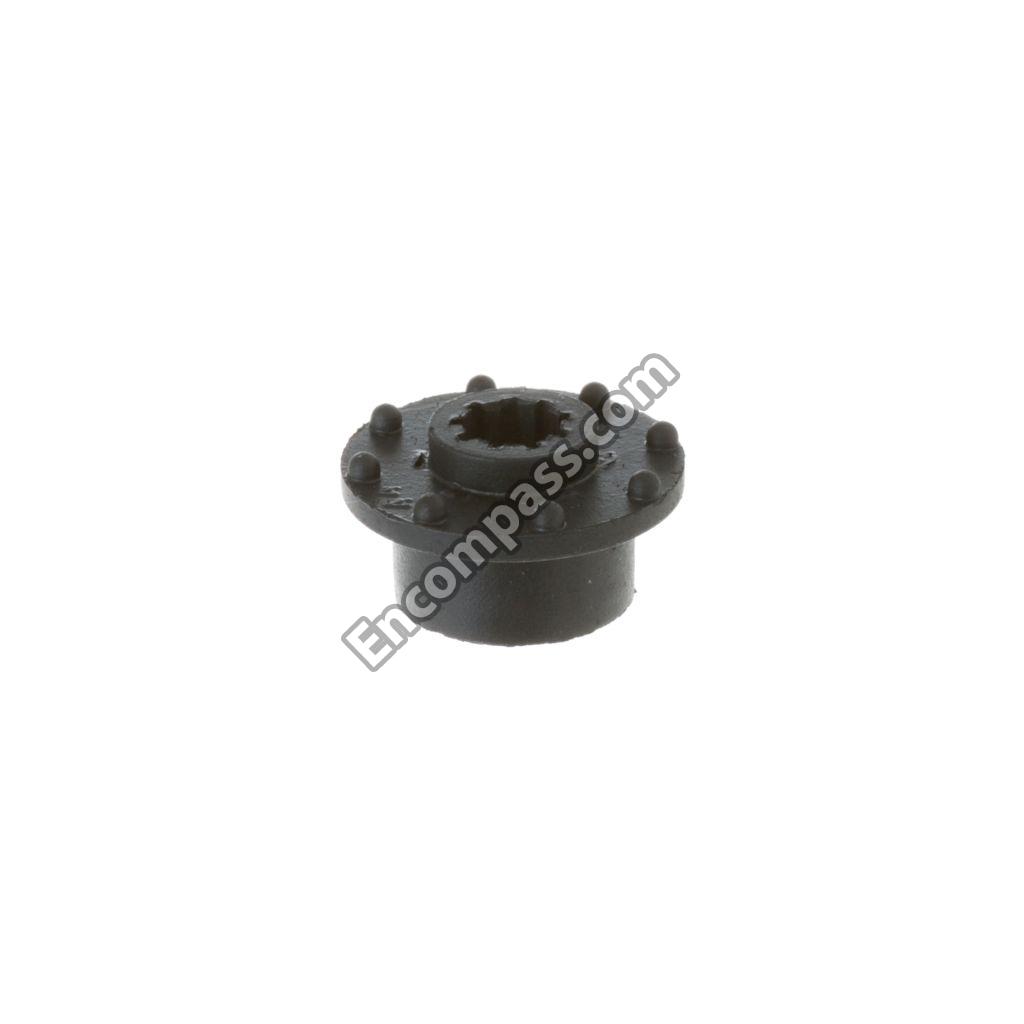

WR02X12008 WR02X12008 GROMMET EVAPORATOR FAN
WR02X10098 WR02X10098 GROMMET MOTOR
WR2X7238 WR2X7238 GROMMET MTG.

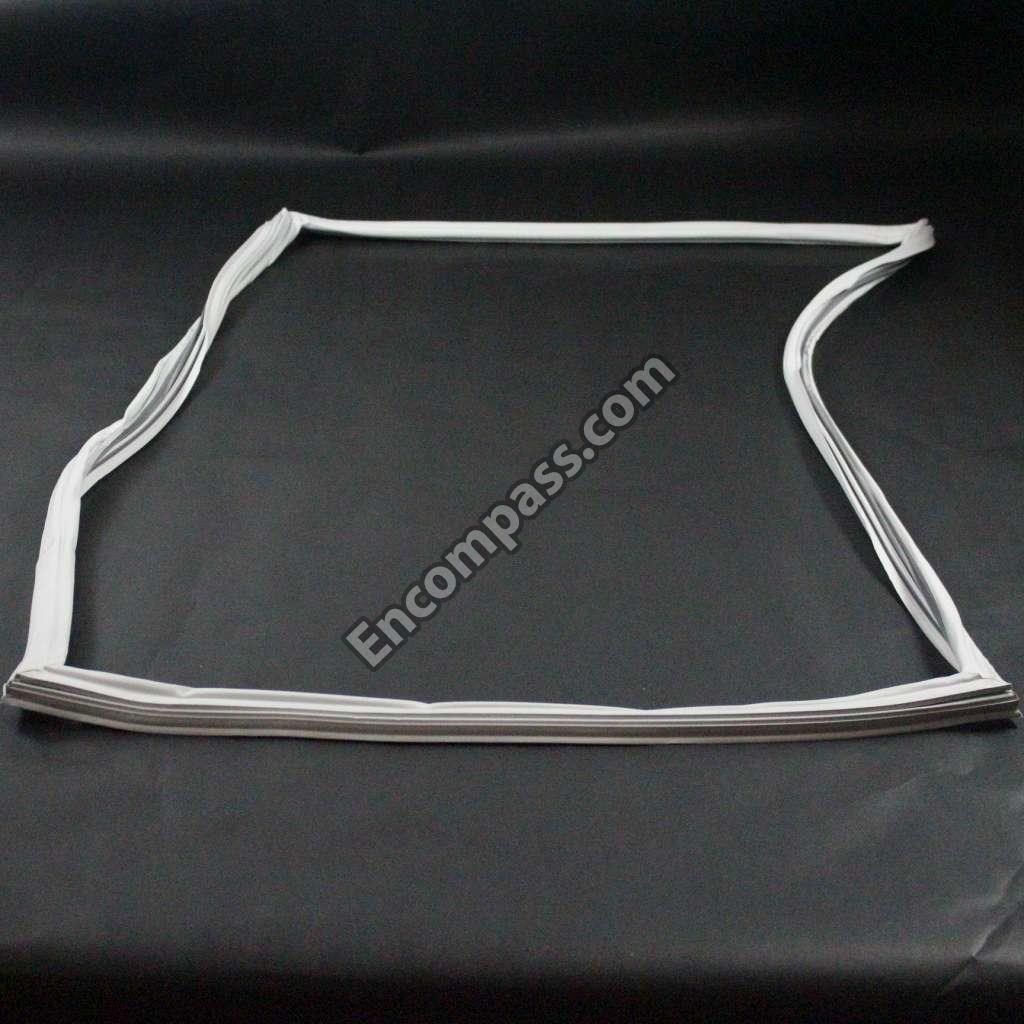

WR24X10236 WR24X10236 GSKT DOOR FF

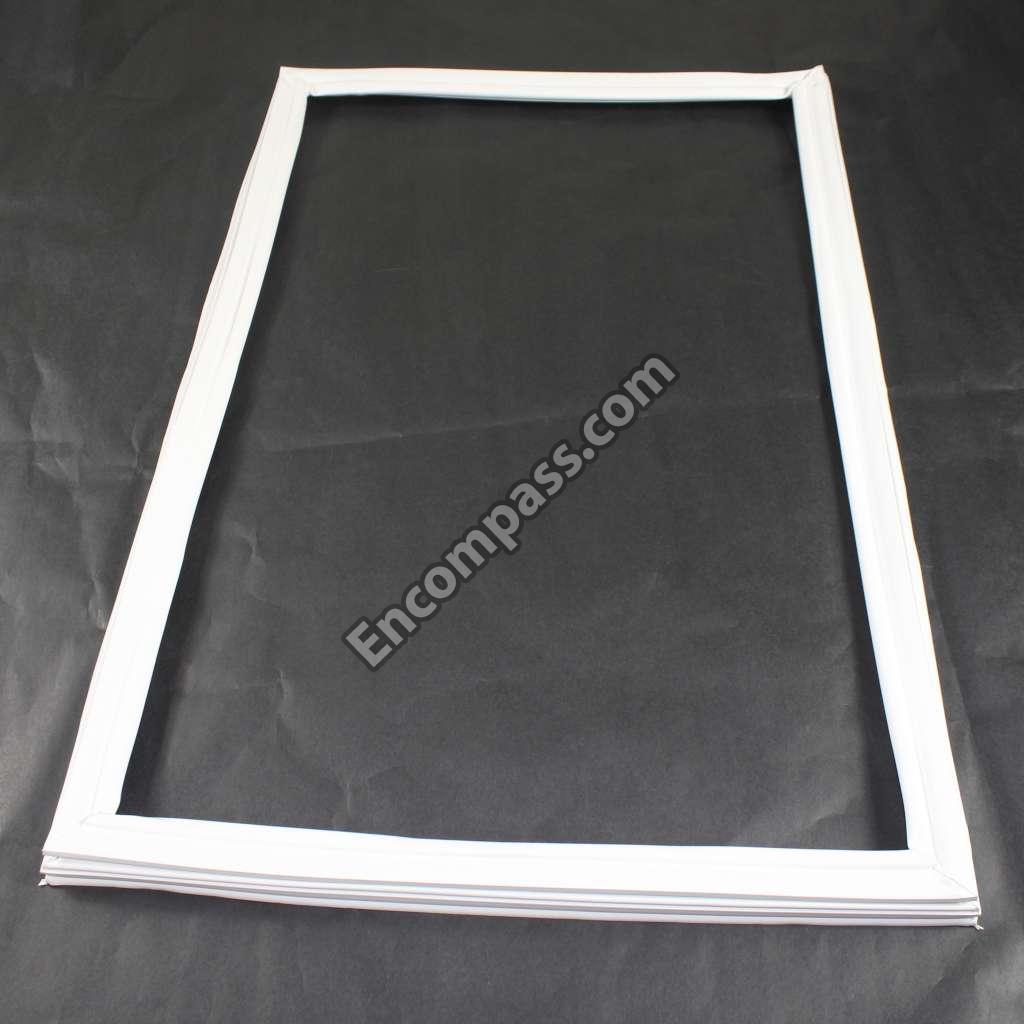

WR24X10228 WR24X10228 GSKT DOOR FZ
WR02X10530 WR02X10530 GUSSET LH
WR02X10529 WR02X10529 GUSSET RH
WR51X10072 WR51X10072 HEATER CONDUCTION
WR51X10038 WR51X10038 HEATER DEF ASM

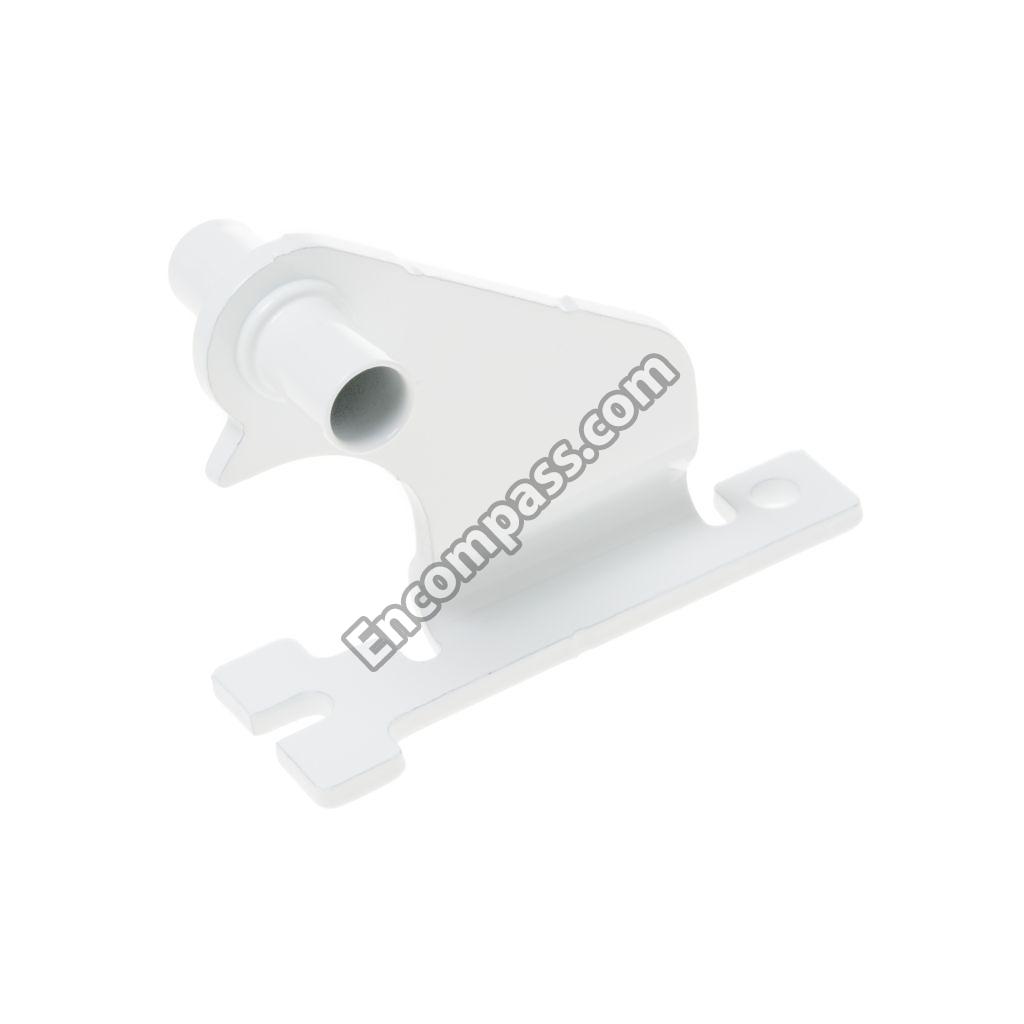

WR13X10315 WR13X10315 HINGE BTM
WR13X10986 WR13X10986 HINGE CTR AND PIN ASSEMBLY
WR13X10323 WR13X10323 HNG TOP/PIN WHT
WR02X10518 WR02X10518 HOLDER ELEMENT

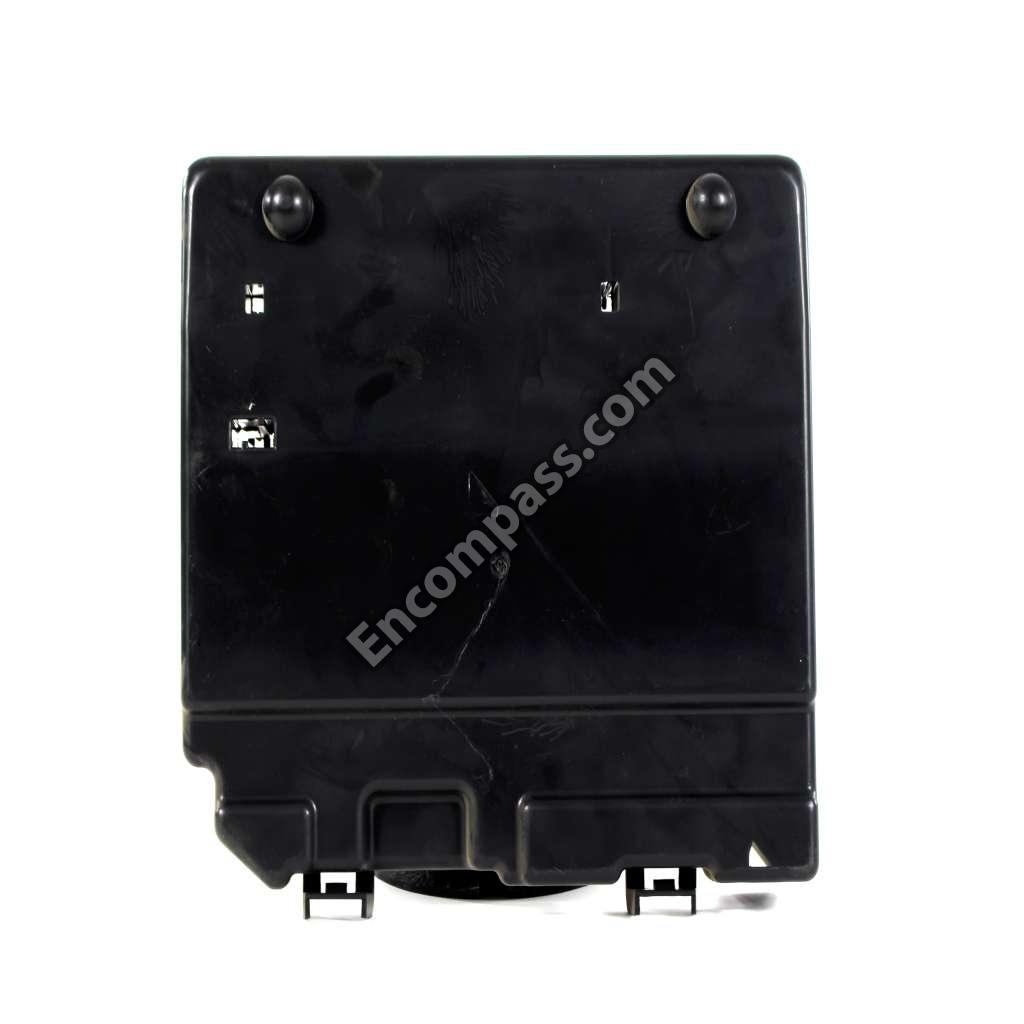

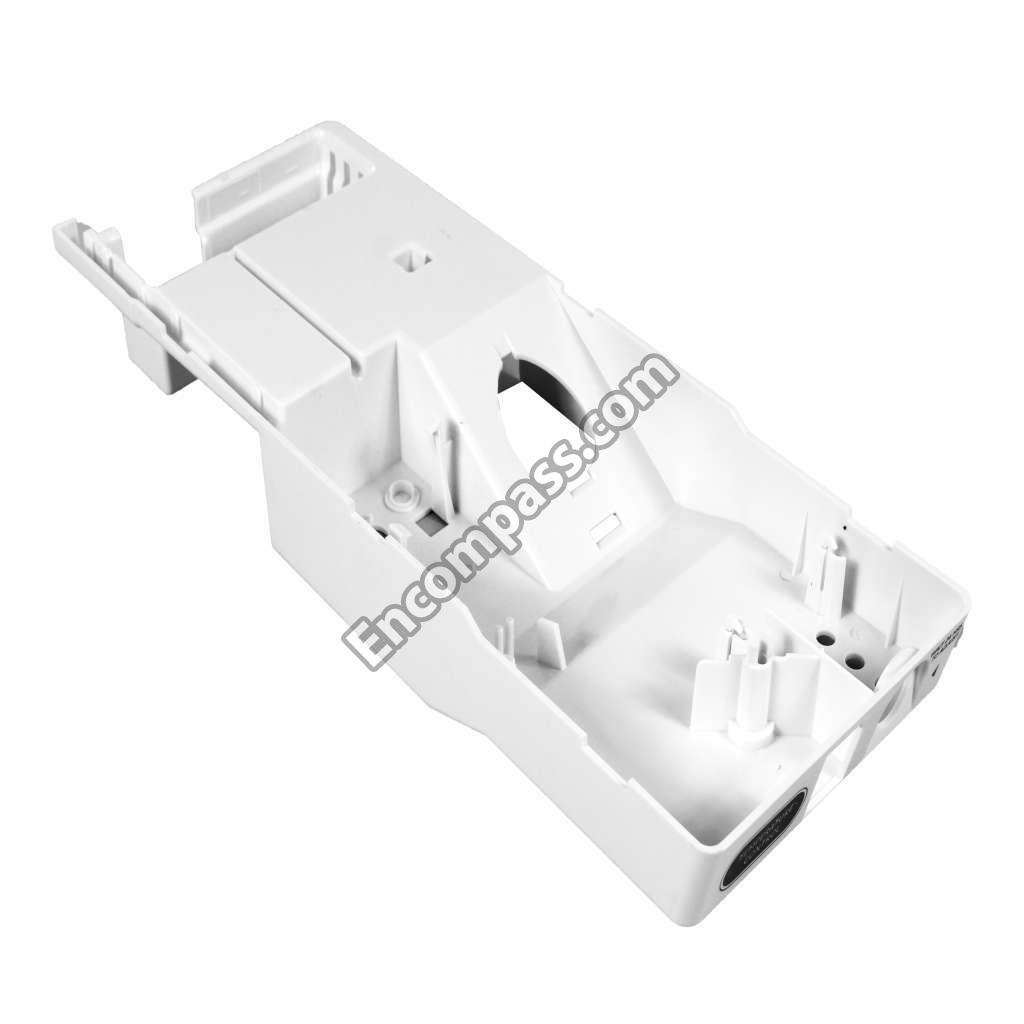

WR17X12852 WR17X12852 HOUSING CONTROL

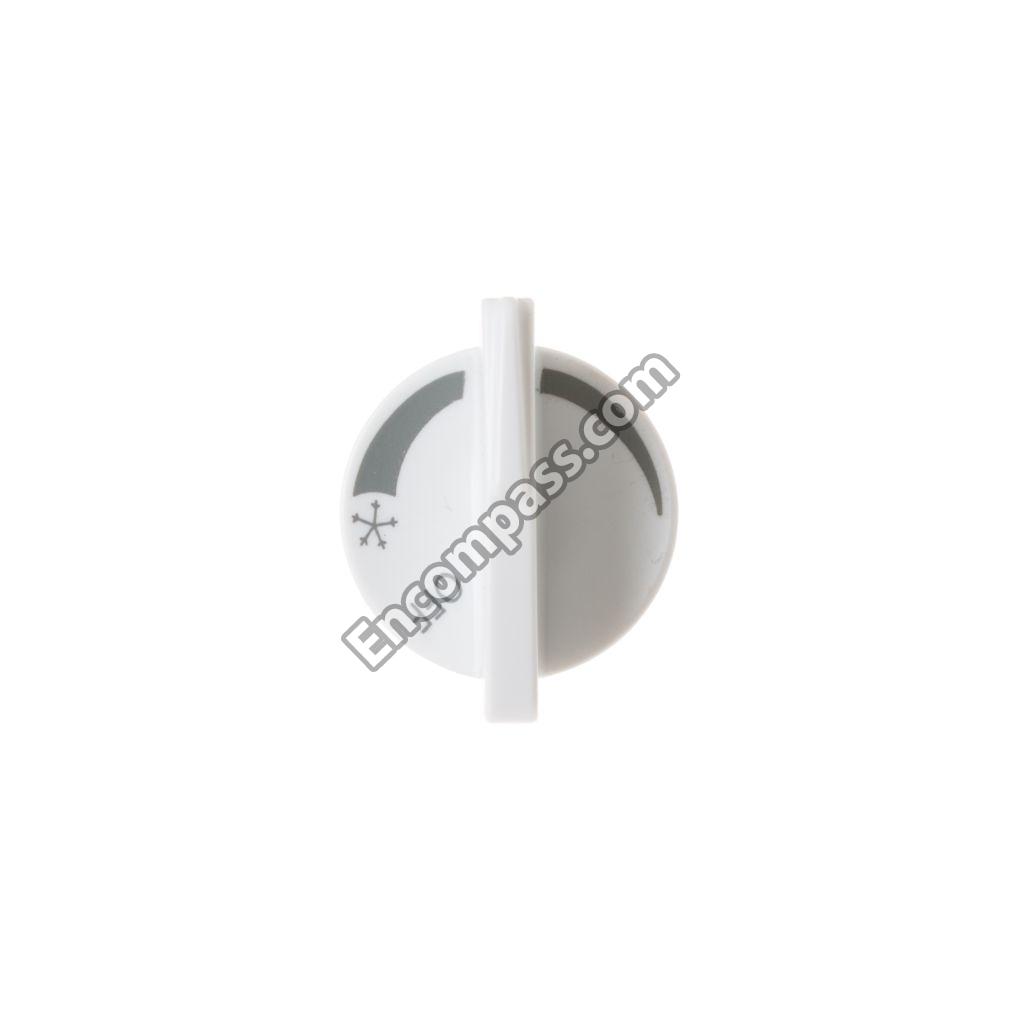

WR02X13355 WR02X13355 KNOB CONTROL

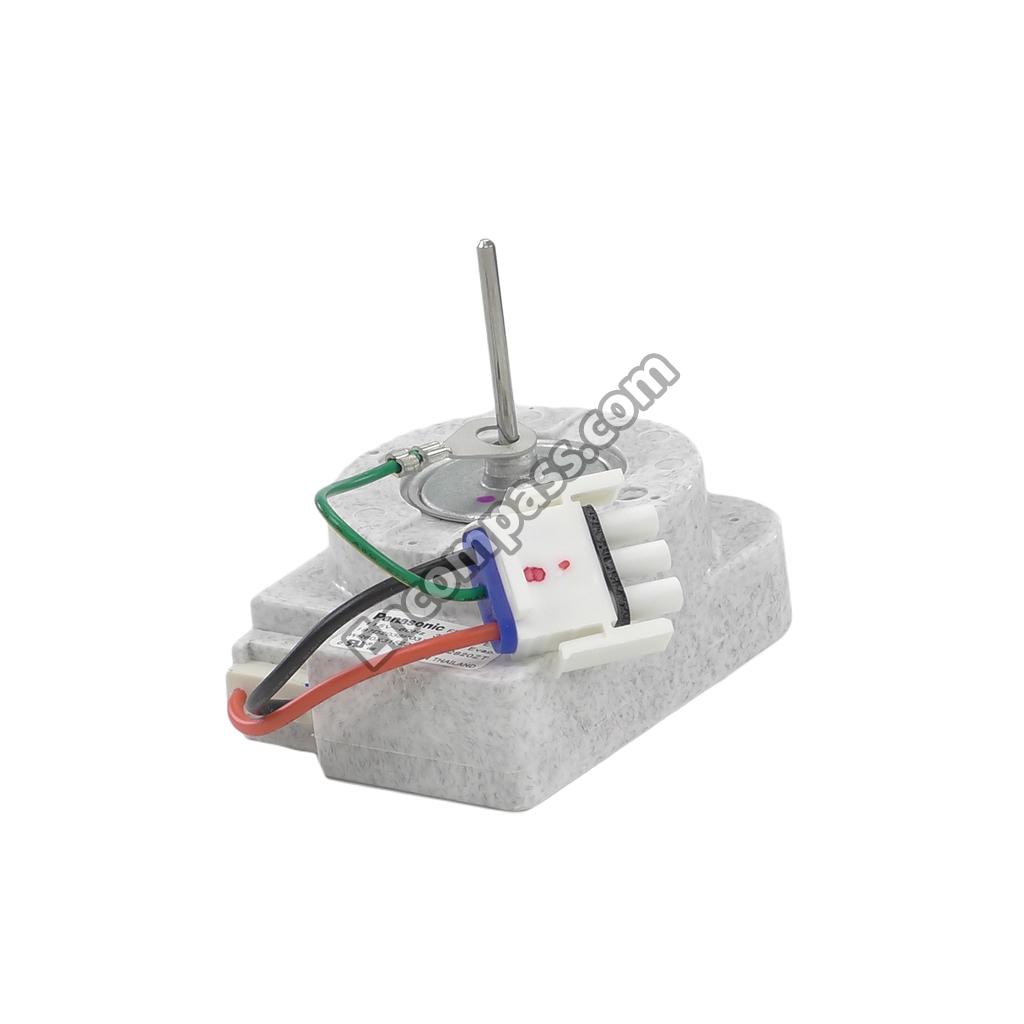

WR60X31522 WR60X31522 MOTOR AC/DC

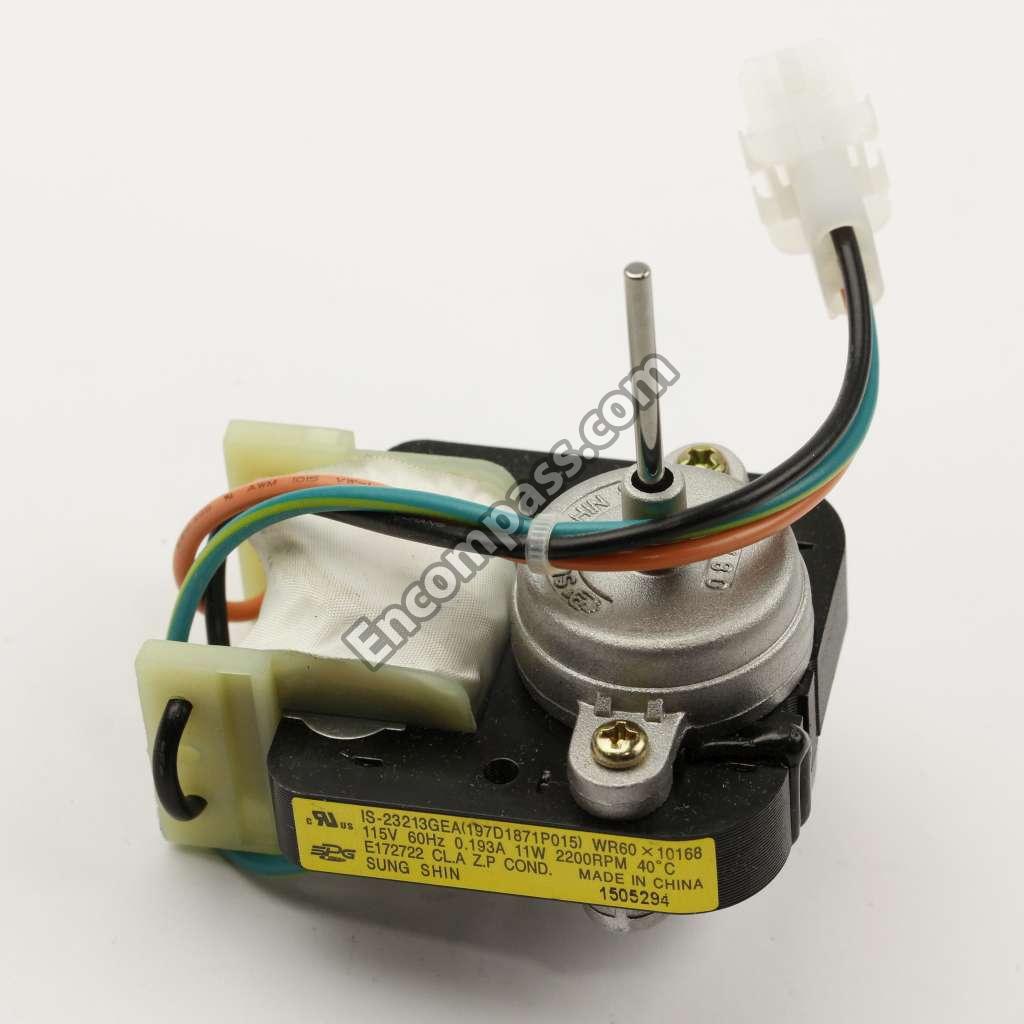

WR60X10168 WR60X10168 MOTOR COND FAN
WR4X200 WR4X200 NAMEPLATE

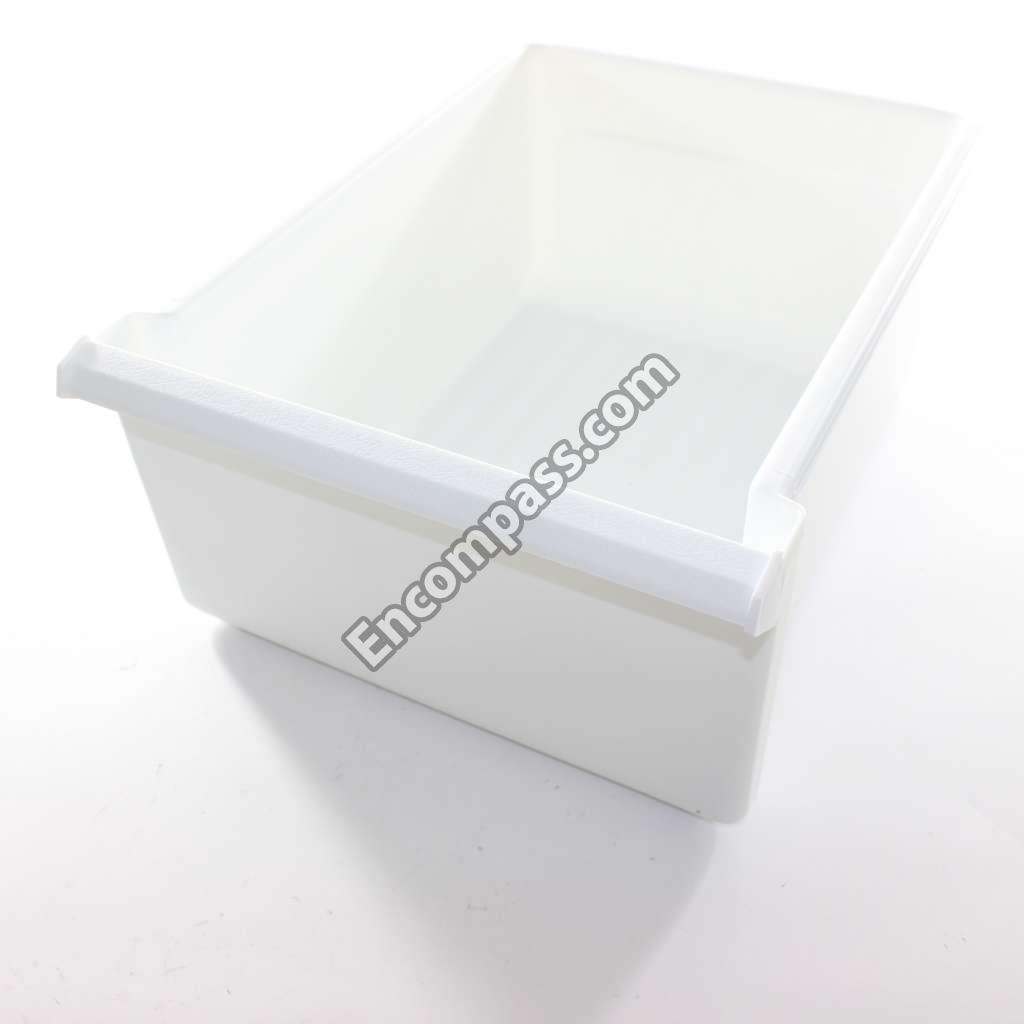

WR32X1455 WR32X1455 PAN VEG TWIN LOW
WR13X10997 WR13X10997 PIN HINGE CTR

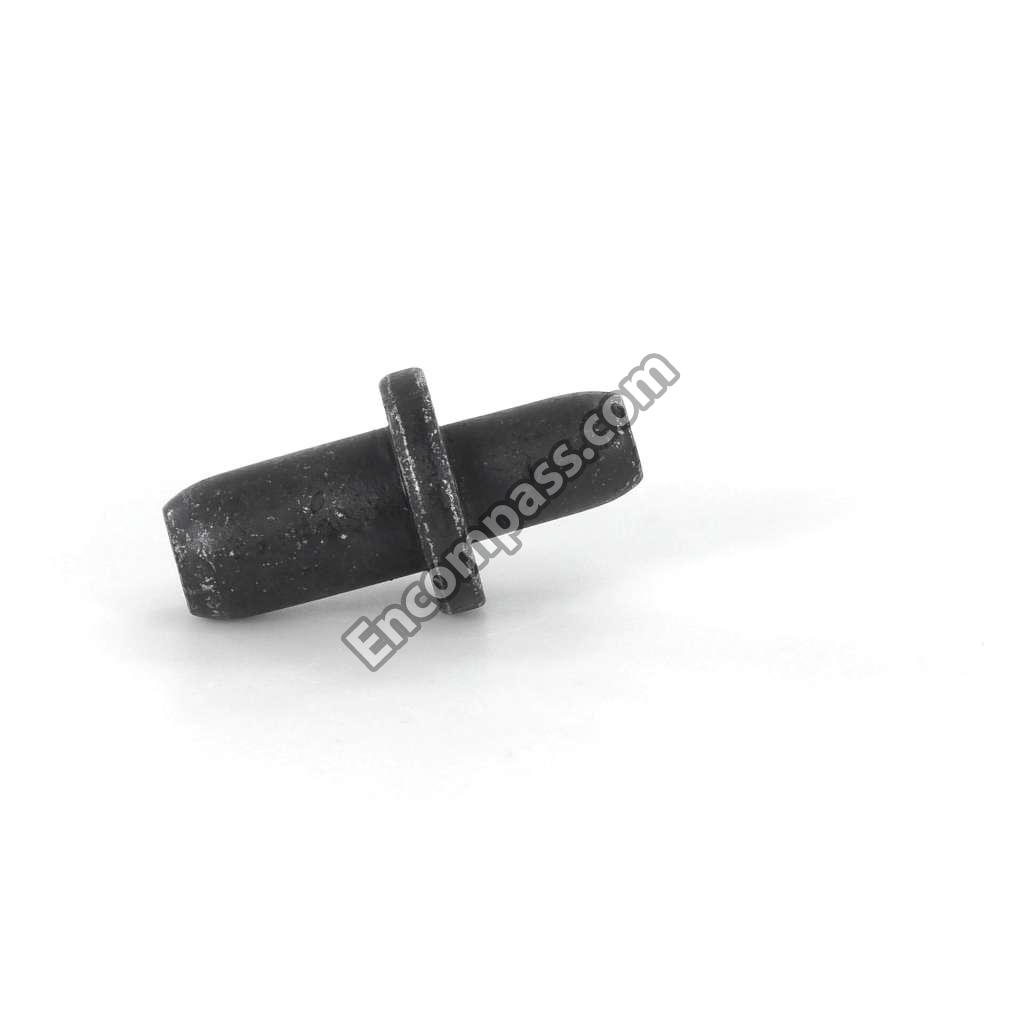

WR02X27092 WR02X27092 PIN HINGE METAL
WR02X11760 WR02X11760 PLUG BUTTON
WR78X24533 WR78X24533 PS POCKET FZ DOOR WW 16/
WR86X25269 WR86X25269 R134 DRIER
WR02X11123 WR02X11123 REFER ICE MAKER RECEPTACLE COVER - WHITE

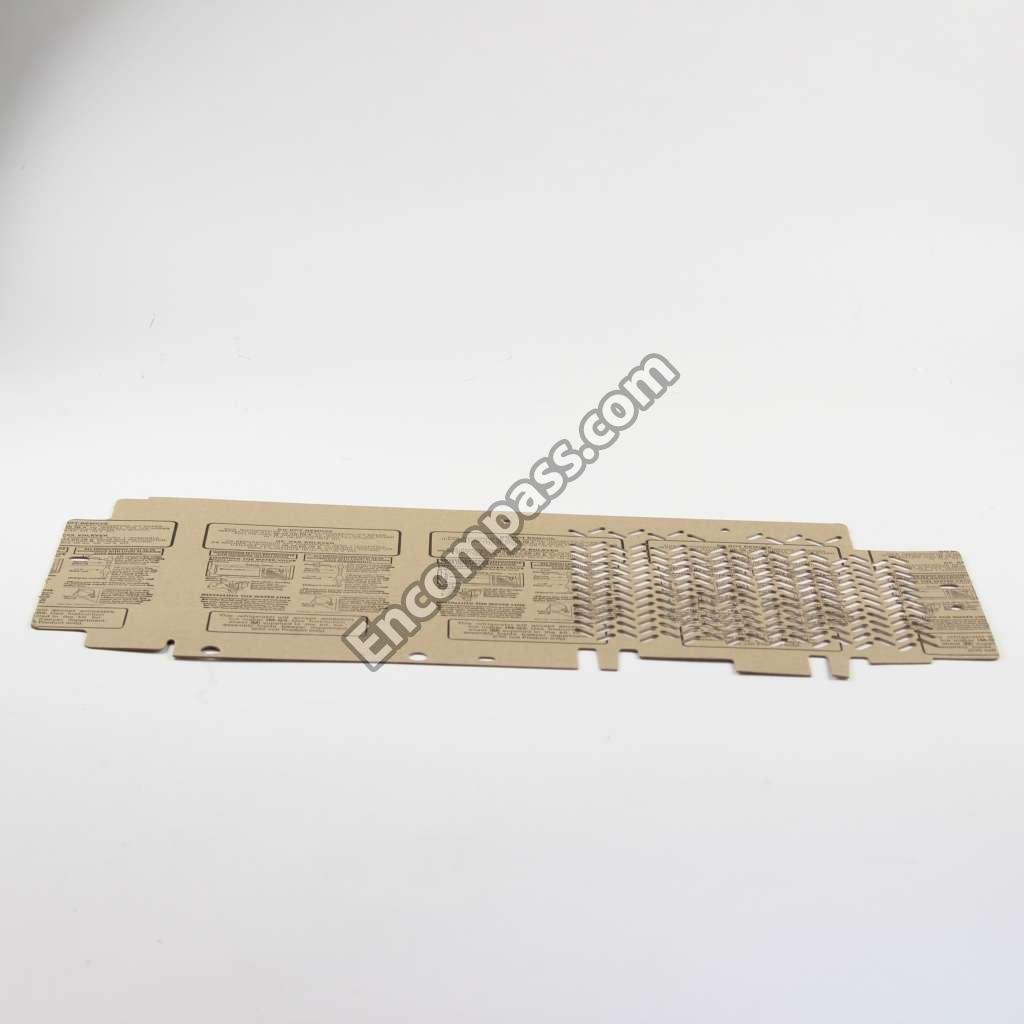

WR82X10111 WR82X10111 REFRIGERATOR ACCESS PANEL
WR2X8214 WR2X8214 REFRIGERATOR AXLE WHEEL

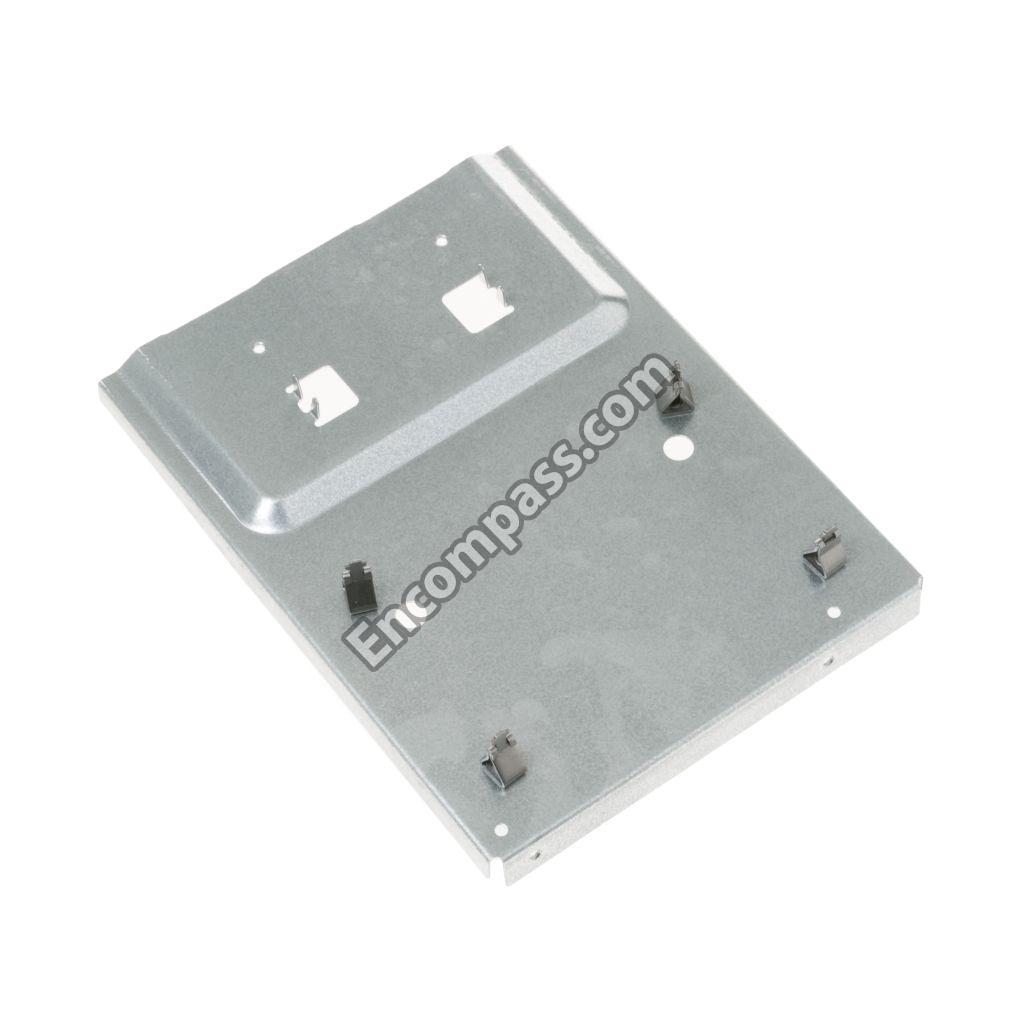

WR17X10195 WR17X10195 REFRIGERATOR COMPRESSOR MOUNTING PLATE

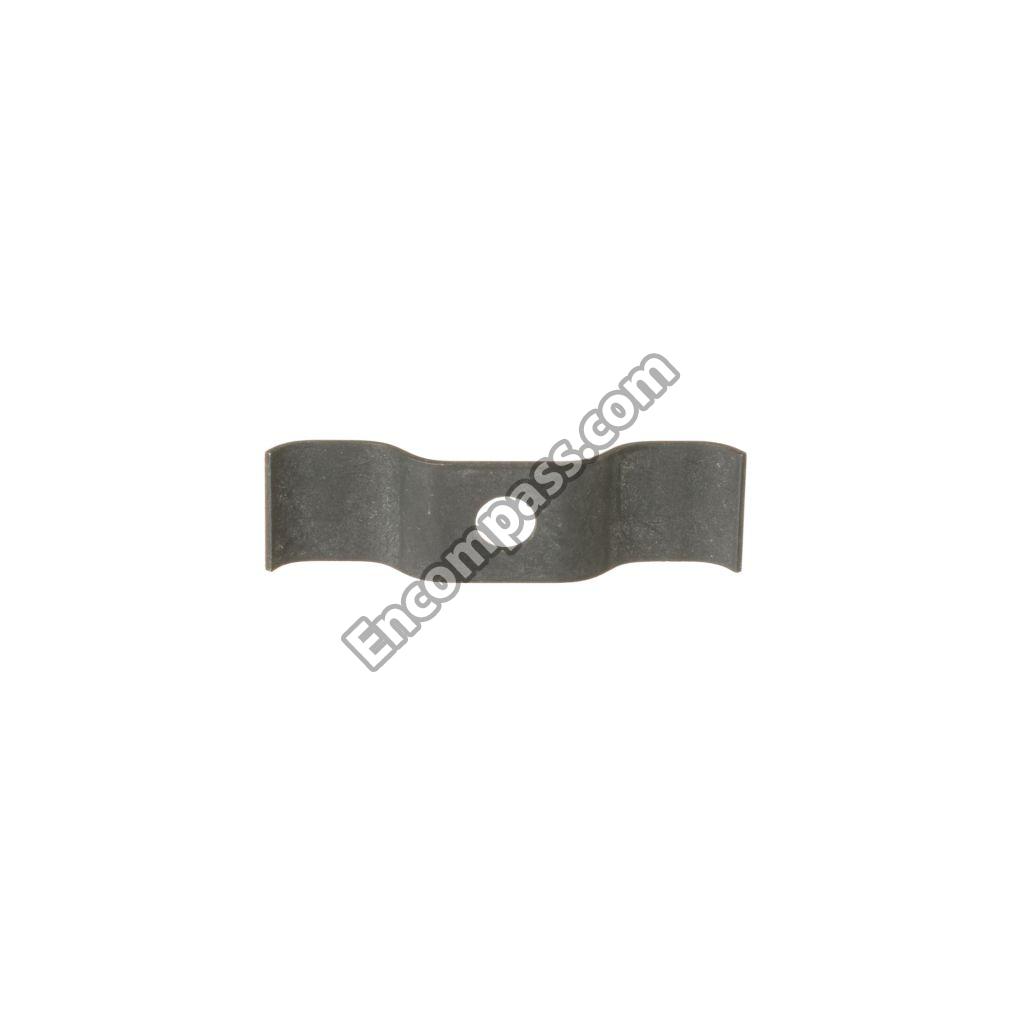

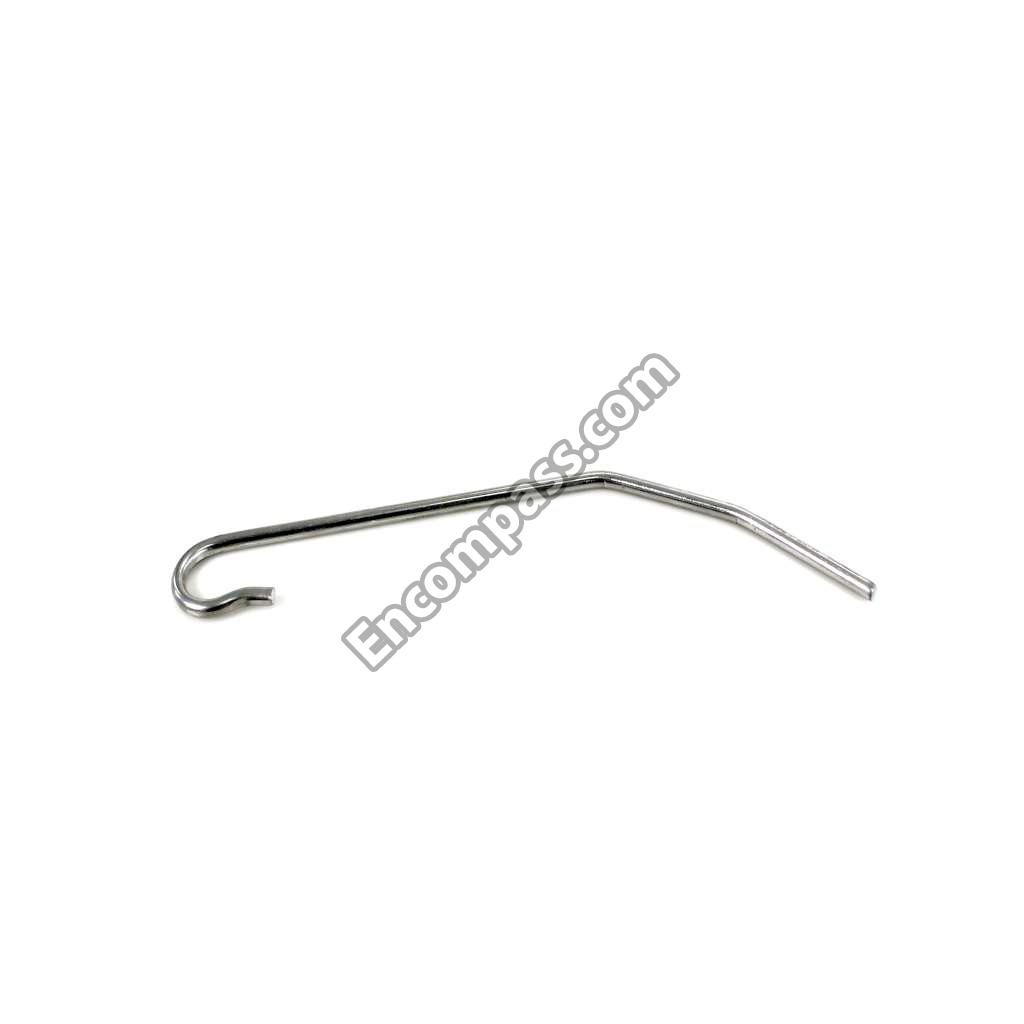

WR2X9000 WR2X9000 REFRIGERATOR CONDENSER CLIP

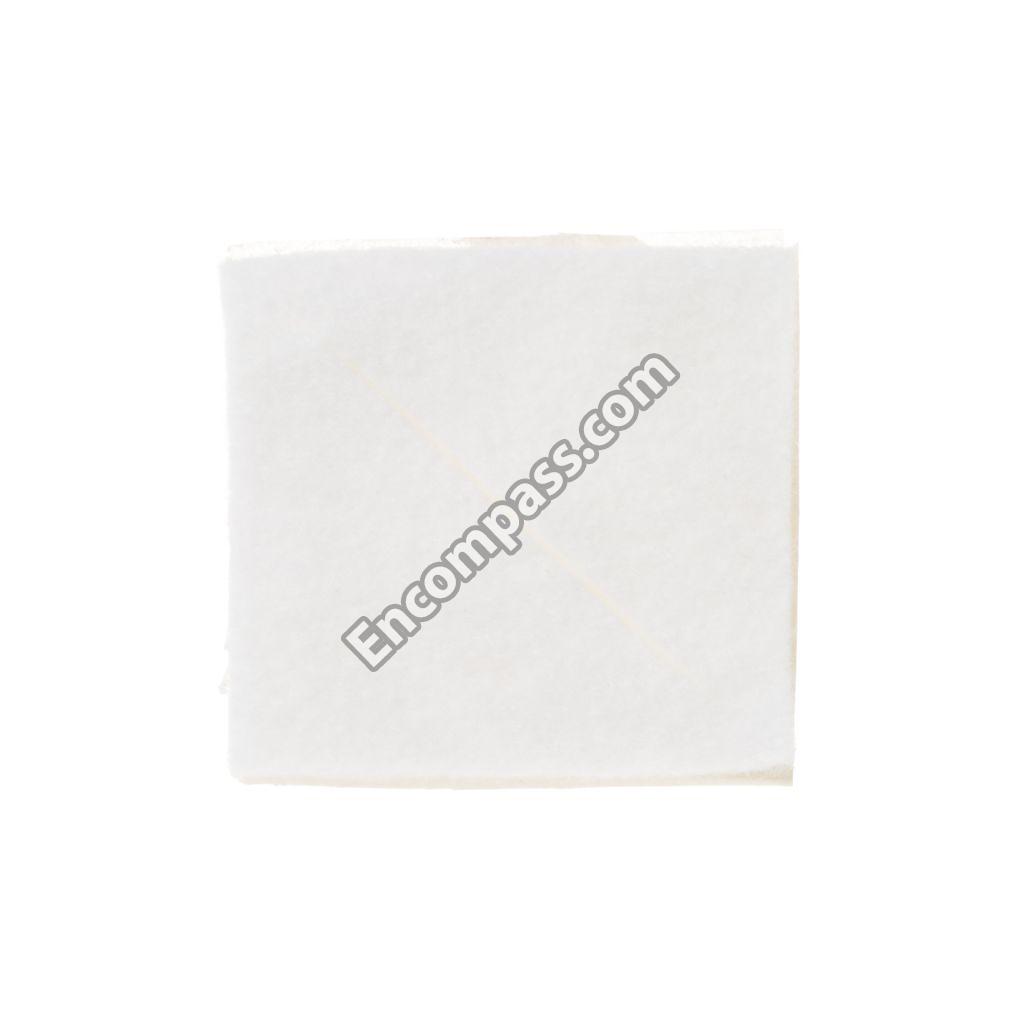

WR02X10534 WR02X10534 REFRIGERATOR CONDENSER FELT TAPE
WR1X1794 WR1X1794 REFRIGERATOR DOOR SPACER

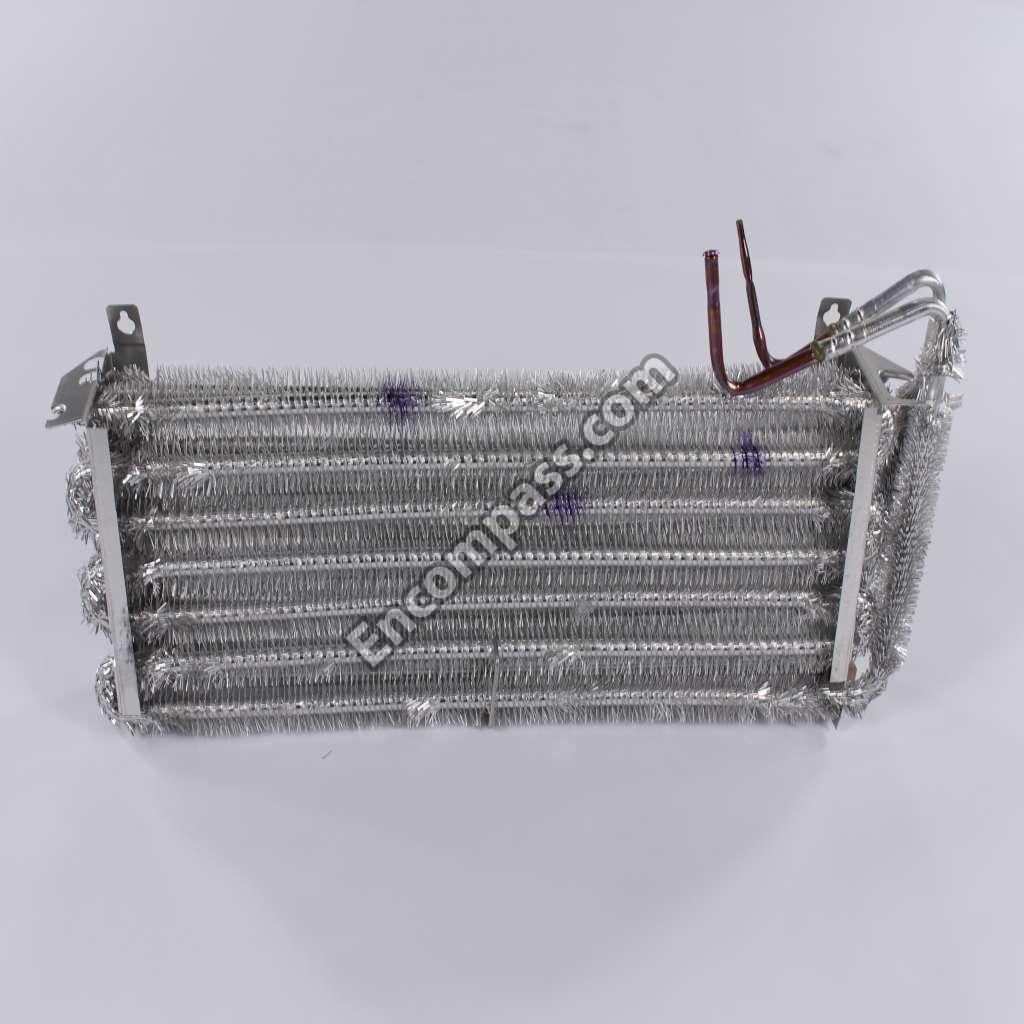

WR87X28948 WR87X28948 REFRIGERATOR EVAPORATOR
WR14X313 WR14X313 REFRIGERATOR GASKET COVER

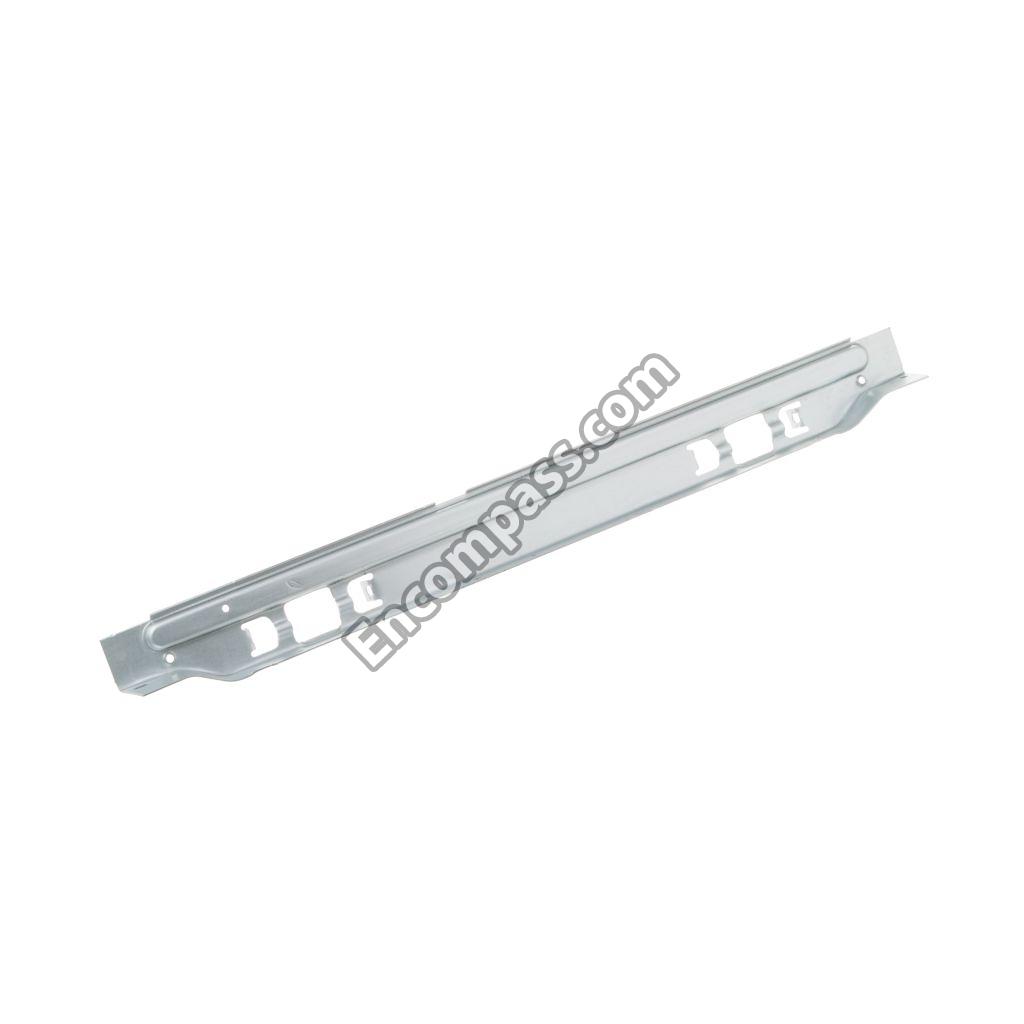

WR17X3188 WR17X3188 REFRIGERATOR REAR SHELF RAIL

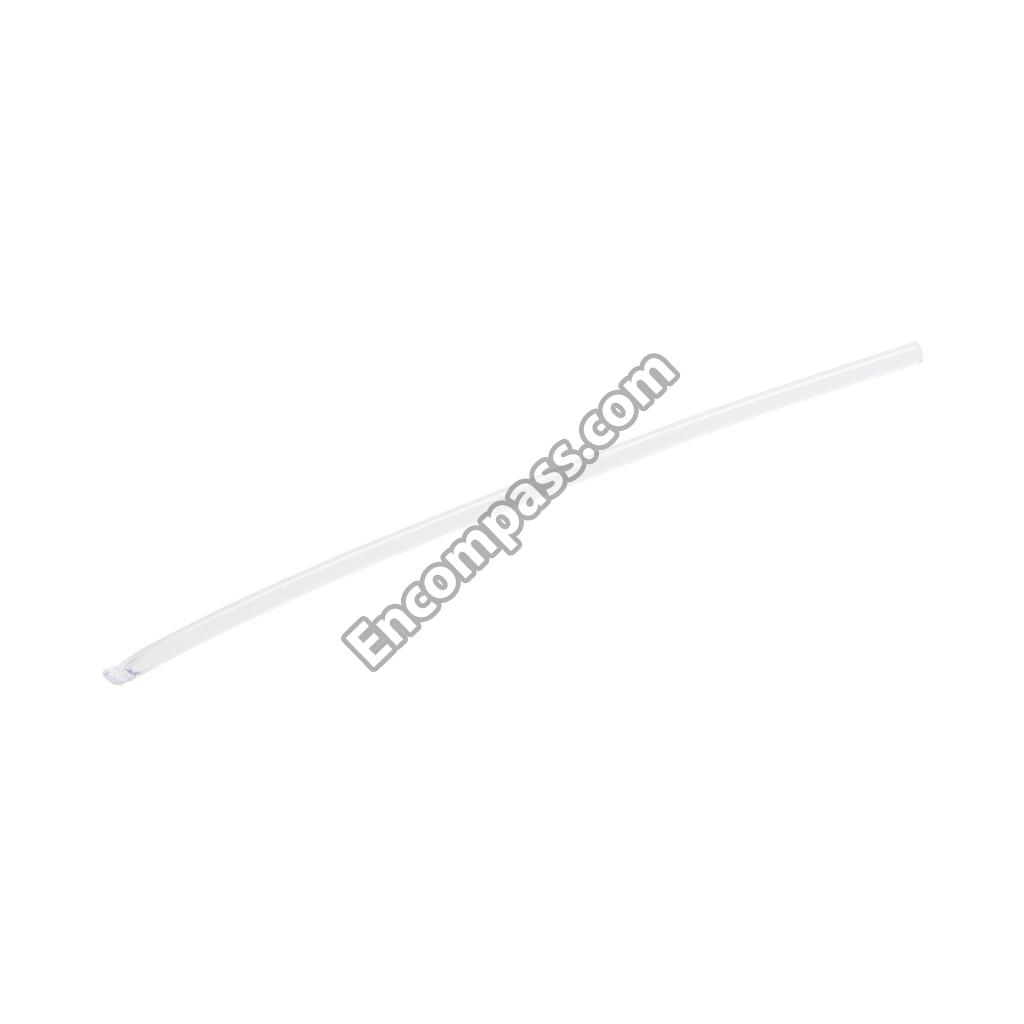

WR2X8344 WR2X8344 REFRIGERATOR VINYL SLEEVE

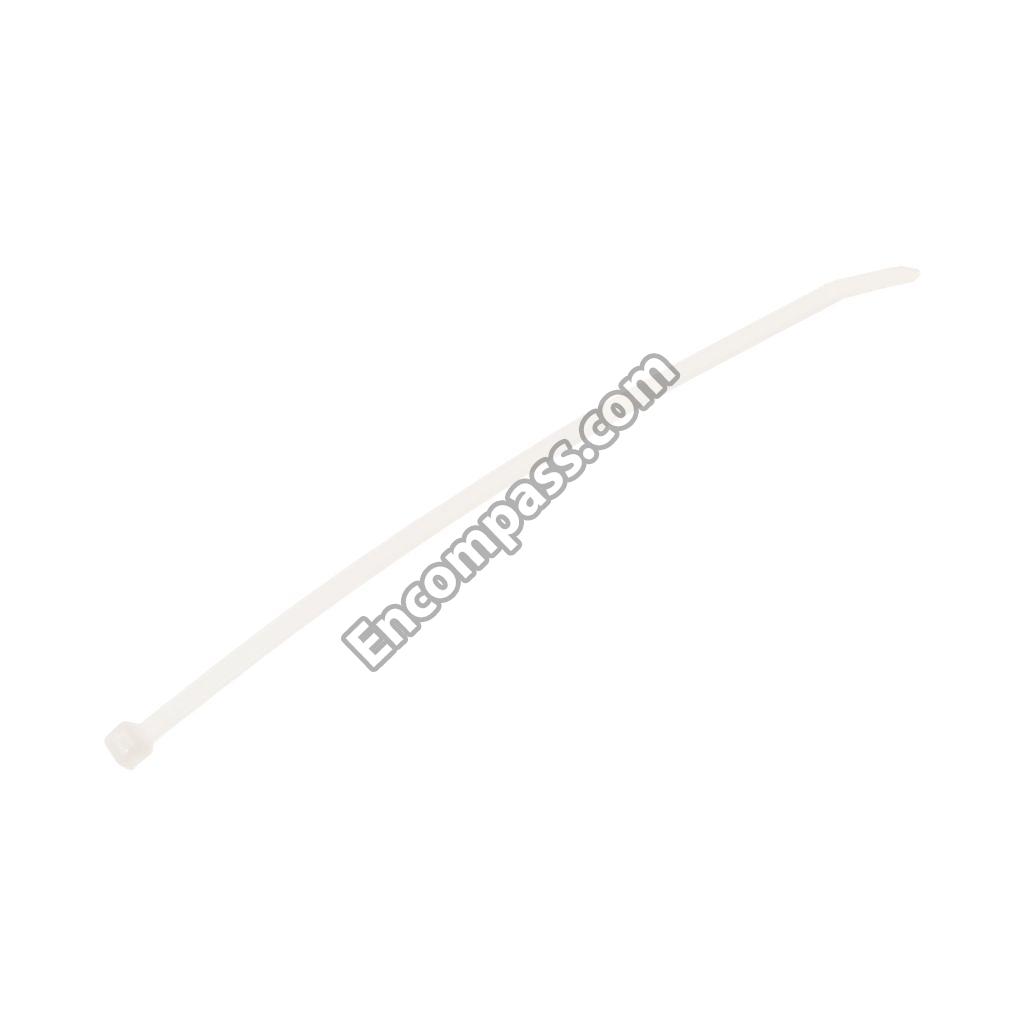

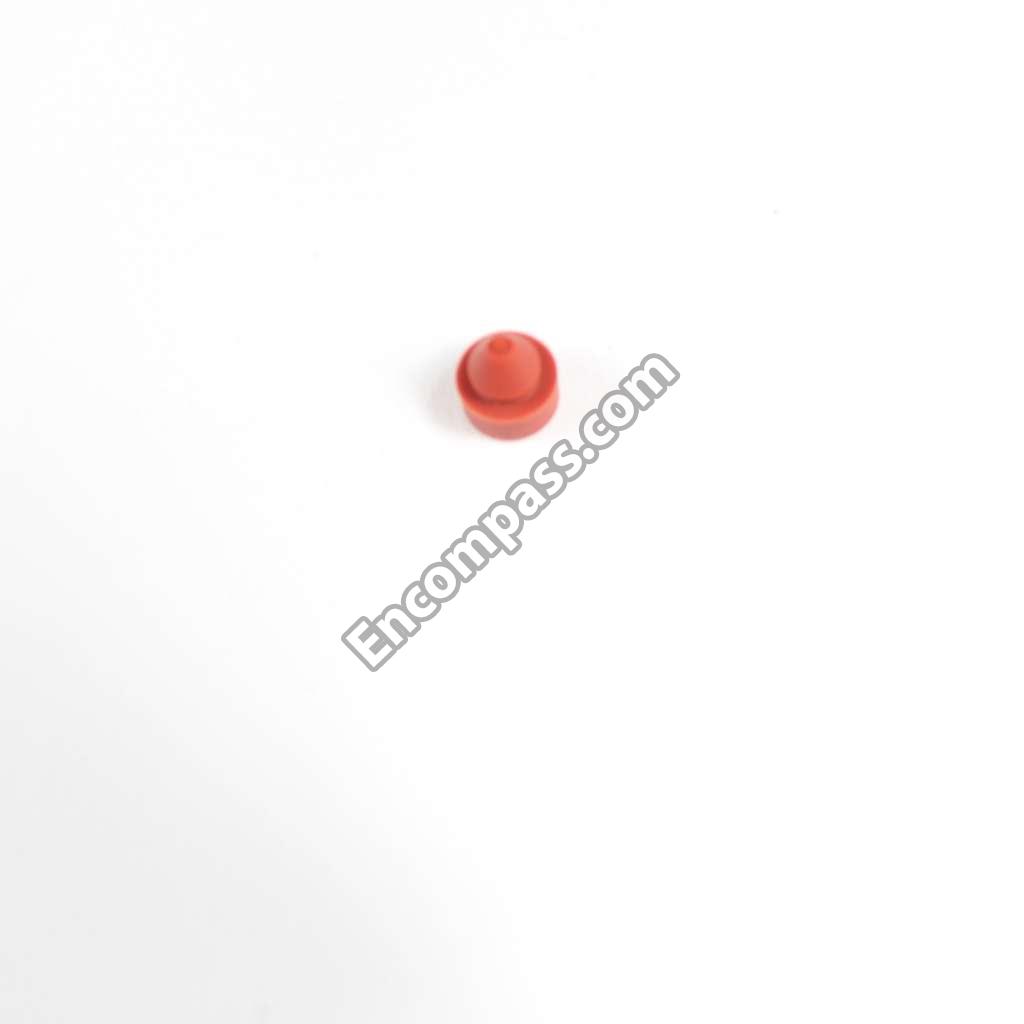

WR02X11607 WR02X11607 REFRIGERATOR WIRE TIE/PLUG

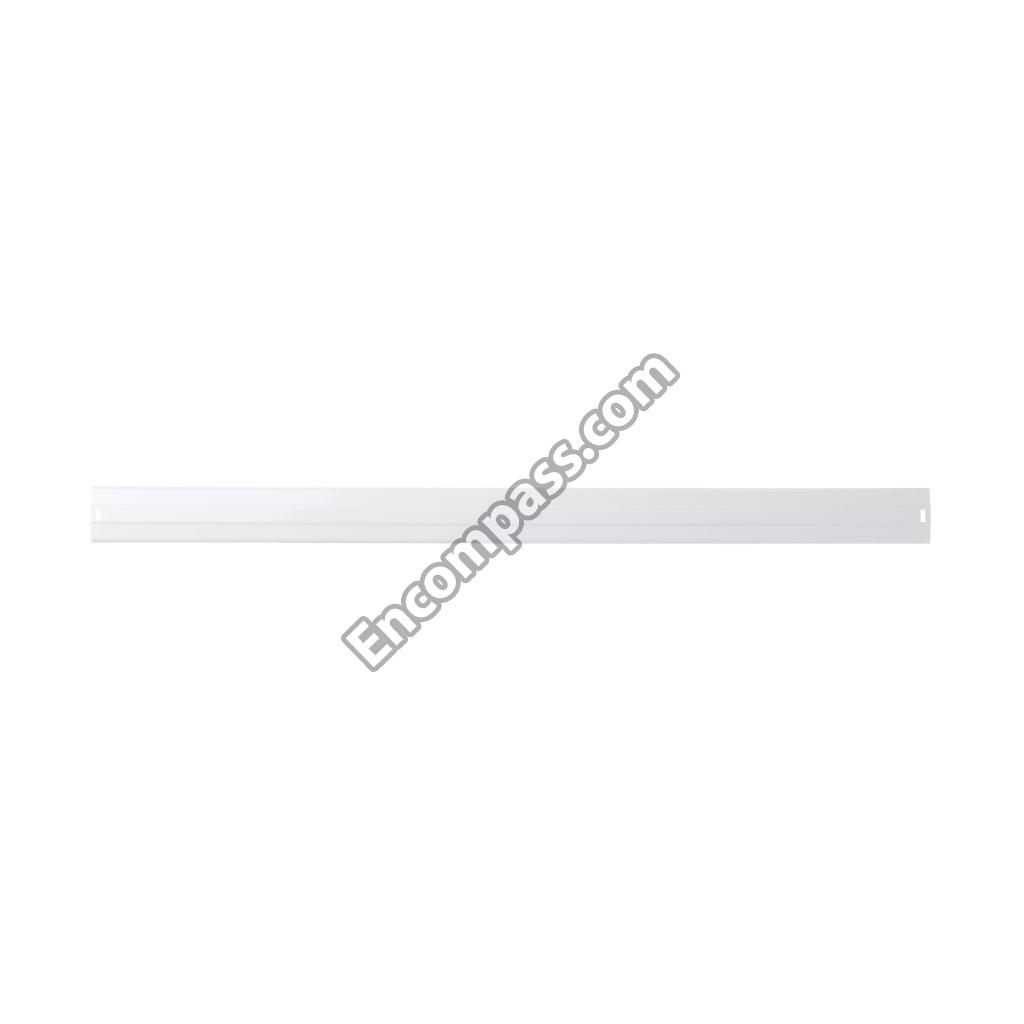

WR02X9221 WR02X9221 RET STRIP V

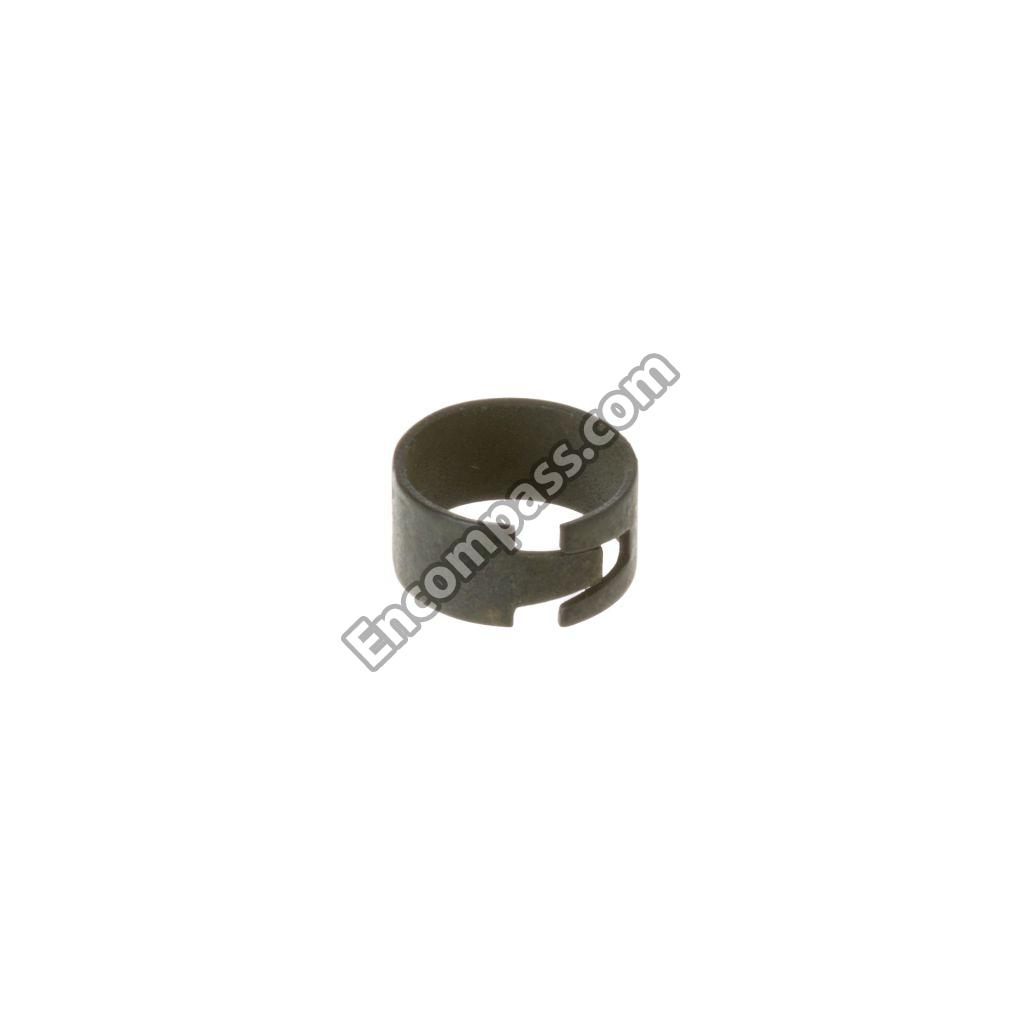

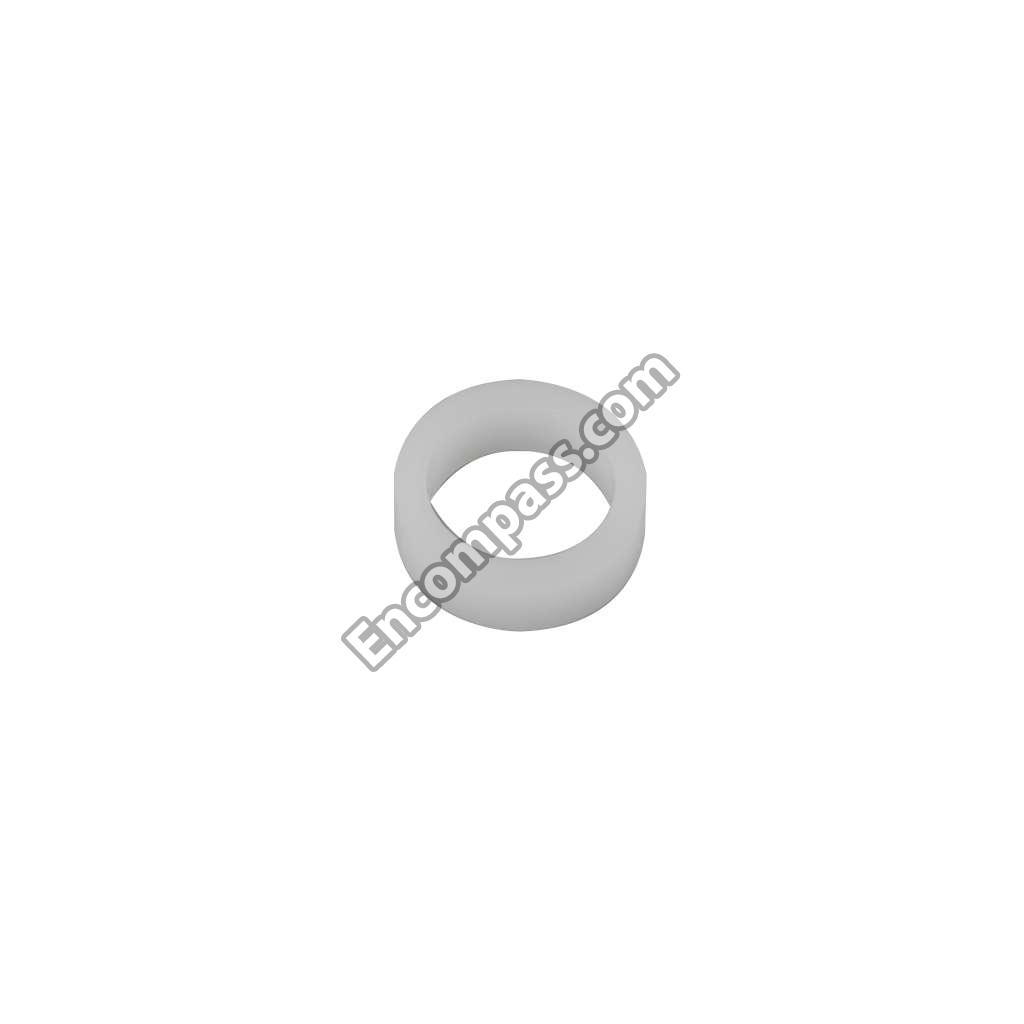

WR02X12149 WR02X12149 RING COMPRESSION

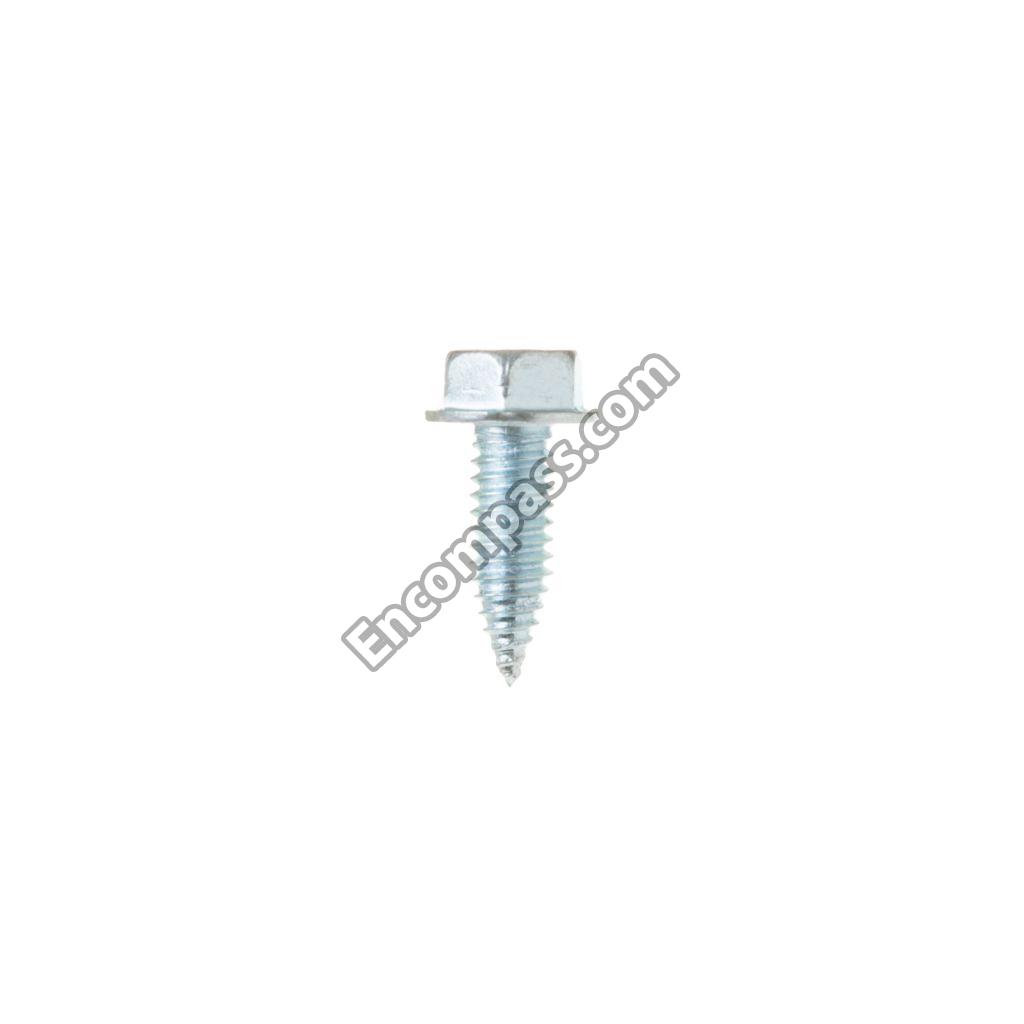

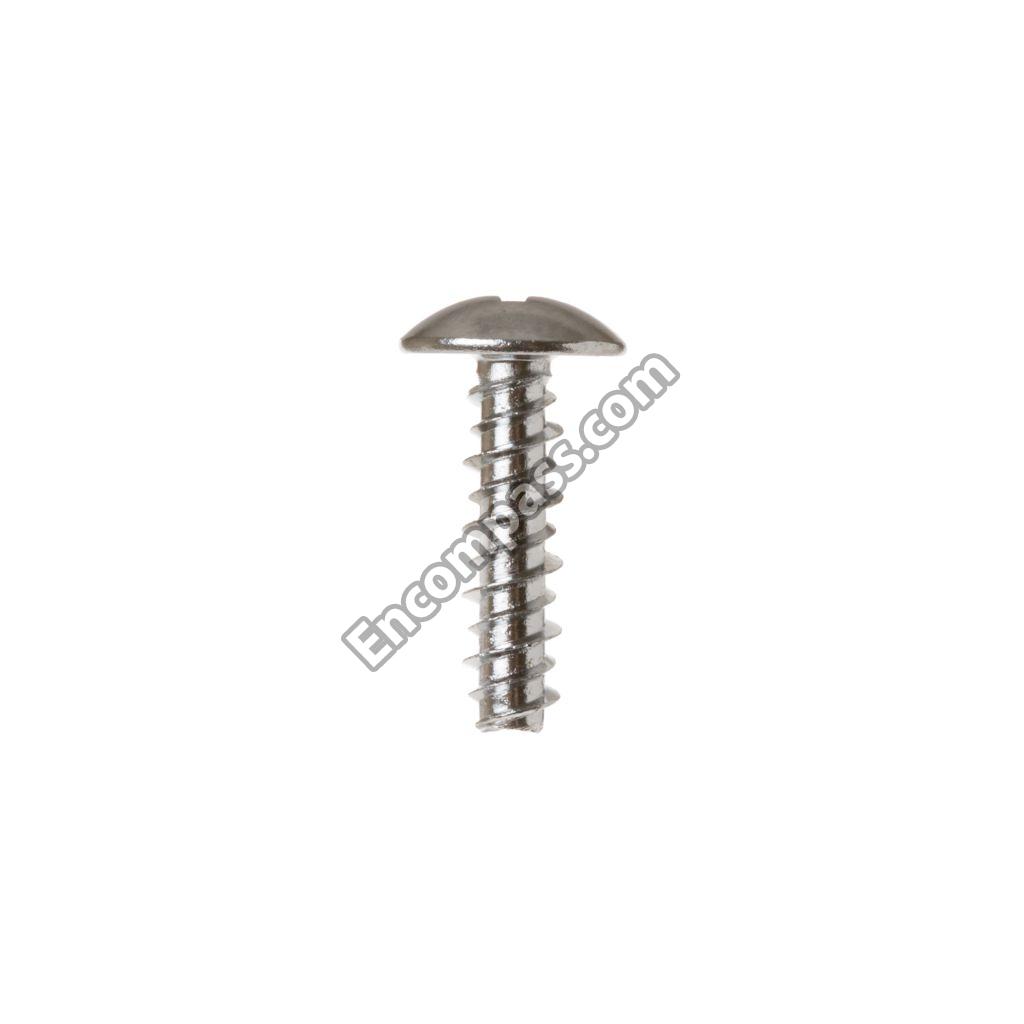

WR01X10590 WR01X10590 SCR 10-16 AB PNT20 1/2 S
WR01X10448 WR01X10448 SCR 8-19 HI/LO TRP 1 S

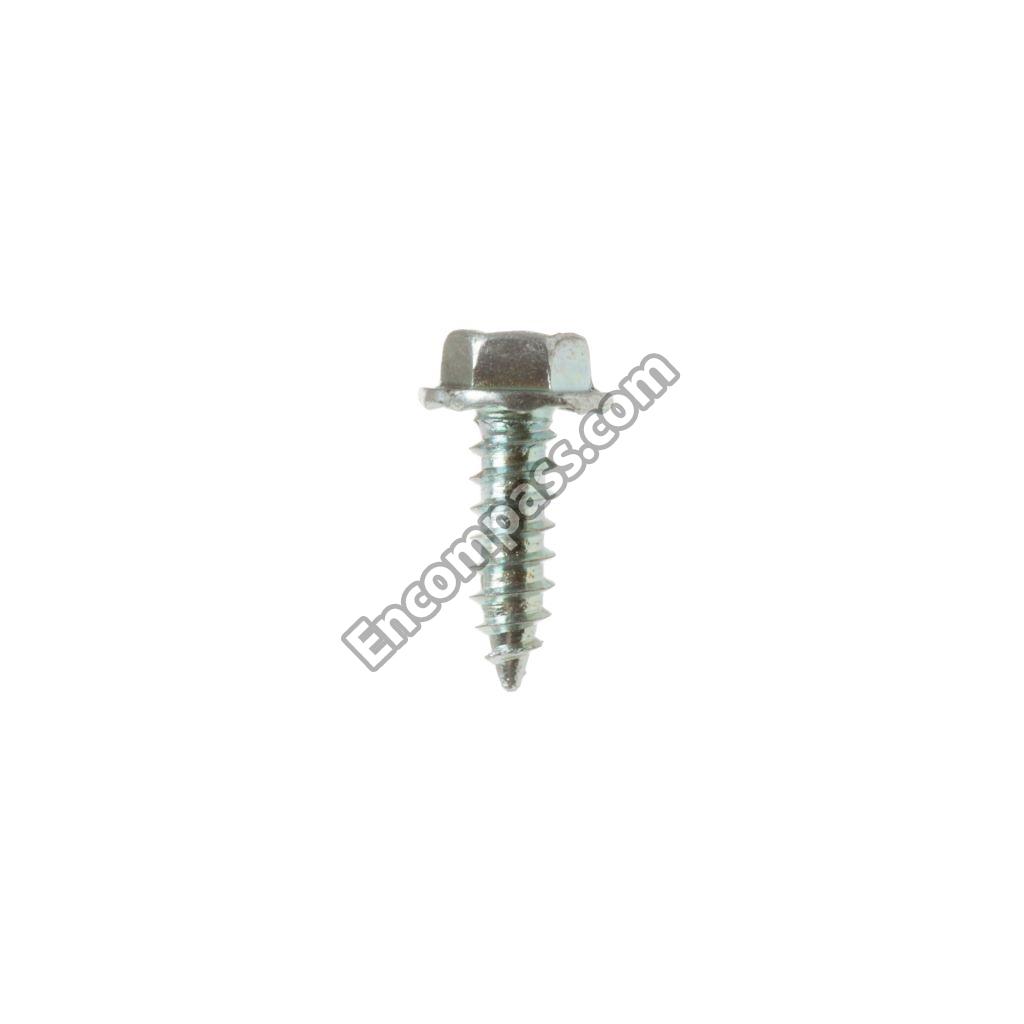

WR1X1786 WR1X1786 SCREW
WD2X5166 WD2X5166 SCREW
WR1X1753 WR1X1753 SCREW
WR01X10317 WR01X10317 SCREW 8-32 CA HXW 1/2
WR1X1791D WR1X1791D SCREW-PKG - 13 PACK
WR1X1249D WR1X1249D SCREW-PKG 12

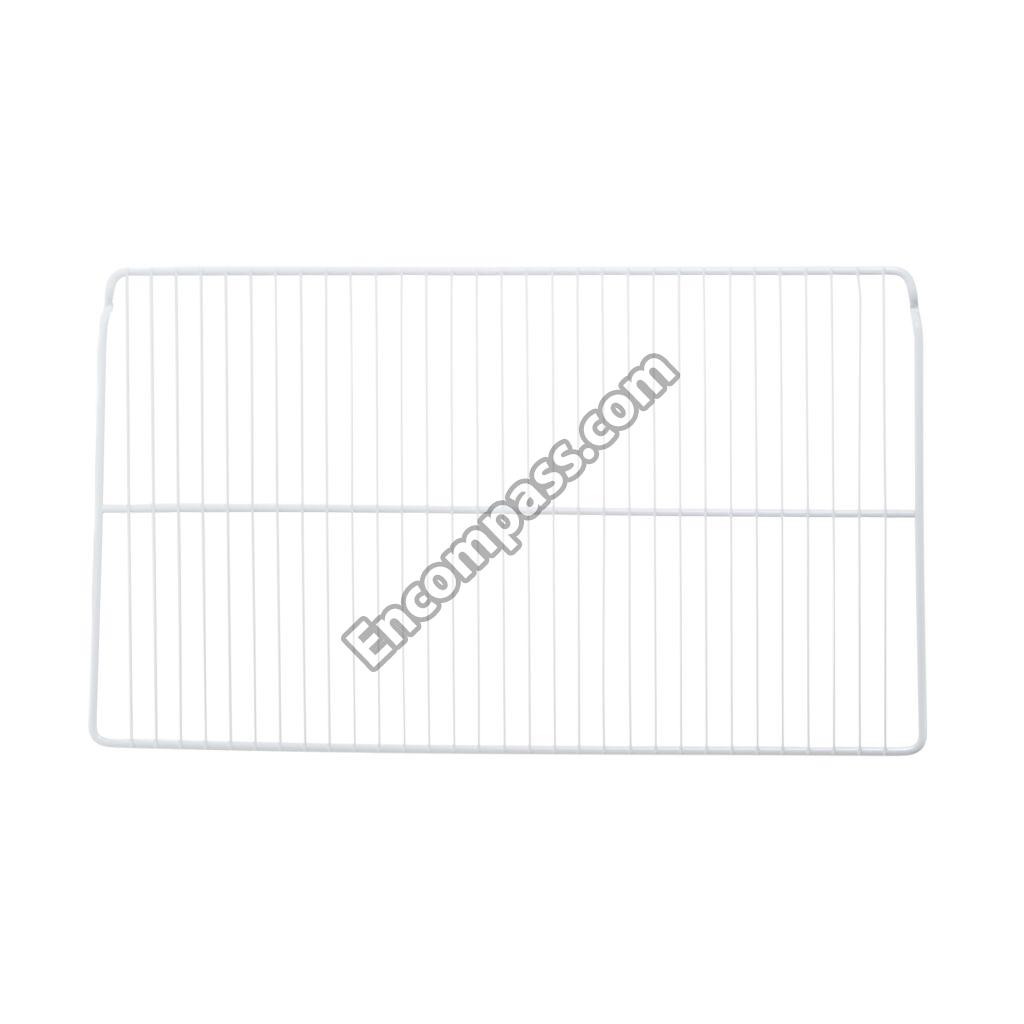

WR71X10378 WR71X10378 SHELF ASM STATIONARY
WR71X2451 WR71X2451 SHELF ICE TRAY

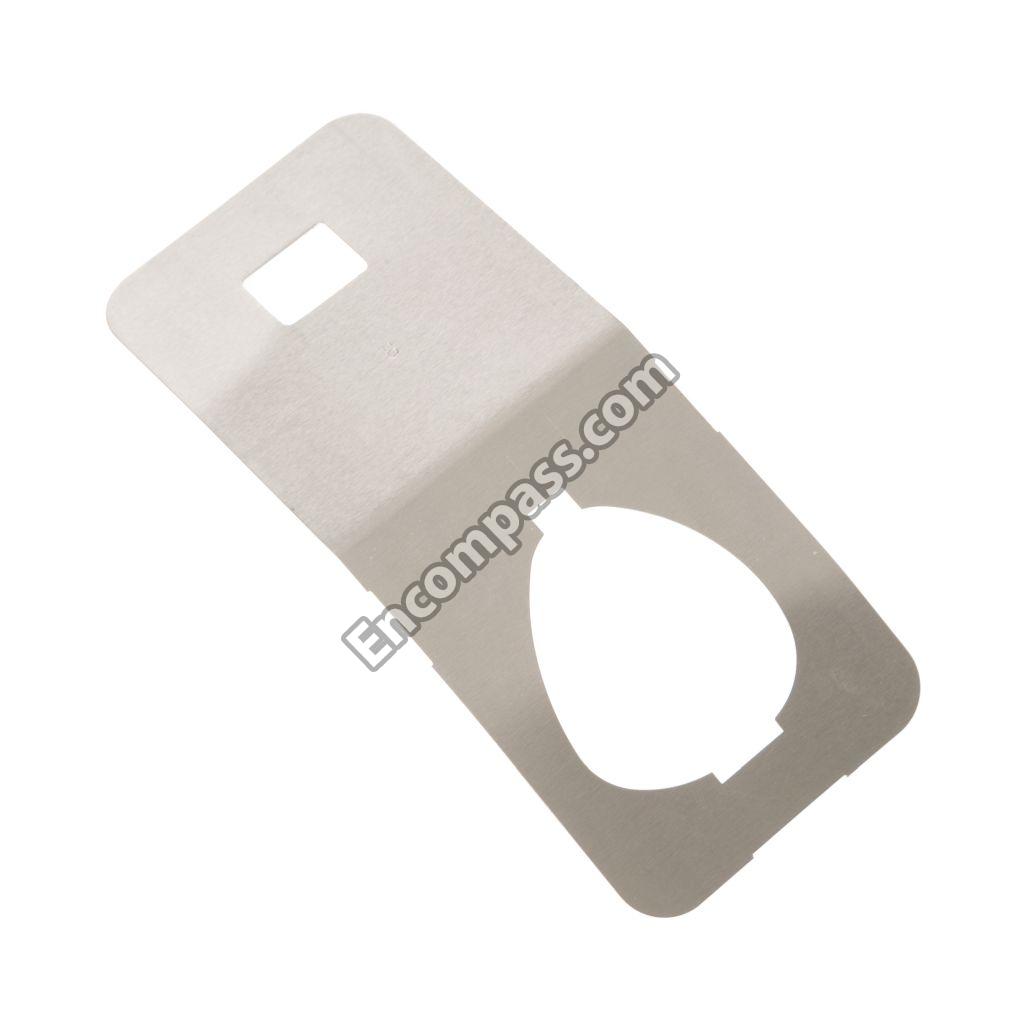

WR02X11597 WR02X11597 SHIELD REFLECTOR
WR02X10511 WR02X10511 SHIM HINGE CTR
WR01X10623 WR01X10623 SHOULDER SCR

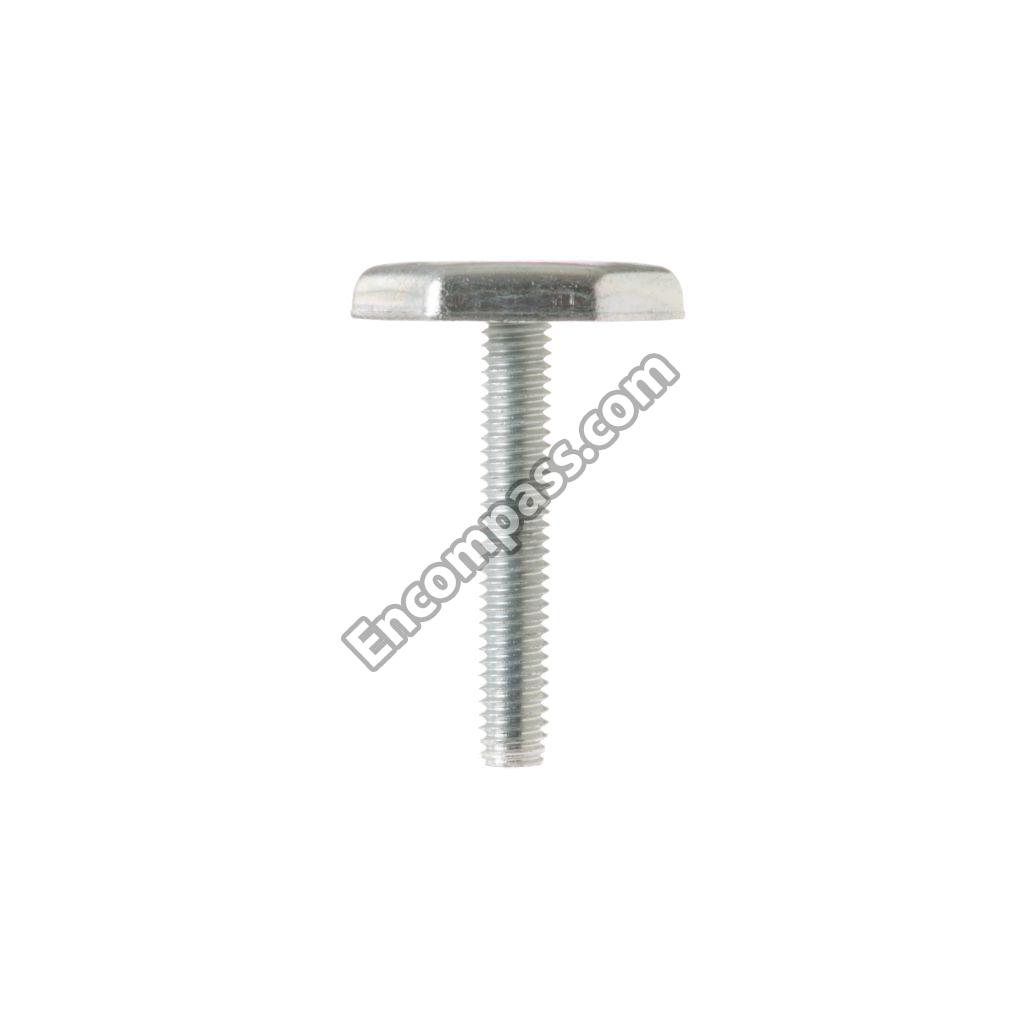

WR2X7877 WR2X7877 SLIDER ADJ

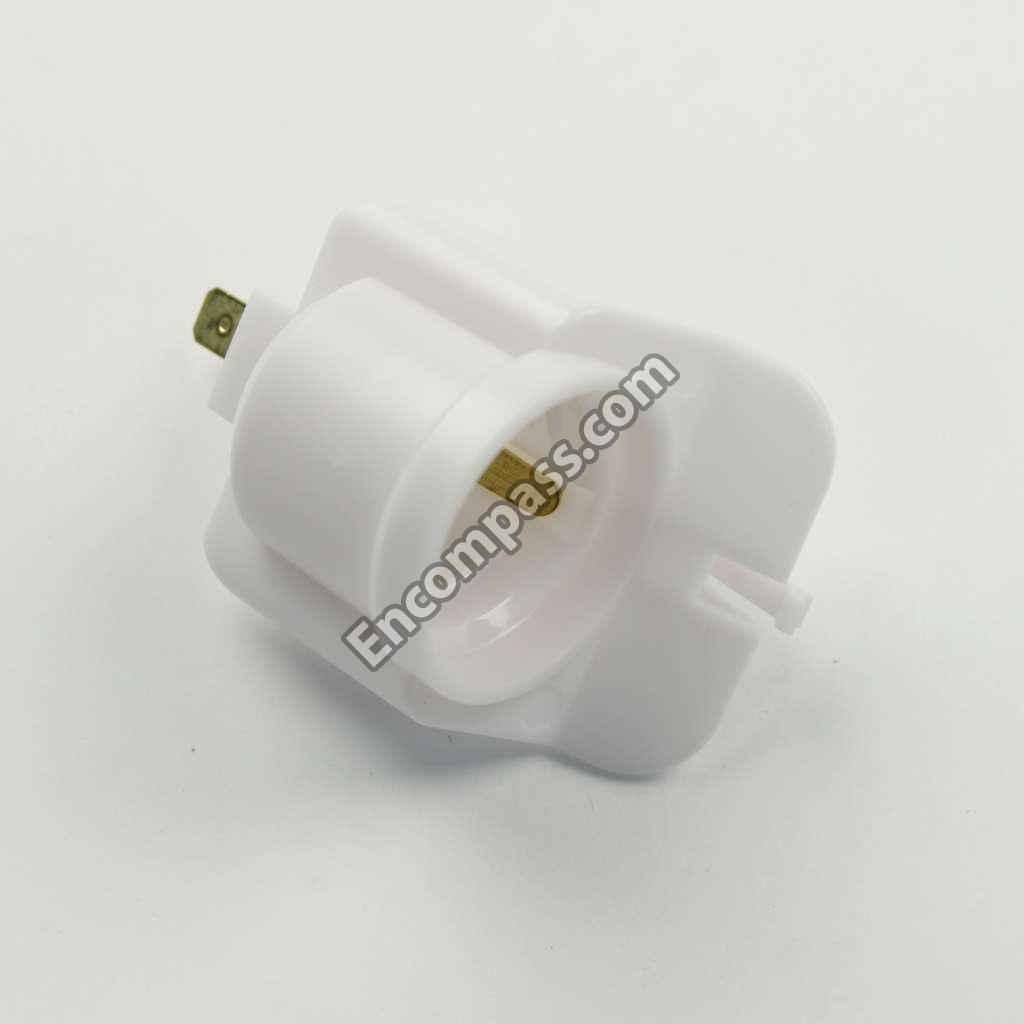

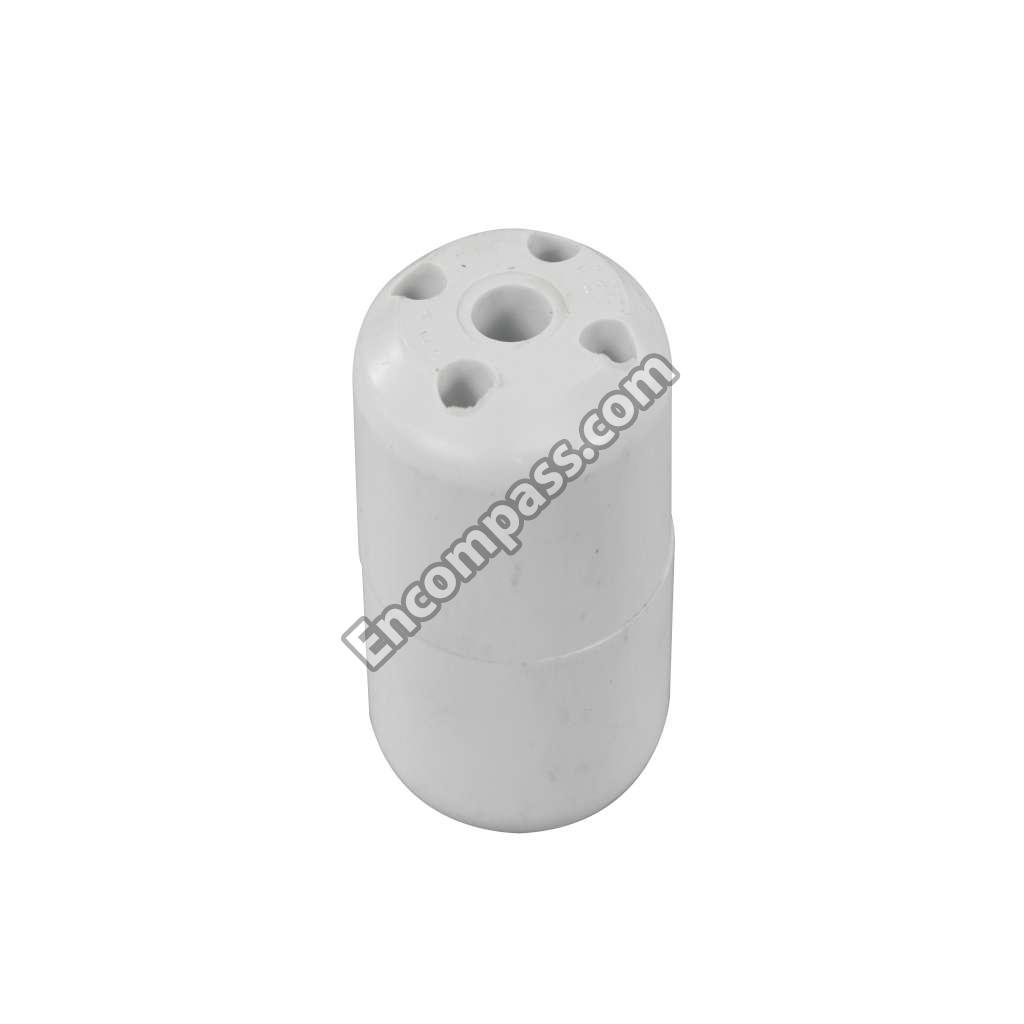

WR02X10591 WR02X10591 SOCKET AND TERMINAL ASSEMBLY

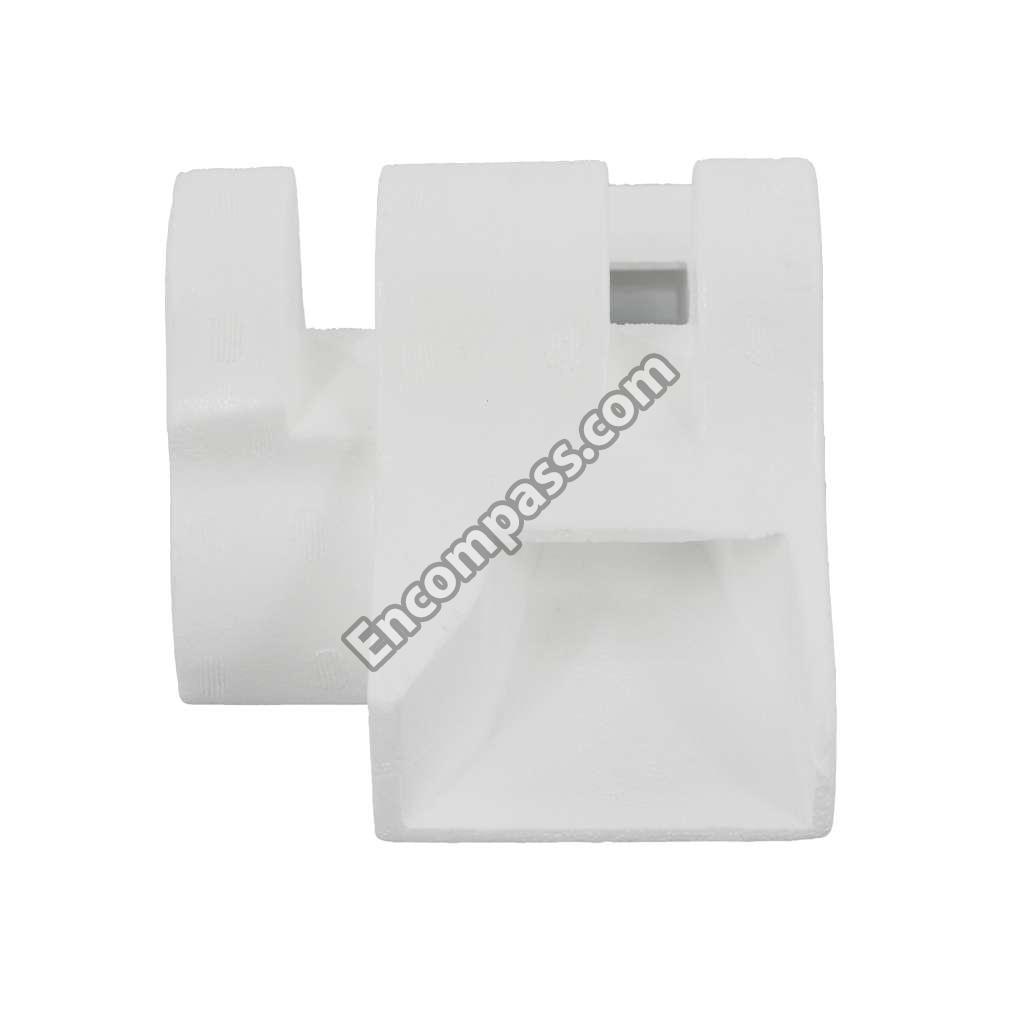

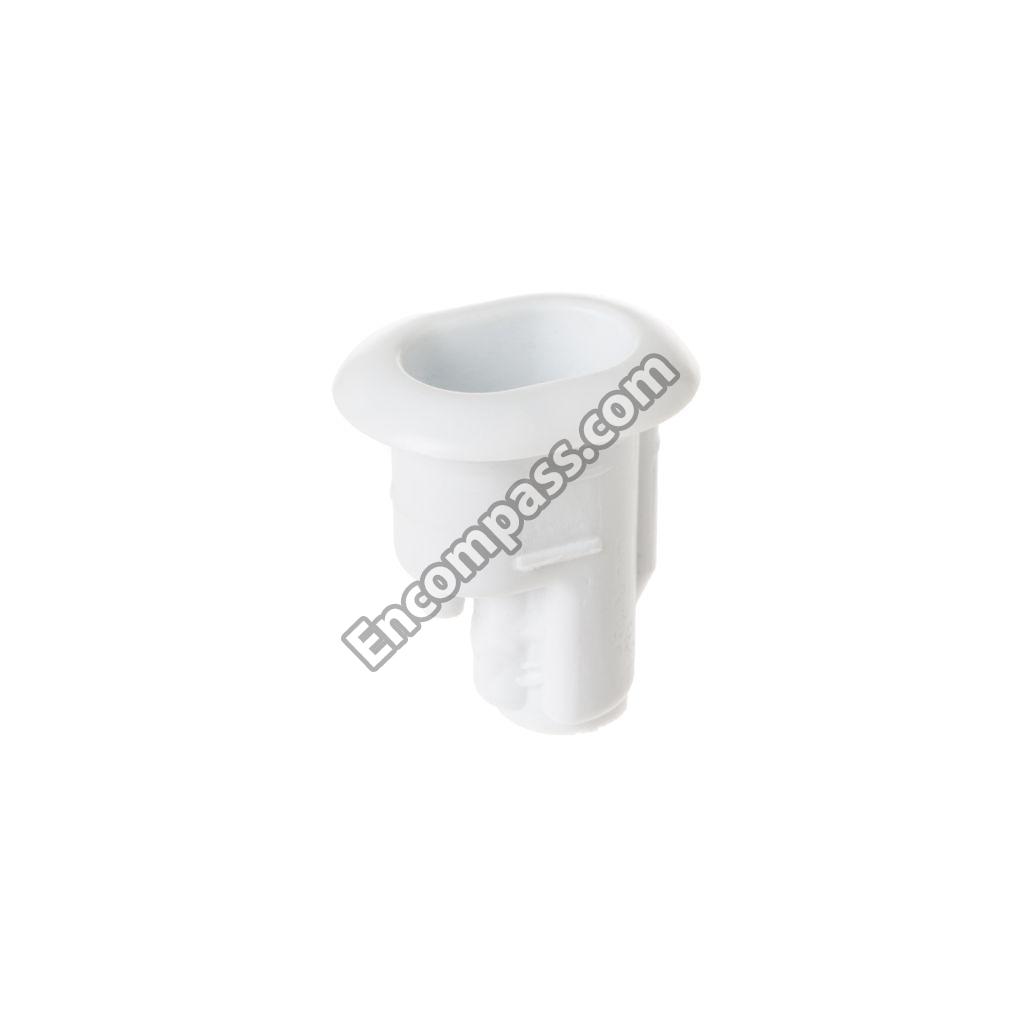

WR02X12211 WR02X12211 STOP DOOR FF/FZ
WR1X1779 WR1X1779 STUD MTGCOMP
WR2X8429 WR2X8429 SUPPORT
WR23X10725 WR23X10725 SWITCH LIGHT FF

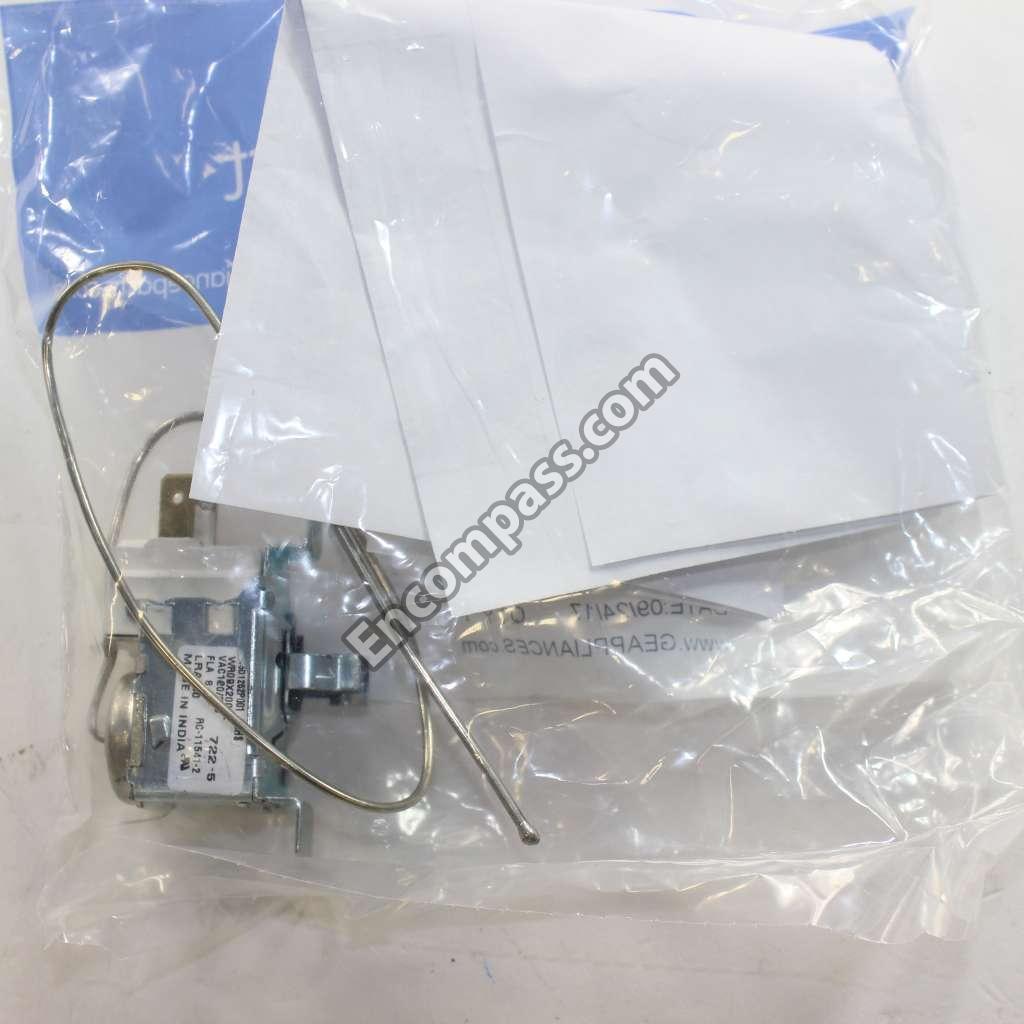

WR09X20002 WR09X20002 TEMPERATURE CONTROL

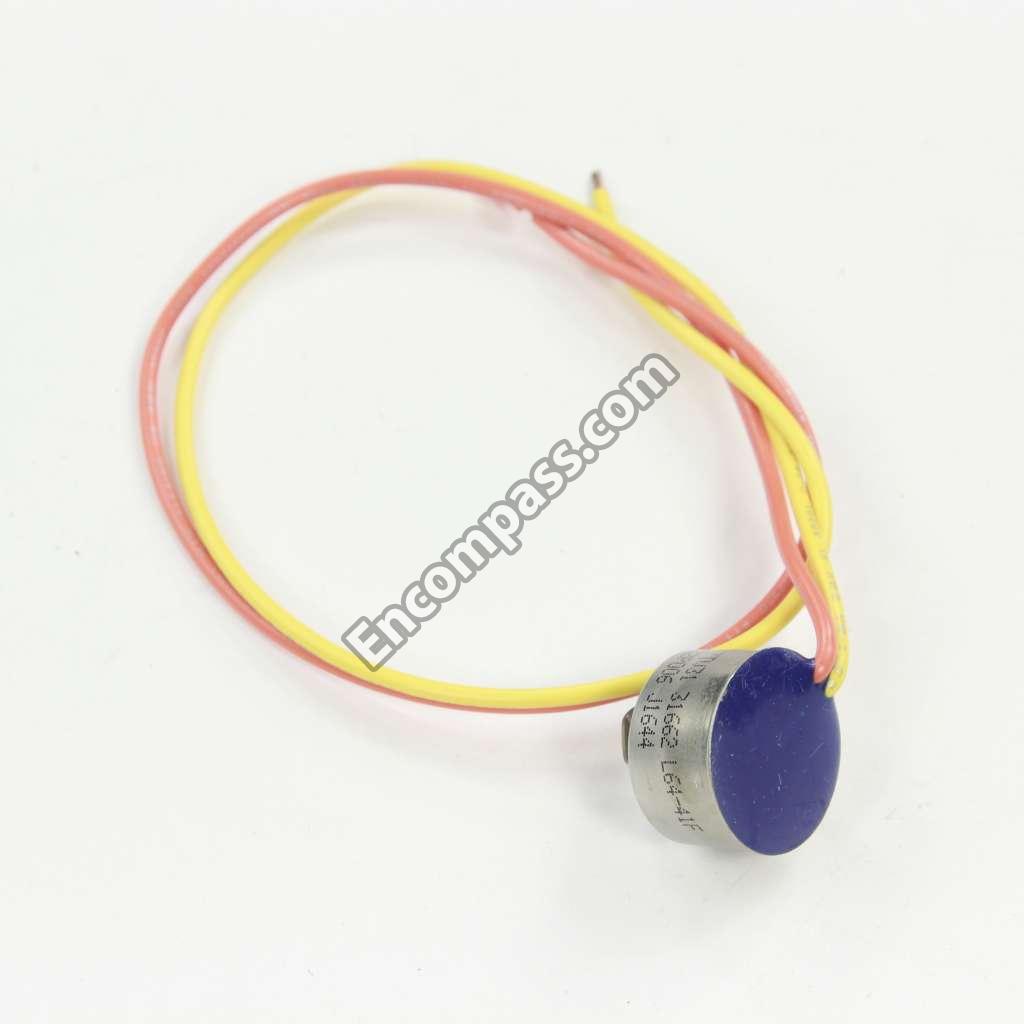

WR50X10071 WR50X10071 THERMOSTAT DEFROST
WR17X11657 WR17X11657 TROUGH DRAIN

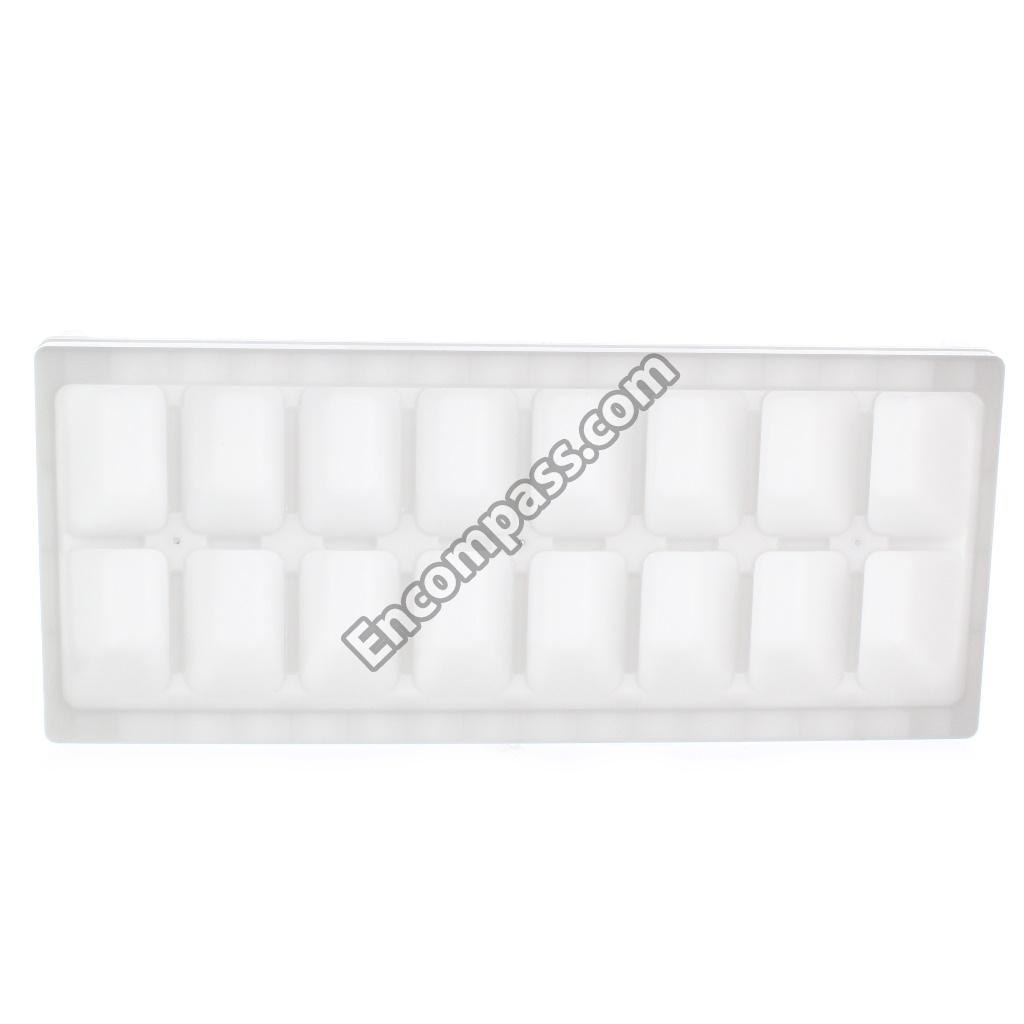

WR30X311 WR30X311 UNIVERSAL ICE TRAY

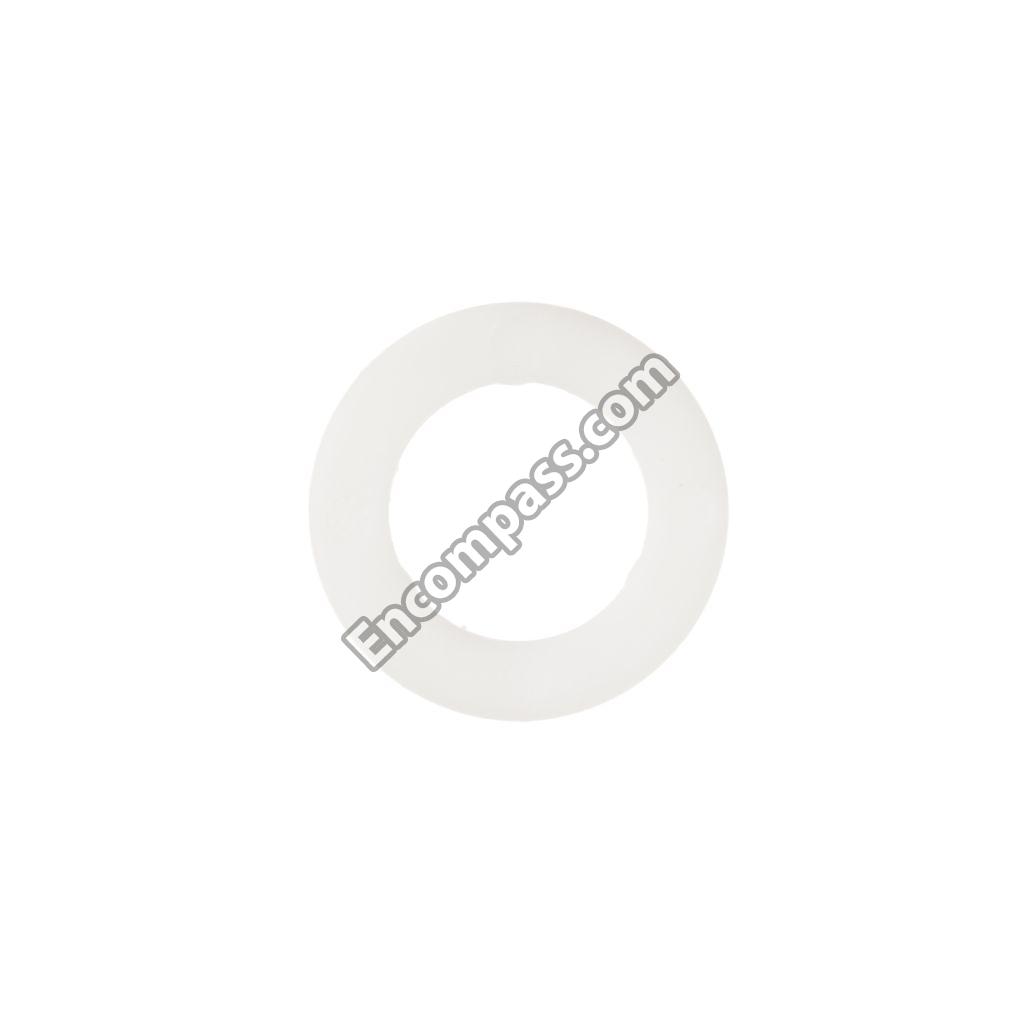

WR01X27364 WR01X27364 WASHER HINGE BROWN
WR2X8245 WR2X8245 WHEEL REAR
WZ4X416 WZ4X416 WZ04X0408
