Manufacturer
GE
Model Number
HTS22GBPARWW
Description

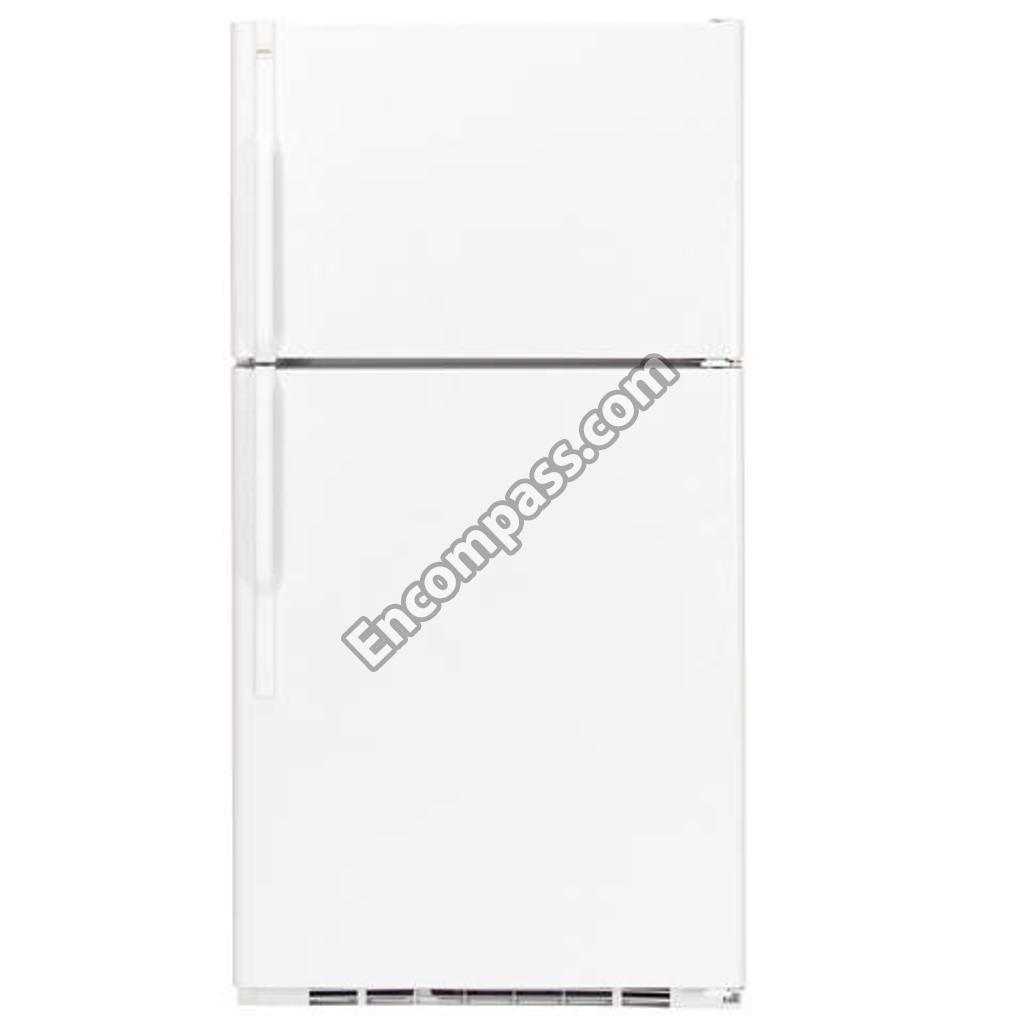

Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
60A - 2BULBS |
|
|
60A - 2BULBS |
|
|
A ASSEMBLY HI SIDE |
|
|
ACCESS COVER |
|
|
BAFFLE COND AIR |
|
|
BAR REINFORCEMENT |
|
|
BASEPLATE HIGH SIDE |
|
|
BEAR SLIDE |
|
|
BEARING SLIDE CENTER |
|
|
BEAUTY BUTTON-WHT |
|
|
BLADE CONF FAN ASSEMBLY |
|
|
BLADE EVAPORATOR FAN |
|
|
BLOCK FOAM CONTROL |
|
|
BRACKET COND FAN |
|
|
BRACKET COND FAN (MTG) |
|
|
BRACKET COND FAN REAR |
|
|
BRACKET CONDENSER BAR |
|
|
BRACKET EVAP FAN |
|
|
BRACKET EVAP FAN BTM |
|
|
BUMPER LID |
|
|
BUTTON PLUG |
|
|
CABLE CLAMP |
|
|
CAP CORNER OC BISQUE |
|
|
CAP CORNER OC WHITE |
|
|
CAP CORNER TOP BISQUE |
|
|
CAP CORNER TOP BISQUE |
|
|
CAP CORNER TOP BISQUE |
|
|
CAP CORNER TOP BISQUE |
|
|
CAP CORNER TOP WHITE |
|
|
CAP CORNER TOP WHITE |
|
|
CAP CORNER TOP WHITE |
|
|
CAP CORNER TOP WHITE |
|
|
CAP DOOR BOTTOM BISQUE |
|
|
CAP DOOR BOTTOM BISQUE |
|
|
CAP DOOR BOTTOM WHITE |
|
|
CAP DOOR BOTTOM WHITE |
|
|
CAP DUST |
|
|
CAP SHELF FRONT FF |
|
|
CAP SHELF FRONT FF |
|
|
CAP SHELF FRONT FF 2LT |
|
|
CAP SHELF FRONT FF 2LT |
|
|
CAP SHELF FRONT FZ |
|
|
CAP SHELF FRONT FZ |
|
|
CAPACITOR |
|
|
CAPACITOR |
|
|
CLAMP CABLE |
|
|
CLIP COMPRESSOR MOUNT |
|
|
CLIP EVAP THERMISTOR |
|
|
CLIP GRILLE |
|
|
CLIP REL CVR |
|
|
CLIP RELAY COVER |
|
|
CONDENSER FAN SHROUD |
|
|
CONTROL DEFROST |
|
|
CONTROL TEMPERATURE |
|
|
COVER EVAP ASSEMBLY |
|
|
COVER FRAME VP BADGE |
|
|
COVER MULLION SCREW BISQUE |
|
|
COVER MULLION SCREW WHITE |
|
|
COVER RELAY |
|
|
COVER RELAY |
|
|
DAMPER VP |
|
|
DOOR DAIRY FIXED |
|
|
DOOR FOAM ASSEMBLY FF 22 BISQU |
|
|
DOOR FOAM ASSEMBLY FF 22 WHITE |
|
|
DOOR FOAM ASSEMBLY FZ 22 BISQU |
|
|
DOOR FOAM ASSEMBLY FZ FIX 22 |
|
|
EVAP EPS BLOCK |
|
|
EVAP EPS BLOCK |
|
|
EVAP FAN & MOTOR ASM |
|
|
FASTENER PUSH |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FOAM STRIP SE ADH |
|
|
FRAME COVER VP |
|
|
GASKET CENTER VP |
|
|
GASKET CVR PAN REAR |
|
|
GASKET FRONT VP |
|
|
GASKET LTM FF DOOR WH |
|
|
GASKET LTM FZ DOOR WH |
|
|
GLASS SHELF |
|
|
GRILLE BASE BISQUE |
|
|
GRILLE BASE WHITE |
|
|
GRILLE CAP BISQUE |
|
|
GRILLE CAP WHITE |
|
|
GRILLE ICE SERVICE |
|
|
GROMMET |
|
|
GROMMET EVAP FAN |
|
|
GROMMET EVAPORATOR FAN |
|
|
GROMMET FAN MOTOR |
|
|
HANDLE ASSEMBLY FZ BISQUE |
|
|
HANDLE ASSEMBLY FZ WHITE |
|
|
HANDLE DOOR FF BISQUE |
|
|
HANDLE DOOR FF WHITE |
|
|
HARNESS CNTRL MODUL.E |
|
|
HARNESS MACH |
|
|
HEATER CONDUCTION |
|
|
HEATER DEF ASM |
|
|
HINGE BTM & PIN ASSEMBLY BISQU |
|
|
HINGE BTM & PIN ASSEMBLY WHITE |
|
|
HINGE CENTER ASSEMBLY BISQUE |
|
|
HINGE CENTER ASSEMBLY WHITE |
|
|
HINGE TOP AND PIN ASSEMBLY BIS |
|
|
HINGE TOP AND PIN ASSEMBLY WHI |
|
|
HOLDER ELEMENT |
|
|
HOUSING CONTROL |
|
|
HOUSING INSERT |
|
|
INSET AIR FZ |
|
|
KNOB THUMB CONTROL FF CC |
|
|
KNOBTHUMB CON FZ DAMPER |
|
|
LATCH SLIDE CENTER |
|
|
LENS FZ LIGHT |
|
|
LENS NAMEPLATE WHITE |
|
|
MOBILITY BACK ASSEMBLY |
|
|
MOBILITY FRONT ASSEMBLY |
|
|
MOTOR AC/DC FAN |
|
|
MOTOR AC/DC FAN |
|
|
MULTIPLE SUPERCEDURES |
|
|
NOZZLE CONTROL FOAM |
|
|
OVERLOAD |
|
|
P/S DRYER KIT R134A |
|
|
P/S DRYER KIT R134A |
|
|
PAN SNACK |
|
|
PAN VEGETABLE 22 |
|
|
PIN HINGE CENTER |
|
|
PK HANDLE SMALL ASSEMBLY |
|
|
PK HANDLE SMALL ASSEMBLY BISQU |
|
|
PLUG BUTTON |
|
|
PLUG BUTTON |
|
|
PLUG BUTTON |
|
|
PLUG BUTTON BISQUE |
|
|
PLUG BUTTON HANDLE BISQUE |
|
|
PLUG BUTTON HANDLE WHITE |
|
|
PLUG BUTTON THIMBLE BISQUE |
|
|
PLUG BUTTON THIMBLE WHITE |
|
|
PLUG BUTTON WHITE |
|
|
PLUG COVER AND GASKET ASSEMBLY |
|
|
PLUG DOOR |
|
|
PM GUIDE OWNERS |
|
|
PM MINI WIRING MANUAL |
|
|
REFRIGERATOR BEARING SLIDE |
|
|
REFRIGERATOR CLIP |
|
|
REFRIGERATOR CONDENSER |
|
|
REFRIGERATOR CONDENSER CLIP |
|
|
REFRIGERATOR EVAPORATOR |
|
|
REFRIGERATOR TEMPERATURE SENSOR |
|
|
RELAY (PTCR) |
|
|
RELAY PTCR (8EA16C3) |
|
|
RING COMPRESSION |
|
|
RVSBL DOOR CAPS BISQUE |
|
|
SCR 1/4-14 X 3/4 |
|
|
SCR 10-16 AB 3/4 SS |
|
|
SCR 12-24 TT OVT .900 S |
|
|
SCR 8-18 AB HXW 3/4 WH |
|
|
SCR 8-18 AB IHXW 1/2 S |
|
|
SCR 8-18 T WAFER 5/8 |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW & COVER BISQUE |
|
|
SCREW & COVER WHITE |
|
|
SCREW 10-32 HXW 9/16 SS |
|
|
SCREW 10-32 TT HXW 5/16 S |
|
|
SCREW 10-32 TT HXW 5/16 S |
|
|
SCREW 12-24 |
|
|
SCREW 12-24 |
|
|
SCREW 12-24 .9 WH |
|
|
SCREW 8-18 AB HXWP 2 500 |
|
|
SCREW 8-32 X 625 M HXW S |
|
|
SCREW AB 8-18 1 1/4 HXW W |
|
|
SCREW DOOR STOP T20 |
|
|
SCREW MOBILITY |
|
|
SCREW-PKG 12 |
|
|
SCREW-PKG 12 |
|
|
SEPARATOR AIR HI SIDE |
|
|
SHAFT DAMPER |
|
|
SHELF CANT |
|
|
SHELF CANT |
|
|
SHELF CANT GLASS |
|
|
SHELF FRONT DOOR FF |
|
|
SHELF FRONT DOOR FF |
|
|
SHELF FRONT DOOR FZ |
|
|
SHELF FZ |
|
|
SHOULDER SCR |
|
|
SLIDE ASSEMBLY CENTER |
|
|
SLIDE BEARING PAN |
|
|
SLIDE PAN LH |
|
|
SLIDE PAN RH |
|
|
SOCKET & TERMINAL ASM |
|
|
SOCKET AND TERM |
|
|
SPRING KNOB |
|
|
SPRING KNOB |
|
|
STOP DOOR FF/FZ BISQUE |
|
|
STOP DOOR FF/FZ WHITE |
|
|
STUD MTGCOMP |
|
|
SUPPORT TWIST VP CVR |
|
|
SUPT SHELF |
|
|
SWITCH LIGHT FF |
|
|
THERMOSTAT DEFROST |
|
|
THIMBLE DOOR BTM WHITE |
|
|
THIMBLE DOOR PLASTIC BISQUE |
|
|
THIMBLE DOOR PLASTIC BISQUE |
|
|
THIMBLE DOOR TOP WHITE |
|
|
TOWER AIR FZ ASSEMBLY |
|
|
TRACK SIDE FF |
|
|
TRAY ICE |
|
|
TRIM GLASS SHELF |
|
|
TRIM GLASS SHELF |
|
|
TRIM GLASS SHELF |
|
|
TRIM SHELF GLASS |
|
|
TROUGH DRAIN ASSEMBLY |
|
|
TUBE DRAIN |
|
|
WHEEL DAMPER |
|
|
WHEEL MOBILITY |
