Model Image
Manufacturer

GE

Model Number

J2B918SEL2SS

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB29K10024 WB29K10024 GE ASM BURNER CAP (12000)
WB29K10022 WB29K10022 GE ASM BURNER CAP (5000)
WB29K10023 WB29K10023 GE ASM BURNER CAP (9500)
WB63K10167 WB63K10167 GE BACK DRAWER
WB63K10059 WB63K10059 GE BACK DRAWER
WB34K10090 WB34K10090 GE BAFLE
WB02K0027 WB02K0027 GE BAIL
WB2K27 WB2K27 GE BAIL
WB30X46987 WB30X46987 GE BAKE ELEMENT
WB2X8351 WB2X8351 GE BLADE FAN
WB63K10060 WB63K10060 GE BOTTOM RANGE
WB63K10057 WB63K10057 GE BOX BURNER SP
WB63K0005 WB63K0005 GE BRACE BOTTOM
WB63K5 WB63K5 GE BRACE BOTTOM
WB38K0002 WB38K0002 GE BRACE VENT
WB02K10254 WB02K10254 GE BRACKET ANTI-TIP ASSEMBLY
WB02K10082 WB02K10082 GE BRACKET COOKTOP XL
WB02K10071 WB02K10071 GE BRACKET DOOR
WB63K10062 WB63K10062 GE BRACKET DRAWER
WB39K0020 WB39K0020 GE BRACKET MOUNTING DRAWER
WB02K10052 WB02K10052 GE BRACKET MTG TERMINAL
WB30X46986 WB30X46986 GE BROIL ELEMENT
WB2K15 WB2K15 GE BUMPER BLACK
WB02K10112 WB02K10112 GE BUMPER BLUE
WB02K0015 WB02K0015 GE BUMPER, BLACK
WB16T10046 WB16T10046 GE BURNER 12K
WB16K10055 WB16K10055 GE BURNER MEDIUM (9500)
WB16K10070 WB16K10070 GE BURNER-SMALL
WB28K10222 WB28K10222 GE CAP BURNER ASM (15K)
WB02K10110 WB02K10110 GE CATCH
WB16K10053 WB16K10053 GE CENTRAL BURNER & CAP ASM
WB02K10362 WB02K10362 GE CKT BRACKET MDM AND LGE
WB02K10361 WB02K10361 GE CKT BRACKET MEDIUM
WB02K10360 WB02K10360 GE CKT BRACKET SMALL
WB02K0031 WB02K0031 GE CLIP CABLE
WB02X21679 WB02X21679 GE CLIP CABLE
WB02K0010 WB02K0010 GE CLIP CAPILLARY
WB02K10073 WB02K10073 GE CLIP CAPILLARY
WB02K0052 WB02K0052 GE CLIP RANGETOP
WB2K52 WB2K52 GE CLIP RNGETOP
WB02K0038 WB02K0038 GE CLIP WIRE
WB02X7066 WB02X7066 GE CLIP WIRE
WB01X0119 WB01X0119 GE CONTOURED WASHER
WB35K10037 WB35K10037 GE CONTROL INSULATION
WB27K10124 WB27K10124 GE CONTROL OVN ASM
WB28K10365 WB28K10365 GE CONVERSION KIT LP
WB02K10109 WB02K10109 GE COVER ACCESS SPRING
WB34K10068 WB34K10068 GE COVER BACK
WB34K10062 WB34K10062 GE COVER BACK LOWER
WB34K10064 WB34K10064 GE COVER BACK UPPER
WB63K0022 WB63K0022 GE COVER BURNER BOX
WB63K10063 WB63K10063 GE COVER BURNER BOX
WB34K10071 WB34K10071 GE COVER HEATING ELEMENT
WB37K10012 WB37K10012 GE COVER THERMOSTAT
WB02K0024 WB02K0024 GE COVER VALVE
WB56K0020 WB56K0020 GE CRYSTAL WINDOW
WB63K22 WB63K22 GE CVR BRNR BOX
WB49K10011 WB49K10011 GE DEFLECTOR BOTTOM
WB35K10048 WB35K10048 GE DEFLECTOR SIDE
WB35K10047 WB35K10047 GE DEFLECTOR THERMOSTAT
WB49K10012 WB49K10012 GE DEFLECTOR TOP
WB49K10010 WB49K10010 GE DEFLECTOR TOP
WB38K10009 WB38K10009 GE DIFFUSER VENT
WB01K10037 WB01K10037 GE ECONOMIC NUT
WB13K10014 WB13K10014 GE ELECTRODE TOP
WB07K10184 WB07K10184 GE END SUPPORT (GLOSS BLACK) LEFT
WB07K10183 WB07K10183 GE END SUPPORT RIGHT
WB35K10050 WB35K10050 GE EYEBROW
WB02X8351 WB02X8351 GE FAN BLADE
WB34K10038 WB34K10038 GE FAN COVER BACK
WB34K10037 WB34K10037 GE FAN COVER FRONT
WB35K10013 WB35K10013 GE FAN INSULATION
WB26K10004 WB26K10004 GE FAN MOTOR CONVECT-1SPEED
WB02K10034 WB02K10034 GE FAN SUPPORT
WB01X0560 WB01X0560 GE FIBER WASHER
WB58K10010 WB58K10010 GE FRAME DRAWER
WB63K10018 WB63K10018 GE FRONT FRAME ASSEMBLY

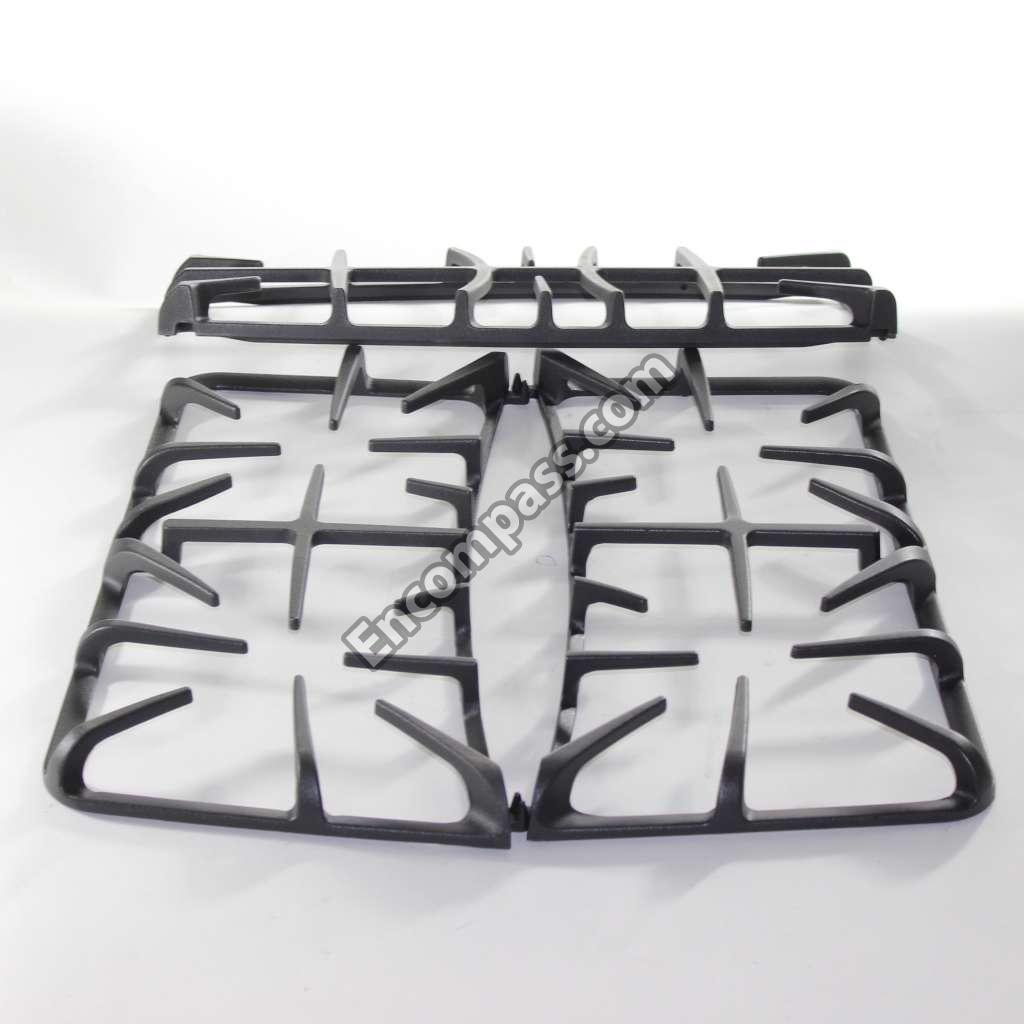

WB31X24641 WB31X24641 GE GAS RANGE 3-PIECE GRATE KIT
WB13X26360 WB13X26360 GE GAS RANGE SPARK MODULE
WB35X29668 WB35X29668 GE GASKET ASM DOOR
WB04K10017 WB04K10017 GE GASKET DRAWER ASM
WB04K10018 WB04K10018 GE GASKET LOWER
WB32K0005 WB32K0005 GE GASKET OVEN LIGHT
WB32K0002 WB32K0002 GE GASKET OVEN SEAL LG
WB35K10019 WB35K10019 GE GASKET VENT
WB57K10128 WB57K10128 GE GLASS DOOR ASSEMBLY
WB08K0005 WB08K0005 GE GLASS OVEN LAMP
WB2K8 WB2K8 GE GROMMET
WB53K11 WB53K11 GE GUARD INS RH
WB56K12 WB56K12 GE GUARD INSUL
WB53K12 WB53K12 GE GUARD INSUL
WB53K0011 WB53K0011 GE GUARD INSUL. OVEN RIGHT
WB56K0012 WB56K0012 GE GUARD INSULATION
WB53K0012 WB53K0012 GE GUARD INSULATION LEFT
WB34K10029 WB34K10029 GE GUARD TERMINAL
WB34K10054 WB34K10054 GE GUARD TERMINAL COMP
WB53K10030 WB53K10030 GE GUARD TOP INSULATION
WB15T10193 WB15T10193 GE HANDLE 30 ASSEMBLY (PRF-SS)
WB15T10190 WB15T10190 GE HANDLE 30 ASSEMBLY (PRF-SS)
WB18K10037 WB18K10037 GE HARNESS HV
WB18K10027 WB18K10027 GE HARNESS MODULE
WB44K10015 WB44K10015 GE HEATING ELEMENT BOTTOM
WB44K10014 WB44K10014 GE HEATING ELEMENT TOP
WB10K0012 WB10K0012 GE HINGE ASM GUIDE
WB2X6195 WB2X6195 GE HINGE PIN
WB14K10003 WB14K10003 GE HINGE RANGE TOP
WB02K0011 WB02K0011 GE HOOK DOOR SPRING
WB2K11 WB2K11 GE HOOK DR SPRG
WB8K1 WB8K1 GE HOUS RECEPTL
WB08K0001 WB08K0001 GE HOUSING RECEPTACLE
WB35K25 WB35K25 GE INSUL BOT DR
WB35K24 WB35K24 GE INSUL SD DR
WB35K0025 WB35K0025 GE INSULATION BOTTOM DOOR
WB35K10026 WB35K10026 GE INSULATION BURNER BOX
WB35K10053 WB35K10053 GE INSULATION DRAWER FRONT
WB35K10054 WB35K10054 GE INSULATION DRAWER TOP
WB35K10055 WB35K10055 GE INSULATION FOIL
WB35K10039 WB35K10039 GE INSULATION MOTOR
WB35K10012 WB35K10012 GE INSULATION OVEN BACK
WB35K10143 WB35K10143 GE INSULATION OVEN WRAP
WB35K10049 WB35K10049 GE INSULATION OVEN WRAP
WB35K0024 WB35K0024 GE INSULATION SIDE DOOR
WB35K10218 WB35K10218 GE INSULATION VENT
WB2K101 WB2K101 GE KIT FEET-RUB
WB02K0101 WB02K0101 GE KIT-RUBBER FEET

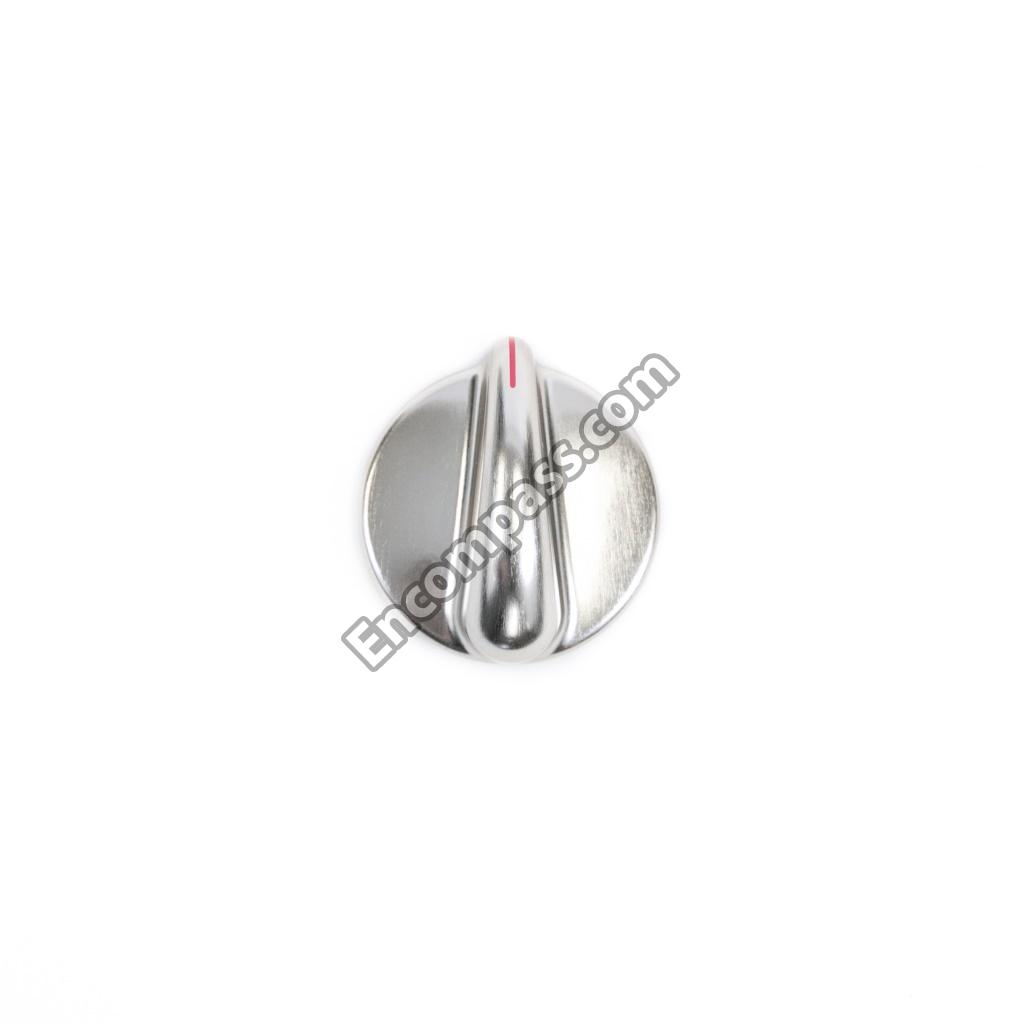

WB03K10303 WB03K10303 GE KNOB COVER ASM
WB03X43926 WB03X43926 GE KNOB COVER ASM
WB02X10521 WB02X10521 GE LEG LEVELER
WB25K10009 WB25K10009 GE LENS
WB25K10010 WB25K10010 GE LIGHT INDICATOR PILOT
WB18K10014 WB18K10014 GE LINE CORD KIT
WB55K10022 WB55K10022 GE LINER ASM WELD DOOR
WB55K10024 WB55K10024 GE LINER DRAWER
WB36K10641 WB36K10641 GE MANIFOLD PANEL
WB28K10384 WB28K10384 GE MANIFOLD PIPE
WB28K10867 WB28K10867 GE NG ORIFICE AND TUBE CNTRAL
WB1X5572 WB1X5572 GE NUT
WB02T10017 WB02T10017 GE NUT
WB01X5572 WB01X5572 GE NUT MEAT PROBE
WB01K0003 WB01K0003 GE NUT SPEED
WB1K3 WB1K3 GE NUT SPEED
WB28K10388 WB28K10388 GE ORIFICE HOLDER LF
WB28K10389 WB28K10389 GE ORIFICE HOLDER LR
WB28K10424 WB28K10424 GE ORIFICE HOLDER RF
WB28K10390 WB28K10390 GE ORIFICE HOLDER RR
WB28K10287 WB28K10287 GE ORIFICE SPUD
WB28K10288 WB28K10288 GE ORIFICE SPUD
WB28K10839 WB28K10839 GE ORIFICE SPUD LP
WB28K10215 WB28K10215 GE ORIFICE SPUD LP 86L
WB28K10214 WB28K10214 GE ORIFICE SPUD LP 88L
WB28K10031 WB28K10031 GE ORIFICE-LP 63MM
WB53K10013 WB53K10013 GE OVEN BACK
WB63K10006 WB63K10006 GE OVEN BOTTOM
WB63K10010 WB63K10010 GE OVEN SIDE RIGHT
WB53K10017 WB53K10017 GE OVEN TOP
WB02K0064 WB02K0064 GE PAD FELT (BK)
WB2K64 WB2K64 GE PAD FELT BK
WB48X10056 WB48X10056 GE PAN BROILER
WB48K10009 WB48K10009 GE PAN DRAWER
WB55K0013 WB55K0013 GE PANEL ASM WELD INNER
WB55K10027 WB55K10027 GE PANEL DRAWER ASM
WB02K10064 WB02K10064 GE PANEL DRAWER SPACER
WB63K10203 WB63K10203 GE PANEL REAR BROIL
WB63K52 WB63K52 GE PANEL SIDE
WB63K0052 WB63K0052 GE PANEL SIDE (BK)
WB63K10055 WB63K10055 GE PANEL SIDE BROIL
WB63K10056 WB63K10056 GE PANEL SIDE BROIL
WB02X6195 WB02X6195 GE PIN HINGE DOOR
WB14K10005 WB14K10005 GE PIN LOCATOR
WB14K10004 WB14K10004 GE PIN LOCATOR
WB24K10068 WB24K10068 GE PLUNGER SWITCH
31-21313 31-21313 GE PM MINI-MANUAL / ELEC DI
49-85111 49-85111 GE PM USE & CARE MANUAL
WB55K13 WB55K13 GE PNL ASM WELD
WB2X8309 WB2X8309 GE PR0BE COVER
WB19K10018 WB19K10018 GE PRESSURE REGULATOR
WB20T10024 WB20T10024 GE PROBE
WB02X8309 WB02X8309 GE PROBE COVER
WB20X5050 WB20X5050 GE PROBE THERMISTOR
WB08T10026 WB08T10026 GE PUSH-IN RECEPTACLE
WB48K10010 WB48K10010 GE RACK BAKING DRAWER
WB48T10095 WB48T10095 GE RACK OVEN
WB02K10108 WB02K10108 GE RANGE ACCESS SPRING COVER
WB62K10068 WB62K10068 GE RANGE BACK
WB63K10233 WB63K10233 GE RANGE BASE SUPPORT

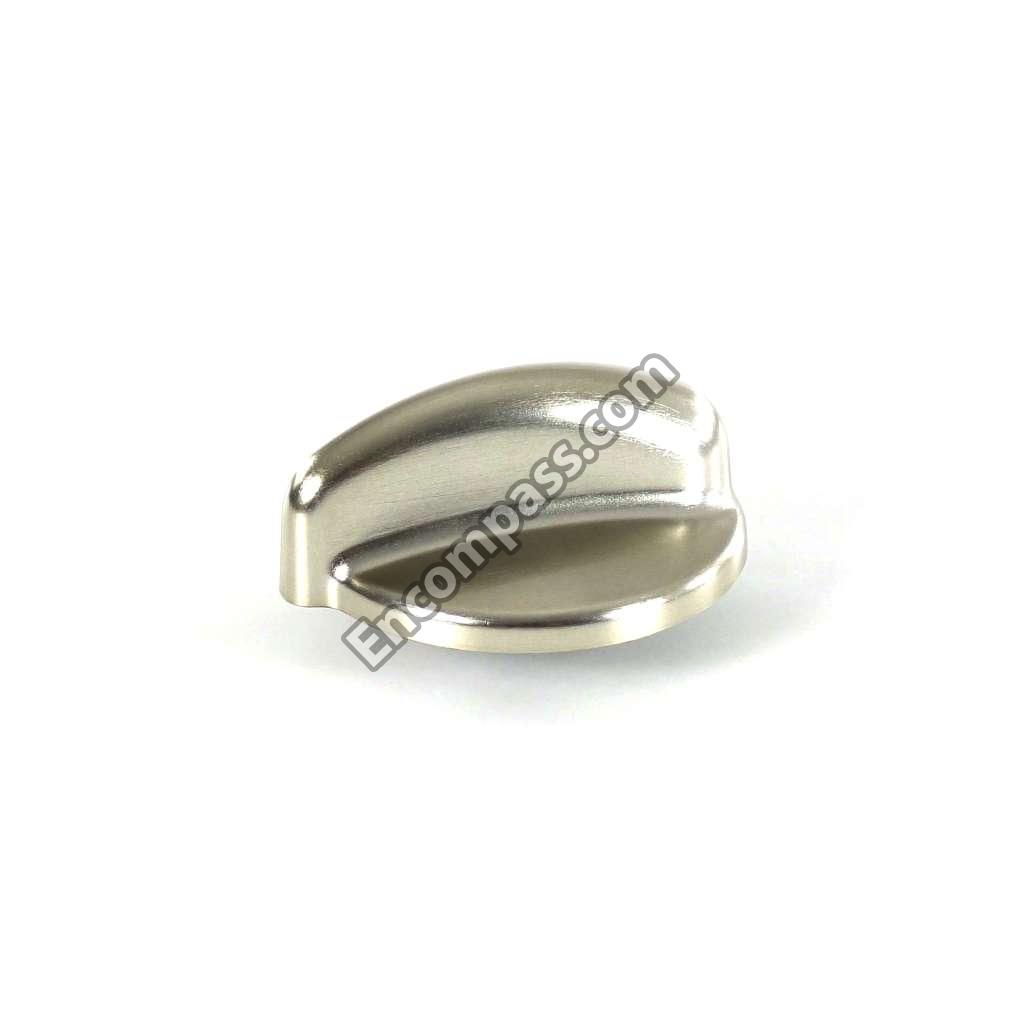

WB03K10302 WB03K10302 GE RANGE CONTROL KNOB (STAINLESS STEEL)
WB10K12 WB10K12 GE RANGE DOOR HINGE ASSEMBLY
WB39K20 WB39K20 GE RANGE DRAWER MOUNTING BRACKET
WB01K10112 WB01K10112 GE RANGE ELECTRODE CLIP
WB31K10217 WB31K10217 GE RANGE GRIDDLE
WB36X192 WB36X192 GE RANGE OVEN BULB COVER
WB32K2 WB32K2 GE RANGE OVEN DOOR GASKET
WB32K5 WB32K5 GE RANGE OVEN GASKET
WB10K13 WB10K13 GE RANGE SUPPORT RIVET
WB20K10017 WB20K10017 GE RANGE THERMOSTAT
WB38K2 WB38K2 GE RANGE VENT BRACE
WB62K10110 WB62K10110 GE RANGETOP & BRKT ASM
WB35K33 WB35K33 GE REFLECTOR
WB35K0022 WB35K0022 GE REFLECTOR 9.5 INCH
WB2X2030 WB2X2030 GE RETAINER
WB2X1082 WB2X1082 GE RETAINER
WB02K0030 WB02K0030 GE RETAINER-INSULATION VENT
WB02X1082 WB02X1082 GE RING RETAINING
WB1K44 WB1K44 GE SCEW LATCH
WB01K10047 WB01K10047 GE SCR 10-32 HXW 9/16 DWR
WB01K10066 WB01K10066 GE SCR 8 HD 10-32
WR01X10389 WR01X10389 GE SCR 8-18 AB PHR 1/2 S
WB01K0063 WB01K0063 GE SCREW
WB01K0001 WB01K0001 GE SCREW
WB01K0021 WB01K0021 GE SCREW
WB1K5119 WB1K5119 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1X5716 WB1X5716 GE SCREW
WB1X536 WB1X536 GE SCREW
WB01K0042 WB01K0042 GE SCREW (BLK)
WB01X5716 WB01X5716 GE SCREW (BLK)
WB01X5364 WB01X5364 GE SCREW (CR)
WB01X0593 WB01X0593 GE SCREW - DOOR ASM (4 PER)
WB1K63 WB1K63 GE SCREW 10-16 X 0.95 TYPE B
WR01X10065 WR01X10065 GE SCREW 10-32 GXTT FLP 595 S
WB01K10009 WB01K10009 GE SCREW 10-32 MTG HANDLE
WB01T10016 WB01T10016 GE SCREW 8-18 AB HXW 5/8 S
WZ04X0345 WZ04X0345 GE SCREW 8-18X5/8 HXW
WB01K10002 WB01K10002 GE SCREW 8-32
WB01X23501 WB01X23501 GE SCREW 8-32 TPT FLR 215 SN
WB01K10008 WB01K10008 GE SCREW CKTP 6-32X12
WB01K0044 WB01K0044 GE SCREW DOOR LATCH
WB01X1261 WB01X1261 GE SCREW GROUND
WB1K53 WB1K53 GE SCREW HINGE
WB1X5364 WB1X5364 GE SCREW MTG
WB01K0053 WB01K0053 GE SCREW MTG HINGE (TORX)
WB01X0558 WB01X0558 GE SCREW NAIL POINT
WB01K0083 WB01K0083 GE SCREW-MTG VALVE BURNER
WB1K83 WB1K83 GE SCREW-MTG VALVE BURNER 10-32
WB1X558D WB1X558D GE SCREW-PKG 12
WZ4X345D WZ4X345D GE SCREWS - 12 PACK
WB23X5340 WB23X5340 GE SENSOR-OVEN
WB63K10032 WB63K10032 GE SIDE OVEN
WB39K10025 WB39K10025 GE SLIDE & BEARING ASM
WB39K10026 WB39K10026 GE SLIDE & BEARING ASM
WB39K10027 WB39K10027 GE SLIDE INTERNAL
WB02K10104 WB02K10104 GE SPACER BASE
WB02K10105 WB02K10105 GE SPACER BASE
WB02K10106 WB02K10106 GE SPACER BASE
WB01X5736 WB01X5736 GE SPEEDNUT
WB01K10093 WB01K10093 GE SPEEDNUT
WB09K0005 WB09K0005 GE SPRING DOOR
WB9K5 WB9K5 GE SPRING DOOR
WB02K10111 WB02K10111 GE STRIKE
WB63K10232 WB63K10232 GE SUPPORT BASE
WB02K10028 WB02K10028 GE SUPPORT BROIL
WB35K10028 WB35K10028 GE SUPPORT CATALYST
WB10K0014 WB10K0014 GE SUPPORT RIVET LFT
WB10K0013 WB10K0013 GE SUPPORT RIVET RT
WB38K10004 WB38K10004 GE SUPPORT SMOKE ELIMINATOR
WB10K14 WB10K14 GE SUPT RIVET
WB24K10024 WB24K10024 GE SW VALVE SERVICE 270 1WI
WB24K10023 WB24K10023 GE SW VALVE SERVICE 270 2WI
WB17T10011 WB17T10011 GE TERMINAL BLOCK ASM
WB63K10058 WB63K10058 GE TOP DRAWER
WB36K10590 WB36K10590 GE TRIM AND MEMBRANE ASM
WB07K10016 WB07K10016 GE TRIM POST
WB07K10019 WB07K10019 GE TRIM POST
WB28X24772 WB28X24772 GE TUBE MANIFOLD SUPPLY
WB02K10137 WB02K10137 GE TWO SWITCH MOTOR LATCH
WB21K10119 WB21K10119 GE VALVE BURNER 270
WB21K10097 WB21K10097 GE VALVE BURNER 270
WB21K10096 WB21K10096 GE VALVE BURNER 270
WB21K10080 WB21K10080 GE VALVE BURNER 270 HI-CAP
WB2K24 WB2K24 GE VALVE COVER
WB38K10008 WB38K10008 GE VENT ASSEMBLY
WB07K10216 WB07K10216 GE VENT TRIM
WB16K10046 WB16K10046 GE VENTURI 15K LP
WB16K10062 WB16K10062 GE VISION BURNER XL
WB02X32440 WB02X32440 GE WASHER CONTOURED
WB1X560D WB1X560D GE WASHR-PKG 12
WB1X119D WB1X119D GE WASHR-PKG 12
WB56K20 WB56K20 GE WIND PACK LG
WB34K10087 WB34K10087 GE WINDOW SPACER ASM
Main Menu x
