Model Image
Manufacturer

GE

Model Number

J2C968CEK1CC

Description

Gas Range Or Dual Fuel

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
WB02T10415 WB02T10415 ANTI-TIP BRACKET
WB07K10156 WB07K10156 BACKSPLASH FILLER BQT
WB36K10239 WB36K10239 BACKSPLASH FILLER-BLK
WB34T10115 WB34T10115 BAFFLE MANIFOLD
WB16T10033 WB16T10033 BASE BURNER LARGE
WB16T10030 WB16T10030 BASE BURNER MED
WB16T10032 WB16T10032 BASE BURNER RT FRT
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB26T10039 WB26T10039 BLOWER ASM
WB64T10056 WB64T10056 BOTTOM BURN BOX
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10242 WB02T10242 BRACKET
WB02T10152 WB02T10152 BRACKET CAPACITOR MTR
WB02T10182 WB02T10182 BRACKET INJET
WB02T10190 WB02T10190 BRACKET REGULATOR
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB16T10031 WB16T10031 BURNER BASE SMALL
WB04T10014 WB04T10014 BURNER GASKET D
WB04T10011 WB04T10011 BURNER GASKET LT RR
WB04T10012 WB04T10012 BURNER GASKET LT RR
WB16T10011 WB16T10011 BURNER GASKET RTR CENT
WB28K10141 WB28K10141 BURNER HOLDER BKT SMALL
WB28T10092 WB28T10092 BURNER INJET ASM
WB28T10031 WB28T10031 BURNER INJET LT FRT

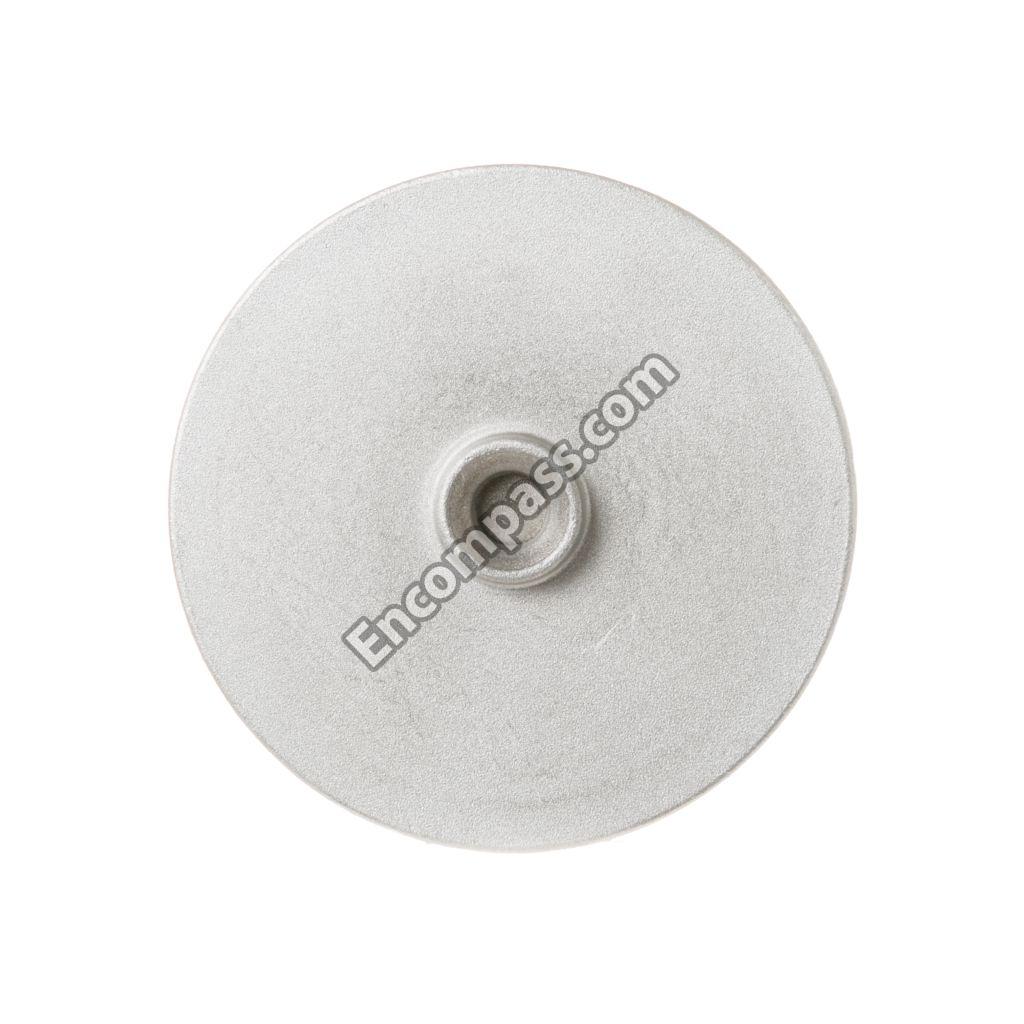

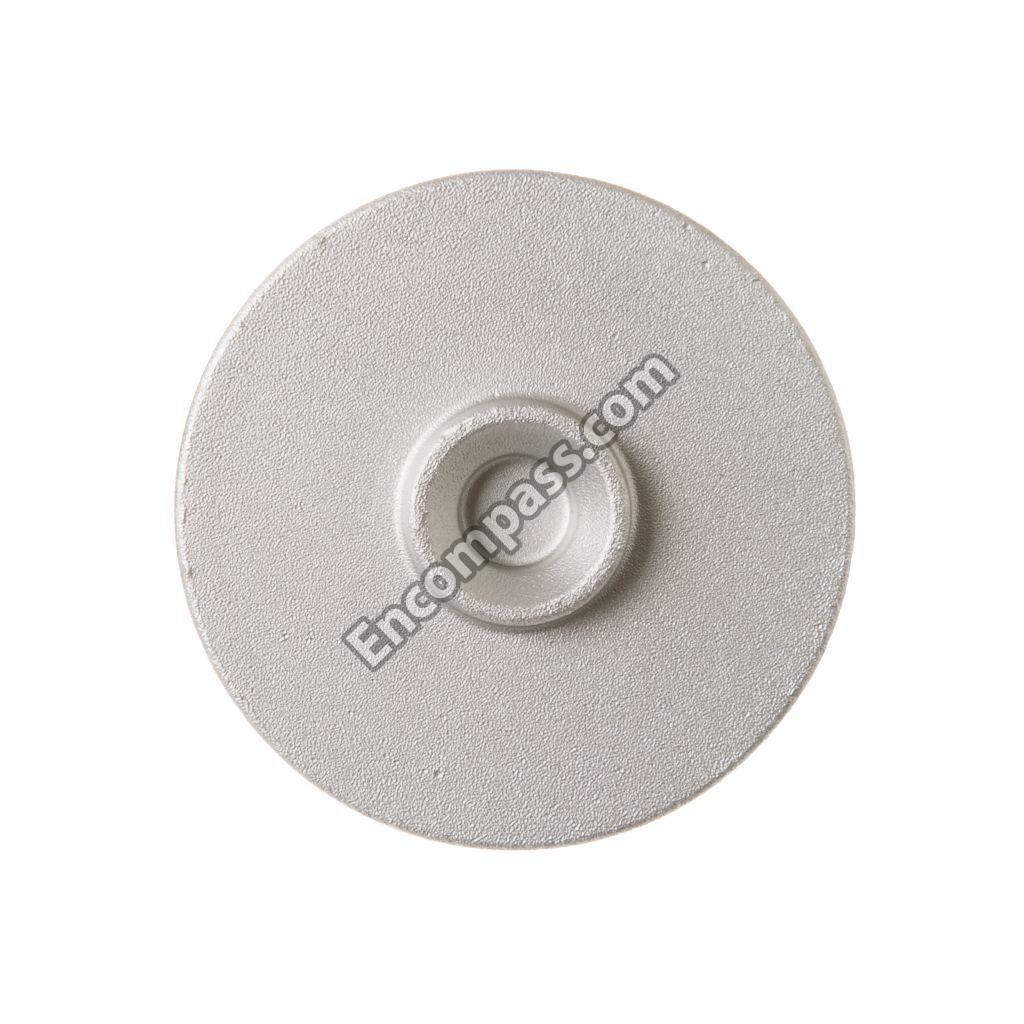

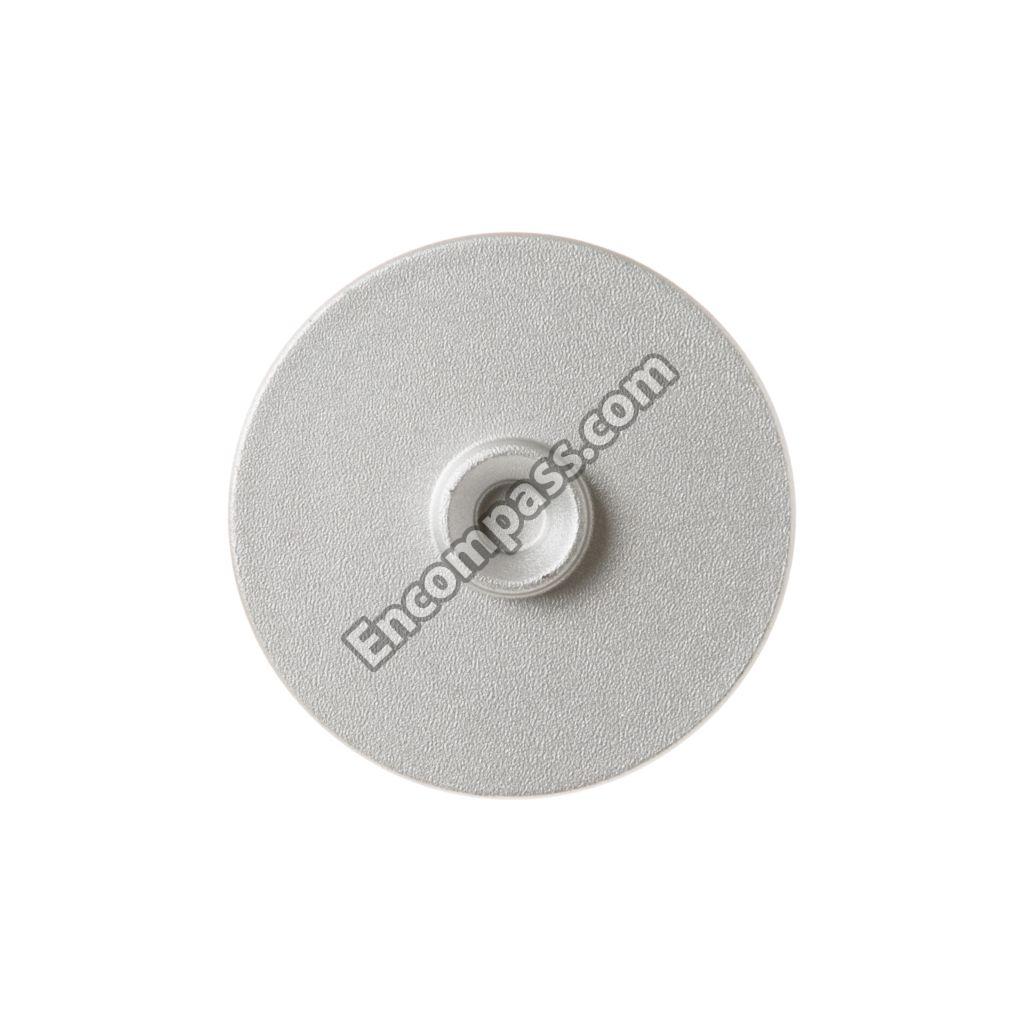

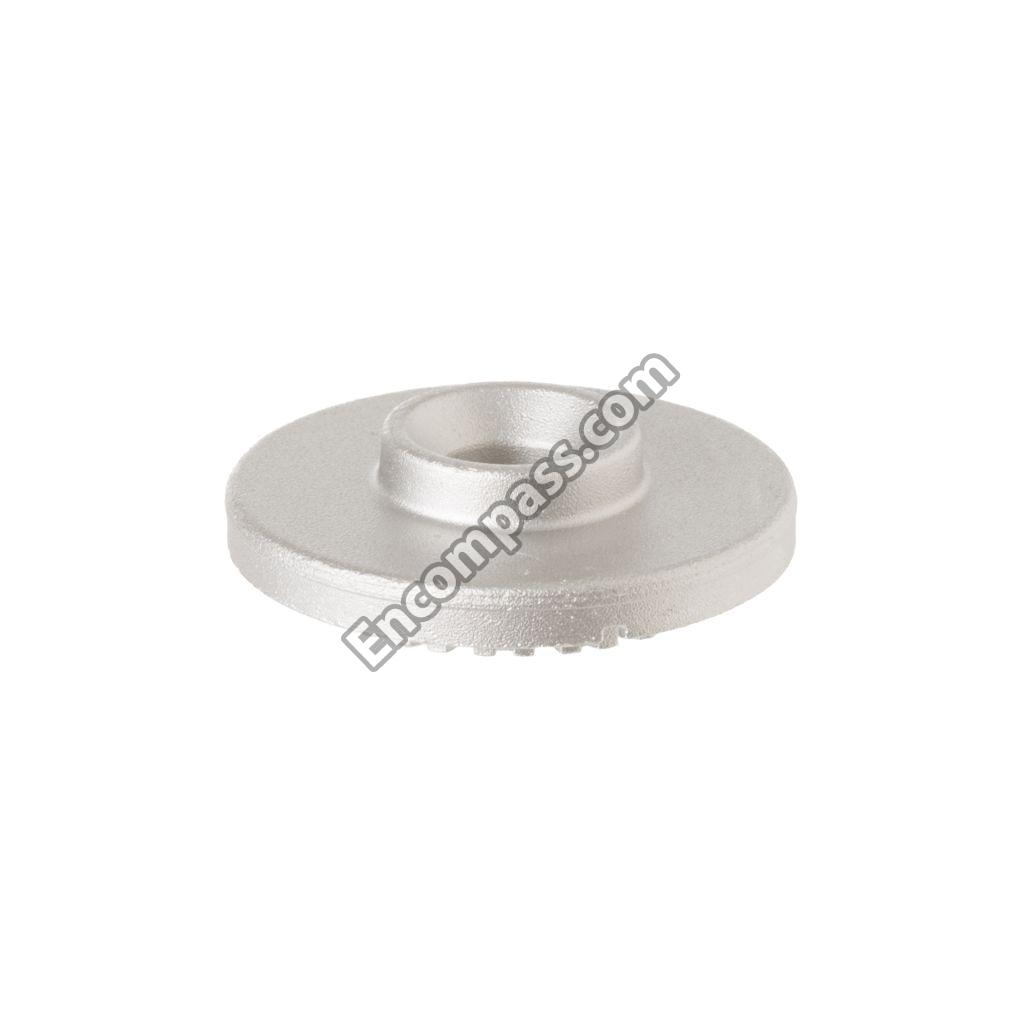

WB13T10049 WB13T10049 CAP BURNER B (BK)
WB13T10053 WB13T10053 CAP BURNER B (BQ)
WB13T10050 WB13T10050 CAP BURNER C (BK)
WB13T10054 WB13T10054 CAP BURNER C (BQ)
WB13T10051 WB13T10051 CAP BURNER D (BK)
WB13T10055 WB13T10055 CAP BURNER D (BQ)
WB13T10048 WB13T10048 CAP BURNER H (BK)
WB13T10052 WB13T10052 CAP BURNER H (BQ)
WB27T10503 WB27T10503 CAPACITOR MOTOR
WB6X93 WB6X93 CLAMP
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB27T10612 WB27T10612 CONTROL ERC
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB02T10224 WB02T10224 COVER FAN (CONVEX) UPPER
WB34K10049 WB34K10049 COVER WIRE REAR
WB34T10054 WB34T10054 COVER WIRE RR LWR
WB01T10022 WB01T10022 DOOR BUMPER
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB57T10277 WB57T10277 DOOR OTR ASM 30 (BK)
WB56T10203 WB56T10203 DOOR OTR ASM 30 (BQ)
WB57T10280 WB57T10280 DOOR OTR ASM 30 (WH)
WB48T10068 WB48T10068 DRAWER GUIDE
WB28T10091 WB28T10091 ELBOW
WB44K10008 WB44K10008 ELEMENT BAKE
WB44T10053 WB44T10053 ELEMENT CONVX
WB07T10405 WB07T10405 EXTENSION REAR
WB07T10498 WB07T10498 EXTENSION SIDE LT
WB07T10497 WB07T10497 EXTENSION SIDE RT
WB63T10034 WB63T10034 FALSE BOTTOM
WR02X10562 WR02X10562 FASTENER PUSH
WB07K10157 WB07K10157 FILLER BACKSPLASH (WHITE)
WB63T10083 WB63T10083 FRAME FRT LOWER
WB48T10013 WB48T10013 FRT DRAWER SUPPORT
WB21X31343 WB21X31343 GAS VALVE CENTER
WB02T10511 WB02T10511 GASKET MAINTOP
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB04T10050 WB04T10050 GASKET OVEN DOOR
WB04K10005 WB04K10005 GASKET TO COOKTOP SMALL
WB64X0093 WB64X0093 GLASS CLEANER
WB57T10233 WB57T10233 GLASS OVN DR INR
WB27T10791 WB27T10791 GLASS TOUCH ASM (BK)
WB27T10770 WB27T10770 GLASS TOUCH ASM (BQ)
WB27T10793 WB27T10793 GLASS TOUCH ASM (WH)

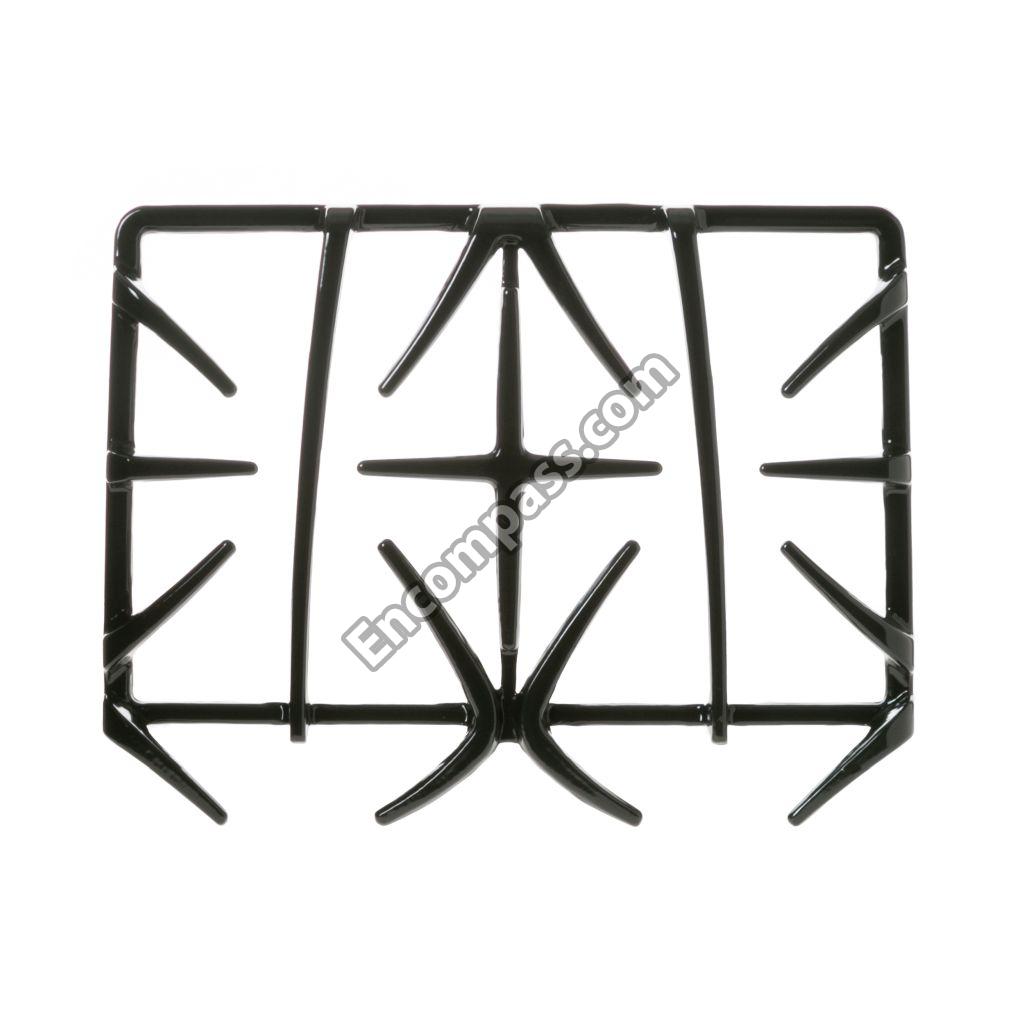

WB31T10120 WB31T10120 GRATE ASM (BK)
WB31T10121 WB31T10121 GRATE ASM (BQ)
WB02T10461 WB02T10461 GRATE FOOT
WB15T10137 WB15T10137 HANDLE PRF DRAWER (BQ)
WB15T10138 WB15T10138 HANDLE PRF DRAWER (WH)
WB15T10136 WB15T10136 HANDLE PRF DRAWER BK
WB18T10343 WB18T10343 HARNESS SWITCH
WB18T10406 WB18T10406 HARNESS WIRE BURNER
WB16T10035 WB16T10035 HEAD BURNER B
WB16T10036 WB16T10036 HEAD BURNER C
WB16T10037 WB16T10037 HEAD BURNER D
WB16T10034 WB16T10034 HEAD BURNER H

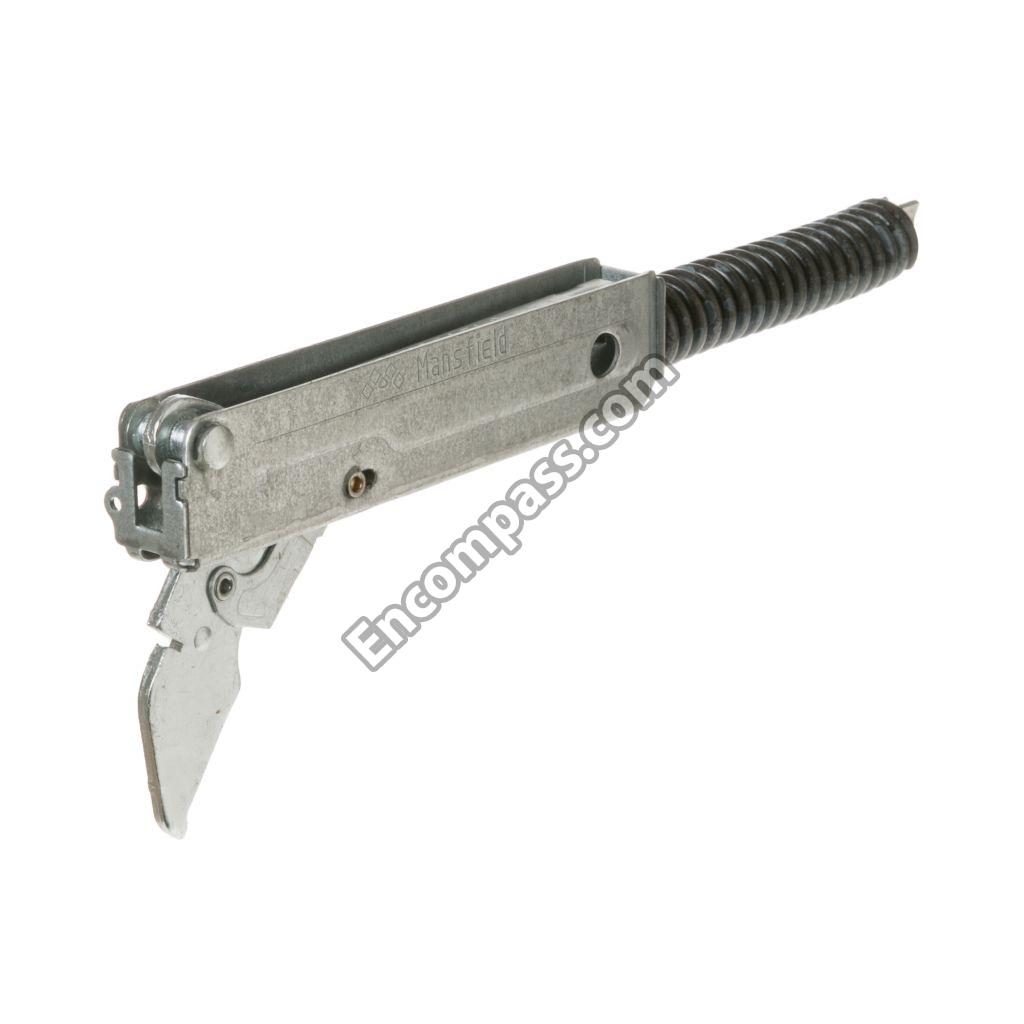

WB10X24381 WB10X24381 HINGE DOOR LT
WB10T10091 WB10T10091 HINGE DOOR LT
WB10X30494 WB10X30494 HINGE DOOR LT
WB10X20965 WB10X20965 HINGE DOOR RT
WB10T10090 WB10T10090 HINGE DOOR RT
WB02T10289 WB02T10289 HUB BLADE ASM
WB13T10073 WB13T10073 IGNITER
WB36T10661 WB36T10661 INSERT PNL CNTL
31-10601 31-10601 INSTRUCTION LP
31-10514 31-10514 INSTRUCTION SHEET
31-10626 31-10626 INSTRUCTIONS INSTALL
WB35T10090 WB35T10090 INSULATION BACK & BTM
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35T10086 WB35T10086 INSULATION OVN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10088 WB35T10088 INSULATION TOP & SDS INR
WB35T10089 WB35T10089 INSULATION TOP & SDS OTR
WB08T10005 WB08T10005 JACK RECEPTACLE
WB03T10195 WB03T10195 KNOB GAS VLV (PRF)
WB03T10196 WB03T10196 KNOB GAS VLV (PRF)
WB03T10198 WB03T10198 KNOB GAS VLV (PRF)
WB25T10096 WB25T10096 LAMP HALOGEN ASM
WB49X29679 WB49X29679 LAMP HALOGEN UPR
WB14T10018 WB14T10018 LATCH OVN
WB02X10521 WB02X10521 LEG LEVELER
WB25T10027 WB25T10027 LENS OVEN LAMP
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10148 WB55T10148 LINER OVEN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
WB61T10135 WB61T10135 MAINTOP GLASS ASM BQ
WB28T10084 WB28T10084 MANIFOLD PIPE
31-14343 31-14343 MANUAL MINI & WD ASM
29-5527 29-5527 MANUAL USE & CARE
WB13T10046 WB13T10046 MODULE SPARK (4+0)
WB26T10033 WB26T10033 MOTOR PSC CONV
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB28K10143 WB28K10143 ORIFICE HOLDER BKT LARGE
WB28T10011 WB28T10011 ORIFICE SPUD -LP
WB28T10028 WB28T10028 ORIFICE SPUD ASSEMBLY
WB28T10017 WB28T10017 ORIFICE SPUD ASSEMBLY-LP
WB28T10015 WB28T10015 ORIFICE SPUD ASSEMBLY-NAT
WB28T10014 WB28T10014 ORIFICE SPUD LT FRT
WB28T10027 WB28T10027 ORIFICE SPUD RT FR-NG
WB28K10288 WB28K10288 ORIFICE SPUD RT.RR.LP
WB28T10033 WB28T10033 ORIFICE SPUD-LP RF
WB48T10092 WB48T10092 OVEN RACK
WB56T10105 WB56T10105 PACK WINDOW ASM
WB36T10666 WB36T10666 PANEL CNTL ASM
WB36T10668 WB36T10668 PANEL CNTL ASM
WB36T10667 WB36T10667 PANEL CNTL ASM
WB56T10174 WB56T10174 PANEL DRAWER
WB56T10175 WB56T10175 PANEL DRAWER
WB56T10173 WB56T10173 PANEL DRAWER
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB02X8309 WB02X8309 PROBE COVER
WX09X10035 WX09X10035 RANGE CORD 4 3 PRONG
WB10T10083 WB10T10083 RECEIVER HINGE
WB19T10034 WB19T10034 REGULATOR CONVERT PRESS
WB02T10184 WB02T10184 RETAINER GLASS (BLK)
WB02T10185 WB02T10185 RETAINER GLASS (BQT)
WB02T10183 WB02T10183 RETAINER GLASS (WHT)
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10136 WB56T10136 RETAINER INSLN BACK
WB02T10233 WB02T10233 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB02T10343 WB02T10343 RETAINER INSLN TOP CENTER
WB02T10172 WB02T10172 RETAINER OVN DR EXT
WB18T10370 WB18T10370 RIBBON CONNECTOR GLS TCH
WB48X5108 WB48X5108 ROAST RACK
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01X1127 WB01X1127 SCREW
WB01X1178 WB01X1178 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1428 WB01X1428 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WH2X930 WH2X930 SCREW
WB1X536 WB1X536 SCREW
WB1M1 WB1M1 SCREW
WB1X681 WB1X681 SCREW
WB1X1178 WB1X1178 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10049 WB01T10049 SCREW 6-32 MCH FHT15 984
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5062 WB1K5062 SCREW 8-18 AB TRP 500 BQT
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB1K5157 WB1K5157 SCREW-BLK
WB01X1118 WB01X1118 SCREW-NICKEL
WB1X500D WB1X500D SCREW-PKG 12
WH2X941D WH2X941D SCREW-PKG 12
WB2K5306 WB2K5306 SD INSUL RET
WB04K10004 WB04K10004 SEAL COOKTOP LARGE
WB23T10015 WB23T10015 SENSOR ASM
WB34T10079 WB34T10079 SHIELD VENT ASM
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10065 WB02T10065 SPACER DR HANDLE
WB2X9037 WB2X9037 SPACER-HNDL
WB55T10178 WB55T10178 STORAGE DRAWER LINING
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB02X33180 WB02X33180 SUPPORT REAR
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB24T10079 WB24T10079 SWITCH LIMIT
WB24T10111 WB24T10111 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB07T10499 WB07T10499 TRIM ASM
WB07T10394 WB07T10394 TRIM VERT SDE LT
WB07T10392 WB07T10392 TRIM VERT SDE LT
WB07T10391 WB07T10391 TRIM VERT SDE RT
WB07K10148 WB07K10148 TRIM VERT SDE RT BQT
WB28T10152 WB28T10152 TUBE (7/16)
WB28T10085 WB28T10085 TUBE BURNER LT FT
WB28T10087 WB28T10087 TUBE BURNER LT RR
WB28T10086 WB28T10086 TUBE BURNER RT FT
WB28T10088 WB28T10088 TUBE BURNER RT RR
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB06X0093 WB06X0093 VALVE CLAMP
WB21X22072 WB21X22072 VALVE GAS LT RR
WB21X22071 WB21X22071 VALVE KIT
WB21X22073 WB21X22073 VALVE KIT
WB28T10075 WB28T10075 VENT INLET DUCT
WB01X5573 WB01X5573 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB63T10084 WB63T10084 WRAPPER OVEN CAV ASSEMBLY LO
