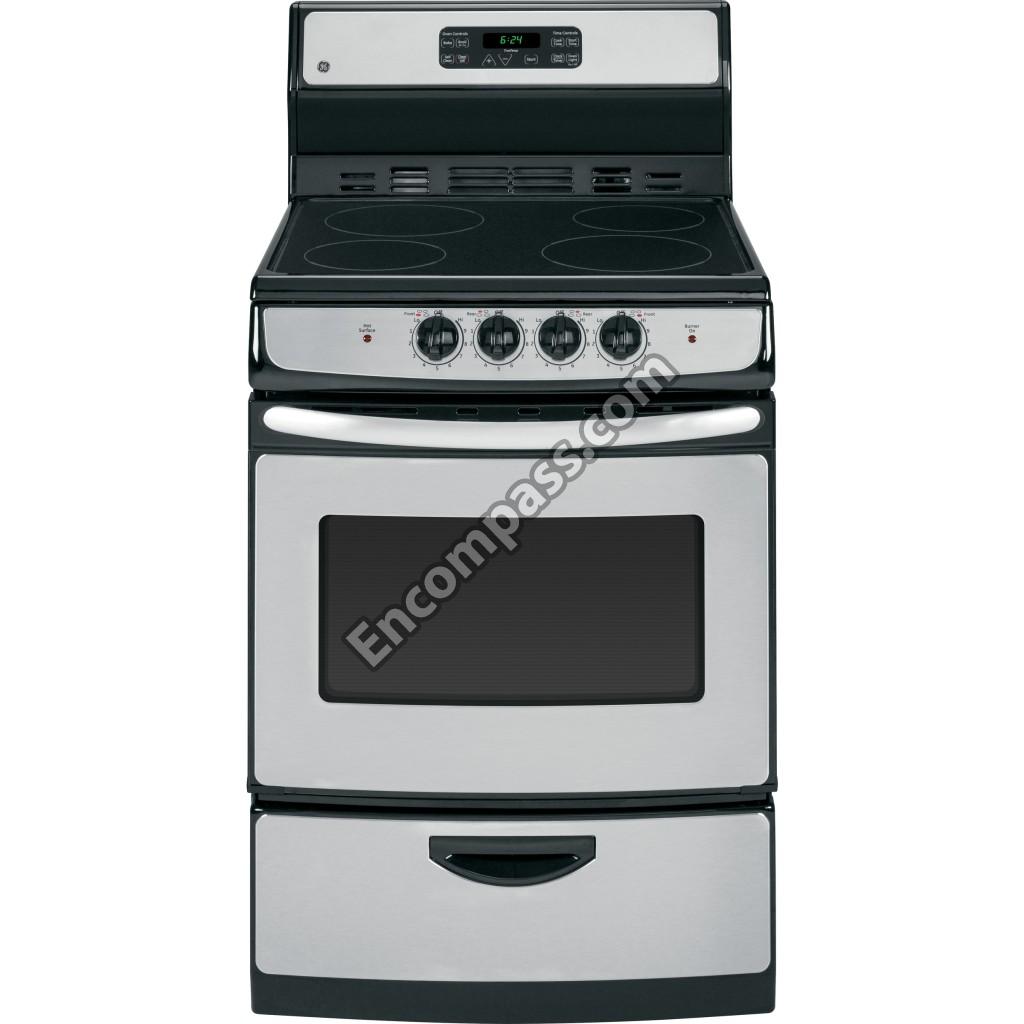

Model Image
Manufacturer

GE

Model Number

JA624RN2SS

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB02K10124 WB02K10124 GE ARM ANTI TIP
WB34K10104 WB34K10104 GE BACK DUCT
WB36K10792 WB36K10792 GE BACKGUARD BASE WELD ASM
WB02K0027 WB02K0027 GE BAIL
WB2K27 WB2K27 GE BAIL
WB63K10186 WB63K10186 GE BASE SUPPORT
WB63X27848 WB63X27848 GE BASE SUPPORT FLAT
WB26K10008 WB26K10008 GE BLOWER TANGENTIAL 60MM
WB02K10387 WB02K10387 GE BRACKET ANTI TIP
WB02K10185 WB02K10185 GE BRACKET BACKGUARD
WB39K10038 WB39K10038 GE BRACKET GUIDE DRAWER
WB39K10036 WB39K10036 GE BRACKET MOUNTING DRAWER
WB02K10029 WB02K10029 GE BRACKET MTG TERMINAL
WB02K10187 WB02K10187 GE BRACKET PANEL
WB34K10107 WB34K10107 GE BRACKET WINDOW
WB02X9719 WB02X9719 GE BROIL ELEMENT SUPPORT
WB2K15 WB2K15 GE BUMPER BLACK
WB02K0015 WB02K0015 GE BUMPER, BLACK
WB25K0002 WB25K0002 GE CAMERA LENS
WB53K10033 WB53K10033 GE CAP WRAP INSULATION
WB53K10032 WB53K10032 GE CAVITY GUARD
PM10X310 PM10X310 GE CERAMABRYTE COOKTOP CLEANER - 28 OZ.
WB02T10111 WB02T10111 GE CLEANER-SS
WB02K0031 WB02K0031 GE CLIP CABLE
WB02X21679 WB02X21679 GE CLIP CABLE
WB02K0052 WB02K0052 GE CLIP RANGETOP
WB2K52 WB2K52 GE CLIP RNGETOP
WB02X7066 WB02X7066 GE CLIP WIRE
WB10K10022 WB10K10022 GE CONNECTOR
WB02K10129 WB02K10129 GE COOKTOP GUIDE
WB34K10103 WB34K10103 GE COVER BLOWER
WB63K10085 WB63K10085 GE COVER GABINET
WB34K10105 WB34K10105 GE COVER LATCH
WB34X27847 WB34X27847 GE COVER RANGE BACK
WB34K10101 WB34K10101 GE COVER REAR BACKGUARD
WB20K10031 WB20K10031 GE COVER THERMOSTAT
WB35K10122 WB35K10122 GE DEFLECTOR PANEL
WB07K10288 WB07K10288 GE DOOR TRIM
WB35K10173 WB35K10173 GE DOOR WINDOW INSULATION
WB58K10009 WB58K10009 GE DRAWER BODY
WB63K10166 WB63K10166 GE DUCT BLOWER
WB34K10102 WB34K10102 GE DUCT UPPER HALF
WB30X26465 WB30X26465 GE ELEMENT HALIANT 8
WB07K10291 WB07K10291 GE END CAP BACKGUARD
WB07K10290 WB07K10290 GE END CAP BACKGUARD
WB27X27482 WB27X27482 GE ERC3B2K5 OVEN CONTROL
WB15K10085 WB15K10085 GE EXTRUDED H AND LE
WB27K10297 WB27K10297 GE FACEPLATE GRAPHICS ASSEMBLY
WB63K10163 WB63K10163 GE FRAME AND SUPPORT WELD ASSEMBLY
WB32K10053 WB32K10053 GE GASKET OVEN LIGTH
WB56K10063 WB56K10063 GE GLASS AND COVER ASSEMBLY
WB56K10056 WB56K10056 GE GLASS DOOR SOLID
WB08K0005 WB08K0005 GE GLASS OVEN LAMP
WB02K10062 WB02K10062 GE GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GE GLIDER DRAWER RIGHT
WB2K8 WB2K8 GE GROMMET
WB02K10188 WB02K10188 GE GROMMET
WB2X646 WB2X646 GE GROUND PLATE
WB56K10058 WB56K10058 GE GUARD DOOR
WB30X38928 WB30X38928 GE HALIANT ELEMENT 6-INCH CERSP
WB07K10289 WB07K10289 GE HANDLE BASE
WB02K10190 WB02K10190 GE HEAT BREAKER
WB44K10021 WB44K10021 GE HEATER BAKE
WB44K10029 WB44K10029 GE HEATER BROIL ASSEMBLY
WB01K10048 WB01K10048 GE HEX LOCK NUT
WB01K10041 WB01K10041 GE HEX LOCK NUT
WB01K10051 WB01K10051 GE HEX NUT 1/4
WB10K10041 WB10K10041 GE HINGE DOOR OVEN ASSEMBLY
WB08K10010 WB08K10010 GE HOUSING RECEPTABLE
WB24T10027 WB24T10027 GE INF SW CTN (2100W)
WB35K10123 WB35K10123 GE INSULATION OVEN BACK
WB56K10052 WB56K10052 GE KICK PANEL AND COVER ASSEMBLY
WB02K10244 WB02K10244 GE LATCH AUTOMATIC
WB55K10083 WB55K10083 GE LATCH LINER DOOR ASSEMBLY
WB25T10041 WB25T10041 GE LENS
WB02K10126 WB02K10126 GE LEVEL SCREW
WB55K10057 WB55K10057 GE LINER DRAWER
WB56K10054 WB56K10054 GE LOWER PROTECTOR
WB34K10106 WB34K10106 GE MOTOR SUPPORT
WB38K10018 WB38K10018 GE OVEN BACK 24
WB36K10791 WB36K10791 GE OVEN BOTTOM
WB48K10012 WB48K10012 GE OVEN RACK
WB63K10159 WB63K10159 GE OVEN SIDE
WB63K10155 WB63K10155 GE OVEN SIDE
WB35K10117 WB35K10117 GE OVEN WRAP INSULATION
WB36K10795 WB36K10795 GE PANEL AND COVER ASSEMBLY
WB63X27850 WB63X27850 GE PANEL SIDE
WB02X0646 WB02X0646 GE PLATE-GROUND
31-10840 31-10840 GE PM INSTALL INSTRUCTIONS
31-14939 31-14939 GE PM MINI MANUAL
49-88063 49-88063 GE PM QUICK GUIDE
WB15K10067 WB15K10067 GE POCKET H AND LE
WB09T10002 WB09T10002 GE RADIANT SPRING ELEMENT
WB39K10037 WB39K10037 GE RAIL DRAWER
WB02K10385 WB02K10385 GE RANGE ANTI-TIP BRACKET
WB63X27849 WB63X27849 GE RANGE BACK
WB02K10091 WB02K10091 GE RANGE DOOR STRIKE CATCH
WB02K10186 WB02K10186 GE RANGE DRAWER SUPPORT
WB04K10034 WB04K10034 GE RANGE FRAME GASKET
WB04K10027 WB04K10027 GE RANGE FRAME GASKET
WB25K10002 WB25K10002 GE RANGE INDICATOR LIGHT
WB03K10250 WB03K10250 GE RANGE KNOB - BLACK
WB02K10128 WB02K10128 GE RANGE MAINTOP STRIKE
WB36X192 WB36X192 GE RANGE OVEN BULB COVER
WB24T10029 WB24T10029 GE RANGE SURFACE BURNER CONTROL SWITCH
WB36K10794 WB36K10794 GE RANGETOP AND GLASS ASSEMBLY
WB10K10003 WB10K10003 GE RECEPTACLE HINGE
WB08T10026 WB08T10026 GE RECEPTACLE PUSH-IN
WB01K10062 WB01K10062 GE SCR 8-18 X 3/8
WB01K0063 WB01K0063 GE SCREW
WB01X1127 WB01X1127 GE SCREW
WB01K0084 WB01K0084 GE SCREW
WB01K10091 WB01K10091 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB01K10092 WB01K10092 GE SCREW
WB01K10061 WB01K10061 GE SCREW
WB01K10052 WB01K10052 GE SCREW
WB01K10043 WB01K10043 GE SCREW
WB1K84 WB1K84 GE SCREW & WASH
WB01K0042 WB01K0042 GE SCREW (BLK)
WB1K63 WB1K63 GE SCREW 10-16 X 0.95 TYPE B
WB01K10054 WB01K10054 GE SCREW 8-18X3/8-INCH
WB01X23501 WB01X23501 GE SCREW 8-32 TT FLP .270
WB01X1261 WB01X1261 GE SCREW GROUND
WB21X5301 WB21X5301 GE SENSOR ASSEMBLY
WB63K10091 WB63K10091 GE SIDE PANEL COMPLEMENT
WB01K10093 WB01K10093 GE SPEEDNUT
WB2X9719 WB2X9719 GE SUPP-BROIL
WB37K10018 WB37K10018 GE SUPPORT BACKGUARD
WB20K10029 WB20K10029 GE SWITCH LIMIT
WB24K10040 WB24K10040 GE SWITCH PLUNGER
WB10K10021 WB10K10021 GE TERMINAL BLOCK
WB63K10104 WB63K10104 GE TERMINAL BLOCK SUPPORT
WB36K10793 WB36K10793 GE TRIM AND COVER ASSEMBLY
WB38X33650 WB38X33650 GE TUBE VENT
WB38K10019 WB38K10019 GE VENT WELD ASSEMBLY
WB1X681 WB1X681 GE WB01X0681
