Model Image
Manufacturer

GE

Model Number

JAP02SN4SS

Description

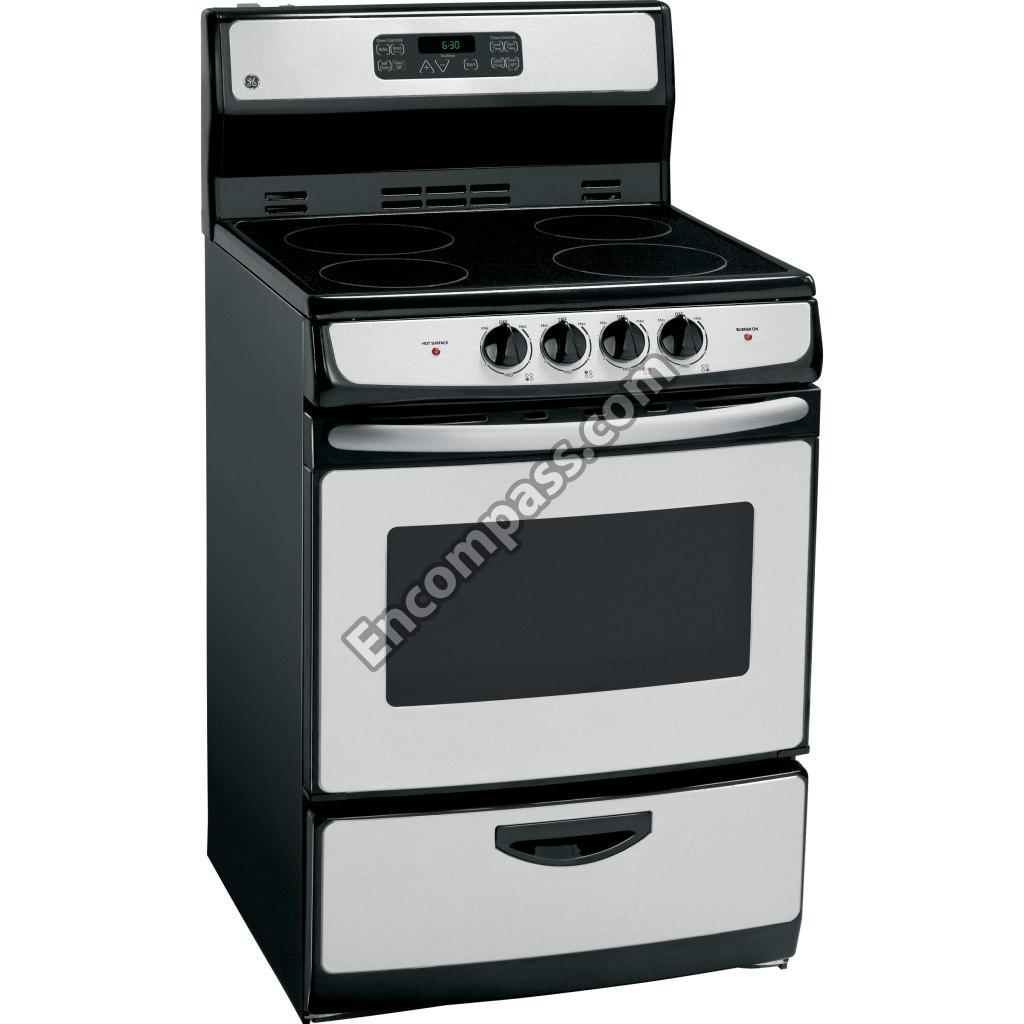

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02K10124 WB02K10124 ARM ANTI TIP
WB34K10104 WB34K10104 BACK DUCT
WB36K10792 WB36K10792 BACKGUARD BASE WELD ASM
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB63K10086 WB63K10086 BASE SUPPORT
WB63K10186 WB63K10186 BASE SUPPORT
WB26K10008 WB26K10008 BLOWER TANGENTIAL 60MM

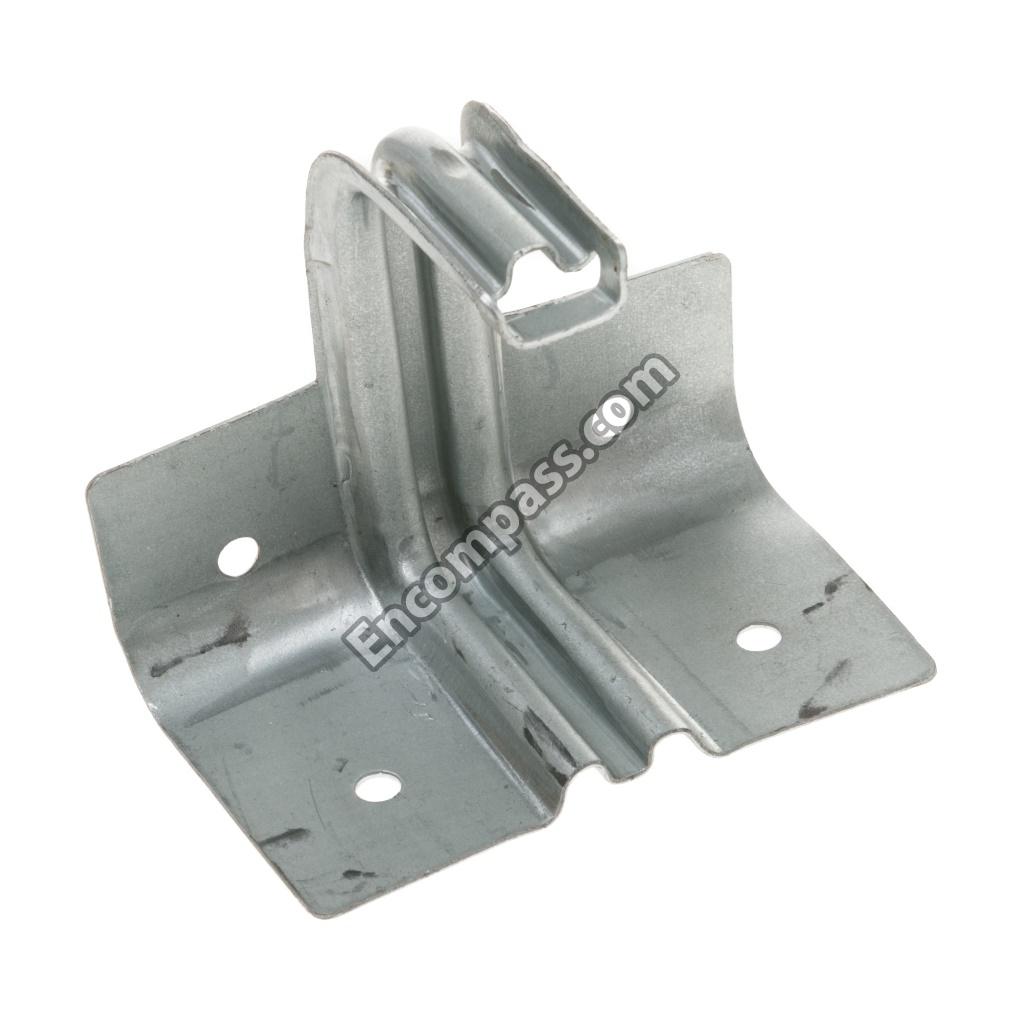

WB02K10387 WB02K10387 BRACKET ANTI TIP

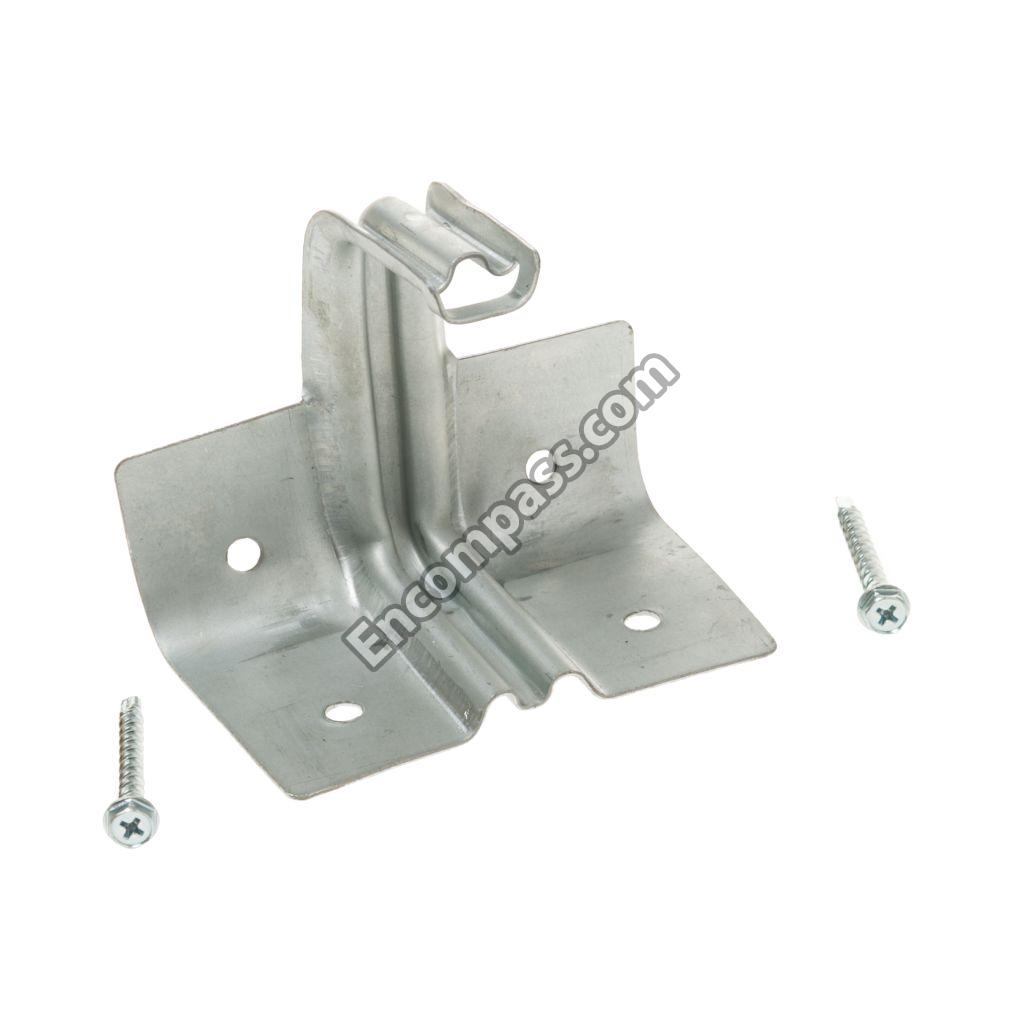

WB02K10385 WB02K10385 BRACKET ASM ANTITIP
WB02K10185 WB02K10185 BRACKET BACKGUARD
WB39K10038 WB39K10038 BRACKET GUIDE DRAWER
WB39K10036 WB39K10036 BRACKET MOUNTING DRAWER
WB02K10029 WB02K10029 BRACKET MTG TERMINAL
WB02K10187 WB02K10187 BRACKET PANEL
WB34K10107 WB34K10107 BRACKET WINDOW
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB2K15 WB2K15 BUMPER BLACK
WB02K0015 WB02K0015 BUMPER, BLACK
WB25K0002 WB25K0002 CAMERA LENS
WB53K10033 WB53K10033 CAP WRAP INSULATION
WB02K10091 WB02K10091 CATCH DR STRIKE
WB53K10032 WB53K10032 CAVITY GUARD
PM10X310 PM10X310 CERAMABRYTE COOKTOP CLEANER - 28 OZ.
WB02T10111 WB02T10111 CLEANER-SS
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K0052 WB02K0052 CLIP RANGETOP
WB2K52 WB2K52 CLIP RNGETOP
WB02X7066 WB02X7066 CLIP WIRE
WB10K10022 WB10K10022 CONNECTOR
WB27K10301 WB27K10301 CONTROL ERC3B2K2 5
WB24T10029 WB24T10029 CONTROL INFINITE SWITCH
WB02K10129 WB02K10129 COOKTOP GUIDE
WB34K10103 WB34K10103 COVER BLOWER
WB63K10085 WB63K10085 COVER GABINET
WB34K10105 WB34K10105 COVER LATCH
WB34K10100 WB34K10100 COVER RANGE BACK
WB34K10101 WB34K10101 COVER REAR BACKGUARD
WB20K10031 WB20K10031 COVER THERMOSTAT
WB35K10122 WB35K10122 DEFLECTOR PANEL

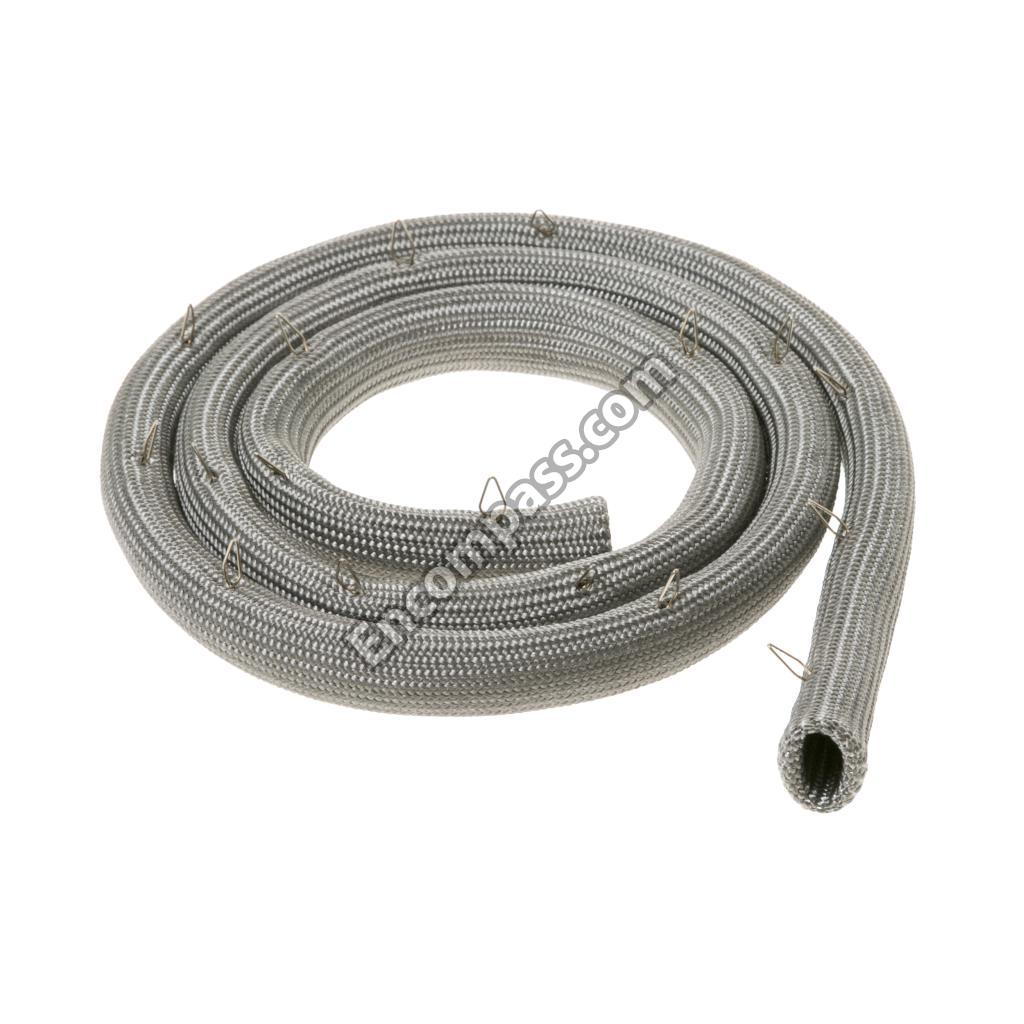

WB04K10034 WB04K10034 DOOR GASKET
WB07K10288 WB07K10288 DOOR TRIM
WB35K10173 WB35K10173 DOOR WINDOW INSULATION
WB58K10009 WB58K10009 DRAWER BODY
WB02K10186 WB02K10186 DRAWER SUPPORT
WB63K10166 WB63K10166 DUCT BLOWER
WB34K10102 WB34K10102 DUCT UPPER HALF
WB30X26465 WB30X26465 ELEMENT HALIANT 8
WB07K10291 WB07K10291 END CAP BACKGUARD
WB07K10290 WB07K10290 END CAP BACKGUARD
WB15K10085 WB15K10085 EXTRUDED HANDLE
WB27K10297 WB27K10297 FACEPLATE GRAPHICS ASM
WB63K10163 WB63K10163 FRAME AND SUPPORT WELD ASSEMBLY

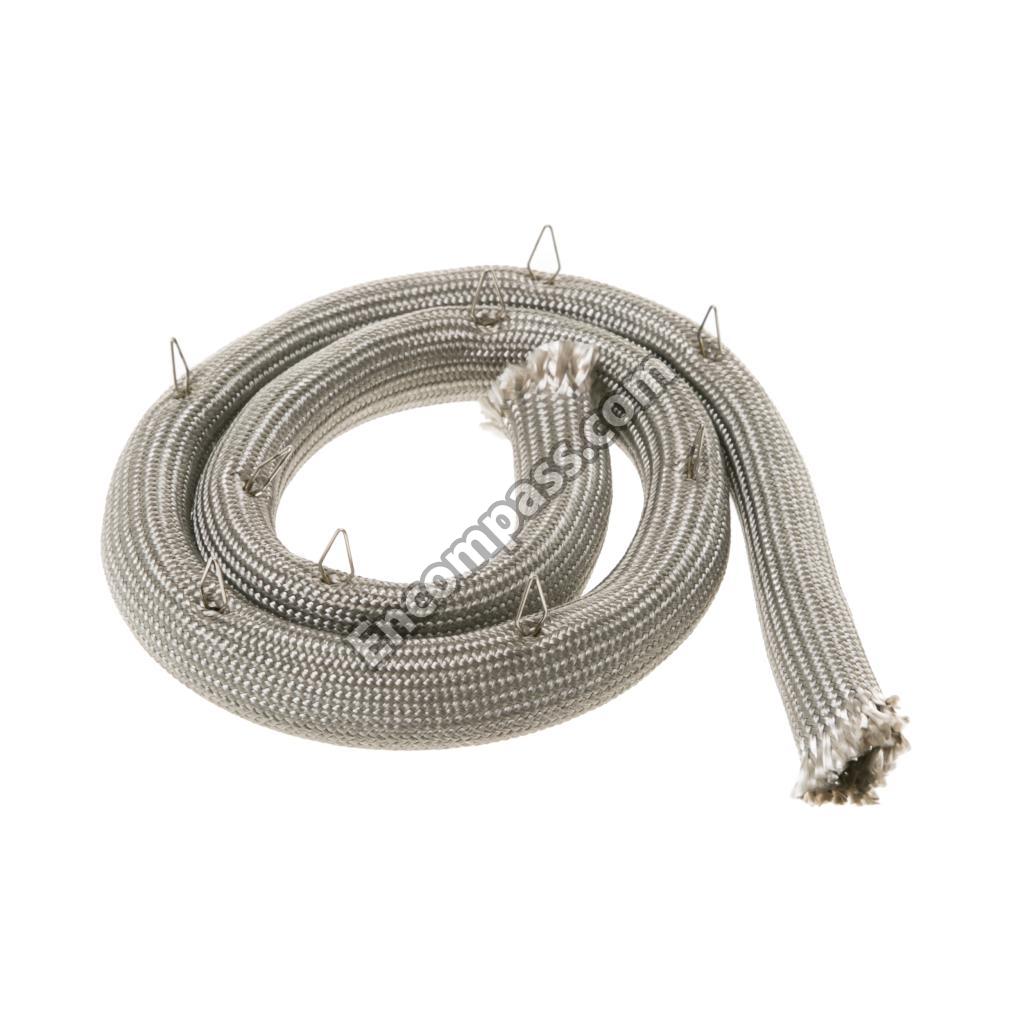

WB04K10027 WB04K10027 GASKET FRONT FRAME

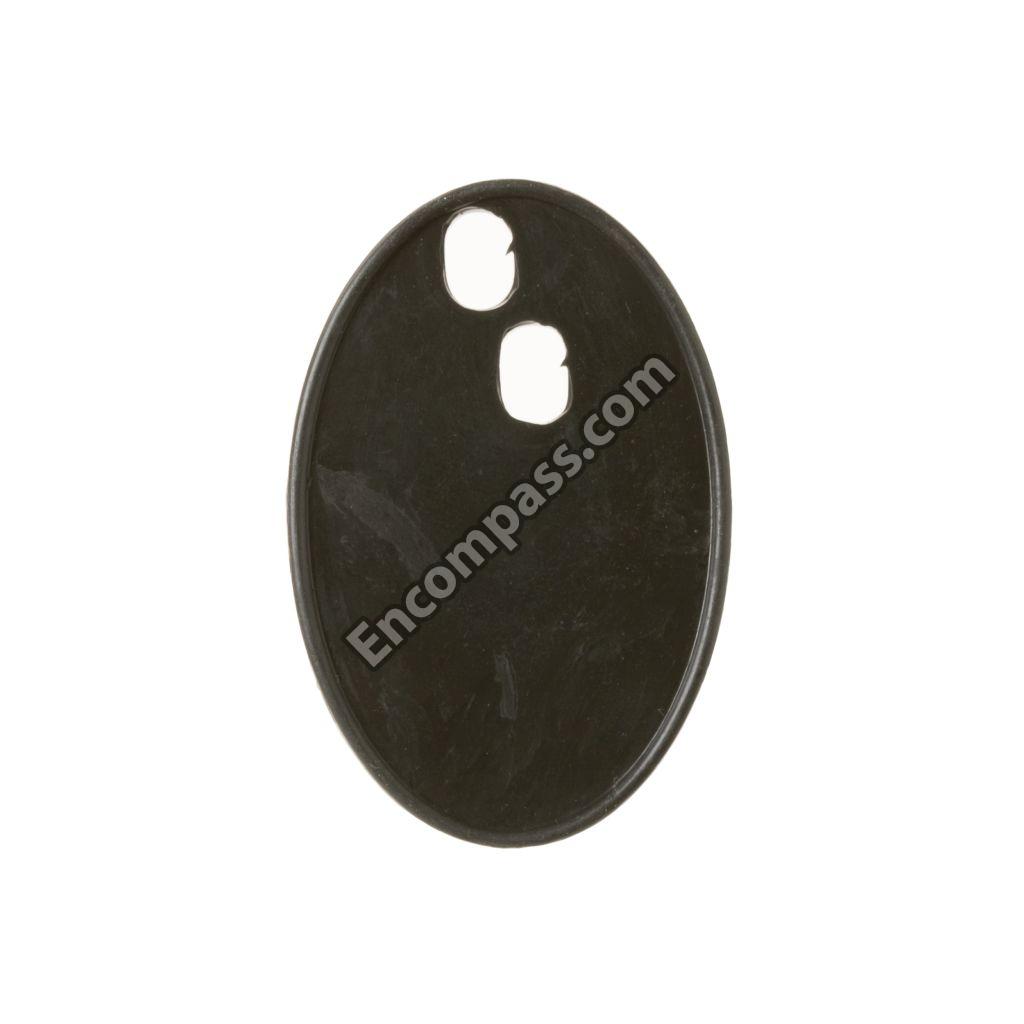

WB32K10053 WB32K10053 GASKET OVEN LIGTH
WB56K10063 WB56K10063 GLASS AND COVER ASM
WB56K10056 WB56K10056 GLASS DOOR SOLID
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB02K10062 WB02K10062 GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GLIDER DRAWER RIGHT
WB2K8 WB2K8 GROMMET
WB02K10188 WB02K10188 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB56K10058 WB56K10058 GUARD DOOR
WB30X38928 WB30X38928 HALIANT ELEMENT 6 CERSP
WB07K10289 WB07K10289 HANDLE BASE
WB02K10190 WB02K10190 HEAT BREAKER
WB44K10021 WB44K10021 HEATER BAKE
WB44K10029 WB44K10029 HEATER BROIL
WB01K10051 WB01K10051 HEX NUT 1/4
WB10K10041 WB10K10041 HINGE DOOR OVEN ASSEMBLY
WB08K10010 WB08K10010 HOUSING RECEPTABLE
WB24T10027 WB24T10027 INF SW CTN (2100W)
WB35K10123 WB35K10123 INSULATION OVEN BACK
WB56K10052 WB56K10052 KICK PANEL AND COVER ASM

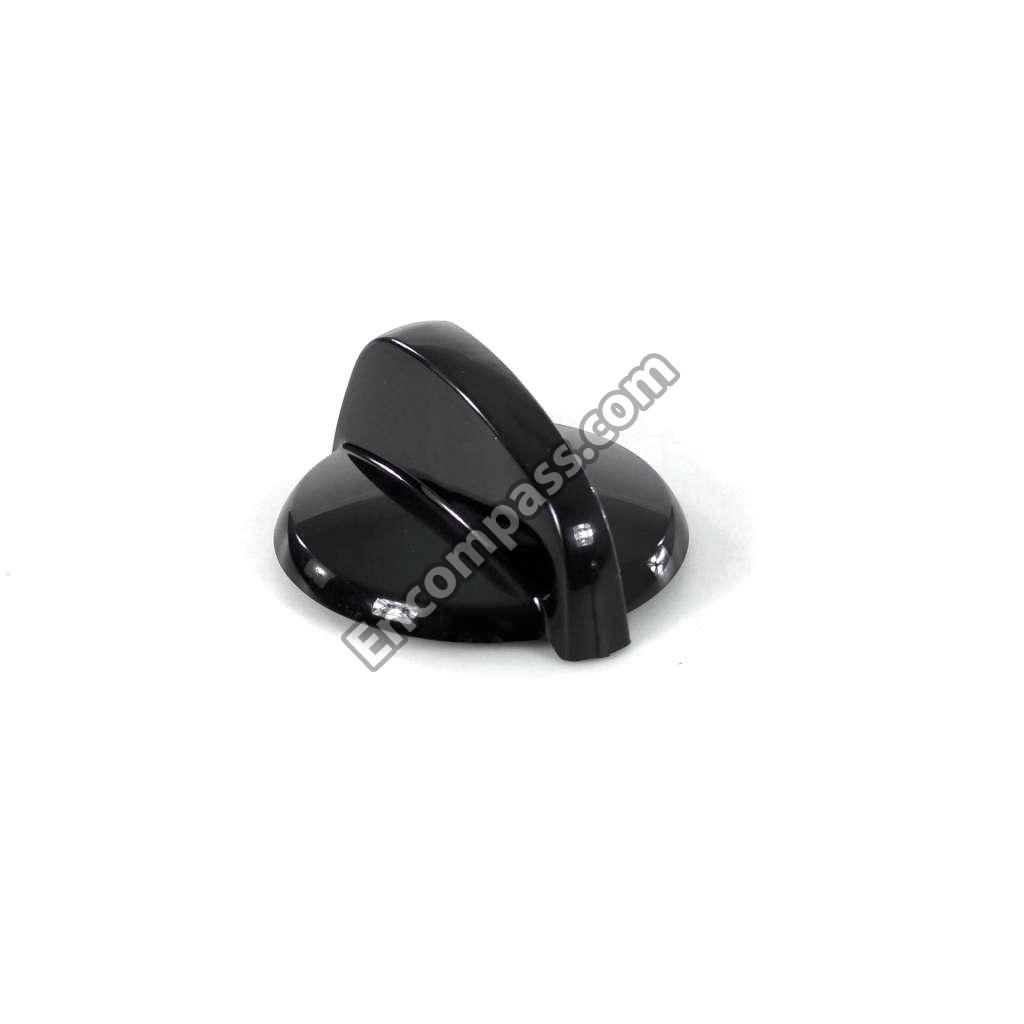

WB03K10250 WB03K10250 KNOB INFINITE
WB25K10002 WB25K10002 LAMP PILOT

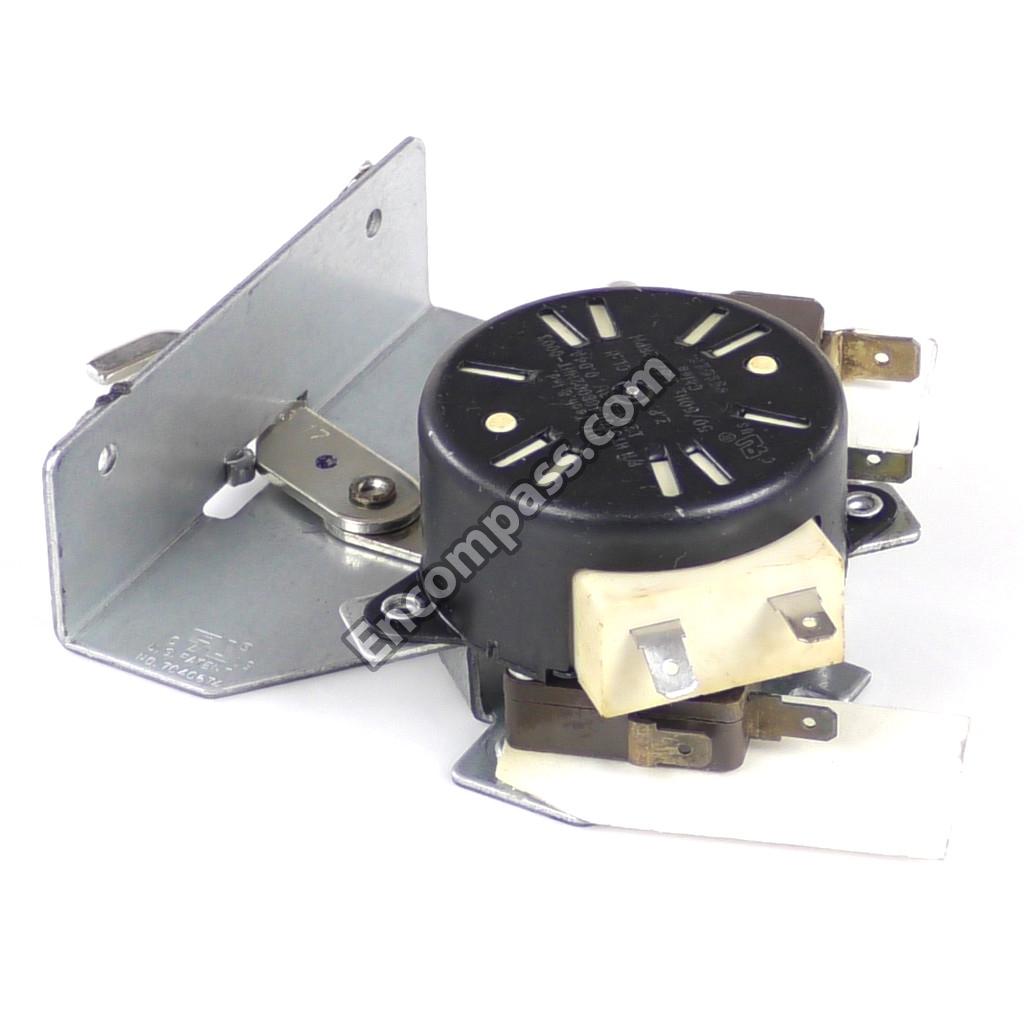

WB02K10244 WB02K10244 LATCH AUTOMATIC
WB55K10083 WB55K10083 LATCH LINER DOOR ASSEMBLY
WB25T10041 WB25T10041 LENS
WB02K10126 WB02K10126 LEVEL SCREW
WB55K10057 WB55K10057 LINER DRAWER
WB56K10054 WB56K10054 LOWER PROTECTOR
WB34K10106 WB34K10106 MOTOR SUPPORT
WB01K10048 WB01K10048 NUT LOCK HEX
WB01K10041 WB01K10041 NUT LOCK HEX
WB38K10018 WB38K10018 OVEN BACK 24
WB36K10791 WB36K10791 OVEN BOTTOM

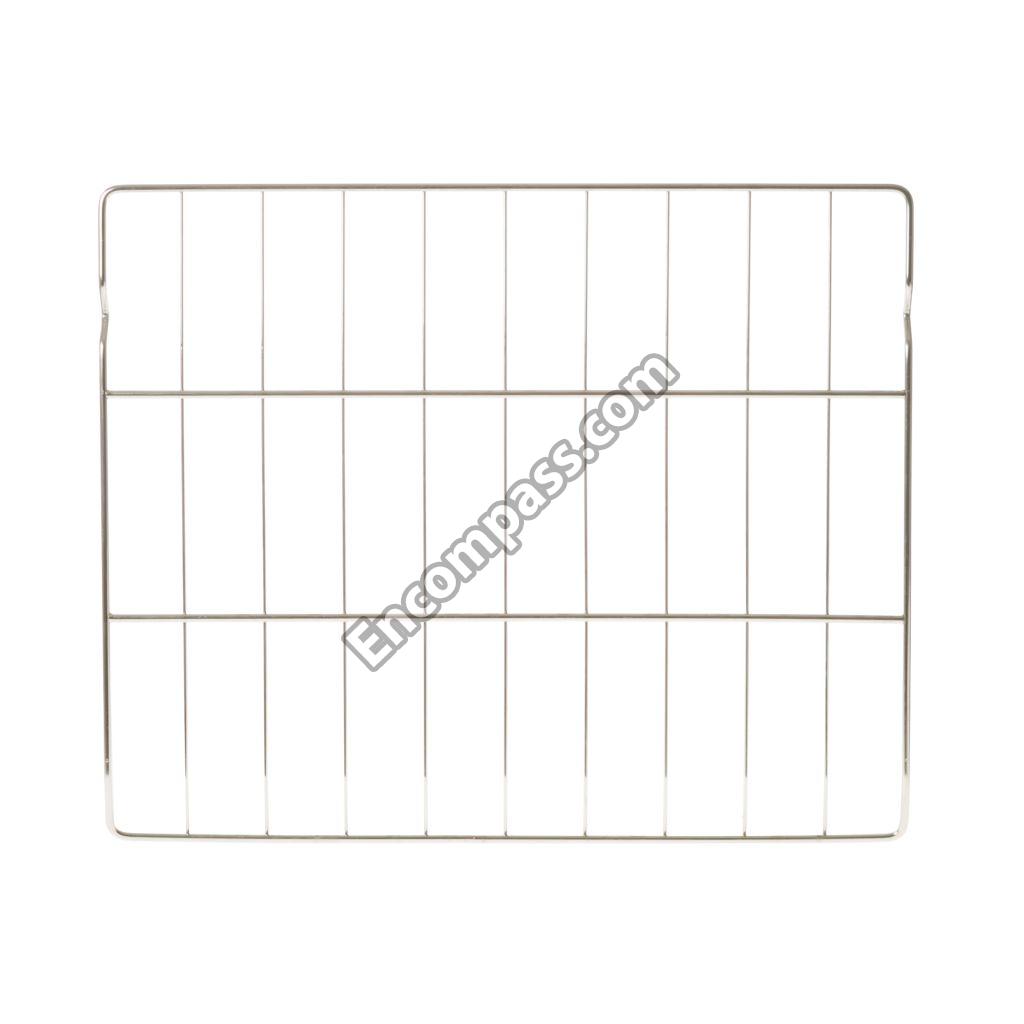

WB48K10012 WB48K10012 OVEN RACK
WB63K10155 WB63K10155 OVEN SIDE
WB63K10159 WB63K10159 OVEN SIDE
WB35K10117 WB35K10117 OVEN WRAP INSULATION
WB36K10795 WB36K10795 PANEL AND COVER ASM
WB63K10158 WB63K10158 PANEL SIDE
WB02X0646 WB02X0646 PLATE-GROUND
31-10840 31-10840 PM INSTALL INSTRUCTIONS
31-14939 31-14939 PM MINI MANUAL
49-88054 49-88054 PM OWNERS AND INSTALL
WB15K10067 WB15K10067 POCKET HANDLE
WB09T10002 WB09T10002 RADIANT SPRING ELEMENT
WB39K10037 WB39K10037 RAIL DRAWER

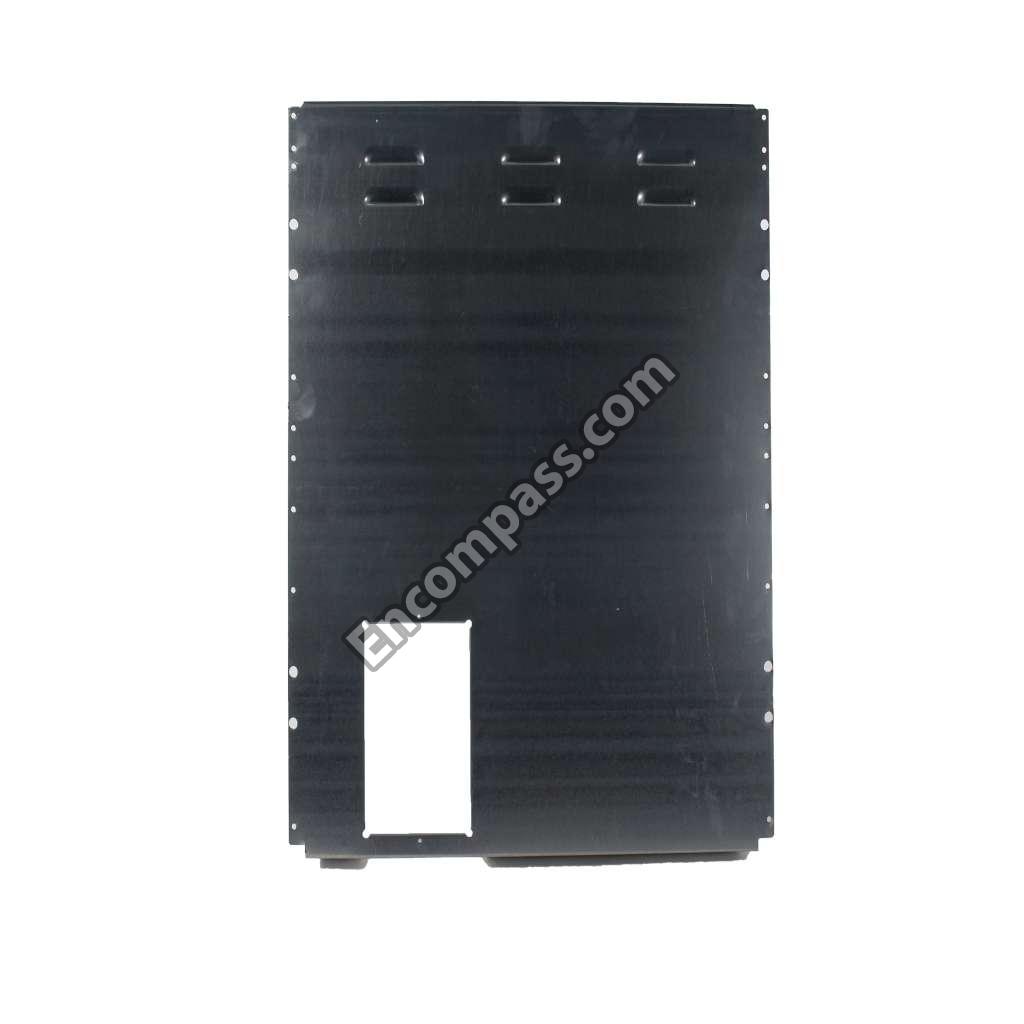

WB63X27849 WB63X27849 RANGE BACK
WB36X192 WB36X192 RANGE OVEN BULB COVER
WB36K10794 WB36K10794 RANGETOP AND GLASS ASM
WB10K10003 WB10K10003 RECEPTACLE HINGE
WB08K0002 WB08K0002 RECEPTACLE PUSH IN
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB01K10062 WB01K10062 SCR 8-18 X 3/8

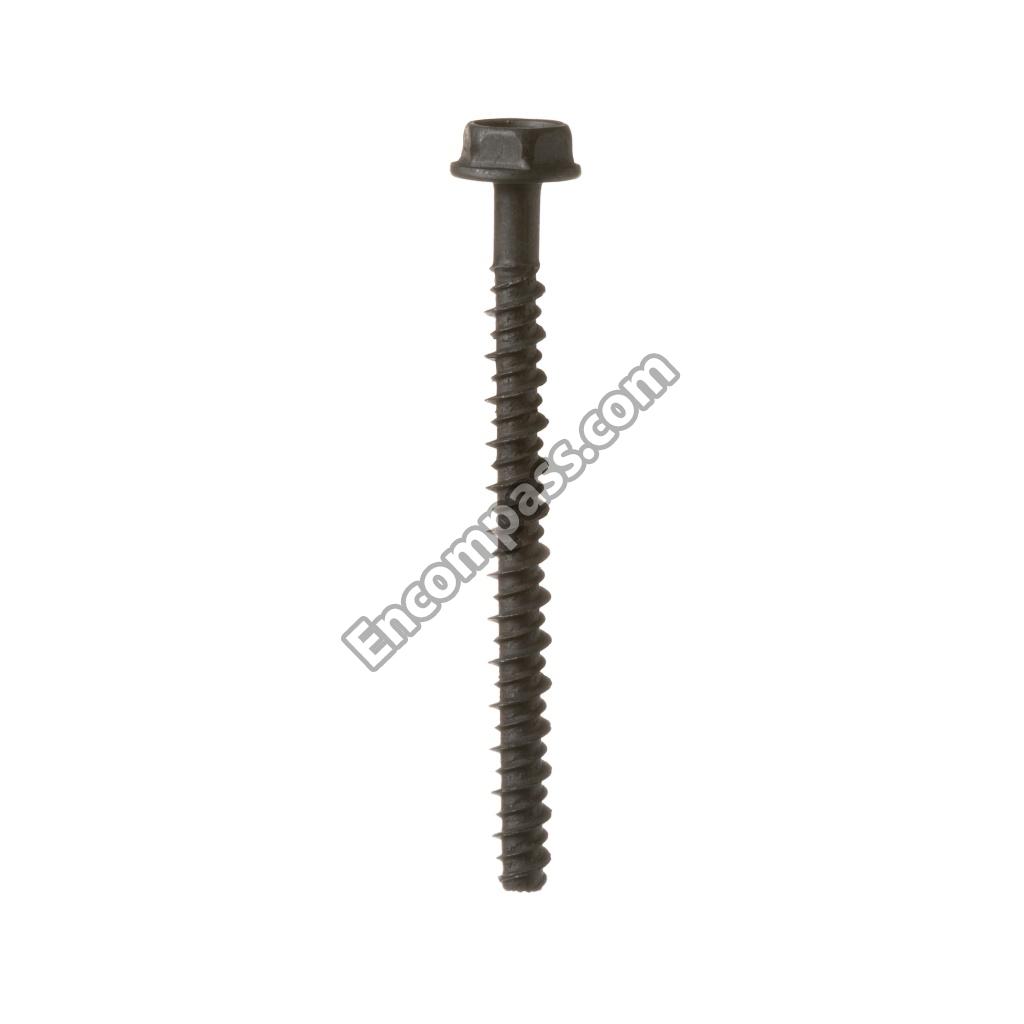

WB01X1127 WB01X1127 SCREW
WB01K0084 WB01K0084 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10052 WB01K10052 SCREW
WB01K10091 WB01K10091 SCREW
WB01K10061 WB01K10061 SCREW
WB01K10092 WB01K10092 SCREW
WB01K10043 WB01K10043 SCREW
WB01X10365 WB01X10365 SCREW
WB1K84 WB1K84 SCREW & WASH
WB01K0042 WB01K0042 SCREW (BLK)
WB1K69 WB1K69 SCREW 10-16
WB01K0069 WB01K0069 SCREW 10-16 DOOR
WB01K10054 WB01K10054 SCREW 8-18X3/8
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01X1261 WB01X1261 SCREW GROUND
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB01K10093 WB01K10093 SPEEDNUT
WB02K10128 WB02K10128 STRIKE MAINTOP
WB2X9719 WB2X9719 SUPP-BROIL
WB37K10018 WB37K10018 SUPPORT BACKGUARD
WB63K10172 WB63K10172 SUPPORT PANEL COMPLEMENT
WB63K10161 WB63K10161 SUPPORT PANEL COMPLEMENT
WB20K10029 WB20K10029 SWITCH LIMIT
WB24K10040 WB24K10040 SWITCH PLUNGER
WB10K10021 WB10K10021 TERMINAL BLOCK
WB63K10104 WB63K10104 TERMINAL BLOCK SUPPORT
WB36K10793 WB36K10793 TRIM AND COVER ASM
WB38X33650 WB38X33650 TUBE VENT
WB38K10019 WB38K10019 VENT WELD ASSEMBLY
WB1X681 WB1X681 WB01X0681
