Model Image
Manufacturer

GE

Model Number

JAS02SN4SS

Description

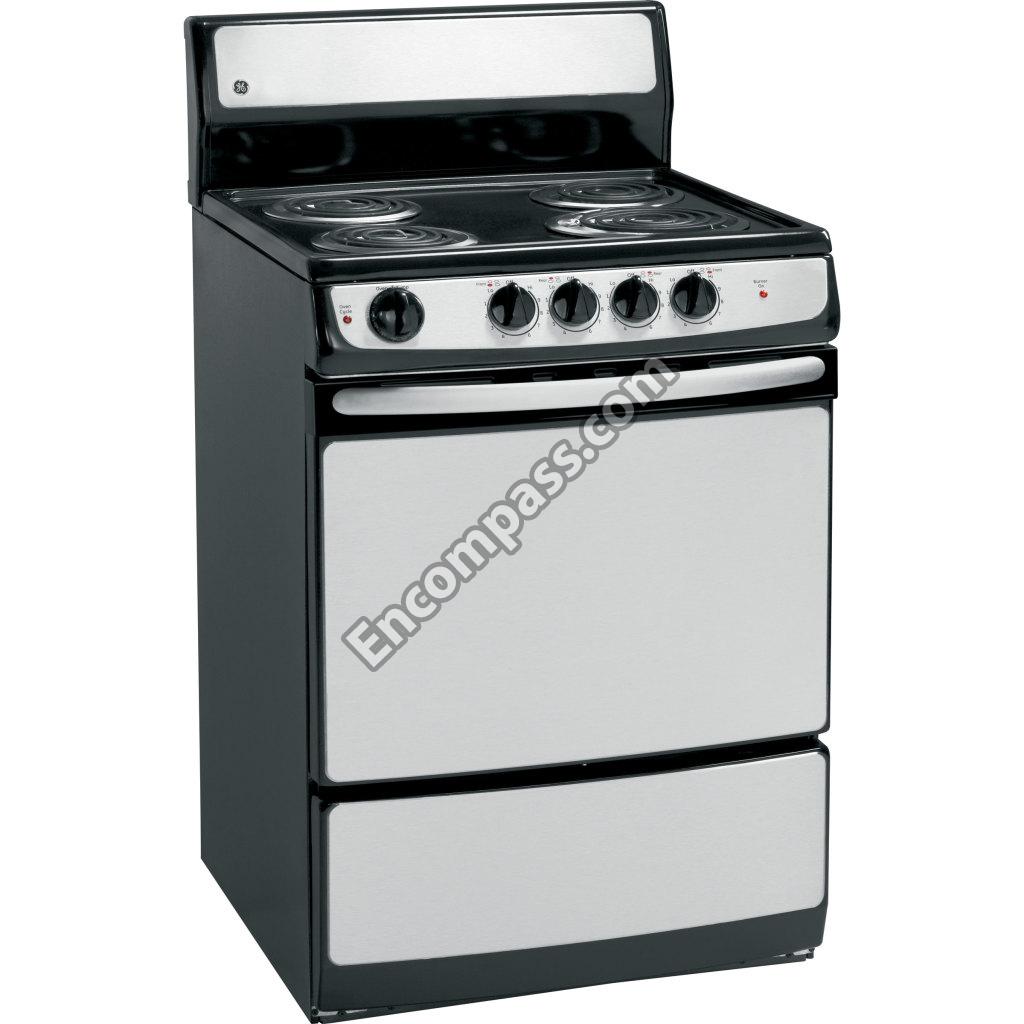

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB24T10025 WB24T10025 500W ELEC RNGE SRFCE BRNER CONTROL SWTCH2
WB32X107 WB32X107 6 INCH CHROME BURNER BOWL - ELEC
WB34K10108 WB34K10108 BACKGUARD COVER 24
WB37K10017 WB37K10017 BACKGUARD SUPPORT
WB63K10086 WB63K10086 BASE SUPPORT
WB63X29133 WB63X29133 BASE SUPPORT ELEC. KIT
WB34X29134 WB34X29134 BRACKET BASE
WB02X29645 WB02X29645 BRACKET DOOR
WB02K10029 WB02K10029 BRACKET MTG TERMINAL
WB02K10183 WB02K10183 BRACKET PANEL
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB48K10016 WB48K10016 BROIL PAN GRID (ONLY) SM 8-3/4-INCHX13-3/4-INCH
WB48K10015 WB48K10015 BROILER PAN (ONLY)SMALL 8-3/4-INCH X 13-1/2-INCH
WB64K10012 WB64K10012 BURNER BOX
WB25K0002 WB25K0002 CAMERA LENS
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02K10073 WB02K10073 CLIP CAPILLARY
WB02K10133 WB02K10133 CLIP RECEPTICAL
WB02X7066 WB02X7066 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB36K10788 WB36K10788 COOKTOP COMPLEMENT
WB02K10129 WB02K10129 COOKTOP GUIDE
WB63K10085 WB63K10085 COVER GABINET
WB34X27847 WB34X27847 COVER RANGE BACK
WB20K10031 WB20K10031 COVER THERMOSTAT
WB02K10130 WB02K10130 DOOR INSULATION SUPPORT
WB07K10288 WB07K10288 DOOR TRIM
WB17T10006 WB17T10006 ELEC RANGE SURFACE BURNER TERMINAL BLOCK
WB32X106 WB32X106 ELECTRIC RANGE 8-INCH CHROME BURNER BOWL
WB07K10292 WB07K10292 END CAP BACKGUARD
WB15K10085 WB15K10085 EXTRUDED H AND LE
WB35K10192 WB35K10192 FOIL CAVITY WRAP
WB63K10157 WB63K10157 FRAME FRONT 24
WB04K10020 WB04K10020 GASKET DOOR ASSEMBLY
WB02K10188 WB02K10188 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB07K10289 WB07K10289 HANDLE BASE
WB02K10190 WB02K10190 HEAT BREAKER
WB44K10019 WB44K10019 HEATER BAKE
WB44K10028 WB44K10028 HEATER BROIL ASSEMBLY
WB01K10048 WB01K10048 HEX LOCK NUT
WB01K10041 WB01K10041 HEX LOCK NUT
WB01K10051 WB01K10051 HEX NUT 1/4
WB10K10011 WB10K10011 HINGE DOOR OVEN ASSEMBLY
WB35K10123 WB35K10123 INSULATION OVEN BACK
WB35K10121 WB35K10121 INSULATION OVEN DOOR
WB56K10055 WB56K10055 KICK PANEL AND COVER ASSEMBLY
WB02X29110 WB02X29110 LEG LEVELING
WB25T10041 WB25T10041 LENS
WB55K10056 WB55K10056 LINER DOOR
WB56K10054 WB56K10054 LOWER PROTECTOR
WB63K10164 WB63K10164 OVEN BACK 24
WB63K10084 WB63K10084 OVEN BOTTOM
WB35K10071 WB35K10071 OVEN DOOR FOIL
WB48K10012 WB48K10012 OVEN RACK
WB63K10159 WB63K10159 OVEN SIDE
WB63K10155 WB63K10155 OVEN SIDE
WB35K10117 WB35K10117 OVEN WRAP INSULATION
WB57K10132 WB57K10132 PANEL AND COVER ASSEMBLY
WB56K10053 WB56K10053 PANEL AND COVER ASSEMBLY
WB35K10059 WB35K10059 PANEL DEFLECTOR
WB35K10120 WB35K10120 PANEL INSULATION
WB35K10069 WB35K10069 PANEL INSULATION
WB63X27850 WB63X27850 PANEL SIDE
WB02X0646 WB02X0646 PLATE-GROUND
31-10981 31-10981 PM INSTALL INSTRUCTIONS
31-10840 31-10840 PM INSTALL INSTRUCTIONS
49-88064 49-88064 PM QUICK GUIDE
WB30K10015 WB30K10015 RANGE 6-INCH SURFACE ELEMENT - 3 TURNS
WB30K10014 WB30K10014 RANGE 8-INCH SURFACE ELEMENT - 4 TURNS
WB02K10385 WB02K10385 RANGE ANTI-TIP BRACKET
WB63X27849 WB63X27849 RANGE BACK
WB07K10320 WB07K10320 RANGE BACKGUARD END CAP - BLACK
WB02K10091 WB02K10091 RANGE DOOR STRIKE CATCH
WB25K10002 WB25K10002 RANGE INDICATOR LIGHT

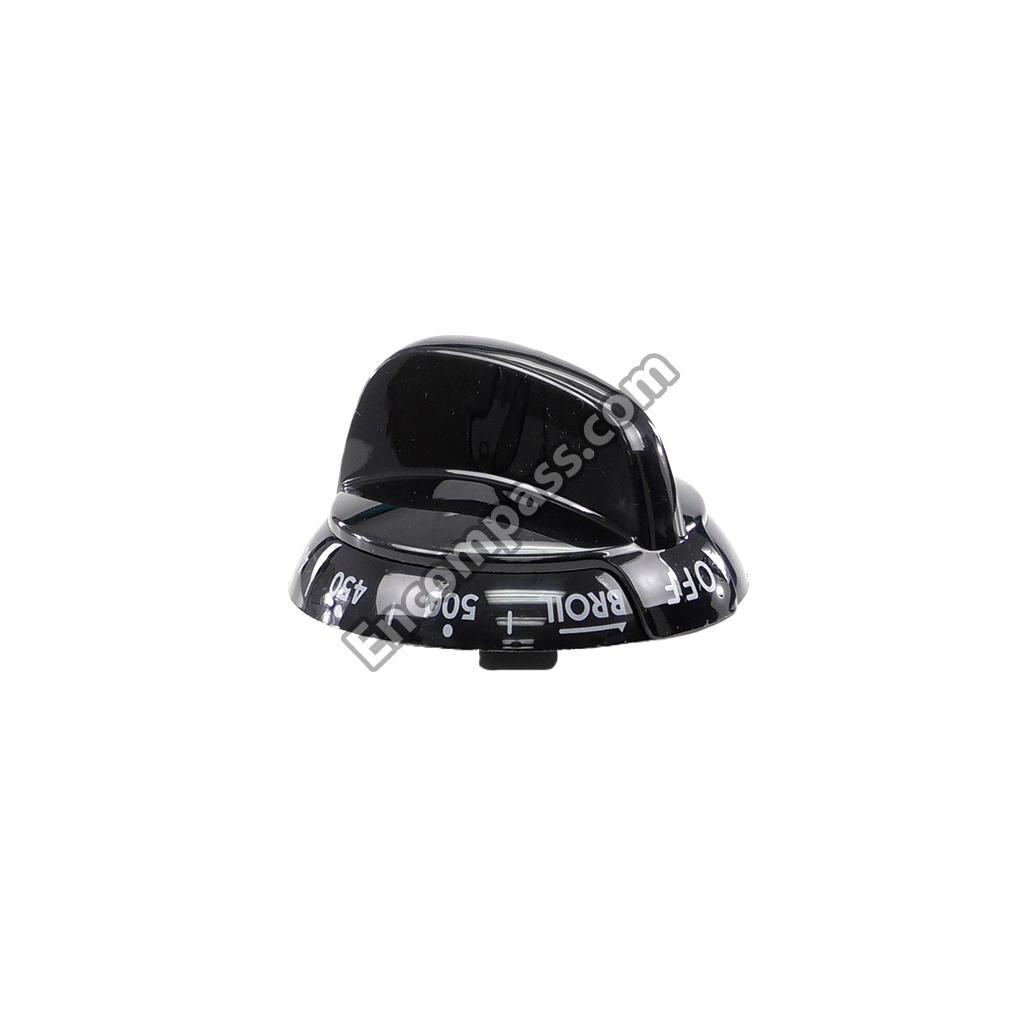

WB03K10250 WB03K10250 RANGE KNOB - BLACK
WB02K10088 WB02K10088 RANGE MAIN TOP SUPPORT ROD
WB02K10128 WB02K10128 RANGE MAINTOP STRIKE
WB02K10089 WB02K10089 RANGE SUPPORT ROD CLAMP
WB24T10029 WB24T10029 RANGE SURFACE BURNER CONTROL SWITCH
WB03K10251 WB03K10251 RANGE THERMOSTAT KNOB - BLACK
WB62K10122 WB62K10122 RANGE TOP 24
WB04K10002 WB04K10002 RANGE VENT COVER
WB10K10003 WB10K10003 RECEPTACLE HINGE
WB01K10062 WB01K10062 SCR 8-18 X 3/8
WB01K0084 WB01K0084 SCREW
WB01K0063 WB01K0063 SCREW
WB01K10091 WB01K10091 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5062 WB1K5062 SCREW
WB01K10092 WB01K10092 SCREW
WB01K10061 WB01K10061 SCREW
WB01K10052 WB01K10052 SCREW
WB01K10043 WB01K10043 SCREW
WB1K84 WB1K84 SCREW & WASH
WB01K0042 WB01K0042 SCREW (BLK)
WB1K63 WB1K63 SCREW 10-16 X 0.95 TYPE B
WB01K10054 WB01K10054 SCREW 8-18X3/8-INCH
WB01X23501 WB01X23501 SCREW 8-32 TT FLP .270
WB01X1261 WB01X1261 SCREW GROUND
WB01K10093 WB01K10093 SPEEDNUT
WB2X9719 WB2X9719 SUPP-BROIL
WB63K10172 WB63K10172 SUPPORT PANEL COMPLEMENT
WB63K10161 WB63K10161 SUPPORT PANEL COMPLEMENT
WB10K10021 WB10K10021 TERMINAL BLOCK
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB63K10104 WB63K10104 TERMINAL BLOCK SUPPORT
WB20K10019 WB20K10019 THERMOSTAT TOP HEAT SP
WB53K10023 WB53K10023 TOP GUARD INSULATION
WB36K10796 WB36K10796 TRIM AND COVER ASSEMBLY
WB38K10013 WB38K10013 VENT TUBE
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
