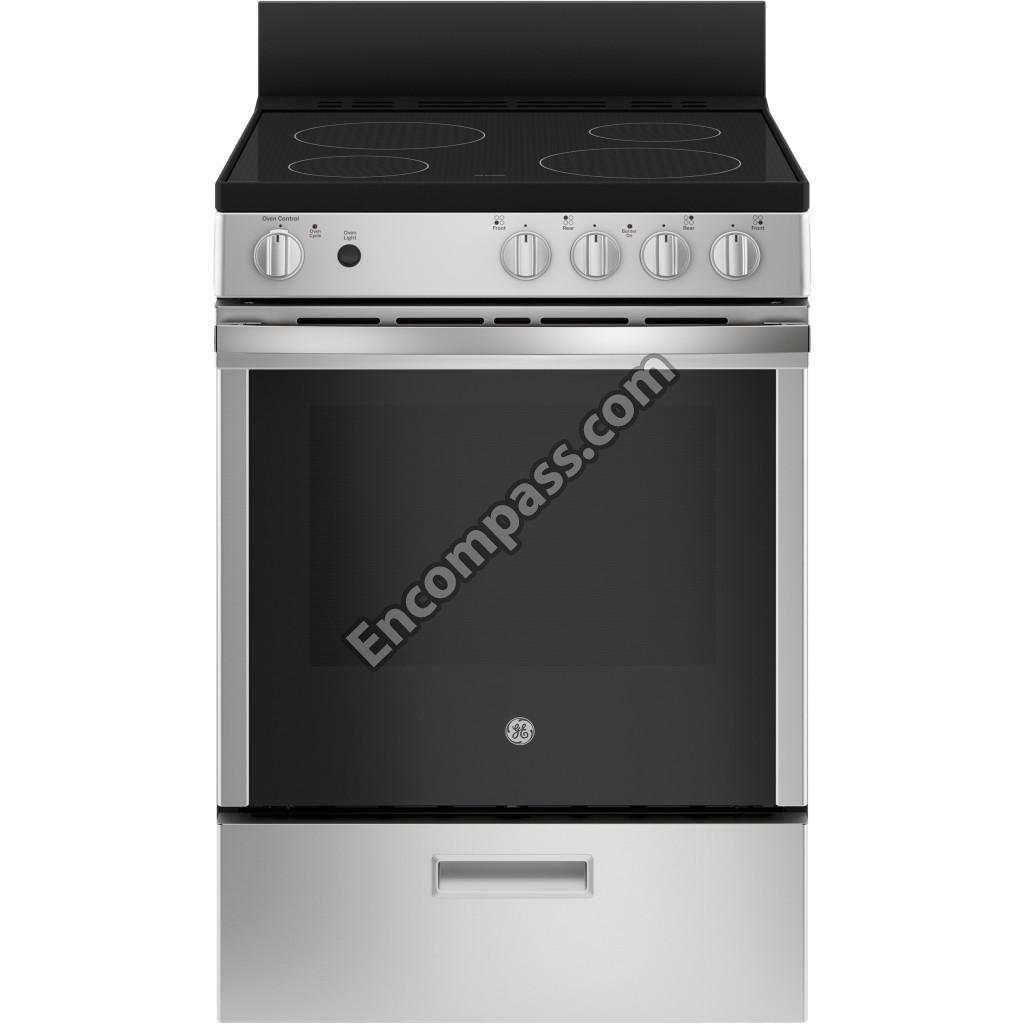

Model Image
Manufacturer

GE

Model Number

JAS640RM4SS

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40A15 40A15 40A15
WB02K10124 WB02K10124 ARM ANTI TIP
WB36X30951 WB36X30951 BACKGUARD RANGE
WB02K0027 WB02K0027 BAIL
WB56X31921 WB56X31921 BARRIER DOOR
WB56X45649 WB56X45649 BLACK PANEL SIDE AND FOIL
WB63X30936 WB63X30936 BODY DRAWER
WB37X30912 WB37X30912 BRACKET ASM ANTI-TIP
WB37X30910 WB37X30910 BRACKET COOKTOP
WB37X30909 WB37X30909 BRACKET COOKTOP
WB02X45613 WB02X45613 BRACKET HANDLE DOOR LEFT
WB02X45612 WB02X45612 BRACKET HANDLE DOOR RIGHT
WB02K0015 WB02K0015 BUMPER, BLACK
WB25K10009 WB25K10009 CAMERA LENS
WB01X26891 WB01X26891 CLIP BROIL HANDLE
WB34X30901 WB34X30901 COVER BACK
WB34X30898 WB34X30898 COVER KNOCKOUT
WB02X33816 WB02X33816 COVER THERMOSTAT
WB34X30935 WB34X30935 DEFLECTOR UPPER DOOR
WB02K10186 WB02K10186 DRAWER SUPPORT
WB30X26465 WB30X26465 ELEMENT HALIANT 8
WB30T10145 WB30T10145 ELEMENT RADIANT 5.5 IN
WB02X31920 WB02X31920 FOOT LEVELING
WB02X28737 WB02X28737 FRAME FRONT BUMPER
WB35X45637 WB35X45637 GASKET FRAME
WB35X45639 WB35X45639 GASKET INNER DOOR
WB56X45642 WB56X45642 GLASS LINER DOOR
WB56X45641 WB56X45641 GLASS LINER DOOR
WB56X30904 WB56X30904 GLASS OVEN DOOR ASM
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB02K10062 WB02K10062 GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GLIDER DRAWER RIGHT
WB2K8 WB2K8 GROMMET
WB34X30933 WB34X30933 GUARD INSULATION
WB10X30947 WB10X30947 GUSSET HINGE LH
WB10X30946 WB10X30946 GUSSET HINGE RH
WB15X26672 WB15X26672 HANDLE BROIL
WB18X35327 WB18X35327 HARNESS COOKTOP
WB18X30896 WB18X30896 HARNESS GROUND
WB18X30895 WB18X30895 HARNESS GROUND
WB18X30894 WB18X30894 HARNESS INFINITE
WB18X30893 WB18X30893 HARNESS MAIN
WB18X30892 WB18X30892 HARNESS PILOT
WB07X45630 WB07X45630 HEAT SINK SIDE DOOR LEFT
WB07X45631 WB07X45631 HEAT SINK SIDE DOOR RIGHT
WB44X47928 WB44X47928 HEATER & SUPPORT BROIL ASM
WB44X47937 WB44X47937 HEATER BAKE
WB10X45766 WB10X45766 HINGE DOOR
WB08K10010 WB08K10010 HOUSING RECEPTABLE
WB35X32513 WB35X32513 INSULATION DOOR
WB35X45636 WB35X45636 INSULATION SIDE DOOR
WB03X30928 WB03X30928 KNOB
WB03X30927 WB03X30927 KNOB ASM
WB27T10668 WB27T10668 LIGHT INDICATOR
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB56X30926 WB56X30926 LINER DOOR
WB56X30925 WB56X30925 LINER DRAWER
WB07X30924 WB07X30924 LOWER TRIM
WB36X30923 WB36X30923 MANIFOLD PANEL
WB63X30922 WB63X30922 OVEN BOTTOM
WB02X35325 WB02X35325 PAD. RADIANT ELEMENT
WB56X30920 WB56X30920 PANEL DRAWER
WB24K10068 WB24K10068 PLUNGER SWITCH
31-10840 31-10840 PM INSTALL INSTRUCTIONS
31-11135 31-11135 PM INSTALL INSTRUCTIONS
31-2001141 31-2001141 PM MINI MANUAL AND WIRING
49-2001026 49-2001026 PM OWNERS MANUAL
49-2001035 49-2001035 PM QUICK OWNERS MANUAL
WB48X30918 WB48X30918 RACK OVEN
WB37X30908 WB37X30908 RAIL & BRACKET GUIDE DRAWER ASM
WB62X30917 WB62X30917 RANGE TOP & GLASS ASM
WB10X31976 WB10X31976 RECEIVER HINGE
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB01K10069 WB01K10069 SCR 10-24 2A PNP 6/5 S
WB01X26995 WB01X26995 SCR 8-18 AB X 5/16S
WB01K0081 WB01K0081 SCREW
WB01X30980 WB01X30980 SCREW
WB01X30915 WB01X30915 SCREW
WB01K10091 WB01K10091 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01T10009 WB01T10009 SCREW 10-16 SHLDR TYPE A
WZ4X345D WZ4X345D SCREW 8-18X5/8 HXW
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 S
WB01X1261 WB01X1261 SCREW GROUND
WB01K0008 WB01K0008 SCREW THERMOSTAT
WB02X31933 WB02X31933 SEAL VALVE
WB02X20849 WB02X20849 SPACER SIDE
WB01K10020 WB01K10020 SPACER-HANDLE
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB15X35074 WB15X35074 STAINLESS STEEL HANDLE
WB37X30907 WB37X30907 SUPPORT BASE
WB02X45626 WB02X45626 SUPPORT INNER DOOR
WB24X31927 WB24X31927 SWITCH
WB24X31928 WB24X31928 SWITCH INFINITE
WB24X31917 WB24X31917 SWITCH INFINITE
WB34X31919 WB34X31919 TABLET COVER
WB18X40708 WB18X40708 TERMINAL BLOCK ASM
WB24X21192 WB24X21192 THERMOSTAT ELECTRIC
WB07X45633 WB07X45633 TRIM PANEL SIDE LEFT
WB07X45629 WB07X45629 TRIM PANEL SIDE RIGHT
