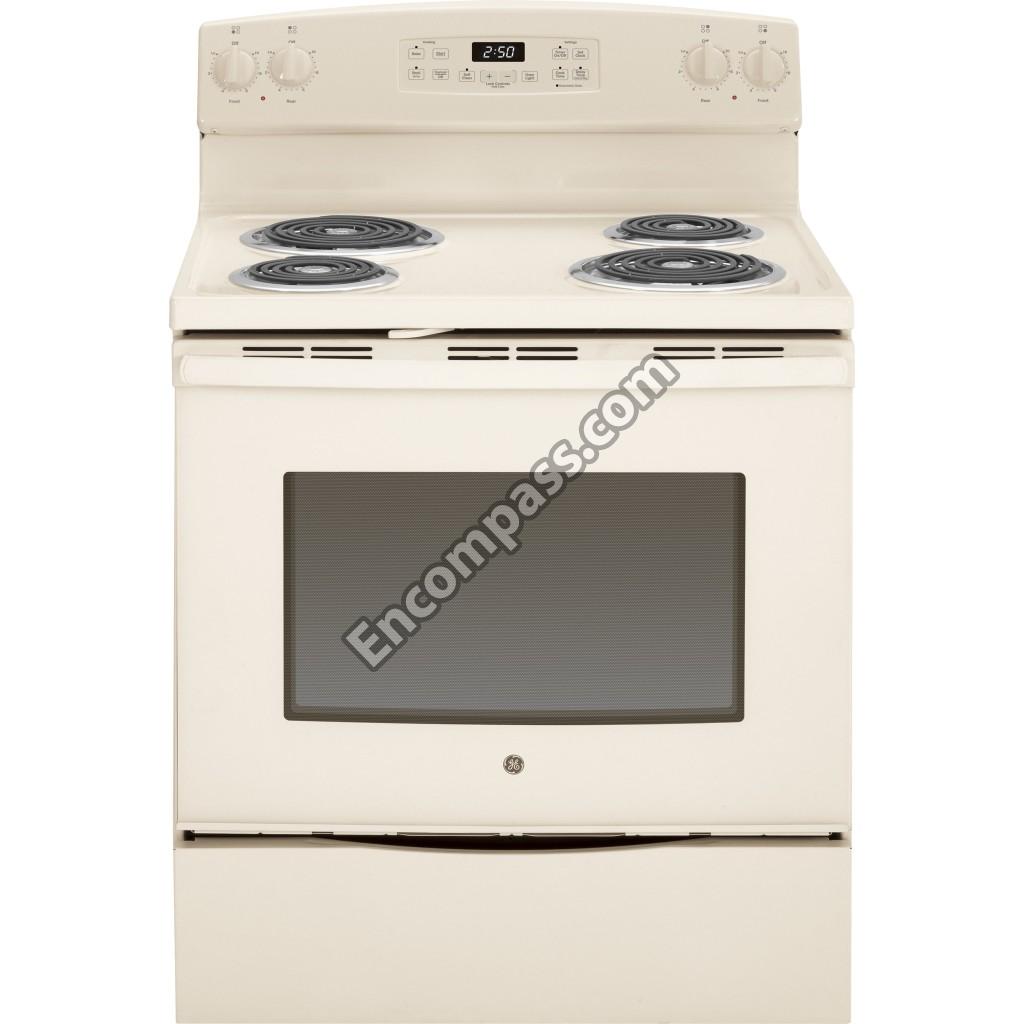

Model Image
Manufacturer

GE

Model Number

JB250DF1CC

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 GE 340531
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB31T10010 WB31T10010 GE 6 INCH CHROME BURNER BOWL - ELEC
WB31T10011 WB31T10011 GE 8 INCH CHROME BURNER BOWL - EL
WB63T10176 WB63T10176 GE BACK MAIN
WB2X7694 WB2X7694 GE BAIL
WB44T10011 WB44T10011 GE BAKE ELEMENT
WB44X45495 WB44X45495 GE BAKE ELEMENT
WB63X28540 WB63X28540 GE BASE RIVET ASM
WB07X32931 WB07X32931 GE BISQUE BOTTOM TRIM CHANEL
WB64T10073 WB64T10073 GE BOX BURNER GY
WB02T10578 WB02T10578 GE BRACKET ANTITIP ASM
WB34X20080 WB34X20080 GE BRACKET CONTROL
WB34X42670 WB34X42670 GE BRACKET OVN HDL VNT TRM
WB34X42027 WB34X42027 GE BRACKET OVN HDL VNT TRM
WB02X29562 WB02X29562 GE BUMPER RANGETOP
WB02K10381 WB02K10381 GE CLIP RECEPTACLE
WB02T10118 WB02T10118 GE CLIP SEAM OVEN BODY
WB02X8115 WB02X8115 GE CLIP WIRE
WB2X8115 WB2X8115 GE CLIP WIRE
WB01X0119 WB01X0119 GE CONTOURED WASHER
WB24T10029 WB24T10029 GE CONTROL INFINITE SWITCH
WB27X45466 WB27X45466 GE CONTROL OVEN TO9 ELEC
WB34T10128 WB34T10128 GE COVER BACK
WB02T10532 WB02T10532 GE COVER CONTROL
WB34T10011 WB34T10011 GE COVER RECEPTACLE
WB01T10026 WB01T10026 GE DOOR PAD
WB55T10178 WB55T10178 GE DRAWER BODY ASM MECH
WB48T10013 WB48T10013 GE DRAWER SUPPORT FRT
WB27T11513 WB27T11513 GE FACEPLATE GRAPHICS (BQ)
WB56T10293 WB56T10293 GE FRAME DOOR SIDE (BQ)
WB63T10093 WB63T10093 GE FRAME FRONT
WB02T10027 WB02T10027 GE GASKET OVEN LIGHT
WB56T10358 WB56T10358 GE GLASS OVN DR OTR (BQ)
WB15T10215 WB15T10215 GE HANDLE
WB18X30783 WB18X30783 GE HARNESS WIRE MAINTOP LEFT
WB18X30782 WB18X30782 GE HARNESS WIRE MAINTOP RT
WB10T10071 WB10T10071 GE HINGE DOOR
WB10T10068 WB10T10068 GE HINGE RECEIVER
WB24T10025 WB24T10025 GE INF SW CONTROL (2500W)
31-10617 31-10617 GE INSTRUCTION INSTALL
WB35T10114 WB35T10114 GE INSULATION DOOR
WB35T10077 WB35T10077 GE INSULATION DOOR
WB35T10113 WB35T10113 GE INSULATION OVN BACK/BTTM
WB35T10209 WB35T10209 GE INSULATION OVN WRPR
WB03T10345 WB03T10345 GE KNOB INFINITE
229C5727P001 229C5727P001 GE LABEL WIRE DIAGRAM
WB36X192 WB36X192 GE LAMP COV ASM
WB14T10094 WB14T10094 GE LATCH AND HANDLE ASM
WB02T10021 WB02T10021 GE LATCH COVER
WB18T10466 WB18T10466 GE LEAD WIRE 18 GA Y
WB02X10521 WB02X10521 GE LEG LEVELER
WB25T10103 WB25T10103 GE LENS
WB25T10042 WB25T10042 GE LENS
WB02X7694 WB02X7694 GE LIGHT CAMERA LENS BAIL
WB25K10010 WB25K10010 GE LIGHT INDICATOR PILOT
WB55T10200 WB55T10200 GE LINER OVEN DOOR ASM GY
WB02T10026 WB02T10026 GE MAINTOP STRIKE
WB17T10021 WB17T10021 GE MOUNT TERMINAL BLOCK
WB04T10086 WB04T10086 GE OVEN DOOR GASKET
WB02T10037 WB02T10037 GE OVEN LIGHT CUP
WB48T10063 WB48T10063 GE OVEN RACK
WB56T10105 WB56T10105 GE PACK WINDOW ASM
WB56X22160 WB56X22160 GE PACK WINDOW ASSEMBLY
WB56T10367 WB56T10367 GE PANEL DRAWER BQ
WB63T10121 WB63T10121 GE PANEL SIDE (BQ)
WB10T10116 WB10T10116 GE PIN RANGETOP HINGE
WB36T11217 WB36T11217 GE PLATE END LT
WB36T11216 WB36T11216 GE PLATE END RT
31-10781 31-10781 GE PM INSTALL INSTRUCTIONS
31-10816 31-10816 GE PM INSTRUCTIONS INSTALL
31-14544 31-14544 GE PM MANUAL MINI & WD ASM
49-80632 49-80632 GE PM OWNERS MANUAL
WB17X210 WB17X210 GE RANGE ELEMENT RECEPTACLE AND WIRE KIT
WB62T10615 WB62T10615 GE RANGETOP MECH ASM
WB08T10026 WB08T10026 GE RECEPTACLE PUSH-IN
WB56T10178 WB56T10178 GE RETAINER OVN DR INSLN
WB02T10025 WB02T10025 GE ROD SUPPORT
WB01T10103 WB01T10103 GE SCR 10-16 AB HXW .532
WB01T10067 WB01T10067 GE SCR 10-16 PL PNT 2.5 S
WS02X10087 WS02X10087 GE SCR 1032 GX HXW 7/16 S
WB02T10324 WB02T10324 GE SCR 6-20 GXB IHXW 3/8 NI
WH02X0941 WH02X0941 GE SCR 8-15 A HXW 7/8 S
WB01T10126 WB01T10126 GE SCR 8-18 AB HXW 1/2 S
WB01X0500 WB01X0500 GE SCR 8-18 B HXW 1/4 S
WB1X5904 WB1X5904 GE SCR 8-18 BA
WB01X5904 WB01X5904 GE SCR 8-18 BA POR 3/4 SN
WR01X10602 WR01X10602 GE SCR 8-32 AB IHWS 3/8 S
WB01K5156 WB01K5156 GE SCREW
WB01M0013 WB01M0013 GE SCREW
WB01M0001 WB01M0001 GE SCREW
WZ04X0044 WZ04X0044 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WH2X930 WH2X930 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1K5156 WB1K5156 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10017 WB01T10017 GE SCREW 8-18 AB IHW 3/8 S NS
WB01T10037 WB01T10037 GE SCREW 8-18 BA TW 7/16 S
WD02X0432 WD02X0432 GE SCREW 8-18 X 5/16 BK
WB01T10053 WB01T10053 GE SCREW 8-32 TPT FLR 270
WB01X1261 WB01X1261 GE SCREW GROUND
WB1X5364 WB1X5364 GE SCREW MTG
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 GE SCREW-10AB
WZ4X44D WZ4X44D GE SCREW-PKG 12
WB1X500D WB1X500D GE SCREW-PKG 12
WZ4X245D WZ4X245D GE SCREW-PKG 12
WH2X941D WH2X941D GE SCREW-PKG 12
WB21X22134 WB21X22134 GE SENSOR ASSEMBLY
WB02X20711 WB02X20711 GE SHIELD HEAT BKGD
WB02X28994 WB02X28994 GE SHIELD HEAT BKGD
WB02T10034 WB02T10034 GE SIDE PANEL SUPPORT
WB02X38986 WB02X38986 GE SPACER
WB02X33180 WB02X33180 GE SUPPORT REAR
WB30X24400 WB30X24400 GE SURFACE HEATING ELEMENT
WB30X24401 WB30X24401 GE SURFACE HEATING ELEMENT
WB17T10011 WB17T10011 GE TERMINAL BLOCK ASM
WB36T11414 WB36T11414 GE TRIM BRACKET ASM BQ
WB7X7175 WB7X7175 GE TRIM LATCH
WD2X434 WD2X434 GE TRIM SCREW
WB07X27235 WB07X27235 GE TRIM VENT DOOR
WB44X45498 WB44X45498 GE UNIT BROIL ASM
WB44T10094 WB44T10094 GE UNIT BROIL ASM
WB38X33649 WB38X33649 GE VENT TUBE
WB01T10112 WB01T10112 GE WASHER ALUM SHAPED
WB02X32440 WB02X32440 GE WASHER CONTOURED
WB1X119D WB1X119D GE WASHR-PKG 12
WB48T10068 WB48T10068 GE WEDGE DRAWER
WB63X20942 WB63X20942 GE WRAPPER OVEN CAVITY
