Model Image
Manufacturer

GE

Model Number

JB480DM3WW

Description

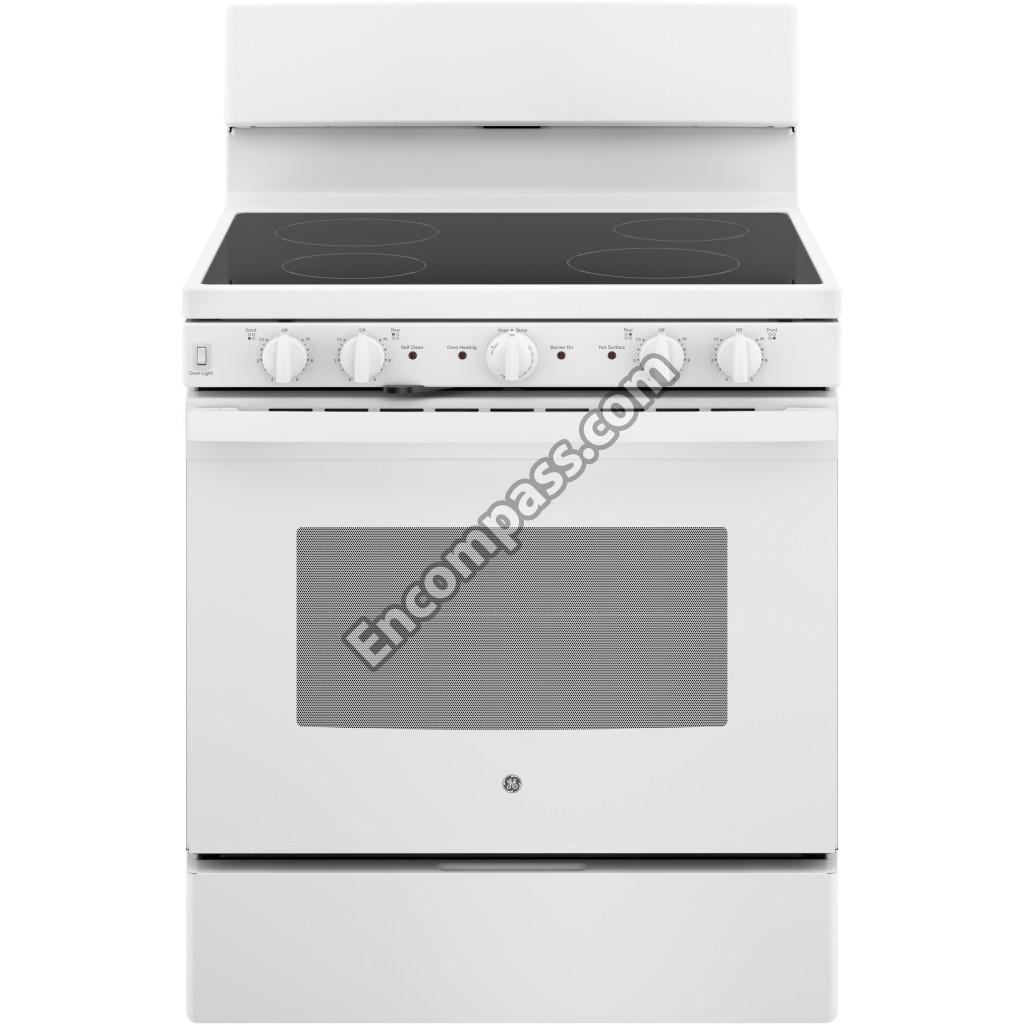

Free-standing Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP

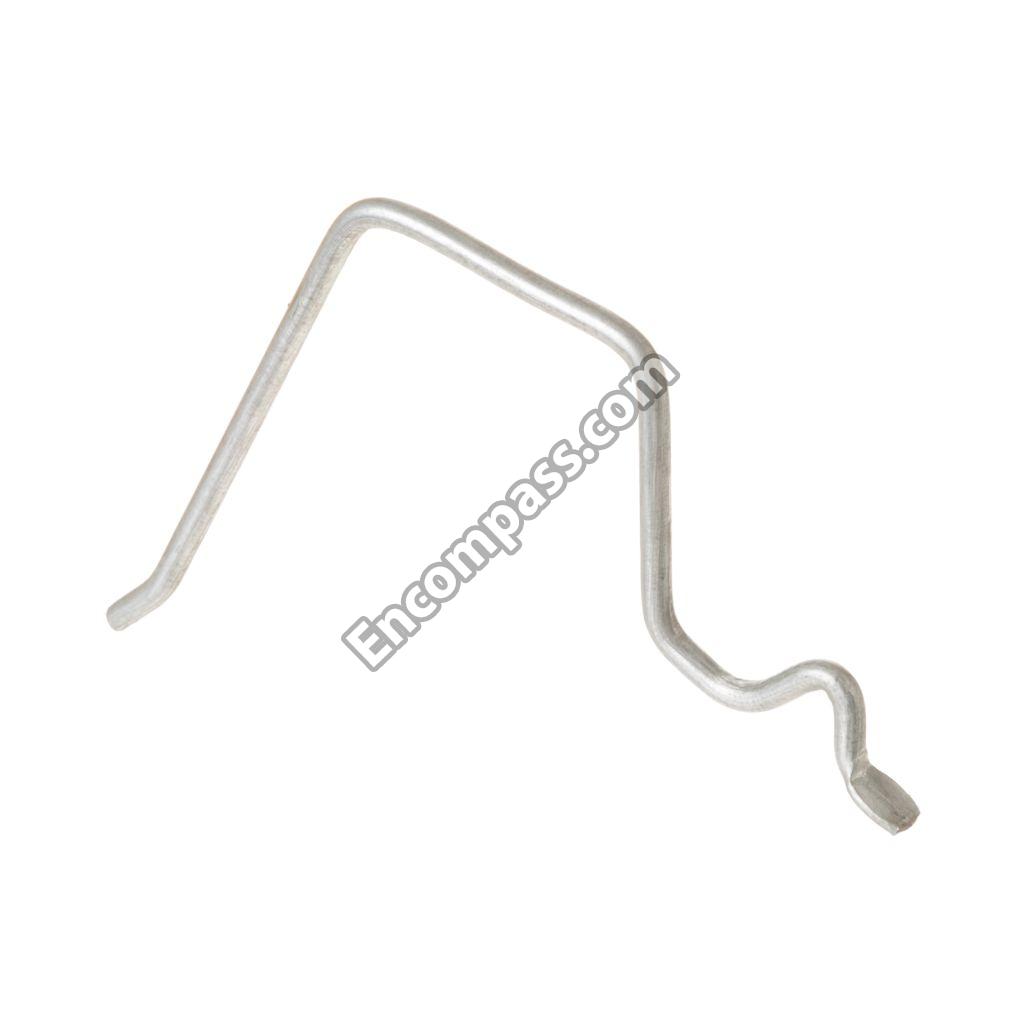

WB02K0027 WB02K0027 GE BAIL
WB2K27 WB2K27 GE BAIL

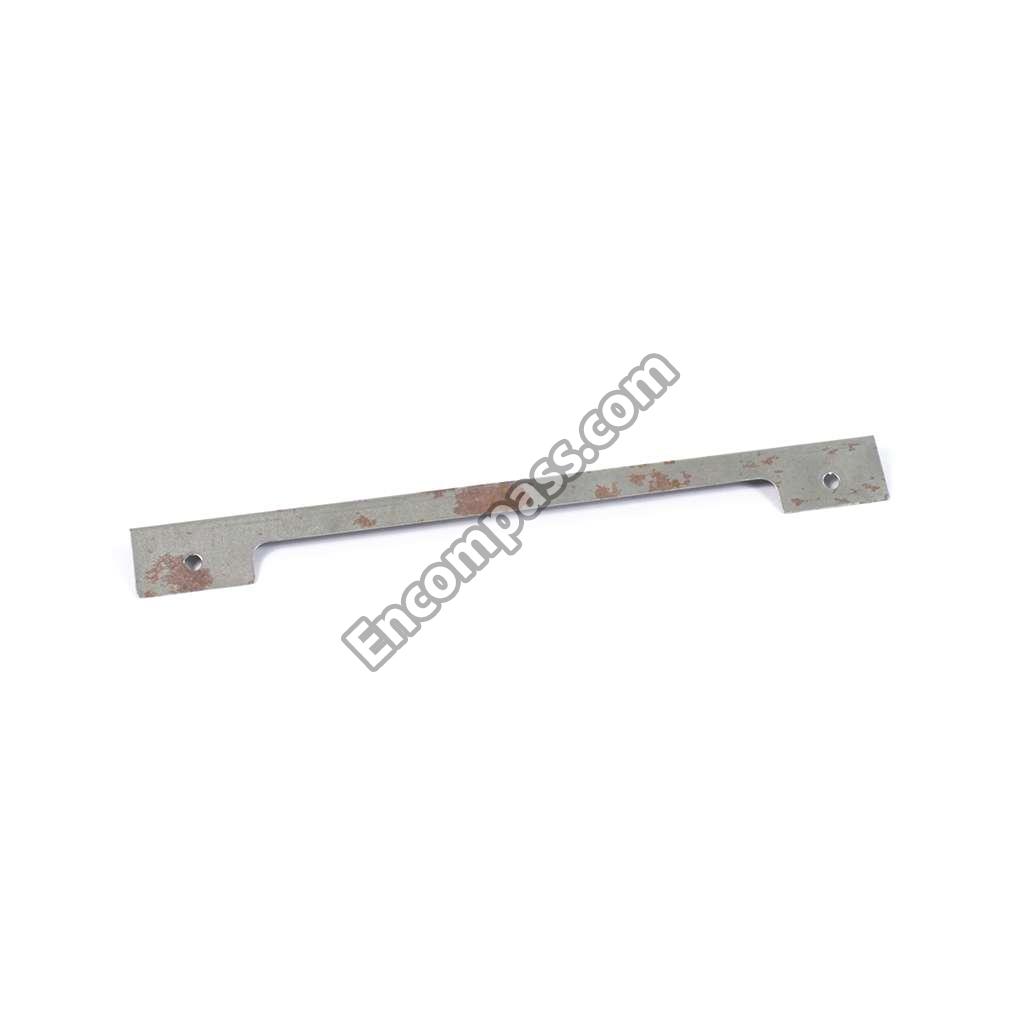

WB07X28655 WB07X28655 GE BARRIER DOOR
WB02X27862 WB02X27862 GE BRACKET ASSEMBLY ANTI-TIP
WB34X29134 WB34X29134 GE BRACKET BASE
WB02K10029 WB02K10029 GE BRACKET MTG TERMINAL
WB02X24790 WB02X24790 GE BUMPER
WB02K0031 WB02K0031 GE CLIP CABLE
WB02X21679 WB02X21679 GE CLIP CABLE
WB02K0010 WB02K0010 GE CLIP CAPILLARY
WB02X26569 WB02X26569 GE CLIP RANGETOP
WB02K0056 WB02K0056 GE CLIP WINDOW
WB02K0022 WB02K0022 GE CLIP WIRE
WB35X21685 WB35X21685 GE CORD FIBER GLASS
WB34X31568 WB34X31568 GE COVER BACK
WB06K10003 WB06K10003 GE COVER LIMITER
WB02X33816 WB02X33816 GE COVER THERMOSTAT
WB56X23809 WB56X23809 GE CRYSTAL WINDOW
WB34X28968 WB34X28968 GE DEFLECTOR INNER DOOR
WB34X31569 WB34X31569 GE DIVIDER WIRING
WB44X47926 WB44X47926 GE DOUBLE BROIL
WB02K10163 WB02K10163 GE DRAWER SUPPORT
WB30X26460 WB30X26460 GE ELEMENT HALIANT 6
WB30X26465 WB30X26465 GE ELEMENT HALIANT 8
WB07K0267 WB07K0267 GE END CAP DOOR LFT (WH)
WB07K0266 WB07K0266 GE END CAP DOOR RT (WH)
WB7X7188 WB7X7188 GE END CAP-LH
WB7X7187 WB7X7187 GE END CAP-RH
WB07X31565 WB07X31565 GE END SUPPORT LEFT
WB07X31566 WB07X31566 GE END SUPPORT RT
WB35K10005 WB35K10005 GE FOIL COOKTOP
WB02X28738 WB02X28738 GE FRAME FRONT BUMPER
WB35X29722 WB35X29722 GE GASKET ASSEMBLY. DOOR
WB32K0005 WB32K0005 GE GASKET OVEN LIGHT
WB2K66 WB2K66 GE GD SUPT RGTP
WB56X21369 WB56X21369 GE GLASS OVEN DOOR
WB56X25570 WB56X25570 GE GLASS OVEN DOOR
WB08K0005 WB08K0005 GE GLASS OVEN LAMP
WB2K8 WB2K8 GE GROMMET
WB63K10031 WB63K10031 GE GUARD BOTTOM
WB34K10055 WB34K10055 GE GUARD BOTTOM COMPL
WB56K0012 WB56K0012 GE GUARD INSULATION
WB34X21584 WB34X21584 GE GUARD TERMINAL
WB34K10054 WB34K10054 GE GUARD TERMINAL COMP
WB02K0066 WB02K0066 GE GUIDE SUPPORT RGTP
WB18X31429 WB18X31429 GE HARNESS COOKTOP
WB18X31423 WB18X31423 GE HARNESS INF. SWITCHES LH
WB18X31419 WB18X31419 GE HARNESS INF. SWITCHES RH
WB18X31425 WB18X31425 GE HARNESS LAMP PILOT
WB18X31426 WB18X31426 GE HARNESS MAIN
WB10X21982 WB10X21982 GE HINGE DOOR
WB14K10003 WB14K10003 GE HINGE RANGE TOP
WB08K0001 WB08K0001 GE HOUSING RECEPTACLE
WB35K10150 WB35K10150 GE INSULATION BOTTOM DOOR
WB35X42326 WB35X42326 GE INSULATION COOKTOP
WB35X21686 WB35X21686 GE INSULATION DOOR
WB35K10043 WB35K10043 GE INSULATION DRAWER TOP
WB35K10116 WB35K10116 GE INSULATION OVEN BACK
WB35X28971 WB35X28971 GE INSULATION SIDE DOOR
WB35K10149 WB35K10149 GE INSULATION SIDE DOOR
WB03X21352 WB03X21352 GE KNOB VALVE
WB25X31567 WB25X31567 GE LAMP PILOT
WB02X31558 WB02X31558 GE LATCH ASSEMBLY
WB25K10009 WB25K10009 GE LENS
WB25K10010 WB25K10010 GE LIGHT INDICATOR PILOT
WB56X21344 WB56X21344 GE LINER ASSEMBLY WELD DOOR
WB01K0003 WB01K0003 GE NUT SPEED
WB1K3 WB1K3 GE NUT SPEED
WB55K10033 WB55K10033 GE PANEL ASSEMBLY WELD
WB56X24797 WB56X24797 GE PANEL DRAWER
WB63X26606 WB63X26606 GE PANEL REAR BROIL
WB56X29122 WB56X29122 GE PANEL SIDE
WB63K0003 WB63K0003 GE PANEL SIDE BROIL LFT
WB63K0002 WB63K0002 GE PANEL SIDE BROIL RT
WB35X26892 WB35X26892 GE PANEL SIDE FOIL
WB2K17 WB2K17 GE PIN LOCATOR
WB02K0017 WB02K0017 GE PIN LOCATOR FRONT
WB02X0646 WB02X0646 GE PLATE-GROUND
49-88076 49-88076 GE PM GAS QUICK GUIDE
31-17313 31-17313 GE PM MANUAL MINI & WD ASM
WB63K3 WB63K3 GE PNL SD BRO L
WB63K2 WB63K2 GE PNL SD BRO R
WB39K0016 WB39K0016 GE RAIL DRAWER
WB23K10002 WB23K10002 GE RANGE 6-INCH BURNER CONTROL SWITCH
WB63X20644 WB63X20644 GE RANGE BACK COVER
WB63K10256 WB63K10256 GE RANGE BASE SUPPORT
WB63K10255 WB63K10255 GE RANGE BASE SUPPORT
WB07K10250 WB07K10250 GE RANGE BOTTOM TRIM ASSEMBLY - WHITE
WB35X20648 WB35X20648 GE RANGE BURNER BOX INSULATION
WB02X24845 WB02X24845 GE RANGE CONTROL BRACKET
WB58K10015 WB58K10015 GE RANGE DRAWER BODY
WB02X24742 WB02X24742 GE RANGE DRAWER BRACKET
WB02X26847 WB02X26847 GE RANGE DRAWER GLIDER
WB39K16 WB39K16 GE RANGE DRAWER RAIL
WB01K10023 WB01K10023 GE RANGE HANDLE GROMMET
WB10X20220 WB10X20220 GE RANGE HINGE RECEIVER
WB49X21392 WB49X21392 GE RANGE HINGE SERVICE KIT
WB02K10182 WB02K10182 GE RANGE LEVELING LEG
WB02X29030 WB02X29030 GE RANGE LEVELING LEG
WB30X46987 WB30X46987 GE RANGE OVEN BAKE ELEMENT
WB63K10105 WB63K10105 GE RANGE OVEN BOTTOM
WB36X192 WB36X192 GE RANGE OVEN BULB COVER
WB32K5 WB32K5 GE RANGE OVEN GASKET
WB48X20249 WB48X20249 GE RANGE OVEN RACK
WB02T10041 WB02T10041 GE RANGE RADIANT ELEMENT BRACKET
WB63K10199 WB63K10199 GE RANGE SIDE BRACE
WB02X21082 WB02X21082 GE RANGE SUPPORT ROD
WB03X23606 WB03X23606 GE RANGE THERMOSTAT KNOB - WHITE
WB57K10143 WB57K10143 GE RANGE TOP AND GLASS ASSEMBLY
WB08T10026 WB08T10026 GE RECEPTACLE PUSH-IN
WB1K44 WB1K44 GE SCEW LATCH
WB02X32438 WB02X32438 GE SCR 10-16PL PNT 2.15S
WB02X32443 WB02X32443 GE SCR 8-18 B HXW 1/4S UH
WB01K0084 WB01K0084 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1X536 WB1X536 GE SCREW
WB01K10091 WB01K10091 GE SCREW
WB01K0042 WB01K0042 GE SCREW (BLK)
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WZ4X345D WZ4X345D GE SCREW 8-18X5/8 HXW
WB01K10012 WB01K10012 GE SCREW 8-22 PL 1HX 71
WB01X23501 WB01X23501 GE SCREW 8-32 TT FLP .270
WB01K0044 WB01K0044 GE SCREW DOOR LATCH
WB01X1261 WB01X1261 GE SCREW GROUND
WB1K53 WB1K53 GE SCREW HINGE
WB01K0066 WB01K0066 GE SCREW MTG END CAP (WH)
WB01K0053 WB01K0053 GE SCREW MTG HINGE (TORX)
WB01K0008 WB01K0008 GE SCREW THERMOSTAT
WB02X32333 WB02X32333 GE SEAL VALVE
WB20K10018 WB20K10018 GE SELF CLEAN THERMOSTAT
WB02X20702 WB02X20702 GE SPACER
WB02K10161 WB02K10161 GE SPACER
WB09X40389 WB09X40389 GE SPRING RADIANT ELEMENT
WB34K10070 WB34K10070 GE STRAP GROUND

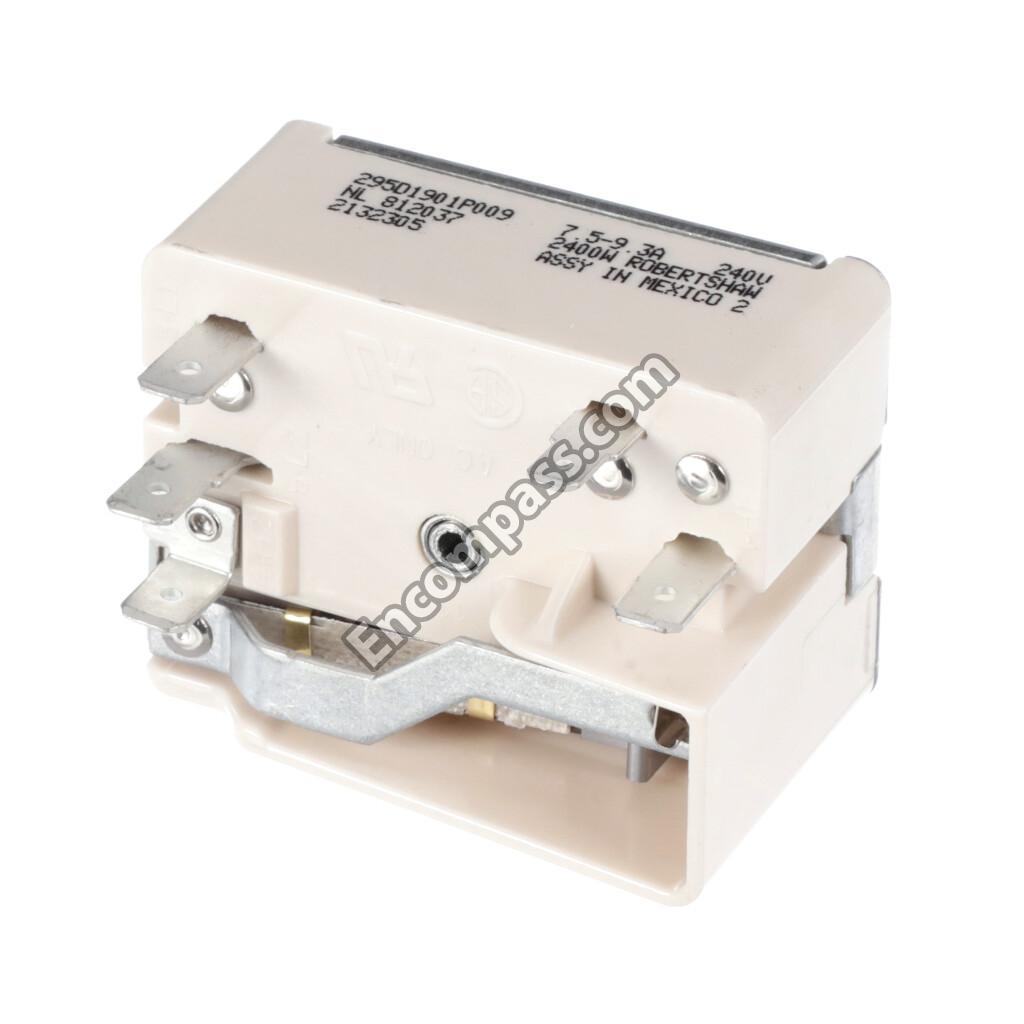

WB23X31570 WB23X31570 GE SWITCH INFINITE
WB24X20459 WB24X20459 GE SWITCH ROCKER SEALED
WB17T10011 WB17T10011 GE TERMINAL BLOCK ASSEMBLY
WB02K10103 WB02K10103 GE THERMOSTAT CARTON COVER
WB11K10039 WB11K10039 GE TIMER SELF CLEAN
WB34X24779 WB34X24779 GE TRIM FRONT FRAME
WB07X23480 WB07X23480 GE TRIM POST LEFT
WB07X23481 WB07X23481 GE TRIM POST RIGHT
WB07K0400 WB07K0400 GE TRIM TOP DOOR (WH)
WB7K400 WB7K400 GE TRIM TOP DR
WB02X32440 WB02X32440 GE WASHER CONTOURED
WB36X31475 WB36X31475 GE WHITE BACKGUARD RANGE
WB15X35075 WB15X35075 GE WHITE HANDLE AND ENDCAP
WB36X31477 WB36X31477 GE WHITE MANIFOLD PANEL
WB07X42308 WB07X42308 GE WHITE TRIM POST LEFT AND REFLECTOR
WB07X42310 WB07X42310 GE WHITE TRIM POST RIGHT AND REFLECTOR
WB34K10087 WB34K10087 GE WINDOW SPACER ASSEMBLY
