Model Image
Manufacturer

GE

Model Number

JB650DT2BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB63T10147 WB63T10147 BACK MAIN
WB02T10359 WB02T10359 BADGE GE
WB2X7694 WB2X7694 BAIL
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10578 WB02T10578 BRACKET ANTITIP ASM
WB01X27696 WB01X27696 BRACKET OVN HDL VNT TRM
WB01X27695 WB01X27695 BRACKET OVN HDL VNT TRM
WB34X42027 WB34X42027 BRACKET OVN HDL VNT TRM
WB34X42670 WB34X42670 BRACKET OVN HDL VNT TRM
WB02T10464 WB02T10464 BRACKET RADIANT ELEMENT
WB02X45146 WB02X45146 CLIP CABLE
WB01X0119 WB01X0119 CONTOURED WASHER
WB24T10145 WB24T10145 CONTROL SURF ELEM
WB34T10128 WB34T10128 COVER BACK
WB02T10532 WB02T10532 COVER CONTROL
WB34T10011 WB34T10011 COVER RECEPTACLE
WB01T10026 WB01T10026 DOOR PAD
WB55T10178 WB55T10178 DRAWER BODY ASM MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB30T10130 WB30T10130 ELEMENT HALIANT 12 IN
WB30T10129 WB30T10129 ELEMENT RADIANT 6 IN
WB30T10124 WB30T10124 ELEMENT RADIANT 6 WARMER
WB30T10133 WB30T10133 ELEMENT RADIANT 9 DUAL
WB34T10125 WB34T10125 ENCLOSURE RANGETOP
WB27T11360 WB27T11360 FACEPLATE GRAPHICS
WB56T10287 WB56T10287 FRAME DOOR SIDE (BK)
WB63T10093 WB63T10093 FRAME FRONT
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB64X0093 WB64X0093 GLASS CLEANER
WB56T10179 WB56T10179 GLASS OVN DR (BK)
WB15T10183 WB15T10183 HANDLE (BK)
WB18T10498 WB18T10498 HARNESS WIRE HB
WB18T10520 WB18T10520 HARNESS WIRE INFINITE
WB18T10494 WB18T10494 HARNESS WIRE MAINTOP
WB10T10071 WB10T10071 HINGE DOOR
WB10T10068 WB10T10068 HINGE RECEIVER
31-10617 31-10617 INSTRUCTION INSTALL
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10114 WB35T10114 INSULATION DOOR
WB35T10022 WB35T10022 INSULATION HIDDEN BAKE
WB35T10209 WB35T10209 INSULATION OVN WRPR
WB03X26320 WB03X26320 KNOB INFINITE (BK)
WB36X192 WB36X192 LAMP COV ASM
WB14X41386 WB14X41386 LATCH AND ASM HANDLE
WB18T10470 WB18T10470 LEAD WIRE 14 GA GN
WB18T10466 WB18T10466 LEAD WIRE 18 GA Y
WB25T10041 WB25T10041 LENS
WB25T10042 WB25T10042 LENS
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB27T10668 WB27T10668 LIGHT INDICATOR
WB27T10626 WB27T10626 LIGHT INDICATOR PILOT
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB02T10026 WB02T10026 MAINTOP STRIKE
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB35T10023 WB35T10023 OVEN BACK INSULATION

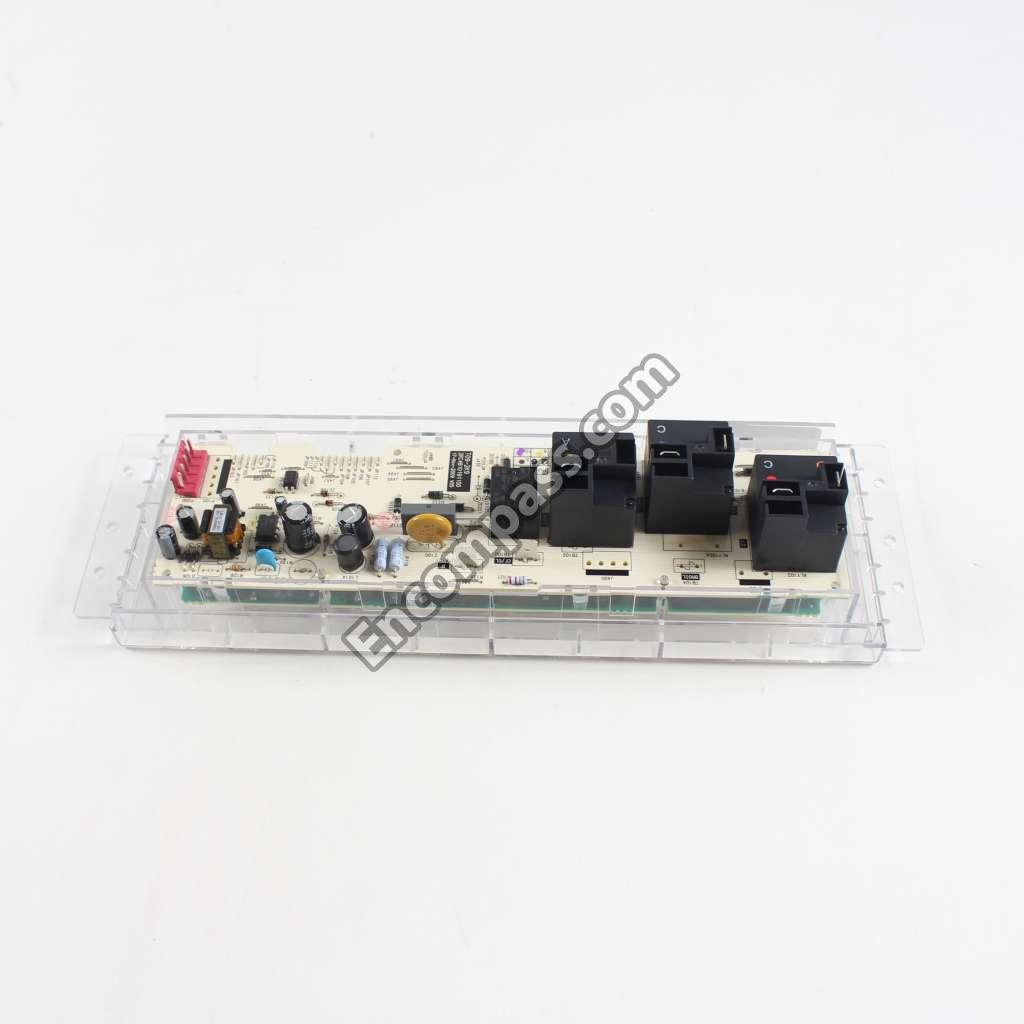

WB27T11349 WB27T11349 OVEN CONTROL\
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB48T10063 WB48T10063 OVEN RACK
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB01T10089 WB01T10089 PAD FOAM
WB56T10267 WB56T10267 PANEL DRAWER
WB56X28881 WB56X28881 PANEL SIDE (BK)
WB10T10116 WB10T10116 PIN RANGETOP HINGE
WB10T10125 WB10T10125 PIN RANGETOP HINGE
WB36T11040 WB36T11040 PLATE END LT (BK)
WB36T11039 WB36T11039 PLATE END RT (BK)
31-10781 31-10781 PM INSTALL INSTRUCTIONS
31-10816 31-10816 PM INSTRUCTIONS INSTALL
49-80632 49-80632 PM OWNERS MANUAL
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB02T10118 WB02T10118 RANGE OVEN CLIP SEAM
WB34X26004 WB34X26004 RANGE RADIANT LEFT CHASSIS BRACE
WB62T10640 WB62T10640 RANGETOP GLASS ASM BK
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB02T10509 WB02T10509 REFECTOR PAN FOR BAKE ELEMENT
WB56T10178 WB56T10178 RETAINER OVN DR INSLN
WB01T10103 WB01T10103 SCR 10-16 AB HXW .532
WB01T10067 WB01T10067 SCR 10-16 PL PNT 2.5 S
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WR01X10602 WR01X10602 SCR 8-32 AB IHWS 3/8 S
WB01K5156 WB01K5156 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0013 WB01M0013 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5200 WB01K5200 SCREW
WD2X432 WD2X432 SCREW
WB1K5156 WB1K5156 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB02T10525 WB02T10525 SHIELD HEAT BKGD
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB49T10007 WB49T10007 SIDE REFLECTOR
WB02T10175 WB02T10175 SPACER
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB02X33180 WB02X33180 SUPPORT REAR
WB24T10058 WB24T10058 SWITCH INFINITE CONTROL
WB24T10153 WB24T10153 SWITCH INFINITE CONTROL
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB36T11335 WB36T11335 TRIM & BRACKET ASSM
WB07X32930 WB07X32930 TRIM DR BTM CHNL
WB07X42966 WB07X42966 TRIM DR BTM CHNL
WB07T10516 WB07T10516 TRIM FRT FRM (BK)
WB7X7175 WB7X7175 TRIM LATCH
WB07X7175 WB07X7175 TRIM LATCH
WB07X27233 WB07X27233 TRIM VENT DOOR
WB28T10217 WB28T10217 TUBE VNT RADIANT
WB44T10104 WB44T10104 UNIT ASM
WB44T10094 WB44T10094 UNIT BROIL ASM
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01T10112 WB01T10112 WASHER ALUM SHAPED
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB48T10068 WB48T10068 WEDGE DRAWER
WB63X20942 WB63X20942 WRAPPER OVEN CAVITY
