Model Image
Manufacturer

GE

Model Number

JB750SJ3SS

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB63X28540 WB63X28540 BASE RIVET
WB34X26004 WB34X26004 BRACE
WB02T10463 WB02T10463 BRACE CHASSI
WB34X25221 WB34X25221 BRACKET OVN HDL VNT TRM
WB34X42670 WB34X42670 BRACKET OVN HDL VNT TRM
WB44X45498 WB44X45498 BROIL UNIT ASM

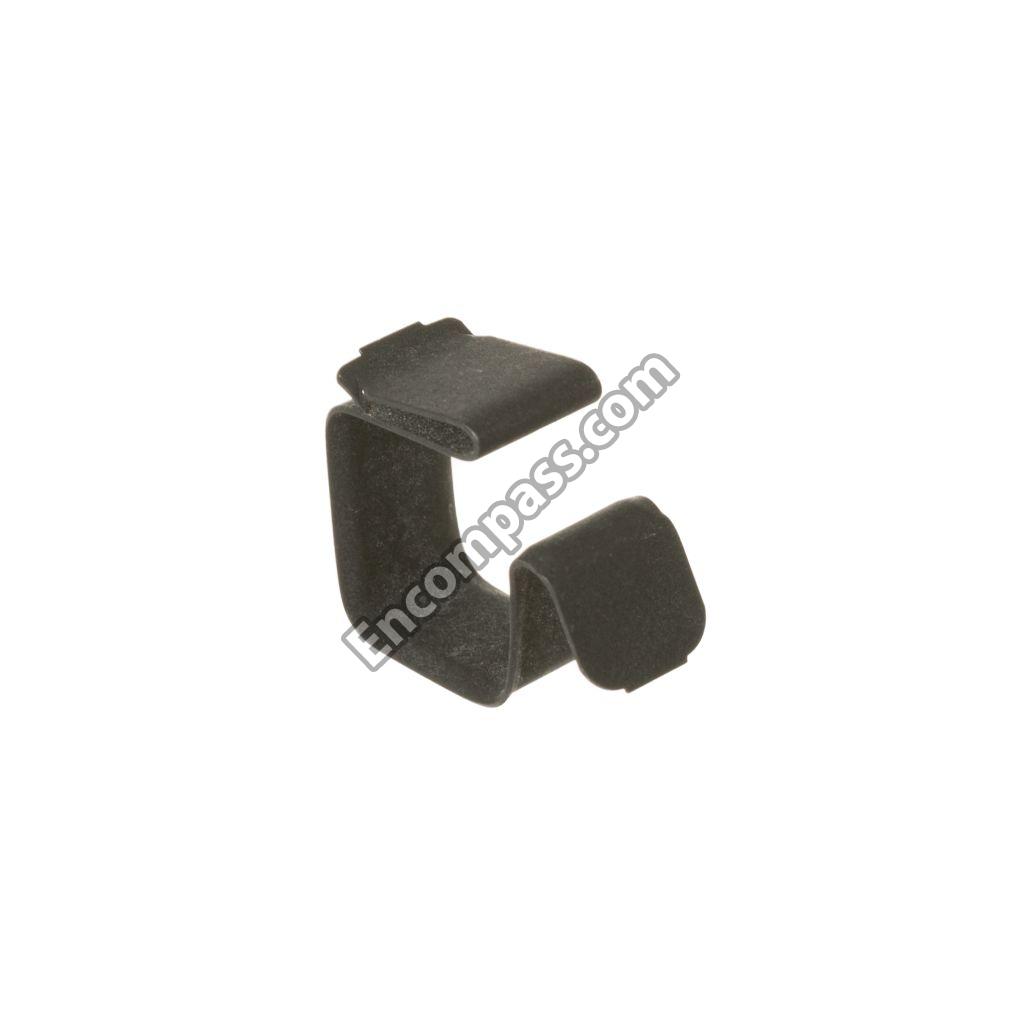

WB02X25982 WB02X25982 CABLE CLIP
WB02T10194 WB02T10194 CAPACITOR BRACKET
WB34X20082 WB34X20082 COMPLETE FAN COVER
WB01X0119 WB01X0119 CONTOURED WASHER
WB34X25565 WB34X25565 CONTROL COVER
WB07X25055 WB07X25055 CONTROL TRIM
WB02T10550 WB02T10550 CONVERSION BRACKET
WB04T10080 WB04T10080 CONVERSION GASKET
WB35X25290 WB35X25290 CONVEX INSULATION
WB27T10668 WB27T10668 COOKTOP INDICATOR LIGHT
WB02K5365 WB02K5365 COVER
WB02X21423 WB02X21423 COVER PLATE
WB34T10011 WB34T10011 COVER RECEPTACLE
WB10T10070 WB10T10070 DOOR HINGE
31-10617 31-10617 DOOR OVEN
WB56X37873 WB56X37873 DOOR PANEL A
WB56X28584 WB56X28584 DRAWER PANEL SS
WH2X930 WH2X930 DRYER SCREW
WB44X45496 WB44X45496 ELEMENT
WB44T10086 WB44T10086 ELEMENT CONVX ASM
WB63X20870 WB63X20870 FRAME
WB07T10516 WB07T10516 FRONT FRAME TRIM
WB02X21494 WB02X21494 GLASS BRACKET
WB64X0093 WB64X0093 GLASS CLEANER

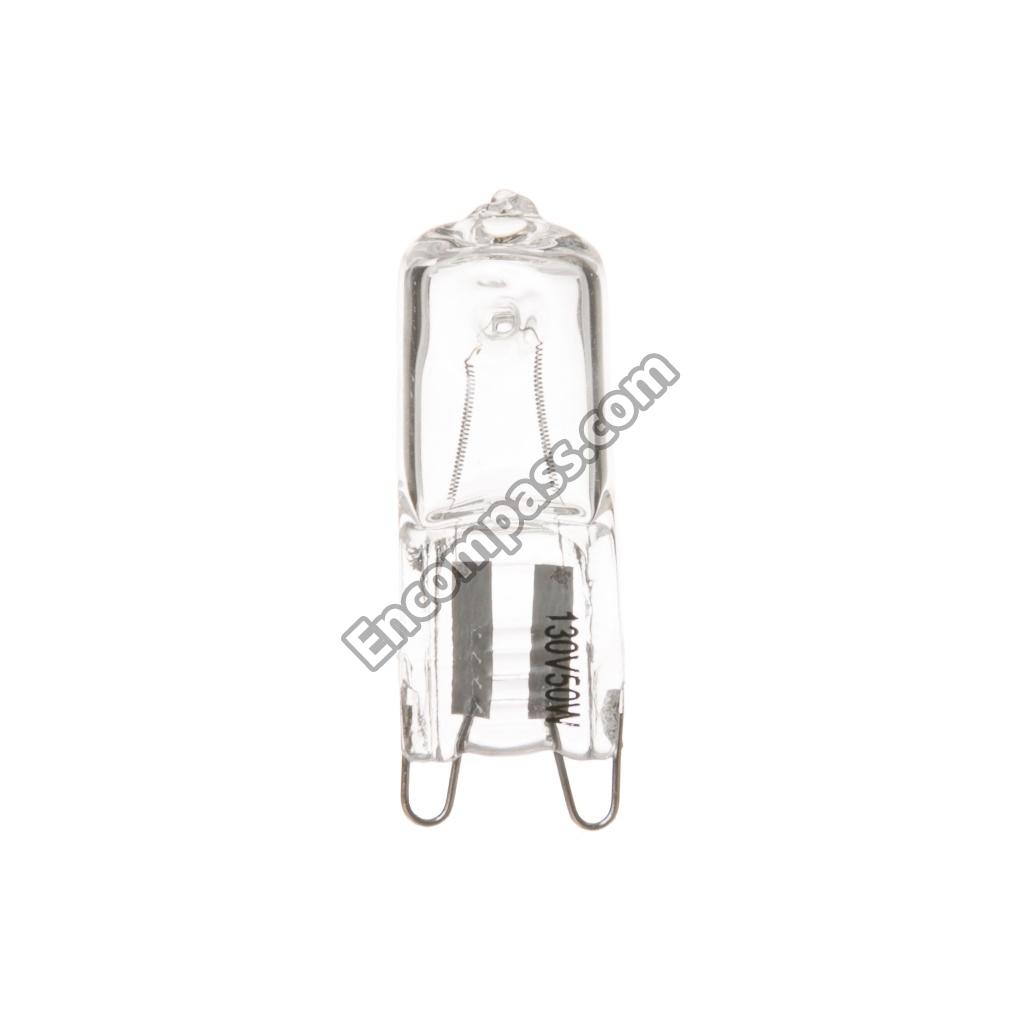

WB08T10045 WB08T10045 HALOGEN LAMP
WB25X33021 WB25X33021 HALOGEN LAMP ASSEMBLY
WB18X42866 WB18X42866 HARNESS WIRE MAINTOP
WB34X25151 WB34X25151 HEAT SHIELD
WB10T10068 WB10T10068 HINGE RECEIVER
WB25X20005 WB25X20005 INDICATOR LIGHT
WB03X24965 WB03X24965 INFINITE KNOB

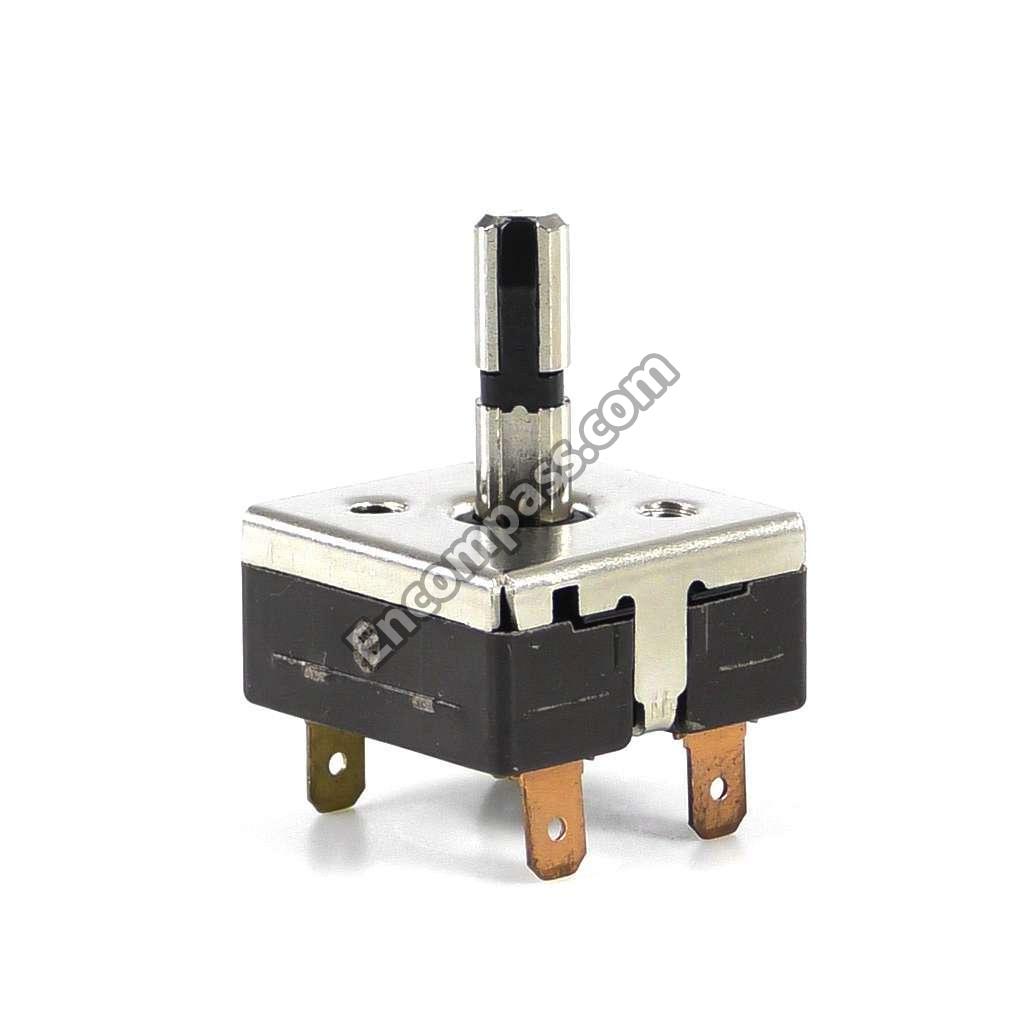

WB24X25013 WB24X25013 INFINITE SWITCH
31-10816 31-10816 INSTALLATION INSTRUCTIONS
31-10781 31-10781 INSTALLATION INSTRUCTIONS

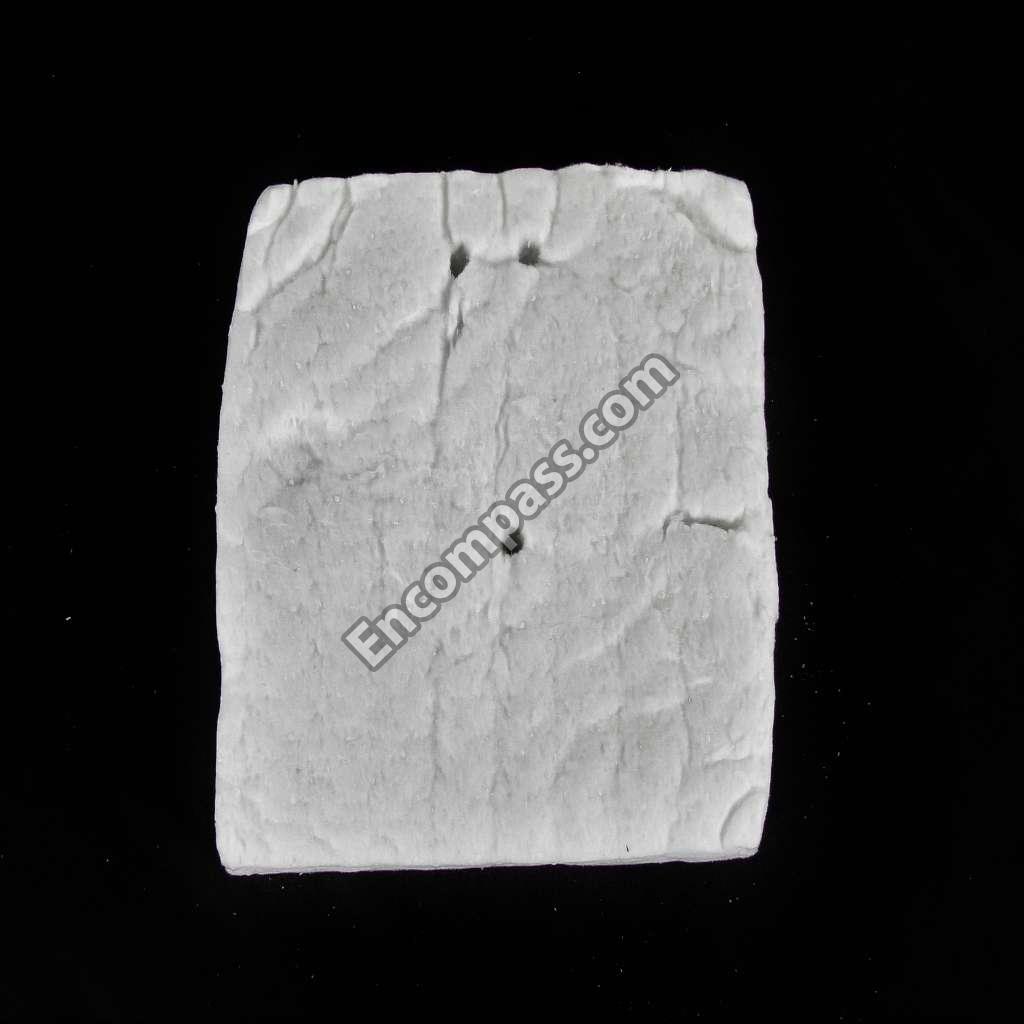

WB35T10077 WB35T10077 INSULATION
WB35T10114 WB35T10114 INSULATION
WB35T10255 WB35T10255 INSULATION
WB35T10022 WB35T10022 INSULATION H
WB35T10017 WB35T10017 INSULATION VENT TUBE

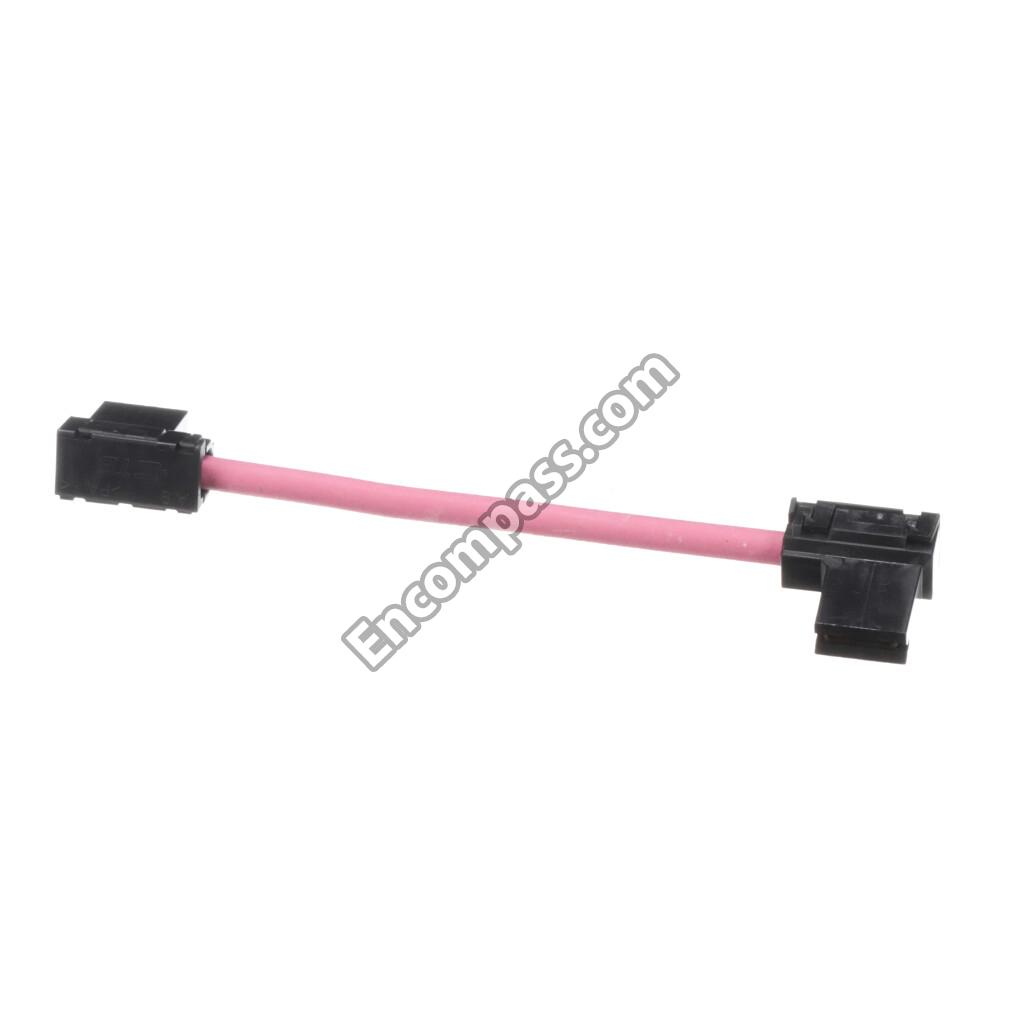

WB18X30704 WB18X30704 JUMPER
229C6461P001 229C6461P001 LABEL WIRE DIAGRAM

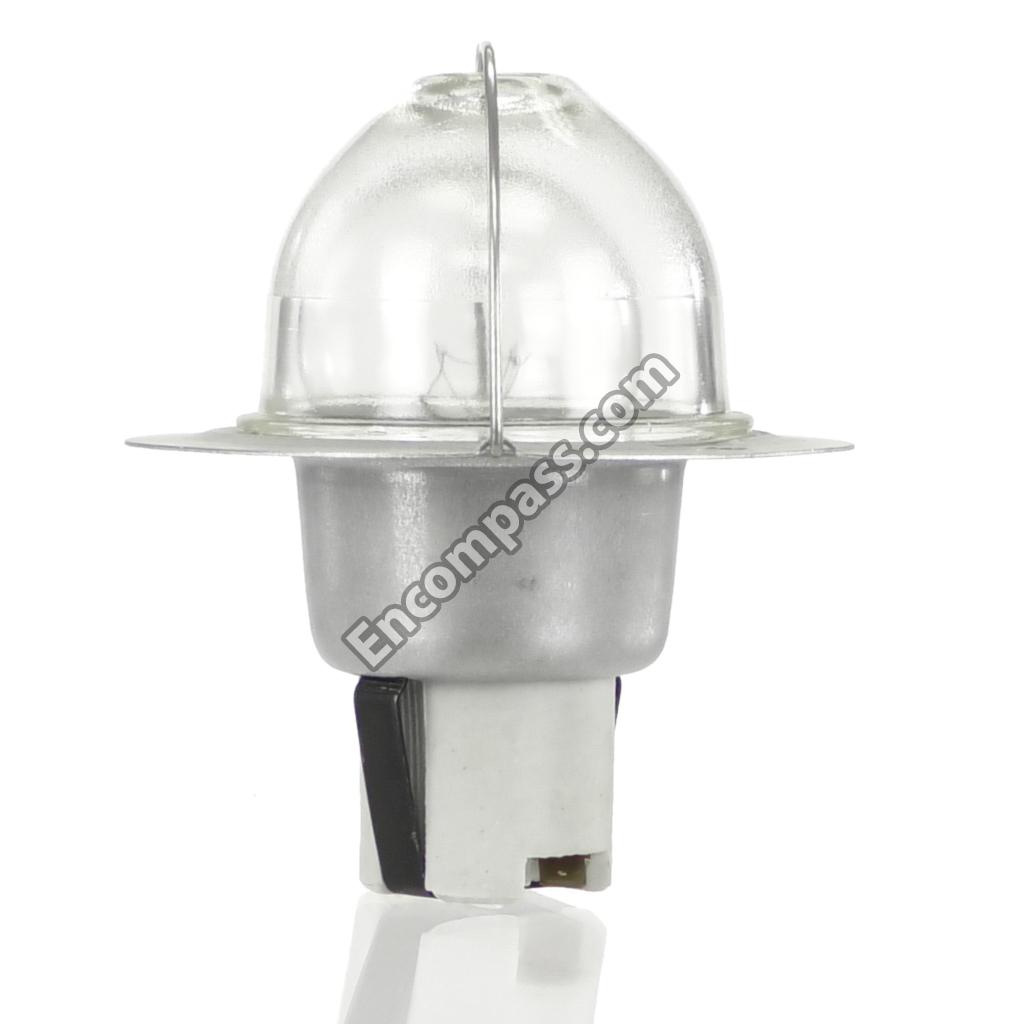

WB25X24909 WB25X24909 LAMP HALOGEN ASM

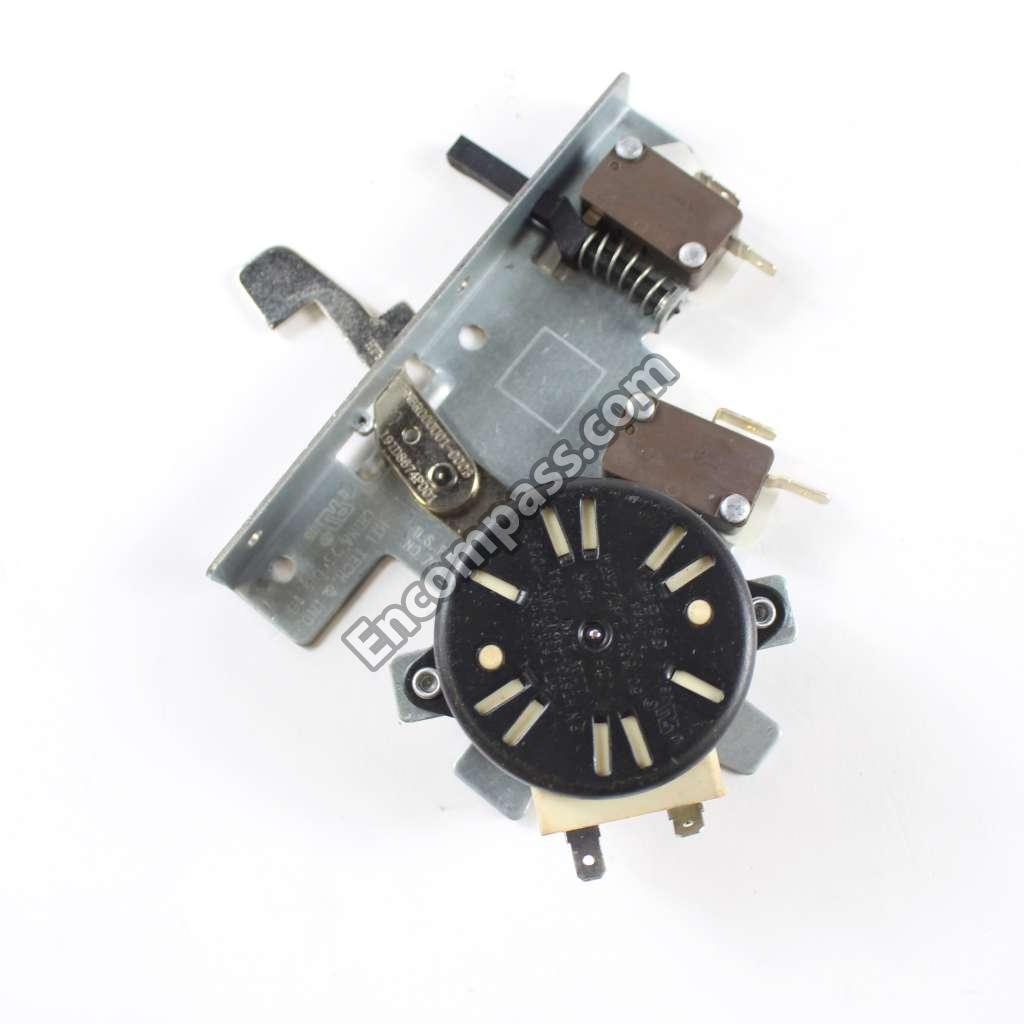

WB10X25007 WB10X25007 LATCH ASSEMBLY
WB07X21459 WB07X21459 LATCH TRIM
WB18T10470 WB18T10470 LEAD WIRE 14
WB25X24023 WB25X24023 LENS
WB63T10176 WB63T10176 MAIN
WB02T10026 WB02T10026 MAIN TOP STRIP
WB18X32660 WB18X32660 MAINTOP AND INF. SWITCHES HARN
49-80597 49-80597 MANUAL U&C TIP SHEET
WB02T10289 WB02T10289 MICROWAVE STIRRER FAN BLADE

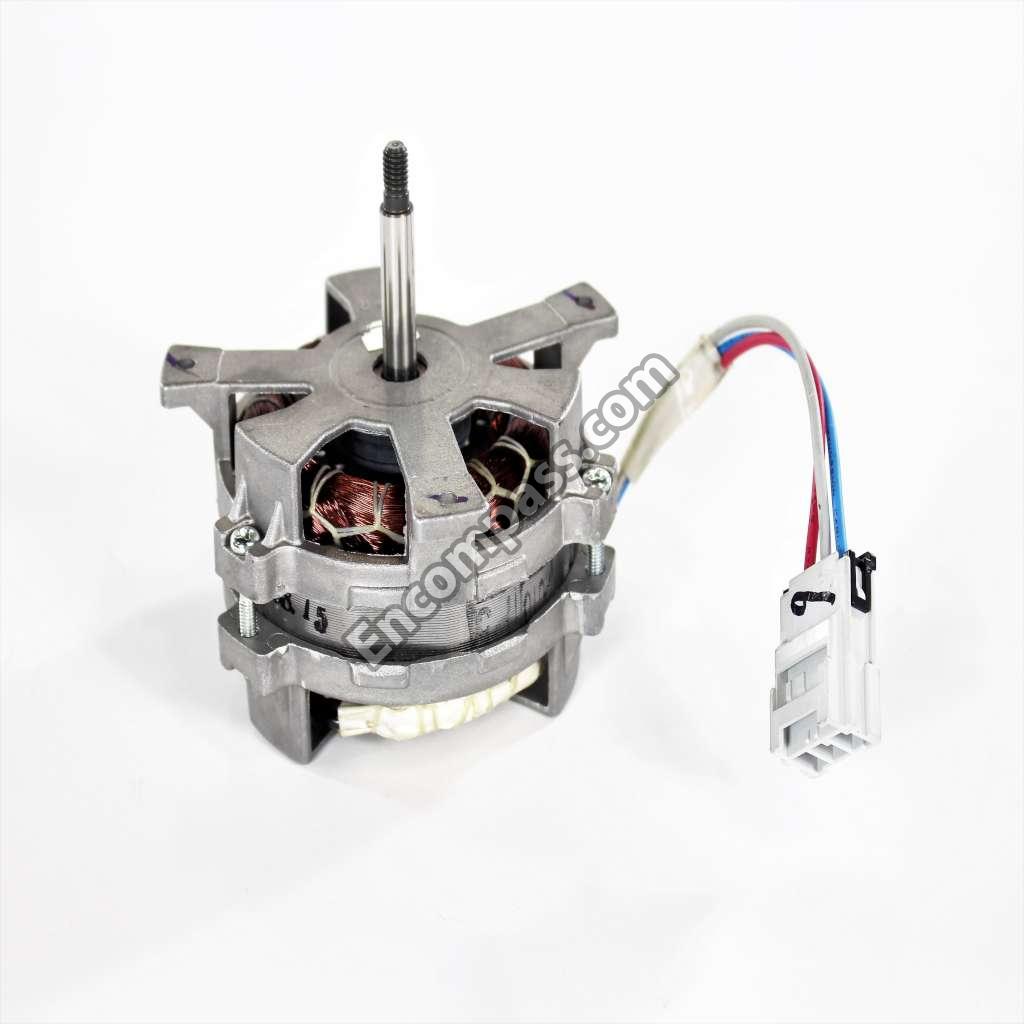

WB26X24910 WB26X24910 MOTOR PSC CO
WB17T10021 WB17T10021 MOUNTING TERMINAL
WB02T10017 WB02T10017 NUT
WB02T10589 WB02T10589 OVEN BADGE
WB02T10118 WB02T10118 OVEN CLIP SEAM

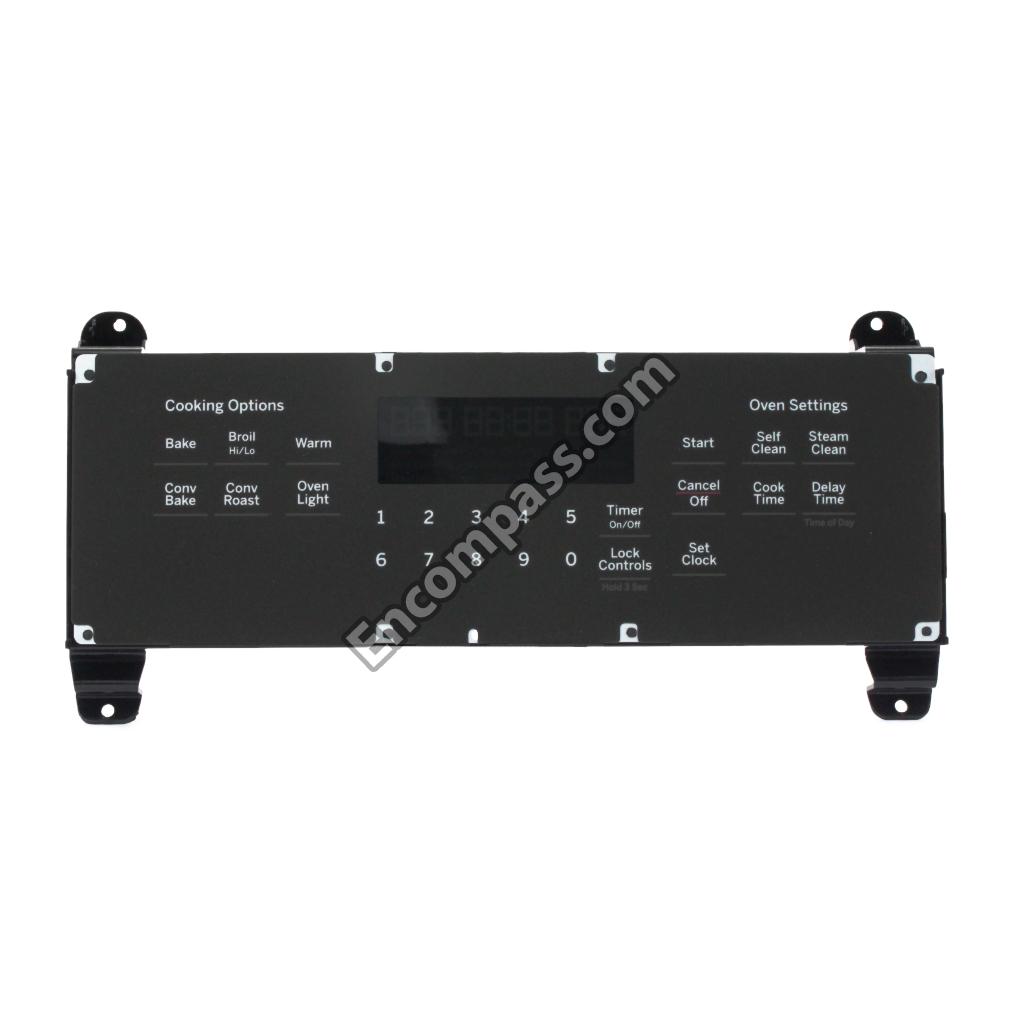

WB27X33125 WB27X33125 OVEN CONTROL W/ OVERLAY
WB2K5365 WB2K5365 OVEN COVER
WB56T10287 WB56T10287 OVEN DOOR FRAME
WB04T10086 WB04T10086 OVEN DOOR GASKET
WB35X21424 WB35X21424 OVEN INSULATION
WB25T10013 WB25T10013 OVEN LAMP LENS
WB55T10203 WB55T10203 OVEN LINER

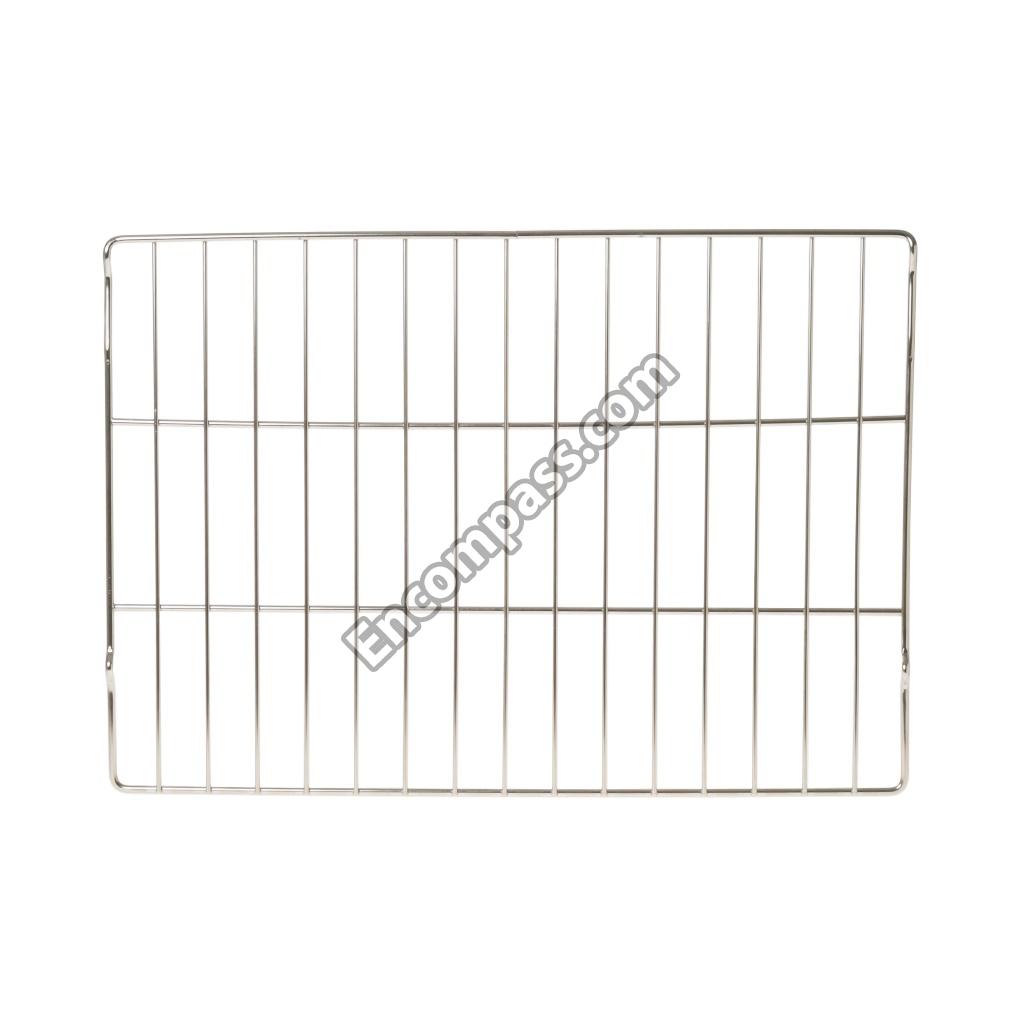

WB48T10083 WB48T10083 OVEN RACK
WB56T10178 WB56T10178 OVEN RETAINER
WB63X20923 WB63X20923 OVEN WELD BODY
WB35X27496 WB35X27496 OVEN WRAPER INSULATION
WB02T10509 WB02T10509 PAN REFLECTOR
WB07X24963 WB07X24963 PLATE END
WB07X24964 WB07X24964 PLATE END RH
31-17191 31-17191 PM MANUAL MINI & WD ASM
WB02X20902 WB02X20902 RADIANT BRACKET
WB02X20940 WB02X20940 RADIANT BRACKET
WB09X40389 WB09X40389 RADIANT SPRING
WB28T10217 WB28T10217 RADIANT VENT TUBE
WB02T10578 WB02T10578 RANGE ANTI-TIP BRACKET

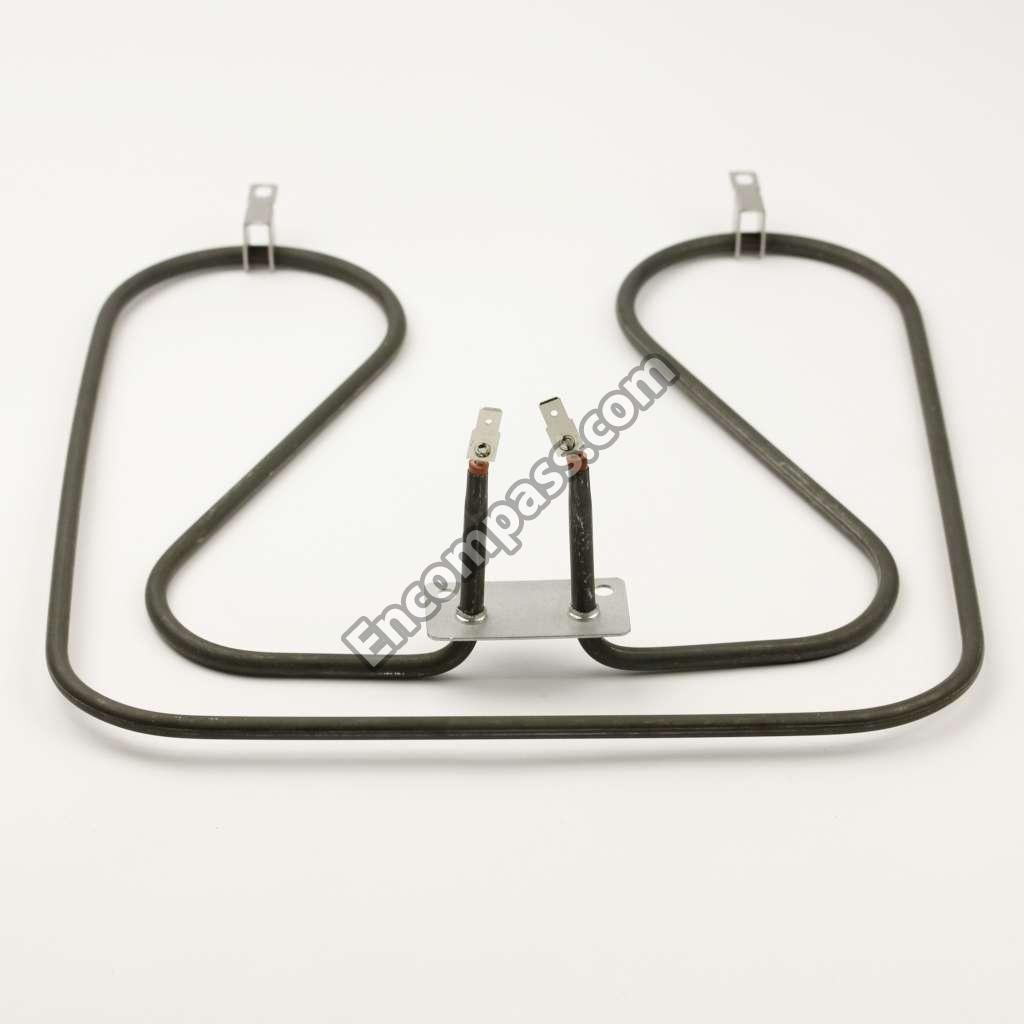

WB44X45499 WB44X45499 RANGE BAKE ELEMENT

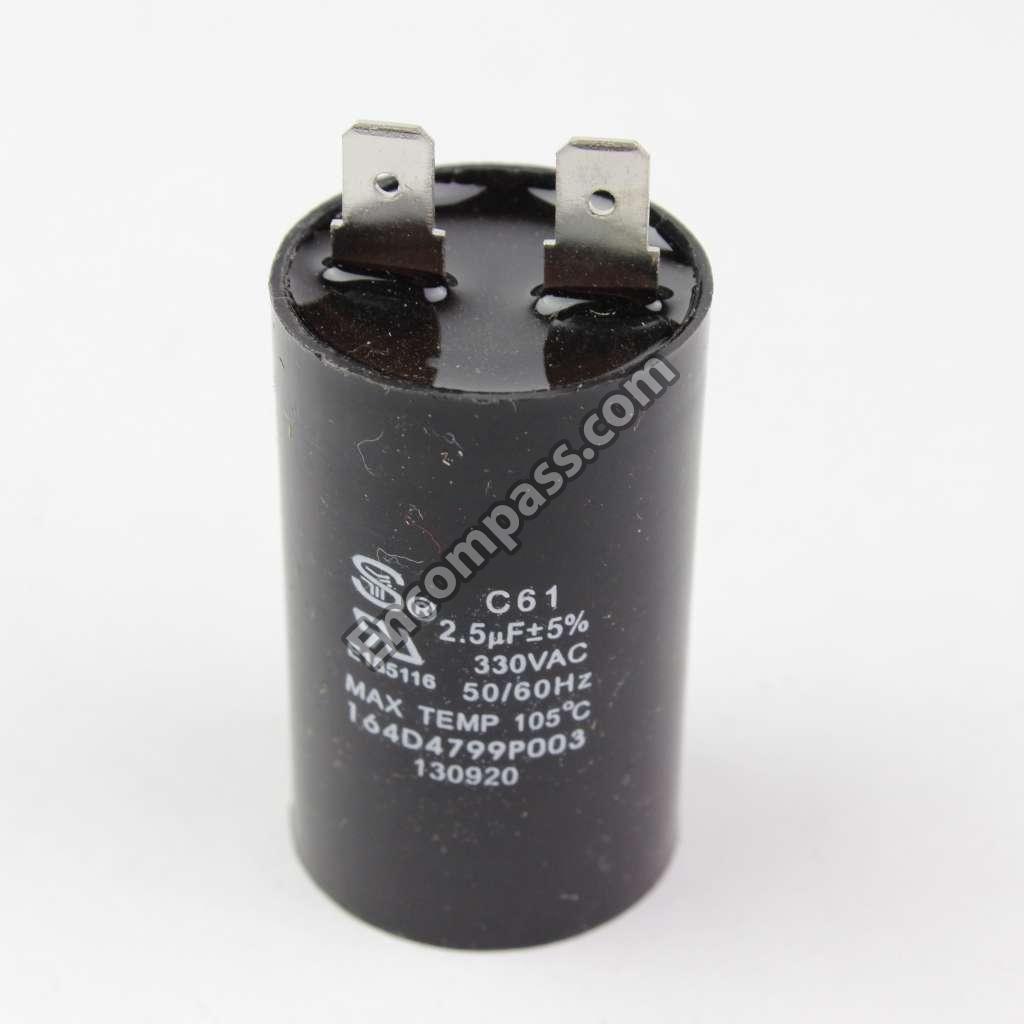

WB27T10662 WB27T10662 RANGE CONVECTION FAN MOTOR START CAPACITOR
WB48T10068 WB48T10068 RANGE DRAWER GLIDE

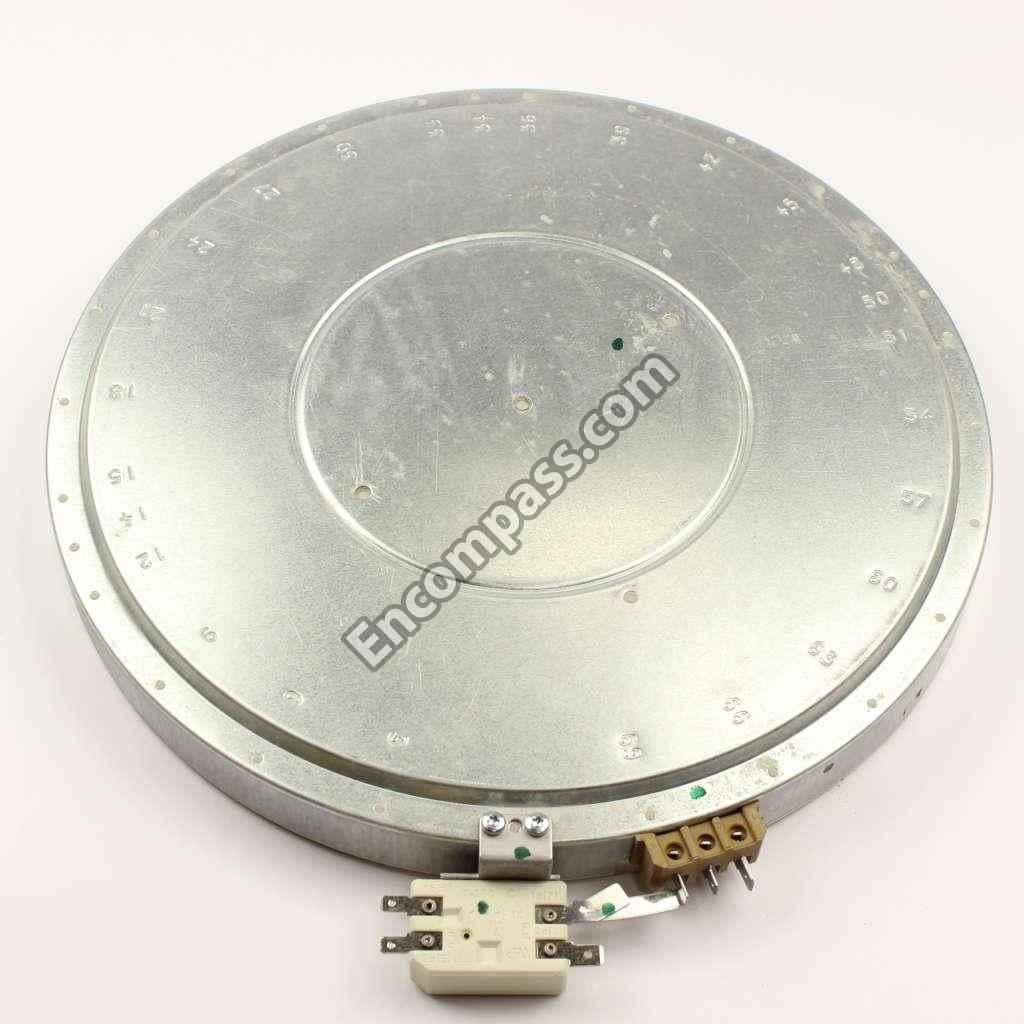

WB30X24111 WB30X24111 RANGE DUAL RADIANT SURFACE ELEMENT, 6 TO 9-IN
WB30T10130 WB30T10130 RANGE HALOGEN SURFACE ELEMENT
WB02X10521 WB02X10521 RANGE LEVELING LEG
WB62X25972 WB62X25972 RANGE MAIN TOP ASSEMBLY
WB15X25580 WB15X25580 RANGE OVEN DOOR HANDLE ASSEMBLY
WB56X22160 WB56X22160 RANGE OVEN DOOR INNER GLASS
WB21X22134 WB21X22134 RANGE OVEN TEMPERATURE SENSOR
WB10T10116 WB10T10116 RANGE PIN

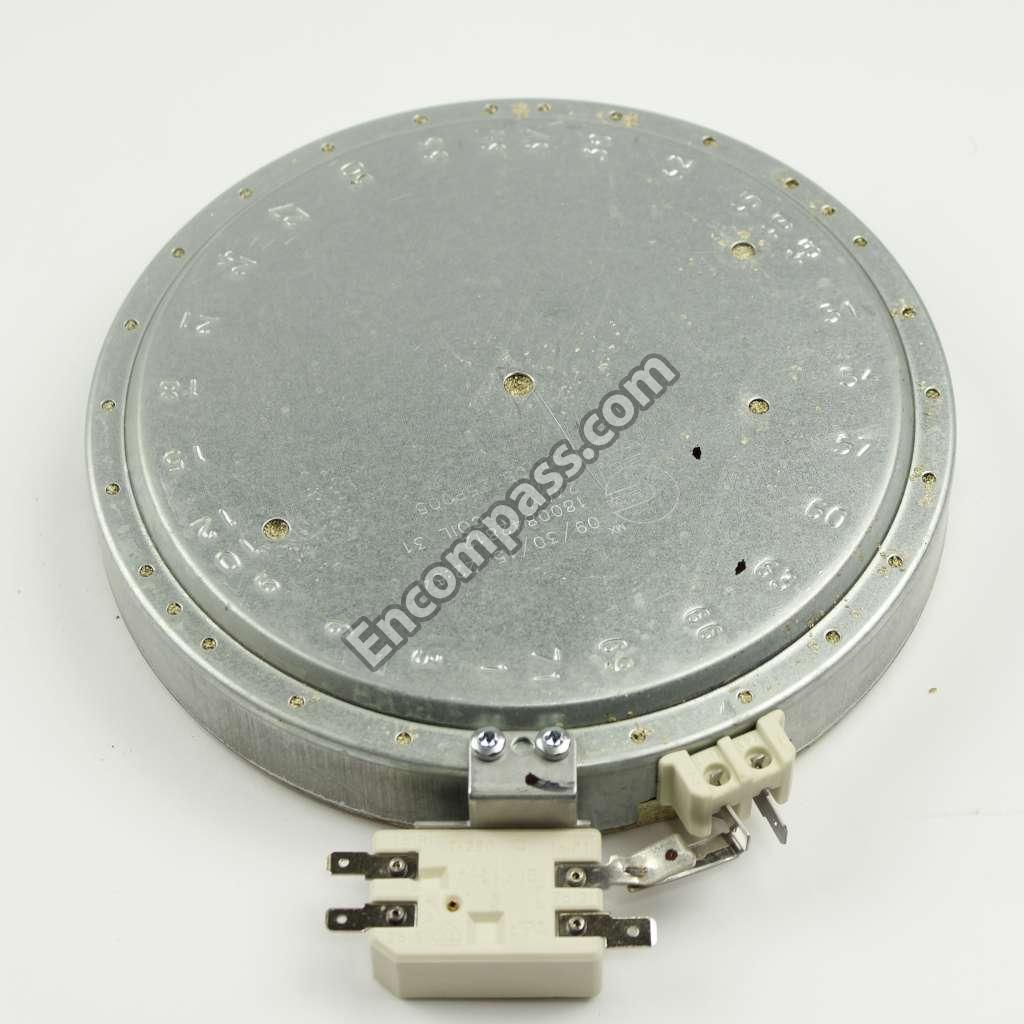

WB30X20871 WB30X20871 RANGE RADIANT SURFACE ELEMENT
WB34T10128 WB34T10128 RANGE REAR PANEL COVER
WB1X5364 WB1X5364 RANGE SCREW
WB01M10002 WB01M10002 RANGE SCREW
WB1M1 WB1M1 RANGE SCREW
WB01T10103 WB01T10103 RANGE SCREW, #10-16 X 0.532-IN
WB55T10178 WB55T10178 RANGE STORAGE DRAWER ASSEMBLY
WB48T10013 WB48T10013 RANGE STORAGE DRAWER SUPPORT, FRONT
WB02X33180 WB02X33180 RANGE STORAGE DRAWER SUPPORT, REAR
WB30T10145 WB30T10145 RANGE SURFACE ELEMENT
WB24T10029 WB24T10029 RANGE SURFACE ELEMENT CONTROL SWITCH, 1,500-WATT
WB17T10011 WB17T10011 RANGE TERMINAL BLOCK
WB34X30165 WB34X30165 RANGE TOP ENCLOSURE
WB1X119D WB1X119D RANGE WASHER, 12-PACK
WB49T10007 WB49T10007 REFLECTOR SI
WR01X10602 WR01X10602 REFRIGERATOR SCREW
WB27X25015 WB27X25015 RJ45 ASM
WB02X24268 WB02X24268 SCR 10-32 CA
WB01T10008 WB01T10008 SCR 10-32 TR
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB1X5904 WB1X5904 SCR 8-18
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01X23501 WB01X23501 SCR 8-32 TT
WR1X1635 WR1X1635 SCR 8-32 X .

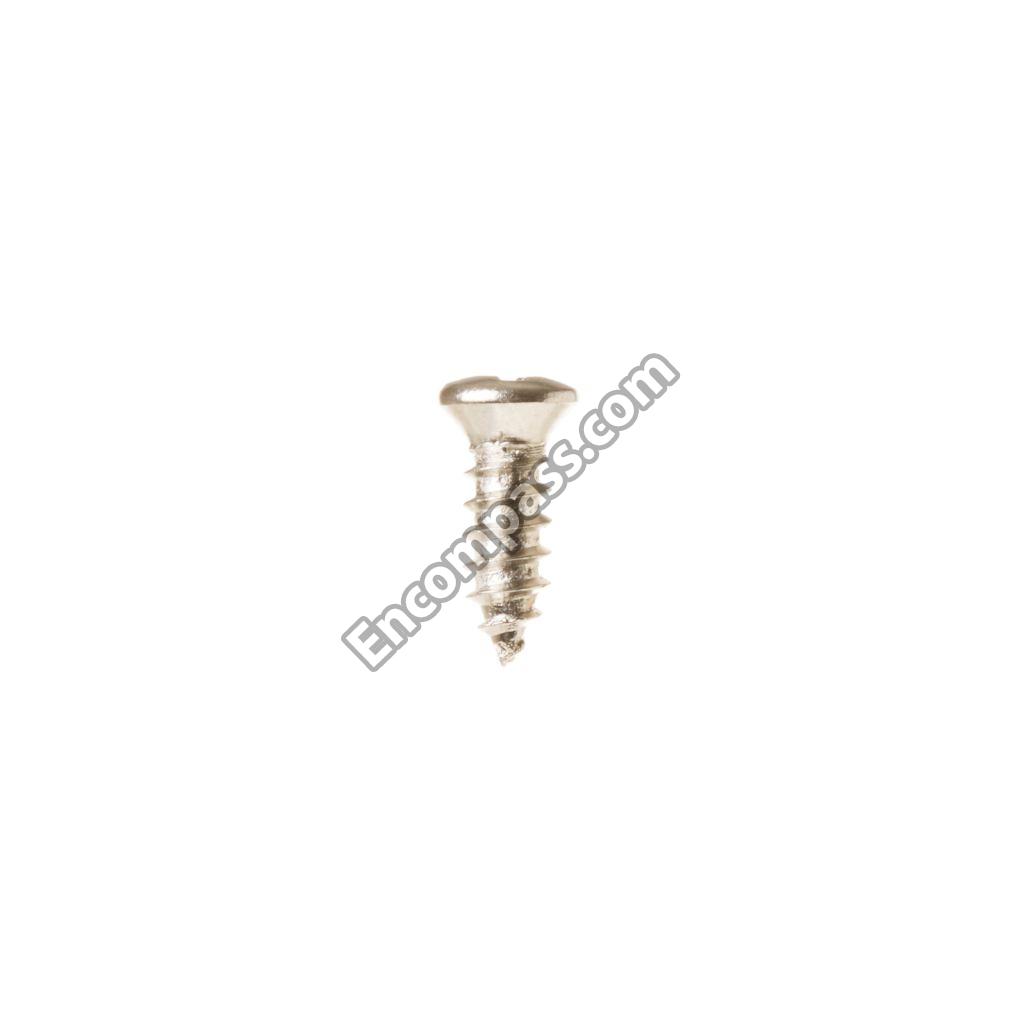

WB01K5200 WB01K5200 SCREW
WB1K5200 WB1K5200 SCREW
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X26365 WB01X26365 SCREW, #8-18
WB01T10017 WB01T10017 SCREW, #8-18
WH2X941D WH2X941D SCREW, 2-PACK
WB56X28883 WB56X28883 SIDE PANEL G
WB02X38986 WB02X38986 SPACER
WB02T10034 WB02T10034 SUPPORT
WB24X25302 WB24X25302 SWITCH
WB07X27880 WB07X27880 TOP TRIM (GY
WB38X33648 WB38X33648 VENT TUBE
WB02X32440 WB02X32440 WASHER CONTOURED

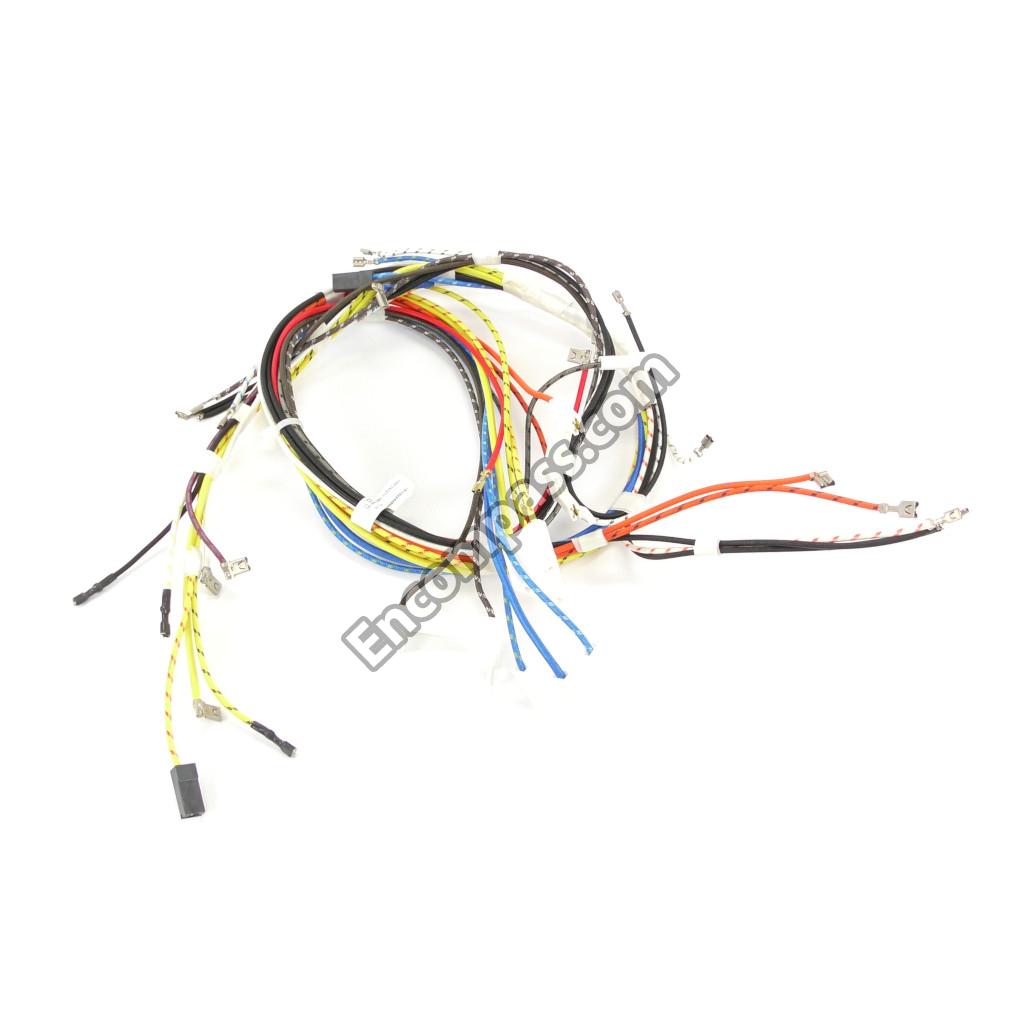

WB18X32781 WB18X32781 WIRE HARNESS
WB18X25980 WB18X25980 WIRE HARNESS
