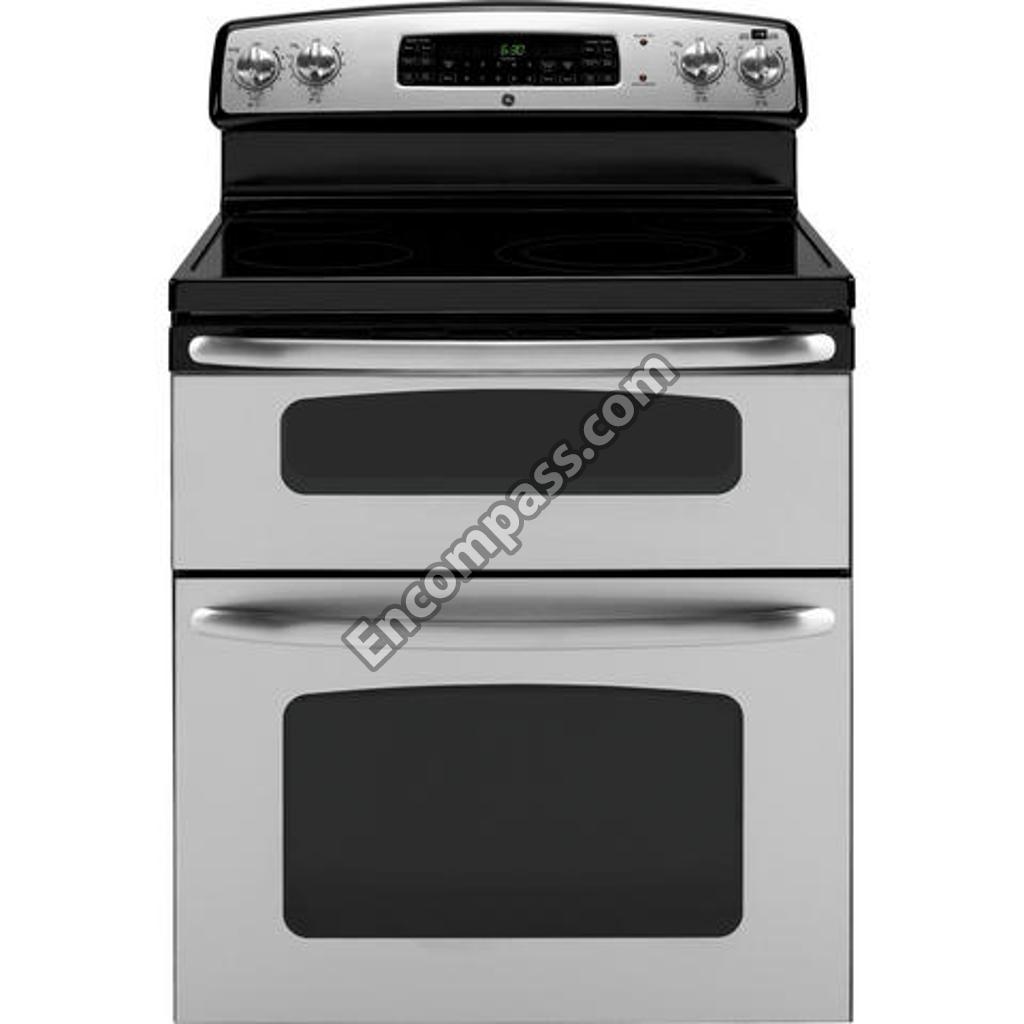

Model Image
Manufacturer

GE

Model Number

JB850SP4SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB39T10015 WB39T10015 BASE DUAL CAVITY
WB02T10352 WB02T10352 BASE RAIL
WB02T10353 WB02T10353 BASE RAIL
WB27T11330 WB27T11330 BOARD RELAY DAUGHTER ASM
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10415 WB02T10415 BRACKET ANTI-TIP ASM
WB37T10010 WB37T10010 BRACKET CONTROL
WB02T10349 WB02T10349 BRACKET HANDLE
WB01X27695 WB01X27695 BRACKET OVN HDL VNT TRM
WB01X27696 WB01X27696 BRACKET OVN HDL VNT TRM
WB34X42670 WB34X42670 BRACKET OVN HDL VNT TRM
WB34X42027 WB34X42027 BRACKET OVN HDL VNT TRM
WB02T10464 WB02T10464 BRACKET RADIANT ELEMENT
WB02T10508 WB02T10508 BRACKET RADIANT ELEMENT
WB02T10492 WB02T10492 BRACKET STRAIN RELIEF
WB02X45146 WB02X45146 CLIP CABLE
WB02T10497 WB02T10497 CLIP SPACER DOOR
WB27T11332 WB27T11332 CONTROL BOARD T012 ELE
WB24T10145 WB24T10145 CONTROL SURF ELEM
WB24T10146 WB24T10146 CONTROL SURF ELEM
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB02T10532 WB02T10532 COVER CONTROL
WB02T10370 WB02T10370 COVER FRONT
WB02T10355 WB02T10355 COVER TERMINAL BLOCK
WB02T10476 WB02T10476 COVER WIRE MAIN
WB01T10022 WB01T10022 DOOR BUMPER
WB01T10026 WB01T10026 DOOR PAD
WB44X45487 WB44X45487 ELEMENT BAKE ASM
WB30T10130 WB30T10130 ELEMENT HALIANT 12 IN
WB30T10129 WB30T10129 ELEMENT RADIANT 6 IN
WB30T10132 WB30T10132 ELEMENT RADIANT 8 IN
WB38T10033 WB38T10033 ELIMINATOR SMOKE
WB34T10125 WB34T10125 ENCLOSURE RANGETOP
WB27T11368 WB27T11368 FACEPLATE GRAPHICS BK
WB56T10313 WB56T10313 FRAME DOOR SIDE
WB56T10312 WB56T10312 FRAME DOOR SIDE
WB63T10157 WB63T10157 FRAME FRONT
WB04T10073 WB04T10073 GASKET OVEN DOOR
WB04T10050 WB04T10050 GASKET OVEN DOOR
WB64X0093 WB64X0093 GLASS CLEANER
WB15T10163 WB15T10163 HANDLE SS
WB18T10457 WB18T10457 HARNESS WIRE BAKE
WB18T10503 WB18T10503 HARNESS WIRE MAINTOP
WB18T10483 WB18T10483 HARNESS WIRE UI COM
WB35T10022 WB35T10022 HIDDEN BAKE INSULATION
WB10T10105 WB10T10105 HINGE ASM (LT)
WB10T10104 WB10T10104 HINGE ASM (RT)
WB10T10103 WB10T10103 HINGE DOOR LOWER LT
WB10T10102 WB10T10102 HINGE DOOR LOWER RT
31-10671 31-10671 INSTR INSTALL OVN DOOR
31-10677 31-10677 INSTRUCTION INSTALL
WB35X25122 WB35X25122 INSULATION BACK
WB35T10230 WB35T10230 INSULATION BACK
WB35X25048 WB35X25048 INSULATION BACK
WB35T10223 WB35T10223 INSULATION BACK
WB35T10235 WB35T10235 INSULATION MIDDLE
WB35T10168 WB35T10168 INSULATION OV DR UPRSIDE
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10167 WB35T10167 INSULATION OVN DR TOP UP
WB35T10170 WB35T10170 INSULATION WRAPPER
WB35T10236 WB35T10236 INSULATION WRAPPER UPR
WB18T10499 WB18T10499 JUMPER

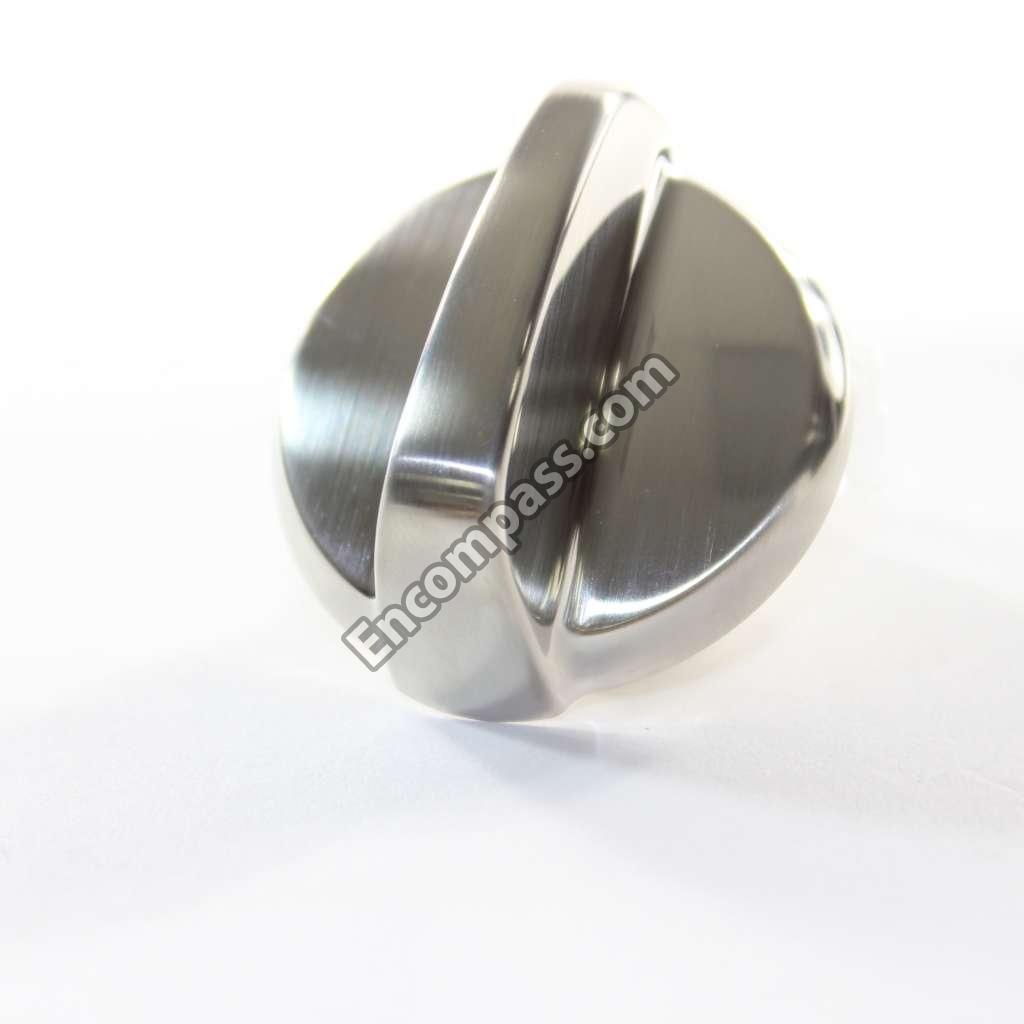

WB03T10284 WB03T10284 KNOB INFINITE (SS)
WB14T10083 WB14T10083 LATCH & HARNESS ASM
WB14T10088 WB14T10088 LATCH ASM
WB02X10521 WB02X10521 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB27T10626 WB27T10626 LIGHT INDICATOR PILOT
WB55T10148 WB55T10148 LINER OVEN DR ASM
WB55T10186 WB55T10186 LINING OVEN DOOR ASM
WB02T10507 WB02T10507 MAINBACK ASM
WB02T10026 WB02T10026 MAINTOP STRIKE
WB34T10128 WB34T10128 MULTIPLE SUPERCEDURES
WB25T10002 WB25T10002 OVEN BULB LENS COVER-
WB08T10002 WB08T10002 OVEN LAMP HO
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB56T10301 WB56T10301 PANEL ASM BONDED

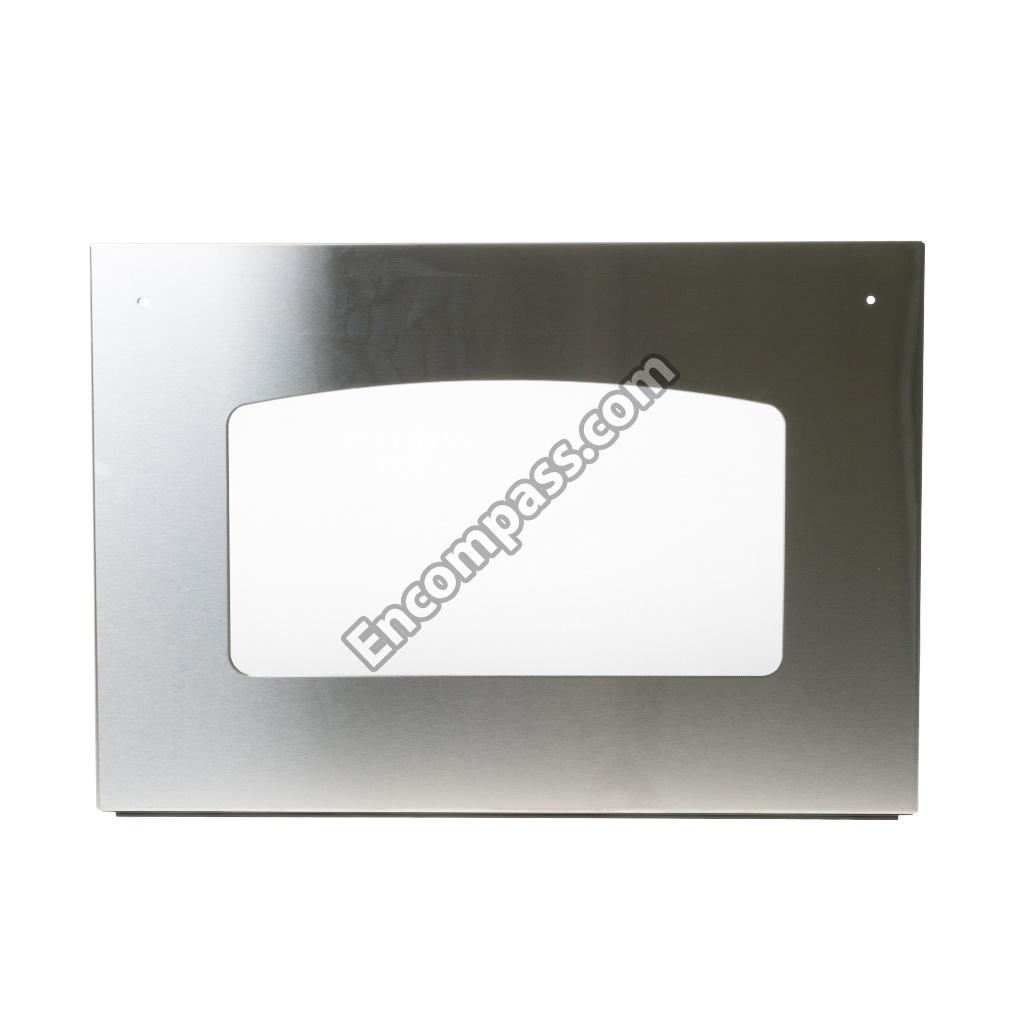

WB56T10300 WB56T10300 PANEL DOOR ASM (UPR)
WB56X28881 WB56X28881 PANEL SIDE (BK)
WB02T10477 WB02T10477 PCB STANDOFF
WB10T10125 WB10T10125 PIN RANGETOP HINGE
WB36T11040 WB36T11040 PLATE END LT (BK)
WB36T11039 WB36T11039 PLATE END RT (BK)
31-14949 31-14949 PM MANUAL MINI & WD ASM
49-80627 49-80627 PM OWNERS MANUAL
WB48T10072 WB48T10072 RACK OVEN
WB48T10021 WB48T10021 RACK OVEN LWR
WB34X26004 WB34X26004 RANGE RADIANT LEFT CHASSIS BRACE
WB62T10621 WB62T10621 RANGETOP GLASS ASM
WB10T10083 WB10T10083 RECEIVER HINGE
WB10T10101 WB10T10101 RECEIVER HINGE UPR ( LT)
WB10T10100 WB10T10100 RECEIVER HINGE UPR (RT)
WB56T10318 WB56T10318 RETAINER INSLN OVEN DR
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01X1178 WB01X1178 SCREW
WB01M0001 WB01M0001 SCREW
WB01X1116 WB01X1116 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01X1253 WB01X1253 SCREW
WB01K5200 WB01K5200 SCREW
WB1X1178 WB1X1178 SCREW
WD2X432 WD2X432 SCREW
WH2X1186 WH2X1186 SCREW
WB1X1116 WB1X1116 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K5186 WB1K5186 SCREW 6-32 X 3/5 1/4 HEX DRI
WB01K5186 WB01K5186 SCREW 6-32X3/5"" 1/4 HEX
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB23T10015 WB23T10015 SENSOR ASM
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB44X45489 WB44X45489 SHIELD BROIL ASM
WB44T10107 WB44T10107 SHIELD BROIL ASM
WB02T10525 WB02T10525 SHIELD HEAT BKGD
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10496 WB02T10496 SPACER BRACKET HANDLE
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB24T10058 WB24T10058 SWITCH INFINITE CONTROL
WB24T10165 WB24T10165 SWITCH ROCKER ELEM (BK)
WB24T10160 WB24T10160 SWITCH SPDT HIGH AMP
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB36T11232 WB36T11232 TRIM OVERLAY ASM (SS)
WB07X27233 WB07X27233 TRIM VENT DOOR
WB07T10621 WB07T10621 TRIM VERTICAL SIDES
WB38T10035 WB38T10035 TUBE VENT ASM
WB38T10034 WB38T10034 TUBE VNT ASM LWR
WB44X45493 WB44X45493 UNIT BAKE ASM (LWR)
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB56T10244 WB56T10244 WINDOW PACK ASM UPR
WB63T10148 WB63T10148 WRAPPER OVN CAV ASM
WZ4X416 WZ4X416 WZ04X0408
