Model Image
Manufacturer

GE

Model Number

JB860SJ3SS

Description

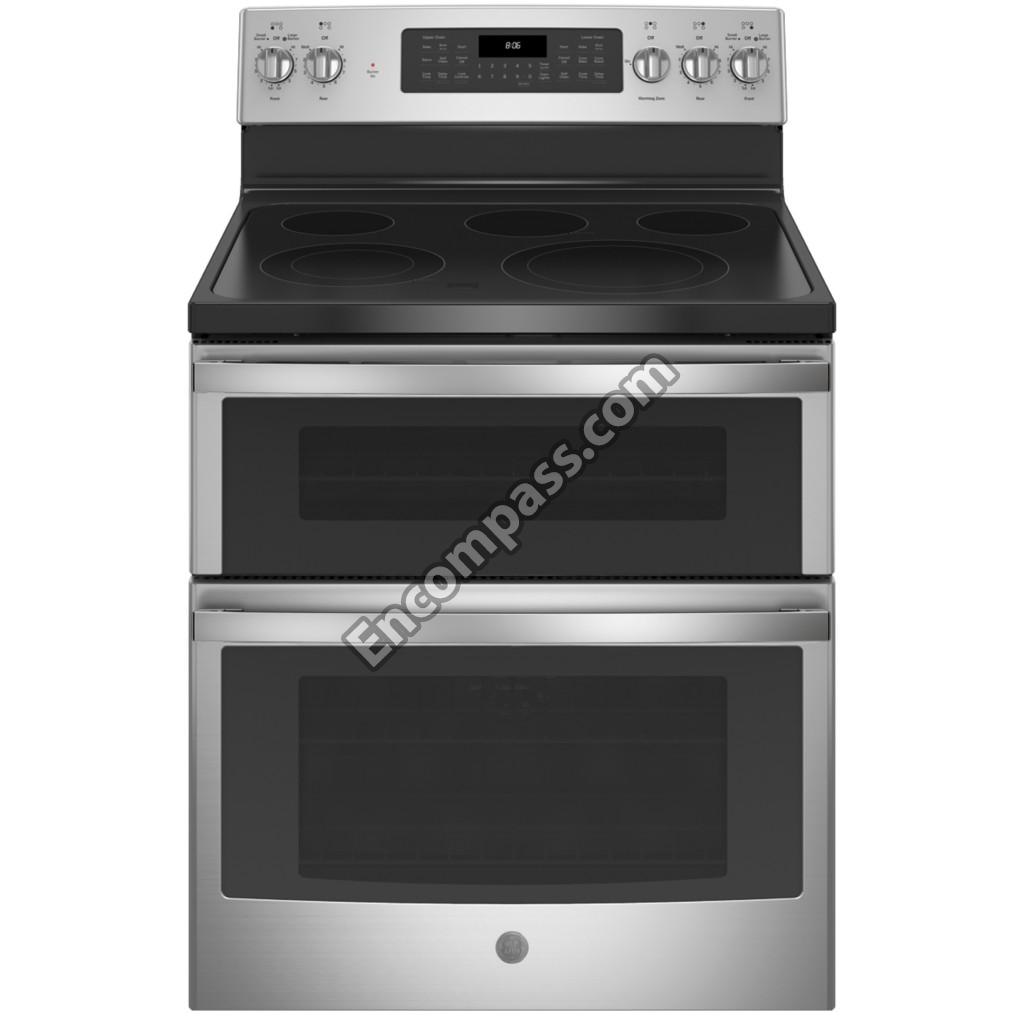

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB63X25990 WB63X25990 BASE DUAL CAVITY
WB02T10353 WB02T10353 BASE RAIL
WB02T10352 WB02T10352 BASE RAIL
WB34X26004 WB34X26004 BRACE
WB02T10463 WB02T10463 BRACE CHASSI
WB34X42670 WB34X42670 BRACKET OVN HDL VNT TRM
WB34X25221 WB34X25221 BRACKET OVN HDL VNT TRM
WB02T10542 WB02T10542 BRACKET STRAIN RELIEF
WB02X25982 WB02X25982 CABLE CLIP

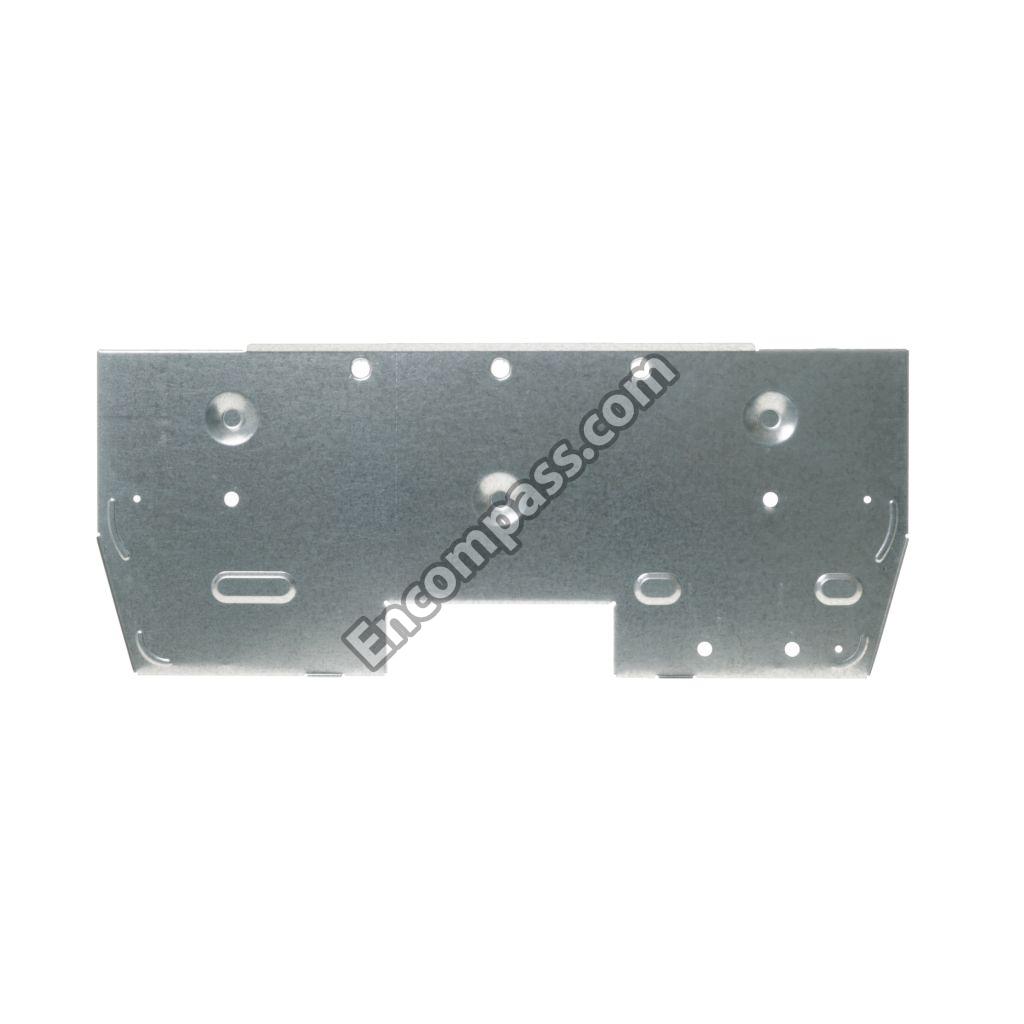

WB02T10533 WB02T10533 CAPACITOR BRACKET
WB34X20082 WB34X20082 COMPLETE FAN COVER

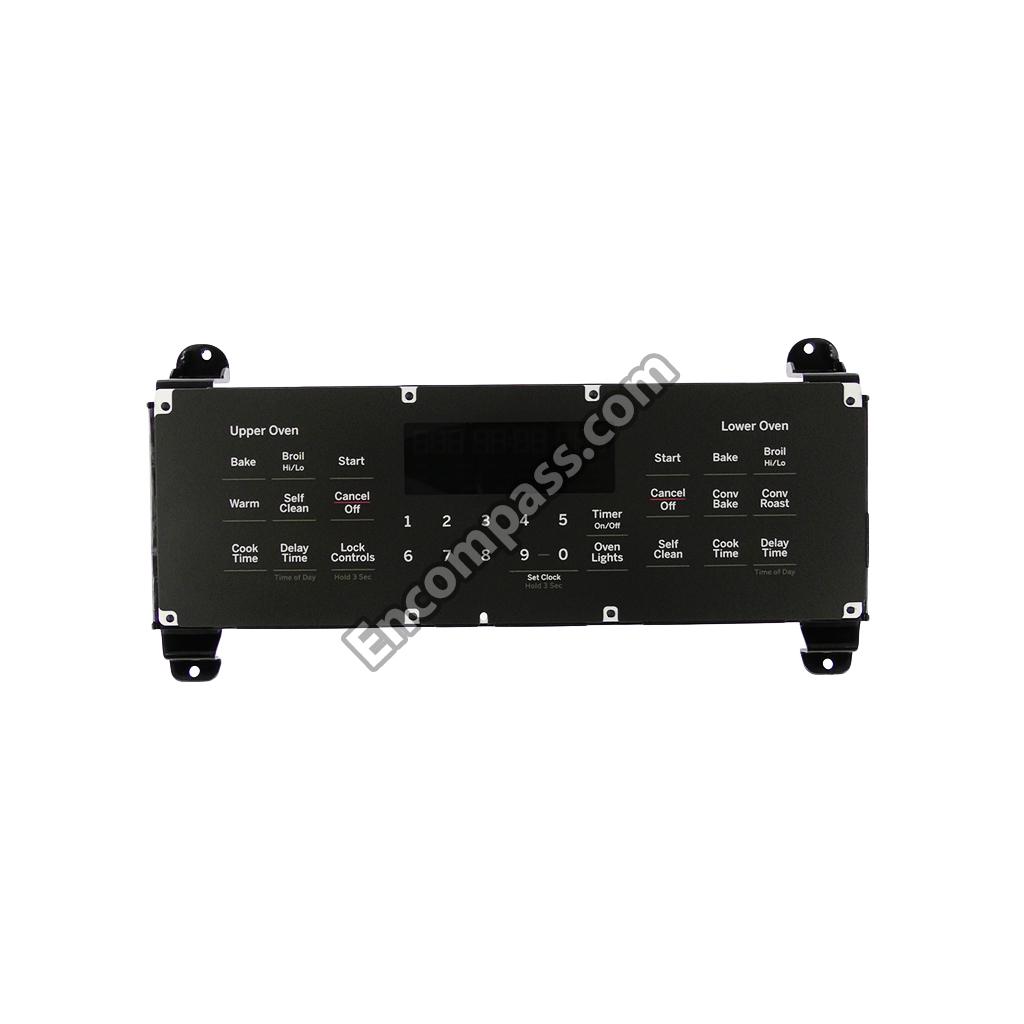

WB27X33137 WB27X33137 CONTROL
WB34X25565 WB34X25565 CONTROL COVER
WB07X25055 WB07X25055 CONTROL TRIM

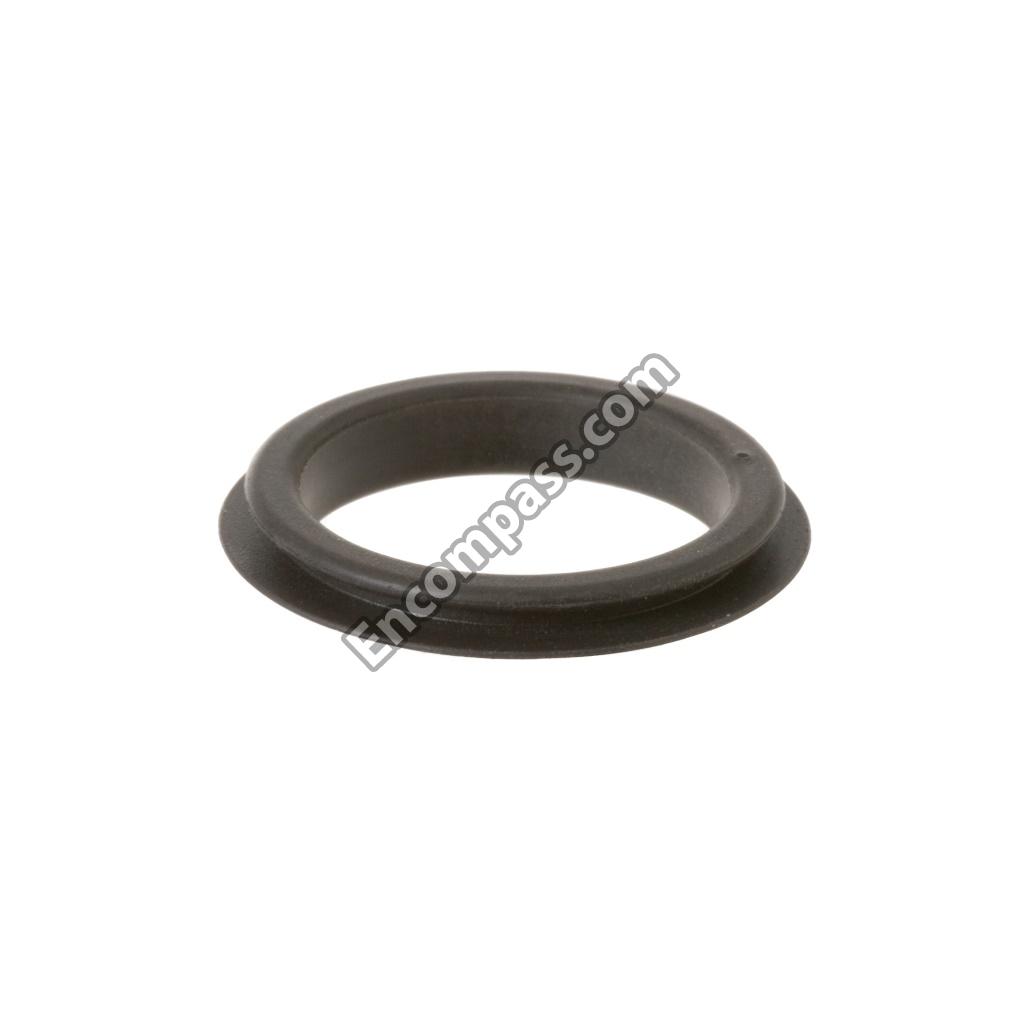

WB01T10079 WB01T10079 CONVERSION GASKET
WB26X26500 WB26X26500 CONVEX MOTOR
WB27T10668 WB27T10668 COOKTOP INDICATOR LIGHT
WB34X42993 WB34X42993 COVER
WB02T10575 WB02T10575 COVER WIRE M
WB34X25638 WB34X25638 DOOR BRACKET
WB01T10022 WB01T10022 DOOR BUMPER
WB56X21404 WB56X21404 DOOR FRAME
WB10X25243 WB10X25243 DOOR HINGE
WB10X30492 WB10X30492 DOOR HINGE
WB02X25272 WB02X25272 DOOR SPACER
WH2X930 WH2X930 DRYER SCREW
WB38T10033 WB38T10033 ELIMINATOR S
WB63X20010 WB63X20010 FRAME
WB63X20864 WB63X20864 FRAME
WB64X0093 WB64X0093 GLASS CLEANER
WB08T10045 WB08T10045 HALOGEN LAMP
WB25X33021 WB25X33021 HALOGEN LAMP ASSEMBLY

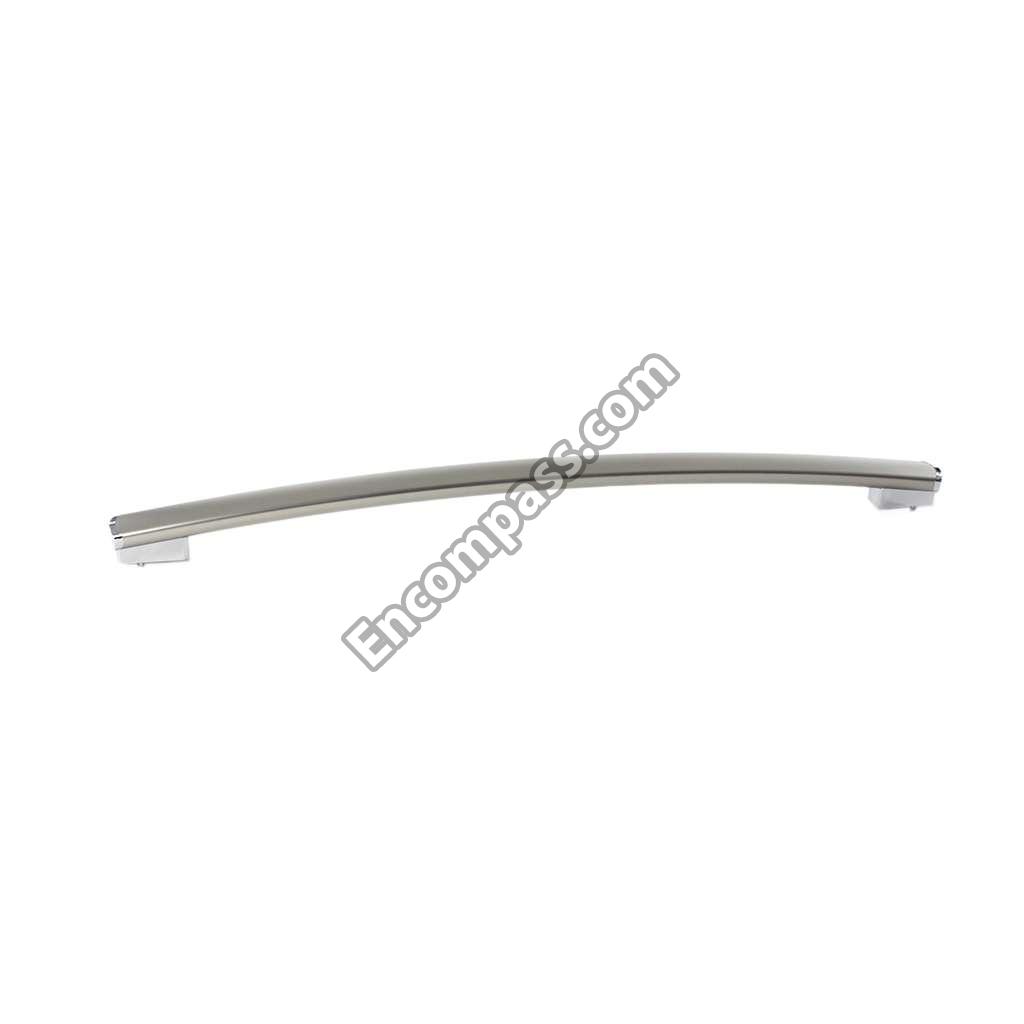

WB15X24967 WB15X24967 HANDLE
WB10X25237 WB10X25237 HARNESS LATCH
WB18X42866 WB18X42866 HARNESS WIRE MAINTOP

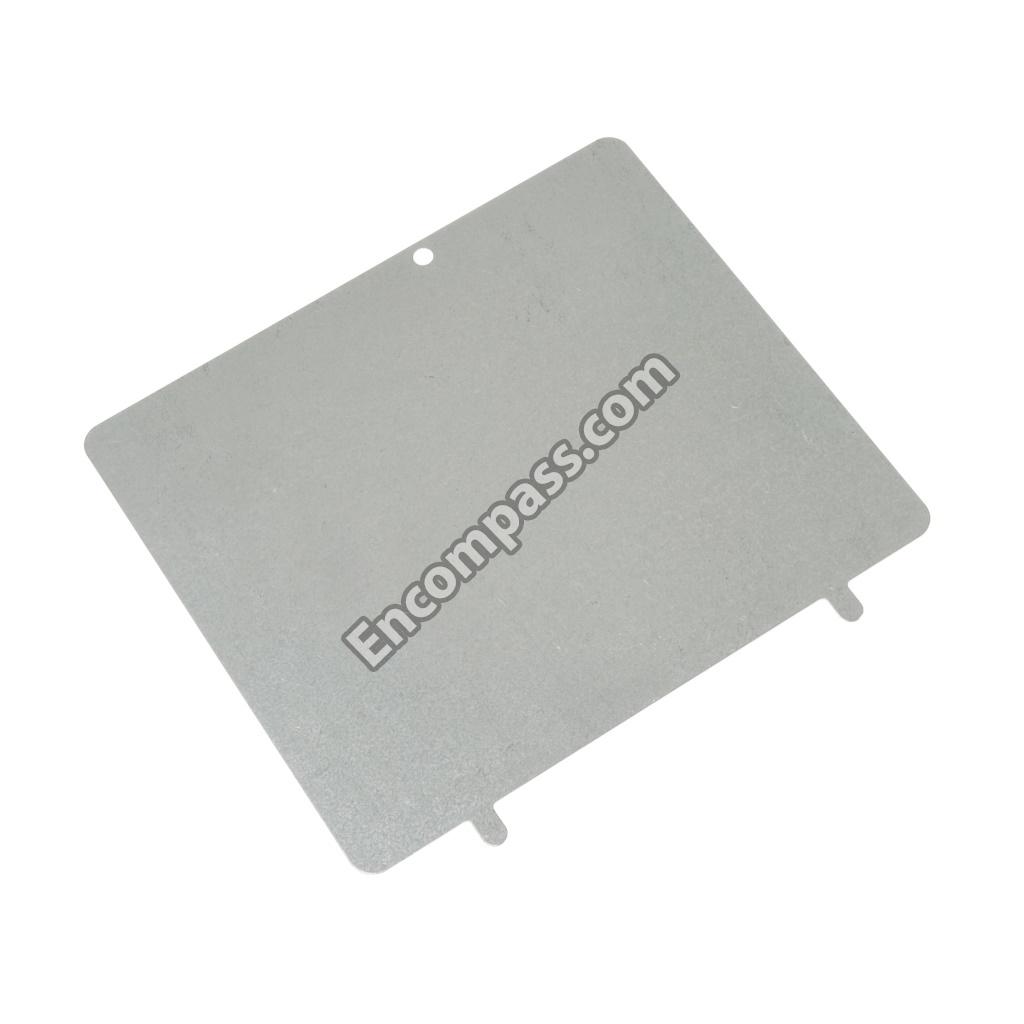

WB34X25151 WB34X25151 HEAT SHIELD
WB02X20855 WB02X20855 HEAT SHIELD

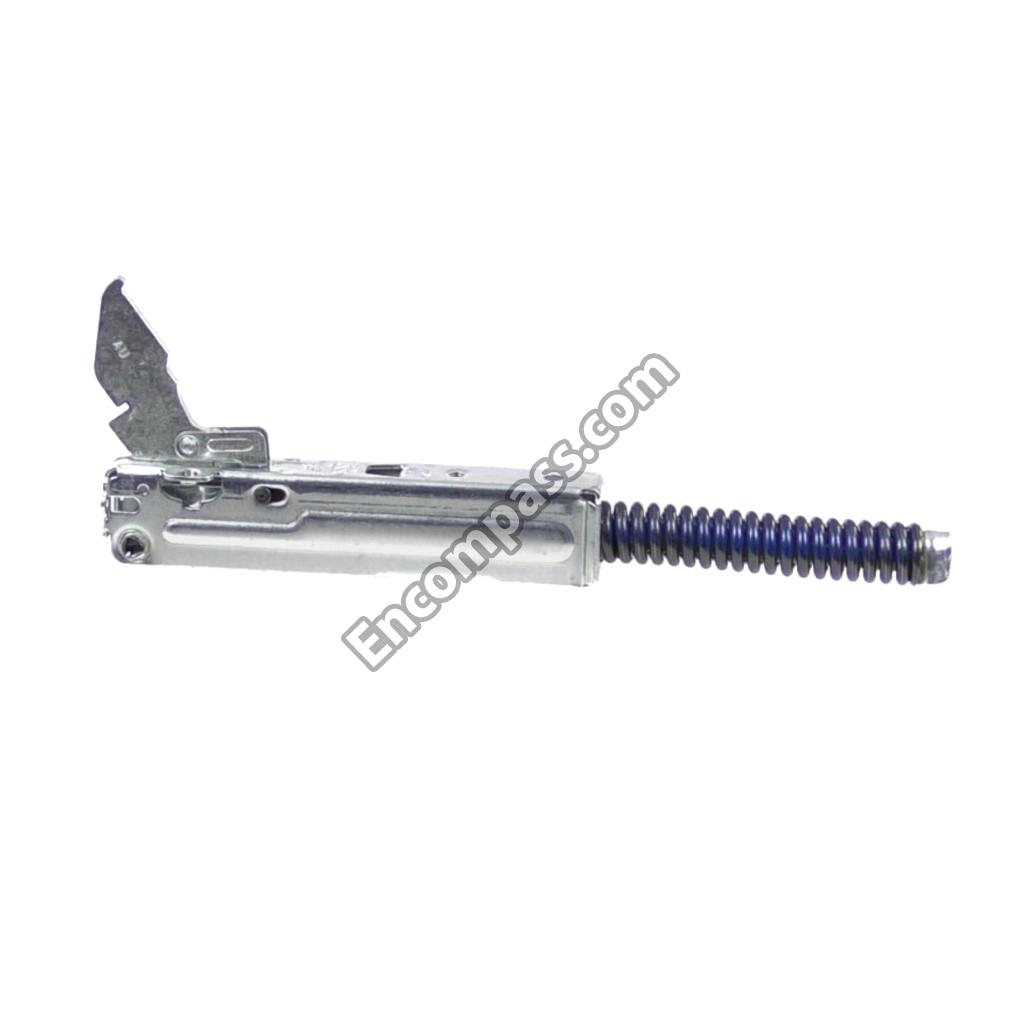

WB10T10104 WB10T10104 HINGE ASSEMBLY
WB10T10105 WB10T10105 HINGE ASSEMBLY
WB10X30495 WB10X30495 HINGE RECEIVER
WB10T10100 WB10T10100 HINGE RECEIVER
WB10T10101 WB10T10101 HINGE RECEIVER
WB34X20009 WB34X20009 HOLE COVER
WB02X26501 WB02X26501 HUB BLADE ASSEMBLY
WB25X20005 WB25X20005 INDICATOR LIGHT
WB24X25013 WB24X25013 INFINITE SWITCH
31-10816 31-10816 INSTALLATION INSTRUCTIONS
31-10781 31-10781 INSTALLATION INSTRUCTIONS
31-10661 31-10661 INSTRUCTION INSTALL
WB35X25049 WB35X25049 INSULATION
WB35X25122 WB35X25122 INSULATION
WB35T10170 WB35T10170 INSULATION
WB35X25048 WB35X25048 INSULATION
WB35X25301 WB35X25301 INSULATION BACK
WB35T10022 WB35T10022 INSULATION H
WB35T10235 WB35T10235 INSULATION M
WB18X30704 WB18X30704 JUMPER
WB03X34871 WB03X34871 KNOB
229C6465P001 229C6465P001 LABEL WIRE DIAGRAM
WB25X24909 WB25X24909 LAMP HALOGEN ASM
WB10X25238 WB10X25238 LATCH ASSEMBLY
WB18T10470 WB18T10470 LEAD WIRE 14
WB25X24023 WB25X24023 LENS
WB02T10026 WB02T10026 MAIN TOP STRIP

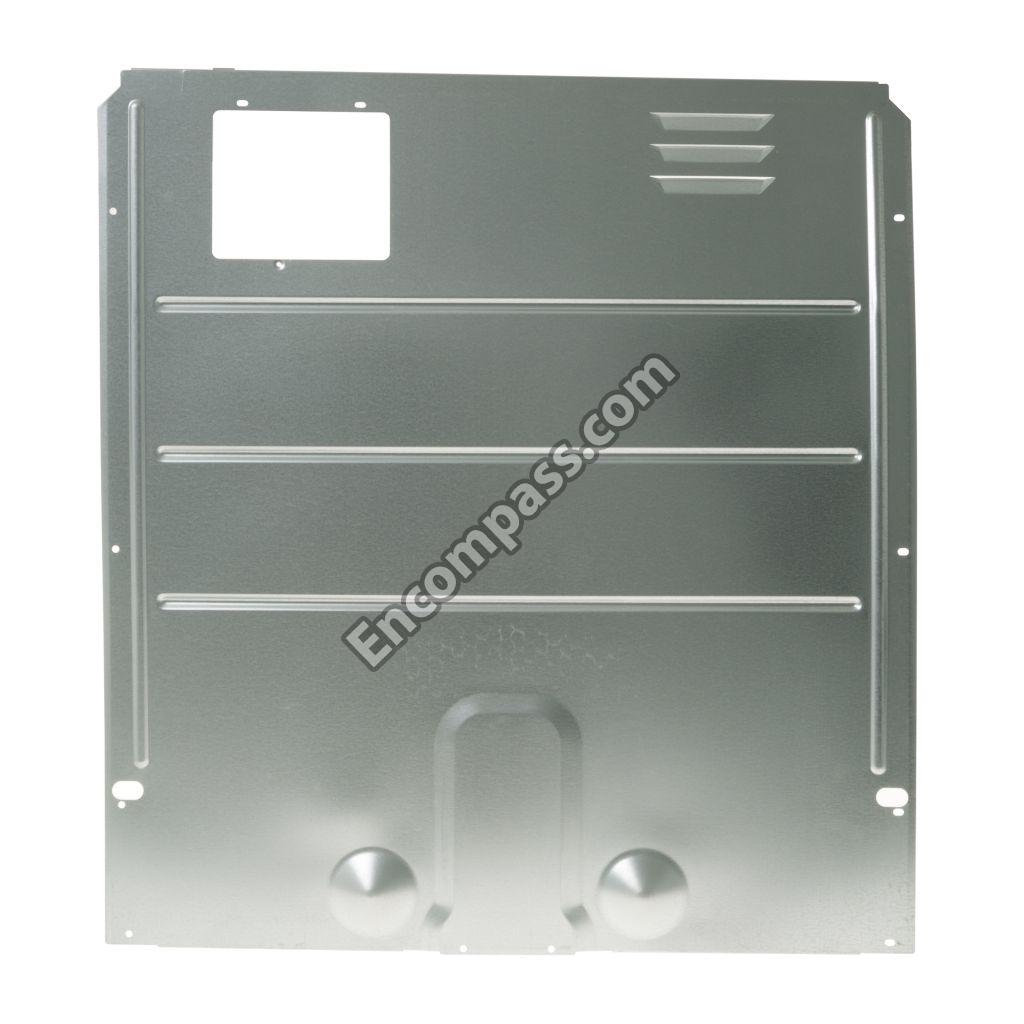

WB02T10507 WB02T10507 MAINBACK ASM
WB18X32660 WB18X32660 MAINTOP AND INF. SWITCHES HARN
49-80597 49-80597 MANUAL U&C TIP SHEET
WB01X26247 WB01X26247 NUT
WB02T10589 WB02T10589 OVEN BADGE
WB56X21397 WB56X21397 OVEN DOOR FRAME

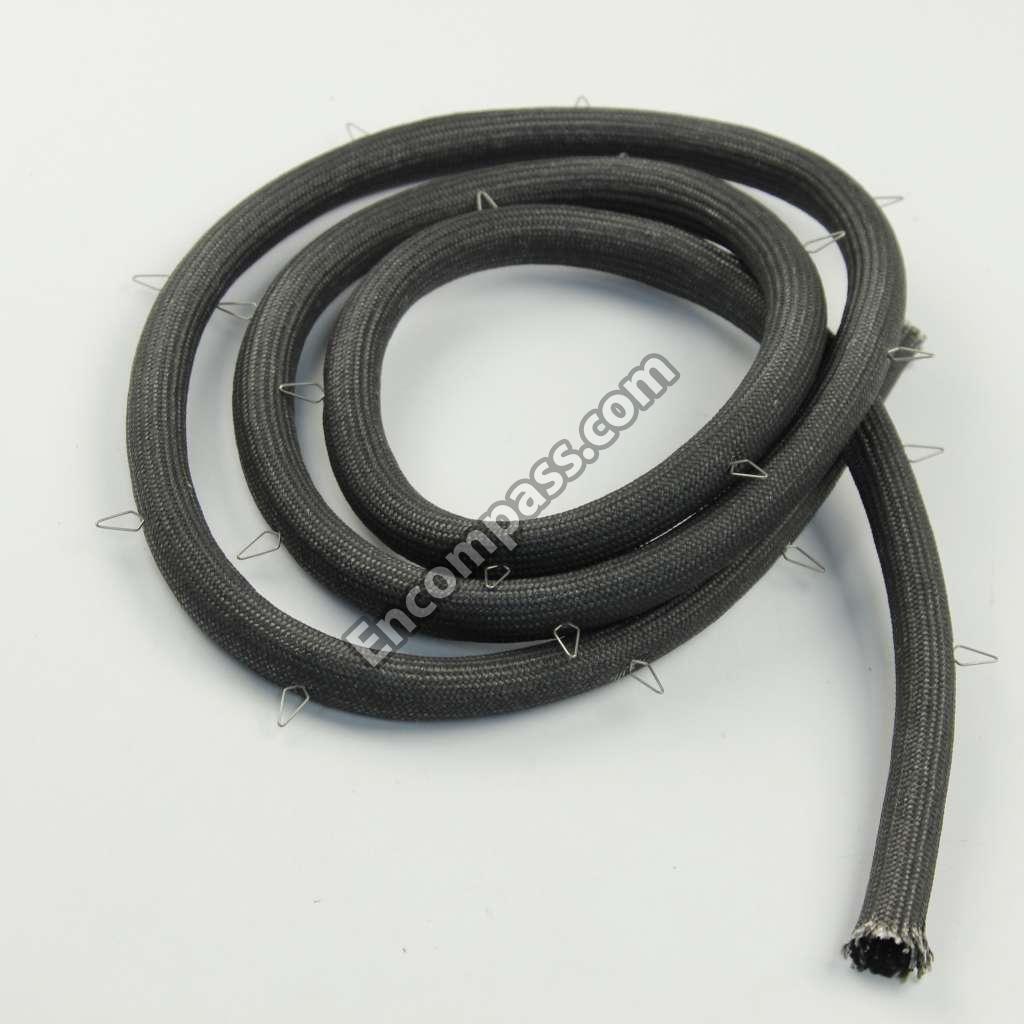

WB04T10021 WB04T10021 OVEN DOOR GASKET
WB04T10077 WB04T10077 OVEN DOOR GASKET
WB04T10076 WB04T10076 OVEN DOOR GASKET
WB35X30052 WB35X30052 OVEN DOOR INSULATION
WB35T10167 WB35T10167 OVEN INSULATION
WB35T10168 WB35T10168 OVEN INSULATION
WB35K10025 WB35K10025 OVEN INSULATION
WB25T10013 WB25T10013 OVEN LAMP LENS
WB63X20854 WB63X20854 OVEN LINER
WB63X20852 WB63X20852 OVEN LINER
WB02X20947 WB02X20947 OVEN SUPPORT
WB56T10244 WB56T10244 OVEN UPPER WINDOW PACK ASSEMBLY
WB63T10162 WB63T10162 OVEN WRAPPER
WB56X30623 WB56X30623 PANEL ASM BONDED UPR (SS
WB56X39770 WB56X39770 PANEL ASSEMBLY
WB02T10477 WB02T10477 PCB STANDOFF
WB07X24963 WB07X24963 PLATE END
WB07X24964 WB07X24964 PLATE END RH
31-17195 31-17195 PM MANUAL MINI & WD ASM
49-80767 49-80767 PM QUICK GUIDE
WB02X20940 WB02X20940 RADIANT BRACKET
WB02X20902 WB02X20902 RADIANT BRACKET
WB09X40389 WB09X40389 RADIANT SPRING
WB02T10578 WB02T10578 RANGE ANTI-TIP BRACKET

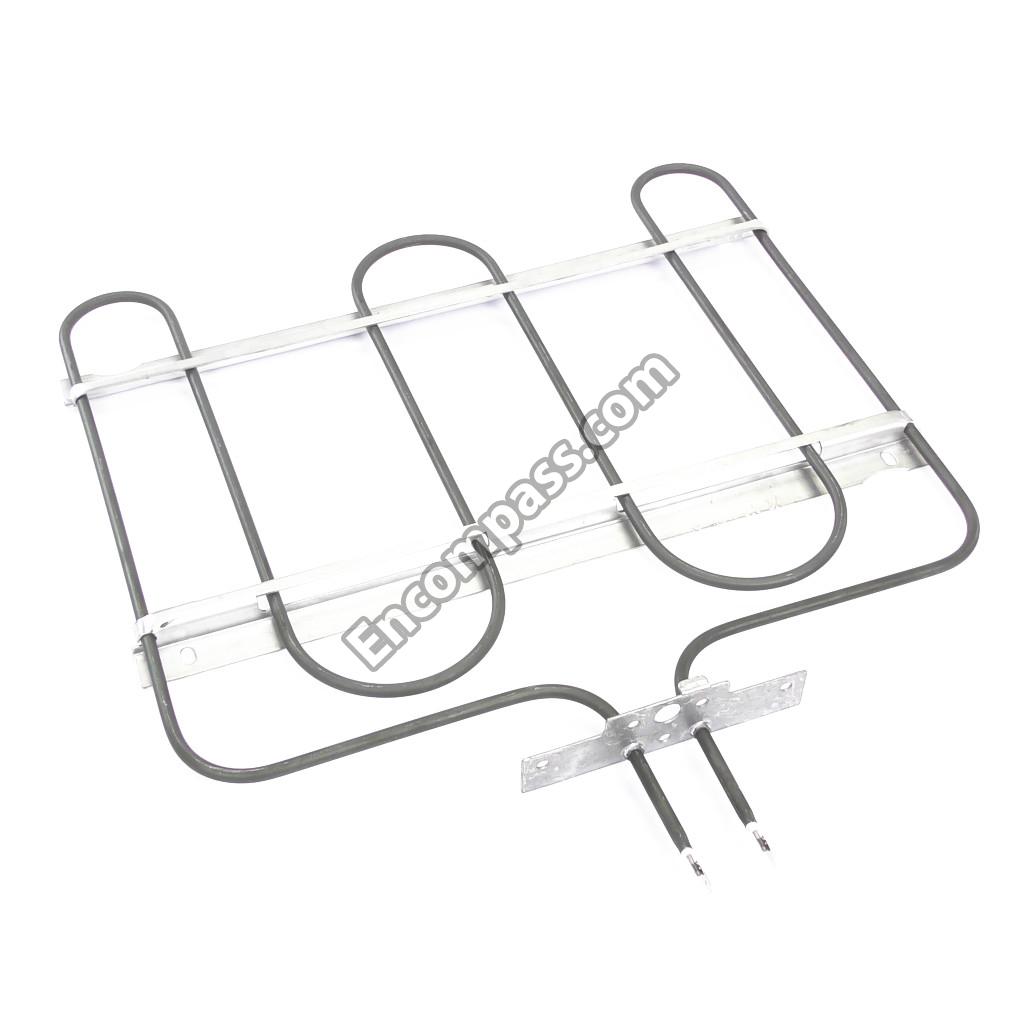

WB44X45487 WB44X45487 RANGE BAKE ELEMENT
WB27T10662 WB27T10662 RANGE CONVECTION FAN MOTOR START CAPACITOR
WB30X24111 WB30X24111 RANGE DUAL RADIANT SURFACE ELEMENT, 6 TO 9-IN
WB30T10130 WB30T10130 RANGE HALOGEN SURFACE ELEMENT
WB02X10521 WB02X10521 RANGE LEVELING LEG
WB62X25972 WB62X25972 RANGE MAIN TOP ASSEMBLY
WB56X22160 WB56X22160 RANGE OVEN DOOR INNER GLASS
WB24T10147 WB24T10147 RANGE OVEN DOOR SWITCH

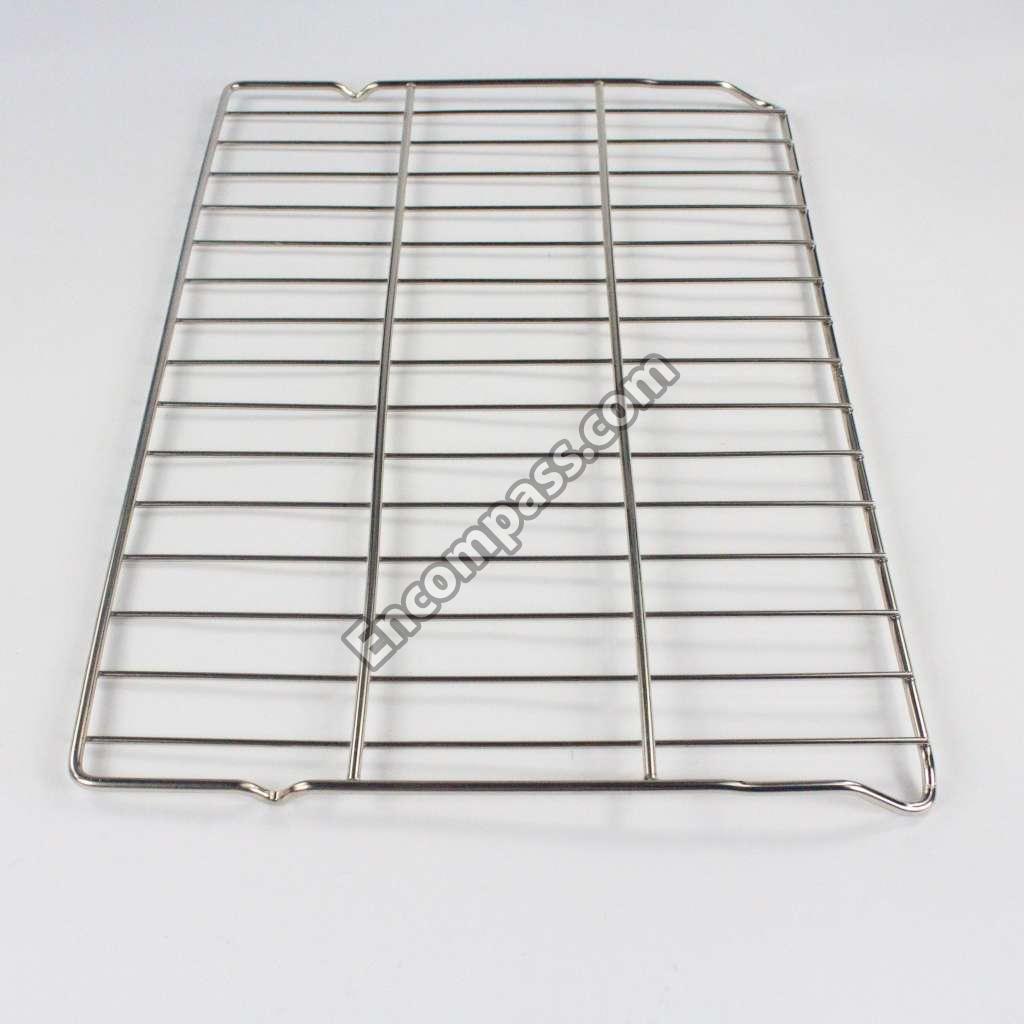

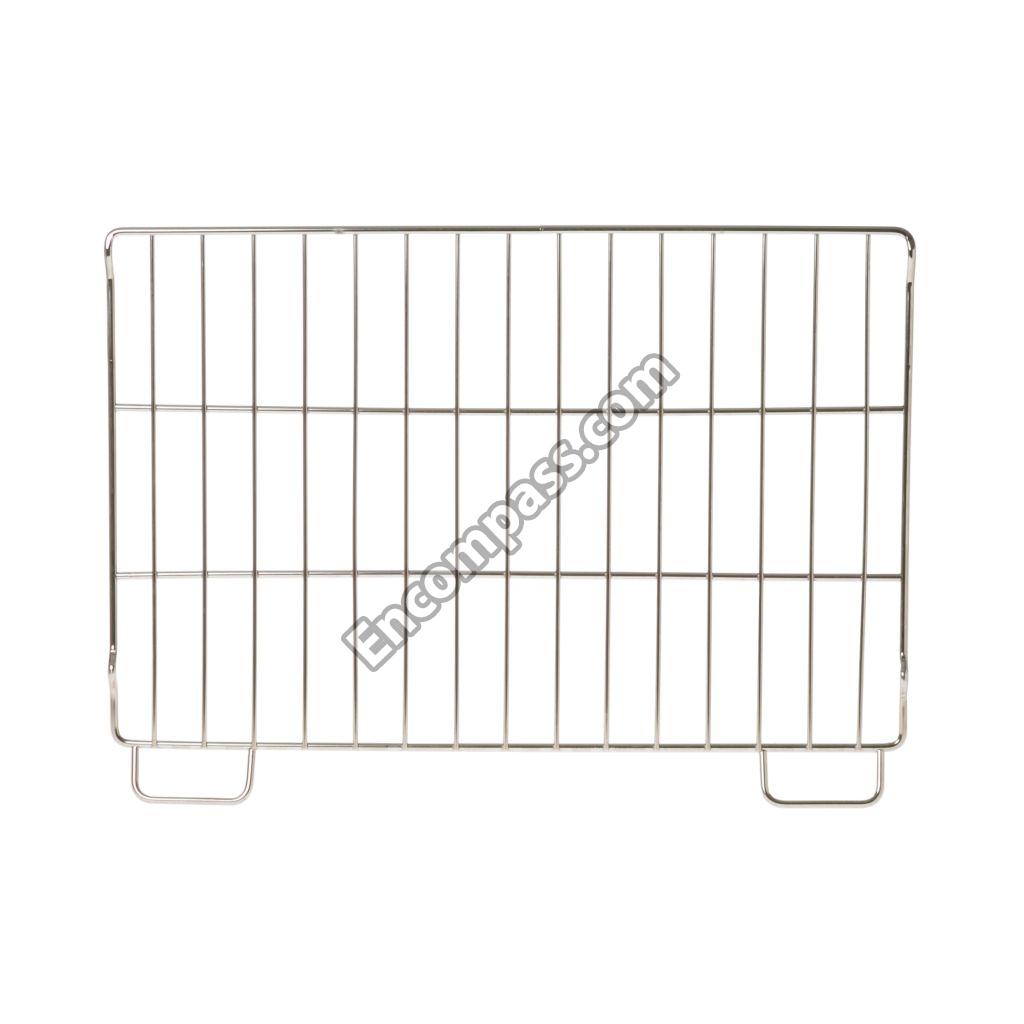

WB48T10072 WB48T10072 RANGE OVEN RACK
WB48T10076 WB48T10076 RANGE OVEN RACK
WB21X22134 WB21X22134 RANGE OVEN TEMPERATURE SENSOR
WB10T10116 WB10T10116 RANGE PIN
WB30X20871 WB30X20871 RANGE RADIANT SURFACE ELEMENT
WB1X1261 WB1X1261 RANGE SCREW
WB01M10002 WB01M10002 RANGE SCREW
WB1X536 WB1X536 RANGE SCREW
WB1M1 WB1M1 RANGE SCREW
WB30T10145 WB30T10145 RANGE SURFACE ELEMENT
WB24T10029 WB24T10029 RANGE SURFACE ELEMENT CONTROL SWITCH, 1,500-WATT
WB17T10011 WB17T10011 RANGE TERMINAL BLOCK
WB34X30165 WB34X30165 RANGE TOP ENCLOSURE
WB27X25594 WB27X25594 RELAY BOARD
WB56T10318 WB56T10318 RETAINER INSERT
WB27X25015 WB27X25015 RJ45 ASM
WB01T10008 WB01T10008 SCR 10-32 TR
WB01T10137 WB01T10137 SCR 10-32 TR
WB01T10084 WB01T10084 SCR 8 - 32 X
WB1X5904 WB1X5904 SCR 8-18
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WH00X278 WH00X278 SCREW
WB01X1178 WB01X1178 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB1K5200 WB1K5200 SCREW
WB1X1178 WB1X1178 SCREW
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X26365 WB01X26365 SCREW, #8-18
WZ4X245D WZ4X245D SCREW, #8-18
WB01X21650 WB01X21650 SCREW, #8-18
WB44X45489 WB44X45489 SHIELD BROIL
WB44X21400 WB44X21400 SHIELD BROIL
WB56X28883 WB56X28883 SIDE PANEL G
WB56X39769 WB56X39769 STAINLESS UPPER OUTER DOOR
WB02T10034 WB02T10034 SUPPORT
WB24X25302 WB24X25302 SWITCH
WB02T10564 WB02T10564 TERMINAL COVER
WB07X27880 WB07X27880 TOP TRIM (GY
WB07T10621 WB07T10621 TRIM VERTICA
WB34X25232 WB34X25232 TUBE VNT ASM LWR
WB38T10035 WB38T10035 VENT TUBE
WB38X33648 WB38X33648 VENT TUBE
WB44X45493 WB44X45493 WALL OVEN BAKE ELEMENT
WB02T10371 WB02T10371 WALL OVEN DOOR INSULATION RETAINER PANEL
WB08T10002 WB08T10002 WALL OVEN LIGHT ASSEMBLY
WB25T10002 WB25T10002 WALL OVEN LIGHT LENS
WB23T10015 WB23T10015 WALL OVEN TEMPERATURE SENSOR
WB00X6723 WB00X6723 WASHER
WB18X32781 WB18X32781 WIRE HARNESS
WB18X25225 WB18X25225 WIRE HARNESS
WB18X25224 WB18X25224 WIRE HARNESS
