Model Image
Manufacturer

GE

Model Number

JB870TF1WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02T10589 WB02T10589 BADGE GE
WB39T10015 WB39T10015 BASE DUAL CAVITY
WB02T10353 WB02T10353 BASE RAIL
WB02T10352 WB02T10352 BASE RAIL
WB27T11330 WB27T11330 BOARD RELAY DAUGHTER ASM
WB27T11453 WB27T11453 BOARD RJ45 CONNECTOR
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10578 WB02T10578 BRACKET ANTITIP ASM
WB34X20003 WB34X20003 BRACKET CONTROL LEFT
WB34X20004 WB34X20004 BRACKET CONTROL RT
WB34X20853 WB34X20853 BRACKET HANDLE DOOR
WB02T10574 WB02T10574 BRACKET RADIANT ELEMENT
WB02T10492 WB02T10492 BRACKET STRAIN RELIEF
WB02X45146 WB02X45146 CLIP CABLE
WB27X25362 WB27X25362 CONTROL BOARD T012 ELE
WB24T10029 WB24T10029 CONTROL INFINITE SWITCH
WB24T10146 WB24T10146 CONTROL SURF ELEM
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB34X20932 WB34X20932 COVER CONTROL
WB34X20082 WB34X20082 COVER FAN CONVX BK
WB02T10571 WB02T10571 COVER FRONT
WB34X20009 WB34X20009 COVER HOLE (BLACK)
WB02T10564 WB02T10564 COVER TERMINAL BLOCK
WB01T10022 WB01T10022 DOOR BUMPER
WB30T10155 WB30T10155 ELEMENT HALIANT 12 TRPL
WB44T10082 WB44T10082 ELEMENT HIDDEN BAKE ASM
WB30T10145 WB30T10145 ELEMENT RADIANT 5.5 IN
WB30X20871 WB30X20871 ELEMENT RADIANT 6 WARMER
WB30T10132 WB30T10132 ELEMENT RADIANT 8 IN
WB38T10033 WB38T10033 ELIMINATOR SMOKE
WB34T10125 WB34T10125 ENCLOSURE RANGETOP

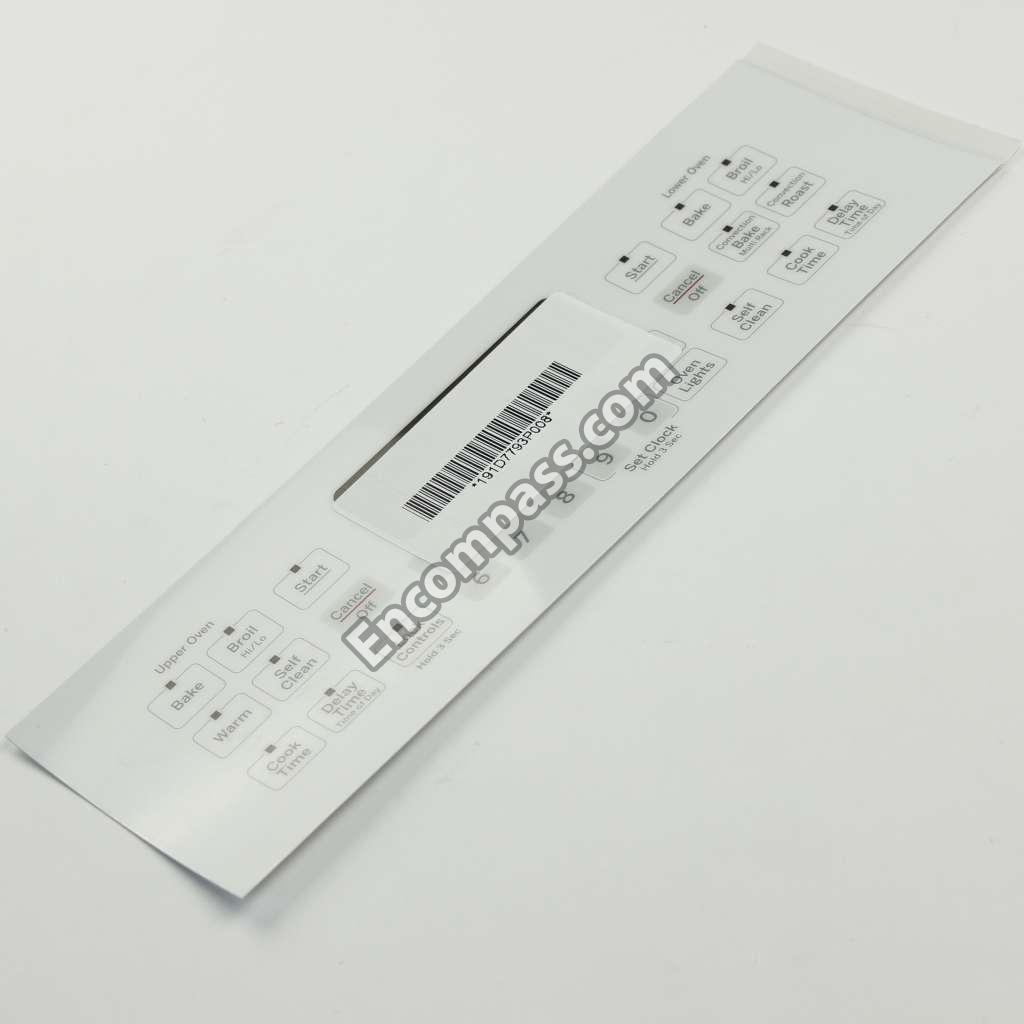

WB27X20034 WB27X20034 FACEPLATE GRAPHICS WW
WB56X21401 WB56X21401 FRAME DOOR SIDE
WB56X21402 WB56X21402 FRAME DOOR SIDE
WB63X20864 WB63X20864 FRAME FRONT LWR (BLACK)
WB63X20010 WB63X20010 FRAME FRONT UPR BK
WB01T10079 WB01T10079 GASKET CONV FAN
WB04T10077 WB04T10077 GASKET OVN DOOR
WB04T10076 WB04T10076 GASKET OVN DR
WB04T10074 WB04T10074 GASKET OVN LIGHT
WB64X0093 WB64X0093 GLASS CLEANER
WB15X21772 WB15X21772 HANDLE OVEN DOOR WH
WB18X20006 WB18X20006 HARNESS WIRE CAT MODULE
WB18T10462 WB18T10462 HARNESS WIRE HB
WB18X20123 WB18X20123 HARNESS WIRE INF
WB18X20029 WB18X20029 HARNESS WIRE INFINITE
WB18X20032 WB18X20032 HARNESS WIRE MAINTOP
WB18X21396 WB18X21396 HARNESS WIRE UI COM
WB10T10105 WB10T10105 HINGE ASM (LT)
WB10T10104 WB10T10104 HINGE ASM (RT)
WB10T10107 WB10T10107 HINGE DOOR LT
WB10T10106 WB10T10106 HINGE DOOR RT
WB27X20933 WB27X20933 HOUSING RJ45 ASM
WB02T10289 WB02T10289 HUB BLADE ASM
31-10661 31-10661 INSTRUCTION INSTALL
WB35X25122 WB35X25122 INSULATION BACK
WB35T10230 WB35T10230 INSULATION BACK
WB35T10223 WB35T10223 INSULATION BACK
WB35X25048 WB35X25048 INSULATION BACK
WB35X25077 WB35X25077 INSULATION BOTTOM
WB35T10235 WB35T10235 INSULATION MIDDLE
WB35T10168 WB35T10168 INSULATION OV DR UPRSIDE
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10167 WB35T10167 INSULATION OVN DR TOP UP
WB35T10170 WB35T10170 INSULATION WRAPPER
WB35T10236 WB35T10236 INSULATION WRAPPER UPR
WB18X30704 WB18X30704 JUMPER

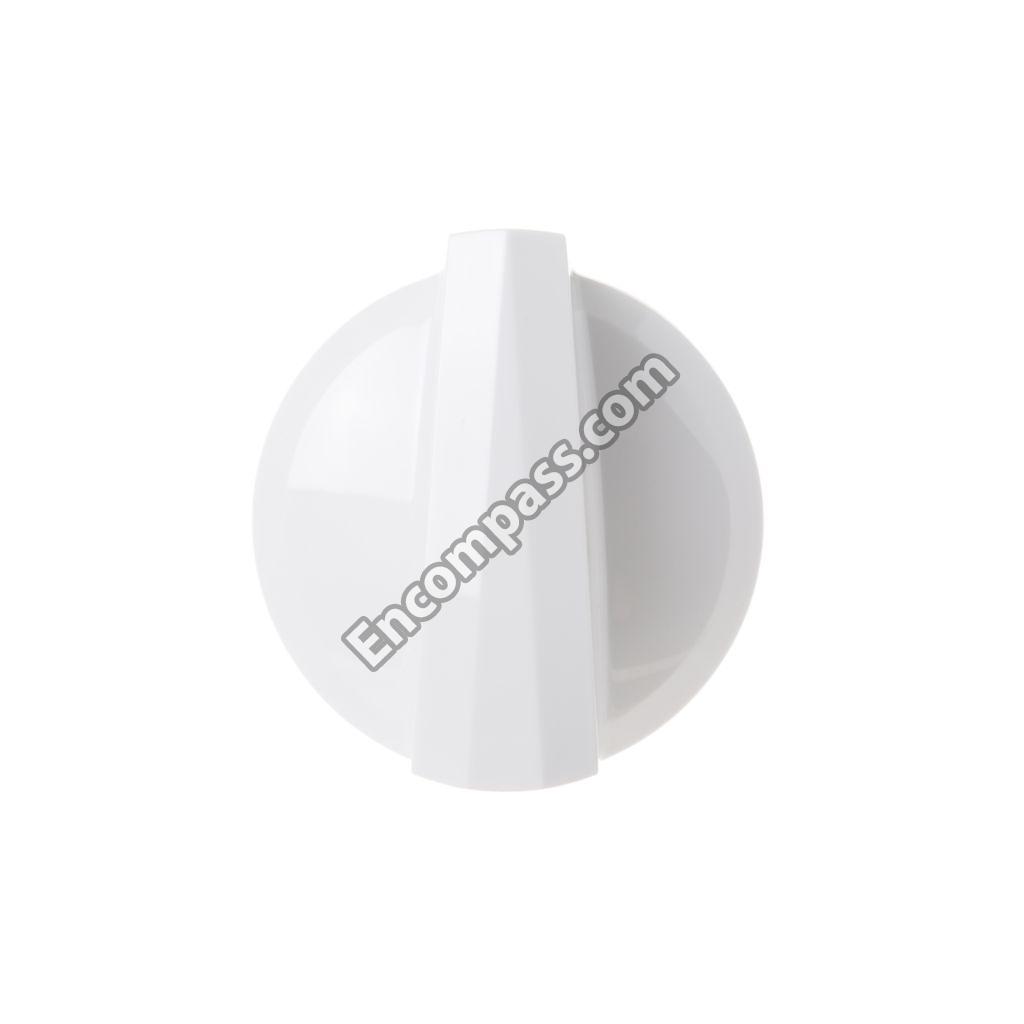

WB03T10335 WB03T10335 KNOB ASM

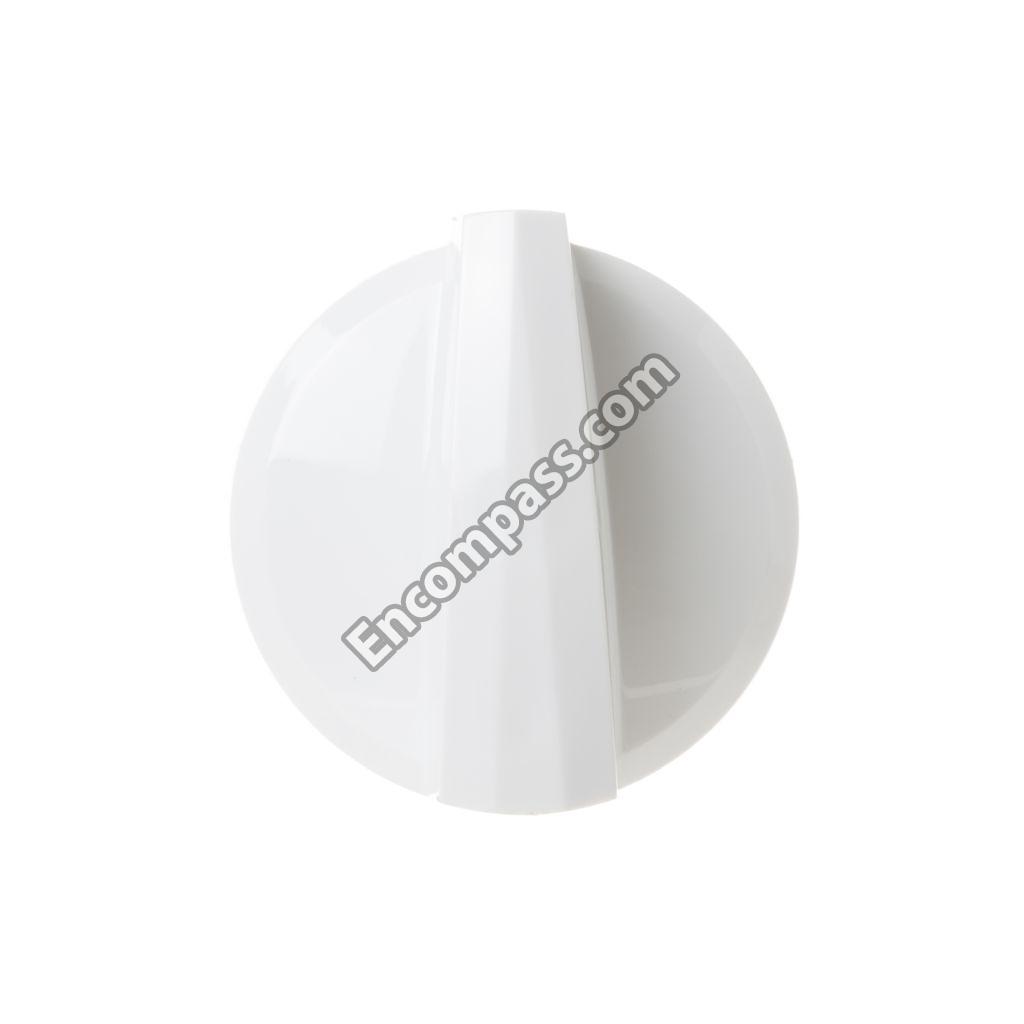

WB03T10334 WB03T10334 KNOB ASM
229C6306P001 229C6306P001 LABEL WIRE DIAGRAM
WB25T10097 WB25T10097 LAMP HALOGEN ASM
WB08T10045 WB08T10045 LAMP HALOGEN G9
WB14T10088 WB14T10088 LATCH ASM
WB10X21399 WB10X21399 LATCH HARNESS ASM
WB18T10470 WB18T10470 LEAD WIRE 14 GA GN
WB02X10521 WB02X10521 LEG LEVELER
WB25T10103 WB25T10103 LENS
WB27T10668 WB27T10668 LIGHT INDICATOR
WB25X20005 WB25X20005 LIGHT INDICATOR PILOT
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB63X20854 WB63X20854 LINER OVEN DOOR ASM
WB63X20852 WB63X20852 LINER OVEN DR ASM
WB02T10507 WB02T10507 MAINBACK ASM
WB02T10026 WB02T10026 MAINTOP STRIKE
49-80597 49-80597 MANUAL U&C TIP SHEET
WB26T10043 WB26T10043 MOTOR PSC CONV
WB02T10017 WB02T10017 NUT
WB25T10013 WB25T10013 OV LAMP LENS
WB25T10002 WB25T10002 OVEN BULB LENS COVER-
WB08T10002 WB08T10002 OVEN LAMP HO
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB49T10071 WB49T10071 PAN REFLECTOR
WB56X20022 WB56X20022 PANEL ASM BONDED LWRWH
WB56X20149 WB56X20149 PANEL ASM BONDED UPRWH
WB56X28884 WB56X28884 PANEL SIDE (WH)
WB02T10477 WB02T10477 PCB STANDOFF
WB10T10116 WB10T10116 PIN RANGETOP HINGE
WB36T11207 WB36T11207 PLATE END LT
WB36T11206 WB36T11206 PLATE END RT
31-10781 31-10781 PM INSTALL INSTRUCTIONS
31-10816 31-10816 PM INSTRUCTIONS INSTALL
31-17049 31-17049 PM MANUAL MINI & WD ASM
49-80633 49-80633 PM OWNERS MANUAL
WB48T10076 WB48T10076 RACK OVEN
WB48T10072 WB48T10072 RACK OVEN
WB02X21398 WB02X21398 RANGE HANDLE BRACKET SPACER
WB02X20855 WB02X20855 RANGE HEAT SHIELD BACK
WB02T10575 WB02T10575 RANGE MAIN WIRE COVER
WB02X20902 WB02X20902 RANGE RADIANT ELEMENT BRACKET
WB34X26004 WB34X26004 RANGE RADIANT LEFT CHASSIS BRACE
WB24X21736 WB24X21736 RANGE ROTARY SWITCH
WB62X22220 WB62X22220 RANGETOP GLASS ASSEMBLY (TW)
WB10T10083 WB10T10083 RECEIVER HINGE
WB10T10101 WB10T10101 RECEIVER HINGE UPR ( LT)
WB10T10100 WB10T10100 RECEIVER HINGE UPR (RT)
WB18T10352 WB18T10352 RELAY
WB56T10318 WB56T10318 RETAINER INSLN OVEN DR
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01M0001 WB01M0001 SCREW
WB01X1178 WB01X1178 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB1X1178 WB1X1178 SCREW
WD2X432 WD2X432 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01X22380 WB01X22380 SCREW (WHITE)
WB01X1130 WB01X1130 SCREW 10-32
WB01T10008 WB01T10008 SCREW 10-32 TR T
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WZ4X245D WZ4X245D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB23T10015 WB23T10015 SENSOR ASM
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB44X20885 WB44X20885 SHIELD BROIL ASM 3600W
WB44X45488 WB44X45488 SHIELD BROIL ASSEMBLY
WB02X20711 WB02X20711 SHIELD HEAT BKGD
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB37X20012 WB37X20012 SPACER BRACKET H AND LE
WB02T10065 WB02T10065 SPACER DR HANDLE
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB02X20947 WB02X20947 SUPPORT OVN CAV BK
WB24T10162 WB24T10162 SWITCH INFINITE CONTROL
WB24T10160 WB24T10160 SWITCH SPDT HIGH AMP
WB24T10105 WB24T10105 TCO RUNAWAY
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB36X20035 WB36X20035 TRIM CNTRL ASM
WB07T10621 WB07T10621 TRIM VERTICAL SIDES
WB38T10035 WB38T10035 TUBE VENT ASM
WB38T10034 WB38T10034 TUBE VNT ASM LWR
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB56T10244 WB56T10244 WINDOW PACK ASM UPR
WB63T10162 WB63T10162 WRAPPER OVN CAV ASM
WZ4X416 WZ4X416 WZ04X0408
