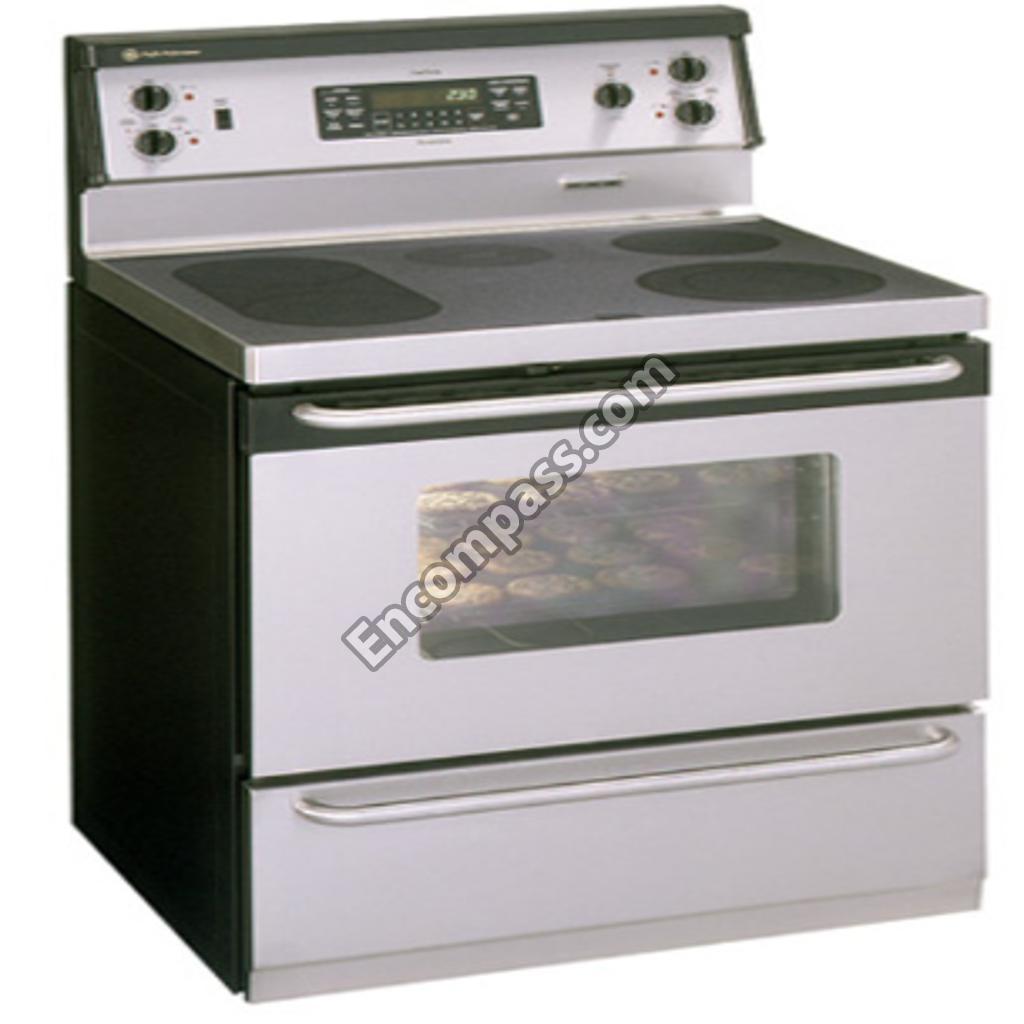

Model Image
Manufacturer

GE

Model Number

JB970SB1SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB2M2426 WB2M2426 ACCESS COVER REAR
WB2M2270 WB2M2270 ACTUATOR SWITCH
WB49M340 WB49M340 BACK MAIN
WB2M2389 WB2M2389 BAFFLE
WB49M337 WB49M337 BAFFLE FAN
WB2M2269 WB2M2269 BAFFLE VENT
WB2M1942 WB2M1942 BAIL
WB2M1961 WB2M1961 BALLAST
WB39M139 WB39M139 BASE CHANNEL LH
WB39M138 WB39M138 BASE CHANNEL RH
WB58M64 WB58M64 BODY DRAWER
49-8935 49-8935 BOOK USE & CARE
WB2M1210 WB2M1210 BOTTOM INSULATING
WB2M2422 WB2M2422 BOTTOM WIRE GUARD
WB39M137 WB39M137 BRACE
WB2M1208 WB2M1208 BRACE CHANNEL
WB2M2421 WB2M2421 BRACKET 5 LIGHT
WB2M1959 WB2M1959 BRACKET LH
WB2M2280 WB2M2280 BRACKET RH
WB2M2271 WB2M2271 BRACKET SWITCH
WB2M2349 WB2M2349 BRACKET TIMER
WB2M2423 WB2M2423 BRKT POWER CORD
WB49M345 WB49M345 BURNER BOX
WB02X8323 WB02X8323 CLIP PUSHON
WB2X8323 WB2X8323 CLIP PUSHON
WB2X8320 WB2X8320 CLIP WINDOW
WB01X0119 WB01X0119 CONTOURED WASHER
WB63M262 WB63M262 COOKTOP ASSEMBLY STN STL
WB02K5365 WB02K5365 COVER
WB2K5365 WB2K5365 COVER
WB2M2425 WB2M2425 COVER REAR
WB2M1198 WB2M1198 COVER ROTISSERIE
WB36X5712 WB36X5712 CRYSTAL WINDOW
31-20736 31-20736 DIAGRAM WIRING
WB03X5774 WB03X5774 DOOR LATCH KNOB
WR1X2153 WR1X2153 DOOR SCREW
WB44M168 WB44M168 ELEMENT BAKE
WB44M167 WB44M167 ELEMENT BROIL
WB44M163 WB44M163 ELEMENT CONV
WB30X44826 WB30X44826 ELEMENT HALIANT 6-INCH
WB30T10099 WB30T10099 ELEMENT HALIANT 9-INCH
WB30M269 WB30M269 ELEMENT WARMING- 120W
WB7X7289 WB7X7289 END CAP DOOR
WB7X7290 WB7X7290 END CAP DOOR
WB07X7290 WB07X7290 END CAP DOOR L - BLACK
WB07X7289 WB07X7289 END CAP DOOR R - BLACK
WB7M2056 WB7M2056 END CAP LH BLACK
WB7M2057 WB7M2057 END CAP RH BLACK
WB2M2419 WB2M2419 FAN BLADE
WB63M244 WB63M244 FRAME FRONT
WB2M2208 WB2M2208 GASKET
WB2M2268 WB2M2268 GASKET
WB36M1054 WB36M1054 GLASS OUTER DOOR BLACK
WB2X8248 WB2X8248 GLIDER ADJ
WB30T10044 WB30T10044 HALIANT ELEMENT-2500W
WB15M378 WB15M378 HANDLE ASSEMBLY STN STL
WB15M375 WB15M375 HANDLE DOOR LATCH
WB10M258 WB10M258 HINGE DOOR **NLA*
WB1M546 WB1M546 HOOK BOLT
WB2M1941 WB2M1941 HOUSING SOCKET
WB2M631 WB2M631 HSNG SMOKE ELIM
WB25M24 WB25M24 INDICATOR 5 LIGHT
WB25X0092 WB25X0092 INDICATOR LIGHT
WB23M105 WB23M105 INF SWITCH LF ELM
WB23M100 WB23M100 INF SWITCH LR ELM
WB23M104 WB23M104 INF SWITCH RF ELM
WB23M91 WB23M91 INF SWITCH RR ELM
WB23M101 WB23M101 INF SWITCH WM ELM
WB7M2059 WB7M2059 INSERT END CAP BLACK
WB5M59 WB5M59 INSULATOR FOIL
WB27X10066 WB27X10066 KEYPANEL ASM
WB2M2396 WB2M2396 KIT ANTI TIP BRKT
WB3M559 WB3M559 KNOB BK
WB36X192 WB36X192 LAMP COV ASM
F26T8-CW-4 F26T8-CW-4 LAMP FLUORESCENT
WB8M327 WB8M327 LAMPHOLDER
WB14M18 WB14M18 LATCH BAKE ELEMENT
WB3X5774 WB3X5774 LATCH KNOB
WB25M22 WB25M22 LENS PILOT LIGHT
WB25M23 WB25M23 LENS WM ELM
WB25T10039 WB25T10039 LIGHT INDICATOR
WB8M216 WB8M216 LIGHT PILOT
WB55M457 WB55M457 LINER DOOR
WB53M319 WB53M319 LINER OVEN
WB1M181 WB1M181 LOCKWASHER
WB26M97 WB26M97 MOTOR CONV
WB55M456 WB55M456 MUFFLE
WB1X5572 WB1X5572 NUT
WB1M545 WB1M545 NUT
WB1M951 WB1M951 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB48M79 WB48M79 PAN BROILER
WB7M2456 WB7M2456 PANEL CONTROL BLACK
WB7M2457 WB7M2457 PANEL DEC STN STL
WB56M1417 WB56M1417 PANEL DOOR STN STL
WB56M1418 WB56M1418 PANEL DRAWER STN STL
WB56M1434 WB56M1434 PANEL SIDE BLACK
WB2M993 WB2M993 PLATE
WB2M2310 WB2M2310 PLATE FUSE HOLE
WB2M630 WB2M630 PLATE VENT
WB39M134 WB39M134 POST CORNER
WB20M112 WB20M112 PROBE ASSEMBLY
WB48M80 WB48M80 RACK BROILER PAN
WB48M147 WB48M147 RACK OVEN FLAT
WB48M146 WB48M146 RACK OVEN OFFSET
WB48M148 WB48M148 RACK RAISED
WB30T10046 WB30T10046 RADIANT ELEMENT 4400W
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB2X2030 WB2X2030 RANGE RETAINER
WB20M223 WB20M223 RECEPTACLE PROBE
WB2M2273 WB2M2273 REFLECTOR
WB20M230 WB20M230 RELAY 4 TERM
WB55M454 WB55M454 RETAINER INSUL
WB02X2030 WB02X2030 RETAINER KNOB
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB2M628 WB2M628 SCREEN SMOKE ELIM
WR01X2153 WR01X2153 SCREW
WB1M812 WB1M812 SCREW
WB1M823 WB1M823 SCREW
WB1M941 WB1M941 SCREW
WB1M809 WB1M809 SCREW
WB1K5029 WB1K5029 SCREW
WB1M826 WB1M826 SCREW
WB1M933 WB1M933 SCREW
WR1M618 WR1M618 SCREW
WR1M626 WR1M626 SCREW
WB1M934 WB1M934 SCREW 6-32 X 1/2
WB1M932 WB1M932 SCREW 8-16 X 3/8
WB1M803 WB1M803 SCREW 8-16 X 3/8
WB1M930 WB1M930 SCREW BK
WB1M938 WB1M938 SCREW H AND LE
WB1M825 WB1M825 SCREW MOTOR BRACKET
WR02X9264 WR02X9264 SCREW, LEVELING
WB1X500D WB1X500D SCREW-PKG 12
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB2M1295 WB2M1295 SHIELD HEAT
WB29M10 WB29M10 SMOKE ELIMINATOR ASSEMBLY
WB8M319 WB8M319 SOCKET OVEN LIGHT
WB8M240 WB8M240 SOCKET STARTER
WB2M2249 WB2M2249 SPACER
WB2M2330 WB2M2330 SPACER FAN
WB2X8559 WB2X8559 SPACER WINDO
WB02X8559 WB02X8559 SPACER WINDOW
WB01X0999 WB01X0999 SPEEDNUT
WB1X999 WB1X999 SPEEDNUT
WB2M530 WB2M530 SPINDLE DRAWER
WB9X5119 WB9X5119 SPRG HTR MTG
WB1M884 WB1M884 SPRING CLIP HINGE
WB09X5119 WB09X5119 SPRING HEATER MTG
WB2M1857 WB2M1857 STARTER FL LAMP
WB02X8377 WB02X8377 STUD HEATER MOUNT
WB2X8377 WB2X8377 STUD HTR MT
WB2M2266 WB2M2266 SUPPORT ELEMENT
WB39M104 WB39M104 SUPPORT OVEN
WB30T10047 WB30T10047 SURF UNIT 1500W 6""
WB24M150 WB24M150 SWITCH LOGIC
WB8M338 WB8M338 SWITCH ROCKER BLACK
WB24M158 WB24M158 SWITCH S/C LOCK
WB19M313 WB19M313 TIMER
WB7M2458 WB7M2458 TOP BACKGUARD BLACK
WB39M120 WB39M120 TRACK BROIL PAN
WB56M1365 WB56M1365 TRIM FRAME BLACK
WB7M2420 WB7M2420 TRIM TOP BK
WB38M84 WB38M84 TUBE VENT
WB38M83 WB38M83 VENT ASSEMBLY
WB01X5573 WB01X5573 WASHER
WB1M458 WB1M458 WASHER
WB1M952 WB1M952 WASHER
WB1X5573 WB1X5573 WASHER
WB02X32440 WB02X32440 WASHER CONTOURED
WB1M937 WB1M937 WASHER CUP
WB1X119D WB1X119D WASHR-PKG 12
WB2M528 WB2M528 WHEEL DRAWER
WB02X8320 WB02X8320 WINDOW CLIP
