Model Image
Manufacturer

GE

Model Number

JB988SH3SS

Description

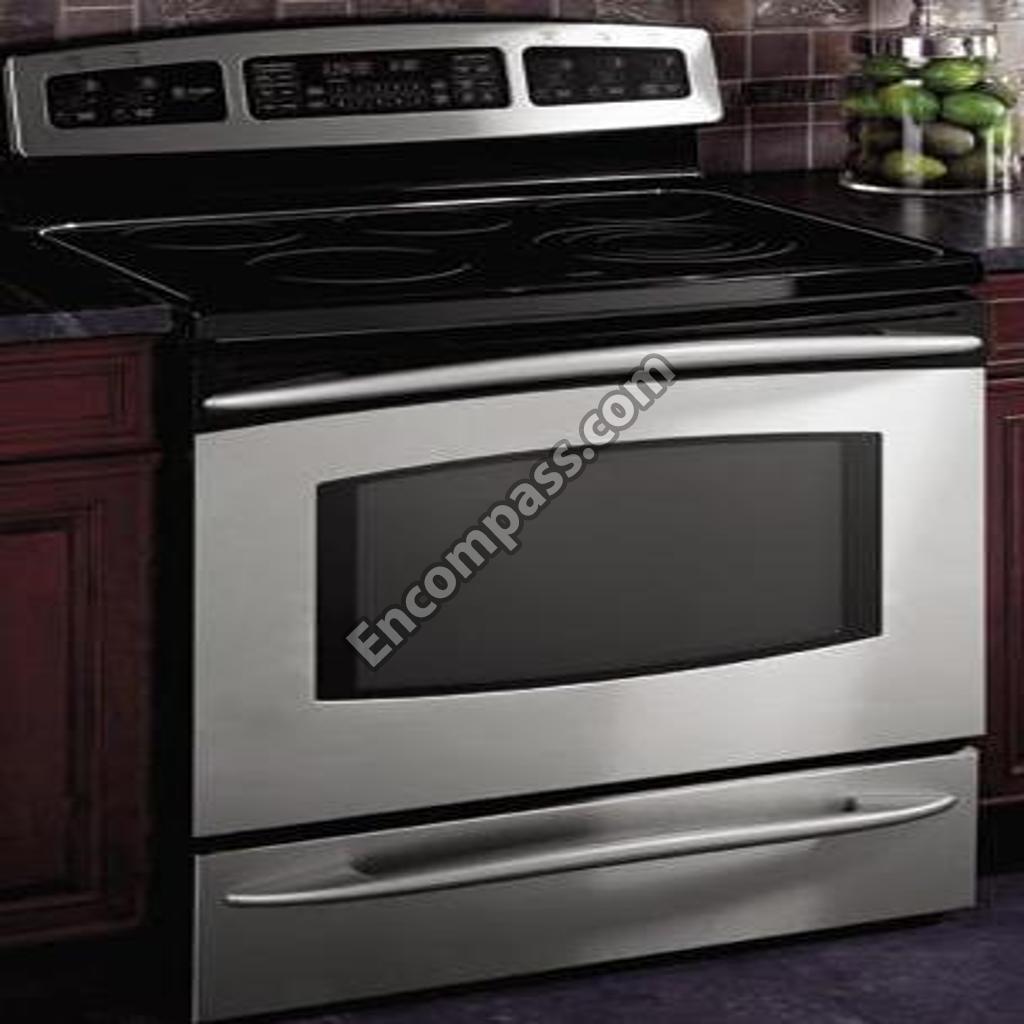

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02T10415 WB02T10415 ANTI TIP BKT
WB2X7694 WB2X7694 BAIL
WB39T10001 WB39T10001 BASE RIVET ASSEMBLY
WB27T10646 WB27T10646 BOARD EBC LT
WB27T10645 WB27T10645 BOARD EBC RT
WB63T10099 WB63T10099 BODY OVEN WELD ASM
WB56X28881 WB56X28881 BODY SIDE/BLACK
WB02T10132 WB02T10132 BRACE CHASSIS (RAD)
WB02T10133 WB02T10133 BRACE CHASSIS (RAD)
WB34X26004 WB34X26004 BRACE CHASSIS RADIANT LT
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10194 WB02T10194 BRACKET CAPACITOR
WB02T10180 WB02T10180 BRACKET FAN MOTOR CONV
WB02T10195 WB02T10195 BRACKET HOTLIGHT
WB01T10021 WB01T10021 BUMPER RANGETOP
WB27T10503 WB27T10503 CAPACITOR MOTOR
WB02X45146 WB02X45146 CLIP CABLE
WB09T10006 WB09T10006 CLIP SPRING
WB01X0119 WB01X0119 CONTOURED WASHER
WB27T10614 WB27T10614 CONTROL ERC
WB34T10128 WB34T10128 COVER BACK
WB34T10084 WB34T10084 COVER CONTROL
WB02T10532 WB02T10532 COVER CONTROL
WB26T10053 WB26T10053 COVER FAN (CONVX)
WB2X8309 WB2X8309 COVER PROBE
WB34T10011 WB34T10011 COVER RECEPTACLE
WB29T10084 WB29T10084 CRYSTAL CONTROL ASM
WB56T10063 WB56T10063 DOOR FRAME
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB35T10078 WB35T10078 DOOR INSULATION
WB01T10026 WB01T10026 DOOR PAD
WB56T10141 WB56T10141 DOOR PANEL W/SS ASM
WB55T10178 WB55T10178 DRAWER BODY ASSEMBLY MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB44T10053 WB44T10053 ELEMENT CONVX
WB30X44826 WB30X44826 ELEMENT HALIANT 6
WB30T10088 WB30T10088 ELEMENT HALIANT TRI RING
WB34T10083 WB34T10083 ENCLOSURE RANGETOP
WB36T10220 WB36T10220 END CAP LT BLACK
WB36T10219 WB36T10219 END CAP RT/BLACK
WB63T10096 WB63T10096 FRAME FRONT
WB55T10067 WB55T10067 FRAME WINDOW PACK ASSEMBLY
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB04T10022 WB04T10022 GASKET OVN
WB64X0093 WB64X0093 GLASS CLEANER
WB30T10045 WB30T10045 HALIANT ELEMENT 8
WB15T10127 WB15T10127 HANDLE ASSEMBLY SS
WB15T10126 WB15T10126 HANDLE PROFILE SS
WB18T10350 WB18T10350 HARNESS WIRE GLASS TOUCH
WB18T10351 WB18T10351 HARNESS WIRE INTERFACE
WB18T10335 WB18T10335 HARNESS WIRE INTERFACE
WB02T10022 WB02T10022 HEAT SHIELD
WB35T10022 WB35T10022 HIDDEN BAKE INSULATION
WB50T10081 WB50T10081 HINGE/RECEIVER KIT LF AND RT
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
WB56T10027 WB56T10027 INSLN RETAINER
31-10556 31-10556 INSTRUCTION SHEET
WB35T10087 WB35T10087 INSULATION CONV.
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10211 WB35T10211 INSULATION OVEN
WB08T10005 WB08T10005 JACK RECEPTACLE
WB36X192 WB36X192 LAMP COV ASM
WB15T10106 WB15T10106 LATCH MOTORIZED ASM
WB07T10109 WB07T10109 LATCH TRIM
WB02X10521 WB02X10521 LEG LEVELER
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB55T10120 WB55T10120 LINER OVN DR ASSEMBLY
WB63T10047 WB63T10047 MAIN BACK
WB10T10002 WB10T10002 MAINTOP HINGE
WB02T10026 WB02T10026 MAINTOP STRIKE
31-14217 31-14217 MANUAL MINI & WD ASM
49-80164 49-80164 MANUAL USE & CARE
WB25T10036 WB25T10036 MODULE INDICATOR LIGHT

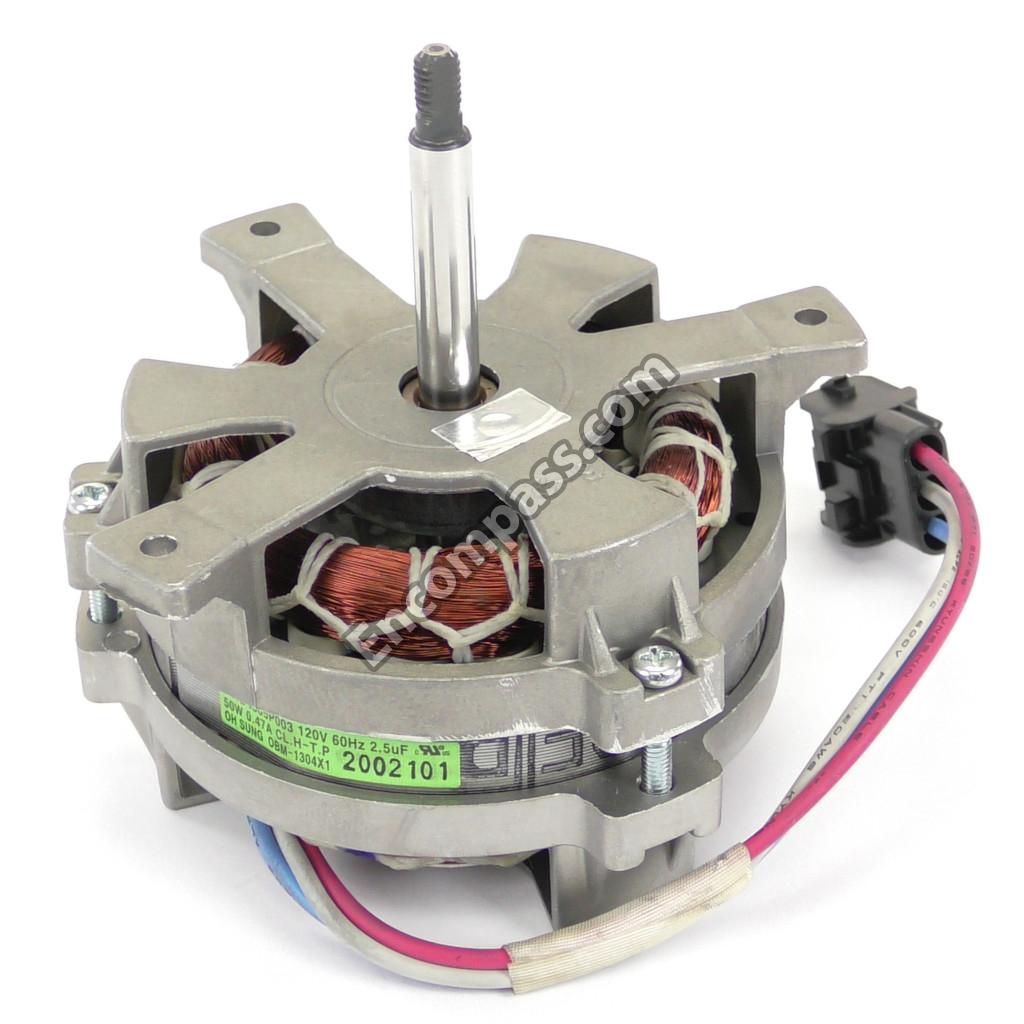

WB26T10034 WB26T10034 MOTOR PSC CONV
WB34T10082 WB34T10082 MOUNT TERMINAL BLOCK
WB34T10124 WB34T10124 MULTIPLE SUPERCEDURES
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01T10074 WB01T10074 NUT KEPS 8-32 SPECIAL
WB01X5572 WB01X5572 NUT MEAT PROBE
WB35T10023 WB35T10023 OVEN BACK INSULATION
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB02T10509 WB02T10509 PAN REFLECTOR
WB56T10176 WB56T10176 PANEL DRAWER ASSEMBLY
WB20T10024 WB20T10024 PROBE
WB02X8309 WB02X8309 PROBE COVER
WB20X5050 WB20X5050 PROBE THERMISTOR
WB48T10062 WB48T10062 RACK OVEN (SC)
WB48T10032 WB48T10032 RACK OVN (OFFSET)
WB2K5318 WB2K5318 RAD HTR BRKT
WB02K5318 WB02K5318 RADIANT HEATER BRACKET
WB02T10176 WB02T10176 RAIL RADIANT ELEMENT
WB10T10005 WB10T10005 RANGE HINGE RECEIVER
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB62T10253 WB62T10253 RANGETOP ASM RADIANT
WB02X29562 WB02X29562 RANGETOP BUMPER
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB48X5108 WB48X5108 ROAST RACK
WB01T10072 WB01T10072 SCR 10-16 AB IHW .625 NI
WB01T10070 WB01T10070 SCR 10-32 TPT PNT 2.51 S
WB01T10073 WB01T10073 SCR 6-32 X 3/4
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1127 WB01X1127 SCREW
WB01K5116 WB01K5116 SCREW
WB1K5116 WB1K5116 SCREW
WD2X432 WD2X432 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5167 WB1K5167 SCREW 8-18 X 3/8
WB01K5167 WB01K5167 SCREW 8-18 X 3/8""
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01T10047 WB01T10047 SCREW 8-32 X 625 M HXW S
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WB1K5157 WB1K5157 SCREW-BLK
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB02T10028 WB02T10028 SIDE INSULATION RETAINER
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB49T10007 WB49T10007 SIDE REFLECTOR
WB02T10175 WB02T10175 SPACER
WB2X9037 WB2X9037 SPACER-HNDL

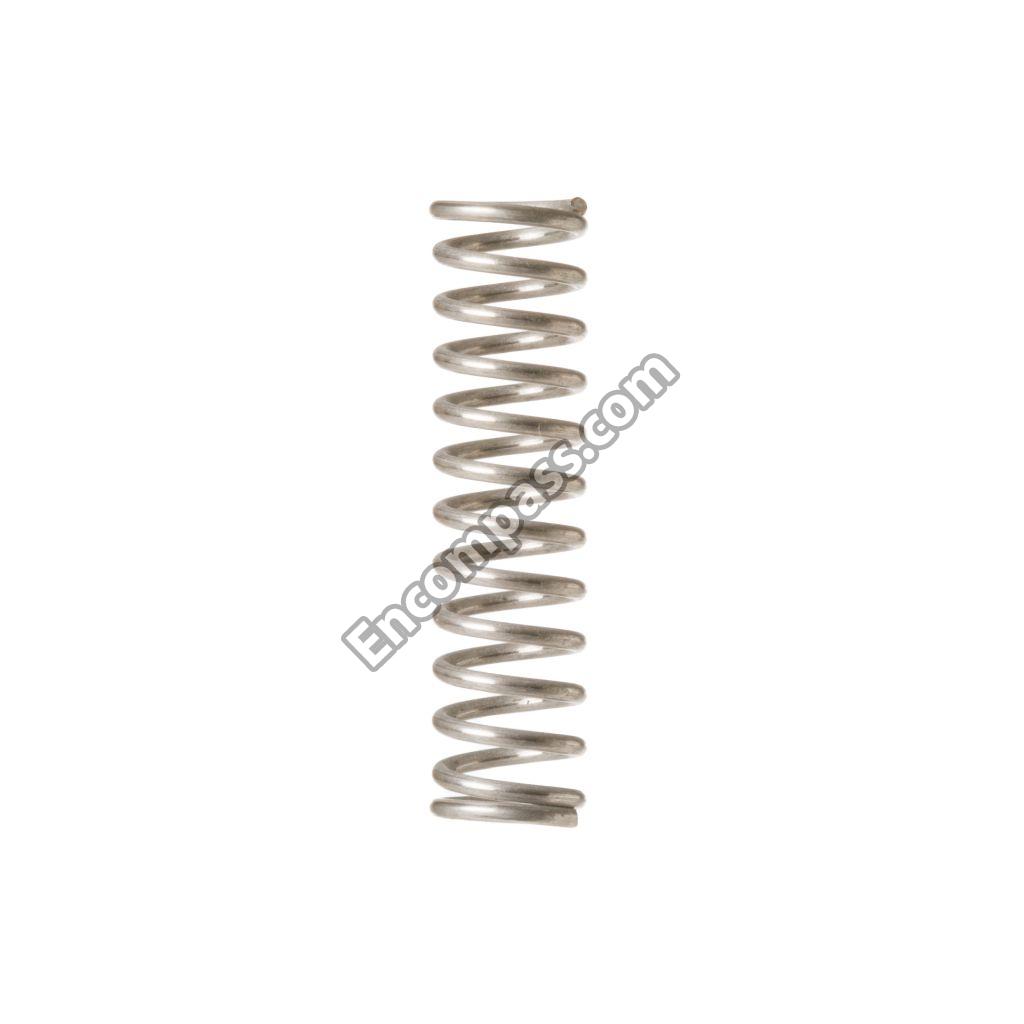

WB09T10005 WB09T10005 SPRING RADIANT (COMP)
WB02T10078 WB02T10078 STUD HEATER MOUNT
WB02X33180 WB02X33180 SUPPORT REAR
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB01T10055 WB01T10055 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB02T10029 WB02T10029 TOP INSULATION RETAIN
WB36T10849 WB36T10849 TRIM CONTROL
WB07T10402 WB07T10402 TRIM VNT DR
WB38T10022 WB38T10022 TUBE VENT RADIANT
WB44T10104 WB44T10104 UNIT ASSEMBLY

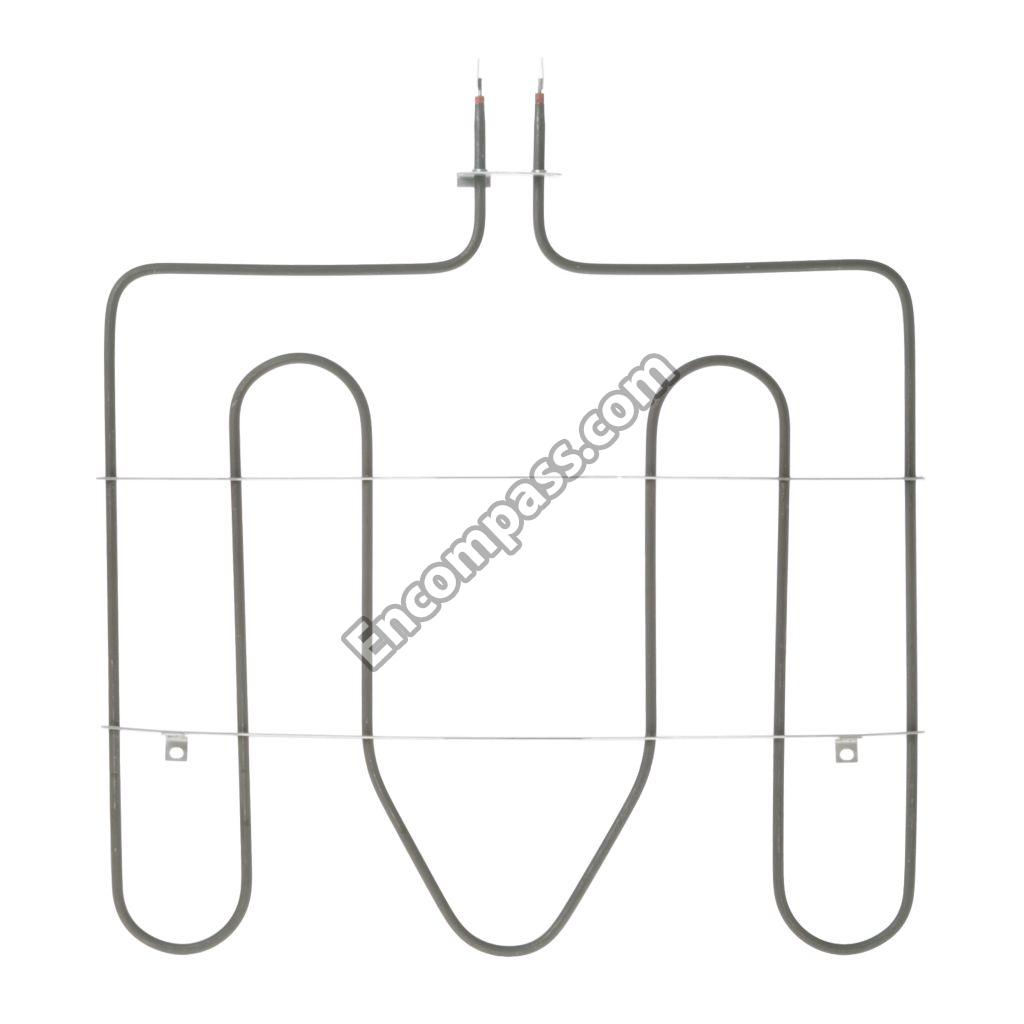

WB44T10012 WB44T10012 UNIT BROIL A
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01X5573 WB01X5573 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1X5573 WB1X5573 WASHER
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB1X681 WB1X681 WB01X0681
WB48T10068 WB48T10068 WEDGE DRAWER
WB02T10196 WB02T10196 WIRE INSULATION OVEN
