Model Image
Manufacturer

GE

Model Number

JBC16G2J2

Description

Ge Range/stove/oven Model Jbc16g2j2 Parts

Interactive Exploded View

Parts List

Part Number Description
WB3X5699 WB3X5699 3-TIMER KNOB
40A15 40A15 40WATT 15AMP
WB32X10012 WB32X10012 6 INCH CHROME BURNER PAN - ELE
WB31X5013 WB31X5013 6 INCH CHROME TRIM RING - ELEC
WB32X10013 WB32X10013 8 INCH CHROME BURNER PAN - ELE
WB31X5014 WB31X5014 8 INCH CHROME TRIM RING - ELEC
WB2X1626 WB2X1626 BAFFLE
WB2X7694 WB2X7694 BAIL
WB44X5082 WB44X5082 BAKE UNIT 236V
WB17X5095 WB17X5095 BLOCK TERMINAL POWER
WB2X7609 WB2X7609 BRACE SIDE L
WB2X7610 WB2X7610 BRACE SIDE R
WB2X7608 WB2X7608 BRACE TOP
WB2X1452 WB2X1452 BROIL SUPPT
WB44X173 WB44X173 BROIL UNIT
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB2X584 WB2X584 BUMPER
WB2X3394 WB2X3394 BUTTON
WB32X52 WB32X52 CENTER TRIM SAYS GENUINE CALRO
WB32X51 WB32X51 CENTER TRIM SAYS GENUINE CALRO
WB2X1185 WB2X1185 CLIP
WB2X7702 WB2X7702 CLIP
WB1X591 WB1X591 CLIP **NLA*
WB2X6574 WB2X6574 CLIP TRIM
WB2X3471 WB2X3471 CLIP TUBE SU
WB2X7226 WB2X7226 CLIP WIRE
WB1X5734D WB1X5734D CLIP-PKG 12
WB2X574D WB2X574D CLIP-PKG 12
WB49X390 WB49X390 COVER BACK **NLA*
WB36X5575 WB36X5575 CRYSTAL TIMER
WB2X8109 WB2X8109 DOOR INSUL
WB58X5015 WB58X5015 DRAWER ASSEMBLY WELD
WB7X6829 WB7X6829 END CAP LH
WB7X6828 WB7X6828 END CAP RH
WB7X6888 WB7X6888 ENDCAP LH
WB7X6887 WB7X6887 ENDCAP RH

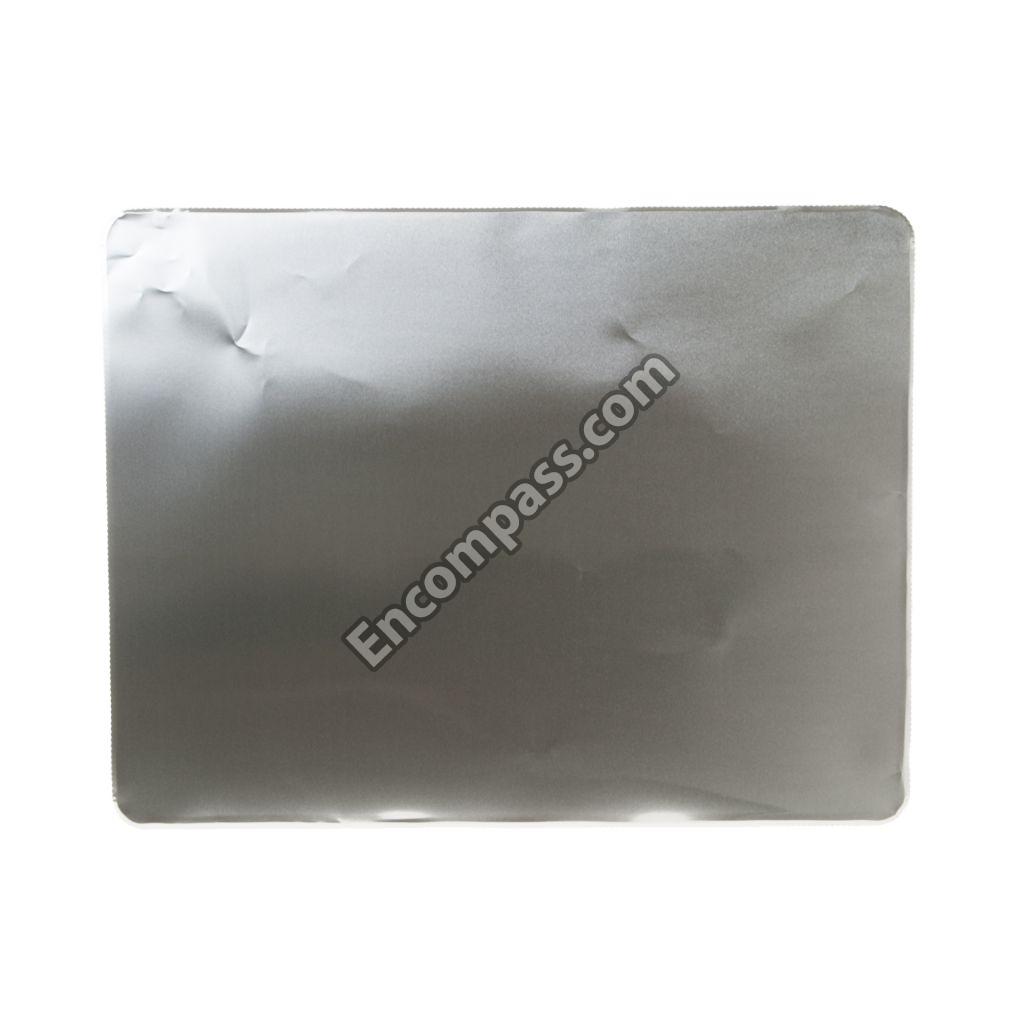

WB2X7749 WB2X7749 FOIL ALUM
WB2X831D WB2X831D G-BLK-PKG 12
WB2X1522 WB2X1522 GASKET
WB36X5560 WB36X5560 GLASS BLACK
WB2X8248 WB2X8248 GLIDER ADJ
WB2X3135 WB2X3135 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB49X5522 WB49X5522 GUARD INSULATION
WB2X1460 WB2X1460 GUIDE
WB39X10004 WB39X10004 GUIDE DRAWER
WB15X5174 WB15X5174 HANDLE DOOR
WB10X5206 WB10X5206 HINGE LEVER
WB2X6195 WB2X6195 HINGE PIN
WB10X149 WB10X149 HINGE SPT LH
WB10X148 WB10X148 HINGE SPT RH
WB2X2506 WB2X2506 HOOK
WB21X36771 WB21X36771 INFINITE HEAT SWITCH KIT
WB2X2398 WB2X2398 INSULATOR
WB25X65 WB25X65 JEWEL
WB3X5684 WB3X5684 KNOB OVEN
WB3X5677 WB3X5677 KNOB SU
WB3X5698 WB3X5698 KNOB THERMO
WB36X192 WB36X192 LAMP COV ASM
WB49X391 WB49X391 N.L.A.COVER LIGHT
WB59X173 WB59X173 N.L.A.GUARD TERM
WB2X3387 WB2X3387 N.L.A.SPACER
WB38X72 WB38X72 N.L.A.VENT TUBE
WB62X1478 WB62X1478 N/L/A 01/16/04
WB7X7081 WB7X7081 N/L/A 02/12/07
WB7X6907 WB7X6907 N/L/A 04/07/02
WB9X5083 WB9X5083 N/L/A 07/11/00
WB2X3141 WB2X3141 N/L/A 08/16/02
WB2X5217 WB2X5217 N/L/A 10/29/09
WB2X1608 WB2X1608 NEON LAMP
WB2X7693 WB2X7693 OV LIGHT CUP
WB9X88 WB9X88 OVEN HOOK
WB2X1222 WB2X1222 PAD
WB2X3285 WB2X3285 PAD
WB62X1474 WB62X1474 PANEL **NLA*
WB56X10090 WB56X10090 PANEL DRAWER
WB49X322 WB49X322 PANEL-FILLER **NLA*
WB2X1908 WB2X1908 PLATE
WB48X5044 WB48X5044 RACK OVEN
WB15X10225 WB15X10225 RANGE HANDLE
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB2X7700 WB2X7700 RETAINER
WB2X1082 WB2X1082 RETAINER
WZ6X38 WZ6X38 SCREW
WB1X5716 WB1X5716 SCREW
WB1X5550 WB1X5550 SCREW
WB1X536 WB1X536 SCREW
WB1X781 WB1X781 SCREW **NLA*
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WB1X5731D WB1X5731D SCREW-PKG 12
WB22X5134 WB22X5134 SELECTOR SWITCH
WB2X6454 WB2X6454 SLEEVE
WB2X840D WB2X840D SLIDE-PKG 12
WB2X841D WB2X841D SLIDE-PKG 12
WB2X3030 WB2X3030 SPACER
WB1X5743D WB1X5743D SPDNUT-PKQ12
WB1X578 WB1X578 SPEEDNUT
WB1X5732 WB1X5732 SPEEDNUT
WB01K10093 WB01K10093 SPEEDNUT
WB9X5117 WB9X5117 SPRING DOOR
WB24K2 WB24K2 SWITCH
WB2X1351 WB2X1351 TERM BLOCK
WB17X171 WB17X171 TERMINAL
WB21X5209 WB21X5209 THERMOSTAT L O
WB19X10008 WB19X10008 TIMER
WB2X7881 WB2X7881 TOGGLE
WB7X7069 WB7X7069 TRIM CRYSTAL
WB7X6886 WB7X6886 TRIM DOOR
WB30X359 WB30X359 UNIT 6 HR
WB30X348 WB30X348 UNIT 8 HR
WB1X119D WB1X119D WASHR-PKG 12
WB36X526 WB36X526 WINDOW
