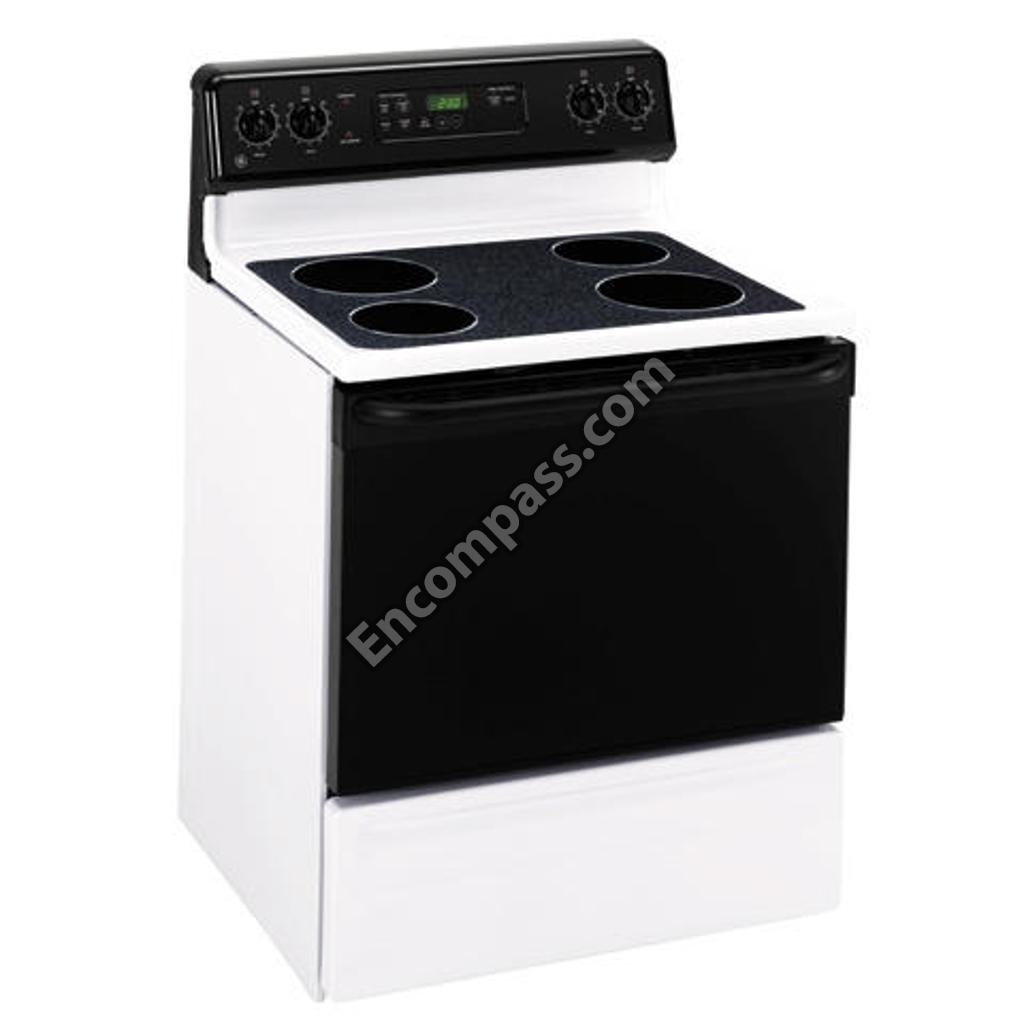

Model Image
Manufacturer

GE

Model Number

JBP60BH3WH

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB30X46987 WB30X46987 BAKE ELEMENT
WB02K10046 WB02K10046 BRACE SIDE HEATER
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB02K10077 WB02K10077 BRACKET CONTROL
WB37K10004 WB37K10004 BRACKET COOK TOP LF
WB37K10003 WB37K10003 BRACKET COOK TOP RG
WB34K10044 WB34K10044 BRACKET COOKTOP FRONT
WB02K10025 WB02K10025 BRACKET MOUNTING DRAWER
WB02K10029 WB02K10029 BRACKET MTG TERMINAL
WB02K10040 WB02K10040 BRACKET VENT
WB30X46986 WB30X46986 BROIL ELEMENT
WB25K0002 WB25K0002 CAMERA LENS
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02X8323 WB02X8323 CLIP PUSHON
WB2X8323 WB2X8323 CLIP PUSHON
WB01X0119 WB01X0119 CONTOURED WASHER
WB24T10029 WB24T10029 CONTROL INFINITE SWITCH

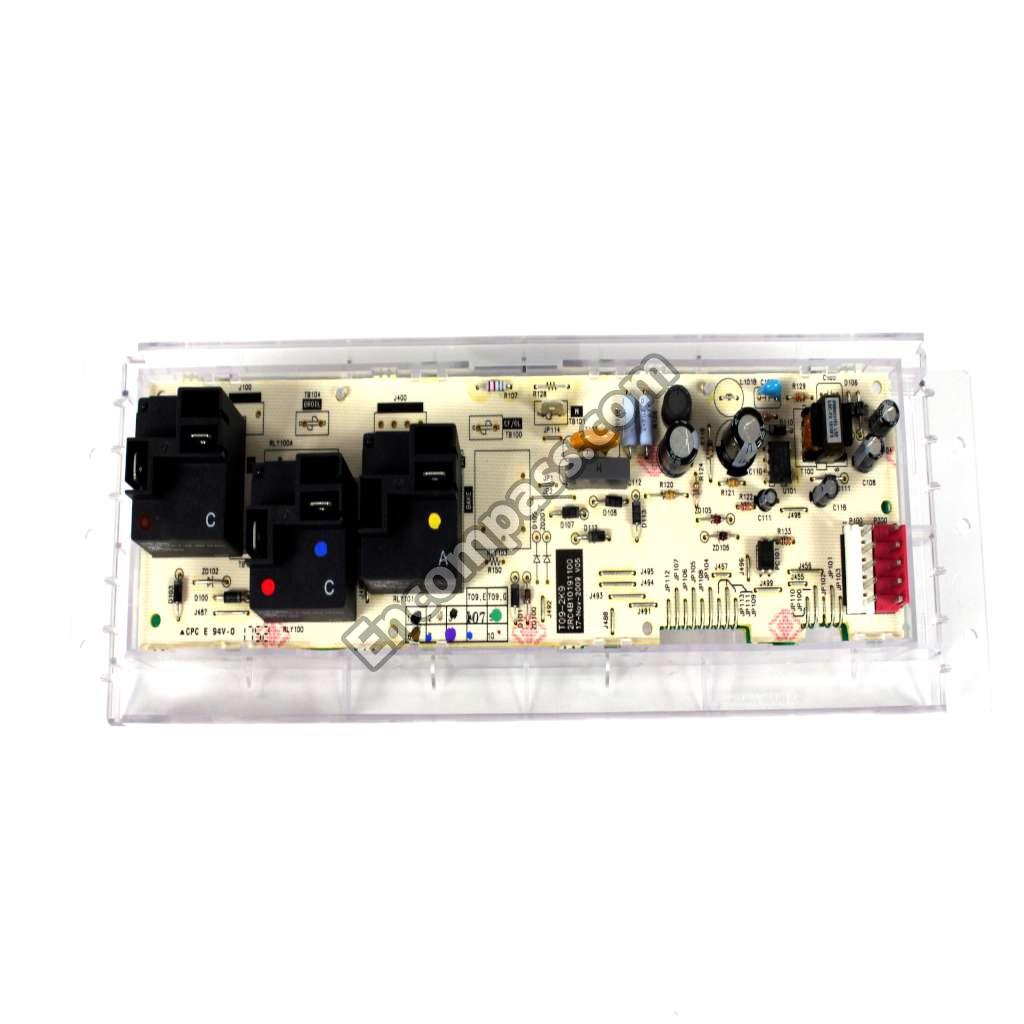

WB27K10359 WB27K10359 CONTROL T09
WB27X45466 WB27X45466 CONTROL T09
WB02K10038 WB02K10038 CORNER BRACE
WB34K10066 WB34K10066 COVER BACK
WB34K10034 WB34K10034 COVER DRAWER
WB58K10004 WB58K10004 DRAWER BODY
WB02K0043 WB02K0043 DRAWER SUPPORT
WB02K10158 WB02K10158 DRAWER SUPPORT
WB7X7290 WB7X7290 END CAP DOOR
WB7X7289 WB7X7289 END CAP DOOR
WB07X7182 WB07X7182 END CAP DOOR LF (BK)
WB07X7181 WB07X7181 END CAP DOOR RT (BK)
WB07K10193 WB07K10193 END SUPPORT GLOSS BLACK
WB07K10194 WB07K10194 END SUPPORT GLOSS BLACK
WB63K10047 WB63K10047 FRAME WELD ASM
WB35X29722 WB35X29722 GASKET ASM. DOOR
WB32K0002 WB32K0002 GASKET OVEN SEAL LG
WB56K31 WB56K31 GL DOOR BLK
WB64X0093 WB64X0093 GLASS CLEANER
WB56K0031 WB56K0031 GLASS DOOR (BLK)
WB02K10062 WB02K10062 GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GLIDER DRAWER RIGHT
WB2K8 WB2K8 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB53K11 WB53K11 GUARD INS RH
WB53K12 WB53K12 GUARD INSUL
WB56K7 WB56K7 GUARD INSUL
WB53K0011 WB53K0011 GUARD INSUL. OVEN RIGHT
WB56K0007 WB56K0007 GUARD INSULATION
WB63K10009 WB63K10009 GUARD INSULATION BOTTOM
WB53K0012 WB53K0012 GUARD INSULATION LEFT
WB34K10029 WB34K10029 GUARD TERMINAL
WB30X38928 WB30X38928 HALIANT ELEMENT 6 CERSP
WB30T10045 WB30T10045 HALIANT ELEMENT 8
WB15K10046 WB15K10046 HANDLE ASSEMBLY (BLACK)
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB2X6195 WB2X6195 HINGE PIN
WB09K10001 WB09K10001 HOOK DOOR SPRING
WB24T10027 WB24T10027 INF SW CTN (2100W)
WB35K26 WB35K26 INSUL DOOR
WB35K0026 WB35K0026 INSULATION DOOR
WB35K10022 WB35K10022 INSULATION OVEN BACK
WB35K10092 WB35K10092 INSULATION OVEN WRAP
WB35K10018 WB35K10018 INSULATION-VENT
WB03T10203 WB03T10203 KNOB GE SU (BLACK)
WB25K10002 WB25K10002 LAMP PILOT
WB02K10144 WB02K10144 LATCH ASSEMBLY
WB02X10521 WB02X10521 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB55K25 WB55K25 LINER ASM
WB55K0025 WB55K0025 LINER ASM WELD DOOR
WB55K22 WB55K22 LINER DR INN
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB53K10011 WB53K10011 OVEN BACK
WB63K10006 WB63K10006 OVEN BOTTOM
WB63K10011 WB63K10011 OVEN SIDE LEFT
WB63K10010 WB63K10010 OVEN SIDE RIGHT
WB63K10023 WB63K10023 OVEN TOP
WB27K10125 WB27K10125 OVERLAY T09-C
WB02K10099 WB02K10099 PAD
WB02K0062 WB02K0062 PAD FELT (2"")
WB2K62 WB2K62 PAD FELT 2
WB48X10056 WB48X10056 PAN BROILER
WB55K0022 WB55K0022 PANEL ASM WELD INNER
WB56X31459 WB56X31459 PANEL DRAWER (WHITE)
WB63K10013 WB63K10013 PANEL SIDE (WHITE)
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB02X6195 WB02X6195 PIN HINGE DOOR
WB02K10075 WB02K10075 PIN LOCATOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
WB02X0646 WB02X0646 PLATE-GROUND
31-21179 31-21179 PM MINI-MANUAL
49-88024 49-88024 PM USE AND CARE MANUAL
WB48T10095 WB48T10095 RACK OVEN
WB39K0016 WB39K0016 RAIL DRAWER
WB63K10005 WB63K10005 RANGE BACK
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB39K16 WB39K16 RANGE DRAWER RAIL
WB32K2 WB32K2 RANGE OVEN DOOR GASKET
WB10K13 WB10K13 RANGE SUPPORT RIVET
WB57K10097 WB57K10097 RANGE TOP AND GLASS ASM
WB35K0033 WB35K0033 REFLECTOR
WB35K33 WB35K33 REFLECTOR
WB2X2030 WB2X2030 RETAINER
WB2X1082 WB2X1082 RETAINER
WB02K0030 WB02K0030 RETAINER-INSULATION VENT
WB02X1082 WB02X1082 RING RETAINING
WB02K10039 WB02K10039 RING VENT
WB1K44 WB1K44 SCEW LATCH
WB01K0021 WB01K0021 SCREW
WB01K0001 WB01K0001 SCREW
WB1K5119 WB1K5119 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1X5716 WB1X5716 SCREW
WB1X536 WB1X536 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5716 WB01X5716 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB1K69 WB1K69 SCREW 10-16
WB01K0069 WB01K0069 SCREW 10-16 DOOR
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB01K0070 WB01K0070 SCREW 7-19
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB1K67 WB1K67 SCREW 8-22
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01K0044 WB01K0044 SCREW DOOR LATCH
WB01X1261 WB01X1261 SCREW GROUND
WB1K62 WB1K62 SCREW HEAD PAINTED BLACK
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0062 WB01K0062 SCREW MTG END CAP (BK)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01X0558 WB01X0558 SCREW NAIL POINT
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB23X5340 WB23X5340 SENSOR-OVEN
NOTSTOCKED NOTSTOCKED SHIELD RELAY
WB02K0002 WB02K0002 SPACER
WB2K2 WB2K2 SPACER
WB9X5119 WB9X5119 SPRG HTR MTG
WB09K0005 WB09K0005 SPRING DOOR
WB9K5 WB9K5 SPRING DOOR
WB09X5119 WB09X5119 SPRING HEATER MTG
WB02X8377 WB02X8377 STUD HEATER MOUNT
WB2X8377 WB2X8377 STUD HTR MT
WB63K10232 WB63K10232 SUPPORT BASE
WB02K10045 WB02K10045 SUPPORT BOTTOM HEATER
WB02K10028 WB02K10028 SUPPORT BROIL
WB35K10028 WB35K10028 SUPPORT CATALYST
WB10K0014 WB10K0014 SUPPORT RIVET LFT
WB10K0013 WB10K0013 SUPPORT RIVET RT
WB10K14 WB10K14 SUPT RIVET
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB07K10232 WB07K10232 TRIM BOTTOM ASM
WB07K0379 WB07K0379 TRIM BOTTOM DOOR (BK)
WB36K10390 WB36K10390 TRIM CONTROL (BLK)
WB07K0265 WB07K0265 TRIM DOOR (BLK)
WB7K265 WB7K265 TRIM DR (BLK
WB7K403 WB7K403 TRIM TOP DR
WB07K0403 WB07K0403 TRIM VENT ASM DOOR BLK
WB38K10003 WB38K10003 VENT ASM
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
