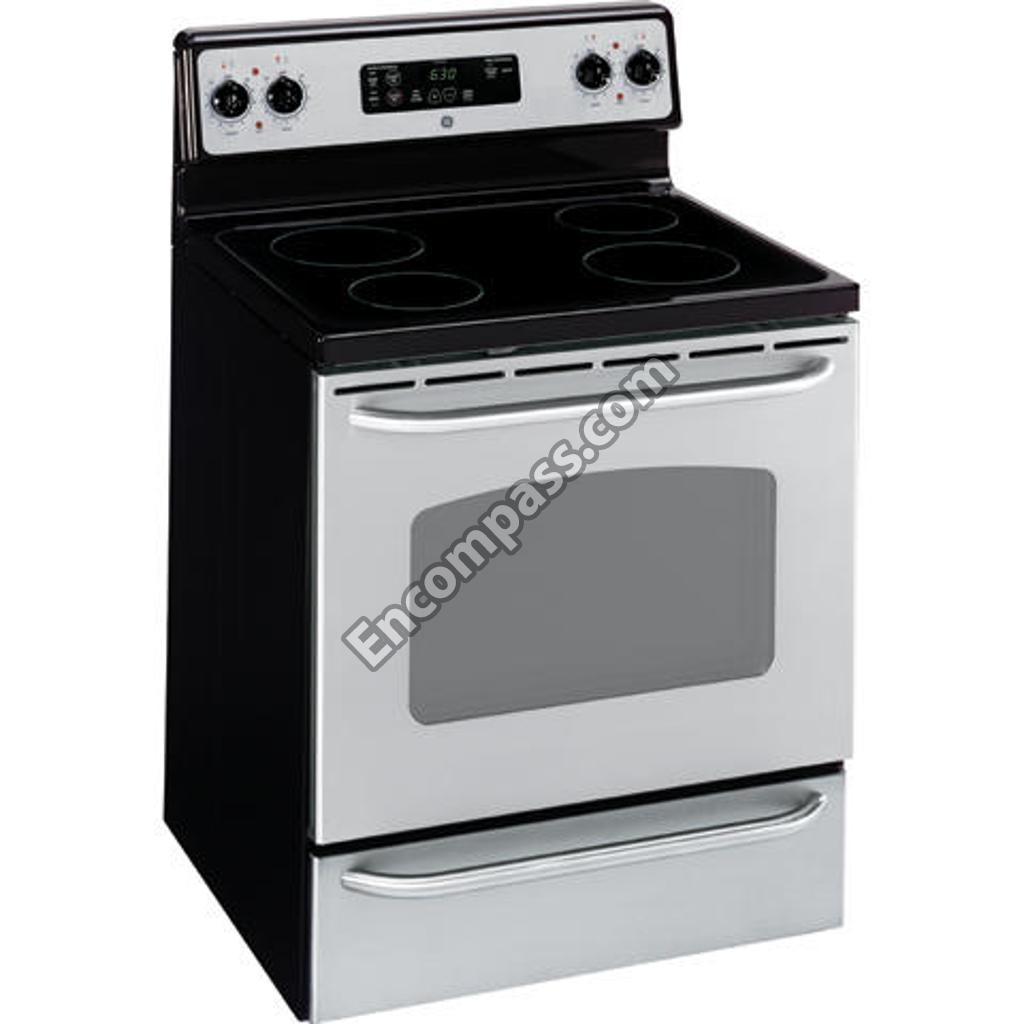

Model Image
Manufacturer

GE

Model Number

JBP65SK4SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02T10415 WB02T10415 ANTI TIP BKT
WB2X7694 WB2X7694 BAIL
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB02T10132 WB02T10132 BRACE CHASSIS (RAD)
WB02T10133 WB02T10133 BRACE CHASSIS (RAD)
WB34X26004 WB34X26004 BRACE CHASSIS RADIANT LT
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB01X0119 WB01X0119 CONTOURED WASHER
WB24T10029 WB24T10029 CONTROL INFINITE SWITCH
WB27T11312 WB27T11312 CONTROL OVEN T09
WB27X45466 WB27X45466 CONTROL OVEN T09
WB34T10128 WB34T10128 COVER BACK
WB02T10532 WB02T10532 COVER CONTROL
WB34T10088 WB34T10088 COVER CONTROL
WB34T10011 WB34T10011 COVER RECEPTACLE
WB55T10178 WB55T10178 DRAWER BODY ASSEMBLY MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB30X44826 WB30X44826 ELEMENT HALIANT 6
WB34T10023 WB34T10023 ENCLOSURE RANGETOP
WB36T10255 WB36T10255 END CAP LEFT/BLACK
WB36T10254 WB36T10254 END CAP RT/BLACK
WB27T10686 WB27T10686 FACEPLATE GRAPHICS
WB63T10093 WB63T10093 FRAME FRONT
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB04T10022 WB04T10022 GASKET OVN
WB64X0093 WB64X0093 GLASS CLEANER
WB57T10233 WB57T10233 GLASS OVN DR INR
WB02T10275 WB02T10275 GUARD INSLN SDE
WB30T10045 WB30T10045 HALIANT ELEMENT 8
WB15X21658 WB15X21658 HANDLE KIT
WB18T10285 WB18T10285 HARNESS WIRE MAIN
WB10T10069 WB10T10069 HINGE DOOR
WB10T10068 WB10T10068 HINGE RECEIVER
WB24T10027 WB24T10027 INF SW CTN (2100W)
31-10620 31-10620 INSTRUCTION INSTALL
31-10617 31-10617 INSTRUCTION INSTALL
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10115 WB35T10115 INSULATION DOOR
WB35T10114 WB35T10114 INSULATION DOOR
WB35T10113 WB35T10113 INSULATION OVN BACK/BTTM
WB35T10209 WB35T10209 INSULATION OVN WRPR
WB03T10203 WB03T10203 KNOB GE SU (BLACK)
WB36X192 WB36X192 LAMP COV ASM
WB14T10053 WB14T10053 LATCH & HANDLE ASM
WB02X10521 WB02X10521 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB27T10626 WB27T10626 LIGHT INDICATOR PILOT
WB55T10155 WB55T10155 LINER OVEN DR ASM
WB63T10047 WB63T10047 MAIN BACK
WB10T10002 WB10T10002 MAINTOP HINGE
WB02T10026 WB02T10026 MAINTOP STRIKE
31-14471 31-14471 MANUAL MINI & WD ASM
49-80366 49-80366 MANUAL USE & CARE
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB48T10011 WB48T10011 OVEN RACK
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB56T10185 WB56T10185 PANEL ASM BONDED
WB56T10184 WB56T10184 PANEL DRAWER ASM
WB56X28881 WB56X28881 PANEL SIDE (BLK)
WB02T10041 WB02T10041 RADIANT ELEMENT BRACKET
WB09T10002 WB09T10002 RADIANT SPRING ELEMENT
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB62T10282 WB62T10282 RANGETOP ASM RADIANT
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10178 WB56T10178 RETAINER OVN DR INSLN
WB01T10103 WB01T10103 SCR 10-16 AB HXW .532
WB01T10097 WB01T10097 SCR 10-32 TPT PNT 2.51 S
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1127 WB01X1127 SCREW
WD2X432 WD2X432 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1158 WB01X1158 SCREW-NICKEL
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB02T10306 WB02T10306 SHIELD HEAT (BKGD)
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10175 WB02T10175 SPACER
WB02X33180 WB02X33180 SUPPORT REAR
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB02T10029 WB02T10029 TOP INSULATION RETAIN
WB7X7175 WB7X7175 TRIM LATCH
WB07X7175 WB07X7175 TRIM LATCH
WB36T10960 WB36T10960 TRIM SS OVERLAY ASM
WB38T10022 WB38T10022 TUBE VENT RADIANT
WB44T10010 WB44T10010 UNIT ASM BAK
WB44T10009 WB44T10009 UNIT BROIL A
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5117 WB1K5117 WASHER
WB01K5117 WB01K5117 WASHER .250 ID X .812 OD
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB1X681 WB1X681 WB01X0681
WB48T10068 WB48T10068 WEDGE DRAWER
WB02T10252 WB02T10252 WIRE INSLN OVN
WB02T10196 WB02T10196 WIRE INSULATION OVEN
WB63X20942 WB63X20942 WRAPPER OVEN CAVITY
