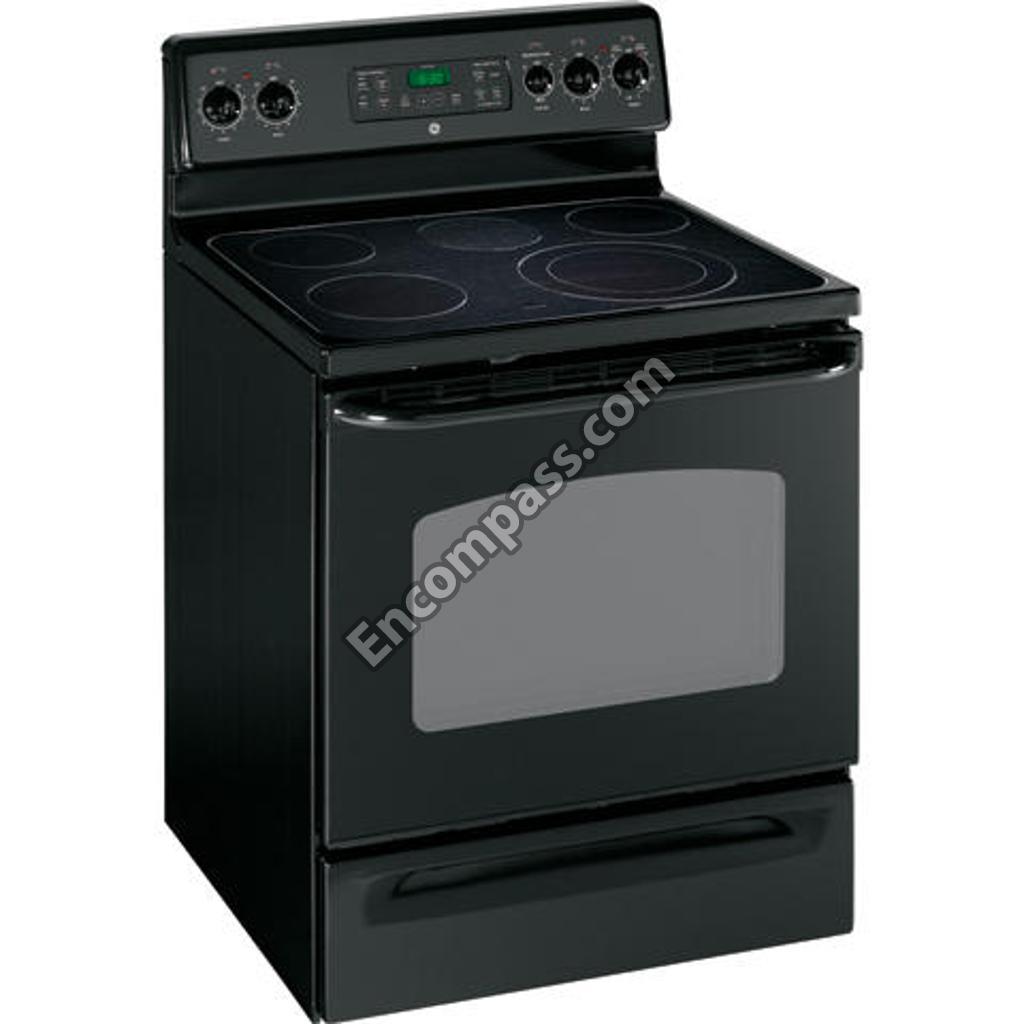

Model Image
Manufacturer

GE

Model Number

JBP72BK1BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02T10415 WB02T10415 ANTI-TIP BRACKET
WB2X7694 WB2X7694 BAIL
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB02T10132 WB02T10132 BRACE CHASSIS (RAD)
WB02T10133 WB02T10133 BRACE CHASSIS (RAD)
WB34X26004 WB34X26004 BRACE CHASSIS RADIANT LT
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB01X27696 WB01X27696 BRACKET OVN HDL VNT TRM
WB01X27695 WB01X27695 BRACKET OVN HDL VNT TRM
WB34X42027 WB34X42027 BRACKET OVN HDL VNT TRM
WB34X42670 WB34X42670 BRACKET OVN HDL VNT TRM
WB02T10279 WB02T10279 BRACKET RADIANT ELEMENT
WB02X45146 WB02X45146 CLIP CABLE
WB01X0119 WB01X0119 CONTOURED WASHER
WB27T11311 WB27T11311 CONTROL OVEN TO-9
WB27X45466 WB27X45466 CONTROL OVEN TO-9
WB34T10128 WB34T10128 COVER BACK
WB02T10532 WB02T10532 COVER CONTROL
WB34T10088 WB34T10088 COVER CONTROL
WB34T10011 WB34T10011 COVER RECEPTACLE
WB56T10063 WB56T10063 DOOR FRAME
WB01T10026 WB01T10026 DOOR PAD
WB48T10068 WB48T10068 DRAWER GUIDE
WB56T10270 WB56T10270 DRAWER PANEL-BISQUE
WB30T10096 WB30T10096 ELEMENT HALIANT 12 IN
WB30X44826 WB30X44826 ELEMENT HALIANT 6
WB30X32514 WB30X32514 ELEMENT RADIANT 6 WARMER
WB34T10023 WB34T10023 ENCLOSURE RANGETOP
WB36T10295 WB36T10295 END CAP LEFT BISQUE
WB36T10255 WB36T10255 END CAP LEFT/BLACK
WB36T10248 WB36T10248 END CAP LEFT/WHITE
WB36T10294 WB36T10294 END CAP RIGHT BISQUE
WB36T10254 WB36T10254 END CAP RT/BLACK
WB36T10247 WB36T10247 END CAP RT/WHITE
WB27T10675 WB27T10675 FACEPLATE GRAPHICS
WB27T10677 WB27T10677 FACEPLATE GRAPHICS
WB27T10678 WB27T10678 FACEPLATE GRAPHICS
WB56T10098 WB56T10098 FRAME DOOR SIDE
WB63T10093 WB63T10093 FRAME FRONT
WB48T10013 WB48T10013 FRT DRAWER SUPPORT
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB04T10022 WB04T10022 GASKET OVN
WB64X0093 WB64X0093 GLASS CLEANER
WB56T10179 WB56T10179 GLASS OVN DR (BK)
WB56T10183 WB56T10183 GLASS OVN DR (BQ)
WB56T10187 WB56T10187 GLASS OVN DR (WH)
WB02T10275 WB02T10275 GUARD INSLN SDE
WB30T10045 WB30T10045 HALIANT ELEMENT 8
WB15K10069 WB15K10069 HANDLE (BLACK)
WB15T10134 WB15T10134 HANDLE BQ
WB15T10135 WB15T10135 HANDLE WH
WB02T10022 WB02T10022 HEAT SHIELD
WB10T10067 WB10T10067 HINGE DOOR
WB10T10068 WB10T10068 HINGE RECEIVER
WB24T10029 WB24T10029 INF SW CNTL 1500W LF RR
WB24T10027 WB24T10027 INF SW CNTL 2100W RF LR
31-10620 31-10620 INSTRUCTION INSTALL
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10114 WB35T10114 INSULATION DOOR
WB35T10209 WB35T10209 INSULATION OVEN
WB35T10113 WB35T10113 INSULATION OVN BACK/BTTM
WB03T10208 WB03T10208 KNOB GE SU
WB03T10204 WB03T10204 KNOB GE SU
WB03T10205 WB03T10205 KNOB GE SU
WB03T10206 WB03T10206 KNOB GE SU
WB03T10203 WB03T10203 KNOB GE SU BK
WB03T10207 WB03T10207 KNOB GE SU WH
WB36X192 WB36X192 LAMP COV ASM
WB15X10068 WB15X10068 LATCH AND HANDLE ASSEMBLY
WB02X10521 WB02X10521 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB25T10042 WB25T10042 LENS
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB27T10668 WB27T10668 LIGHT INDICATOR
WB27T10626 WB27T10626 LIGHT INDICATOR PILOT
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB55T10153 WB55T10153 LINER OVEN DR ASM
WB63T10047 WB63T10047 MAIN BACK
WB10T10002 WB10T10002 MAINTOP HINGE
WB02T10026 WB02T10026 MAINTOP STRIKE
31-14315 31-14315 MANUAL MINI & WD ASM
49-80289 49-80289 MANUAL USE & CARE
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB48T10011 WB48T10011 OVEN RACK
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB56T10267 WB56T10267 PANEL DRAWER
WB56X28881 WB56X28881 PANEL SIDE (BLK)
WB63T10110 WB63T10110 PANEL SIDE BQ
WB02T10041 WB02T10041 RADIANT ELEMENT BRACKET
WB09T10002 WB09T10002 RADIANT ELEMENT SPRING
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB62T10446 WB62T10446 RANGETOP GLASS ASM
WB62T10447 WB62T10447 RANGETOP GLASS ASM
WB62T10448 WB62T10448 RANGETOP GLASS ASM
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10178 WB56T10178 RETAINER OVN DR INSLN
WB01T10067 WB01T10067 SCR 10-16 PL PNT 2.5 S
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01K5156 WB01K5156 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1127 WB01X1127 SCREW
WD2X432 WD2X432 SCREW
WB1K5156 WB1K5156 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1425 WB01X1425 SCREW ST8ABX.250RD NI
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1158 WB01X1158 SCREW-NICKEL
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB1X1425 WB1X1425 SCW 8ABX.250
WB21X22134 WB21X22134 SENSOR ASM
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10175 WB02T10175 SPACER
WB55T10178 WB55T10178 STORAGE DRAWER LINING
WB02X33180 WB02X33180 SUPPORT REAR
WB24T10153 WB24T10153 SWITCH INF CNTL
WB24T10058 WB24T10058 SWITCH INFINITE CNTL
WB01T10052 WB01T10052 TAPE FOAM
WB17T10002 WB17T10002 TERMINAL BOX
WB02T10029 WB02T10029 TOP INSULATION RETAIN
WB36T10827 WB36T10827 TRIM & BRACKET ASM
WB36T10824 WB36T10824 TRIM & BRACKET ASM
WB36T10825 WB36T10825 TRIM & BRACKET ASM
WB07X32930 WB07X32930 TRIM DR BTM CHNL
WB07X42966 WB07X42966 TRIM DR BTM CHNL
WB07X32931 WB07X32931 TRIM DR BTM CHNL BQ
WB07X42948 WB07X42948 TRIM DR BTM CHNL WH
WB7X7175 WB7X7175 TRIM LATCH
WB07X7175 WB07X7175 TRIM LATCH
WB07X27233 WB07X27233 TRIM VENT DOOR
WB07X27235 WB07X27235 TRIM VENT DOOR
WB07X27236 WB07X27236 TRIM VENT DOOR
WB38T10022 WB38T10022 TUBE VENT RADIANT
WB44T10011 WB44T10011 UNIT BAKE ASM (DELUXE)
WB44T10009 WB44T10009 UNIT BROIL A
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB1X681 WB1X681 WB01X0681
WB02T10252 WB02T10252 WIRE INSLN OVN
WB02T10196 WB02T10196 WIRE INSULATION OVEN
WB63X20942 WB63X20942 WRAPPER OVEN CAVITY
