Model Image
Manufacturer

GE

Model Number

JBP72BKB

Description

Ge Range/stove/oven Model Jbp72bkb Parts

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP
WB2X7694 WB2X7694 BAIL
WB63X28540 WB63X28540 BASE RIVET ASM
WB07X32930 WB07X32930 BLACK BOTTOM TRIM CHANEL
WB63X20942 WB63X20942 BODY OVEN WELD ASM
WB34X26004 WB34X26004 BRACE CHASSIS RADIANT LT
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10415 WB02T10415 BRACKET ANTI-TIP ASM
WB34X42027 WB34X42027 BRACKET DOOR TRIM RH
WB02T10279 WB02T10279 BRACKET RADIANT ELEMENT
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WX10X350 WX10X350 CERAMA BRYTE CLEANING PADS - 4
WB02X45146 WB02X45146 CLIP CABLE
WB24T10029 WB24T10029 CONTROL INFINITE SWITCH
WB02T10532 WB02T10532 COVER CONTROL
WB34T10088 WB34T10088 COVER CONTROL
WB34T10011 WB34T10011 COVER RECEPTACLE
WB56T10063 WB56T10063 DOOR FRAME
WB34X42670 WB34X42670 DOOR HANDLE BRACKET LH
WB01T10026 WB01T10026 DOOR PAD
WB55T10178 WB55T10178 DRAWER BODY ASM MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB34T10023 WB34T10023 ENCLOSURE RANGETOP
WB36T10255 WB36T10255 END CAP LEFT/BLACK
WB36T10254 WB36T10254 END CAP RT/BLACK
WB27T10675 WB27T10675 FACEPLATE GRAPHICS
WB63T10093 WB63T10093 FRAME FRONT
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB04T10022 WB04T10022 GASKET OVN
WB56T10179 WB56T10179 GLASS OVN DR (BK)
WB15K10069 WB15K10069 HANDLE (BK)
WB10T10071 WB10T10071 HINGE DOOR
WB10T10068 WB10T10068 HINGE RECEIVER
WB24T10027 WB24T10027 INF SW CTN (2100W)
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10114 WB35T10114 INSULATION DOOR
WB35T10113 WB35T10113 INSULATION OVN BACK/BTTM
WB03T10204 WB03T10204 KNOB GE SU
WB03T10203 WB03T10203 KNOB GE SU (BLACK)
WB36X192 WB36X192 LAMP COV ASM
WB02X10521 WB02X10521 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB25T10042 WB25T10042 LENS
WB27T10668 WB27T10668 LIGHT INDICATOR

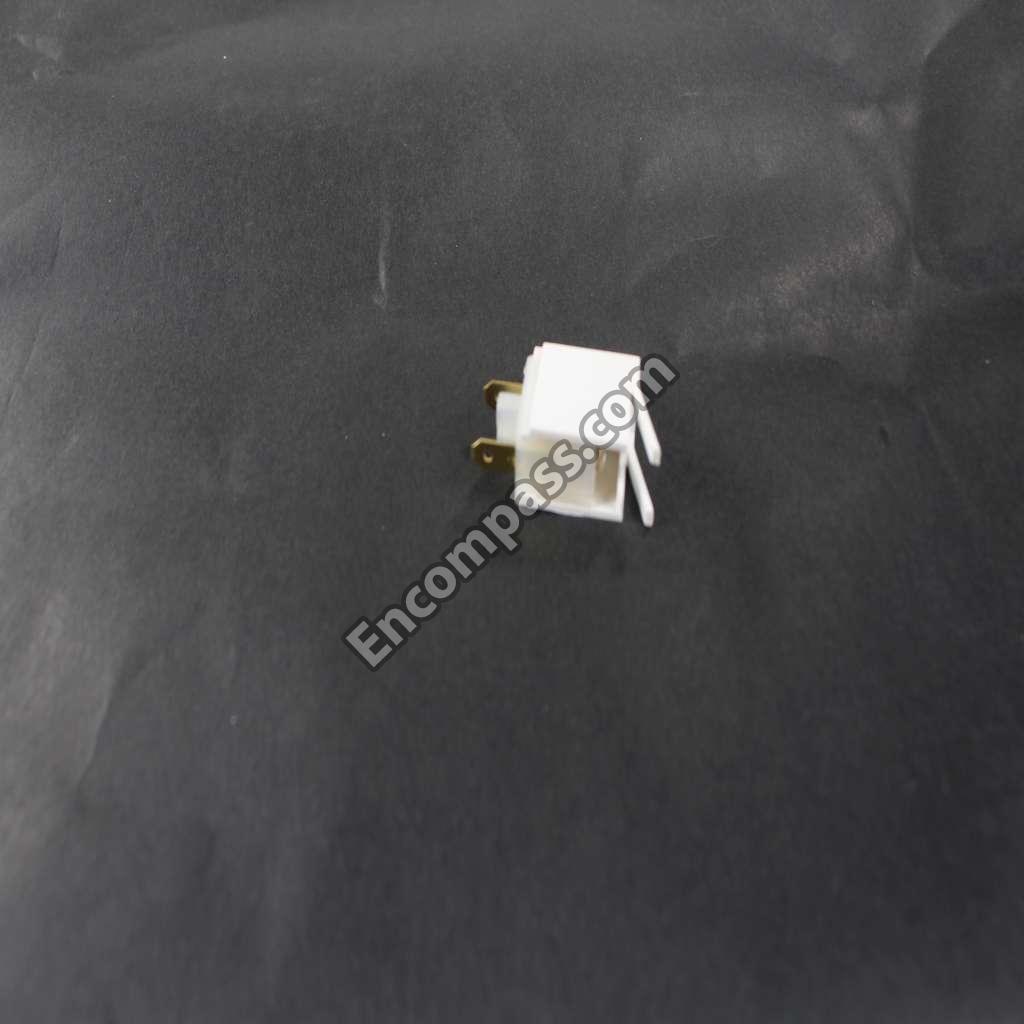

WB27T10627 WB27T10627 LIGHT INDICATOR PILOT
WB27T10626 WB27T10626 LIGHT INDICATOR PILOT
WB55T10153 WB55T10153 LINER OVEN DR ASM
WB63T10047 WB63T10047 MAIN BACK
WB10T10002 WB10T10002 MAINTOP HINGE
WB02T10026 WB02T10026 MAINTOP STRIKE
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB27X45466 WB27X45466 OVEN CONTROL
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB48T10063 WB48T10063 OVEN RACK
WB56T10267 WB56T10267 PANEL DRAWER
WB02T10041 WB02T10041 RADIANT ELEMENT BRACKET
WB09T10002 WB09T10002 RADIANT SPRING ELEMENT
WB62T10446 WB62T10446 RANGETOP GLASS ASM
WB02X33180 WB02X33180 REAR SUPPORT
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB56T10178 WB56T10178 RETAINER OVN DR INSLN
WB01T10067 WB01T10067 SCR 10-16 PL PNT 2.5 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X23501 WB01X23501 SCR 832 TT FLP 270
WB1X681 WB1X681 SCREW
WH2X930 WH2X930 SCREW
WB1K5156 WB1K5156 SCREW
WB1X536 WB1X536 SCREW
WB1M1 WB1M1 SCREW
WH2X1186 WH2X1186 SCREW
WD2X432 WD2X432 SCREW
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1X5364 WB1X5364 SCREW MTG
WB1X1137 WB1X1137 SCREW-10AB
WZ4X44D WZ4X44D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WH2X941D WH2X941D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASM
WB02T10306 WB02T10306 SHIELD HEAT (BKGD)
WB56X28881 WB56X28881 SIDE PANEL BK
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10175 WB02T10175 SPACER
WB24T10153 WB24T10153 SWITCH INFINITE CONTROL
WB24T10058 WB24T10058 SWITCH INFINITE CONTROL
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB02T10029 WB02T10029 TOP INSULATION RETAIN
WB36T10824 WB36T10824 TRIM & BRACKET ASM
WB7X7175 WB7X7175 TRIM LATCH
WB07X27233 WB07X27233 TRIM VENT DOOR (BK)
WB38T10022 WB38T10022 TUBE VENT RADIANT
WB44T10011 WB44T10011 UNIT BAKE AS
WB44T10009 WB44T10009 UNIT BROIL A
WB38X33648 WB38X33648 VENT TUBE
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB1K5174 WB1K5174 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB48T10068 WB48T10068 WEDGE DRAWER
WB02T10252 WB02T10252 WIRE INSLN OVN
