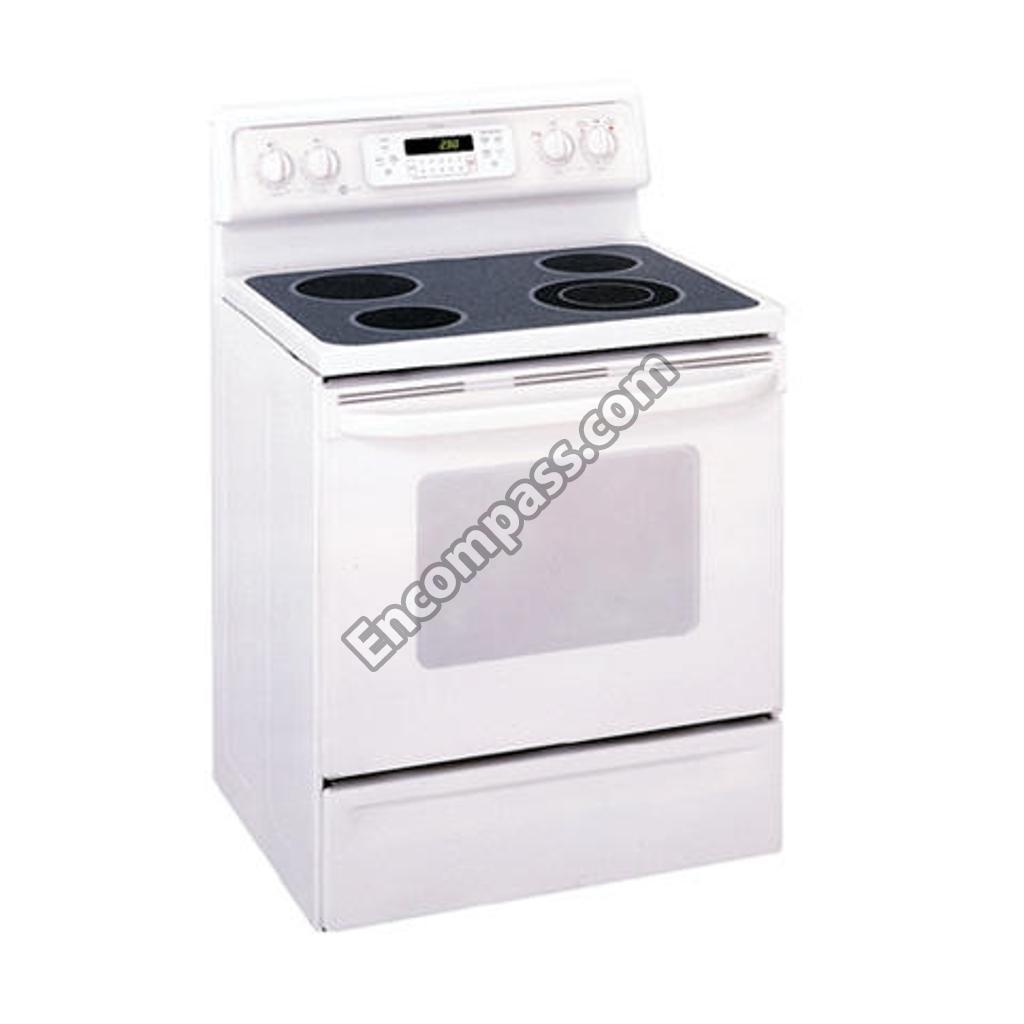

Model Image
Manufacturer

GE

Model Number

JBP79CB2CC

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP BULB
49-8939 49-8939 49-8939-16
WB02T10415 WB02T10415 ANTI-TIP BRACKET
WB2X7694 WB2X7694 BAIL
WB08X5102 WB08X5102 BALLAST
WB8X5102 WB8X5102 BALLAST
WB02T10052 WB02T10052 BALLAST MOUNT
WB39T10001 WB39T10001 BASE RIVET ASSEMBLY
WB07X32931 WB07X32931 BISQUE BOTTOM TRIM CHANEL
WB63T10050 WB63T10050 BODY SIDE ALMOND
WB63T10110 WB63T10110 BODY SIDE/BISQUE
WB56X28881 WB56X28881 BODY SIDE/BLACK
WB63T10048 WB63T10048 BODY SIDE/WHITE
WB44T10009 WB44T10009 BROIL ELEMENT
WB01T10021 WB01T10021 BUMPER RANGETOP
WX10X302 WX10X302 CERAMA BRYTE COOKTOP SCRAPER
WB01X0119 WB01X0119 CONTOURED WASHER
WB27X10120 WB27X10120 CONTROL ERC III B
WB34T10128 WB34T10128 COVER BACK

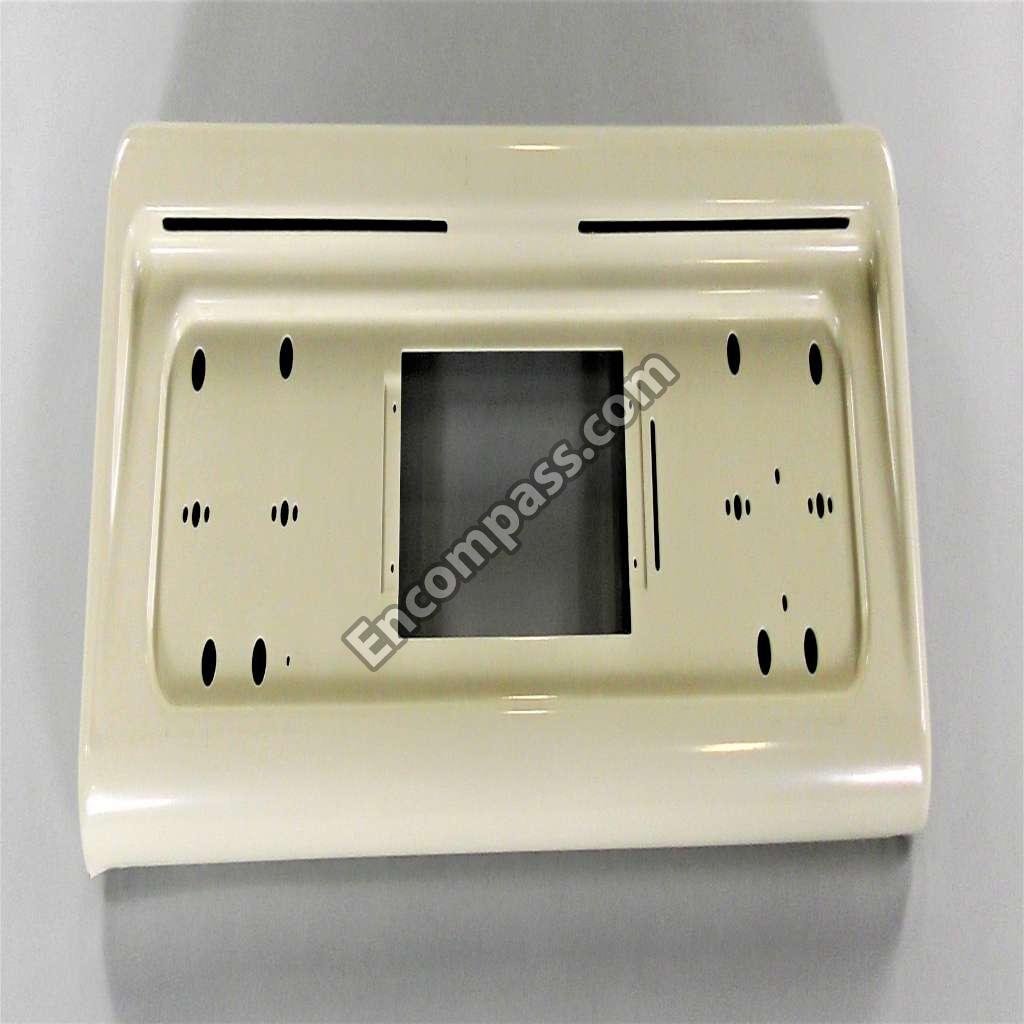

WB02T10532 WB02T10532 COVER CONTROL
WB34T10020 WB34T10020 COVER CONTROL
WB34T10011 WB34T10011 COVER RECEPTACLE
WB27T10171 WB27T10171 CRYSTAL MEMBRANE ASSEMBLY
WB02T10047 WB02T10047 CRYSTAL MOUNT
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB01T10022 WB01T10022 DOOR BUMPER
WB15X5226 WB15X5226 DOOR HANDLE WHITE
WB35T10078 WB35T10078 DOOR INSULATION
WB35T10019 WB35T10019 DOOR INSULATION
WB55T10120 WB55T10120 DOOR LINER ASSEMBLY
WB01T10026 WB01T10026 DOOR PAD
WB48T10068 WB48T10068 DRAWER GUIDE
WB56T10270 WB56T10270 DRAWER PANEL-BISQUE
WB30X44826 WB30X44826 ELEMENT HALIANT 6

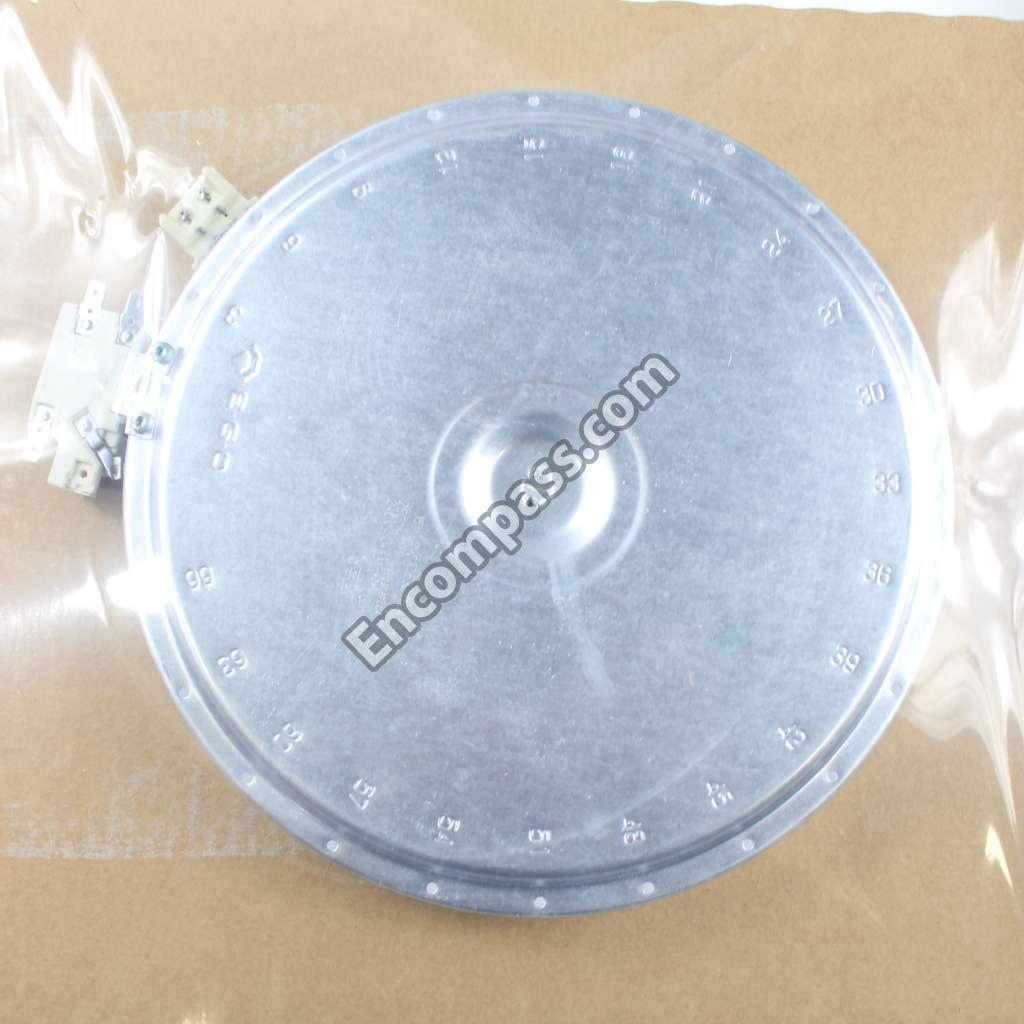

WB30T10099 WB30T10099 ELEMENT HALIANT 9-INCH 2600W
WB34T10023 WB34T10023 ENCLOSURE RANGETOP
WB36T10295 WB36T10295 END CAP LEFT BISQUE
WB36T10255 WB36T10255 END CAP LEFT/BLACK
WB36T10248 WB36T10248 END CAP LEFT/WHITE
WB36T10294 WB36T10294 END CAP RIGHT BISQUE
WB36T10254 WB36T10254 END CAP RT/BLACK
WB36T10247 WB36T10247 END CAP RT/WHITE
WB18T10065 WB18T10065 FLO LIGHT WIRE HARNESS
WB02X4666 WB02X4666 FLUORESCENT LIGHT BULB
WB02T10045 WB02T10045 FOAM STRIP
WB56T10063 WB56T10063 FRAME DOOR SIDE
WB56T10098 WB56T10098 FRAME DOOR SIDE
WB56T10064 WB56T10064 FRAME DOOR SIDE
WB55T10067 WB55T10067 FRAME WINDOW PACK ASSEMBLY
WB63T10054 WB63T10054 FRONT FRAME
WB48T10013 WB48T10013 FRT DRAWER SUPPORT
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB64X0093 WB64X0093 GLASS CLEANER
WB62T10042 WB62T10042 GLASS M T KIT BISQUE
WB62T10026 WB62T10026 GLASS MAINTOP KIT ASM
WB62T10024 WB62T10024 GLASS MAINTOP KIT ASM
WB62T10025 WB62T10025 GLASS MAINTOP KIT ASSEMBLY
WB02T10067 WB02T10067 GROUND STRAP
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB30T10045 WB30T10045 HALIANT ELEMENT 8
WB30T10044 WB30T10044 HALIANT ELEMENT 9""
WB15K10017 WB15K10017 HANDLE (BISQUE)
WB15X5227 WB15X5227 HANDLE BLACK
WB15X5225 WB15X5225 HANDLE HYDROFORM ALMOND
WB18T10068 WB18T10068 HARNESS WIRE INF
WB18T10062 WB18T10062 HARNESS WIRE MAINTOP
WB18T10073 WB18T10073 HARNESS WIRE SENS (L/P)
WB02T10022 WB02T10022 HEAT SHIELD
WB10T10007 WB10T10007 HINGE DOOR
WB10T10005 WB10T10005 HINGE RECEIVER
WB25T10019 WB25T10019 INDICATOR LIGHT ASSEMBLY

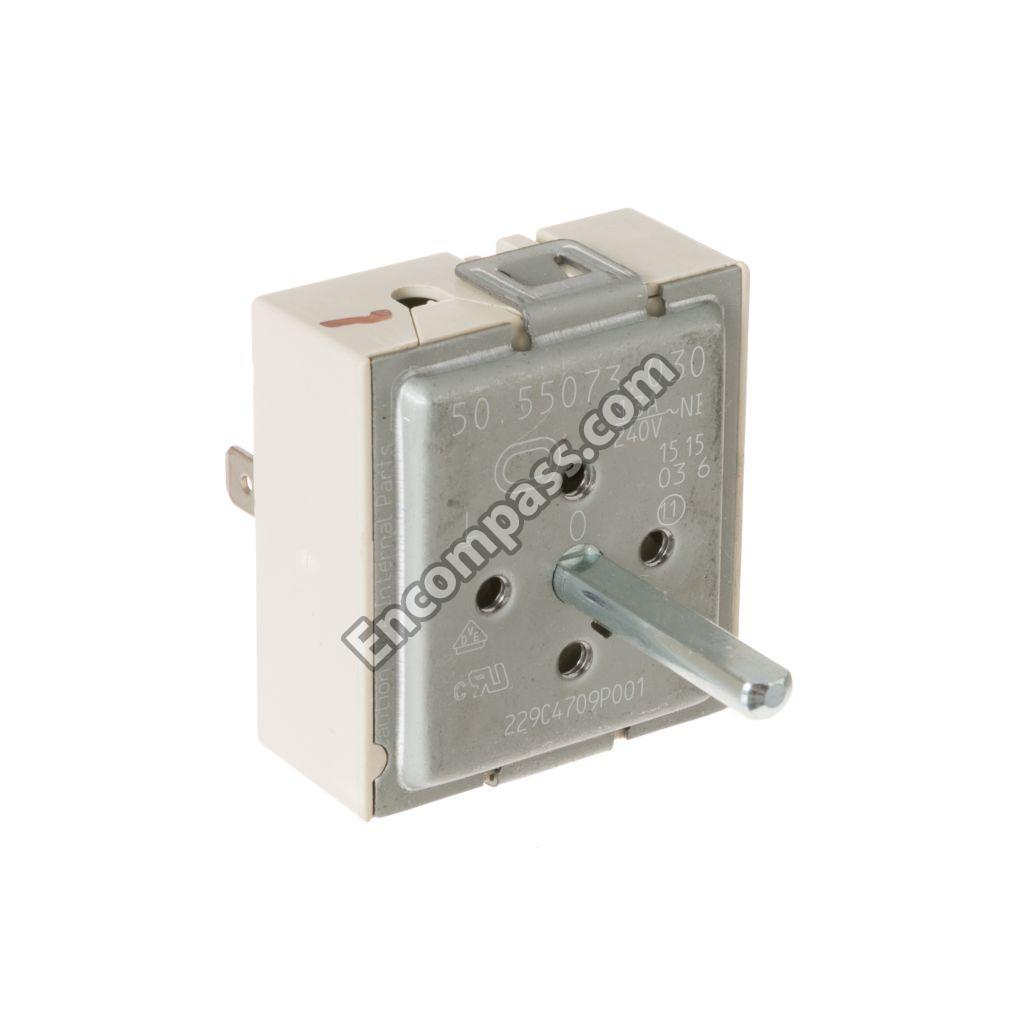

WB24T10012 WB24T10012 INF SWITCH CNTL (WM)
WB24T10026 WB24T10026 INF SWITCH CONTROL (2000W)

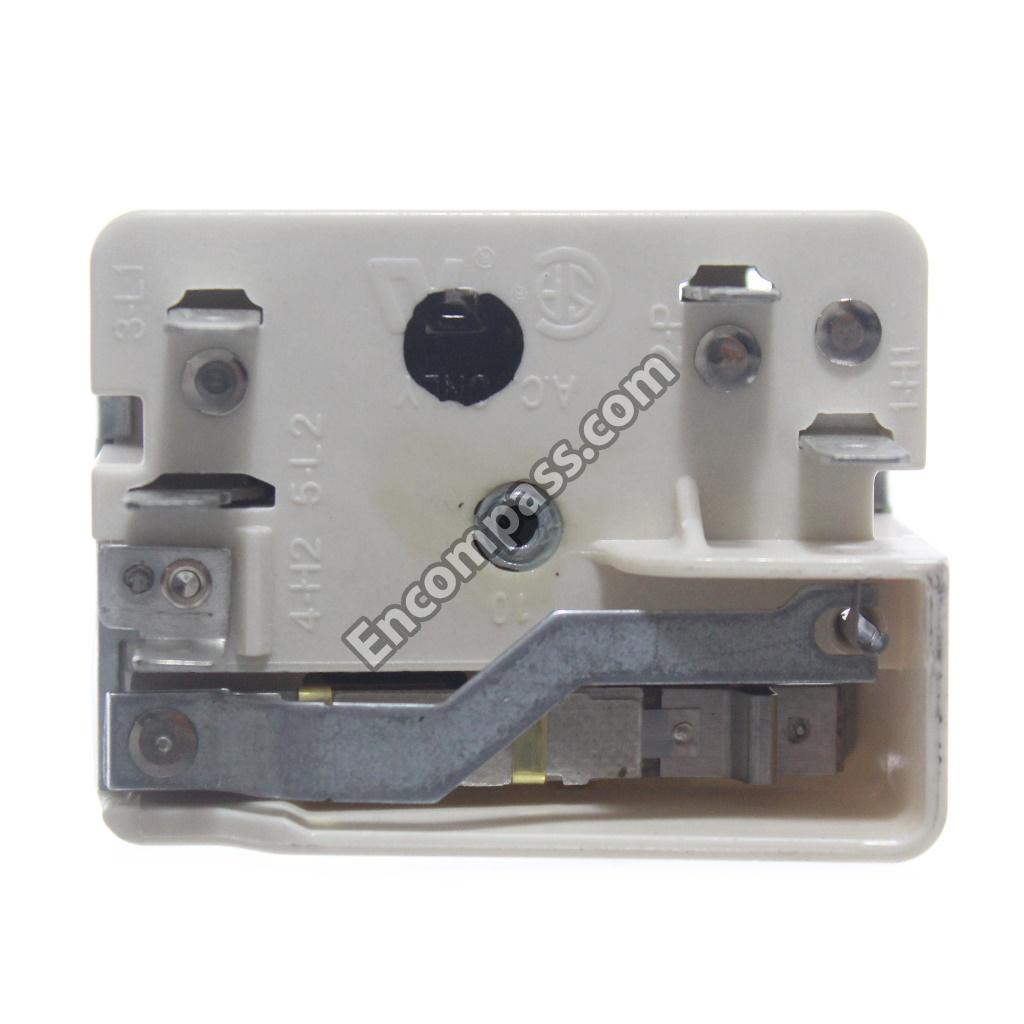

WB24T10028 WB24T10028 INFINITE SWITCH CONTROL
WB56T10027 WB56T10027 INSLN RETAINER
31-10414 31-10414 INSTALLATION INSTRUCTION
31-10301 31-10301 INSTRUCTION INSTALL
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10113 WB35T10113 INSULATION OVN BACK/BTTM
WB03T10123 WB03T10123 KNOB PROFILE S/U
WB03T10095 WB03T10095 KNOB PROFILE S/U (BISQUE)
WB03T10078 WB03T10078 KNOB PROFILE SU
WB03T10121 WB03T10121 KNOB PROFILE SU
WB03T10122 WB03T10122 KNOB PROFILE SU
WB03T10077 WB03T10077 KNOB PROFILE SU
WB03T10079 WB03T10079 KNOB PROFILE SU WH
WB36X192 WB36X192 LAMP COV ASM
F26T8-CW-4 F26T8-CW-4 LAMP FLUORESCENT
WB36T10252 WB36T10252 LAMP HOLDER
WB14T10002 WB14T10002 LATCH MOTORIZED ASSEMBLY
WB07T10109 WB07T10109 LATCH TRIM
WB02X10521 WB02X10521 LEG LEVELER
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB63T10047 WB63T10047 MAIN BACK
WB17T10003 WB17T10003 MAIN TERMINAL BLOCK
WB18T10074 WB18T10074 MAIN WIRE HARNESS
WB10T10002 WB10T10002 MAINTOP HINGE
WB02T10026 WB02T10026 MAINTOP STRIKE
31-13662 31-13662 MANUAL MINI & WD ASM
WB56T10041 WB56T10041 MULTIPLE SUPERCEDURES
WB56T10030 WB56T10030 MULTIPLE SUPERCEDURES
WB56T10072 WB56T10072 MULTIPLE SUPERCEDURES
WB07T10231 WB07T10231 MULTIPLE SUPERCEDURES
WB07T10220 WB07T10220 MULTIPLE SUPERCEDURES
WB01X5968 WB01X5968 NUT
WB1X5968 WB1X5968 NUT 10-32
WB04T10086 WB04T10086 OVEN DOOR GASKET
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB24T10147 WB24T10147 OVEN LIGHT SWITCH
WB48T10011 WB48T10011 OVEN RACK
WB35T10012 WB35T10012 OVEN TOP/SIDE INSULATION
WB07T10479 WB07T10479 PANEL ASM (BONDED)
49-8891 49-8891 PM MANUAL USE & CARE
WB08T10026 WB08T10026 PUSH-IN RECEPTICLE
WB02T10038 WB02T10038 RADIANT CHASSIS BRACE
WB09T10002 WB09T10002 RADIANT ELEMENT SPRING
WB01T10023 WB01T10023 RADIANT HEATER PAD
WB38T10022 WB38T10022 RADIANT VENT TUBE
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB02X29562 WB02X29562 RANGETOP BUMPER
WB06K5036 WB06K5036 RAZOR BLADE SCRAPER
WB02T10031 WB02T10031 REAR DRAWER SUPPORT
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01X1127 WB01X1127 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5200 WB01K5200 SCREW
WB1K5116 WB1K5116 SCREW
WB1K5062 WB1K5062 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WB01T10027 WB01T10027 SCREW 10-32 T HEX 7/1
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10029 WB01T10029 SCREW 6-32 CA PAT 5/8 S
WB1K5186 WB1K5186 SCREW 6-32 X 3/5 1/4 HEX DRI
WB01K5186 WB01K5186 SCREW 6-32X3/5"" 1/4 HEX
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB01T10019 WB01T10019 SCREW 8-18 AB TRT 7/16 SN
WB01T10037 WB01T10037 SCREW 8-18 BA TW 7/16 S
WD02X0434 WD02X0434 SCREW 8-18 X 5/16 AD
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB1X5967 WB1X5967 SCREW ASM
WB01X5967 WB01X5967 SCREW ASM.- TERMINAL BLK
WB01X1261 WB01X1261 SCREW GROUND
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB1X1137 WB1X1137 SCREW-10AB
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB04T10002 WB04T10002 SEAL WINDOW PACK
WB23X5340 WB23X5340 SENSOR ASM
WB02T10028 WB02T10028 SIDE INSULATION RETAINER
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10035 WB02T10035 SPACER
WB6K7 WB6K7 STARTER
WB06K0007 WB06K0007 STARTER FLUOR LAMP FS-2
WB55T10178 WB55T10178 STORAGE DRAWER LINING
WB24T10041 WB24T10041 SWITCH INF CNTL (DUAL)
WB17T10002 WB17T10002 TERMINAL BOX
WB02T10029 WB02T10029 TOP INSULATION RETAIN
WB36T10308 WB36T10308 TRIM CONTROL (PROFILE)
WB36T10269 WB36T10269 TRIM CONTROL (PROFILE)
WB36T10268 WB36T10268 TRIM CONTROL (PROFILE)
WB07T10156 WB07T10156 TRIM HANDLE
WD2X434 WD2X434 TRIM SCREW
WB48X10056 WB48X10056 TWO-PIECE PORCELAIN-COATED BROILER

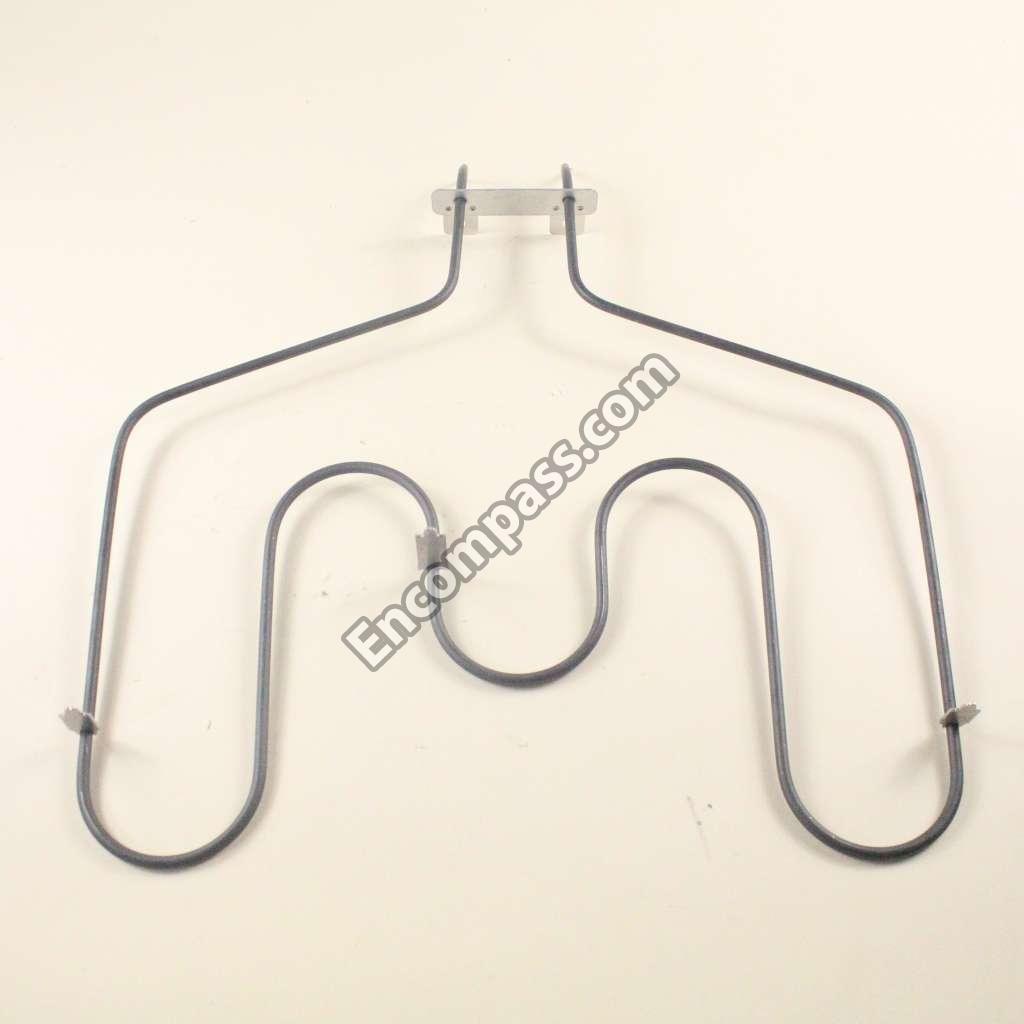

WB44T10011 WB44T10011 UNIT BAKE ASM (DELUXE)
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB1X681 WB1X681 WB01X0681
WB25T10020 WB25T10020 WB25T10020
WB63X20942 WB63X20942 WRAPPER OVEN CAVITY
