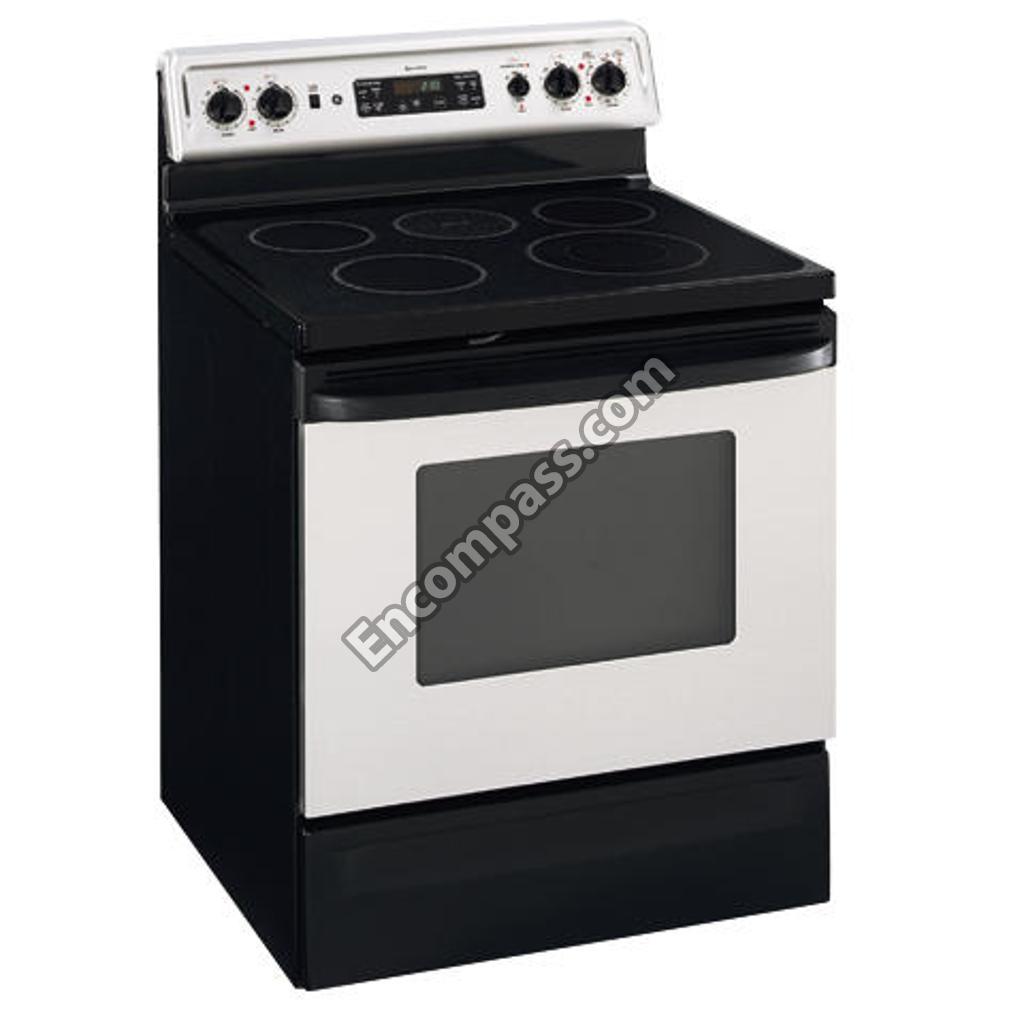

Model Image
Manufacturer

GE

Model Number

JBP80SF1SB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02T10415 WB02T10415 ANTI-TIP BRACKET
WB2X7694 WB2X7694 BAIL
WB39T10001 WB39T10001 BASE RIVET ASSEMBLY
WB56X28881 WB56X28881 BODY SIDE/BLACK
WB02T10132 WB02T10132 BRACE CHASSIS (RAD)
WB02T10133 WB02T10133 BRACE CHASSIS (RAD)
WB34X26004 WB34X26004 BRACE CHASSIS RADIANT LT
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10140 WB02T10140 BRACKET PLATE
WB44T10009 WB44T10009 BROIL ELEMENT
WB01T10021 WB01T10021 BUMPER RANGETOP
WB01X0119 WB01X0119 CONTOURED WASHER
WB27T10380 WB27T10380 CONTROL OVN (ERC 3B)
WB34T10128 WB34T10128 COVER BACK
WB02T10532 WB02T10532 COVER CONTROL
WB34T10020 WB34T10020 COVER CONTROL
WB34T10011 WB34T10011 COVER RECEPTACLE
WB01T10022 WB01T10022 DOOR BUMPER
WB35T10078 WB35T10078 DOOR INSULATION
WB35T10019 WB35T10019 DOOR INSULATION
WB15X10068 WB15X10068 DOOR LATCH ASSEMBLY
WB55T10120 WB55T10120 DOOR LINER ASSEMBLY
WB35T10020 WB35T10020 DOOR LOCK INSULATIOIN
WB01T10026 WB01T10026 DOOR PAD
WB56T10091 WB56T10091 DOOR PANEL W/SS ASM
WB48T10068 WB48T10068 DRAWER GUIDE
WB30X44826 WB30X44826 ELEMENT HALIANT 6
WB30T10052 WB30T10052 ELEMENT HALIANT 6WARMER
WB30T10099 WB30T10099 ELEMENT HALIANT 9
WB34T10023 WB34T10023 ENCLOSURE RANGETOP
WB36T10220 WB36T10220 END CAP LT BLACK
WB36T10219 WB36T10219 END CAP RT/BLACK
WB27T10456 WB27T10456 FACEPLATE GRAPHICS ASM
WB56T10046 WB56T10046 FRAME DR SDE ASSEMBLY
WB55T10067 WB55T10067 FRAME WINDOW PACK ASM
WB63T10054 WB63T10054 FRONT FRAME
WB48T10013 WB48T10013 FRT DRAWER SUPPORT
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB04T10022 WB04T10022 GASKET OVN
WB64X0093 WB64X0093 GLASS CLEANER
WB02T10067 WB02T10067 GROUND STRAP
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB30T10045 WB30T10045 HALIANT ELEMENT 8
WB15X10047 WB15X10047 HANDLE DOOR (BLK)
WB02T10022 WB02T10022 HEAT SHIELD
WB10T10007 WB10T10007 HINGE DOOR
WB10T10005 WB10T10005 HINGE RECEIVER
WB25X5054 WB25X5054 INDICATOR LIGHT LENS
WB03T10072 WB03T10072 INF KNOB (BLK)
WB24T10029 WB24T10029 INF SW CNTL 1500W LF RR
WB24T10027 WB24T10027 INF SW CNTL 2100W RF LR
WB56T10027 WB56T10027 INSLN RETAINER
31-10414 31-10414 INSTALLATION INSTRUCTION
31-10513 31-10513 INSTRUCTION INSTALL
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10027 WB35T10027 INSULATION DR SDE
WB35T10113 WB35T10113 INSULATION OVN BACK/BTTM
WB03T10126 WB03T10126 KNOB CONTROL
WB36X192 WB36X192 LAMP COV ASM
WB02X10521 WB02X10521 LEG LEVELER
WB25T10016 WB25T10016 LENS
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB27T10201 WB27T10201 LIGHT INDICATOR
WB27T10626 WB27T10626 LIGHT INDICATOR PILOT
WB24T10055 WB24T10055 LOGIC SWITCH
WB63T10047 WB63T10047 MAIN BACK
WB17T10003 WB17T10003 MAIN TERMINAL BLOCK
WB10T10002 WB10T10002 MAINTOP HINGE
31-13995 31-13995 MANUAL MINI & WD ASM
49-80119 49-80119 MANUAL USE & CARE
WB01X5968 WB01X5968 NUT
WB1X5968 WB1X5968 NUT 10-32
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB24T10147 WB24T10147 OVEN LIGHT SWITCH
WB48T10011 WB48T10011 OVEN RACK
WB35T10012 WB35T10012 OVEN TOP/SIDE INSULATION
WB56T10267 WB56T10267 PANEL DRAWER
WB08T10026 WB08T10026 PUSH-IN RECEPTICLE
WB09T10002 WB09T10002 RADIANT ELEMENT SPRING
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB27T10380R WB27T10380R RANGE OVEN CONTROL BOARD
WB62T10224 WB62T10224 RANGETOP ASM RADIANT
WB02X29562 WB02X29562 RANGETOP BUMPER
WB24T10042 WB24T10042 ROCKER SWITCH OVEN
WB01T10067 WB01T10067 SCR 10-16 PL PNT 2.5 S
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WH02X10002 WH02X10002 SCR 8-18 AB IHWP 7/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01M0013 WB01M0013 SCREW
WB01X1170 WB01X1170 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1127 WB01X1127 SCREW
WB1X1262 WB1X1262 SCREW
WD2X432 WD2X432 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10056 WB01T10056 SCREW 10-32 IND HXW 437
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01T10013 WB01T10013 SCREW 8-19 HI/LO IHW 5/8 S
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB04T10025 WB04T10025 SEAL PACK WIN
WB21X22134 WB21X22134 SENSOR ASM
WB02T10028 WB02T10028 SIDE INSULATION RETAINER
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10175 WB02T10175 SPACER
WB55T10178 WB55T10178 STORAGE DRAWER LINING
WB02X33180 WB02X33180 SUPPORT REAR
WB24T10153 WB24T10153 SWITCH INF CNTL
WB24T10058 WB24T10058 SWITCH INFINITE CNTL
WB17T10002 WB17T10002 TERMINAL BOX
WB02T10029 WB02T10029 TOP INSULATION RETAINER
WB36T10526 WB36T10526 TRIM & BRKT ASM
WB7X7175 WB7X7175 TRIM LATCH
WB07X7175 WB07X7175 TRIM LATCH
WB07T10220 WB07T10220 TRIM VENT DOOR (GE)
WB38T10022 WB38T10022 TUBE VENT RADNT
WB44T10011 WB44T10011 UNIT BAKE ASM (DELUXE)
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB1X681 WB1X681 WB01X0681
WB63X20942 WB63X20942 WRAPPER OVEN CAVITY
