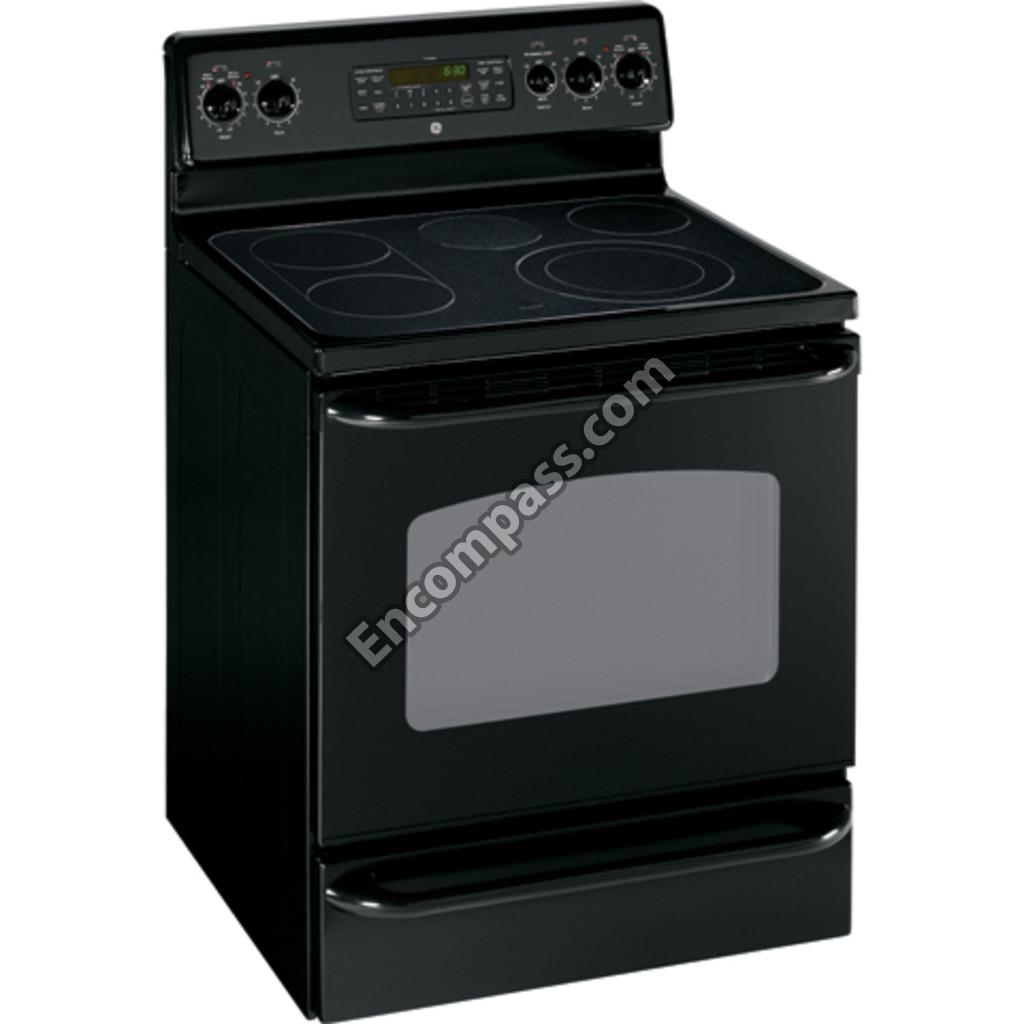

Model Image
Manufacturer

GE

Model Number

JBP84BK1BB

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02T10415 WB02T10415 ANTI-TIP BRACKET
WB2X7694 WB2X7694 BAIL
WB63T10099 WB63T10099 BODY OVEN WELD ASM
WB02T10463 WB02T10463 BRACE CHASSIS (RAD)
WB34X26004 WB34X26004 BRACE CHASSIS (RAD)
WB02T10180 WB02T10180 BRACKET FAN MOTOR CONV
WB34X42670 WB34X42670 BRACKET OVN HDL VNT TRM
WB34X42027 WB34X42027 BRACKET OVN HDL VNT TRM
WB58T10007 WB58T10007 CAVITY WARMING DRW ASM
WB01X0119 WB01X0119 CONTOURED WASHER
WB27T10808 WB27T10808 CONTROL ERC
WB02K5365 WB02K5365 COVER
WB2K5365 WB2K5365 COVER
WB34T10128 WB34T10128 COVER BACK
WB34T10088 WB34T10088 COVER CONTROL
WB02T10532 WB02T10532 COVER CONTROL
WB26T10053 WB26T10053 COVER FAN (CONVX)
WB34T10011 WB34T10011 COVER RECEPTACLE
WB56T10063 WB56T10063 DOOR FRAME
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB01T10026 WB01T10026 DOOR PAD
WB56T10180 WB56T10180 DRAWER FRT INNER
WB49T10011 WB49T10011 DRAWER PAN
WB44T10053 WB44T10053 ELEMENT CONVX
WB30T10144 WB30T10144 ELEMENT DRAWER LOWER
WB30T10096 WB30T10096 ELEMENT HALIANT 12 IN
WB30X44826 WB30X44826 ELEMENT HALIANT 6
WB30X32514 WB30X32514 ELEMENT RADIANT 6 WARMER
WB34T10023 WB34T10023 ENCLOSURE RANGETOP
WB36T10295 WB36T10295 END CAP LEFT BISQUE
WB36T10255 WB36T10255 END CAP LEFT/BLACK
WB36T10248 WB36T10248 END CAP LEFT/WHITE
WB36T10294 WB36T10294 END CAP RIGHT BISQUE
WB36T10254 WB36T10254 END CAP RT/BLACK
WB36T10247 WB36T10247 END CAP RT/WHITE
WB56T10098 WB56T10098 FRAME DOOR SIDE
WB63T10096 WB63T10096 FRAME FRONT
WB63T10146 WB63T10146 FRAME SUPPORT DRW
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB04T10022 WB04T10022 GASKET OVN
WB64X0093 WB64X0093 GLASS CLEANER
WB56T10179 WB56T10179 GLASS OVN DR (BK)
WB56T10183 WB56T10183 GLASS OVN DR (BQ)
WB56T10187 WB56T10187 GLASS OVN DR (WH)
WB02T10275 WB02T10275 GUARD INSLN SDE
WB15K10069 WB15K10069 HANDLE (BLACK)
WB15T10134 WB15T10134 HANDLE BQ
WB15T10135 WB15T10135 HANDLE WH
WB35T10022 WB35T10022 HIDDEN BAKE INSULATION
WB10T10067 WB10T10067 HINGE DOOR
WB10T10068 WB10T10068 HINGE RECEIVER
WB02T10289 WB02T10289 HUB BLADE ASM
WB24T10029 WB24T10029 INF SW CNTL 1500W LF RR
WB35T10087 WB35T10087 INSULATION CONV.
WB35T10114 WB35T10114 INSULATION DOOR
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10211 WB35T10211 INSULATION OVEN
WB03T10208 WB03T10208 KNOB GE SU
WB03T10206 WB03T10206 KNOB GE SU
WB03T10205 WB03T10205 KNOB GE SU
WB03T10204 WB03T10204 KNOB GE SU
WB03T10203 WB03T10203 KNOB GE SU BK
WB03T10207 WB03T10207 KNOB GE SU WH
WB36X192 WB36X192 LAMP COV ASM
WB07T10109 WB07T10109 LATCH TRIM
WB02X10521 WB02X10521 LEG LEVELER
WB25T10042 WB25T10042 LENS
WB25T10041 WB25T10041 LENS
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB27T10668 WB27T10668 LIGHT INDICATOR
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB27T10626 WB27T10626 LIGHT INDICATOR PILOT
WB55T10153 WB55T10153 LINER OVEN DR ASM
WB63T10047 WB63T10047 MAIN BACK
WB10T10002 WB10T10002 MAINTOP HINGE
WB02T10026 WB02T10026 MAINTOP STRIKE
WB27T10671 WB27T10671 MEMBRANE PLATE ASM
WB27T10669 WB27T10669 MEMBRANE PLATE ASM
WB27T10667 WB27T10667 MEMBRANE PLATE ASM

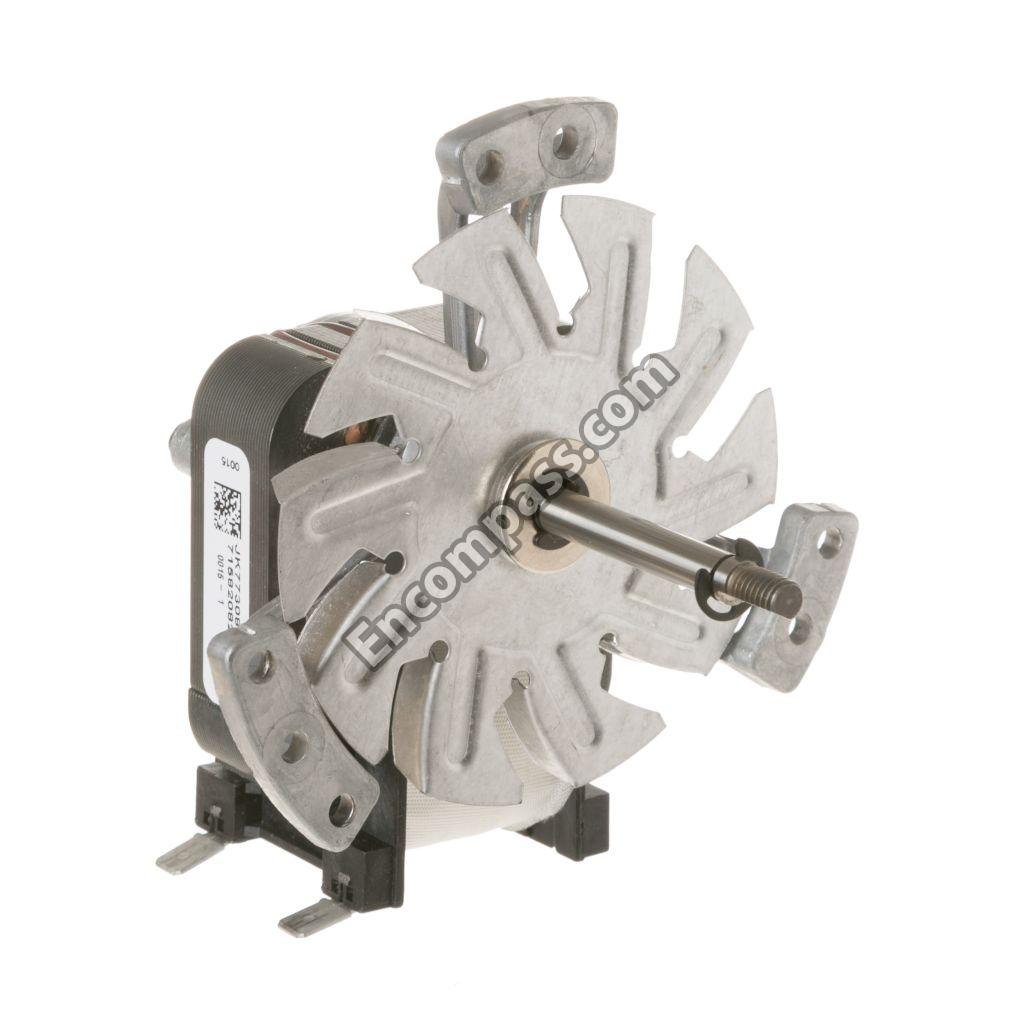

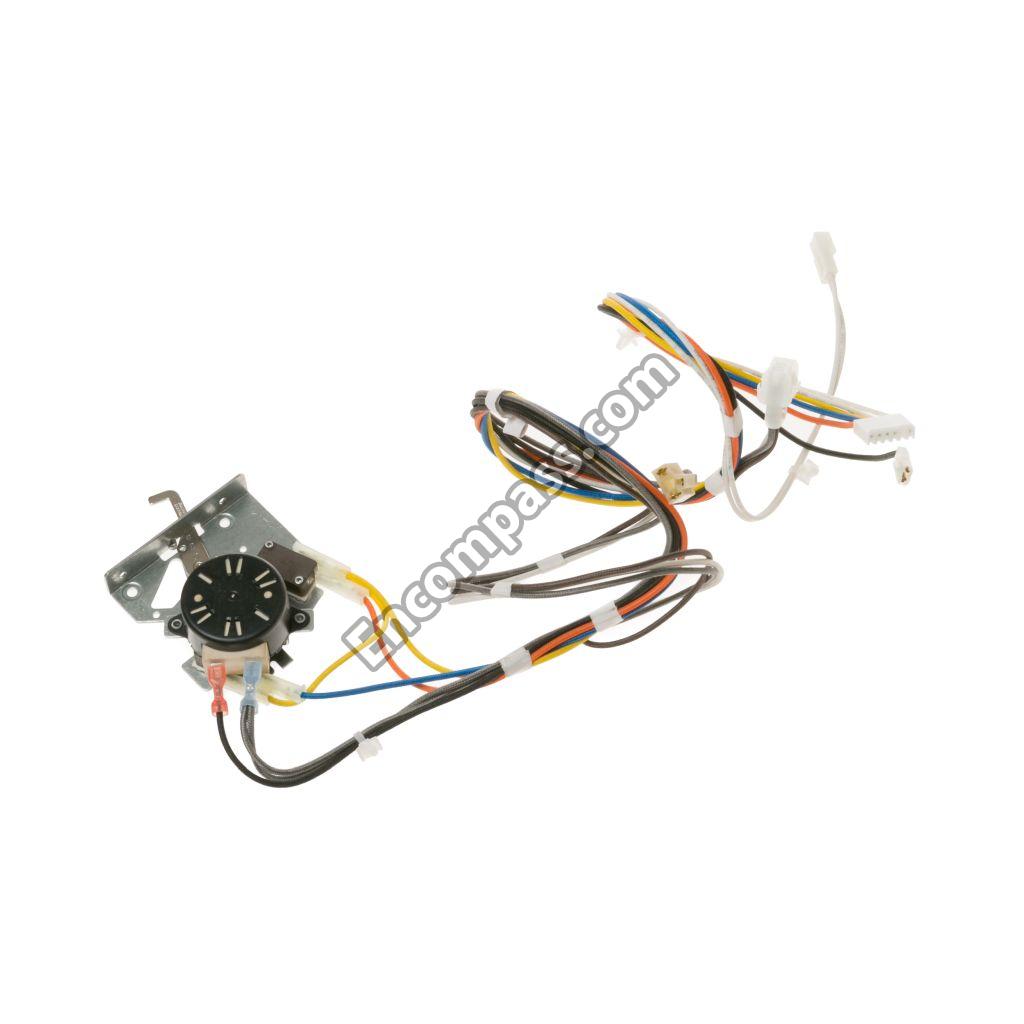

WB26T10007 WB26T10007 MOTOR FAN
WB17T10020 WB17T10020 MOUNT TERMINAL BLOCK
WB14T10042 WB14T10042 MULTIPLE SUPERCEDURES
WB02T10017 WB02T10017 NUT
WB35T10023 WB35T10023 OVEN BACK INSULATION
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB02T10509 WB02T10509 PAN REFLECTOR
WB56T10182 WB56T10182 PANEL DRAWER OUTER
WB56T10186 WB56T10186 PANEL DRAWER OUTER
WB56T10177 WB56T10177 PANEL DRAWER OUTER
WB56X28881 WB56X28881 PANEL SIDE (BLK)
WB63T10110 WB63T10110 PANEL SIDE BQ
WB48T10062 WB48T10062 RACK OVEN (SC)
WB48T10032 WB48T10032 RACK OVN (OFFSET)
WB30T10046 WB30T10046 RADIANT ELEMENT 4400W
WB09T10002 WB09T10002 RADIANT ELEMENT SPRING
WB24T10147 WB24T10147 RANGE HIGH AMP SWITCH
WB62T10436 WB62T10436 RANGETOP GLASS ASM
WB62T10434 WB62T10434 RANGETOP GLASS ASM
WB62T10437 WB62T10437 RANGETOP GLASS ASM WH
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10178 WB56T10178 RETAINER OVN DR INSLN
WB01T10067 WB01T10067 SCR 10-16 PL PNT 2.5 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01K5156 WB01K5156 SCREW
WB01X0537 WB01X0537 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1127 WB01X1127 SCREW
WH2X930 WH2X930 SCREW
WB1X536 WB1X536 SCREW
WB1M1 WB1M1 SCREW
WH2X1186 WH2X1186 SCREW
WB1X537 WB1X537 SCREW
WD2X432 WD2X432 SCREW
WB1K5156 WB1K5156 SCREW
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5167 WB1K5167 SCREW 8-18 X 3/8
WB01K5167 WB01K5167 SCREW 8-18 X 3/8""
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01T10072 WB01T10072 SCREW 8-32 IHW ST1 312 NI
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WR1X1635 WR1X1635 SCREW 8-32 X 625 M HXW S
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1K5157 WB1K5157 SCREW-BLK
WB01X1118 WB01X1118 SCREW-NICKEL
WZ4X44D WZ4X44D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASM
WB02T10306 WB02T10306 SHIELD HEAT (BKGD)
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB49T10007 WB49T10007 SIDE REFLECTOR
WB63X23859 WB63X23859 SLIDE INTERNAL
WB02X38986 WB02X38986 SPACER
WB2X9037 WB2X9037 SPACER-HNDL
WB24T10153 WB24T10153 SWITCH INF CNTL
WB24T10058 WB24T10058 SWITCH INFINITE CNTL
WB01T10052 WB01T10052 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB02T10029 WB02T10029 TOP INSULATION RETAIN
WB36T10809 WB36T10809 TRIM & BRACKET ASM
WB36T10807 WB36T10807 TRIM & BRACKET ASM
WB36T10806 WB36T10806 TRIM & BRACKET ASM
WB07X42966 WB07X42966 TRIM DR BTM CHNL
WB07X32931 WB07X32931 TRIM DR BTM CHNL BQ
WB07X42948 WB07X42948 TRIM DR BTM CHNL WH
WB07T10517 WB07T10517 TRIM LATCH
WB07X27236 WB07X27236 TRIM VENT DOOR
WB07X27235 WB07X27235 TRIM VENT DOOR
WB07X27233 WB07X27233 TRIM VENT DOOR
WB38T10022 WB38T10022 TUBE VENT RADIANT
WB44X45499 WB44X45499 UNIT ASSEMBLY
WB44T10012 WB44T10012 UNIT BROIL A
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB38X33648 WB38X33648 VENT TUBE
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB1X681 WB1X681 WB01X0681
WB02T10252 WB02T10252 WIRE INSLN OVN
WB02T10196 WB02T10196 WIRE INSULATION OVEN
