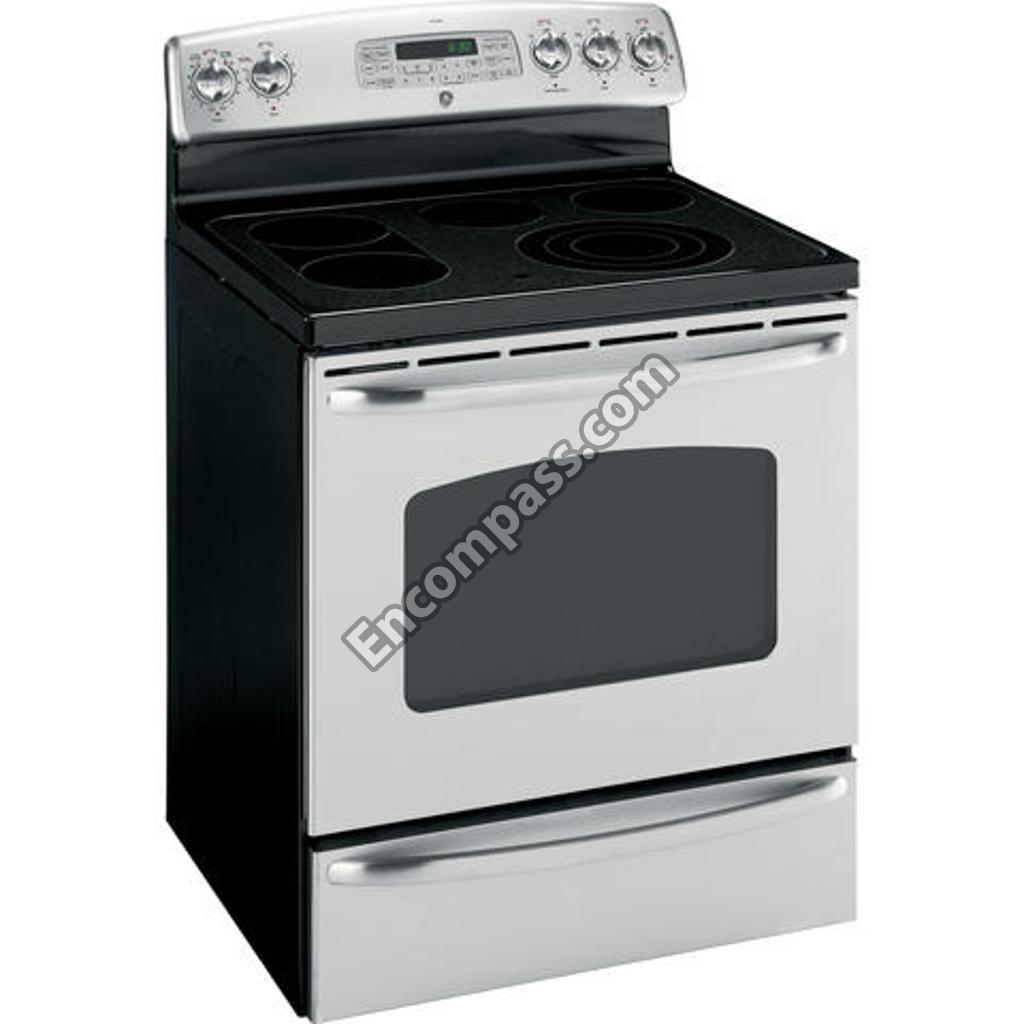

Model Image
Manufacturer

GE

Model Number

JBP84SM1SS

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02T10415 WB02T10415 ANTI TIP BKT
WB63T10147 WB63T10147 BACK MAIN
WB02T10359 WB02T10359 BADGE GE
WB2X7694 WB2X7694 BAIL
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB63T10099 WB63T10099 BODY OVEN WELD ASM
WB02T10133 WB02T10133 BRACE CHASSIS (RAD)
WB02T10132 WB02T10132 BRACE CHASSIS (RAD)
WB34X26004 WB34X26004 BRACE CHASSIS RADIANT LT
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10194 WB02T10194 BRACKET CAPACITOR
WB02T10180 WB02T10180 BRACKET FAN MOTOR CONV
WB27T10662 WB27T10662 CAPACITOR MOTOR
WB58T10011 WB58T10011 CAVITY WARMING DRW ASM
WB01X0119 WB01X0119 CONTOURED WASHER
WB27T10810 WB27T10810 CONTROL ERC
WB24T10145 WB24T10145 CONTROL SURF ELEM
WB24T10146 WB24T10146 CONTROL SURF ELEM
WB02K5365 WB02K5365 COVER
WB2K5365 WB2K5365 COVER
WB34T10128 WB34T10128 COVER BACK
WB02T10532 WB02T10532 COVER CONTROL
WB26T10053 WB26T10053 COVER FAN (CONVX)
WB34T10011 WB34T10011 COVER RECEPTACLE
WB56T10063 WB56T10063 DOOR FRAME
WB56T10180 WB56T10180 DRAWER FRT INNER
WB49T10011 WB49T10011 DRAWER PAN
WB24T10153 WB24T10153 ELECTRIC RANGE SURFACE ELEMENT CONTROL
WB44T10053 WB44T10053 ELEMENT CONVX
WB30T10144 WB30T10144 ELEMENT DRAWER LOWER
WB30T10096 WB30T10096 ELEMENT HALIANT 12 IN
WB30X44826 WB30X44826 ELEMENT HALIANT 6
WB30T10115 WB30T10115 ELEMENT RADIANT 6 WARMER
WB34T10023 WB34T10023 ENCLOSURE RANGETOP
WB63T10146 WB63T10146 FRAME DWR AND BRACKET ASSEMBLY
WB63T10096 WB63T10096 FRAME FRONT
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB64X0093 WB64X0093 GLASS CLEANER
WB57T10233 WB57T10233 GLASS OVN DR INR
WB02T10275 WB02T10275 GUARD INSLN SDE
WB63X23859 WB63X23859 GUIDE- SLIDE DRAWER
WB15T10163 WB15T10163 HANDLE SS
WB18T10440 WB18T10440 HARNESS WIRE (HB)
WB35T10022 WB35T10022 HIDDEN BAKE INSULATION
WB10T10069 WB10T10069 HINGE DOOR
WB10T10068 WB10T10068 HINGE RECEIVER
WB02T10289 WB02T10289 HUB BLADE ASM
31-10620 31-10620 INSTRUCTION INSTALL
31-10619 31-10619 INSTRUCTION INSTALL
31-10574 31-10574 INSTRUCTIONS INSTALL
WB35T10087 WB35T10087 INSULATION CONV.
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10114 WB35T10114 INSULATION DOOR
WB35T10115 WB35T10115 INSULATION DOOR
WB35T10211 WB35T10211 INSULATION OVEN
WB03T10284 WB03T10284 KNOB INFINITE (SS)
WB36X192 WB36X192 LAMP COV ASM
WB14T10062 WB14T10062 LATCH ASM MOTORIZED
WB02X10521 WB02X10521 LEG LEVELER
WB25T10042 WB25T10042 LENS
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB27T10668 WB27T10668 LIGHT INDICATOR
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB55T10174 WB55T10174 LINER OVEN DOOR ASM
WB02T10026 WB02T10026 MAINTOP STRIKE
31-14565 31-14565 MANUAL MINI & WD ASM
49-80462 49-80462 MANUAL USE & CARE
WB27T11021 WB27T11021 MEMBRANE PLATE ASM
WB26T10034 WB26T10034 MOTOR PSC CONV
WB17T10020 WB17T10020 MOUNT TERMINAL BLOCK
WB02T10017 WB02T10017 NUT
WB35T10023 WB35T10023 OVEN BACK INSULATION
WB04T10086 WB04T10086 OVEN DOOR GASKET
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB02T10509 WB02T10509 PAN REFLECTOR
WB56T10282 WB56T10282 PANEL ASM BONDED
WB56T10184 WB56T10184 PANEL DRAWER ASM
WB56X28881 WB56X28881 PANEL SIDE (BK)
WB10T10116 WB10T10116 PIN RANGETOP HINGE
WB36T11040 WB36T11040 PLATE END LT (BK)
WB36T11039 WB36T11039 PLATE END RT (BK)
WB48T10062 WB48T10062 RACK OVEN (SC)
WB30T10046 WB30T10046 RADIANT ELEMENT 4400W
WB09T10002 WB09T10002 RADIANT SPRING ELEMENT
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB62T10644 WB62T10644 RANGETOP GLASS ASM
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10178 WB56T10178 RETAINER OVN DR INSLN
WB01T10103 WB01T10103 SCR 10-16 AB HXW .532
WB01T10072 WB01T10072 SCR 10-16 AB IHW .625 NI
WB01T10097 WB01T10097 SCR 10-32 TPT PNT 2.51 S
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01X0537 WB01X0537 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5200 WB01K5200 SCREW
WB1X537 WB1X537 SCREW
WD2X432 WD2X432 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5167 WB1K5167 SCREW 8-18 X 3/8
WB01K5167 WB01K5167 SCREW 8-18 X 3/8""
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01T10047 WB01T10047 SCREW 8-32 X 625 M HXW S
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1137 WB1X1137 SCREW-10AB
WB1X1424D WB1X1424D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB02T10391 WB02T10391 SHIELD HEAT BKGD
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB49T10007 WB49T10007 SIDE REFLECTOR
WB02T10175 WB02T10175 SPACER
WB24T10162 WB24T10162 SWITCH INFINITE CONTROL
WB24T10058 WB24T10058 SWITCH INFINITE CONTROL
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB36T11169 WB36T11169 TRIM & BRACKET ASM
WB07T10516 WB07T10516 TRIM FRT FRM (BK)
WB07T10517 WB07T10517 TRIM LATCH
WB28T10217 WB28T10217 TUBE VNT RADIANT
WB44T10104 WB44T10104 UNIT ASSEMBLY
WB44T10077 WB44T10077 UNIT BROIL ASM (DLX) GE
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB1K5117 WB1K5117 WASHER
WB01K5117 WB01K5117 WASHER .250 ID X .812 OD
WB01T10112 WB01T10112 WASHER ALUM SHAPED
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
