Model Image
Manufacturer

GE

Model Number

JBS04V2WH

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB31M1 WB31M1 6 INCH CHROME BURNER BOWL - EL
WB31M0001 WB31M0001 6"" BOWL BURNER
WB30X0254 WB30X0254 6"" SURFACE ELEMENT
WB32X106 WB32X106 8 INCH CHROME BURNER BOWL - EL
WB31M0002 WB31M0002 8"" BOWL BURNER
WB30X0253 WB30X0253 8"" SURFACE ELEMENT
WB2X7909 WB2X7909 ANTI-TIP RANGE KIT
WB63K5130 WB63K5130 BACK MAIN ASSEMBLY
WB36K5543 WB36K5543 BACKGUARD BODY
WB02K5214 WB02K5214 BACKGUARD SUPPORT-LT
WB02K5213 WB02K5213 BACKGUARD SUPPORT-RT
WB44K5012 WB44K5012 BAKE ELEMENT
WB02K5271 WB02K5271 BASE ASM
WB2K5271 WB2K5271 BASE ASM
WB2K5214 WB2K5214 BKGD SUP LT
WB2K5213 WB2K5213 BKGD SUP RT
WB17X5095 WB17X5095 BLOCK TERMINAL POWER
WB2X9148 WB2X9148 BLOCK-FRONT
WB2X9146 WB2X9146 BLOCK-REAR
WB02X9000 WB02X9000 BODY SIDE CLEAT
WB63K5188 WB63K5188 BODY SIDE-TEXTURED
WB64K5047 WB64K5047 BOTTOM BURN BOX
WB44X0232 WB44X0232 BROIL ELEMENT 240V
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB48M0003 WB48M0003 BROILER PAN
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB44X232 WB44X232 BROILUNT 240
WB2X9001 WB2X9001 C/PNL BKT-L
WB2X9002 WB2X9002 C/PNL BKT-R
WB2X9000 WB2X9000 CLEAT
WB2X9105 WB2X9105 CLIP
WB17X211 WB17X211 CLIP-TERM BK
WB34K5124 WB34K5124 CONT WIRE COVER
WB2X9749 WB2X9749 COVER PLATE
WB34K5123 WB34K5123 COVER WIRE MAINTOP-RA
WB34K5092 WB34K5092 DISCONNECT SHIELD
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB32K5051 WB32K5051 DOOR SEAL
WB58X65 WB58X65 DRAWER
WB56M0003 WB56M0003 DRAWER SUPPORT
WB23M24 WB23M24 EL CTL 1500W
WB23M0024 WB23M0024 ELEMENT CONTROL 1400W
WB23K5027 WB23K5027 ELEMENT CONTROL 2350W
WB63K5127 WB63K5127 FRONT FRAME ASSEMBLY
WB17K5026 WB17K5026 GROUND STRAP
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB14X0103 WB14X0103 HINGE ASM-LT
WB14X0104 WB14X0104 HINGE ASM-RT
WB14X103 WB14X103 HINGE-LEFT
WB14X104 WB14X104 HINGE-RIGHT
WB25X0093 WB25X0093 IND LHT OVN HOT SURFACE
WB25X0094 WB25X0094 INDICATOR LIGHT CAMERA LENS

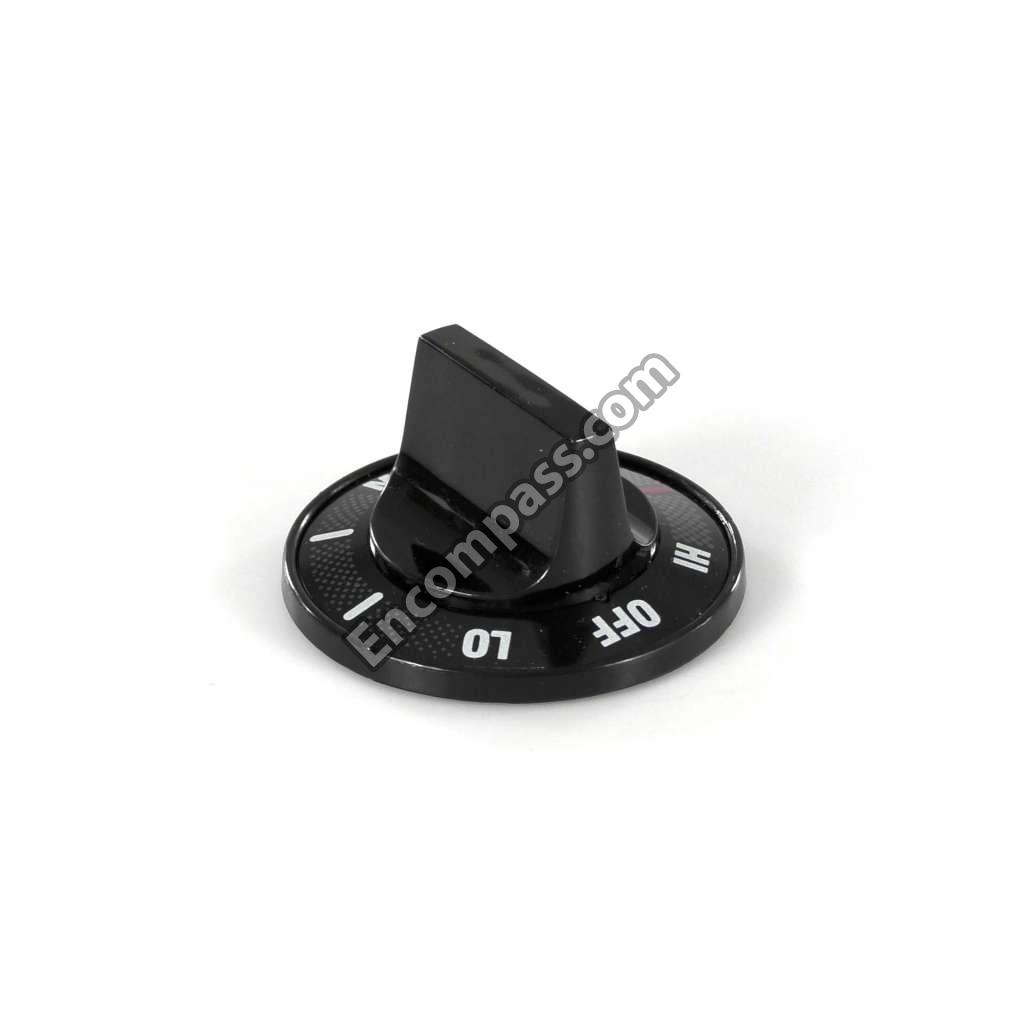

WB3K5240 WB3K5240 INFINIT KNOB
WB03K5240 WB03K5240 INFINITE KNOB-BLACK
WB02K5093 WB02K5093 INS RETAINER-LO
WB02T10077 WB02T10077 INSLN RETAINER-LO
31-10059 31-10059 INSTALLATION INSTRUCTION
WB35K5078 WB35K5078 INSULATION
WB2X9123 WB2X9123 INSULATION D
WB02X9030 WB02X9030 INSULATION RETAINER
WB35K5073 WB35K5073 INSULATION-OV BACK
WB35K5074 WB35K5074 INSULATION-OV BODY
WB3K5291 WB3K5291 KNOB THERMO
WB02X9025 WB02X9025 LEG LEVELER
WB2X9025 WB2X9025 LEG-LEVEL
WB25T10042 WB25T10042 LENS
WB25T10040 WB25T10040 LIGHT INDICATOR
WB34M0027 WB34M0027 LIGHT WIRE COVER
WB56K5021 WB56K5021 LO FRT PANEL ASSEMBLY
WB56K5020 WB56K5020 LO FRT PANEL-WHITE
WB02M0049 WB02M0049 MAIN TOP SPACER
WB62K5071 WB62K5071 MAIN TOP-WHITE
WB18K5554 WB18K5554 MAIN WIRE HARNESS
WB02X9001 WB02X9001 MANIF PANEL BRACKET LT
WB02X9002 WB02X9002 MANIF PNL BRACKET-RT
WB36K5575 WB36K5575 MANIFOLD PANEL
WB32X0105 WB32X0105 MEDALLION
31-13250 31-13250 MINI MANUAL W/WIRE DIAG.
WB02K5212 WB02K5212 MT RETAINER
WB2K5212 WB2K5212 MT RETAINER
WB14X0105 WB14X0105 MT STRIKE
WB2M49 WB2M49 MTOP SPACER
WB02X9192 WB02X9192 OV DR GLASS RETAINER
WB56X1901 WB56X1901 OV DR INNER GLASS
WB02X9191 WB02X9191 OV DR INS RETAINER
WB02X9123 WB02X9123 OV DR INSULATION
WB55M8 WB55M8 OV DR LINING
WB56X1912 WB56X1912 OV DR OUTER GLASS
WB09K5020 WB09K5020 OV DR SPRING
WB9K5020 WB9K5020 OVDR SPRING
WB55M0008 WB55M0008 OVEN DOOR LINING
WB56K5148 WB56K5148 OVEN DOOR PANEL-ALMOND
WB56K5147 WB56K5147 OVEN DOOR PANEL-WHITE
WB08K5042 WB08K5042 OVEN LAMP HOLDER
WB48X0208 WB48X0208 OVEN RACK
WB48M4 WB48M4 OVEN RACK
WB8K5042 WB8K5042 OVLAMP HLDR
49-8580 49-8580 OWNERS MANUAL
WB56T10102 WB56T10102 PANEL FRT LWR ASM
WB02T10054 WB02T10054 PLATE RANGE SERVICE M
WB2X9189 WB2X9189 PLUG BUT REC
WB02X9189 WB02X9189 PLUG BUTTON-RECTANGULAR
WB17M0005 WB17M0005 POWER RING HOUSING
WB15X10225 WB15X10225 RANGE HANDLE
WB02X9427 WB02X9427 RANGE SERVICE MTG PLATE
WB2X9030 WB2X9030 RETAIN-INSUL
WB2X9192 WB2X9192 RETAINER
WB2X9191 WB2X9191 RETAINER
WB02X9105 WB02X9105 RETAINER CLIP
WB01X32746 WB01X32746 SCR ST 8A8 X .625 TR NI
WB01X1186 WB01X1186 SCREW
WB01X1116 WB01X1116 SCREW
WB01X1296 WB01X1296 SCREW
WB01X1131 WB01X1131 SCREW
WB01X1152 WB01X1152 SCREW
WB01X1258 WB01X1258 SCREW
WB01X1172 WB01X1172 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0013 WB01M0013 SCREW
WB01X1164 WB01X1164 SCREW
WB01X1113 WB01X1113 SCREW
WB01M0001 WB01M0001 SCREW
WB1M1 WB1M1 SCREW
WB1X1186 WB1X1186 SCREW
WB1X1164 WB1X1164 SCREW
WB1X1152 WB1X1152 SCREW
WB1X1172 WB1X1172 SCREW
WB1X1116 WB1X1116 SCREW
WB1X1113 WB1X1113 SCREW
WB1X1261 WB1X1261 SCREW
WB1X1258 WB1X1258 SCREW
WB1K5210 WB1K5210 SCREW
WB1X1149 WB1X1149 SCREW 10-16 X 3/8
WD02X0323 WD02X0323 SCREW 8-32 X 3/8 SPH
WB07K5400 WB07K5400 SCREW CAP-BLACK
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01K5191 WB01K5191 SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 SCREW GROUND
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1131 WB1X1131 SCREW-6-32
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1149 WB01X1149 SCREW-BRIGHT NICKEL
WB01X1158 WB01X1158 SCREW-NICKEL
WB01X1174 WB01X1174 SCREW-NICKLE
WD2X323D WD2X323D SCREW-PKG 12
WB1X1424D WB1X1424D SCREW-PKG 12
WB01K5163 WB01K5163 SCREW-WHT
WB1K5163 WB1K5163 SCREW-WHT
WB34K5221 WB34K5221 SHIELD WIRE
WB02X9148 WB02X9148 SLIDE BLOCK FRONT
WB02X9146 WB02X9146 SLIDE BLOCK-REAR
WB01X1177 WB01X1177 SPACER
WB1X1177 WB1X1177 SPACER
WB2X9037 WB2X9037 SPACER-HNDL
WB02X9400 WB02X9400 STABILITY BRACKET KIT
WB31X5021 WB31X5021 STAINLESS STEEL CENTER TRIM FO
WB58X0065 WB58X0065 STORAGE DRAWER
WB14X105 WB14X105 STRIKE
WB2X9719 WB2X9719 SUPP-BROIL
WB56M3 WB56M3 SUPPORT DRWR
WB30X254 WB30X254 SURF UNIT 6
WB30X253 WB30X253 SURF UNIT 8
WB24X415 WB24X415 SWITCH-LITE
WB24X0415 WB24X0415 SWITCH-OVEN LIGHT
WB17X0211 WB17X0211 TERMINAL BLOCK CLIP
WB03K5291 WB03K5291 THERMOSTAT KNOB-BLK
WB20K5031 WB20K5031 THERMOSTAT TOP HEAT SP
WB38K5042 WB38K5042 TUBE VENT ASSEMBLY
WB34K5093 WB34K5093 UPPER WIRE COVER
WB34M0041 WB34M0041 UPPER WIRE SHIELD
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB34M27 WB34M27 WIRE LIT CVR
WB34M41 WB34M41 WIRE SHIELD
WB63K5109 WB63K5109 WRAPPER OV CAV ASSEMBLY
