Model Number

JBS27BH2BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB31T10014 WB31T10014 6 INCH BLACK PORCELAIN BURNER
WB31T10015 WB31T10015 8 INCH BLACK PORCELAIN BURNER
WB31T10011 WB31T10011 8 INCH CHROME BURNER BOWL - EL
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB30X46987 WB30X46987 BAKE ELEMENT
WB56X31458 WB56X31458 BLACK DRAWER PANEL
WB64K10002 WB64K10002 BOX-COOKTOP
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASSEMBLY
WB02K10076 WB02K10076 BRACKET CONTROL
WB37K10004 WB37K10004 BRACKET COOK TOP LF
WB37K10003 WB37K10003 BRACKET COOK TOP RG
WB02K10025 WB02K10025 BRACKET MOUNTING DRAWER
WB02K10029 WB02K10029 BRACKET MTG TERMINAL
WB30X46986 WB30X46986 BROIL ELEMENT
WB25K0002 WB25K0002 CAMERA LENS
WB07K10129 WB07K10129 CAP END DOOR LT (BISQUE)
WB07K10128 WB07K10128 CAP END DOOR RT (BISQUE)
WB2X8228 WB2X8228 CLIP RECEPT
WB02X8228 WB02X8228 CLIP RECEPTACLE
WB2X8441 WB2X8441 CLIP THERMOS
WB02X8441 WB02X8441 CLIP THERMOSTAT
WB02X8115 WB02X8115 CLIP WIRE
WB2X8115 WB2X8115 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB62K10085 WB62K10085 COOKTOP BLACK
WB34K10066 WB34K10066 COVER BACK
WB34K10034 WB34K10034 COVER DRAWER
WB56K5 WB56K5 CRYSTAL WIND
WB56K0005 WB56K0005 CRYSTAL WINDOW
WB34K10032 WB34K10032 DIVIDER WIRING
WB58K10004 WB58K10004 DRAWER BODY
WB02K0043 WB02K0043 DRAWER SUPPORT
WB02K10158 WB02K10158 DRAWER SUPPORT
WB7X7289 WB7X7289 END CAP DOOR
WB7X7290 WB7X7290 END CAP DOOR
WB07X7182 WB07X7182 END CAP DOOR LF (BK)
WB07X7181 WB07X7181 END CAP DOOR RT (BK)
WB07K10193 WB07K10193 END SUPPORT GLOSS BLACK
WB07K10194 WB07K10194 END SUPPORT GLOSS BLACK
WB07K10198 WB07K10198 END SUPPORT LF (BSQT)
WB07K10196 WB07K10196 END SUPPORT LF (WH)
WB07K10197 WB07K10197 END SUPPORT RT (BSQT)
WB07K10195 WB07K10195 END SUPPORT RT (WH)
WB01X0560 WB01X0560 FIBER WASHER
WB63K10012 WB63K10012 FRONT FRAME ASSEMBLY
WB32K0003 WB32K0003 GASKET DOOR ASM
WB35X29720 WB35X29720 GASKET DOOR ASM
WB2K66 WB2K66 GD SUPT RGTP
WB57K2 WB57K2 GLASS DOOR (BLK)
WB57K10087 WB57K10087 GLASS DOOR (BSQT)
WB57K10086 WB57K10086 GLASS DOOR (WH)
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB02K10062 WB02K10062 GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GLIDER DRAWER RIGHT
WB2K8 WB2K8 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB56K10032 WB56K10032 GUARD INSUL
WB56K0006 WB56K0006 GUARD INSULATION
WB63K10009 WB63K10009 GUARD INSULATION BOTTOM
WB34K10029 WB34K10029 GUARD TERMINAL
WB02K0066 WB02K0066 GUIDE SUPPORT RGTP
WB15K10046 WB15K10046 HANDLE ASM (BLK)
WB15K10048 WB15K10048 HANDLE ASM (WH)
WB15K10047 WB15K10047 HANDLE ASSEMBLY
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB2X6195 WB2X6195 HINGE PIN
WB09K10001 WB09K10001 HOOK DOOR SPRING
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB24T10029 WB24T10029 INF SW CNTL 1500W LF RR
WB24T10025 WB24T10025 INF SW CNTL 2600W RF LR
WB35K17 WB35K17 INSUL OV BCK
WB35K11 WB35K11 INSULATION
WB35K0017 WB35K0017 INSULATION OVEN BACK
WB35K0018 WB35K0018 INSULATION OVEN WRAP
WB35K10108 WB35K10108 INSULATION OVEN WRAP
WB27K10167 WB27K10167 KEY PANEL TOD GE
WB17T10006 WB17T10006 KIT SURF TERM BLOCK
WB03T10205 WB03T10205 KNOB GE SU
WB03T10203 WB03T10203 KNOB GE SU BK
WB03T10207 WB03T10207 KNOB GE SU WH

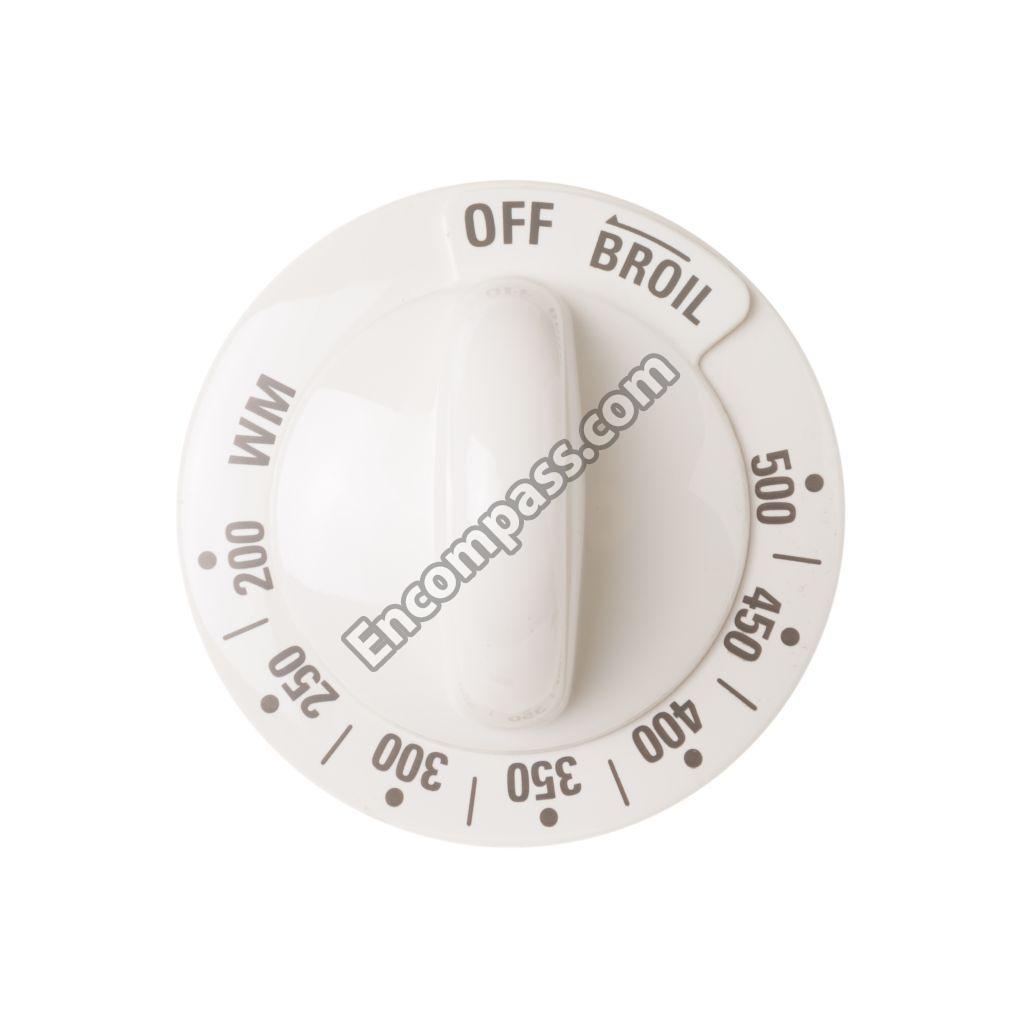

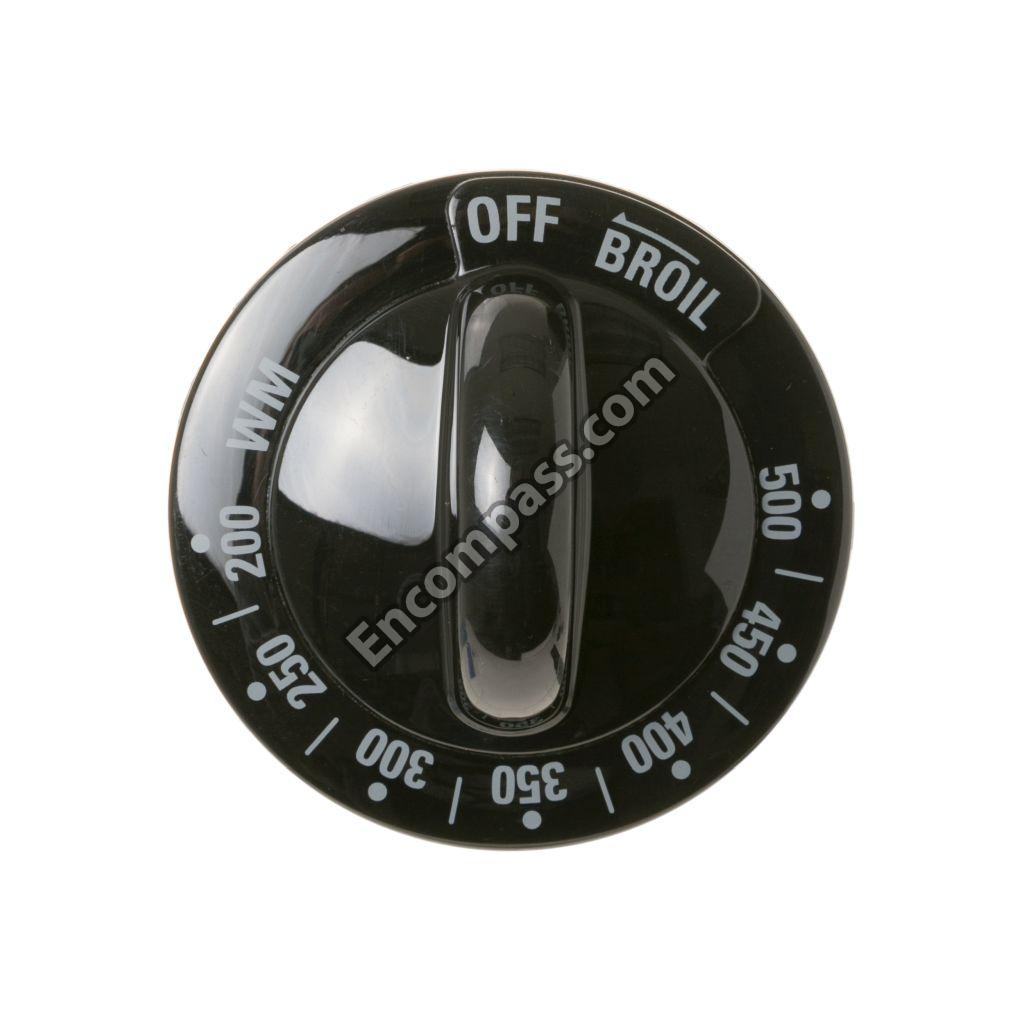

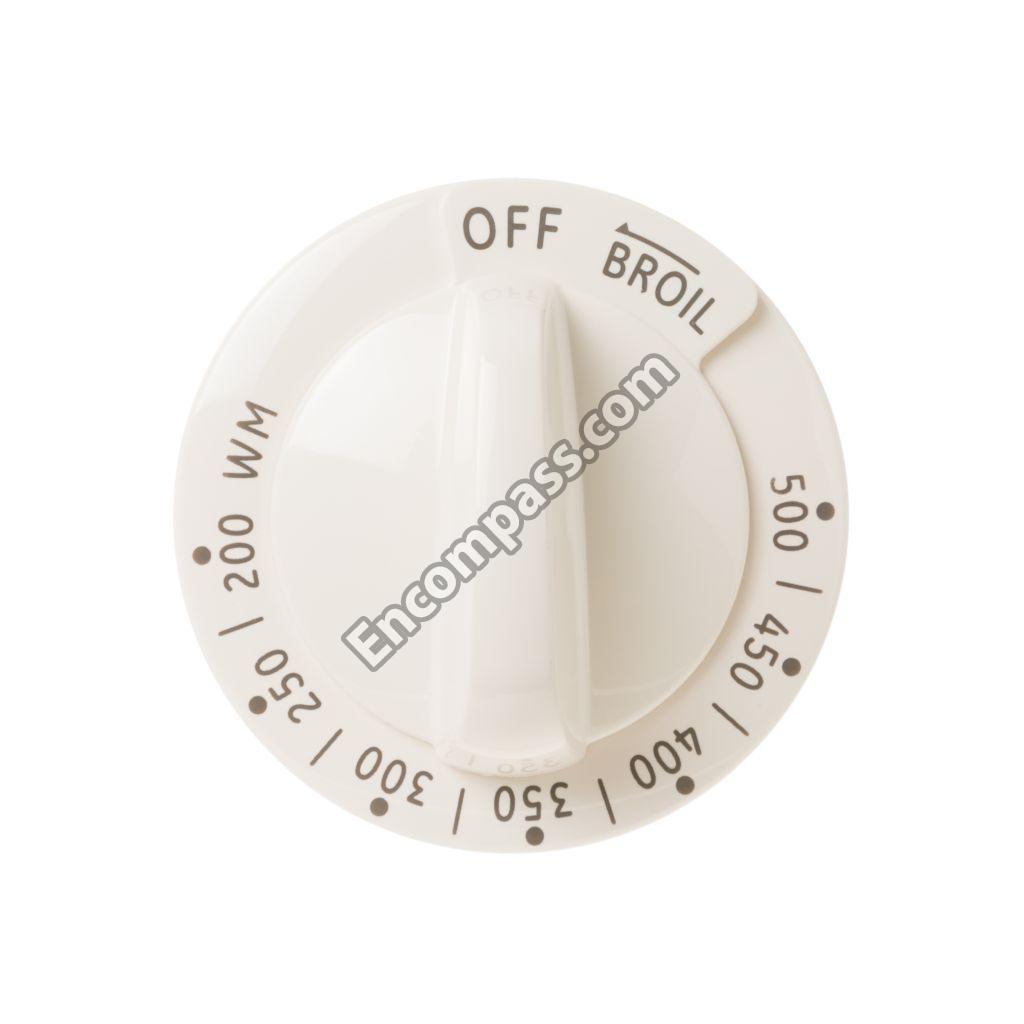

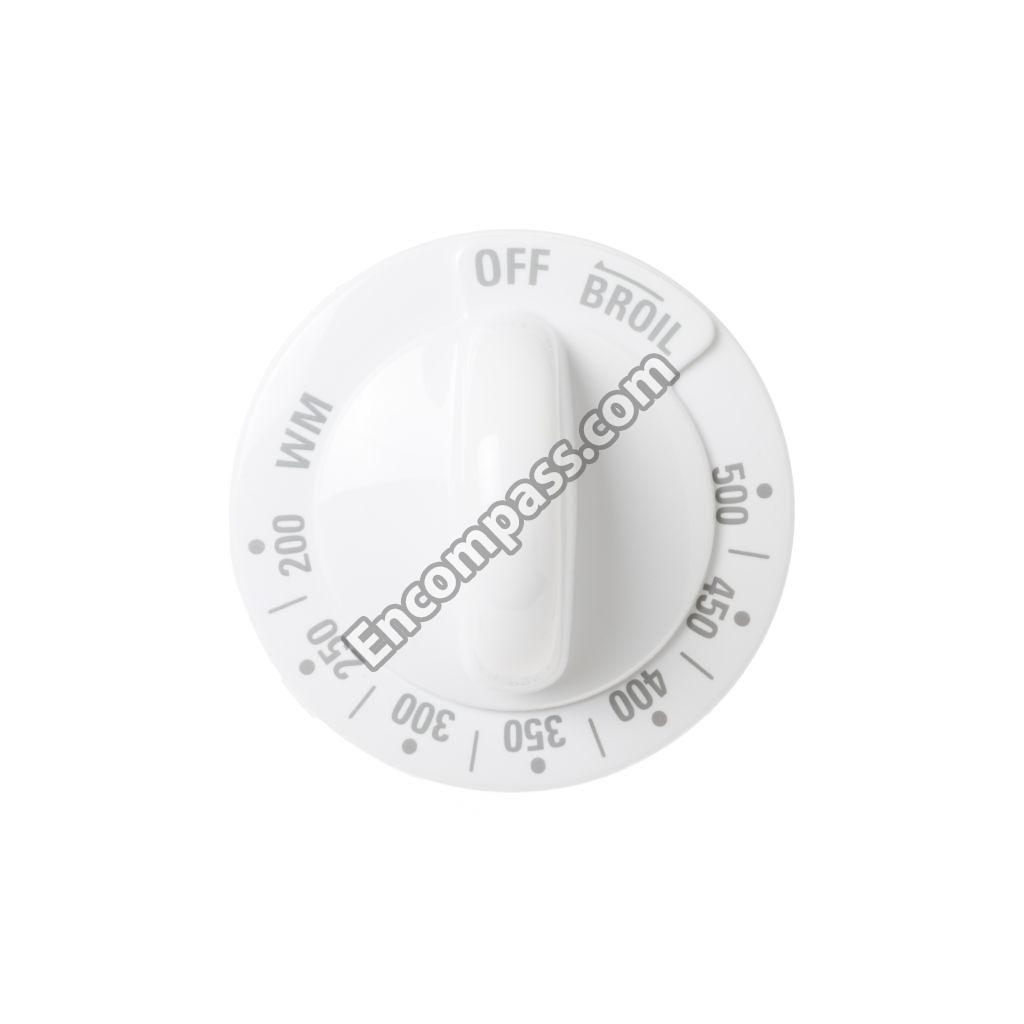

WB03K10170 WB03K10170 KNOB THERMOSTAT ASM. GE
WB03K10228 WB03K10228 KNOB THERMOSTAT ASSEMBLY.
WB03K10160 WB03K10160 KNOB THERMOSTAT ELECT.
WB03K10169 WB03K10169 KNOB THERMOSTAT GE (WH)
WB03K10150 WB03K10150 KNOB THERMOSTAT GE BSQT
WB25K10002 WB25K10002 LAMP PILOT
WB02X10521 WB02X10521 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB55K0021 WB55K0021 LINER ASM WELD DOOR
WB55K21 WB55K21 LINER DOOR
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB63K10007 WB63K10007 OVEN BACK
WB63K10006 WB63K10006 OVEN BOTTOM
WB63K10011 WB63K10011 OVEN SIDE LEFT
WB63K10010 WB63K10010 OVEN SIDE RIGHT
WB63K10021 WB63K10021 OVEN TOP
WB27K10103 WB27K10103 OVERLAY TOD GE (BLACK)
WB48X10056 WB48X10056 PAN BROILER
WB56K10011 WB56K10011 PANEL DRAWER (BISQUE)
WB56K10006 WB56K10006 PANEL DRAWER (BLACK)
WB56X31459 WB56X31459 PANEL DRAWER (WHITE)
WB63K10026 WB63K10026 PANEL SIDE (BISQUE)
WB63K10025 WB63K10025 PANEL SIDE (BLACK)
WB63K10013 WB63K10013 PANEL SIDE (WHITE)
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB02X6195 WB02X6195 PIN HINGE DOOR
WB02K10075 WB02K10075 PIN LOCATOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
WB02X0646 WB02X0646 PLATE-GROUND
31-21111 31-21111 PM MINI-MANUALS ELECT
49-88012 49-88012 PM USE AND CARE MANUAL
WB08T10026 WB08T10026 PUSH-IN RECEPTICLE
WB48T10095 WB48T10095 RACK OVEN
WB39K0016 WB39K0016 RAIL DRAWER
WB63K10005 WB63K10005 RANGE BACK
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB39K16 WB39K16 RANGE DRAWER RAIL
WB36X192 WB36X192 RANGE OVEN BULB COVER
WB10K13 WB10K13 RANGE SUPPORT RIVET
WB62K10079 WB62K10079 RANGE TOP
WB62K10080 WB62K10080 RANGE TOP (WH)
WB35K0033 WB35K0033 REFLECTOR
WB35K33 WB35K33 REFLECTOR
WB2X1082 WB2X1082 RETAINER
WB02X1082 WB02X1082 RING RETAINING
WB24K10011 WB24K10011 ROCKER LIGHT SWITCH (BLACK)
WB02K10026 WB02K10026 ROD SUPPORT
WB01K0021 WB01K0021 SCREW
WB01K0001 WB01K0001 SCREW
WB1K5119 WB1K5119 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1X5716 WB1X5716 SCREW
WB1X536 WB1X536 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5716 WB01X5716 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WB1K69 WB1K69 SCREW 10-16
WB01K0069 WB01K0069 SCREW 10-16 DOOR
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WB01K0070 WB01K0070 SCREW 7-19
WB01K10018 WB01K10018 SCREW 8-18 (BISQUE)
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB1K67 WB1K67 SCREW 8-22
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01X1261 WB01X1261 SCREW GROUND
WB1K62 WB1K62 SCREW HEAD PAINTED BLACK
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K10024 WB01K10024 SCREW MTG END CAP (BISQUE)
WB01K0062 WB01K0062 SCREW MTG END CAP (BK)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01X0558 WB01X0558 SCREW NAIL POINT
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB35K0011 WB35K0011 SIDE INSULATION DOOR
WB02K0002 WB02K0002 SPACER
WB2K2 WB2K2 SPACER
WB09K0001 WB09K0001 SPRING DOOR
WB9K1 WB9K1 SPRING DOOR
WB63K10232 WB63K10232 SUPPORT BASE
WB02K10028 WB02K10028 SUPPORT BROIL
WB10K0014 WB10K0014 SUPPORT RIVET LFT
WB10K0013 WB10K0013 SUPPORT RIVET RT
WB10K14 WB10K14 SUPT RIVET
WB30X24401 WB30X24401 SURFACE UNIT ASSEMBLY 6-INCH
WB30T10074 WB30T10074 SURFACE UNIT ASSEMBLY 8-INCH
WB24K10005 WB24K10005 SWITCH ROCKER (BISQUE)
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB20K10004 WB20K10004 THERMOSTAT TOP HEAT SP
WB27T10469 WB27T10469 TIMER TOD LED
WB07K10232 WB07K10232 TRIM BOTTOM ASM
WB07K10269 WB07K10269 TRIM BOTTOM DOOR (BISQUE)
WB07K0379 WB07K0379 TRIM BOTTOM DOOR (BK)
WB36K10375 WB36K10375 TRIM CONTROL (BLK)
WB36K10376 WB36K10376 TRIM CONTROL (BSQT)
WB36K10406 WB36K10406 TRIM CONTROL (WH)
WB07K10162 WB07K10162 TRIM DOOR LF (BISQUE)
WB07K10120 WB07K10120 TRIM DOOR LF (BLACK)
WB07K10121 WB07K10121 TRIM DOOR LF (BLACK)
WB07K10161 WB07K10161 TRIM DOOR RT (BISQUE)
WB07K10122 WB07K10122 TRIM DOOR RT (WHITE)
WB36K10212 WB36K10212 TRIM TOP DOOR (BISQUE)
WB7K403 WB7K403 TRIM TOP DR
WB07K0403 WB07K0403 TRIM VENT ASM DOOR BLK
WB38K10002 WB38K10002 TUBE-VENT
49-88008 49-88008 USE AND CARE MANUAL
WB04K10002 WB04K10002 VENT COVER
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X560D WB1X560D WASHR-PKG 12
WB1X119D WB1X119D WASHR-PKG 12
