Model Image
Manufacturer

GE

Model Number

JBS55SM8SS

Description

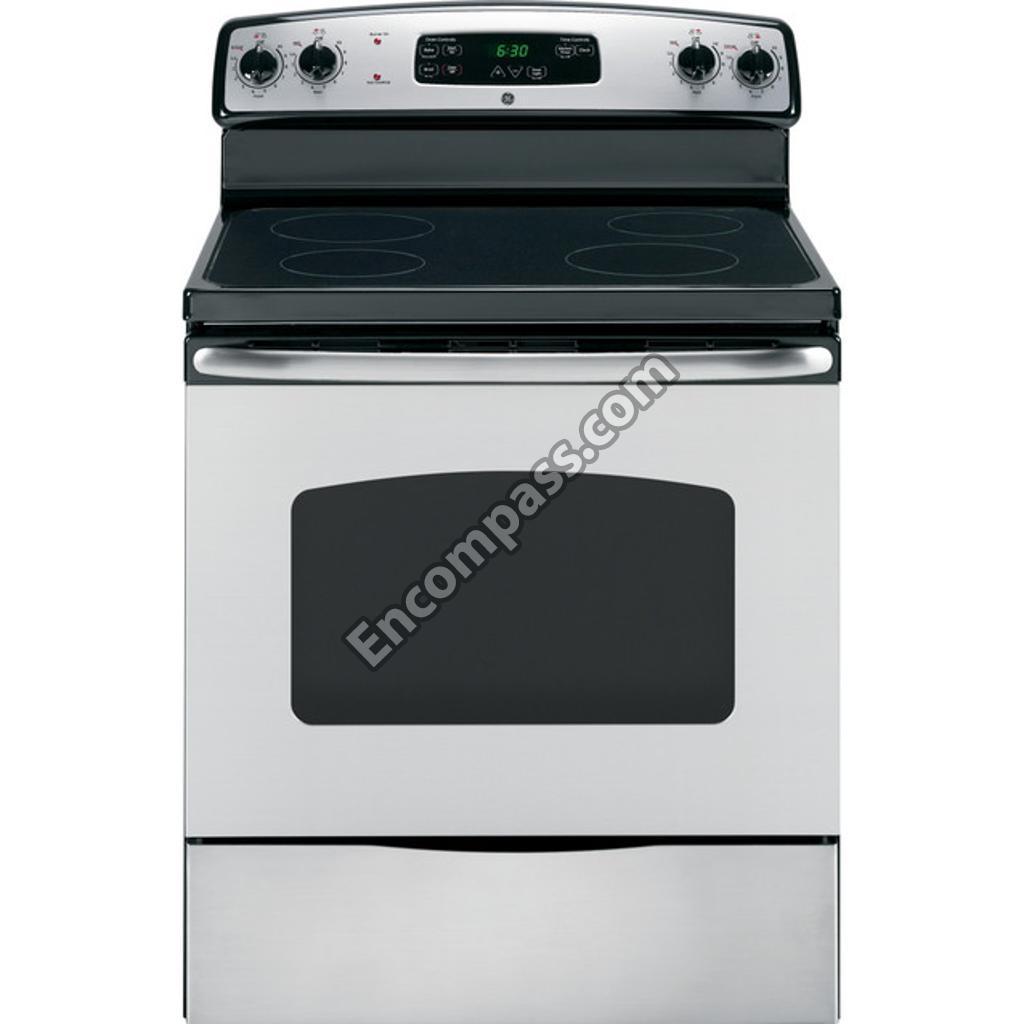

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 GE 28 CERAMA BR
WB1K5200 WB1K5200 GE 340531
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB63T10147 WB63T10147 GE BACK MAIN
WB2X7694 WB2X7694 GE BAIL
WB44X45494 WB44X45494 GE BAKE ELEMENT
WB63X28540 WB63X28540 GE BASE RIVET ASM
WB63X25881 WB63X25881 GE BASE RIVET ASM
WB02T10463 WB02T10463 GE BRACE CHASSIS RADIANT RT
WB02T10578 WB02T10578 GE BRACKET ANTITIP ASM
WB01X27696 WB01X27696 GE BRACKET OVN HDL VNT TRM
WB01X27695 WB01X27695 GE BRACKET OVN HDL VNT TRM
WB34X42027 WB34X42027 GE BRACKET OVN HDL VNT TRM
WB34X42670 WB34X42670 GE BRACKET OVN HDL VNT TRM
WB02T10508 WB02T10508 GE BRACKET RADIANT ELEMENT
WB02T10118 WB02T10118 GE CLIP SEAM OVEN BODY
WB01X0119 WB01X0119 GE CONTOURED WASHER
WB27T11313 WB27T11313 GE CONTROL OVEN TO9 (ELEC)
WB27X45466 WB27X45466 GE CONTROL OVEN TO9 (ELEC)
WB24T10146 WB24T10146 GE CONTROL SURF ELEM
WB24T10145 WB24T10145 GE CONTROL SURF ELEM
WB34T10128 WB34T10128 GE COVER BACK
WB02T10532 WB02T10532 GE COVER CONTROL
WB34T10011 WB34T10011 GE COVER RECEPTACLE
WB01T10026 WB01T10026 GE DOOR PAD
WB55T10178 WB55T10178 GE DRAWER BODY ASM MECH
WB48T10013 WB48T10013 GE DRAWER SUPPORT FRT
WB30T10129 WB30T10129 GE ELEMENT RADIANT 6 IN
WB30T10132 WB30T10132 GE ELEMENT RADIANT 8 IN
WB34T10125 WB34T10125 GE ENCLOSURE RANGETOP
WB27T11428 WB27T11428 GE FACEPLATE GRAPHICS
WB56T10287 WB56T10287 GE FRAME DOOR SIDE (BK)
WB63T10093 WB63T10093 GE FRAME FRONT
WB02T10027 WB02T10027 GE GASKET OVEN LIGHT
WB64X0093 WB64X0093 GE GLASS CLEANER
WB56T10179 WB56T10179 GE GLASS OVN DR (BK)
WB15T10196 WB15T10196 GE HANDLE
WB18T10478 WB18T10478 GE HARNESS WIRE MAINTOP
WB10T10070 WB10T10070 GE HINGE DOOR
WB10T10068 WB10T10068 GE HINGE RECEIVER
31-10617 31-10617 GE INSTRUCTION INSTALL
WB35T10103 WB35T10103 GE INSULATION DOOR
WB35T10116 WB35T10116 GE INSULATION DOOR
WB35T10222 WB35T10222 GE INSULATION OVN BCK & BTM
WB35T10221 WB35T10221 GE INSULATION OVN WRPR
WB03X26320 WB03X26320 GE KNOB INFINITE (BK)
229C5671P002 229C5671P002 GE LABEL WIRE DIAGRAM
WB36X192 WB36X192 GE LAMP COV ASM
WB02X10521 WB02X10521 GE LEG LEVELER
WB25T10041 WB25T10041 GE LENS
WB02X7694 WB02X7694 GE LIGHT CAMERA LENS BAIL
WB27T10626 WB27T10626 GE LIGHT INDICATOR PILOT
WB55T10176 WB55T10176 GE LINER OVEN DOOR ASM
WB02T10026 WB02T10026 GE MAINTOP STRIKE
WB17T10021 WB17T10021 GE MOUNT TERMINAL BLOCK
WB04T10086 WB04T10086 GE OVEN DOOR GASKET
WB02T10037 WB02T10037 GE OVEN LIGHT CUP
WB48T10063 WB48T10063 GE OVEN RACK

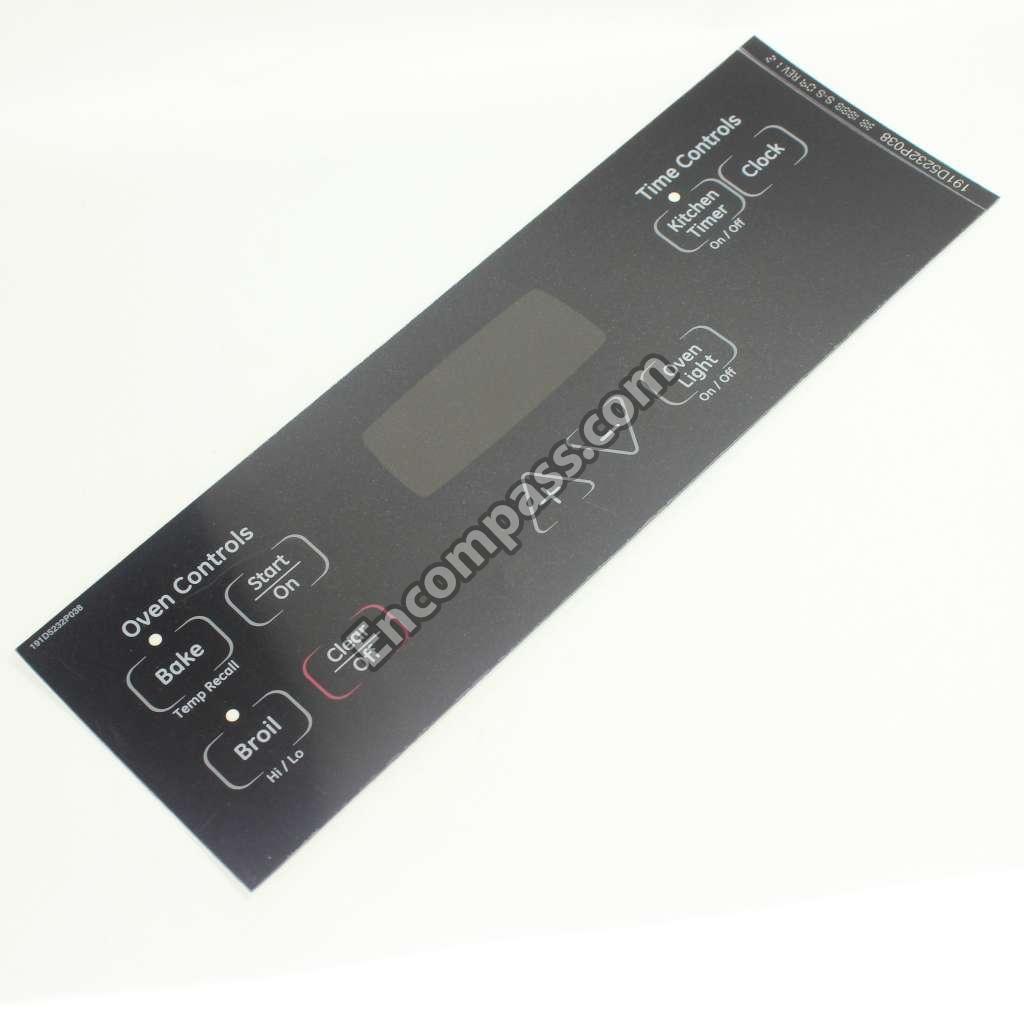

WB56T10324 WB56T10324 GE OVERLAY & PANEL ASM
WB55T10149 WB55T10149 GE PACK WINDOW ASM
WB56T10323 WB56T10323 GE PANEL OVN DR OTR ASM
WB56X28881 WB56X28881 GE PANEL SIDE (BK)
WB10T10116 WB10T10116 GE PIN RANGETOP HINGE
WB36T11040 WB36T11040 GE PLATE END LT (BK)
WB36T11039 WB36T11039 GE PLATE END RT (BK)
31-10816 31-10816 GE PM INSTRUCTIONS INSTALL
31-15024 31-15024 GE PM MANUAL MINI & WD ASM
49-80632 49-80632 GE PM OWNERS MANUAL
WB36X0389 WB36X0389 GE RANGE OVEN BULB COVER
WB34X26004 WB34X26004 GE RANGE RADIANT LEFT CHASSIS BRACE
WB62T10646 WB62T10646 GE RANGETOP GLASS ASM
WB08T10026 WB08T10026 GE RECEPTACLE PUSH-IN
WB56T10178 WB56T10178 GE RETAINER OVN DR INSLN
WB01T10103 WB01T10103 GE SCR 10-16 AB HXW .532
WB01T10097 WB01T10097 GE SCR 10-32 TPT PNT 2.51 S
WS02X10087 WS02X10087 GE SCR 1032 GX HXW 7/16 S
WB02T10324 WB02T10324 GE SCR 6-20 GXB IHXW 3/8 NI
WH02X0941 WH02X0941 GE SCR 8-15 A HXW 7/8 S
WB01X0500 WB01X0500 GE SCR 8-18 B HXW 1/4 S
WB1X5904 WB1X5904 GE SCR 8-18 BA
WB01X5904 WB01X5904 GE SCR 8-18 BA POR 3/4 SN
WR01X10602 WR01X10602 GE SCR 8-32 AB IHWS 3/8 S
WB01X1137 WB01X1137 GE SCREW
WB01M0001 WB01M0001 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WD2X432 WD2X432 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10017 WB01T10017 GE SCREW 8-18 AB IHW 3/8 S NS
WD02X0432 WD02X0432 GE SCREW 8-18 X 5/16 BK
WB01T10053 WB01T10053 GE SCREW 8-32 TPT FLR 270
WB01X1261 WB01X1261 GE SCREW GROUND
WB1X5364 WB1X5364 GE SCREW MTG
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01X1424 WB01X1424 GE SCREW, TRANSFORMER
WB1X1137 WB1X1137 GE SCREW-10AB
WH2X941D WH2X941D GE SCREW-PKG 12
WB1X1424D WB1X1424D GE SCREW-PKG 12
WZ4X245D WZ4X245D GE SCREW-PKG 12
WB1X500D WB1X500D GE SCREW-PKG 12
WB21X22134 WB21X22134 GE SENSOR ASSEMBLY
WB02T10525 WB02T10525 GE SHIELD HEAT BKGD
WB02T10034 WB02T10034 GE SIDE PANEL SUPPORT
WB02T10175 WB02T10175 GE SPACER
WB09X40389 WB09X40389 GE SPRING RADIANT ELEMENT
WB02X33180 WB02X33180 GE SUPPORT REAR
WB17T10011 WB17T10011 GE TERMINAL BLOCK ASSEMBLY
WB07T10459 WB07T10459 GE TRIM LATCH
WB36T11176 WB36T11176 GE TRIM OVERLAY ASM (SS)
WB07T10462 WB07T10462 GE TRIM OVN DR BTTM
WB07X27233 WB07X27233 GE TRIM VENT DOOR
WB38T10030 WB38T10030 GE TUBE VNT ASM
WB28T10217 WB28T10217 GE TUBE VNT RADIANT
WB44T10009 WB44T10009 GE UNIT BROIL A
WB01T10112 WB01T10112 GE WASHER ALUM SHAPED
WB02X32440 WB02X32440 GE WASHER CONTOURED
WB1X119D WB1X119D GE WASHR-PKG 12
WB48T10068 WB48T10068 GE WEDGE DRAWER
WB63X20942 WB63X20942 GE WRAPPER OVEN CAVITY
