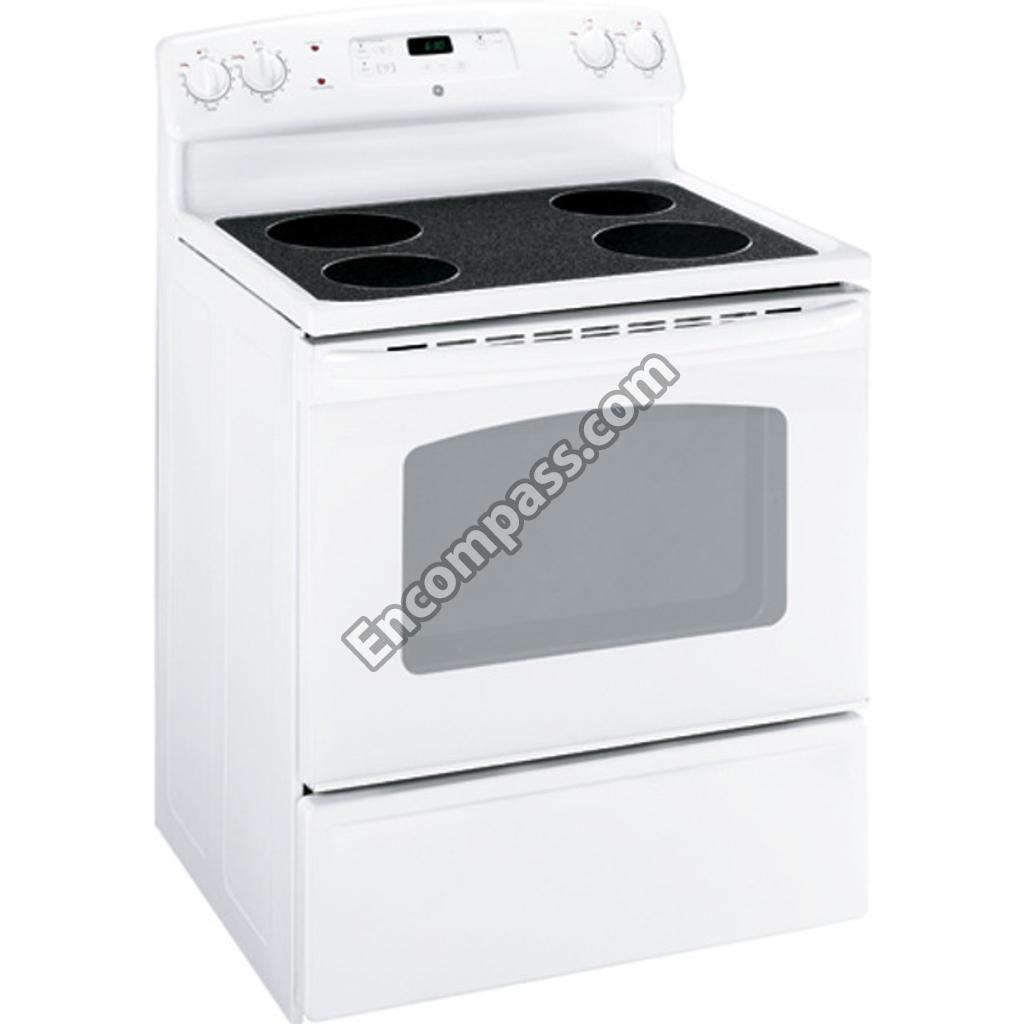

Model Image
Manufacturer

GE

Model Number

JBS56DM1WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02K0027 WB02K0027 BAIL
WB2K27 WB2K27 BAIL
WB30X46987 WB30X46987 BAKE ELEMENT
WB35K0013 WB35K0013 BOTTOM INSULATION DOOR
WB02K10046 WB02K10046 BRACE SIDE HEATER
WB02K10256 WB02K10256 BRACKET ASM ANTI-TIP
WB34K10044 WB34K10044 BRACKET COOKTOP FRONT
WB37K10016 WB37K10016 BRACKET COOKTOP LF
WB37K10015 WB37K10015 BRACKET COOKTOP RT
WB02K10025 WB02K10025 BRACKET MOUNTING DRAWER
WB02K10029 WB02K10029 BRACKET MTG TERMINAL
WB02K10040 WB02K10040 BRACKET VENT
WB30X46986 WB30X46986 BROIL ELEMENT
WB25K0002 WB25K0002 CAMERA LENS
WB02K0031 WB02K0031 CLIP CABLE
WB02X21679 WB02X21679 CLIP CABLE
WB02X8323 WB02X8323 CLIP PUSHON
WB2X8323 WB2X8323 CLIP PUSHON
WB2K22 WB2K22 CLIP WIRE
WB02K0022 WB02K0022 CLIP WIRE
WB01X0119 WB01X0119 CONTOURED WASHER
WB24T10029 WB24T10029 CONTROL INFINITE SWITCH
WB27X45466 WB27X45466 CONTROL OVEN TO9 (GAS)
WB27K10360 WB27K10360 CONTROL T09
WB02K10038 WB02K10038 CORNER BRACE
WB34K10095 WB34K10095 COVER BACK
WB34K10034 WB34K10034 COVER DRAWER
WB56K14 WB56K14 CRYSTAL WIND
WB56K0014 WB56K0014 CRYSTAL WINDOW
WB34K10083 WB34K10083 DIVIDER WIRING
WB58K10004 WB58K10004 DRAWER BODY
WB02K10158 WB02K10158 DRAWER SUPPORT
WB30X26465 WB30X26465 ELEMENT HALIANT 8
WB07X7188 WB07X7188 END CAP DOOR - LF (WH)
WB07X7187 WB07X7187 END CAP DOOR - RH (WH)
WB7X7188 WB7X7188 END CAP-LH
WB7X7187 WB7X7187 END CAP-RH
WB07K10266 WB07K10266 END SUPPORT LF
WB07K10265 WB07K10265 END SUPPORT RT
WB63K10125 WB63K10125 FRAME WELD ASM.
WB32K0003 WB32K0003 GASKET DOOR ASM
WB35X29720 WB35X29720 GASKET DOOR ASM
WB04K10021 WB04K10021 GASKET FRONT FRAME
WB35K10019 WB35K10019 GASKET VENT
WB64X0093 WB64X0093 GLASS CLEANER
WB57K10110 WB57K10110 GLASS OVEN DOOR
WB08K0005 WB08K0005 GLASS OVEN LAMP
WB02K10062 WB02K10062 GLIDER DRAWER LEFT
WB02K10061 WB02K10061 GLIDER DRAWER RIGHT
WB2K8 WB2K8 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB56K10033 WB56K10033 GUARD INSULATION
WB63K10009 WB63K10009 GUARD INSULATION BOTTOM
WB34K10029 WB34K10029 GUARD TERMINAL
WB30X38928 WB30X38928 HALIANT ELEMENT 6 CERSP
WB15K10109 WB15K10109 HANDLE SERVICE KIT
WB10K0012 WB10K0012 HINGE ASM GUIDE
WB2X6195 WB2X6195 HINGE PIN
WB09K10001 WB09K10001 HOOK DOOR SPRING
WB8K1 WB8K1 HOUS RECEPTL
WB08K0001 WB08K0001 HOUSING RECEPTACLE
WB24T10027 WB24T10027 INF SW CTN (2100W)
WB35K17 WB35K17 INSUL OV BCK
WB35K11 WB35K11 INSULATION
WB35K12 WB35K12 INSULATION **NLA*
WB35K0017 WB35K0017 INSULATION OVEN BACK
WB35K0018 WB35K0018 INSULATION OVEN WRAP
WB35K10108 WB35K10108 INSULATION OVEN WRAP
WB35K0014 WB35K0014 INSULATION TOP DOOR
WB35K10018 WB35K10018 INSULATION-VENT
WB03T10282 WB03T10282 KNOB INFINITE (WH)
WB25K10002 WB25K10002 LAMP PILOT
WB02X10521 WB02X10521 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB55K10037 WB55K10037 LINER ASM WELD DOOR
WB01K0003 WB01K0003 NUT SPEED
WB1K3 WB1K3 NUT SPEED
WB53K10007 WB53K10007 OVEN BACK
WB63K10006 WB63K10006 OVEN BOTTOM
WB63K10011 WB63K10011 OVEN SIDE LEFT
WB63K10010 WB63K10010 OVEN SIDE RIGHT
WB63K10023 WB63K10023 OVEN TOP
WB27K10256 WB27K10256 OVERLAY T09
WB02K10098 WB02K10098 PAD
WB02K0062 WB02K0062 PAD FELT (2"")
WB2K62 WB2K62 PAD FELT 2
WB56X31459 WB56X31459 PANEL DRAWER (WHITE)
WB63K10122 WB63K10122 PANEL SIDE
WB14K0005 WB14K0005 PIN HINGE
WB14K5 WB14K5 PIN HINGE
WB02X6195 WB02X6195 PIN HINGE DOOR
WB02K10075 WB02K10075 PIN LOCATOR
WB2K17 WB2K17 PIN LOCATOR
WB02K0017 WB02K0017 PIN LOCATOR FRONT
WB02X0646 WB02X0646 PLATE-GROUND
31-21351 31-21351 PM MIN I-MANUAL
49-88029 49-88029 PM USE AND CARE MANUAL
WB08T10026 WB08T10026 PUSH-IN RECEPTACLE
WB48T10095 WB48T10095 RACK OVEN
WB39K0016 WB39K0016 RAIL DRAWER
WB63K10005 WB63K10005 RANGE BACK
WB63K10233 WB63K10233 RANGE BASE SUPPORT
WB10K12 WB10K12 RANGE DOOR HINGE ASSEMBLY
WB39K16 WB39K16 RANGE DRAWER RAIL
WB36X192 WB36X192 RANGE OVEN BULB COVER
WB57K10097 WB57K10097 RANGE TOP AND GLASS ASM
WB2X1082 WB2X1082 RETAINER
WB02X1082 WB02X1082 RING RETAINING
WB02K10039 WB02K10039 RING VENT
WB01K10073 WB01K10073 SCR 10-16PL PNT 2.22S
WB01K0021 WB01K0021 SCREW
WB01K0001 WB01K0001 SCREW
WB1K5119 WB1K5119 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WB01K0042 WB01K0042 SCREW (BLK)
WB01X5364 WB01X5364 SCREW (CR)
WB1K66 WB1K66 SCREW (WH)/ NLA PER GE
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB01K10012 WB01K10012 SCREW 8-22 PL 1HX 71
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01X1261 WB01X1261 SCREW GROUND
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WB01K0066 WB01K0066 SCREW MTG END CAP (WH)
WB01K0053 WB01K0053 SCREW MTG HINGE (TORX)
WB01X0558 WB01X0558 SCREW NAIL POINT
WB01X5874 WB01X5874 SCREW WH
WB01K10004 WB01K10004 SCREW-MTG END CAP (WHITE )
WB1X558D WB1X558D SCREW-PKG 12
WZ4X345D WZ4X345D SCREWS - 12 PACK
WB23X5340 WB23X5340 SENSOR-OVEN
WB35K0011 WB35K0011 SIDE INSULATION DOOR
WB02K10156 WB02K10156 SPACER
WB9X5119 WB9X5119 SPRG HTR MTG
WB09K0001 WB09K0001 SPRING DOOR
WB9K1 WB9K1 SPRING DOOR
WB09X5119 WB09X5119 SPRING HEATER MTG
WB02X8377 WB02X8377 STUD HEATER MOUNT
WB2X8377 WB2X8377 STUD HTR MT
WB10K10007 WB10K10007 SUPPORT ASM RIVET LF
WB10K10008 WB10K10008 SUPPORT ASM RIVET RT
WB63K10232 WB63K10232 SUPPORT BASE
WB02K10045 WB02K10045 SUPPORT BOTTOM HEATER
WB02K10028 WB02K10028 SUPPORT BROIL
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB35K14 WB35K14 TOP INSULATI
WB07K10250 WB07K10250 TRIM BOTTOM ASM
WB36K10691 WB36K10691 TRIM CONTROL
WB07K10253 WB07K10253 TRIM POST LF WH
WB07K10254 WB07K10254 TRIM POST RT WH
WB07K0400 WB07K0400 TRIM TOP DOOR (WH)
WB7K400 WB7K400 TRIM TOP DR
WB38K10003 WB38K10003 VENT ASM
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
