Model Image
Manufacturer

GE

Model Number

JBS60RK9SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB02T10578 WB02T10578 ANTI-TIP BRACKET ASM
WB34X28565 WB34X28565 BACKGUARD SHIELD HEAT
WB44X45494 WB44X45494 BAKE ELEMENT
WB03X24904 WB03X24904 BLACK INFINITE KNOB
WB17X38438 WB17X38438 BLOCK TERMINAL ASM
WB34X42027 WB34X42027 BRACKET DOOR TRIM RH
WB02X20901 WB02X20901 BRACKET RADIANT ELEMENT
WB02T10480 WB02T10480 BRACKET RADIANT ELEMENT
WB02X20902 WB02X20902 BRACKET RADIANT ELEMENT
WB02T10609 WB02T10609 BRACKET RADIANT ELEMENT
WB44X45497 WB44X45497 BROIL ELEMENT
WB25X24023 WB25X24023 CAMERA LENS
WB02X45146 WB02X45146 CLIP CABLE
WB02T10118 WB02T10118 CLIP SEAM OVEN BODY
WB01X0119 WB01X0119 CONTOURED WASHER
WB27X45467 WB27X45467 CONTROL OVEN TO9 (ELEC)
WB34X29564 WB34X29564 CONTROL PANEL BACK COVER
WB34X31189 WB34X31189 CONTROL PANEL BRACKET
WB24T10146 WB24T10146 CONTROL SURF ELEM
WB56X43419 WB56X43419 DOOR FRAME SIDE BLACK
WB07X42968 WB07X42968 DOOR GAP FILLER
WB34X42670 WB34X42670 DOOR HANDLE BRACKET LH
WB10X29280 WB10X29280 DOOR HINGE ASM
WB01T10026 WB01T10026 DOOR PAD
WB63X29070 WB63X29070 DRAWER BODY ASM
WB56X43407 WB56X43407 DRAWER PANEL
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB02X29072 WB02X29072 DRAWER WEDGE
WB30T10145 WB30T10145 ELEMENT RADIANT 5.5 IN
WB30T10132 WB30T10132 ELEMENT RADIANT 8 IN
WB30X24111 WB30X24111 ELEMENT RADIANT 9"" DUAL
WB07X27830 WB07X27830 END PLATE LT BK
WB07X27826 WB07X27826 END PLATE RT BK
WB07X26634 WB07X26634 FACEPLATE GRAPHICS (BK)
WB02X29479 WB02X29479 FLAT BADGE ASM
WB04T10086 WB04T10086 GASKET OVEN
WB64X0093 WB64X0093 GLASS CLEANER
WB25X42688 WB25X42688 HALOGEN LAMP ASSEMBLY
WB15X42631 WB15X42631 HANDLE & ENDCAP ASM (SS)
WB10X29566 WB10X29566 HINGE RECEIVER
WB27T10668 WB27T10668 HOT COOKTOP LIGHT INDICATOR
WB24T10022 WB24T10022 INF SWITCH CONTROL 1250W
31-10617 31-10617 INSTRUCTION INSTALL
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10116 WB35T10116 INSULATION DOOR
WB25T10102 WB25T10102 LAMP HALOGEN BULB G9
WB18X30705 WB18X30705 LEAD WIRE 14 GA GN
WB02X10521 WB02X10521 LEG LEVELER
WB25X20005 WB25X20005 LIGHT INDICATOR PILOT
WB55T10200 WB55T10200 LINER OVEN DOOR ASM (GY)
WB34X32059 WB34X32059 MAIN BACK COVER

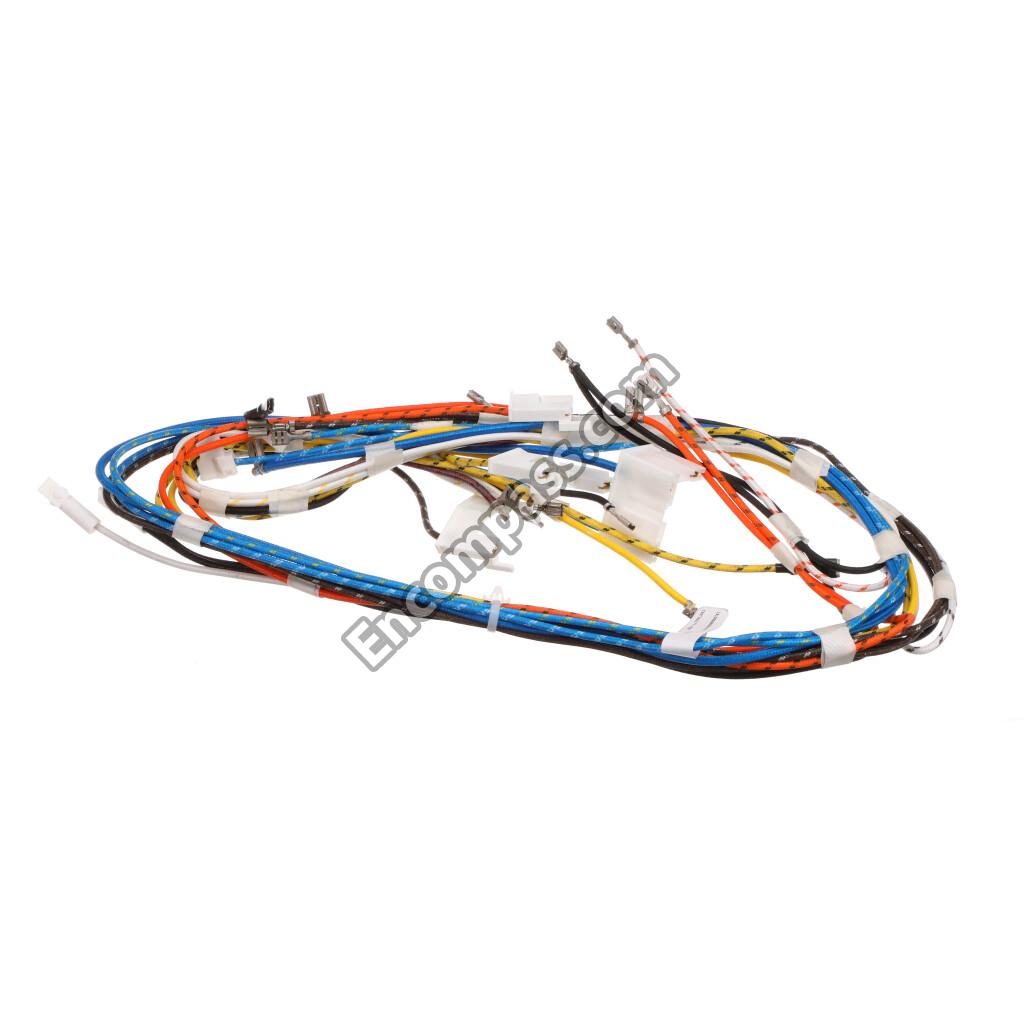

WB18X31230 WB18X31230 MAINTOP AND INFINITE SWITCH HARNESS
WB02T10026 WB02T10026 MAINTOP STRIKE
WB56X43422 WB56X43422 OUTER DOOR-STAINLESS
WB35X29586 WB35X29586 OVEN BACK INSULATION
WB35X29568 WB35X29568 OVEN BOTTOM INSULATION
WB35X29585 WB35X29585 OVEN CAVITY INSULATION

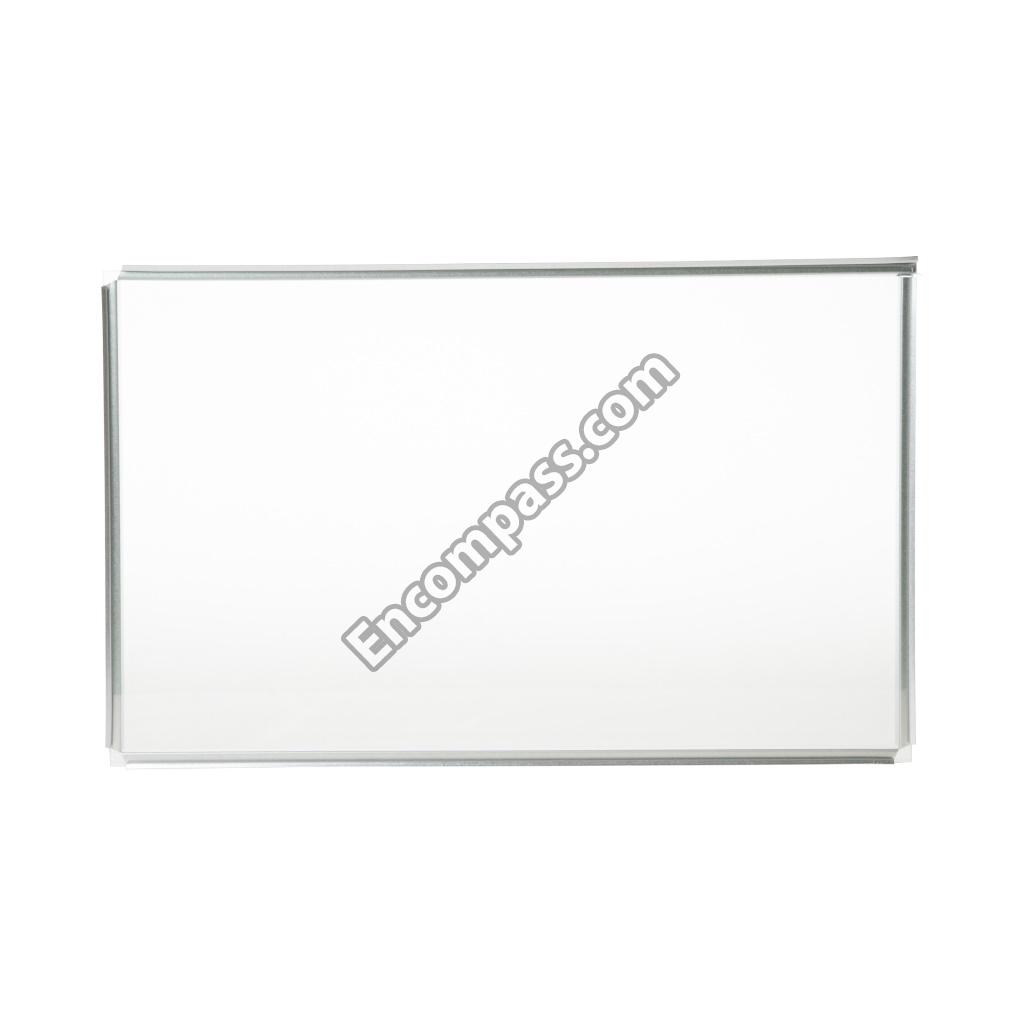

WB55X24938 WB55X24938 PACK WINDOW ASM
31-10781 31-10781 PM INSTALL INSTRUCTIONS
31-2000870 31-2000870 PM MINI MANUAL AND WIRING
49-2000951 49-2000951 PM OWNERS MANUAL
WB48T10063 WB48T10063 RACK OVEN
WB34X26630 WB34X26630 RANGETOP ENCLOSURE
WB62X20903 WB62X20903 RANGETOP GLASS ASM (BK)
WB02X33180 WB02X33180 REAR SUPPORT
WB56T10178 WB56T10178 RETAINER OVN DR INSLN
WB02X24268 WB02X24268 SCR 10-32 CA TRT15 3.06
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01T10126 WB01T10126 SCR 8-18 AB HXW 1/2 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X23501 WB01X23501 SCR 8-32 TT FLP .270
WB01K5200 WB01K5200 SCREW
WB01M10002 WB01M10002 SCREW
WB1K5157 WB1K5157 SCREW
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01K0060 WB01K0060 SCREW 8-18 (BK) 1/2 S
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB21X22134 WB21X22134 SENSOR ASM
WB56X28881 WB56X28881 SIDE PANEL BK
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02X38986 WB02X38986 SPACER
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB07X36125 WB07X36125 STAINLESS CONTROL PANEL TRIM
WB24X25013 WB24X25013 SWITCH INFINITE CONTROL
WB34X29565 WB34X29565 TERMINAL BLOCK MOUNT
WB07T10459 WB07T10459 TRIM DOOR LATCH
WB38T10030 WB38T10030 TUBE VNT ASM
WB34X29573 WB34X29573 VENT TUBE
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB34X29563 WB34X29563 WIRE COVER BACK
