Model Image
Manufacturer

GE

Model Number

JCB710SM2SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB63T10147 WB63T10147 BACK MAIN
WB2X7694 WB2X7694 BAIL
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10416 WB02T10416 BRACKET ANTI-TIP ASSEMBLY
WB02T10137 WB02T10137 BRACKET ASM ANTI TIP
WB02T10397 WB02T10397 BRACKET RADIANT ELEMENT
WB02T10279 WB02T10279 BRACKET RADIANT ELEMENT
WB02T10464 WB02T10464 BRACKET RADIANT ELEMENT
WB02T10486 WB02T10486 BRACKET RADIANT ELEMENT
WB08T10033 WB08T10033 BREAKER RECEPTACLE
PM10X310 PM10X310 CERAMABRYTE COOKTOP CLEANER - 28 OZ.
WX10X300 WX10X300 CLEANER GLASS
WB02X45146 WB02X45146 CLIP CABLE
WB01X0119 WB01X0119 CONTOURED WASHER
WB27T11311 WB27T11311 CONTROL OVEN T09
WB27X45466 WB27X45466 CONTROL OVEN T09
WB24T10145 WB24T10145 CONTROL SURF ELEM
WB34T10128 WB34T10128 COVER BACK
WB02T10532 WB02T10532 COVER CONTROL
WB34T10011 WB34T10011 COVER RECEPTACLE
WB56T10063 WB56T10063 DOOR FRAME
WB56T10201 WB56T10201 DOOR PANEL W/SS ASM
WB55T10178 WB55T10178 DRAWER BODY ASM MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB30T10130 WB30T10130 ELEMENT HALIANT 12 IN
WB30T10131 WB30T10131 ELEMENT HALIANT 8 IN
WB30T10124 WB30T10124 ELEMENT RADIANT 6 WARMER
WB34T10023 WB34T10023 ENCLOSURE RANGETOP
WB27T11026 WB27T11026 FACEPLATE GRAPHICS (BLACK)
WB56T10287 WB56T10287 FRAME DOOR SIDE (BK)
WB63T10093 WB63T10093 FRAME FRONT
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB57T10233 WB57T10233 GLASS OVN DR INR
WB02T10275 WB02T10275 GUARD INSLN SDE
WB15T10163 WB15T10163 HANDLE SS
WB10T10072 WB10T10072 HINGE ASM
WB10T10068 WB10T10068 HINGE RECEIVER
31-10679 31-10679 INSTRUCTION INSTALL
31-10617 31-10617 INSTRUCTION INSTALL
WB35T10077 WB35T10077 INSULATION DOOR
WB35T10114 WB35T10114 INSULATION DOOR
WB35T10115 WB35T10115 INSULATION DOOR
WB35T10113 WB35T10113 INSULATION OVN BACK/BTTM
WB35T10209 WB35T10209 INSULATION OVN WRPR
WB03X26320 WB03X26320 KNOB INFINITE (BK)
WB36X192 WB36X192 LAMP COV ASM
WB14T10054 WB14T10054 LATCH AND HANDLE ASSEMBLY
WB02X10521 WB02X10521 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB25T10042 WB25T10042 LENS
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB27T10628 WB27T10628 LIGHT INDICATOR
WB25T10040 WB25T10040 LIGHT INDICATOR
WB27T10668 WB27T10668 LIGHT INDICATOR
WB55T10174 WB55T10174 LINER OVEN DOOR ASM
WB02T10026 WB02T10026 MAINTOP STRIKE
31-14655 31-14655 MANUAL MINI & WD ASM
29-5624 29-5624 MANUAL USE & CARE
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB04T10086 WB04T10086 OVEN DOOR GASKET
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB48T10011 WB48T10011 OVEN RACK
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB56T10184 WB56T10184 PANEL DRAWER ASM
WB56X28881 WB56X28881 PANEL SIDE (BK)
WB10T10116 WB10T10116 PIN RANGETOP HINGE
WB36T11040 WB36T11040 PLATE END LT (BK)
WB36T11039 WB36T11039 PLATE END RT (BK)
WB09T10002 WB09T10002 RADIANT SPRING ELEMENT
WB30T10129 WB30T10129 RANGE 6-INCH RADIANT SURFACE ELEMENT
WX09X10035 WX09X10035 RANGE CORD 4' 3 PRONG
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB34X26004 WB34X26004 RANGE RADIANT LEFT CHASSIS BRACE
WB62T10648 WB62T10648 RANGETOP GLASS ASM
WB08T10032 WB08T10032 RECEPTACLE (BK)
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB18T10352 WB18T10352 RELAY
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10178 WB56T10178 RETAINER OVN DR INSLN
WB01T10103 WB01T10103 SCR 10-16 AB HXW .532
WB01T10097 WB01T10097 SCR 10-32 TPT PNT 2.51 S
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5200 WB01K5200 SCREW
WB01X0537 WB01X0537 SCREW
WB1X536 WB1X536 SCREW
WD2X432 WD2X432 SCREW
WB1X537 WB1X537 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1425 WB01X1425 SCREW ST8ABX.250RD NI
WB1X1137 WB1X1137 SCREW-10AB
WH2X941D WH2X941D SCREW-PKG 12
WZ4X245D WZ4X245D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB1X1425 WB1X1425 SCW 8ABX.250
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB02T10391 WB02T10391 SHIELD HEAT BKGD
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10175 WB02T10175 SPACER
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB02X33180 WB02X33180 SUPPORT REAR
WB24T10058 WB24T10058 SWITCH INFINITE CONTROL
WB24T10153 WB24T10153 SWITCH INFINITE CONTROL
WB01T10052 WB01T10052 TAPE FOAM
WB01T10055 WB01T10055 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB36T11101 WB36T11101 TRIM AND BRACKET ASSEMBLY
WB7X7175 WB7X7175 TRIM LATCH
WB07X7175 WB07X7175 TRIM LATCH
WB07T10495 WB07T10495 TRIM OVN DR VNT (GE-BK)
WB28T10217 WB28T10217 TUBE VNT RADIANT
WB44T10011 WB44T10011 UNIT BAKE AS

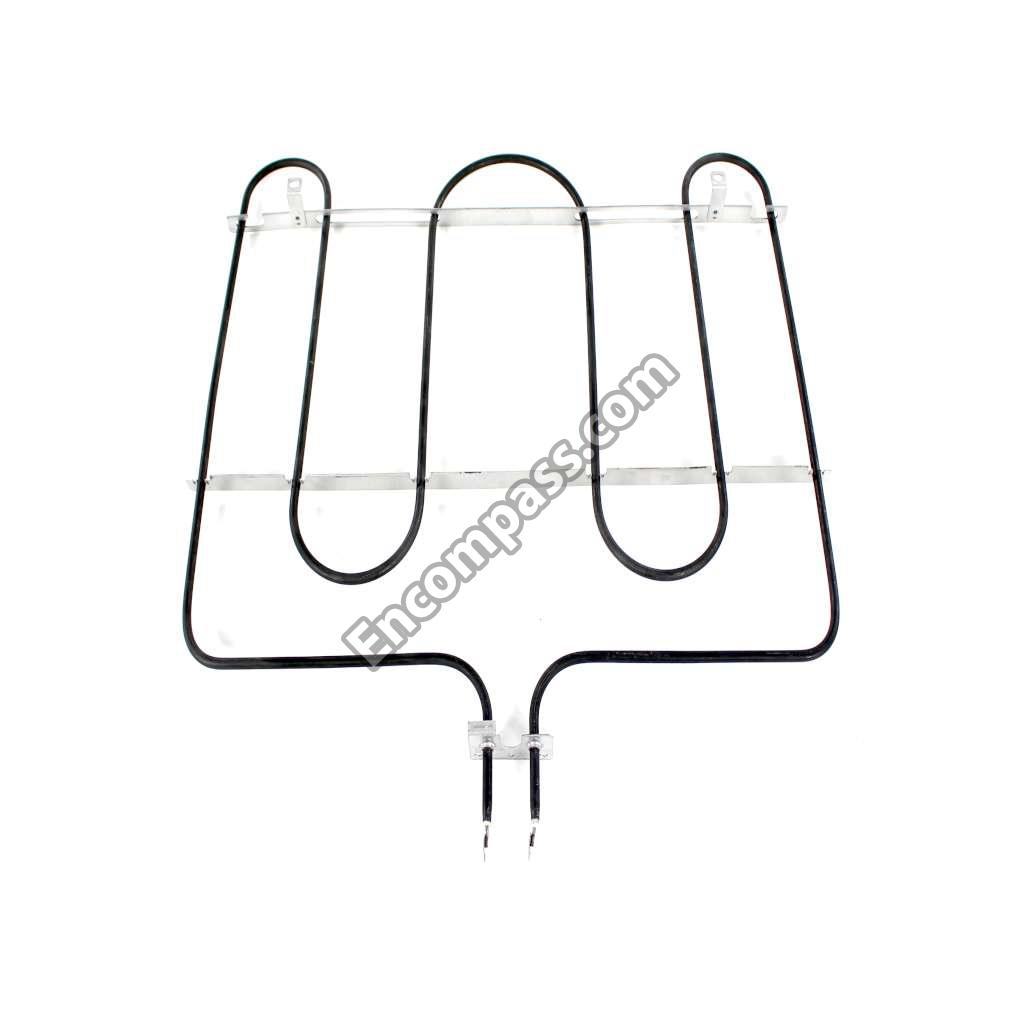

WB44T10094 WB44T10094 UNIT BROIL ASM
WB44T10077 WB44T10077 UNIT BROIL ASM (DLX) GE
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01T10112 WB01T10112 WASHER ALUM SHAPED
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB48T10068 WB48T10068 WEDGE DRAWER
WB63X20942 WB63X20942 WRAPPER OVEN CAVITY
