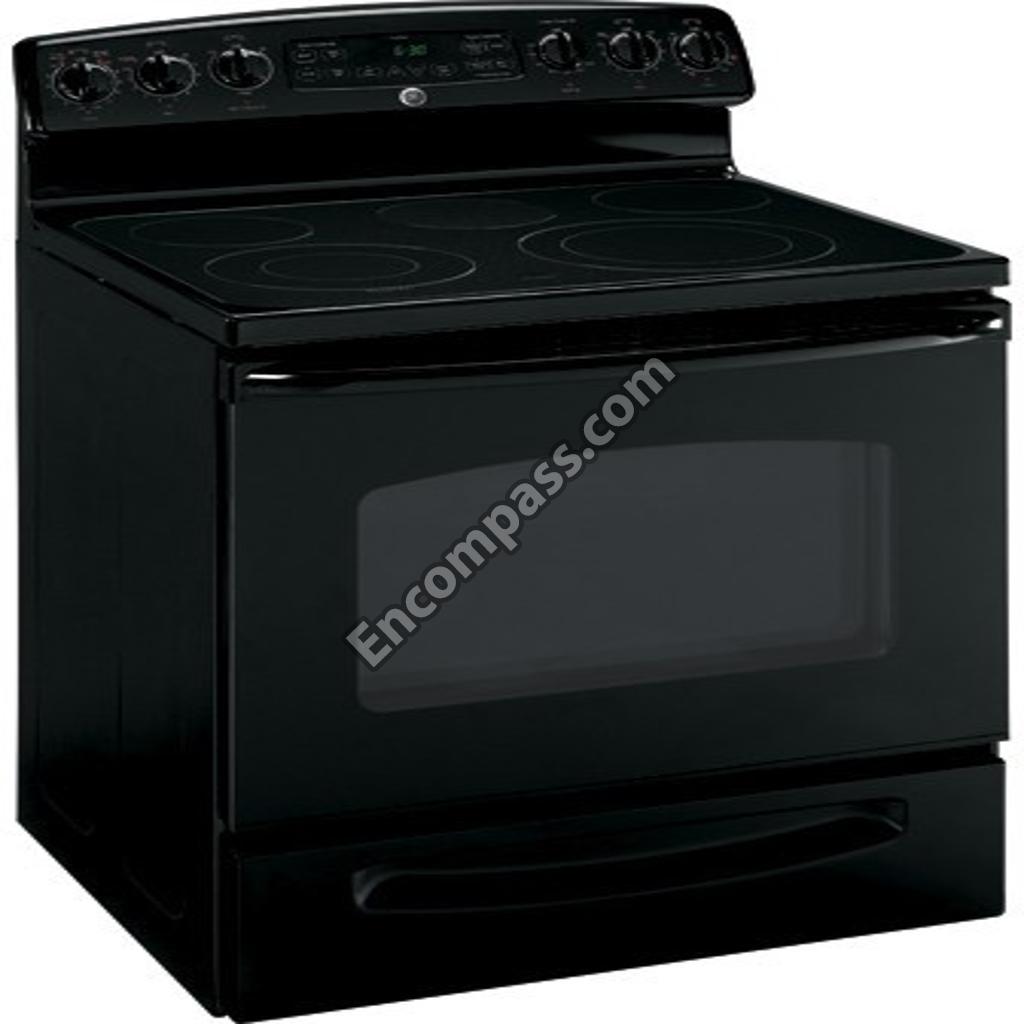

Model Image
Manufacturer

GE

Model Number

JCBP81DP1BB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP
WB02T10359 WB02T10359 BADGE GE
WB2K27 WB2K27 BAIL
WB02K10100 WB02K10100 BKT DOOR INNER
WB58K10005 WB58K10005 BODY-DRAWER
WB37K10008 WB37K10008 BRACKET COVER SLOT
WB02K10052 WB02K10052 BRACKET MTG TERMINAL
WB02K10040 WB02K10040 BRACKET VENT
WB02K10178 WB02K10178 BUMPER
WB7K264 WB7K264 CAP END DR
WB7K263 WB7K263 CAP END DR
WB37K10007 WB37K10007 CIRCUIT BREAKER
WB02K10023 WB02K10023 CLAMP-HEAT ELEMENT
WB02X21679 WB02X21679 CLIP WIRE
WB2K22 WB2K22 CLIP WIRE
WB24T10029 WB24T10029 CONTROL INFINITE SWITCH
WB27K10348 WB27K10348 CONTROL OVEN TO9 (ELEC)
WB02K10097 WB02K10097 COVER BRKT Z
WB55K10020 WB55K10020 COVER DRAWER
WB56K10021 WB56K10021 CRYSTAL WINDOW
WB39K10021 WB39K10021 DRAWER SLIDE ASSEMBLY LEFT
WB39K10020 WB39K10020 DRAWER SLIDE ASSEMBLY RIGHT
WB30T10130 WB30T10130 ELEMENT HALIANT 12 IN
WB30T10124 WB30T10124 ELEMENT RADIANT 6 WARMER
WB30T10133 WB30T10133 ELEMENT RADIANT 9 DUAL
WB63K10047 WB63K10047 FRAME WELD ASM
WB35X29668 WB35X29668 GASKET ASM DOOR
WB04K10014 WB04K10014 GASKET DRAWER ASM.
WB04K10021 WB04K10021 GASKET FRONT FRAME
WB32K5 WB32K5 GASKET OV LT
WB35K10019 WB35K10019 GASKET VENT
WB57K10109 WB57K10109 GLASS OVEN DOOR (BK)
WB2K8 WB2K8 GROMMET
WB2X646 WB2X646 GROUND PLATE
WB53K11 WB53K11 GUARD INS RH
WB56K12 WB56K12 GUARD INSUL
WB53K12 WB53K12 GUARD INSUL
WB34K10029 WB34K10029 GUARD TERMINAL
WB63X23859 WB63X23859 GUIDE SLIDE DRAWER
WB15T10161 WB15T10161 HANDLE - BLACK
WB44K10011 WB44K10011 HEATING ELEMENT
WB10K12 WB10K12 HINGE ASM GD
WB2X6195 WB2X6195 HINGE PIN
WB09K10001 WB09K10001 HOOK DOOR SPRING
WB8K1 WB8K1 HOUS RECEPTL
WB35K10043 WB35K10043 INSULATION DRAWER TOP
WB35K10018 WB35K10018 INSULATION-VENT
WB03T10286 WB03T10286 KNOB INF ASM (BK)
WB25K10002 WB25K10002 LAMP PILOT
WB02K10182 WB02K10182 LEG LEVELER
WB25T10041 WB25T10041 LENS
WB25K10009 WB25K10009 LENS
WB27T10668 WB27T10668 LIGHT INDICATOR
WB25K10010 WB25K10010 LIGHT INDICATOR PILOT
WB18K10014 WB18K10014 LINE CORD KIT
WB55K10034 WB55K10034 LINER ASM WELD DOOR
WB1K3 WB1K3 NUT SPEED
WB48X21508 WB48X21508 OVEN RACK
WB55K10033 WB55K10033 PANEL ASM WELD
WB63K10044 WB63K10044 PANEL REAR BROIL
WB63K10042 WB63K10042 PANEL SIDE BROIL
WB63K10043 WB63K10043 PANEL SIDE BROIL
WB2K17 WB2K17 PIN LOCATOR
WB37K10009 WB37K10009 POWER OUTLET
WB09T10002 WB09T10002 RADIANT SPRING ELEMENT
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB35K10041 WB35K10041 REFLECTOR
WB2X2030 WB2X2030 RETAINER
WB02K10039 WB02K10039 RING VENT
WB1K44 WB1K44 SCEW LATCH
WR01X10389 WR01X10389 SCR 8-18 AB PHR 1/2 S
WB01X23501 WB01X23501 SCR 832 TT FLP 270
WB1K5062 WB1K5062 SCREW
WB1X536 WB1X536 SCREW
WB1X5716 WB1X5716 SCREW
WB01K10091 WB01K10091 SCREW
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB1K5 WB1K5 SCREW 8-18 X 1/2
WB1K67 WB1K67 SCREW 8-22
WB01K10012 WB01K10012 SCREW 8-22 PL 1HX 71
WB1K62 WB1K62 SCREW HEAD PAINTED BLACK
WB1K53 WB1K53 SCREW HINGE
WB1X5364 WB1X5364 SCREW MTG
WZ4X345D WZ4X345D SCREW-PKG 12
WB1X558D WB1X558D SCREW-PKG 12
WB23X5340 WB23X5340 SENSOR-OVEN
WB01K10093 WB01K10093 SPEEDNUT
WB09K10002 WB09K10002 SPRING DOOR
WB10K10009 WB10K10009 SUPPORT ASM RIVET LF
WB10K10010 WB10K10010 SUPPORT ASM RIVET RT
WB63K10233 WB63K10233 SUPPORT BASE
WB63K10232 WB63K10232 SUPPORT BASE
WB35K10028 WB35K10028 SUPPORT CATALYST
WB30X38928 WB30X38928 SURFACE RADIANT ELEMENT 6 KIT
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB07K10200 WB07K10200 TRIM VENT ASSEMBLY
WB1X119D WB1X119D WASHR-PKG 12
WB56K20 WB56K20 WIND PACK LG
WB34K10087 WB34K10087 WINDOW SPACER ASM
