Model Image
Manufacturer

GE

Model Number

JCBP84DM1BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB63T10147 WB63T10147 BACK MAIN
WB02T10359 WB02T10359 BADGE GE
WB2X7694 WB2X7694 BAIL
WB63T10099 WB63T10099 BODY OVEN WELD ASM
WB02T10132 WB02T10132 BRACE CHASSIS (RAD)
WB02T10133 WB02T10133 BRACE CHASSIS (RAD)
WB34X26004 WB34X26004 BRACE CHASSIS RADIANT LT
WB02T10463 WB02T10463 BRACE CHASSIS RADIANT RT
WB02T10137 WB02T10137 BRACKET ASM ANTI TIP
WB02T10194 WB02T10194 BRACKET CAPACITOR
WB02T10180 WB02T10180 BRACKET FAN MOTOR CONV
WB01X27696 WB01X27696 BRACKET OVN HDL VNT TRM
WB01X27695 WB01X27695 BRACKET OVN HDL VNT TRM
WB34X42027 WB34X42027 BRACKET OVN HDL VNT TRM
WB34X42670 WB34X42670 BRACKET OVN HDL VNT TRM
WB08T10035 WB08T10035 BREAKER RECEPTACLE
WB08T10033 WB08T10033 BREAKER RECEPTACLE
WB27T10662 WB27T10662 CAPACITOR MOTOR
WB58T10014 WB58T10014 CAVITY WARMING DRW ASM
PM10X310 PM10X310 CERAMABRYTE COOKTOP CLEANER - 28 OZ.
WX10X300 WX10X300 CLEANER GLASS
WB01X0119 WB01X0119 CONTOURED WASHER
WB27T10810 WB27T10810 CONTROL ERC
WB24T10145 WB24T10145 CONTROL SURF ELEM
WB24T10146 WB24T10146 CONTROL SURF ELEM
WB02K5365 WB02K5365 COVER
WB2K5365 WB2K5365 COVER
WB34T10128 WB34T10128 COVER BACK
WB02T10532 WB02T10532 COVER CONTROL
WB26T10053 WB26T10053 COVER FAN (CONVX)
WB34T10011 WB34T10011 COVER RECEPTACLE
WB56T10063 WB56T10063 DOOR FRAME
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB01T10026 WB01T10026 DOOR PAD
WB56T10180 WB56T10180 DRAWER FRT INNER
WB49T10011 WB49T10011 DRAWER PAN
WB24T10153 WB24T10153 ELECTRIC RANGE SURFACE ELEMENT CONTROL
WB44T10053 WB44T10053 ELEMENT CONVX
WB30T10144 WB30T10144 ELEMENT DRAWER LOWER
WB30T10096 WB30T10096 ELEMENT HALIANT 12 IN
WB30X44826 WB30X44826 ELEMENT HALIANT 6
WB30T10115 WB30T10115 ELEMENT RADIANT 6 WARMER
WB34T10023 WB34T10023 ENCLOSURE RANGETOP
WB63T10146 WB63T10146 FRAME DWR AND BRACKET ASSEMBLY
WB63T10096 WB63T10096 FRAME FRONT
WB02T10027 WB02T10027 GASKET OVEN LIGHT
WB57T10233 WB57T10233 GLASS OVN DR INR
WB02T10275 WB02T10275 GUARD INSLN SDE
WB63X23859 WB63X23859 GUIDE- SLIDE DRAWER
WB15T10176 WB15T10176 HANDLE (WH)
WB15T10161 WB15T10161 HANDLE - BLACK
WB18T10440 WB18T10440 HARNESS WIRE (HB)
WB35T10022 WB35T10022 HIDDEN BAKE INSULATION
WB10T10067 WB10T10067 HINGE DOOR
WB10T10068 WB10T10068 HINGE RECEIVER
WB02T10289 WB02T10289 HUB BLADE ASM
31-10620 31-10620 INSTRUCTION INSTALL
31-10619 31-10619 INSTRUCTION INSTALL
31-10482 31-10482 INSTRUCTION INSTALL
WB35T10087 WB35T10087 INSULATION CONV.
WB35T10134 WB35T10134 INSULATION DOOR
WB35T10135 WB35T10135 INSULATION DOOR
WB35T10211 WB35T10211 INSULATION OVEN

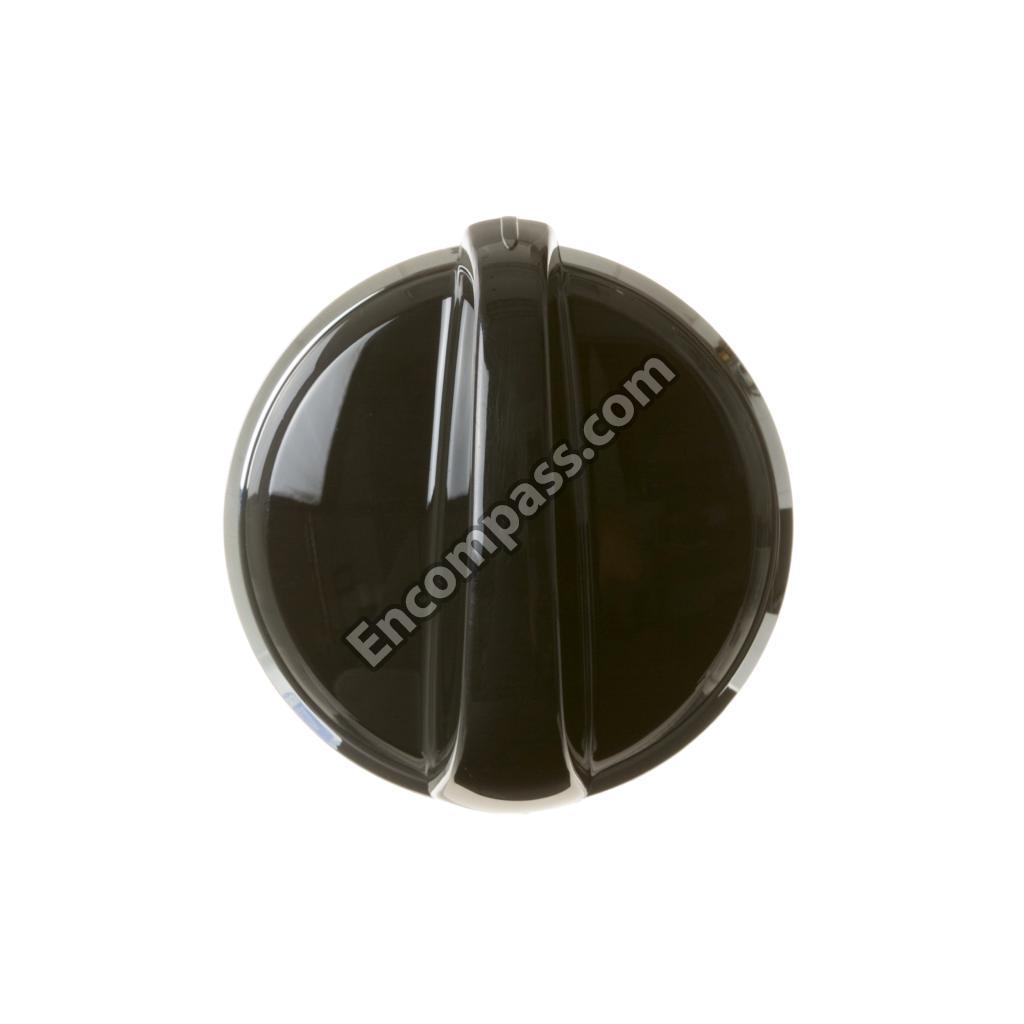

WB03T10286 WB03T10286 KNOB INF ASM (BK)

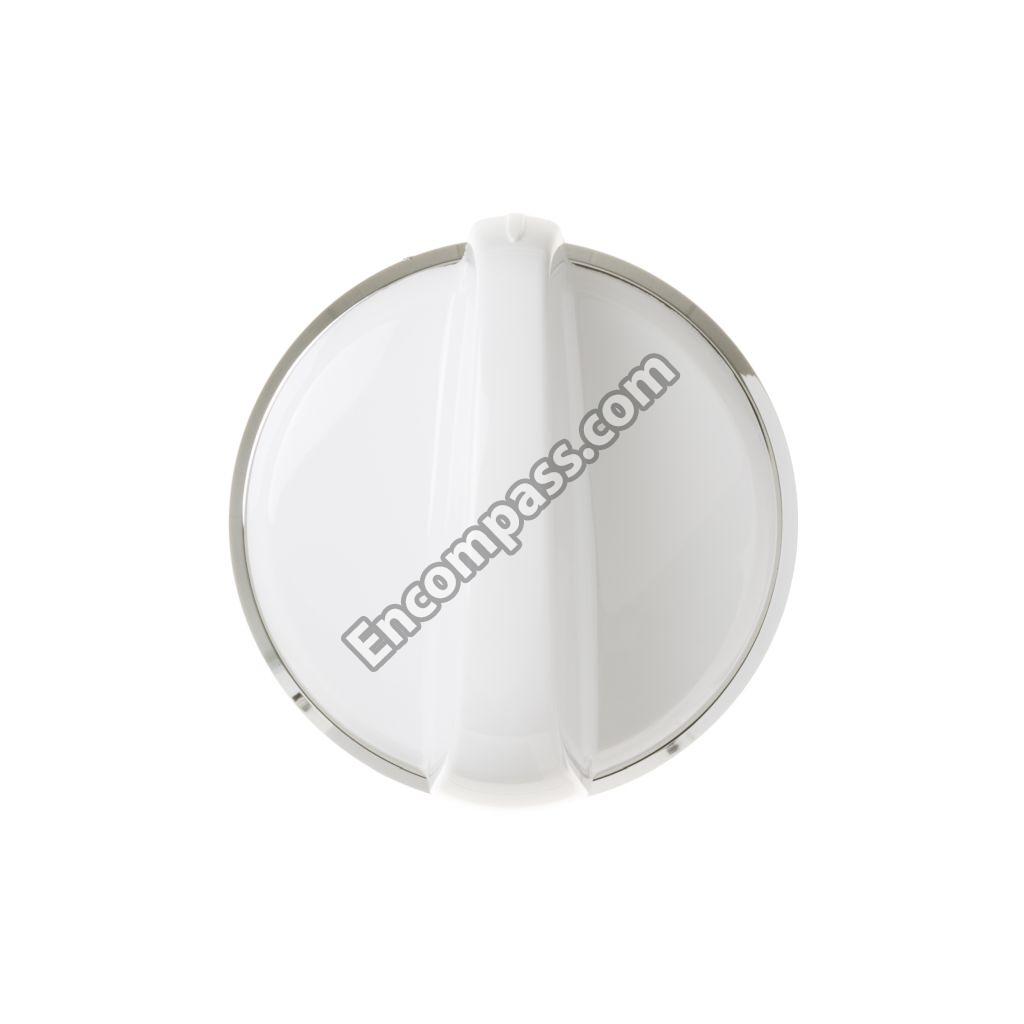

WB03T10283 WB03T10283 KNOB INF ASM (WH)
WB36X192 WB36X192 LAMP COV ASM
WB14T10063 WB14T10063 LATCH ASM MOTORIZED
WB02X10521 WB02X10521 LEG LEVELER
WB25T10042 WB25T10042 LENS
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB25T10040 WB25T10040 LIGHT INDICATOR
WB27T10668 WB27T10668 LIGHT INDICATOR
WB55T10176 WB55T10176 LINER OVEN DOOR ASM
WB02T10026 WB02T10026 MAINTOP STRIKE
31-14574 31-14574 MANUAL MINI & WD ASM
29-5562 29-5562 MANUAL USE & CARE
WB27T11032 WB27T11032 MEMBRANE PLATE ASM
WB27T11033 WB27T11033 MEMBRANE PLATE ASM
WB26T10034 WB26T10034 MOTOR PSC CONV
WB17T10020 WB17T10020 MOUNT TERMINAL BLOCK
WB02T10017 WB02T10017 NUT
WB35T10023 WB35T10023 OVEN BACK INSULATION
WB04T10086 WB04T10086 OVEN DOOR GASKET
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB02T10509 WB02T10509 PAN REFLECTOR
WB56T10220 WB56T10220 PANEL ASM BONDED (BK)
WB56T10219 WB56T10219 PANEL ASM BONDED(WH)
WB56T10267 WB56T10267 PANEL DRAWER
WB56T10268 WB56T10268 PANEL DRAWER
WB56X28881 WB56X28881 PANEL SIDE (BK)
WB56X28884 WB56X28884 PANEL SIDE (WH)
WB10T10116 WB10T10116 PIN RANGETOP HINGE
WB36T11040 WB36T11040 PLATE END LT (BK)
WB36T11043 WB36T11043 PLATE END LT (WH)
WB36T11039 WB36T11039 PLATE END RT (BK)
WB36T11042 WB36T11042 PLATE END RT (WH)
WB48T10062 WB48T10062 RACK OVEN (SC)
WB30T10046 WB30T10046 RADIANT ELEMENT 4400W
WB09T10002 WB09T10002 RADIANT SPRING ELEMENT
WX09X10035 WX09X10035 RANGE CORD 4' 3 PRONG
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB62T10659 WB62T10659 RANGETOP GLASS ASM
WB62T10660 WB62T10660 RANGETOP GLASS ASM
WB08T10032 WB08T10032 RECEPTACLE (BK)
WB08T10034 WB08T10034 RECEPTACLE (WH)
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10178 WB56T10178 RETAINER OVN DR INSLN
WB01T10103 WB01T10103 SCR 10-16 AB HXW .532
WB01T10072 WB01T10072 SCR 10-16 AB IHW .625 NI
WB01T10067 WB01T10067 SCR 10-16 PL PNT 2.5 S
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB1X5904 WB1X5904 SCR 8-18 BA
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB01K5156 WB01K5156 SCREW
WB01X0537 WB01X0537 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5200 WB01K5200 SCREW
WB1K5156 WB1K5156 SCREW
WD2X432 WD2X432 SCREW
WB1X537 WB1X537 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10016 WB01T10016 SCREW 8-18 AB HXW 5/8 S
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5167 WB1K5167 SCREW 8-18 X 3/8
WB01K5167 WB01K5167 SCREW 8-18 X 3/8""
WD02X0432 WD02X0432 SCREW 8-18 X 5/16 BK
WB01X23501 WB01X23501 SCREW 8-32 TPT FLR 215 SN
WB01T10047 WB01T10047 SCREW 8-32 X 625 M HXW S
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WB1K5157 WB1K5157 SCREW-BLK
WZ4X245D WZ4X245D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB02T10391 WB02T10391 SHIELD HEAT BKGD
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB49T10007 WB49T10007 SIDE REFLECTOR
WB02T10175 WB02T10175 SPACER
WB2X9037 WB2X9037 SPACER-HNDL
WB24T10162 WB24T10162 SWITCH INFINITE CONTROL
WB24T10058 WB24T10058 SWITCH INFINITE CONTROL
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB36T11124 WB36T11124 TRIM & BRACKET ASM
WB36T11125 WB36T11125 TRIM & BRACKET ASM
WB07T10516 WB07T10516 TRIM FRT FRM (BK)
WB07T10517 WB07T10517 TRIM LATCH
WB07X27236 WB07X27236 TRIM VENT DOOR
WB07X27233 WB07X27233 TRIM VENT DOOR
WB28T10217 WB28T10217 TUBE VNT RADIANT
WB44T10104 WB44T10104 UNIT ASSEMBLY
WB44T10077 WB44T10077 UNIT BROIL ASM (DLX) GE
WB38X33648 WB38X33648 VENT TUBE
WB38T10012 WB38T10012 VENT TUBE ASSEMBLY
WB35T10017 WB35T10017 VENT TUBE INSULATION
WB01T10112 WB01T10112 WASHER ALUM SHAPED
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
