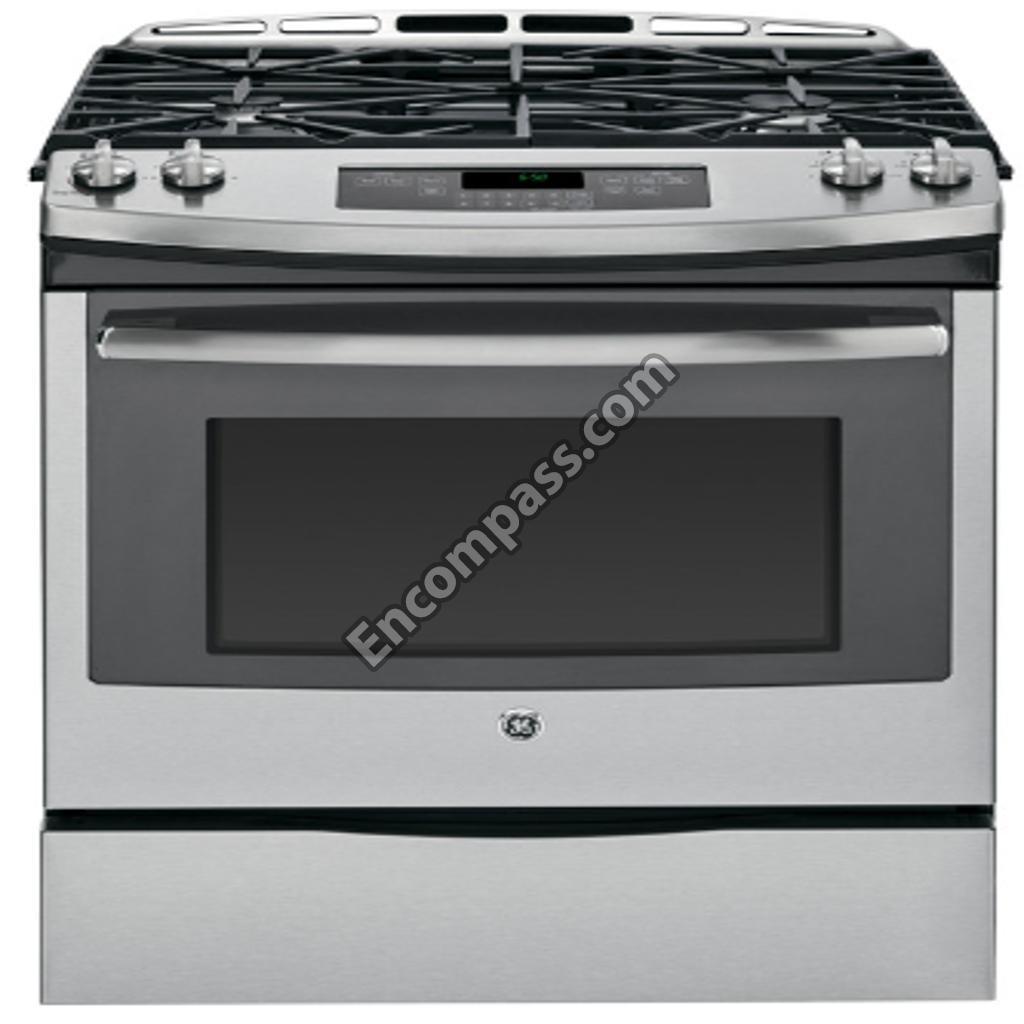

Model Image
Manufacturer

GE

Model Number

JCGS650SEF2SS

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WB29K10024 WB29K10024 ASM BURNER CAP (12000)
WB29K10022 WB29K10022 ASM BURNER CAP (5000)
WB29K10023 WB29K10023 ASM BURNER CAP (9500)
WB02T10589 WB02T10589 BADGE GE
WB07X20288 WB07X20288 BARRIER DOOR
WB2K32 WB2K32 BCKT SUPPORT
WB63K10187 WB63K10187 BOTTOM INNER GUARD
WB34X20456 WB34X20456 BRACE VENT
WB02K10360 WB02K10360 BRACKET
WB02K10254 WB02K10254 BRACKET ANTI-TIP ASM
WB02X21694 WB02X21694 BRACKET CONNECTOR
WB02K10363 WB02K10363 BRACKET COOKTOP
WB02K10350 WB02K10350 BRACKET GLASS
WB02X20520 WB02X20520 BRACKET HANDLE
WB2K41 WB2K41 BRACKET OVEN
WB02X20831 WB02X20831 BRACKET PANEL MANIFOLD
WB02X20830 WB02X20830 BRACKET PANEL MANIFOLD
WB39K20 WB39K20 BRKT MTG DRW
WB02K10171 WB02K10171 BUMPER
WB02X21692 WB02X21692 BUMPER
WB2K15 WB2K15 BUMPER BLACK
WB16K10081 WB16K10081 BURNER BAKE
WB16X20418 WB16X20418 BURNER BROIL
WB16K10056 WB16K10056 BURNER LARGE (12000)
WB16K10055 WB16K10055 BURNER MEDIUM (9500)
WB28K10222 WB28K10222 CAP BURNER ASM (15K)
WB02K10361 WB02K10361 CKT BRACKET MDM & LGE
WB02K10362 WB02K10362 CKT BRACKET MDM LGE
WB02K10023 WB02K10023 CLAMP-HEAT ELEMENT
WB02X21679 WB02X21679 CLIP WIRE
WB34X20846 WB34X20846 COVER BACK
WB08K10018 WB08K10018 COVER LAMP
WB34K10097 WB34K10097 COVER MOTOR
WB34X21701 WB34X21701 COVER SIDE DUCT
WB34X21700 WB34X21700 COVER SIDE DUCT
WB63K10054 WB63K10054 COVER TERMINALS
WB34X21706 WB34X21706 COVER TOP
WB57K10174 WB57K10174 CRYSTAL WINDOW
WB34K14 WB34K14 CVR IGNITOR
WB49K10025 WB49K10025 DEFLECTOR
WB49K10037 WB49K10037 DEFLECTOR OVER
WB34X21698 WB34X21698 DIVERTER ASM
WB34X21699 WB34X21699 DIVERTER ASM
WB34X21683 WB34X21683 DOOR GUARD
WB34X21570 WB34X21570 DOOR STIFFENER
WB63X20839 WB63X20839 DRAWER BODY
WB02K10163 WB02K10163 DRAWER SUPPORT
WB63X20737 WB63X20737 DUCT AND BURNER BOX ASM
WB01K10037 WB01K10037 ECONOMIC NUT
WB28X20389 WB28X20389 ELBOW 90 ASM
WB28X20835 WB28X20835 FL ORIFICE HOLDER
WB35X21687 WB35X21687 FOIL TRIM DOOR
WB28X20832 WB28X20832 FR ORIFICE HOLDER
WB02X28737 WB02X28737 FRAME FRONT BUMPER
WB63X20732 WB63X20732 FRAME WELD ASM
WB34K10141 WB34K10141 FRAME WINDOW PACK ASM
WB35X20734 WB35X20734 GASKET FRAME FRONT
WB32K10052 WB32K10052 GASKET OVEN ASM
WB32K10044 WB32K10044 GASKET OVEN LIGHT
WB35X20455 WB35X20455 GASKET VENT
WB56X20848 WB56X20848 GLASS PANEL DOOR ASM
WB2K68 WB2K68 GLIDER DRWR
WB31X20837 WB31X20837 GRATE CAST
WB63K16 WB63K16 GUARD BOTTOM
WB18K10083 WB18K10083 HARNESS GROUND
WB18X27600 WB18X27600 HARNESS SWITCH DUAL
WB10X21069 WB10X21069 HINGE DOOR
WB13X25261 WB13X25261 IGNITER GLOWBAR BROIL
WB13K21 WB13K21 IGNITER OVEN
WB35K10222 WB35K10222 INSULATION
WB35K10221 WB35K10221 INSULATION
WB35X21686 WB35X21686 INSULATION DOOR
WB35X21688 WB35X21688 INSULATION DOOR
WB35X20370 WB35X20370 INSULATION OVEN BACK
WB35X20843 WB35X20843 INSULATION OVEN WRAP
WB35X20844 WB35X20844 INSULATION OVEN WRAPINSU
WB28X20753 WB28X20753 KIT CONVERSION LP
WB28X20697 WB28X20697 KIT HIGH ALTITUDE ASM
WB02K10349 WB02K10349 LAMP INSULATION
WB10X20842 WB10X20842 LATCH AUTOMATIC
WB02X20759 WB02X20759 LEG LEVELING
WB18K10081 WB18K10081 LINE CORD
WB63X20840 WB63X20840 LINER DRAWER
WB34X21689 WB34X21689 LOWER DEFLECTOR
WB34K10086 WB34K10086 LOWER HEAT SHIELD
WB28X20610 WB28X20610 MANIFOLD PIPE ASM
WB28X20611 WB28X20611 MANIFOLD PIPE ASM
WB28K10214 WB28K10214 ORIFICE SPUD LP 88L
WB28K10861 WB28K10861 ORIFICE SPUD VISION
WB28K10023 WB28K10023 ORIFICE-LP 89MM
WB63X20720 WB63X20720 OVEN BACK
WB35K10200 WB35K10200 OVEN BOTTOM UC
WB08T10002 WB08T10002 OVEN LAMP AND HOUSING
WB48X20249 WB48X20249 OVEN RACK
WB53K10053 WB53K10053 OVEN SIDE
WB53K10052 WB53K10052 OVEN SIDE
WB63X20437 WB63X20437 OVEN TOP
WB07X20576 WB07X20576 OVERLAY T012
WB63X21517 WB63X21517 PANEL DRAWER
WB36X20601 WB36X20601 PANEL MANIFOLD BASE
WB36X20605 WB36X20605 PANEL MANIFOLD CMPLM
WB36X20590 WB36X20590 PANEL MANIFOLD UPPER
WB24X20445 WB24X20445 PLUNGER SWITCH DUAL
WB63K2 WB63K2 PNL SD BRO R
WB39K16 WB39K16 RAIL DRAWER
WB63X20841 WB63X20841 RANGE BACK
WB62X20583 WB62X20583 RANGE TOP
WB10K10029 WB10K10029 RECEIVER HINGE
WB01X21695 WB01X21695 RIVET NUT
WB28X20836 WB28X20836 RL ORIFICE HOLDER
WB28X20834 WB28X20834 RR ORIFICE HOLDER
WB04K10035 WB04K10035 RUBBER STRIP FRONT FRAME
WB01K10116 WB01K10116 SCR 1016 AB TRW20 1/2
WB01K10042 WB01K10042 SCR 8-18 AB IHW 3/8 SN
WB01K10086 WB01K10086 SCR 8-18 AB TRP 3/8 SS
WB1K5062 WB1K5062 SCREW
WB1X5754 WB1X5754 SCREW
WB1K5119 WB1K5119 SCREW
WB01K10091 WB01K10091 SCREW
WB1X536 WB1X536 SCREW
WB1K84 WB1K84 SCREW & WASH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K78 WB1K78 SCREW 12-14
WB01K10002 WB01K10002 SCREW 8-32
WB1K62 WB1K62 SCREW HEAD PAINTED BLACK
WB1K8 WB1K8 SCREW THERMO
WZ4X345D WZ4X345D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASM
WB34X20303 WB34X20303 SHIELD BROIL
WB16K10070 WB16K10070 SMALL BURNER V 5K
WB16X20448 WB16X20448 SPACER BASE
WB13K10029 WB13K10029 SPARK MODULE 4+0
WB01K10093 WB01K10093 SPEEDNUT
WB1K2 WB1K2 SPEEDNUT
WB34X21697 WB34X21697 SPILL DEFLECTOR
WB34X21696 WB34X21696 SPILL DEFLECTOR
WB02T10111 WB02T10111 STAINLESS STEEL BRIGHTENER
WB63X20741 WB63X20741 SUPPORT BASE
WB63X20740 WB63X20740 SUPPORT BASE
WB02X20735 WB02X20735 SUPPORT COOK TOP REAR
WB02X21690 WB02X21690 SUPPORT HANDLE
WB28X20594 WB28X20594 TUBE BURNER BOX SUPPLY 7
WB28X24773 WB28X24773 TUBE BURNER SUPPLY
WB28X20586 WB28X20586 TUBE MANIFOLD SUPPLY
WB34X21693 WB34X21693 UPPER DEFLECTOR
WB21X20470 WB21X20470 VALVE BURNER 270
WB21X20612 WB21X20612 VALVE BURNER 270
WB21X20469 WB21X20469 VALVE BURNER 270
WB19K10059 WB19K10059 VALVE LOCKOUT
WB34X20730 WB34X20730 VENT ASSEMBLY
WB34X20742 WB34X20742 VENT COMPLEMENT ASM
WB34X20838 WB34X20838 VENT TRIM
WB16K10085 WB16K10085 VENTURI 15K LP
WB16K10062 WB16K10062 VISION BURNER XL
