Model Image
Manufacturer

GE

Model Number

JCK3000DF5WW

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB17K10001 WB17K10001 BLOCK TERMINAL
WB27T11463 WB27T11463 BOARD FAN SENSOR
WB07T10751 WB07T10751 BRACE VERTICAL LEFT BLK
WB07T10750 WB07T10750 BRACE VERTICAL RIGHT BLK
WB37T10026 WB37T10026 BRACKET UPPER FAN MOUNT
WB03T10341 WB03T10341 BUMPER DOOR
WB55X10971 WB55X10971 CHANNEL REAR
WB34X21910 WB34X21910 CHANNEL REAR LEFT
WB34T10150 WB34T10150 CHANNEL UPPER AIR VENT
WB18X30613 WB18X30613 CONDUIT WIRE ASSEMBLY
WB01X0119 WB01X0119 CONTOURED WASHER
WB27X30692 WB27X30692 CONTROL BOARD T012 WHITE LED
WB07X11403 WB07X11403 CONTROL PANEL
WB26X24020 WB26X24020 COOLING FAN
WB34T10135 WB34T10135 COVER - UPPER REAR DUCT
WB34T10155 WB34T10155 COVER BOTTOM AIR DUCT
WB55T10195 WB55T10195 COVER HIDDEN BAKE
WB34T10151 WB34T10151 COVER LOWER RT AIR DUCT
WB34T10153 WB34T10153 COVER TOP FRONT
WB44T10126 WB44T10126 COVER TOP LEFT EDGE
WB34T10154 WB34T10154 COVER TOP REAR
WB34T10164 WB34T10164 COVER TOP RIGHT EDGE
WB35T10271 WB35T10271 COVER WIRE REAR
WB34T10143 WB34T10143 DEFLECTOR OVEN DOOR 27
WD02X10129 WD02X10129 DISHWASHER 6-19X1/4 TORX PAN HEAD SCREW
WB34T10134 WB34T10134 DIVIDER AIR CENTER
WB56X34825 WB56X34825 DOOR GLASS AND TRIM ASSEMBLY
WB10X30578 WB10X30578 DOOR HINGE LEFT
WB44X48680 WB44X48680 ELEMENT BROIL ASSEMBLY
WB35X21972 WB35X21972 GASKET BROIL ELEMENT
WB35X34867 WB35X34867 GASKET OVEN DOOR
WB01T10128 WB01T10128 GROMMET
WB15T10211 WB15T10211 HANDLE WHITE
WB18X24022 WB18X24022 HARNESS WIRE MAIN
WB01X1259 WB01X1259 HEX NUT
WB44X21668 WB44X21668 HIDDEN BAKE ELEMENT KIT
WB49X21652 WB49X21652 HINGE BRACKET ASSEMBLY KIT
WB10X30577 WB10X30577 HINGE DOOR RH
WB27X20933 WB27X20933 HOUSING RJ45 ASSEMBLY
31-10653 31-10653 INSTRUCTION INSTALL
WB35X34930 WB35X34930 INSULATION DR SIDE
WB35X31513 WB35X31513 INSULATION DR SIDE
WB35X33246 WB35X33246 INSULATION DR TOP
WB18X30704 WB18X30704 JUMPER
229C6291P001 229C6291P001 LABEL WIRE DIAGRAM
WB25T10102 WB25T10102 LAMP HALOGEN BULB G9
WB10X23814 WB10X23814 LATCH ASSEMBLY
WB34T10145 WB34T10145 LENS OVEN LIGHT
WB63X32817 WB63X32817 LINER OVEN DOOR ASSEMBLY
WB34X46746 WB34X46746 LINER SUPPORT
WB01T10127 WB01T10127 LOCK NUT
WB37T10032 WB37T10032 MOUNTING PANEL - CONTROL

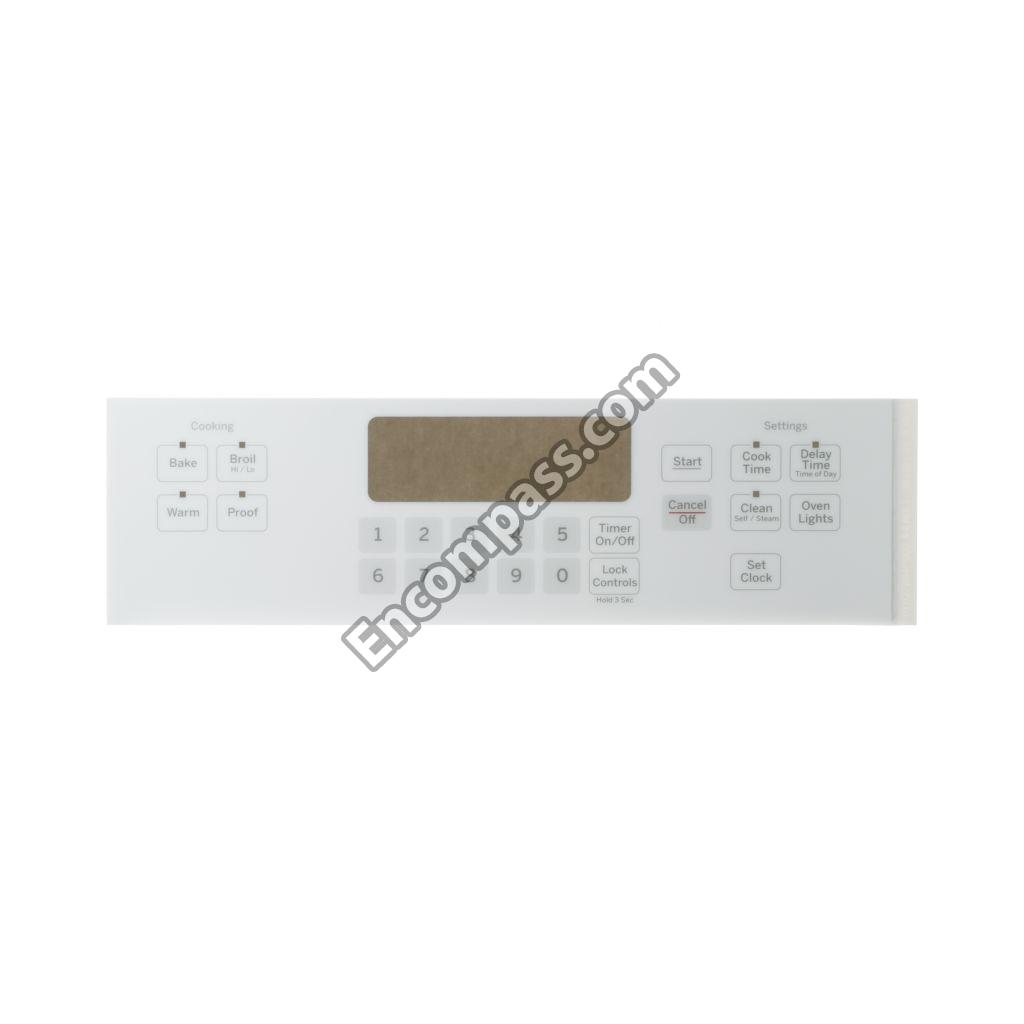

WB27T11462 WB27T11462 OVERLAY
31-10957 31-10957 PM INSTALL INSTRUCTIONS
31-17079 31-17079 PM MANUAL MINI & WD ASM_
49-80725 49-80725 PM OWNERS MANUAL
WB48X32180 WB48X32180 RACK OVEN
WB26X31060 WB26X31060 RANGE COOLING FAN
WB24T10147 WB24T10147 RANGE HIGH AMP SWITCH
WB63T10168 WB63T10168 RETAINER INSLN BACK
WB34T10152 WB34T10152 RETAINER INSLN OVEN DOOR
WB01K5072 WB01K5072 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB01X21742 WB01X21742 SCREW
WH2X930 WH2X930 SCREW
WB01T10129 WB01T10129 SCREW 10-16 2 1/2 IN T20
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10130 WB01T10130 SCREW 7-19 1/4HEX 1/2IN
WB01X1261 WB01X1261 SCREW GROUND
WB01T10135 WB01T10135 SCREW HANDLE SUPPORT
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WR01X10788 WR01X10788 SCREW-WHITE
WB21X10165 WB21X10165 SENSOR ASSEMBLY
WB02T10093 WB02T10093 ST AND OFF PCB
WB02T10603 WB02T10603 SUPPORT H AND LE
WB24X46906 WB24X46906 SWITCH HIGH LIMIT
WB25X31221 WB25X31221 TOP LAMP HALOGEN ASSEMBLY
WB07T10780 WB07T10780 TRIM BOTTOM CABINET WH
WB07T10807 WB07T10807 TRIM VENT LOWER BLACK
WB07T10806 WB07T10806 TRIM VENT UPPER
WB07X11404 WB07X11404 TRIM VERT SIDE (WHITE)
WB02X32440 WB02X32440 WASHER CONTOURED
WB56X27502 WB56X27502 WINDOW PACK ASSEMBLY
