Model Image
Manufacturer

GE

Model Number

JCP360BV1BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB64K5081 WB64K5081 *NLA*BURNER BOX BOTTOM
PM10X310 PM10X310 28 CERAMA BR
WB2X9500 WB2X9500 BRACKET
WB34K5232 WB34K5232 BREAKER BOX
WB34M0021 WB34M0021 BREAKER BOX BARRIER
WB34M21 WB34M21 BRKR BX BARR
WB2K5328 WB2K5328 BRKT HOLD DN
WB2K5346 WB2K5346 BRNR BOX SUP
WB02K5346 WB02K5346 BURNER BOX SUPPORT
WX10X302 WX10X302 CERAMA BRYTE COOKTOP SCRAPER
WB20K5022 WB20K5022 CIRCUIT BREAKER 20AMP
WB20K5023 WB20K5023 CIRCUIT BREAKER-15 AM
WB17M0004 WB17M0004 CLIP
WB17M4 WB17M4 CLIP
WB2X9867 WB2X9867 COND PLATE
WB02X9867 WB02X9867 CONDUIT HARNESS PLATE
WB18K5594 WB18K5594 CONDUIT WIRE ASM
WB02K5344 WB02K5344 CONTROL MOUNTING PANEL
WB24X29364 WB24X29364 CONTROL SURF ELEMENT
WB23M8 WB23M8 CTRL ELELMNT
WB23M9 WB23M9 CTRL ELEMNT
WB2K5344 WB2K5344 CTRL MTG PNL
WB23M0008 WB23M0008 ELEMENT CONTROL-1200W
WB23M0009 WB23M0009 ELEMENT CONTROL-1900W
WB23K5053 WB23K5053 ELEMENT CONTROL-HALOGEN
WB30T10043 WB30T10043 ELEMENT HALIANT 1200W
WB30T10099 WB30T10099 ELEMENT RADIANT 9IN DUAL
WB34M9 WB34M9 F BX MTG PLT
WB34M0009 WB34M0009 FUSE BOX MTG PLATE
WB64X0093 WB64X0093 GLASS CLEANER
WB61K5006 WB61K5006 GLASS COOKTOP ASSEMBLY-BL
WB61K5008 WB61K5008 GLASS COOKTOP-WHITE
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB30T10045 WB30T10045 HALIANT ELEMENT 8
WB30T10044 WB30T10044 HALIANT ELEMENT-2500W
WB02K5328 WB02K5328 HOLD DOWN BRACKET
WB02K5345 WB02K5345 HOT LIGHT BRACKET
WB02X9500 WB02X9500 HOT LIGHT BRACKET
WB2K5345 WB2K5345 HOT LITE BKT
WB25K5029 WB25K5029 INDICATOR LIGHT
WB25K5017 WB25K5017 INDICATOR LIGHT
WB18K5592 WB18K5592 INDICATOR WIRE HARNES

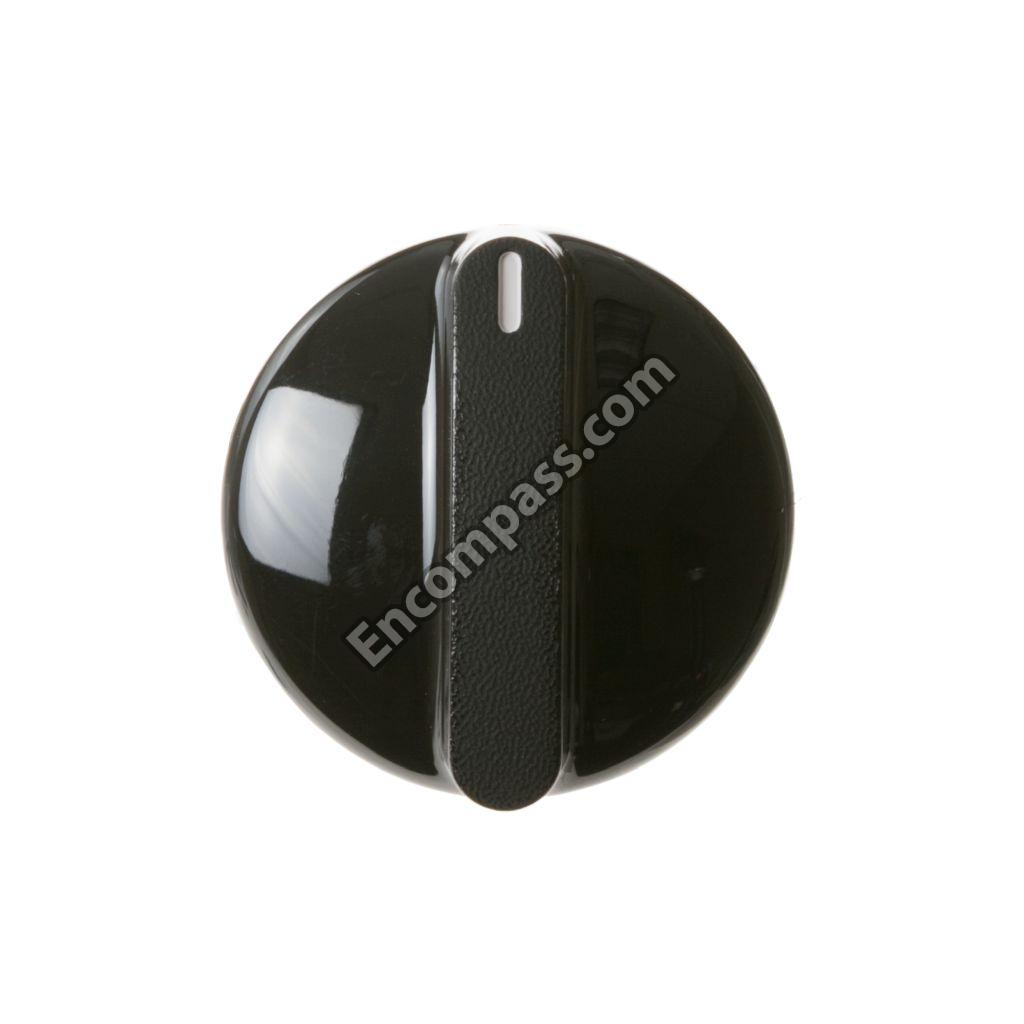

WB3K5228 WB3K5228 INFINIT KNOB
WB02X9504 WB02X9504 INFINITE CONTROL SEAL
WB03K5228 WB03K5228 INFINITE KNOB
31-10193 31-10193 INSTALLATION INSTRUCTION
WB18K5599 WB18K5599 MAIN WIRE HARNESS
WB01M0011 WB01M0011 NUT
WB01X1129 WB01X1129 NUT
WB1X1129 WB1X1129 NUT
31-10189 31-10189 OWNER'S MANUAL
WB23K5059 WB23K5059 RAD HALOGEN ELEM (180
WB2K5318 WB2K5318 RAD HTR BRKT
WB02K5318 WB02K5318 RADIANT HEATER BRACKET
WB02X9502 WB02X9502 RADIANT HEATER STUD
WB9K5014 WB9K5014 RADIANT SPRG
WB09K5014 WB09K5014 RADIANT SPRING
WB06K5036 WB06K5036 RAZOR BLADE SCRAPER
WB01M0032 WB01M0032 SCREW
WB01M0010 WB01M0010 SCREW
WB01M0012 WB01M0012 SCREW
WB01X1137 WB01X1137 SCREW
WB01X1113 WB01X1113 SCREW
WB01K5123 WB01K5123 SCREW
WB01M0001 WB01M0001 SCREW
WB1X1113 WB1X1113 SCREW
WB1M12 WB1M12 SCREW
WB1M1 WB1M1 SCREW
WB1X1169 WB1X1169 SCREW
WB1X1261 WB1X1261 SCREW
WB1X1149 WB1X1149 SCREW 10-16 X 3/8
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1425 WB01X1425 SCREW ST8ABX.250RD NI
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1137 WB1X1137 SCREW-10AB
WB01X1149 WB01X1149 SCREW-BRIGHT NICKEL
WB1X1424D WB1X1424D SCREW-PKG 12
WB1K5123 WB1K5123 SCREWS, MOUNTING BRACKET
WB1X1425 WB1X1425 SCW 8ABX.250
WB2X9504 WB2X9504 SEAL-SWITCH
WB24X449 WB24X449 SELEC SWITCH
WB3K5227 WB3K5227 SELECT KNOB
WB03K5227 WB03K5227 SELECTOR KNOB
WB24X0449 WB24X0449 SELECTOR SWITCH
WB2X9502 WB2X9502 STUD
WB17M2 WB17M2 TERM BLOCK
WB17M0002 WB17M0002 TERMINAL BLOCK
WB24K5133 WB24K5133 THERMAL SWITCH (1800W)
WB1K5117 WB1K5117 WASHER
WB01K5117 WB01K5117 WASHER .250 ID X .812 OD
31-13316 31-13316 WIRE DIAGRAM
