Model Image
Manufacturer

GE

Model Number

JCP67H2

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB08X5090 WB08X5090 ""F"" LAMP SOCKET
40A15 40A15 40WATT 15AMP BULB
WB32X107 WB32X107 6 INCH CHROME BURNER BOWL - ELEC
WB32X106 WB32X106 8 INCH CHROME BURNER BOWL - ELEC
WB02X4640 WB02X4640 AIR CHANNEL
WB02X7422 WB02X7422 AXLE
WB2X7422 WB2X7422 AXLE
WB49X0566 WB49X0566 BACK
WB55X0715 WB55X0715 BAFFLE-BLUE
WB55X5266 WB55X5266 BAFFLE-GRAY
WB2X7485 WB2X7485 BAIL LAMP
WB02X7485 WB02X7485 BAIL, LAMP SM OV
WB44X5089 WB44X5089 BAKE UNIT 208/240V L.O.
WB44X5091 WB44X5091 BAKE UNIT 208/240V S O
WB02X7470 WB02X7470 BALLAST
WB20X87 WB20X87 BALLAST
WB07X5607 WB07X5607 BEZEL
WB02X7446 WB02X7446 BLOCK TERMINAL
WB02X10606 WB02X10606 BLOCK TERMINAL
WB2X7456 WB2X7456 BRACKET
WB02X7429 WB02X7429 BRACKET COOKTOP
WB02X7426 WB02X7426 BRACKET DOOR STRIKE
WB02X7430 WB02X7430 BRACKET FILLER RH
WB02X7444 WB02X7444 BRACKET THERMO BULB
WB02X7456 WB02X7456 BRACKET THERMO MTG
WB2X7444 WB2X7444 BRKT CAP
WB02X7491 WB02X7491 BRKT MTG CONTROL PANEL
WB44X5090 WB44X5090 BROIL UNIT 208/240V L O
WB44X5092 WB44X5092 BROIL UNIT 208/240V S O
WB48X10055 WB48X10055 BROILER PAN AND RACK SMALL 8-3/4 X 13-1/2
WB2X7445 WB2X7445 BTN PLUG 1/2
WB2X7428 WB2X7428 BTN PLUG 3/4
WB2X7441 WB2X7441 BUMPER
WB02X7441 WB02X7441 BUMPER COOKTOP
WB2X7466 WB2X7466 BUTTON PLUG
WB2X7489 WB2X7489 CAPILLARY
WB10X5161 WB10X5161 CATCH DOOR
WB2X7497 WB2X7497 CHANNEL ASM
WB2X7495 WB2X7495 CHANNEL ASM
WB02X7494 WB02X7494 CHANNEL HINGE LH
WB02X7495 WB02X7495 CHANNEL HINGE RH
WB49X5347 WB49X5347 CHANNEL SUPPORT
WB2X3325 WB2X3325 CLIP
WB02X7489 WB02X7489 CLIP CAPILLARY S.O.
WB02X3325 WB02X3325 CLIP MTG TIMER
WB20X0085 WB20X0085 COMBO OVEN & THERMO S.O.
WB61X0279 WB61X0279 CONTROL PANEL AD
WB61X0278 WB61X0278 CONTROL PANEL WH
WB62X5301 WB62X5301 COOKTOP AD
WB62X10027 WB62X10027 COOKTOP WH
WB02X7469 WB02X7469 COVER TOE
WB2X7469 WB2X7469 COVER TOE
WB49X5353 WB49X5353 COVER WIRE
WB49X5354 WB49X5354 COVER WIRE
WB49X5351 WB49X5351 COVER WIRE LOWER
WB36X5551 WB36X5551 CRYSTAL
WB36X5541 WB36X5541 CRYSTAL INNER
WB36X5537 WB36X5537 CRYSTAL OUTER
WB02X7484 WB02X7484 CUP OVEN LIGHT
WB10X0231 WB10X0231 DOOR LATCH
WB55X0707 WB55X0707 DOOR LINER L.O. BLUE
WB55X5265 WB55X5265 DOOR LINER L.O. GRAY
WB55X5259 WB55X5259 DOOR LINER S.O.
WB56X5965 WB56X5965 DOOR PANEL AD L.O.
WB56X5968 WB56X5968 DOOR PANEL AD S.O.
WB56X5963 WB56X5963 DOOR PANEL WHITE L O
WB56X5966 WB56X5966 DOOR PANEL WHITE S O
WB58X5009 WB58X5009 DRAWER ASSEMBLY
WB07X6849 WB07X6849 END CAP LH
WB07X6850 WB07X6850 END CAP RH
WB2X7434 WB2X7434 END PUSH ROD
WB2X7460 WB2X7460 FOIL ALUMIN
WB02X7460 WB02X7460 FOIL ALUMINUM
WB2X7467 WB2X7467 GASKET
WB2X7499 WB2X7499 GASKET DOOR
WB02X7499 WB02X7499 GASKET DOOR L.O.
WB02X7467 WB02X7467 GASKET DOOR S.O.
WB02X7500 WB02X7500 GASKET WINDOW
WB36X660 WB36X660 GLASS-INNER
WB02X4639 WB02X4639 GRIP HANDLE L.O.
WB02X4606 WB02X4606 GRIP HANDLE S.O.
WB02X7447 WB02X7447 GROUND LUG
WB2X7447 WB2X7447 GROUND LUG
WB2X7500 WB2X7500 GSKT WINDOW
WB49X5349 WB49X5349 GUARD INSULATION TOP
WB2X7468 WB2X7468 GUIDE
WB39X5017 WB39X5017 GUIDE DRAWER LH
WB39X5016 WB39X5016 GUIDE DRAWER RH
WB02X7437 WB02X7437 GUIDE SLIDE FRONT
WB02X10848 WB02X10848 GUIDE SLIDE FRONT
WB02X7468 WB02X7468 GUIDE SLIDE REAR
WB2X7424 WB2X7424 GUSS REAR RH
WB02X7423 WB02X7423 GUSSET
WB02X7438 WB02X7438 GUSSET
WB2X7425 WB2X7425 GUSSET LH
WB02X7425 WB02X7425 GUSSET REAR LH
WB02X7424 WB02X7424 GUSSET REAR RH
WB15X5145 WB15X5145 HANDLE **NLA*
WB15X5151 WB15X5151 HANDLE DRAWER
WB15X0223 WB15X0223 HANDLE L.O.
WB15X0222 WB15X0222 HANDLE S.O.
WB02X7482 WB02X7482 HANGER BROIL UNIT
WB1X443 WB1X443 HEX NUT
WB10X5159 WB10X5159 HINGE BOTTOM
WB10X5163 WB10X5163 HINGE DOOR
WB10X5160 WB10X5160 HINGE TOP
WB02X7504 WB02X7504 HOUSING
WB2X7450 WB2X7450 IND LGHT 250
WB2X7490 WB2X7490 INSUL PKG
WB02X7506 WB02X7506 INSULATION
WB02X7459 WB02X7459 INSULATION
WB02X7421 WB02X7421 INSULATION BACK
WB02X7465 WB02X7465 INSULATION DOOR SM OV
WB02X7490 WB02X7490 INSULATION S.O.
WB02X7508 WB02X7508 INSULATOR
WB2X7508 WB2X7508 INSULATOR
WB2X7465 WB2X7465 INSULATOR
WB02X7457 WB02X7457 JEWEL
WB3X777 WB3X777 KNOB
WB03X0617 WB03X0617 KNOB OVEN SWITCH L.O.
WB3X776 WB3X776 KNOB THERMO
WB3X617 WB3X617 KNOB-OV SEL
WB03X0777 WB03X0777 KNOB-OVEN SWITCH-BLACK
WB3X612 WB3X612 KNOB-SUR UNT
WB03X0774 WB03X0774 KNOB-SURFACE UNIT-BLACK
WB03X0612 WB03X0612 KNOB-SURFACE UNIT-CHROME
WB3X616 WB3X616 KNOB-THERMO
WB03X0776 WB03X0776 KNOB-THERMO (BLACK)
WB03X0616 WB03X0616 KNOB-THERMO-L.O.-CHROME
WB03X0614 WB03X0614 KNOB-THERMOSTAT-CHROME
WB3X459 WB3X459 KNOB-TIMER
WB8X5090 WB8X5090 LAMP HOLDER
WB02X7449 WB02X7449 LAMP INDICATOR 125V
WB25X5056 WB25X5056 LAMP INDICATOR 125V
WB02X7450 WB02X7450 LAMP INDICATOR 250V
WB10X231 WB10X231 LATCH
WB2X7457 WB2X7457 LENS
WB36X5540 WB36X5540 LENS-OVEN LAMP
WR2X7521 WR2X7521 LEVLNG LEG
WB26X0082 WB26X0082 MOTOR DOOR LATCH
WB26X82 WB26X82 MOTOR LATCH
WB2X7491 WB2X7491 N.L.A.BRACKET
WB2X7426 WB2X7426 N/L/A 08/13/03
WB21X381 WB21X381 N/L/A 09/27/04
WB48X5074 WB48X5074 N/L/A 10/27/03
WB01X5695 WB01X5695 NUT
WB1X5797 WB1X5797 NUT 10-24
WB01X5698 WB01X5698 NUT HEX
WB01X5703 WB01X5703 NUT HEX
WB01X5704 WB01X5704 NUT KNURLED
WB1X5704 WB1X5704 NUT KNURLED
WB53X5089 WB53X5089 OVEN LINER L.O.
WB53X5090 WB53X5090 OVEN LINER S.O.
WB02X7463 WB02X7463 PAD INSULATOR
WB55X5263 WB55X5263 PANEL AIR WASH
WB49X5346 WB49X5346 PANEL BOTTOM L.O.
WB49X5348 WB49X5348 PANEL BOTTOM S.O.
WB56X5971 WB56X5971 PANEL DRAWER ALMOND
WB56X5969 WB56X5969 PANEL DRAWER WHITE
WB56X5962 WB56X5962 PANEL SIDE AD LH
WB56X5959 WB56X5959 PANEL SIDE AD RH
WB56X5960 WB56X5960 PANEL SIDE WH LH
WB56X5957 WB56X5957 PANEL SIDE WH RH
WB49X566 WB49X566 PANEL-BACK
WB61X278 WB61X278 PANEL-CONTRL
WB61X279 WB61X279 PANEL-CONTRL
WB02X7439 WB02X7439 PIN HINGE LH
WB02X7440 WB02X7440 PIN HINGE RH
WB2X7439 WB2X7439 PIN HINGE RH
WB02X7466 WB02X7466 PLUG BUTTON
WB02X7445 WB02X7445 PLUG BUTTON 1/2""
WB02X7433 WB02X7433 PUSH ROD
WB2X4031 WB2X4031 PUSH ROD
WB48X5077 WB48X5077 RACK OVEN S O
WB08X5091 WB08X5091 RECEPT LAMP
WB8X5091 WB8X5091 RECEPT LAMP
WB2X7442 WB2X7442 RETAINER
WB02X7493 WB02X7493 RETAINER CRYSTAL
WB02X7461 WB02X7461 RETAINER CRYSTAL
WB02X7442 WB02X7442 RETAINER HINGE PIN
WB49X5344 WB49X5344 RETAINER INSULATION RH
WB02X7496 WB02X7496 RIVET
WB2X7496 WB2X7496 RIVET
WB02X7434 WB02X7434 ROD END
WB02X7436 WB02X7436 ROD SUPPORT
WB2X7436 WB2X7436 ROD SUPPORT
WB02X7497 WB02X7497 ROLLER
WB01X5706 WB01X5706 SCREW
WB1X5706 WB1X5706 SCREW
WB1X5701 WB1X5701 SCREW
WB1X5699 WB1X5699 SCREW
WB1X5708 WB1X5708 SCREW
WB1X5705 WB1X5705 SCREW
WB01X5705 WB01X5705 SCREW HANDLE MTG S.O.
WB01X5709 WB01X5709 SCREW LEVELING
WB01X0840 WB01X0840 SCREW MTG END CAP
WB01X5708 WB01X5708 SCREW MTG HANDLE
WB01X5712 WB01X5712 SCREW MTG MOTOR
WB01X5701 WB01X5701 SCREW MTG SOCKET
WB01X5699 WB01X5699 SCREW MTG TOP
WB1X840 WB1X840 SCREW-CAP
WB48X5075 WB48X5075 SHELF REVERSIBLE L.O.
WB49X5359 WB49X5359 SHIELD
WB49X0565 WB49X0565 SHIELD WIRE
WB02X7453 WB02X7453 SLEEVING
WB2X7453 WB2X7453 SLEEVING **NLA*
WB29X5016 WB29X5016 SMOKE ELIM & TUBE ASM
WB02X4638 WB02X4638 SPACER
WB2X7448 WB2X7448 SPACER
WB2X8571 WB2X8571 SPACER
WB02X7464 WB02X7464 SPACER DOOR
WB02X7448 WB02X7448 SPACER HINGE PIN
WB09X5103 WB09X5103 SPRING DOOR
WB9X5103 WB9X5103 SPRING DOOR
WB02X4633 WB02X4633 STANCHION LH
WB02X4632 WB02X4632 STANCHION RH .
WB2X4633 WB2X4633 STANCHION-LH
WB02X7492 WB02X7492 STRAIN RELIEF
WB02X7501 WB02X7501 STRIKE
WB2X7501 WB2X7501 STRIKE
WB10X5158 WB10X5158 STRIKE DOOR
WB2X7423 WB2X7423 SUPPORT
WB30X256 WB30X256 SURF UNIT-6
WB30X255 WB30X255 SURF UNIT-8
WB30X0252 WB30X0252 SURFACE UNIT, 6""
WB30X0251 WB30X0251 SURFACE UNIT, 8""
WB22X108 WB22X108 SW-OV SELECT
WB24X5205 WB24X5205 SWITCH
WB24X5208 WB24X5208 SWITCH -INCHF-INCH LAMP
WB24X5209 WB24X5209 SWITCH LIMIT LOWER
WB24X5210 WB24X5210 SWITCH LIMIT UPPER
WB24X5207 WB24X5207 SWITCH OVEN
WB22X0108 WB22X0108 SWITCH, OVEN
WB21X0381 WB21X0381 SWITCH-CYCLING
WB24X5204 WB24X5204 SWITCH-OVEN LIGHT

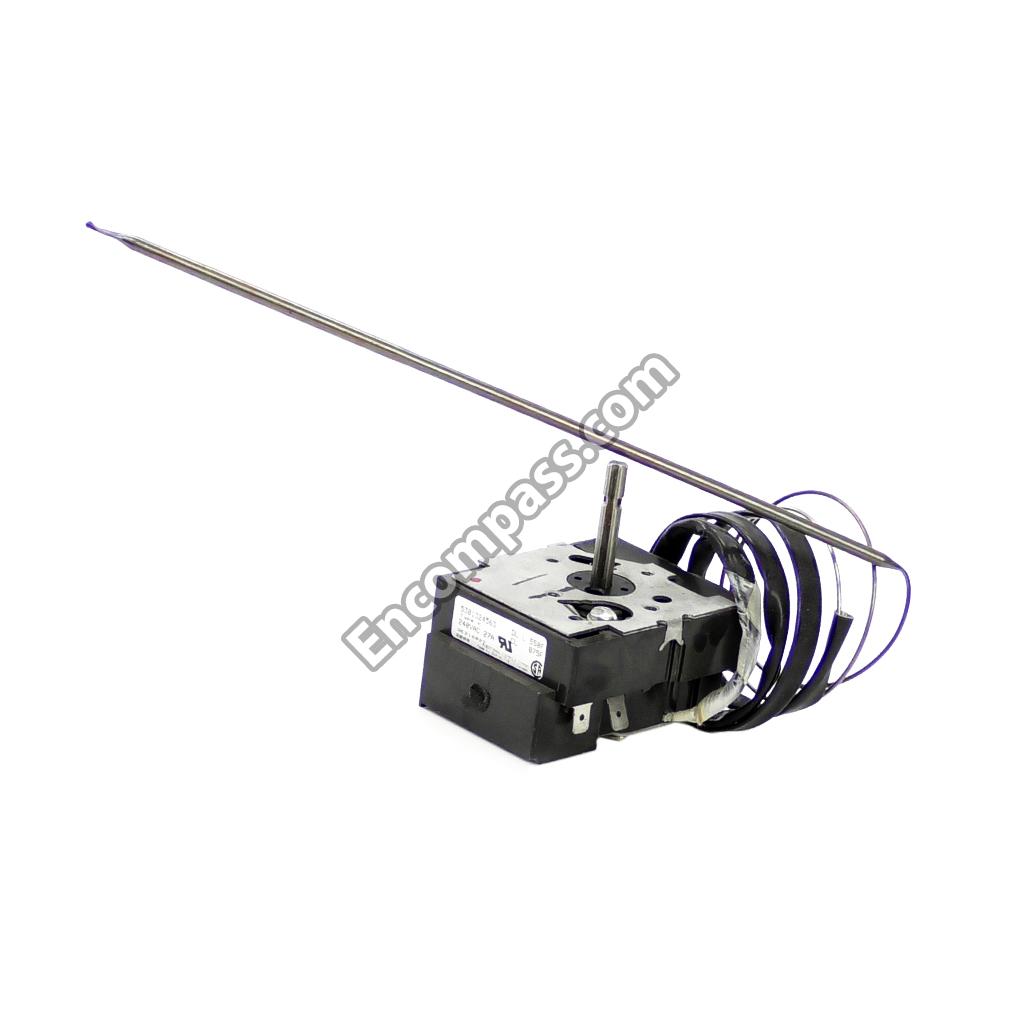

WB20X85 WB20X85 THERMOSTAT
WB21X378 WB21X378 THERMOSTAT
WB02X4551 WB02X4551 TIE BAR
WB2X4551 WB2X4551 TIE BAR **NLA*
WB19X10005 WB19X10005 TIMER
WB7X7349 WB7X7349 TRIM
WB07X1472 WB07X1472 TRIM CONTROL
WB07X6848 WB07X6848 TRIM TOP
WB7X6848 WB7X6848 TRIM TOP
WB07X6852 WB07X6852 TRIM TOP DOOR L.O.
WB07X6853 WB07X6853 TRIM TOP DOOR S.O.
WB07X6851 WB07X6851 TRIM WINDOW
WB7X6851 WB7X6851 TRIM WINDOW
WB2X7487 WB2X7487 TUBE VENT
WB48X10056 WB48X10056 TWO-PIECE PORCELAIN-COATED BROILER
WB02X7428 WB02X7428 UNKNOWN
WB03X0778 WB03X0778 UNKNOWN
WB21X5237 WB21X5237 UNKNOWN
WB17X5091 WB17X5091 UNKNOWN
49-4602 49-4602 USE AND CARE BOOK
WB02X7487 WB02X7487 VENT TUBE
WB01X5696 WB01X5696 WASHER PADDED
WB01X5707 WB01X5707 WASHER RUBBER
WB36X5542 WB36X5542 WINDOW
