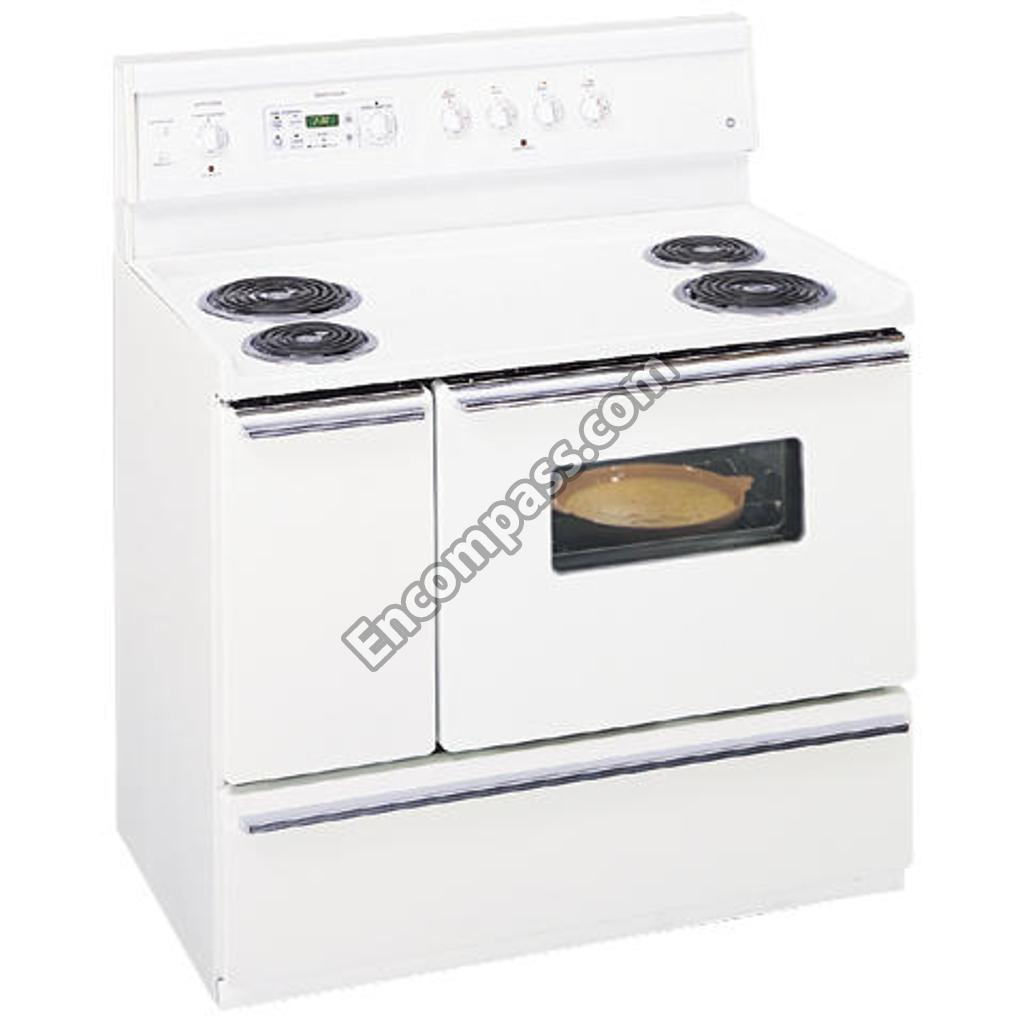

Model Image
Manufacturer

GE

Model Number

JCP67Y1WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP BULB
WB32X107 WB32X107 GE 6 INCH CHROME BURNER BOWL - ELEC
WB32X106 WB32X106 GE 8 INCH CHROME BURNER BOWL - ELEC
WB2X8569 WB2X8569 GE ADAPTOR ASM
WB02X8569 WB02X8569 GE ADAPTOR VENT TUBE LG OV
WB02X9859 WB02X9859 GE ANTI-TIP KIT
WB2X9859 WB2X9859 GE ANTI-TIP KIT
WB55X5409 WB55X5409 GE BAFFLE DOOR
WB44X5104 WB44X5104 GE BAKE UNIT 208/240V LG OV
WB44X10044 WB44X10044 GE BAKE UNIT 208/240V S O
WB02X7470 WB02X7470 GE BALLAST
WB20X87 WB20X87 GE BALLAST
WB02X7446 WB02X7446 GE BLOCK TERMINAL
WB02X10606 WB02X10606 GE BLOCK TERMINAL
WB02X7444 WB02X7444 GE BRACKET THERMO BULB
WB02X10513 WB02X10513 GE BRACKET TIMER
WB2X7444 WB2X7444 GE BRKT CAP
WB02X8563 WB02X8563 GE BRKT GLASS MTNG LH
WB02X8562 WB02X8562 GE BRKT GLASS MTNG RH
WB02X7491 WB02X7491 GE BRKT MTG CONTROL PANEL
WB44X10041 WB44X10041 GE BROIL UNIT208/240V LG OV
WB44X10042 WB44X10042 GE BROIL UNIT208/240V SM OV
WB2X7445 WB2X7445 GE BTN PLUG 1/2
WB2X7441 WB2X7441 GE BUMPER
WB02X7441 WB02X7441 GE BUMPER COOKTOP
WB2X8563 WB2X8563 GE CHANNEL HNG
WB2X8562 WB2X8562 GE CHANNEL HNG
WB2X3325 WB2X3325 GE CLIP
WB02X3325 WB02X3325 GE CLIP MTG TIMER
WB20X0085 WB20X0085 GE COMBO OVEN & THERMO S.O.
WB07X10165 WB07X10165 GE CONTROL PANEL
WB62X10027 WB62X10027 GE COOKTOP WH
WB2X8565 WB2X8565 GE CRYSTAL RET
WB2X8564 WB2X8564 GE DEFLECTOR
WB02X8564 WB02X8564 GE DEFLECTOR - DOOR
WB10X0277 WB10X0277 GE DOOR LATCH-MAGNETIC ASSEMBLY.
WB56X7088 WB56X7088 GE DOOR PANEL L O WHITE
WB56X10002 WB56X10002 GE DOOR PANEL S O WHITE
WB07X7350 WB07X7350 GE DOOR TRIM TOP OVEN
WB07X7349 WB07X7349 GE DOOR TRIM TOP STORAGE
WB58X5009 WB58X5009 GE DRAWER ASSEMBLY
WB02X8438 WB02X8438 GE END CAP BRACKET LH
WB02X8437 WB02X8437 GE END CAP BRACKET RH
WB2X8438 WB2X8438 GE END CAP BRKT
WB2X8437 WB2X8437 GE END CAP BRKT
WB07X7259 WB07X7259 GE END CAP LH
WB7X7259 WB7X7259 GE END CAP LH
WB07X7258 WB07X7258 GE END CAP RH
WB7X7258 WB7X7258 GE END CAP RH
WB8X5113 WB8X5113 GE F LAMP SKT
WB8X5112 WB8X5112 GE F LAMP SKT
WB08X5113 WB08X5113 GE F LAMP SOCKET LH
WB08X5112 WB08X5112 GE F LAMP SOCKET RH
WB2X8601 WB2X8601 GE GASKET DOOR
WB02X8601 WB02X8601 GE GASKET DOOR L.O.
WB02X8560 WB02X8560 GE GASKET DOOR SM OV
WB2X8568 WB2X8568 GE GASKET REAR
WB2X8567 WB2X8567 GE GASKET WINDO
WB36X5800 WB36X5800 GE GLASS OVEN DOOR
WB02X7447 WB02X7447 GE GROUND LUG
WB2X7447 WB2X7447 GE GROUND LUG
WB2X7468 WB2X7468 GE GUIDE
WB02X7437 WB02X7437 GE GUIDE SLIDE FRONT
WB02X10848 WB02X10848 GE GUIDE SLIDE FRONT
WB02X7468 WB02X7468 GE GUIDE SLIDE REAR
WB15X10214 WB15X10214 GE HANDLE DRAWER
WB15X5224 WB15X5224 GE HANDLE LG OV
WB15X5223 WB15X5223 GE HANDLE SM OV
WB10X5217 WB10X5217 GE HINGE ASM
WB10X10001 WB10X10001 GE HINGE BOTTOM
WB10X10002 WB10X10002 GE HINGE TOP
WB2X8552 WB2X8552 GE HOUSING-LGT
WB02X8552 WB02X8552 GE HSNG OVEN LIGHT LG OV
WB21X10034 WB21X10034 GE INF HT SWI
WB10X5202 WB10X5202 GE INSUL DOOR
WB2X7490 WB2X7490 GE INSUL PKG
WB02X7506 WB02X7506 GE INSULATION
WB02X7421 WB02X7421 GE INSULATION BACK
WB02X7465 WB02X7465 GE INSULATION DOOR SM OV
WB02X7490 WB02X7490 GE INSULATION S.O.
WB2X7465 WB2X7465 GE INSULATOR
WB02X7457 WB02X7457 GE JEWEL
WB03X10041 WB03X10041 GE KNOB SURFACE UNIT
WB03X10044 WB03X10044 GE KNOB THERMO L O
WB03X10045 WB03X10045 GE KNOB THERMO S O
WB25X5057 WB25X5057 GE LAMP INDICATOR
WB25X5056 WB25X5056 GE LAMP INDICATOR 125V
WB10X5219 WB10X5219 GE LATCH-DOOR L O
WB2X7457 WB2X7457 GE LENS
WB36X5540 WB36X5540 GE LENS-OVEN LAMP
WR2X7521 WR2X7521 GE LEVLNG LEG
WB24X10106 WB24X10106 GE LIGHT SWITCH
WB55X5413 WB55X5413 GE LINER OVEN DOOR L O
WB55X5416 WB55X5416 GE LINER OVEN DOOR S O
WB10X277 WB10X277 GE MAG CATCH
31-20012 31-20012 GE MINI-MANUAL
WB26X5120 WB26X5120 GE MOTOR-LATCH LOCK
WB2X7491 WB2X7491 GE N.L.A.BRACKET
WB01X5698 WB01X5698 GE NUT HEX
WB53X10015 WB53X10015 GE OVEN LINER L O
WB53X10007 WB53X10007 GE OVEN LINER S O
WB20X10025 WB20X10025 GE OVEN TEMP PROBE
WB56X5969 WB56X5969 GE PANEL DRAWER WHITE
WB56X5960 WB56X5960 GE PANEL SIDE WH LH
WB56X5957 WB56X5957 GE PANEL SIDE WH RH
WB02X7445 WB02X7445 GE PLUG BUTTON 1/2""
WB48X5111 WB48X5111 GE RACK OVEN L O
WB48X5077 WB48X5077 GE RACK OVEN S O
WB08X5091 WB08X5091 GE RECEPT LAMP
WB8X5091 WB8X5091 GE RECEPT LAMP
WB2X7442 WB2X7442 GE RETAINER
WB02X8565 WB02X8565 GE RETAINER GLASS
WB02X7442 WB02X7442 GE RETAINER HINGE PIN
WB2X9965 WB2X9965 GE RETAINER-LEN
WB1X5699 WB1X5699 GE SCREW
WB1X5701 WB1X5701 GE SCREW
WB1X5708 WB1X5708 GE SCREW
WB1X5705 WB1X5705 GE SCREW
WB01X5705 WB01X5705 GE SCREW HANDLE MTG S.O.
WB01X5709 WB01X5709 GE SCREW LEVELING
WB01X0840 WB01X0840 GE SCREW MTG END CAP
WB01X5708 WB01X5708 GE SCREW MTG HANDLE
WB01X5701 WB01X5701 GE SCREW MTG SOCKET
WB01X5699 WB01X5699 GE SCREW MTG TOP
WB1X840 WB1X840 GE SCREW-CAP
WB1X5965 WB1X5965 GE SCREW-HANDLE
WB01X5965 WB01X5965 GE SCREW-HANDLE MTG L.O.
WB2X8560 WB2X8560 GE SEAL-DOOR
WB49X10001 WB49X10001 GE SHIELD-HEAT LOWER
WB02X7453 WB02X7453 GE SLEEVING
WB2X7453 WB2X7453 GE SLEEVING **NLA*
WB2X8571 WB2X8571 GE SPACER
WB02X8571 WB02X8571 GE SPACER DOOR HANDLE
WB02X10001 WB02X10001 GE SPACER HINGE PIN
WB02X10003 WB02X10003 GE SPACER-GLASS
WB02X8561 WB02X8561 GE SPACER-HANDLE SM OV
WB2X8561 WB2X8561 GE SPACER-HDL
WB2X8576 WB2X8576 GE SPRING OVEN
WB02X8576 WB02X8576 GE SPRING-OVEN
WB31X10015 WB31X10015 GE STAINLESS STEEL CENTER TRIM FO
WB08X5114 WB08X5114 GE STARTER
WB8X5114 WB8X5114 GE STARTER
WB2X8551 WB2X8551 GE SUPPORT
WB02X8551 WB02X8551 GE SUPPORT, BROIL UNIT L.O.
WB30X256 WB30X256 GE SURF UNIT-6
WB30X255 WB30X255 GE SURF UNIT-8
WB30X0252 WB30X0252 GE SURFACE UNIT, 6""
WB30X0251 WB30X0251 GE SURFACE UNIT, 8""
WB24X10012 WB24X10012 GE SWITCH OVEN LIGHT S O
WB24X5356 WB24X5356 GE SWITCH-LIGHT
WB24X5357 WB24X5357 GE SWITCH-LIGHT ROCKER BLACK
WB20X85 WB20X85 GE THERMOSTAT
WB19X10003 WB19X10003 GE TIMER
WB02X10511 WB02X10511 GE TOEPLATE
WB7X7349 WB7X7349 GE TRIM
WB7X7350 WB7X7350 GE TRIM
WB07X7262 WB07X7262 GE TRIM TOP
WB7X7262 WB7X7262 GE TRIM TOP
WB29X5030 WB29X5030 GE TUBE-OVEN VENT
WB29X5031 WB29X5031 GE TUBE-OVEN VENT, SM OV
WB48X10056 WB48X10056 GE TWO-PIECE PORCELAIN-COATED BROILER
WB17X5091 WB17X5091 GE UNKNOWN
49-8484 49-8484 GE USE & CARE BOOK
WB02X8568 WB02X8568 GE WINDOW GASKET (REAR)
WB02X8567 WB02X8567 GE WINDOW GASKET FRONT
WB02X9965 WB02X9965 GE WIRE-GLASS RETAINER
