Model Image
Manufacturer

GE

Model Number

JCP68*W2

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB02X2050 WB02X2050 ""F"" LAMP RAIL
WB08X0125 WB08X0125 ""F"" LAMPHOLDER LH
WB08X0126 WB08X0126 ""F"" LAMPHOLDER RH
WB31X5010 WB31X5010 6 INCH CHROME BURNER BOWL - EL
WB32X5036 WB32X5036 8 BURNER BOWL
WB31X5011 WB31X5011 8 INCH CHROME BURNER BOWL - EL
WB31X5014 WB31X5014 8 INCH CHROME TRIM RING - ELEC
WB55X0399 WB55X0399 AIR CHAMBER
WB02X3037 WB02X3037 AIR CHANNEL
WB02X2505 WB02X2505 ANCHOR HOOK
WB49X0332 WB49X0332 BACK COVER
WB61X0242 WB61X0242 BACKSPLASHER AD
WB61X0239 WB61X0239 BACKSPLASHER CF
WB61X0240 WB61X0240 BACKSPLASHER FA
WB61X0241 WB61X0241 BACKSPLASHER HA
WB61X0238 WB61X0238 BACKSPLASHER WH
WB02X1626 WB02X1626 BAFFLE
WB2X1626 WB2X1626 BAFFLE
WB49X0310 WB49X0310 BAFFLE AIR
WB02X2885 WB02X2885 BAIL
WB2X2885 WB2X2885 BAIL
WB44X0096 WB44X0096 BAKE UNIT
WB44X5082 WB44X5082 BAKE UNIT 208/240V
WB02X3385 WB02X3385 BALLAST ""F"" LAMP
WB02X3147 WB02X3147 BARRIER
WB07X1029 WB07X1029 BARRIER
WB02X3036 WB02X3036 BARRIER
WB07X1030 WB07X1030 BARRIER HANDLE
WB02X1885 WB02X1885 BARRIER SW.
WB10X0124 WB10X0124 BASE RH & LH
WB10X124 WB10X124 BASE SUPPT
WB02X2911 WB02X2911 BLADE FAN
WB17X0167 WB17X0167 BLOCK TERM DISTRIBUTION
WB17X5095 WB17X5095 BLOCK TERMINAL POWER
WB02X3148 WB02X3148 BRACKET CIRCUIT BOARD
WB02X6239 WB02X6239 BRACKET LAMP
WB02X3199 WB02X3199 BRACKET MOTOR MT.
WB02X2616 WB02X2616 BRACKET MT. GASKET
WB02X3391 WB02X3391 BRACKET MT. METER
WB02X3182 WB02X3182 BRACKET REAR
WB2X3447 WB2X3447 BRACKET SUP **NLA*
WB02X3447 WB02X3447 BRACKET SUPPORT
WB03X3249 WB03X3249 BRACKET SWITCH
WB02X3250 WB02X3250 BRACKET SWITCH - BRACKET
WB2X3148 WB2X3148 BRACKET-THER
WB49X0088 WB49X0088 BROIL PAN
WB48K10016 WB48K10016 BROIL PAN GRID (ONLY) SM 8 3/4
WB48X0047 WB48X0047 BROIL PAN RACK SMALL
WB49X0075 WB49X0075 BROIL PAN SMALL
WB2X1452 WB2X1452 BROIL SUPPT
WB44X0016 WB44X0016 BROIL UNIT
WB44X173 WB44X173 BROIL UNIT
WB44X0185 WB44X0185 BROIL UNIT 208/240V L.O.
WB48X10055 WB48X10055 BROILER PAN & RACK SMALL 8-3/4
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB02X0584 WB02X0584 BUMPER
WB2X584 WB2X584 BUMPER
WZ2X529 WZ2X529 BURNER SCREW
WB2X3394 WB2X3394 BUTTON
WB02X5410 WB02X5410 CAM
WB09X5083 WB09X5083 CAM SPRING
WB32X0052 WB32X0052 CENTER TRIM 6"" UNIT
WB32X0051 WB32X0051 CENTER TRIM 8"" UNIT
WB32X52 WB32X52 CENTER TRIM SAYS GENUINE CALRO
WB32X51 WB32X51 CENTER TRIM SAYS GENUINE CALRO
WB2X7707 WB2X7707 CHANEL LATCH
WB02X3174 WB02X3174 CHANNEL DOOR LATCH
WB2X3175 WB2X3175 CHANNEL LOCK
WB02X3175 WB02X3175 CHANNEL LOCKING
WB20X0052 WB20X0052 CIRCUIT BOARD ASM-THERMO
WB20X52 WB20X52 CIRCUIT BOARD ASSEMBLY THERMOS
WB2X1867 WB2X1867 CLIP
WB2X6239 WB2X6239 CLIP
WB02X1867 WB02X1867 CLIP ANTI-WOBBLE
WB02X0596 WB02X0596 CLIP CAP TUBE
WB02X2978 WB02X2978 CLIP CRYSTAL
WB2X2978 WB2X2978 CLIP CRYSTAL
WB02X6172 WB02X6172 CLIP INSULATOR
WB02X0574 WB02X0574 CLIP INSULATOR
WB02X0995 WB02X0995 CLIP LEAD
WB01X0435 WB01X0435 CLIP MTG JEWEL
WB2X3471 WB2X3471 CLIP TUBE SU
WB2X574D WB2X574D CLIP-PKG 12
WB2X1659D WB2X1659D CLIP-PKG 12
WB2X6172D WB2X6172D CLIP-PKG 12
WB01X0119 WB01X0119 CONTOURED WASHER
WB62X1492 WB62X1492 COOKTOP
WB62X1489 WB62X1489 COOKTOP
WB62X1493 WB62X1493 COOKTOP AD (W2)
WB62X1519 WB62X1519 COOKTOP AD (W3 - UP)
WB62X1490 WB62X1490 COOKTOP CF (W2)
WB62X1516 WB62X1516 COOKTOP CF (W3 - UP)
WB62X1491 WB62X1491 COOKTOP FA (W2)
WB62X1517 WB62X1517 COOKTOP FA (W3 - UP)
WB62X1518 WB62X1518 COOKTOP HA (W3 - UP)
WB62X1515 WB62X1515 COOKTOP WH (W3 - UP)
WB02X3045 WB02X3045 COVER - GUARD ASM.
WB36X0549 WB36X0549 CRYSTAL
WB36X549 WB36X549 CRYSTAL
WB36X0430 WB36X0430 CRYSTAL WINDOW
WB02X3034 WB02X3034 DEFLECTOR
WB02X1889 WB02X1889 DOOR INSULATION
WB55X0322 WB55X0322 DOOR LINER
WB55X0362 WB55X0362 DOOR LINER - LARGE
WB02X3046 WB02X3046 DOOR LINER INSULATION PK
WB55X0366 WB55X0366 DOOR LINER SMALL
WB09X0115 WB09X0115 DOOR SPRING MASTER OV. D
WB02X0797 WB02X0797 DOT FASTENER
WB39X0051 WB39X0051 DRAWER GUIDE RH & LH
WB58X0048 WB58X0048 DRAWER L.L.H.
WB58X0047 WB58X0047 DRAWER L.R.H.
WB07X0610 WB07X0610 END CAP LH
WB07X0609 WB07X0609 END CAP RH
WB07X0980 WB07X0980 FACEPLATE SHAFT ASM
WB2X2911 WB2X2911 FAN BLADE
WB26X0038 WB26X0038 FAN MOTOR
WB01X0560 WB01X0560 FIBER WASHER
WB02X3181 WB02X3181 FILLER STRIP
WB02X3038 WB02X3038 FOIL BARRIER - INC. IN I
WB53X0240 WB53X0240 FRAME - OVEN
WB2X3147 WB2X3147 FUSE
WB2X831D WB2X831D G-BLK-PKG 12
WB02X3163 WB02X3163 GASKET
WB2X1815 WB2X1815 GASKET
WB2X2058 WB2X2058 GASKET
WB2X3163 WB2X3163 GASKET
WB02X1543 WB02X1543 GASKET - BROIL

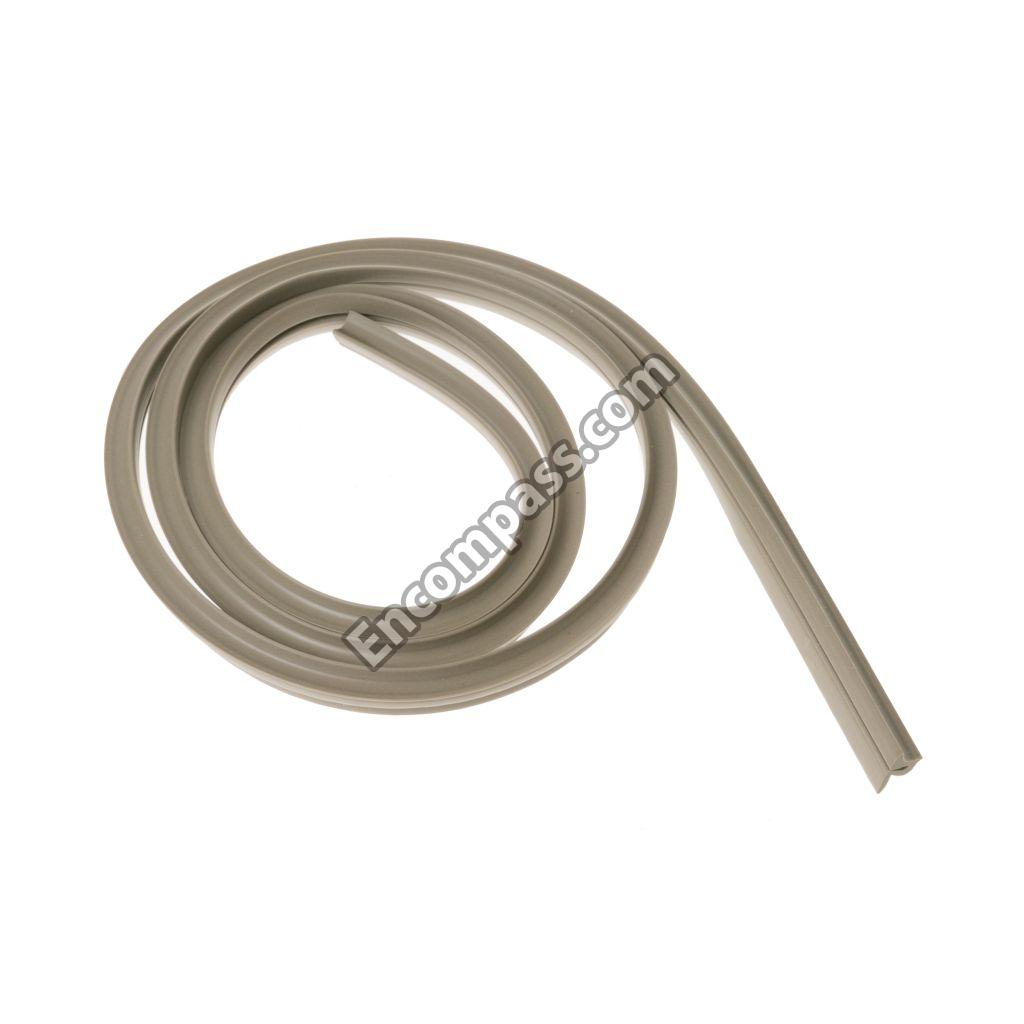

WB02X3138 WB02X3138 GASKET DOOR
WB02X1815 WB02X1815 GASKET ELIM. BTM.
WB02X2058 WB02X2058 GASKET SILICONE
WB02X3048 WB02X3048 GASKET WINDOW
WB2X3138 WB2X3138 GASKET-DOOR
WB2X3253 WB2X3253 GROUND CLIP **NLA*
WB2X646 WB2X646 GROUND PLATE
WB02X3252 WB02X3252 GUARD LAMP
WB49X0362 WB49X0362 GUARD WIRING
WB39X10004 WB39X10004 GUIDE DRAWER
WB02X3423 WB02X3423 GUSSET
WB2X3423 WB2X3423 GUSSET
WB15X0037 WB15X0037 HANDLE
WB15X0149 WB15X0149 HANDLE
WB15X0148 WB15X0148 HANDLE
WB15X0094 WB15X0094 HANDLE
WB15X0093 WB15X0093 HANDLE
WB15K3 WB15K3 HANDLE
WB02X3043 WB02X3043 HANDLE LH
WB02X3044 WB02X3044 HANDLE RH
WZ04X0339 WZ04X0339 HANDLE SCREW
WB2X3165 WB2X3165 HANGER
WB02X3165 WB02X3165 HANGER-TLS
WB10X0128 WB10X0128 HINGE LEVER LH
WB10X0127 WB10X0127 HINGE LEVER RH
WB2X6195 WB2X6195 HINGE PIN
WB10X0126 WB10X0126 HINGE SUPPORT LH
WB10X0125 WB10X0125 HINGE SUPPORT RH
WB9X86 WB9X86 HOOK
WB2X2506 WB2X2506 HOOK
WB09X0086 WB09X0086 HOOK DOOR SPG LH SIDE CO
WB02X2506 WB02X2506 HOOK DOOR SPRING
WB2X3466 WB2X3466 HOUS.LAMP
WB02X1608 WB02X1608 INDICATOR LAMP
WB21X36771 WB21X36771 INFINITE HEAT SWITCH KIT
WB55X0416 WB55X0416 INS. GUARD TOP
WB02X3390 WB02X3390 INSTRUMENT BRKT.
WB02X3251 WB02X3251 INSULATION
WB55X0400 WB55X0400 INSULATION GUARD
WB02X3057 WB02X3057 INSULATION GUARD - SIDE
WB55X0073 WB55X0073 INSULATION GUARD L.L.H.
WB55X0346 WB55X0346 INSULATION GUARD L.R.H.
WB02X1887 WB02X1887 INSULATION PACKAGE
WB02X1617 WB02X1617 INSULATOR
WB03X0322 WB03X0322 KNOB
WB3X431 WB3X431 KNOB
WB03X0431 WB03X0431 KNOB - COIL SELECT
WB03X0475 WB03X0475 KNOB - THERMO. S.O.
WB03X0218 WB03X0218 KNOB - TIMER
WB3X5667 WB3X5667 KNOB LATCH
WB3X481 WB3X481 KNOB OVEN
WB3X476 WB3X476 KNOB OVEN **NLA*
WB03X0479 WB03X0479 KNOB OVEN SWITCH
WB03X0478 WB03X0478 KNOB RESPONDER
WB3X490 WB3X490 KNOB S U
WB03X0477 WB03X0477 KNOB SURFACE UNIT
WB03X0476 WB03X0476 KNOB SWITCH S.O.
WB3X495 WB3X495 KNOB THERMO
WB3X482 WB3X482 KNOB THERMO
WB3X459 WB3X459 KNOB TIMER
WB03X0463 WB03X0463 KNOB-THERMOSTAT
WB02X1908 WB02X1908 KNOCKOUT PLATE
WB8X208 WB8X208 LAMP ASM
WB02X1609 WB02X1609 LAMP CLEAN
WB36X192 WB36X192 LAMP COV ASM
WB36X0192 WB36X0192 LAMP COVER ASM
WB8X125 WB8X125 LAMPHOLDER
WB8X126 WB8X126 LAMPHOLDER
WB14X5035 WB14X5035 LATCH ASSEMBLY
WB1X5516 WB1X5516 LEVEL LEG
WB01X5516 WB01X5516 LEVELING LEG
WB10X128 WB10X128 LEVER ASM LH
WB02X1016 WB02X1016 LEVER GUIDE
WB2X1016D WB2X1016D LEVER-PKG 12
WB02X5217 WB02X5217 LINK CAM
WB1X588 WB1X588 LOCK WASHER
WB02X3159 WB02X3159 LOCKING PAWL ASM
WZ10X0114 WZ10X0114 LOCKWASHER
WB09X0088 WB09X0088 LOCKWASHER
WB01X0588 WB01X0588 LOCKWASHER SWITCH
WB2X7709 WB2X7709 MTG PLATE
WB44X0198 WB44X0198 MULLION UNIT
WB44X198 WB44X198 MULLION UNIT
WB02X3253 WB02X3253 MULLION UNIT CLIP
WB3X484 WB3X484 N.L.A.KNOB RESPNDR
WB24X99 WB24X99 N.L.A.LAMP SWITCH
WB24X183 WB24X183 N/L/A 01/03/07
WB2X3048 WB2X3048 N/L/A 01/11/05
WB2X5410 WB2X5410 N/L/A 01/19/09
WB10X126 WB10X126 N/L/A 02/27/02
WB24X5139 WB24X5139 N/L/A 04/09/07
WB2X6212 WB2X6212 N/L/A 05/05/05
WB26X5052 WB26X5052 N/L/A 05/26/06
WB36X430 WB36X430 N/L/A 06/03/05
WB2X3040 WB2X3040 N/L/A 06/24/09
WB38X50 WB38X50 N/L/A 07/01/97
WB9X5083 WB9X5083 N/L/A 07/11/00
WB23X75 WB23X75 N/L/A 08/03/00
WB17X167 WB17X167 N/L/A 08/16/02
WB7X5502 WB7X5502 N/L/A 09/13/04
WZ4X219D WZ4X219D N/L/A 09/25/03
WB2X5217 WB2X5217 N/L/A 10/29/09
WB20X59 WB20X59 N/L/A 11/22/04
WB10X127 WB10X127 N/L/A 11/22/95
WB15X94 WB15X94 N/L/A 11/25/02
WB2X3388 WB2X3388 N/L/A 12/08/04
WB2X1608 WB2X1608 NEON LAMP
WB2X3468 WB2X3468 NEON LAMP
WB48X116 WB48X116 NLA
WB2X2616 WB2X2616 NLA PART
WB2X1451 WB2X1451 NLA PART
WB1X246D WB1X246D NUT-PKG 12
WB9X88 WB9X88 OVEN HOOK
WB36X0389 WB36X0389 OVEN LAMP CAMERA LENS
WB08X5060 WB08X5060 OVEN LIGHT SOCKET
WB53X0202 WB53X0202 OVEN LINER
WB53X0241 WB53X0241 OVEN LINER
WB02X3285 WB02X3285 PAD
WB2X3285 WB2X3285 PAD
WB02X3232 WB02X3232 PAD CRYSTAL
WB56X1450 WB56X1450 PANEL
WB56X1440 WB56X1440 PANEL - AD
WB56X1435 WB56X1435 PANEL - AD
WB56X1430 WB56X1430 PANEL - AD
WB56X1437 WB56X1437 PANEL - CF
WB56X1447 WB56X1447 PANEL - CF
WB56X1432 WB56X1432 PANEL - CF
WB56X1427 WB56X1427 PANEL - CF
WB56X1438 WB56X1438 PANEL - FA
WB56X1448 WB56X1448 PANEL - FA
WB56X1433 WB56X1433 PANEL - FA
WB56X1428 WB56X1428 PANEL - FA
WB56X1439 WB56X1439 PANEL - HA
WB56X1449 WB56X1449 PANEL - HA
WB56X1434 WB56X1434 PANEL - HA
WB56X1429 WB56X1429 PANEL - HA
WB56X1436 WB56X1436 PANEL - WH
WB56X1446 WB56X1446 PANEL - WH
WB56X1431 WB56X1431 PANEL - WH
WB56X1426 WB56X1426 PANEL - WH
WB56X1053 WB56X1053 PANEL BOTTOM
WB56X1050 WB56X1050 PANEL LH
WB56X1052 WB56X1052 PANEL REAR
WB56X1051 WB56X1051 PANEL RH
WB2X3159 WB2X3159 PAWLLOCKING
WB02X1081 WB02X1081 PIN HINGE
WB02X6212 WB02X6212 PIVOT STUD
WB02X3164 WB02X3164 PLATE
WB2X1908 WB2X1908 PLATE
WB02X2504 WB02X2504 PLATE COVER
WB02X3136 WB02X3136 PLATE LAMP
WB02X3176 WB02X3176 PLATE MOUNTING
WB2X3164 WB2X3164 PLATE MTG
WB02X0646 WB02X0646 PLATE-GROUND
WB02X3394 WB02X3394 PLUG BUTTON
WB02X2939 WB02X2939 PLUG BUTTON
WB02X2044 WB02X2044 POST LH
WB02X1923 WB02X1923 POST PLATE
WB02X2043 WB02X2043 POST RH
WB20X0054 WB20X0054 PROBE
WB20X54 WB20X54 PROBE
WB48X73 WB48X73 RACK

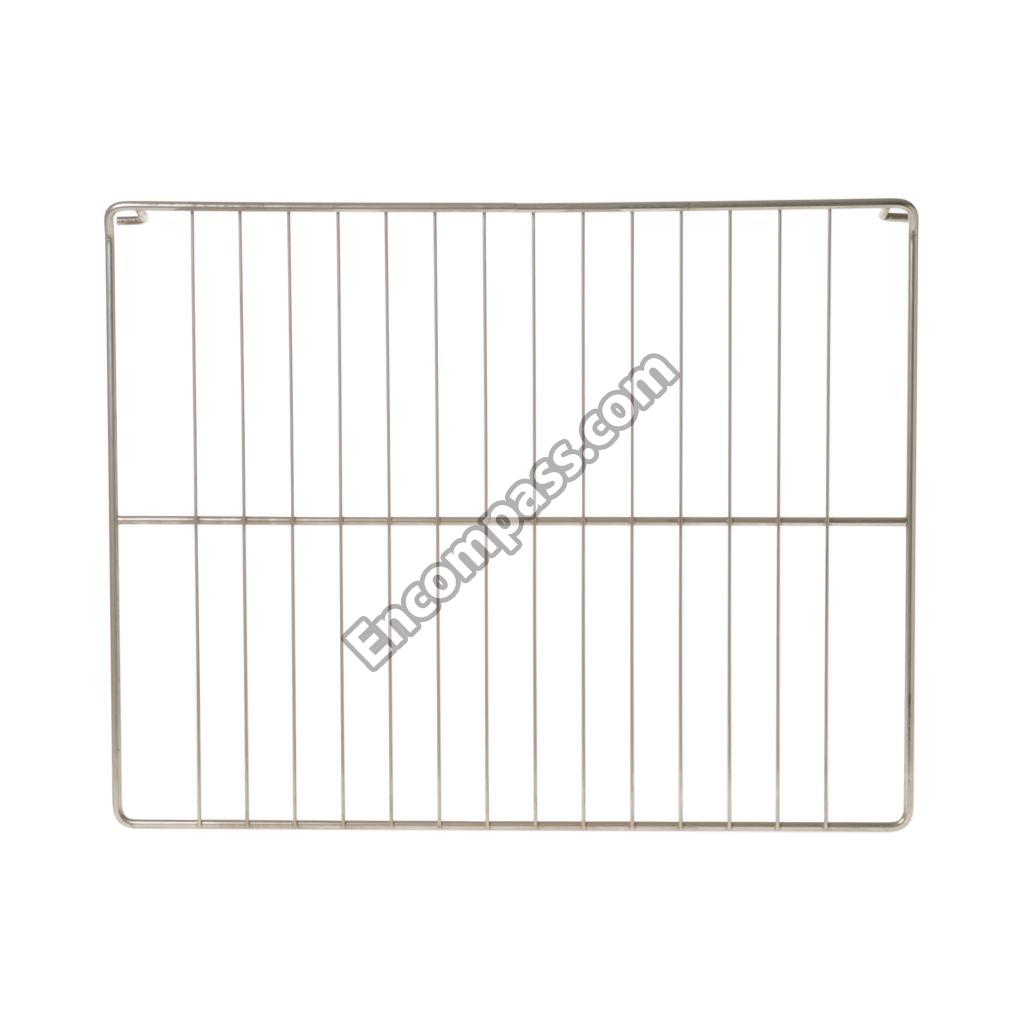

WB48X0116 WB48X0116 RACK OVEN
WB48X0088 WB48X0088 RACK STRAIGHT
WB08X0191 WB08X0191 RECEPTACLE
WB20X55 WB20X55 RECEPTACLE
WB8X191 WB8X191 RECEPTACLE
WB20X0055 WB20X0055 RECEPTACLE ASM
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB2X3047 WB2X3047 REFLECTOR
WB02X2276 WB02X2276 REFLECTOR FOIL
WB02X3047 WB02X3047 REFLECTOR LINER
WB21X0236 WB21X0236 RESPONDER, SURFACE UNIT
WB2X1800 WB2X1800 RETAIN RING
WB2X2030 WB2X2030 RETAINER
WB2X1082 WB2X1082 RETAINER
WB02X2030 WB02X2030 RETAINER KNOB
WB02X1800 WB02X1800 RETAINER RING
WB02X1082 WB02X1082 RING RETAINING
WB02X2498 WB02X2498 ROLLER
WB2X2498 WB2X2498 ROLLER
WB01X0549 WB01X0549 SCR 10-12 A IHW 3/8 S
WZ04X0348 WZ04X0348 SCR 10-16 B SL 1-1/8 S
WZ04X0372 WZ04X0372 SCR 6-20 AB HXW 3/8 S
WB01X0284 WB01X0284 SCR 6-20 BA IHW 3/8 S
WZ05X0184 WZ05X0184 SCR 6-20 BT PHR 3/8 S
WZ04X0238 WZ04X0238 SCR 8-18 AB HX 1/2 S
WZ06X0092 WZ06X0092 SCR 8-18 AB HX 1/2 S
WZ04X0306 WZ04X0306 SCR 8-18 AB HX 1/2 S
WZ04X0289 WZ04X0289 SCR 8-18 AB HX 1/4 S
WZ04X0291 WZ04X0291 SCR 8-18 AB HXW 3/8 S
WZ06X0082 WZ06X0082 SCR 8-18 B HXW 3/8 S
WB01X0547 WB01X0547 SCR 8-18 BA IHW 13/16 S
WZ02X0528 WZ02X0528 SCR 8-32 M PHR 3/16 S
WZ05X0134 WZ05X0134 SCR 8-32 T HXW 3/8 S
WZ05X0132 WZ05X0132 SCR 8-32 T HXW 5/16 S
WB01X0521 WB01X0521 SCR 8/32 TF FLR 5/16 S
WZ04X0237 WZ04X0237 SCREW
WB01X0536 WB01X0536 SCREW
WB01X1429 WB01X1429 SCREW
WB1X536 WB1X536 SCREW
WB01X0438 WB01X0438 SCREW & WASHER ASM
WZ06X0046 WZ06X0046 SCREW - MT. TOP
WZ06X0037 WZ06X0037 SCREW - WASHER MT. GD BA
WZ04X0362 WZ04X0362 SCREW 10-16 X 1/4"" HEX
WZ02X0529 WZ02X0529 SCREW 6-32 X 1/4"" HEX
WZ02X0503 WZ02X0503 SCREW 8-32 , 13-32
WZ05X0128 WZ05X0128 SCREW BOTTOM
WZ04X0304 WZ04X0304 SCREW DUCT
WZ04X0370 WZ04X0370 SCREW HANDLE
WZ04X0256 WZ04X0256 SCREW MT. GUIDE L.L.H. -
WZ05X0131 WZ05X0131 SCREW MT. MOTOR
WZ04X0297 WZ04X0297 SCREW MT. SW.
WB01X0583 WB01X0583 SCREW MT. TRIM
WZ04X0384 WZ04X0384 SCREW MTG END CAP
WZ04X0231 WZ04X0231 SCREW MTG. GUIDE
WZ04X0361 WZ04X0361 SCREW MTG. TRIM LAMP
WB01X5355 WB01X5355 SCREW RECEPT TERMINAL
WB01X0453 WB01X0453 SCREW, MTG. TRANSFORMER
WB1X438D WB1X438D SCREW-PKG 12
WZ4X384D WZ4X384D SCREW-PKG 12
WZ4X338D WZ4X338D SCREW-PKG 12
WZ4X360D WZ4X360D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WZ2X464D WZ2X464D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WZ2X528D WZ2X528D SCREW-PKG 12
WZ4X237D WZ4X237D SCREW-PKG 12
WZ4X248D WZ4X248D SCREW-PKG 12
WB1X1429D WB1X1429D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WZ5X132D WZ5X132D SCREW-PKG 12
WZ4X362D WZ4X362D SCREW-PKG 12 **NLA*
WB1X5355 WB1X5355 SCREWS
WB22X5122 WB22X5122 SELECTOR SWITCH
WB21X5207 WB21X5207 SENSOR SURFACE UNIT
WB21X5058 WB21X5058 SENSOR, SURFACE UNIT
WB02X3042 WB02X3042 SHIELD TRACK - SPRING AS
WB02X3041 WB02X3041 SHIELD TRACK - SPRING AS
WB55X0401 WB55X0401 SHIELD WINDOW
WB02X6274 WB02X6274 SLEEVE
WB02X1551 WB02X1551 SLEEVE
WB2X6454 WB2X6454 SLEEVE
WB2X6274 WB2X6274 SLEEVING
WB02X0841 WB02X0841 SLIDE BOTTOM
WB02X0831 WB02X0831 SLIDE GUIDE
WB02X0840 WB02X0840 SLIDE TOP
WB02X3040 WB02X3040 SLIDE, SHIELD
WB2X840D WB2X840D SLIDE-PKG 12
WB2X841D WB2X841D SLIDE-PKG 12
WB29X0051 WB29X0051 SMOKE ELIMINATOR
WB24X0197 WB24X0197 SOLENOID
WB24X5097 WB24X5097 SOLENOID
WB2X3030 WB2X3030 SPACER
WB2X3025 WB2X3025 SPACER **NLA*
WB02X3144 WB02X3144 SPACER DOOR
WB02X3025 WB02X3025 SPACER DOOR
WB02X3030 WB02X3030 SPACER DOOR
WB02X1882 WB02X1882 SPACER DOOR LATCH
WB1X435 WB1X435 SPEED NUT **NLA*
WB02X1659 WB02X1659 SPEEDNUT
WB01X0567 WB01X0567 SPEEDNUT POST
WB01X0240 WB01X0240 SPEEDNUT-SCREW - WASHER
WB9X148 WB9X148 SPRING
WB9X115 WB9X115 SPRING
WB9X113 WB9X113 SPRING
WB9X128 WB9X128 SPRING **NLA*
WB09X0128 WB09X0128 SPRING - GUARD
WB09X0113 WB09X0113 SPRING DOOR
WB09X0148 WB09X0148 SPRING-PLUNGER
WB09X0154 WB09X0154 STRIKE SPRING
WB9X154 WB9X154 STRK SPRING
WB10X125 WB10X125 SUPPORT ASM
WB02X1452 WB02X1452 SUPPORT BROIL
WB02X1451 WB02X1451 SUPPORT BROIL UNIT
WB02X3033 WB02X3033 SUPPORT DEFLECTOR
WB30X0218 WB30X0218 SURFACE UNIT, 6""
WB30X0219 WB30X0219 SURFACE UNIT, 8""
WB30X0357 WB30X0357 SURFACE UNIT, AUTO 8""
WB24X5164 WB24X5164 SWITCH
WB24K2 WB24K2 SWITCH
WB01X0246 WB01X0246 SWITCH NUT
WB22X5131 WB22X5131 SWITCH OVEN
WB24X0215 WB24X0215 SWITCH THERMAL FAN
WB24X0099 WB24X0099 SWITCH, ""F"" LAMP
WB23X0075 WB23X0075 SWITCH, 4-6-8"" S.U.
WB24X0183 WB24X0183 SWITCH, DOOR LATCH
WB24X0166 WB24X0166 SWITCH, DOOR LATCH RELEASE
WB21X0237 WB21X0237 SWITCH, INF SURFACE UNIT
WB22X5090 WB22X5090 SWITCH, OVEN
WB22X0031 WB22X0031 SWITCH, OVEN L.O.
WB24X0105 WB24X0105 SWITCH, OVEN LIGHT
WB24X0175 WB24X0175 SWITCH, THERMAL
WB2X2018 WB2X2018 TERM BLOCK
WB02X3388 WB02X3388 TERMINAL BLOCK
WB02X0863 WB02X0863 TERMINAL GUARD LH
WB49X0170 WB49X0170 TERMINAL GUARD RH
WB21X5320 WB21X5320 THERMOSTAT
WB21X5209 WB21X5209 THERMOSTAT L O
WB24X0184 WB24X0184 THERMOSTAT, DUAL
WB21X0177 WB21X0177 THERMOSTAT, OVEN L.O.
WB19X5240 WB19X5240 TIMER
WB07X1032 WB07X1032 TOP TRIM
WB20X0059 WB20X0059 TRANSFORMER
WB20X0057 WB20X0057 TRANSFORMER
WB20X57 WB20X57 TRANSFORMER
WB07X0617 WB07X0617 TRIM BACKSPLASH BOTTOM
WB02X3393 WB02X3393 TRIM CLIP
WB07X1031 WB07X1031 TRIM CRYSTAL
WB7X7069 WB7X7069 TRIM CRYSTAL
WB07X5590 WB07X5590 TRIM CRYSTAL END
WB07X1217 WB07X1217 TRIM CRYSTAL TOP
WB07X0552 WB07X0552 TRIM DOOR LATCH
WB02X3448 WB02X3448 TRIM LAMP
WB7X7036 WB7X7036 TRIM LATCH
WB7X5022 WB7X5022 TRIM PLATE
WB07X5022 WB07X5022 TRIM PLATE LOWER OVEN
WB07X1216 WB07X1216 TRIM SWITCH
WB07X0478 WB07X0478 TRIM SWITCH
WB38X0049 WB38X0049 TUBE VENT
WB38X5062 WB38X5062 TUBE VENT PK **NLA*
WB30X218 WB30X218 UNIT 6
WB30X219 WB30X219 UNIT 8
WB30X357 WB30X357 UNIT 8 HR
WB02X2018 WB02X2018 UNIT TERMINAL BLOCK
WB17X5051 WB17X5051 UNKNOWN
WB38X0050 WB38X0050 VENT BODY
WB38X0077 WB38X0077 VENT BODY RH
WB01X0548 WB01X0548 WASHER
WZ10X0017 WZ10X0017 WASHER
WB02X1847 WB02X1847 WASHER MT. COVER
WZ10X17D WZ10X17D WASHR PKG 12
WB1X119D WB1X119D WASHR-PKG 12
WZ10X114D WZ10X114D WASHR-PKG 12
WB1X560D WB1X560D WASHR-PKG 12
WB56K19 WB56K19 WB56K19
WB36X0448 WB36X0448 WINDOW PACK
Main Menu x
