Model Image
Manufacturer

GE

Model Number

JCS905BK3BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB36T10725 WB36T10725 BACKSPLASH ASM (BLK)

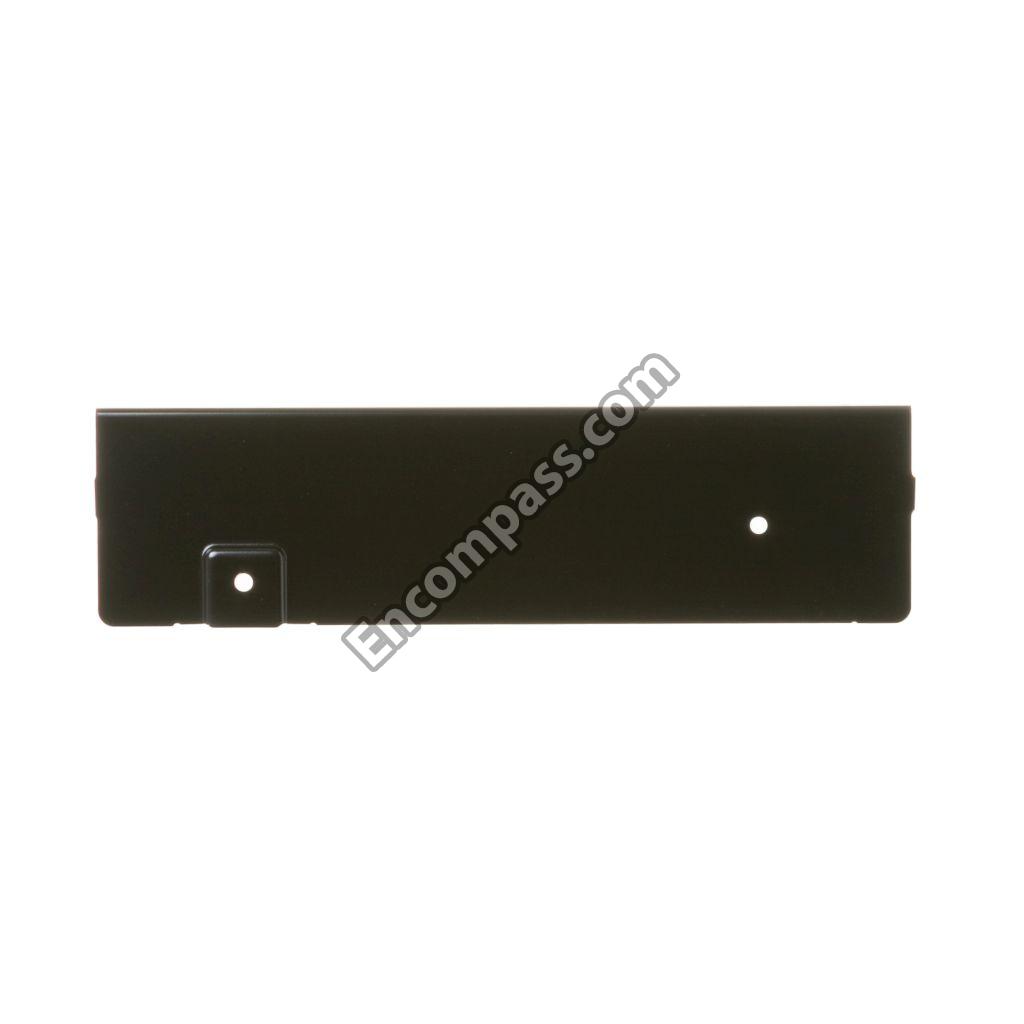

WB36K10239 WB36K10239 BACKSPLASH FILLER-BLACK
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB26T10039 WB26T10039 BLOWER ASM
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10242 WB02T10242 BRACKET
WB02T10137 WB02T10137 BRACKET ASM ANTI TIP
WB61K10010 WB61K10010 BURNER BOX BOTTOM
PM10X310 PM10X310 CERAMABRYTE COOKTOP CLEANER - 28 OZ.
WX10X300 WX10X300 CLEANER GLASS
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP

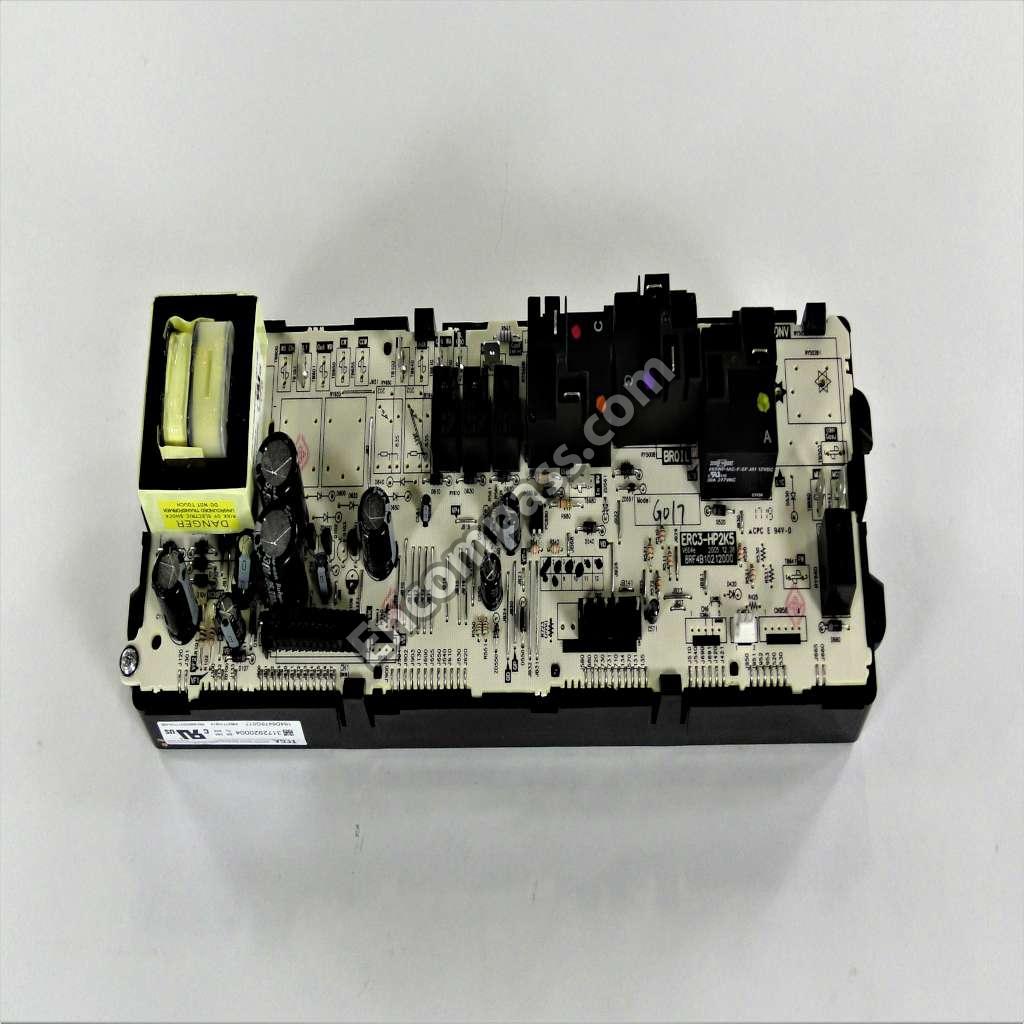

WB27T10815 WB27T10815 CONTROL OVN ERC
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34K10049 WB34K10049 COVER WIRE REAR
WB34T10054 WB34T10054 COVER WIRE RR LWR
WB02T10047 WB02T10047 CRYSTAL MOUNT
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB01T10022 WB01T10022 DOOR BUMPER
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB57T10277 WB57T10277 DOOR OTR ASM 30 (BK)
WB57T10280 WB57T10280 DOOR OTR ASM 30 (WH)
WB55T10178 WB55T10178 DRAWER BODY ASSEMBLY MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB44K10009 WB44K10009 ELEMENT BAKE

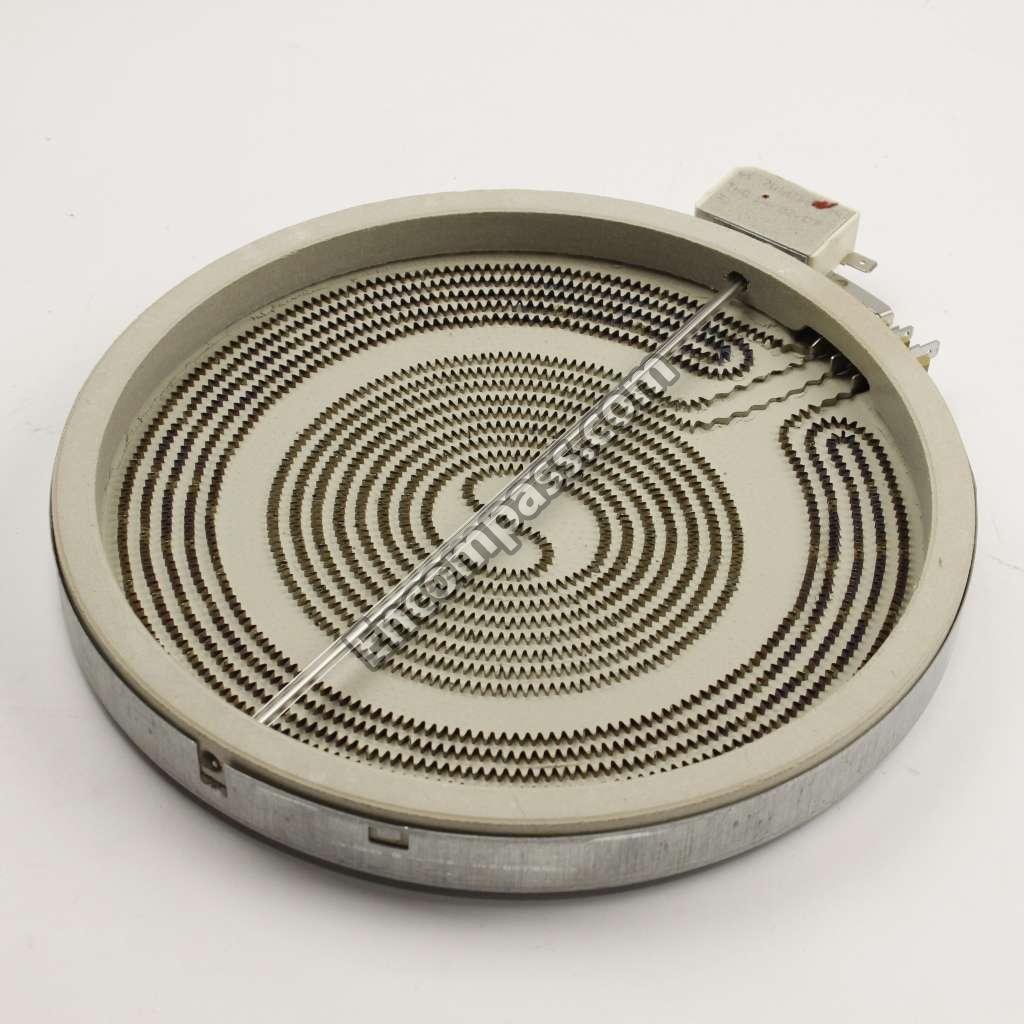

WB30T10124 WB30T10124 ELEMENT RADIANT 6 WARMER

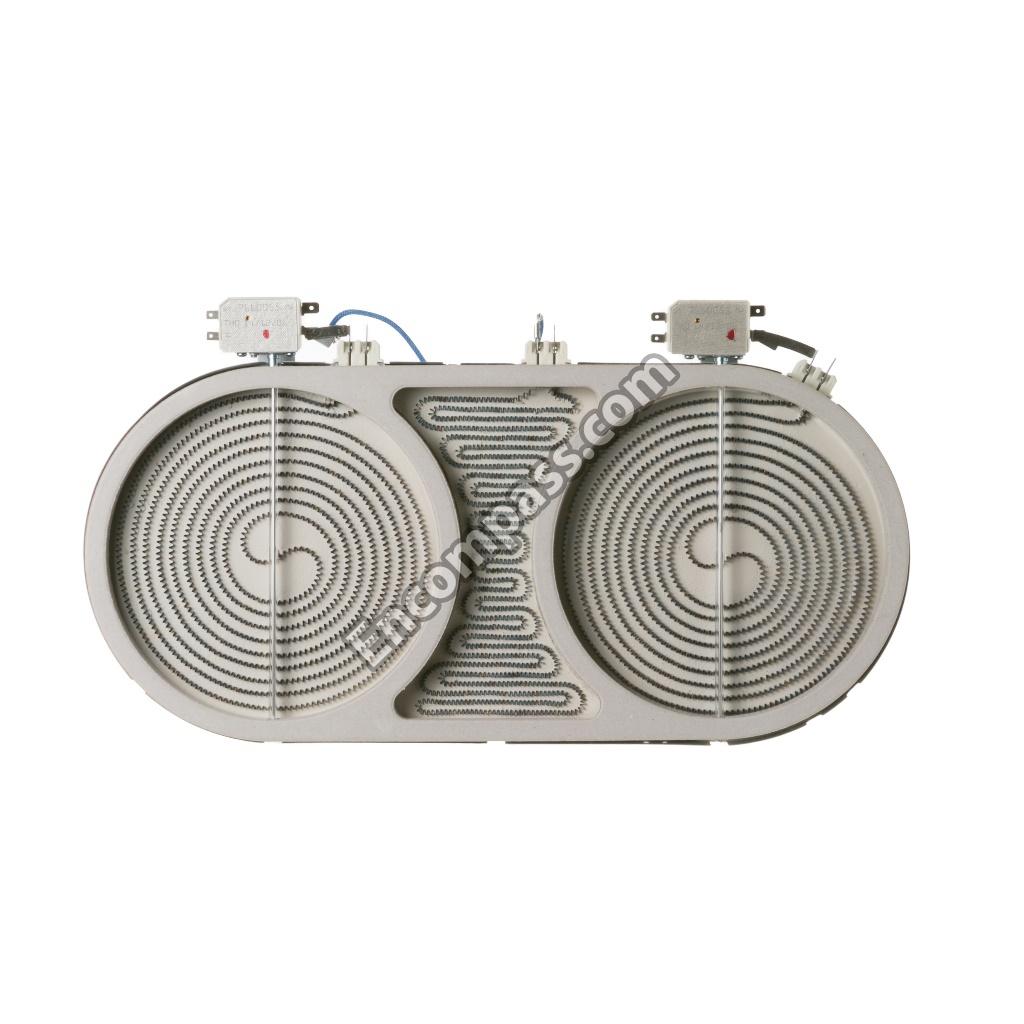

WB30T10122 WB30T10122 ELEMENT RADIANT 9 DUAL
WB30T10140 WB30T10140 ELEMENT RADNT BRIDGE
WB30T10141 WB30T10141 ELEMENT RADNT BRIDGE
WB07K10155 WB07K10155 EXTENSION REAR
WB07T10498 WB07T10498 EXTENSION SIDE LT
WB07T10497 WB07T10497 EXTENSION SIDE RT
WB27T10795 WB27T10795 FACEPLATE (SCR-BK)
WB27T10797 WB27T10797 FACEPLATE (SCR-WH)
WR02X10562 WR02X10562 FASTENER PUSH
WB07K10157 WB07K10157 FILLER BACKSPLASH (WHITE)
WB63T10083 WB63T10083 FRAME FRT LOWER
WB02X10744 WB02X10744 GASKET FACEPLATE
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10511 WB02T10511 GASKET MAINTOP OTR
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB04T10050 WB04T10050 GASKET OVEN DOOR
WB57T10233 WB57T10233 GLASS OVN DR INR
WB15T10138 WB15T10138 HANDLE PRF DRAWER (WH)
WB15T10136 WB15T10136 HANDLE PRF DRAWER BK
WB10X30494 WB10X30494 HINGE DOOR LEFT
WB10X24381 WB10X24381 HINGE DOOR LT
WB10X20965 WB10X20965 HINGE DOOR RT
WB24T10012 WB24T10012 INF SWITCH CONTROL (WM)
WB36T10570 WB36T10570 INSERT CONTROL PNL
31-10623 31-10623 INSTRUCTION INSTALL
31-10482 31-10482 INSTRUCTION INSTALL
31-10651 31-10651 INSTRUCTIONS INSTALL
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10126 WB35T10126 INSULATION TOP
WB27T10794 WB27T10794 KEYPANEL SUPT ASM (BK)
WB27T10796 WB27T10796 KEYPANEL SUPT ASM (WH)
WB03T10078 WB03T10078 KNOB
WB03T10079 WB03T10079 KNOB PROFILE SU
WB14T10036 WB14T10036 LATCH OVN
WB02X10521 WB02X10521 LEG LEVELER
WB25T10022 WB25T10022 LENS SNAP-IN
WB1M18 WB1M18 LEVEL SCREW
WB01M0018 WB01M0018 LEVELING SCREW

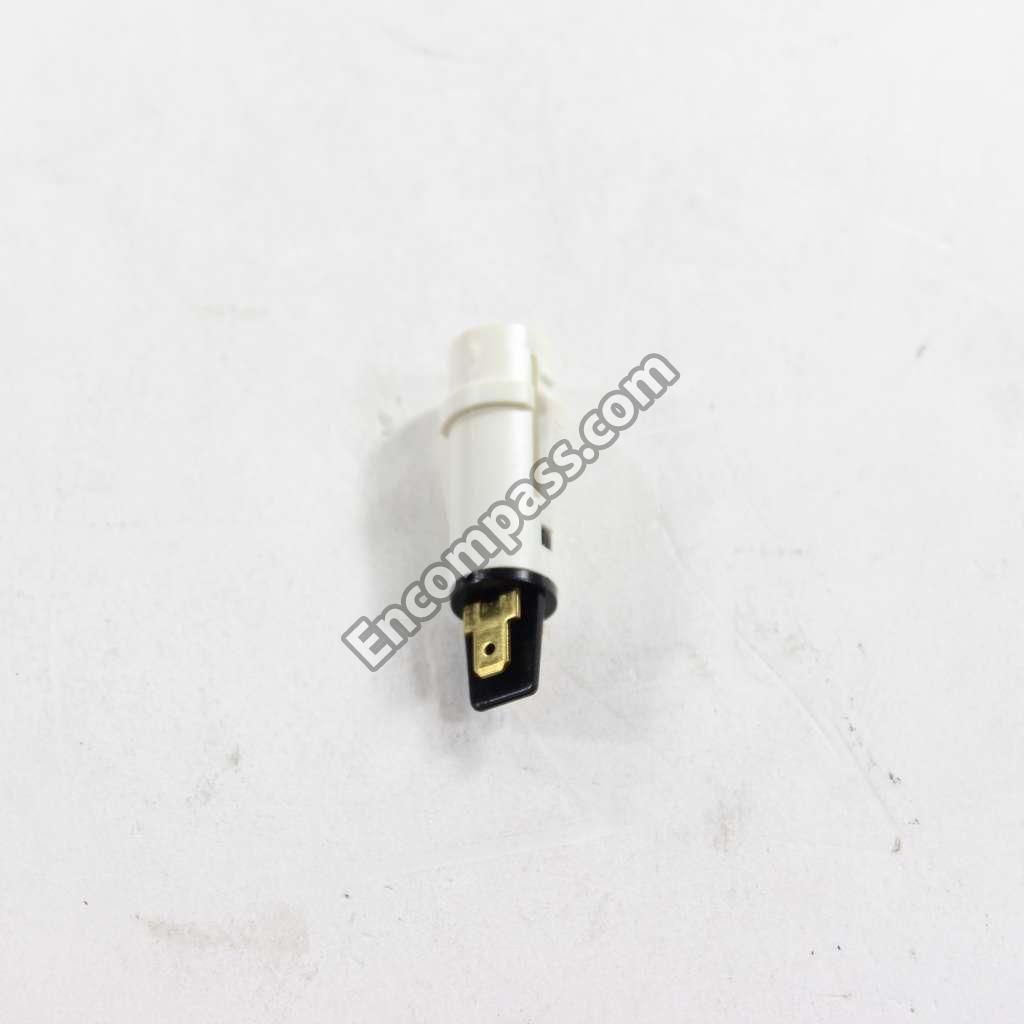

WB25T10056 WB25T10056 LIGHT INDICATOR
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10148 WB55T10148 LINER OVEN DR ASM
WB62T10688 WB62T10688 MAINTOP GLASS ASM (BK)
WB62T10689 WB62T10689 MAINTOP GLASS ASM (WH)
31-14645 31-14645 MANUAL MINI & WD ASM
29-5582 29-5582 MANUAL USE & CARE
WB18T10349 WB18T10349 MODULE INDICATOR LIGHT
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB25T10002 WB25T10002 OVEN BULB LENS COVER-
WB08T10002 WB08T10002 OVEN LAMP HO
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10666 WB36T10666 PANEL CNTL ASM
WB36T10668 WB36T10668 PANEL CNTL ASM
WB56T10174 WB56T10174 PANEL DRAWER
WB56T10173 WB56T10173 PANEL DRAWER
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB48T10021 WB48T10021 RACK OVEN LWR
WB09T10002 WB09T10002 RADIANT SPRING ELEMENT
WB30T10129 WB30T10129 RANGE 6-INCH RADIANT SURFACE ELEMENT
WX09X10035 WX09X10035 RANGE CORD 4' 3 PRONG
WB07T10631 WB07T10631 RANGE SIDE TRIM - RIGHT - BLACK
WB10T10083 WB10T10083 RECEIVER HINGE
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB02X20948 WB02X20948 RETAINER INSLN BACK
WB02T10372 WB02T10372 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10343 WB02T10343 RETAINER INSLN TOP
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01X1178 WB01X1178 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5062 WB1K5062 SCREW
WB1K5029 WB1K5029 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB1K5157 WB1K5157 SCREW-BLK
WB01X1118 WB01X1118 SCREW-NICKEL
WH2X941D WH2X941D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB23T10015 WB23T10015 SENSOR ASM
WB34T10059 WB34T10059 SHIELD VENT ASM
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10065 WB02T10065 SPACER DR HANDLE
WB2X9037 WB2X9037 SPACER-HNDL
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB02X33180 WB02X33180 SUPPORT REAR
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET

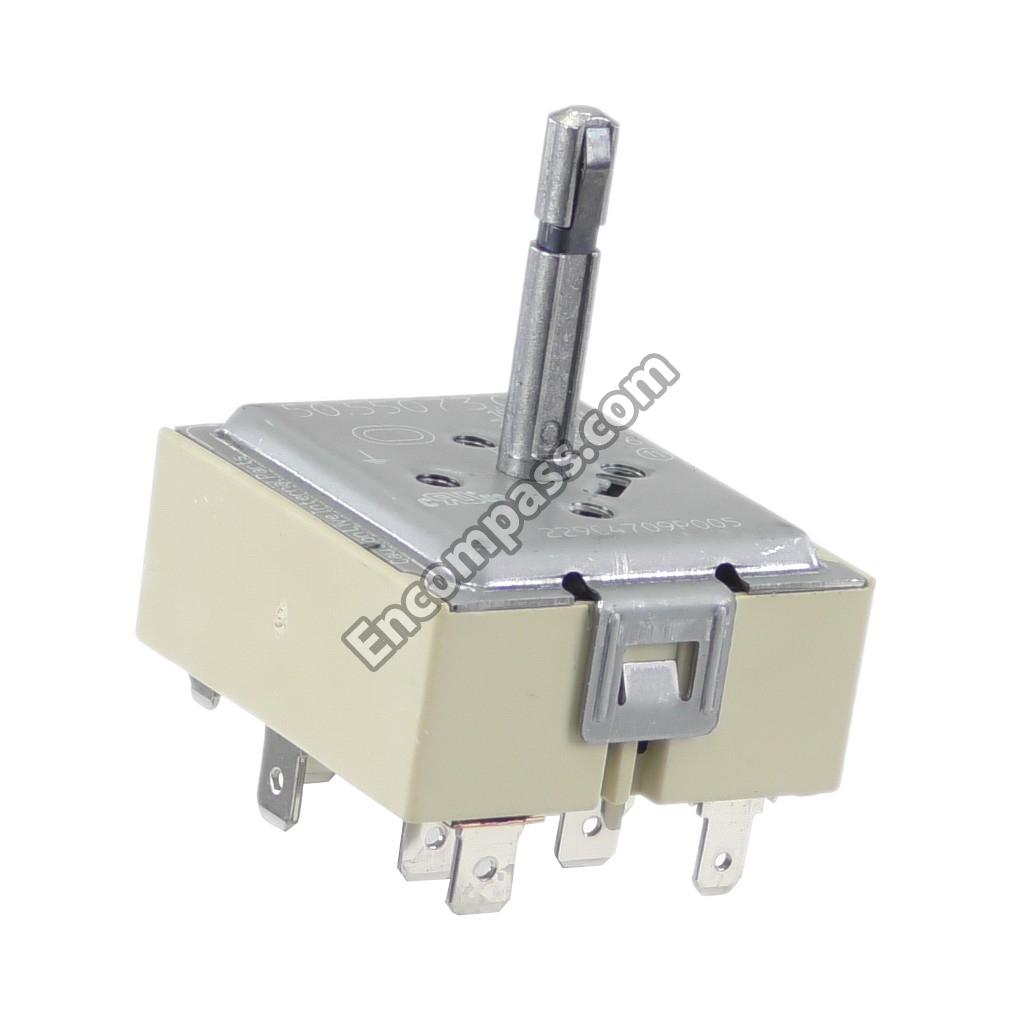

WB24T10134 WB24T10134 SWITCH INF CNTL
WB24T10119 WB24T10119 SWITCH INFINITE CONTROL
WB24T10079 WB24T10079 SWITCH LIMIT
WB01T10052 WB01T10052 TAPE FOAM
WB07T10518 WB07T10518 TRIM VENT INR (BLACK)
WB07T10521 WB07T10521 TRIM VERT SDE LT (BK)
WB07T10520 WB07T10520 TRIM VERT SDE RT (BK)
WB07T10522 WB07T10522 TRIM VERT SDE RT (WH)
WB07T10632 WB07T10632 TRIM VERT SIDE LT (BK)
WB07T10636 WB07T10636 TRIM VERT SIDE LT (WH)
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB28T10075 WB28T10075 VENT INLET DUCT
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB35T10090 WB35T10090 WB35K5116
WB48T10068 WB48T10068 WEDGE DRAWER
WB63T10085 WB63T10085 WRAPPER OVEN CAV
