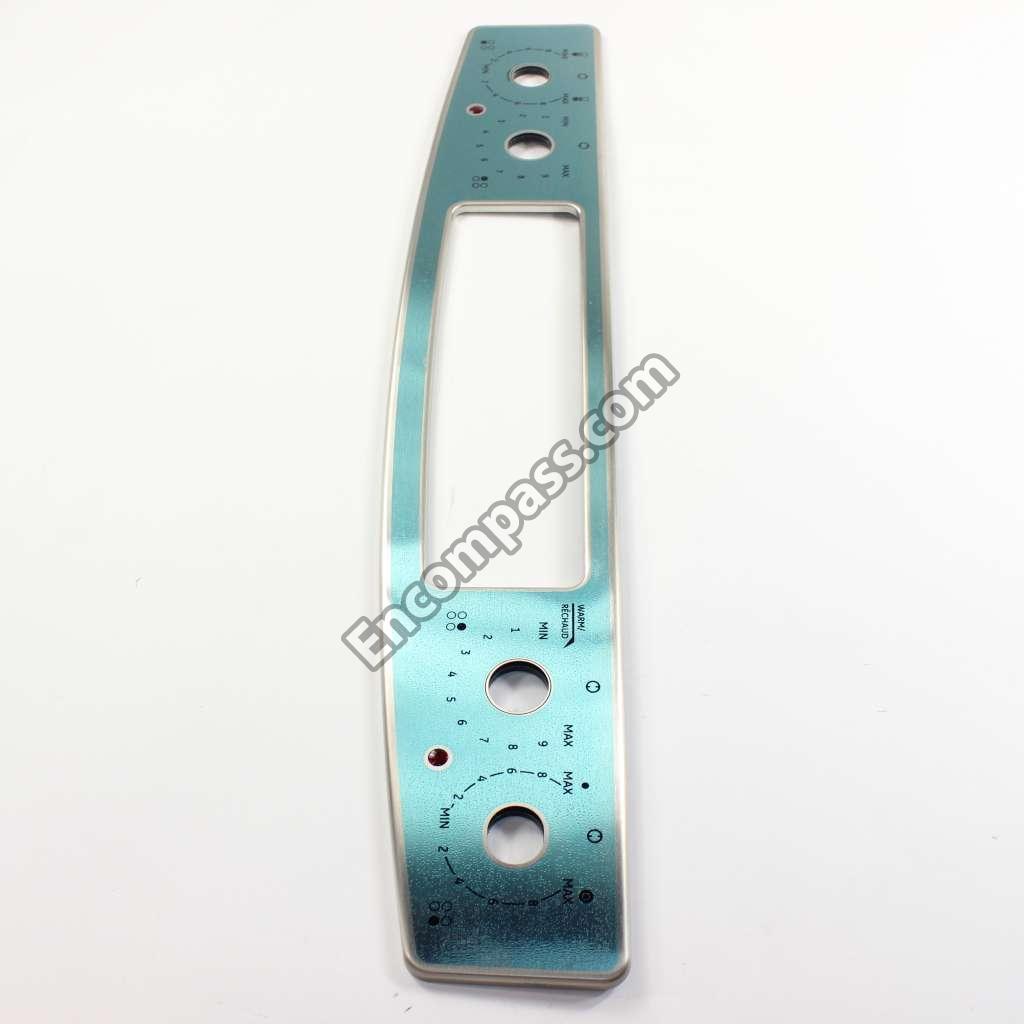

Model Image
Manufacturer

GE

Model Number

JCS905SK1SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 GE 28 CERAMA BR
WB1K5200 WB1K5200 GE 340531
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB02T10415 WB02T10415 GE ANTI-TIP BRACKET
WB36K10239 WB36K10239 GE BACKSPLASH FILLER-BLK
WB63X28540 WB63X28540 GE BASE RIVET ASM
WB63X25881 WB63X25881 GE BASE RIVET ASM
WB26T10039 WB26T10039 GE BLOWER ASSEMBLY
WB38T10019 WB38T10019 GE BOX VENT ASSEMBLY
WB02T10242 WB02T10242 GE BRACKET
WB61K10010 WB61K10010 GE BURNER BOX BOTTOM
WB01K5209 WB01K5209 GE CLIP
WB1K5209 WB1K5209 GE CLIP
WB27T10815 WB27T10815 GE CONTROL OVN ERC
WB02X10742 WB02X10742 GE CONTROL PANEL GASKET
WB02X9152 WB02X9152 GE COVER
WB02K5365 WB02K5365 GE COVER
WB2X9152 WB2X9152 GE COVER
WB2K5365 WB2K5365 GE COVER
WB34K10049 WB34K10049 GE COVER WIRE REAR
WB34T10054 WB34T10054 GE COVER WIRE RR LWR
WB02T10047 WB02T10047 GE CRYSTAL MOUNT
WB02T10046 WB02T10046 GE CRYSTAL RETAINER
WB01T10022 WB01T10022 GE DOOR BUMPER
WB57T10275 WB57T10275 GE DOOR OTR ASM 30 (SS)
WB48T10068 WB48T10068 GE DRAWER GUIDE
WB44K10009 WB44K10009 GE ELEMENT BAKE
WB30X44826 WB30X44826 GE ELEMENT HALIANT 6
WB30T10099 WB30T10099 GE ELEMENT HALIANT 9
WB03T10088 WB03T10088 GE ELEMENT RADIANT
WB30X32514 WB30X32514 GE ELEMENT RADIANT 6 WARMER
WB07K10155 WB07K10155 GE EXTENSION REAR
WB07T10498 WB07T10498 GE EXTENSION SIDE LT
WB07T10497 WB07T10497 GE EXTENSION SIDE RT
WR02X10562 WR02X10562 GE FASTENER PUSH
WB63T10083 WB63T10083 GE FRAME FRT LOWER
WB48T10013 WB48T10013 GE FRT DRAWER SUPPORT
WB02X10744 WB02X10744 GE GASKET FACEPLATE
WB02T10511 WB02T10511 GE GASKET MAINTOP
WB02T10320 WB02T10320 GE GASKET MAINTOP LH
WB02T10319 WB02T10319 GE GASKET MAINTOP RH
WB04T10050 WB04T10050 GE GASKET OVEN DOOR
WB64X0093 WB64X0093 GE GLASS CLEANER
WB57T10233 WB57T10233 GE GLASS OVN DR INR
WB15T10190 WB15T10190 GE HANDLE PRF SS
WB10T10091 WB10T10091 GE HINGE DOOR LT
WB10T10090 WB10T10090 GE HINGE DOOR RT
WB24T10012 WB24T10012 GE INF SWITCH CNTL (WM)
WB36T10570 WB36T10570 GE INSERT CONTROL PNL
31-10623 31-10623 GE INSTRUCTION INSTALL
WB35T10073 WB35T10073 GE INSULATION (INR) LWR
WB35T10074 WB35T10074 GE INSULATION (OUT) LWR
WB35K10025 WB35K10025 GE INSULATION OVEN DR SDE
WB35X30052 WB35X30052 GE INSULATION OVN DR TOP
WB27T10794 WB27T10794 GE KEYPANEL SUPT ASM (BK)
WB14T10018 WB14T10018 GE LATCH OVN
WB02X10521 WB02X10521 GE LEG LEVELER
WB25T10022 WB25T10022 GE LENS SNAP-IN
WB25T10048 WB25T10048 GE LIGHT INDICATOR
WB24T10060 WB24T10060 GE LIMIT SWITCH-UPPER(LOCK)
WB55T10148 WB55T10148 GE LINER OVEN DR ASM
WB02K5306 WB02K5306 GE LOWER OVN INSLN RETAINER
WB62T10537 WB62T10537 GE MAINTOP GLASS ASM (BK)
31-14354 31-14354 GE MANUAL MINI & WD ASM
49-80320 49-80320 GE MANUAL USE & CARE
WB18T10349 WB18T10349 GE MODULE INDICATOR LIGHT
WB17T10021 WB17T10021 GE MOUNT TERMINAL BLOCK
WB25T10002 WB25T10002 GE OVEN BULB LENS
WB08T10002 WB08T10002 GE OVEN LAMP HOLDER ASM
WB56T10105 WB56T10105 GE PACK WINDOW ASM
WB56X22160 WB56X22160 GE PACK WINDOW ASSEMBLY
WB36T10666 WB36T10666 GE PANEL CNTL ASM
WB56T10176 WB56T10176 GE PANEL DRAWER ASM
WB27T10798 WB27T10798 GE PANEL OVERLAY ASM
WB02T10147 WB02T10147 GE PLATE REINFORCEMEMT
WB48T10021 WB48T10021 GE RACK OVEN LWR
WB09T10002 WB09T10002 GE RADIANT ELEMENT SPRING
WX09X10035 WX09X10035 GE RANGE CORD 4' 3 PRONG
WB03T10261 WB03T10261 GE RANGE KNOB - STAINLESS STEEL
WB10T10083 WB10T10083 GE RECEIVER HINGE
WB34T10112 WB34T10112 GE REFLECTOR HEAT
WB56T10373 WB56T10373 GE RETAINER GLASS OVEN DR
WB56T10136 WB56T10136 GE RETAINER INSLN BACK
WB02T10233 WB02T10233 GE RETAINER INSLN BTM
WB02T10371 WB02T10371 GE RETAINER INSLN OVN DR
WB02T10343 WB02T10343 GE RETAINER INSLN TOP CENTER
WH02X0941 WH02X0941 GE SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 GE SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 GE SCR 8-18 B HXW 1/4 S
WB01X1178 WB01X1178 GE SCREW
WB01X1253 WB01X1253 GE SCREW
WB01X1137 WB01X1137 GE SCREW
WB01K5029 WB01K5029 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WB01X1127 WB01X1127 GE SCREW
WB01X1141 WB01X1141 GE SCREW
WB01K5028 WB01K5028 GE SCREW
WB1X1178 WB1X1178 GE SCREW
WB1K5029 WB1K5029 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WH2X1186 WH2X1186 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X536 WB1X536 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10017 WB01T10017 GE SCREW 8-18 AB IHW 3/8 S NS
WB01T10053 WB01T10053 GE SCREW 8-32 TPT FLR 270
WB1X5364 WB1X5364 GE SCREW MTG
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 GE SCREW ST8-18X.500TRBRNI
WB01X1424 WB01X1424 GE SCREW, TRANSFORMER
WB1X1130 WB1X1130 GE SCREW-10-32
WB1X1137 WB1X1137 GE SCREW-10AB
WB1X1118 WB1X1118 GE SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 GE SCREW-8-32
WB01X1180 WB01X1180 GE SCREW-BLACK
WB1X1424D WB1X1424D GE SCREW-PKG 12
WH2X941D WH2X941D GE SCREW-PKG 12
WB1X500D WB1X500D GE SCREW-PKG 12
WB2K5306 WB2K5306 GE SD INSUL RET
WB23T10015 WB23T10015 GE SENSOR ASM
WB34T10059 WB34T10059 GE SHIELD VENT ASM
WB02T10034 WB02T10034 GE SIDE PANEL SUPPORT
WB55T10178 WB55T10178 GE STORAGE DRAWER LINING
WB26T10015 WB26T10015 GE SUPPORT OVN CAV
WB02X33180 WB02X33180 GE SUPPORT REAR
WB2K5238 WB2K5238 GE SW BRACKET
WB02K5238 WB02K5238 GE SWITCH BRACKET
WB24T10063 WB24T10063 GE SWITCH INF CNTL
WB24T10119 WB24T10119 GE SWITCH INFINITE CONTROL
WB24T10065 WB24T10065 GE SWITCH LIGHT SPOT
WB24T10079 WB24T10079 GE SWITCH LIMIT
WB24T10111 WB24T10111 GE SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 GE TAPE FOAM
WB17T10011 WB17T10011 GE TERMINAL BLOCK ASSEMBLY
WB07T10496 WB07T10496 GE TRIM ASM
WB07T10392 WB07T10392 GE TRIM VERT SDE LT
WB07T10391 WB07T10391 GE TRIM VERT SDE RT
WB38X33650 WB38X33650 GE TUBE VENT
WB44T10043 WB44T10043 GE UNIT BROIL ASM (DLX)
WB48X10056 WB48X10056 GE UNIVERSAL RANGE BROILER PAN
WB28T10075 WB28T10075 GE VENT INLET DUCT
WB01K5174 WB01K5174 GE WASHER
WB1K5174 WB1K5174 GE WASHER
WB1K5117 WB1K5117 GE WASHER
WB01K5117 WB01K5117 GE WASHER .250 ID X .812 OD
WB1X681 WB1X681 GE WB01X0681
WB35T10090 WB35T10090 GE WB35K5116
WB63T10085 WB63T10085 GE WRAPPER OVEN CAV
