Model Image
Manufacturer

GE

Model Number

JCSS16P1

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB31X5013 WB31X5013 6 INCH CHROME TRIM RING - ELEC
WB30M1 WB30M1 6 SURF ELEM
WB30M0001 WB30M0001 6"" SURF ELEM
WB32X5060 WB32X5060 8 AREATION PAN
WB30M2 WB30M2 8 SURF ELEM
WB30M0002 WB30M0002 8"" SURF ELEM
WB36K5137 WB36K5137 BACKSPLASH FILLER
WB36K5579 WB36K5579 BACKSPLASH FILLER-WHITE
WB44M0001 WB44M0001 BAKE ELEMENT
WB44K5012 WB44K5012 BAKE ELEMENT
WB2M33 WB2M33 BASE ASM
WB02M0033 WB02M0033 BASE ASM W/LEVELERS
WB64K5038 WB64K5038 BBB SIDE EXTENSION
WB26M0013 WB26M0013 BLADE FAN
WB17X5095 WB17X5095 BLOCK TERMINAL POWER
WB2X9148 WB2X9148 BLOCK-FRONT
WB2X9146 WB2X9146 BLOCK-REAR
WB26K5031 WB26K5031 BLOWER GRILL
WB26M0018 WB26M0018 BLOWER HOUSING
WB26M0020 WB26M0020 BLOWER PLATE
WB26M20 WB26M20 BLWR PLATE
WB63M21 WB63M21 BODY SD FILL
WB63M0024 WB63M0024 BODY SIDE-LT-SMOOTH
WB63M0058 WB63M0058 BODY SIDE-RT-SMOOTH
WB63K5195 WB63K5195 BODY SIDE-TEXTURED-LT
WB63K5192 WB63K5192 BODY SIDE-TEXTURED-RT
WB63M0021 WB63M0021 BODYSIDE FILLER-REAR
WB10X255 WB10X255 BRACKET-HNGE
WB34K5118 WB34K5118 BREAKER BOX
WB02X9190 WB02X9190 BRIDGE SPACER
WB44X0232 WB44X0232 BROIL ELEMENT 240V
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB48M0003 WB48M0003 BROILER PAN
WB49X0627 WB49X0627 BROILER PAN GRID
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB44X232 WB44X232 BROILUNT 240
WB64K5044 WB64K5044 BURNER BOX BOTTOM
WB02X9103 WB02X9103 BUSHING
WB2X9103 WB2X9103 BUSHING
WB20K5022 WB20K5022 CIRCUIT BREAKER 20AMP
WB20K5023 WB20K5023 CIRCUIT BREAKER-15 AM
WB17X211 WB17X211 CLIP-TERM BK
WB11K5016 WB11K5016 CLOCK
WB02K5333 WB02K5333 CLOCK BRACKET
WB2K5333 WB2K5333 CLOCK BRKT
WB36K5175 WB36K5175 CONTROL PANEL
WB35M0013 WB35M0013 CONTROL PANEL INSULATION
WB06X0003 WB06X0003 CONTROL SEAL
WB6X3 WB6X3 CONTROL SEAL
WB2X9749 WB2X9749 COVER PLATE
WB34K5107 WB34K5107 COVER WIRE
WB15M3 WB15M3 DOOR HANDLE
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB58X63 WB58X63 DRAWER
WB56M0003 WB56M0003 DRAWER SUPPORT
WB23M24 WB23M24 EL CTL 1500W
WB23M0024 WB23M0024 ELEMENT CONTROL 1400W
WB23K5027 WB23K5027 ELEMENT CONTROL 2350W
WB36K5378 WB36K5378 END CAP LT (BLACK)
WB36K5136 WB36K5136 END CAP-LT
WB34K5111 WB34K5111 EXTENSION WIRE COVER
WB34M9 WB34M9 F BX MTG PLT
WB26M13 WB26M13 FAN BLADE
WB24M15 WB24M15 FAN LMT SWIT
WB26K5026 WB26K5026 FAN MOTOR L
WB02X9749 WB02X9749 FLUE PLATE COVER
WB63K5061 WB63K5061 FRONT FRAME
WB34M0009 WB34M0009 FUSE BOX MTG PLATE
WB2X9725 WB2X9725 GROMET STRP
WB2K5096 WB2K5096 GROMMET
WB02X9725 WB02X9725 GROMMET STRIP
WB02K5096 WB02K5096 GROMMET STRIP
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15M0003 WB15M0003 HANDLE
WB01M0041 WB01M0041 HEX NUT
WB1M41 WB1M41 HEX NUT
WB20K5021 WB20K5021 HI-LIMIT THERMOSTAT
WB14X0103 WB14X0103 HINGE ASM-LT
WB14X0104 WB14X0104 HINGE ASM-RT
WB14X110 WB14X110 HINGE-LEFT
WB14X103 WB14X103 HINGE-LEFT
WB14X104 WB14X104 HINGE-RIGHT
WB14X109 WB14X109 HINGE-RIGHT
WB26K5037 WB26K5037 HOSE
WB26K5056 WB26K5056 HOUSING BLOWER
WB25X0093 WB25X0093 IND LHT OVN HOT SURFACE
WB25X0092 WB25X0092 INDICATOR LIGHT
WB24X0094 WB24X0094 INDICATOR LIGHT CAMERA LENS
WB3K5069 WB3K5069 INF CTL KNOB
WB34K5125 WB34K5125 INFINITE BARRIER SHIELD

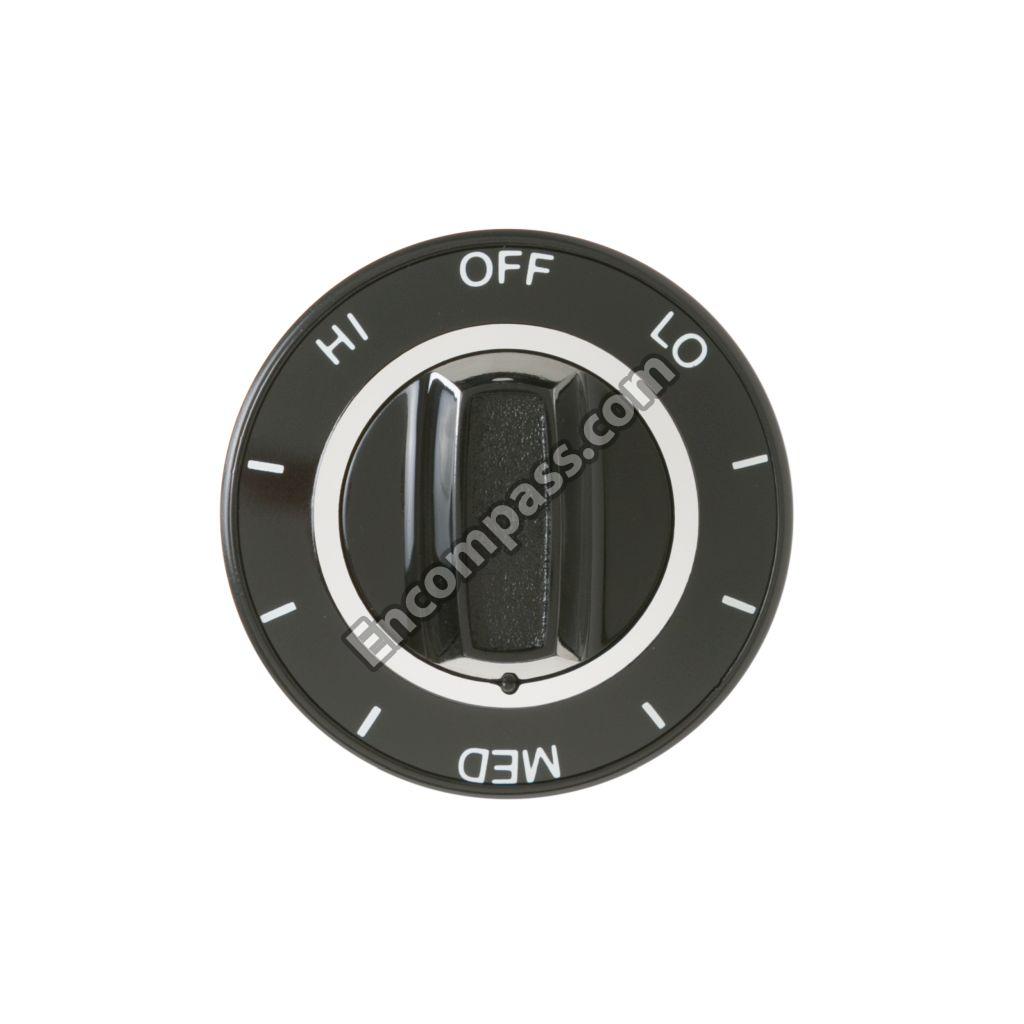

WB03M0026 WB03M0026 INFINITE KNOB
WB02K5093 WB02K5093 INS RETAINER-LO
WB02T10077 WB02T10077 INSLN RETAINER-LO
31-10005 31-10005 INSTALLATION INSTRUCTION
WB02X9030 WB02X9030 INSULATION RETAINER
WB35M0022 WB35M0022 INSULATION TOP &SIDES
WB35K5113 WB35K5113 INSULATION-BACK & BTM
WB35M0024 WB35M0024 INSULATION-TOP & SIDES
WB1M18 WB1M18 LEVEL SCREW
WB01M0018 WB01M0018 LEVELING SCREW
WB25T10040 WB25T10040 LIGHT INDICATOR
WB25T10039 WB25T10039 LIGHT INDICATOR
WB34M0027 WB34M0027 LIGHT WIRE COVER
WB63K5126 WB63K5126 MAIN BACK ASM
WB62X5028 WB62X5028 MAIN TOP
WB18K5245 WB18K5245 MAIN TOP WIRE HARNESS
WB18K5316 WB18K5316 MAIN WIRE HARNESS
WB14X0110 WB14X0110 MAINTOP HINGE-LT
WB14X0109 WB14X0109 MAINTOP HINGE-RT
WB36K5135 WB36K5135 MANIFOLD END CAP-RT
31-13033 31-13033 MINI MANUAL/WIRE DIAGRAM
WB26M0019 WB26M0019 MOTOR
WB10X0255 WB10X0255 MT HINGE BRACKET
WB02K5208 WB02K5208 MTG BRACKET
WB56X1901 WB56X1901 OV DOOR GLASS-INNER
WB09X0267 WB09X0267 OV DOOR SPRING
WB02X9192 WB02X9192 OV DR GLASS RETAINER
WB02X9191 WB02X9191 OV DR INS RETAINER
WB35K5026 WB35K5026 OV DR INSULATION
WB55M8 WB55M8 OV DR LINING
WB56X1912 WB56X1912 OV DR OUTER GLASS
WB02X9437 WB02X9437 OV DR SEAL
WB25M0010 WB25M0010 OV LAMP CAMERA LENS

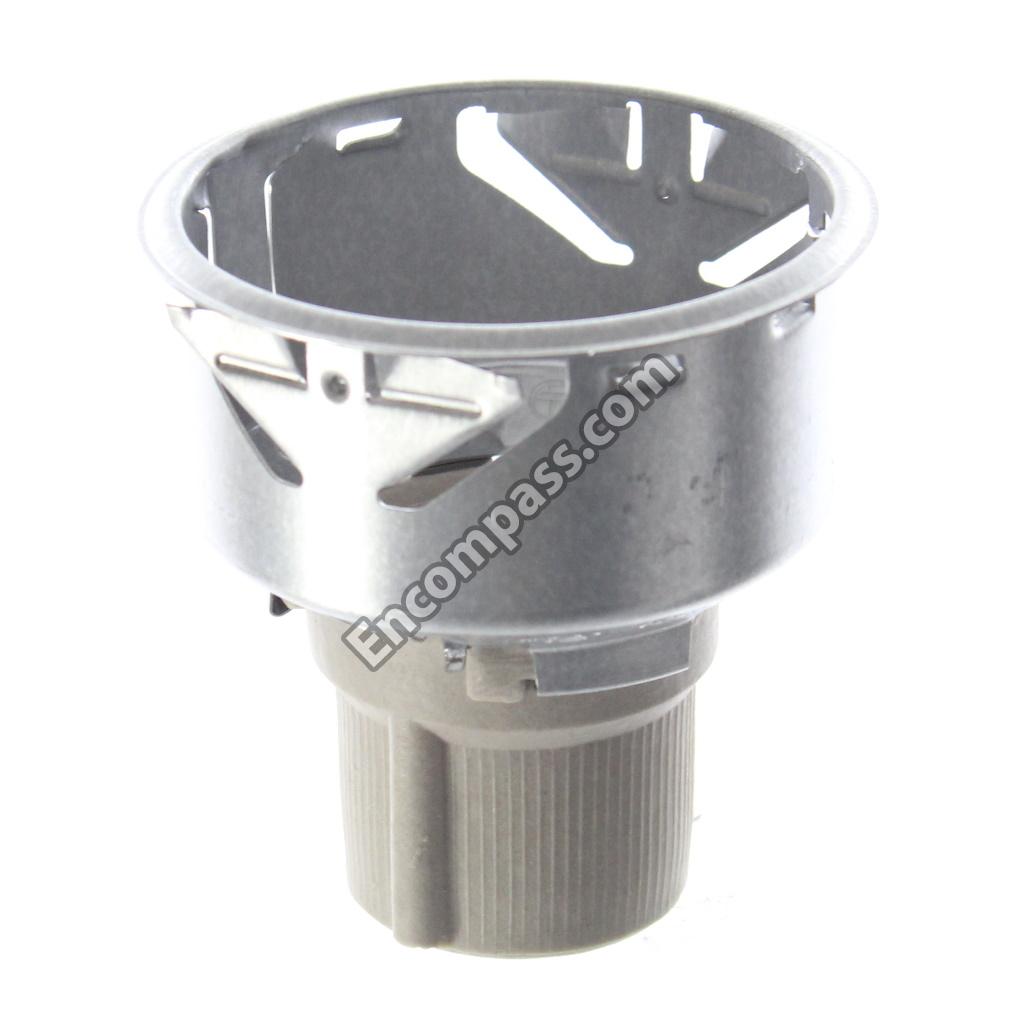

WB08M0003 WB08M0003 OV LAMP HOLDER

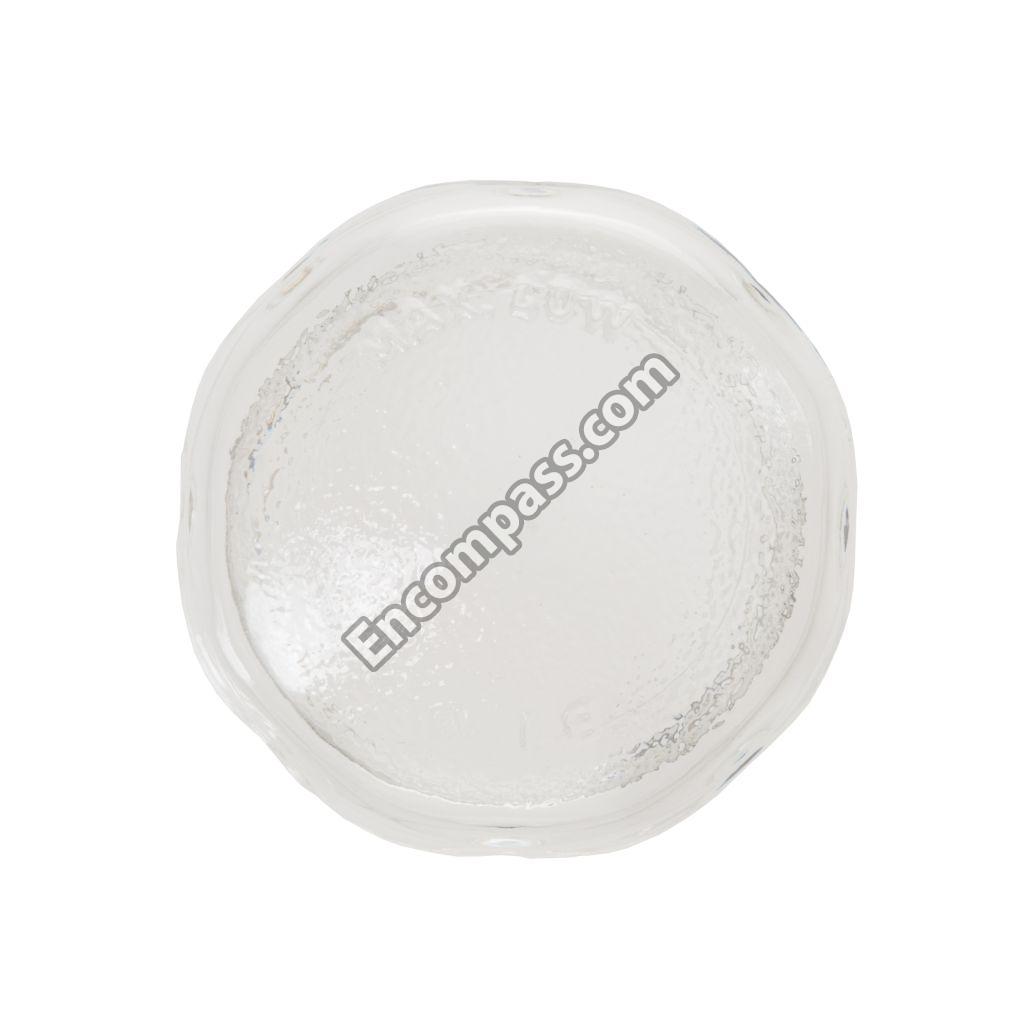

WB25M10 WB25M10 OV LAMP LENS
WB55M0008 WB55M0008 OVEN DOOR LINING
WB56K5147 WB56K5147 OVEN DOOR PANEL-WHITE
WB48X0210 WB48X0210 OVEN RACK
WB48M4 WB48M4 OVEN RACK
WB8K5042 WB8K5042 OVLAMP HLDR
WB32X5059 WB32X5059 PAN 6 PORC FROSTED
WB56X1956 WB56X1956 PANEL-DRAWER-WHITE
WB02T10054 WB02T10054 PLATE RANGE SERVICE M
WB2X9189 WB2X9189 PLUG BUT REC
WB02X1125 WB02X1125 PLUG BUTTON CAP TUBE
WB02X9189 WB02X9189 PLUG BUTTON-RECTANGULAR
WB2X1125D WB2X1125D PLUG-PKG 12
WB08X5034 WB08X5034 POWER CORD
WB8X5034 WB8X5034 POWER CORD
WB17M0005 WB17M0005 POWER RING HOUSING
WB02X9427 WB02X9427 RANGE SERVICE MTG PLATE
WB2X9030 WB2X9030 RETAIN-INSUL
WB2X9192 WB2X9192 RETAINER
WB2X9191 WB2X9191 RETAINER
WB01X32746 WB01X32746 SCR ST 8A8 X .625 TR NI
WB01X1186 WB01X1186 SCREW
WB01X1167 WB01X1167 SCREW
WB01X1141 WB01X1141 SCREW
WB01X1258 WB01X1258 SCREW
WB01X1172 WB01X1172 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1162 WB01X1162 SCREW
WB01X1133 WB01X1133 SCREW
WB01X1164 WB01X1164 SCREW
WB01X1113 WB01X1113 SCREW
WB01X1127 WB01X1127 SCREW
WB01X1265 WB01X1265 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5045 WB01K5045 SCREW
WB1X1164 WB1X1164 SCREW
WB1X1172 WB1X1172 SCREW
WB1X1113 WB1X1113 SCREW
WB1X1261 WB1X1261 SCREW
WB1X1328 WB1X1328 SCREW
WB1X1186 WB1X1186 SCREW
WB1X1162 WB1X1162 SCREW
WB1K5122 WB1K5122 SCREW
WB1X1258 WB1X1258 SCREW
WB1M1 WB1M1 SCREW
WB1X681 WB1X681 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1149 WB1X1149 SCREW 10-16 X 3/8
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01K5191 WB01K5191 SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 SCREW GROUND
WB01M0027 WB01M0027 SCREW ST 6-20X.437 TR
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1130 WB1X1130 SCREW-10-32
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB01X1149 WB01X1149 SCREW-BRIGHT NICKEL
WB01X1158 WB01X1158 SCREW-NICKEL
WB01X1174 WB01X1174 SCREW-NICKLE
WB1X1424D WB1X1424D SCREW-PKG 12
WB32K5051 WB32K5051 SEAL OV DR
WB3K5028 WB3K5028 SEL SW KNOB
WB03K5030 WB03K5030 SEL SWITCH KNOB
WB24K5040 WB24K5040 SELECTOR SWITCH
WB01K5056 WB01K5056 SET SCREW
WB1K5056 WB1K5056 SET SCREW
WB2X9426 WB2X9426 SHIELD-LOWER
WB7K5240 WB7K5240 SIDE TRIM LT
WB7K5239 WB7K5239 SIDE TRIM RT
WB02X9148 WB02X9148 SLIDE BLOCK FRONT
WB02X9146 WB02X9146 SLIDE BLOCK-REAR
WB02M0021 WB02M0021 SNAP BUSHING
WB2M21 WB2M21 SNAP BUSHING
WB01X1177 WB01X1177 SPACER
WB1X1177 WB1X1177 SPACER
WB2X9190 WB2X9190 SPACER
WB2X9037 WB2X9037 SPACER-HNDL
WB01X1311 WB01X1311 SPEED NUT
WB1X1311 WB1X1311 SPEED NUT
WB9X267 WB9X267 SPRING-OV DR
WB58X0063 WB58X0063 STORAGE DRAWER
WB2X9719 WB2X9719 SUPP-BROIL
WB56M3 WB56M3 SUPPORT DRWR
WB24M0015 WB24M0015 SWITCH LIMIT
WB24X415 WB24X415 SWITCH-LITE
WB24X0415 WB24X0415 SWITCH-OVEN LIGHT
WB17X210 WB17X210 TERM BLK
WB17X0218 WB17X0218 TERMINAL BLOCK CLIP
WB17X0217 WB17X0217 TERMINAL BLOCK W/WIRES
WB3K5245 WB3K5245 THERMOS KNOB
WB02K5209 WB02K5209 THERMOSTAT BULB CLIP
WB03K5029 WB03K5029 THERMOSTAT KNOB
WB21X5209 WB21X5209 THERMOSTAT L O
WB35M22 WB35M22 TOP&SD INSUL
WB38K5027 WB38K5027 TUBE VENT ASSEMBLY
WB38K5016 WB38K5016 TUBE VENT ASSEMBLY
WB07K5240 WB07K5240 UNKNOWN
WB07K5239 WB07K5239 UNKNOWN
WB35M0005 WB35M0005 UNKNOWN
WB31X5014 WB31X5014 UNKNOWN
31-10011 31-10011 USE & CARE MANUAL
WB01X1140 WB01X1140 WASHER
WB01X1159 WB01X1159 WASHER
WB01X1201 WB01X1201 WASHER
WB1X1201 WB1X1201 WASHER
WB1X1140 WB1X1140 WASHER
WB1X1159D WB1X1159D WASHR-PKG 12
WB20K5016 WB20K5016 WB21X5208
WB34M27 WB34M27 WIRE LIT CVR
WB34K5056 WB34K5056 WIRE RACEWAY
WB34K5052 WB34K5052 WIRE SHIELD
WB34K5139 WB34K5139 WIRE SHIELD
WB34M0006 WB34M0006 WIRE SHIELD
WB34M6 WB34M6 WIRE SHIELD
WB02X9426 WB02X9426 WIRE SHIELD-LOWER
WB02X9527 WB02X9527 WIRE SHIELD-UPPER
WB34M0044 WB34M0044 WIRE SHIELD-UPPER
WB2X9527 WB2X9527 WIRE SHLD-UP
WB63K5109 WB63K5109 WRAPPER OV CAV ASSEMBLY
