Model Number

JCT3000SF4SS

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB02T10589 WB02T10589 BADGE GE
WB17K10001 WB17K10001 BLOCK TERMINAL
WB27T11463 WB27T11463 BOARD FAN SENSOR
WB07X35692 WB07X35692 BRACE VERTICAL LEFT
WB07T10754 WB07T10754 BRACE VERTICAL RIGHT BLK
WB37T10026 WB37T10026 BRACKET UPPER FAN MOUNT
WB03T10341 WB03T10341 BUMPER DOOR
WB55X10971 WB55X10971 CHANNEL REAR
WB34X21910 WB34X21910 CHANNEL REAR LEFT
WB34T10150 WB34T10150 CHANNEL UPPER AIR VENT
WB18X30613 WB18X30613 CONDUIT WIRE ASSEMBLY
WB01X0119 WB01X0119 CONTOURED WASHER
WB27X29277 WB27X29277 CONTROL BOARD T012 ELE
WB27X30690 WB27X30690 CONTROL BOARD T012 WHITE LED

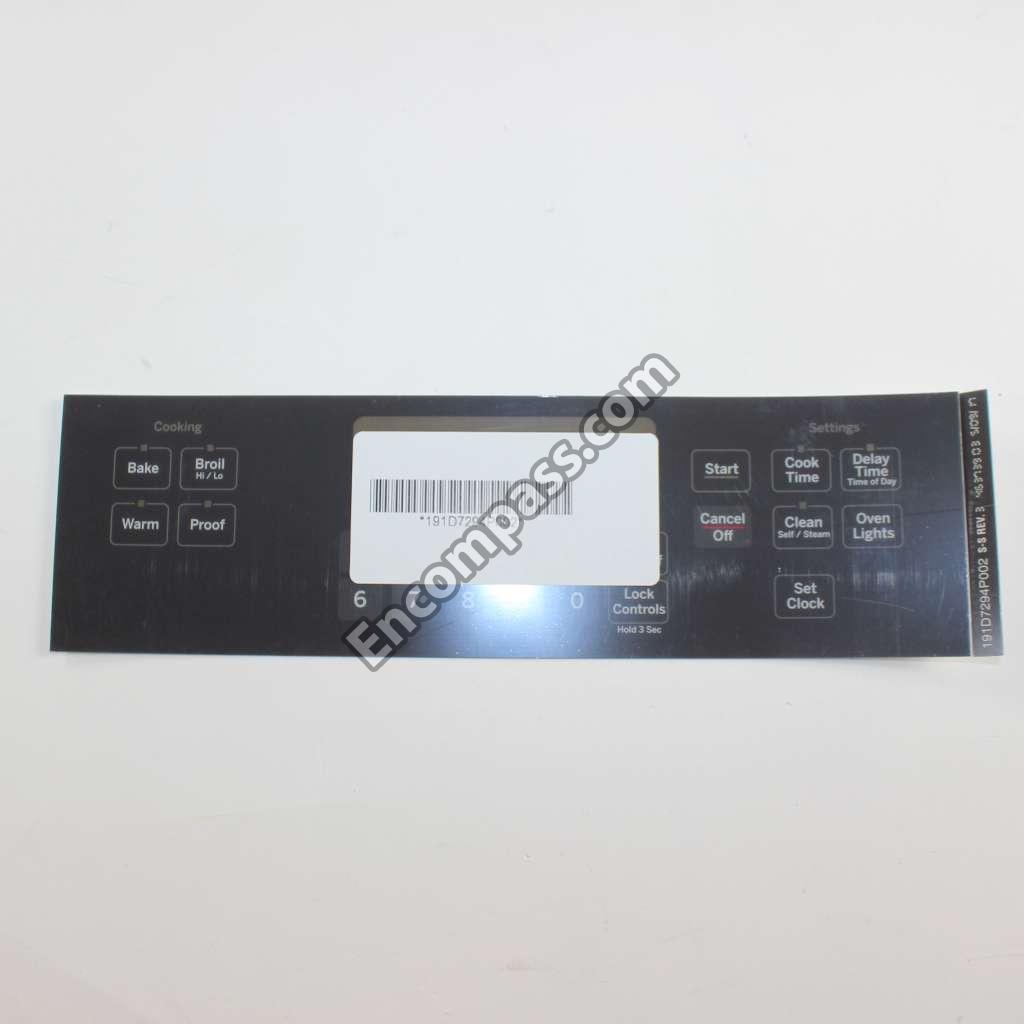

WB07T10737 WB07T10737 CONTROL PANEL STAINLESS
WB26X31060 WB26X31060 COOLING FAN
WB34T10136 WB34T10136 COVER - UPPER REAR DUCT
WB56X43352 WB56X43352 COVER BOTTOM AIR DUCT
WB55T10197 WB55T10197 COVER HIDDEN BAKE
WB34X28390 WB34X28390 COVER HOUSING FRT
WB34T10151 WB34T10151 COVER LOWER RT AIR DUCT
WB44T10126 WB44T10126 COVER TOP LEFT EDGE
WB34X32773 WB34X32773 COVER TOP REAR
WB34T10164 WB34T10164 COVER TOP RIGHT EDGE
WB35T10273 WB35T10273 COVER WIRE REAR
WB34T10142 WB34T10142 DEFLECTOR OVEN DOOR
WD02X10129 WD02X10129 DISHWASHER 6-19X1/4 TORX PAN HEAD SCREW
WB34T10134 WB34T10134 DIVIDER AIR CENTER
WB34X31516 WB34X31516 DOOR INSULATION RETAINER
WB35X31513 WB35X31513 DOOR SIDE INSULATION
WB44X48685 WB44X48685 ELEMENT BROIL ASSEMBLY
WB35X21972 WB35X21972 GASKET BROIL ELEMENT
WB01T10128 WB01T10128 GROMMET
WB25X31221 WB25X31221 HALOGEN LAMP ASSEMBLY
WB15X27281 WB15X27281 HANDLE AND END CAP ASSEMBLY
WB18X24022 WB18X24022 HARNESS WIRE MAIN
WB01X1259 WB01X1259 HEX NUT
WB1X1259 WB1X1259 HEX NUT
WB44X21667 WB44X21667 HIDDEN BAKE ELEMENT KIT
WB49X21652 WB49X21652 HINGE BRACKET ASSEMBLY KIT
WB10X30580 WB10X30580 HINGE DOOR LH
WB10X30579 WB10X30579 HINGE DOOR RH
WB27X20933 WB27X20933 HOUSING RJ45 ASSEMBLY
31-10653 31-10653 INSTRUCTION INSTALL
WB35X33245 WB35X33245 INSULATION DOOR TOP 30-INCH
WB35X34930 WB35X34930 INSULATION DR SIDE
WB35X21737 WB35X21737 INSULATION DR TOP
WB18X30704 WB18X30704 JUMPER
229C6291P001 229C6291P001 LABEL WIRE DIAGRAM
WB25T10102 WB25T10102 LAMP HALOGEN BULB G9
WB10X23814 WB10X23814 LATCH ASSEMBLY
WB34T10145 WB34T10145 LENS OVEN LIGHT
WB63X32818 WB63X32818 LINER OVEN DOOR ASSEMBLY
WB34X46746 WB34X46746 LINER SUPPORT
WB01T10127 WB01T10127 LOCK NUT

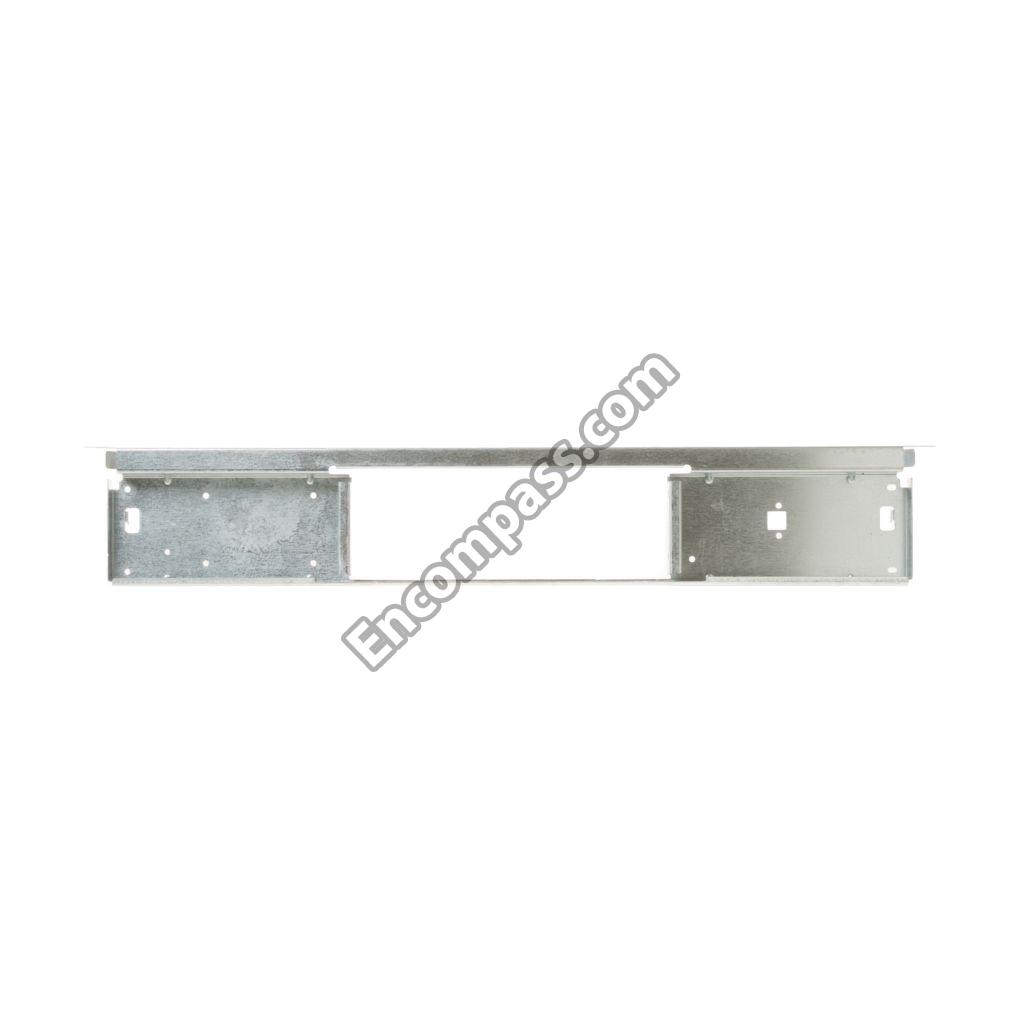

WB37T10031 WB37T10031 MOUNTING PANEL-CONTROL
WB56X34822 WB56X34822 OUTER DOOR GLASS AND TRIM
WB35X32825 WB35X32825 OVEN DOOR GASKET
WB27T11459 WB27T11459 OVERLAY
31-10957 31-10957 PM INSTALL INSTRUCTIONS
31-10959 31-10959 PM INSTRUCTIONS INSTALL
31-17079 31-17079 PM MANUAL MINI & WD ASM_
49-80725 49-80725 PM OWNERS MANUAL
WB48X31582 WB48X31582 RACK OVEN
WB26X24020 WB26X24020 RANGE COOLING FAN
WB24T10147 WB24T10147 RANGE HIGH AMP SWITCH
WB63T10169 WB63T10169 RETAINER INSULATION BACK
WB01X32746 WB01X32746 SCR ST 8A8 X .625 TR NI
WB01K5072 WB01K5072 SCREW
WH2X930 WH2X930 SCREW
WB01X21742 WB01X21742 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WB1K5072 WB1K5072 SCREW
WB01T10132 WB01T10132 SCREW 10-32 HEX 1 3/4 IN
WB01T10131 WB01T10131 SCREW 10-32 T20 2 1/2 IN
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10130 WB01T10130 SCREW 7-19 1/4HEX 1/2IN
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1174 WB01X1174 SCREW-NICKLE
WB21X10165 WB21X10165 SENSOR ASSEMBLY
WB02T10093 WB02T10093 ST AND OFF PCB
WB02T10603 WB02T10603 SUPPORT H AND LE
WB24X46906 WB24X46906 SWITCH HIGH LIMIT
WB07T10786 WB07T10786 TRIM BOTTOM CABINET
WB07X21187 WB07X21187 TRIM VENT LWR
WB07T10805 WB07T10805 TRIM VENT UPPER BLACK
WB07X11402 WB07X11402 TRIM VERT SIDE (BLACK)
WB02X32440 WB02X32440 WASHER CONTOURED
WB1X119D WB1X119D WASHR-PKG 12
WB56X27480 WB56X27480 WINDOW PACK ASSEMBLY
