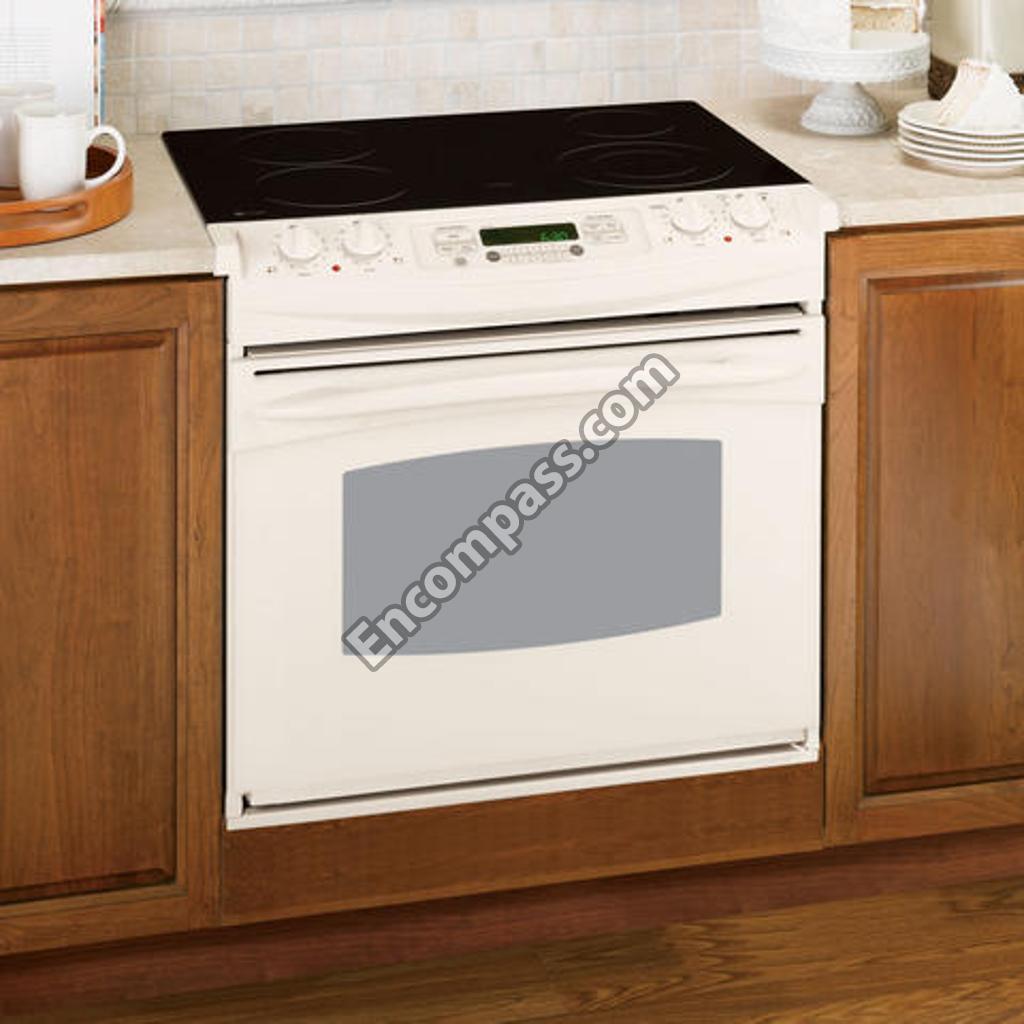

Model Image
Manufacturer

GE

Model Number

JD900CK3CC

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02K10048 WB02K10048 BASE RAIL
WB26T10039 WB26T10039 BLOWER ASM
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02X10739 WB02X10739 BRACKET ANTI-TIP
WB61K10010 WB61K10010 BURNER BOX BOTTOM
WB02X9573 WB02X9573 CLIP
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB2X9573 WB2X9573 CLIP
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K10012 WB18K10012 CONDUIT WIRE ASSEMBLY
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34K10046 WB34K10046 COVER WIRE REAR
WB02T10047 WB02T10047 CRYSTAL MOUNT
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB01T10022 WB01T10022 DOOR BUMPER
WB57T10277 WB57T10277 DOOR OTR ASM 30 (BK)
WB56T10203 WB56T10203 DOOR OTR ASM 30 (BQ)
WB57T10280 WB57T10280 DOOR OTR ASM 30 (WH)
WB44T10018 WB44T10018 ELEMENT BAKE (3400W)
WB30T10122 WB30T10122 ELEMENT RADIANT 9 DUAL
WB07K10137 WB07K10137 EXTENSION REAR
WB07T10498 WB07T10498 EXTENSION SIDE LT
WB07T10497 WB07T10497 EXTENSION SIDE RT
WB27T10761 WB27T10761 FACEPLATE (SCR-BK)
WB27T10763 WB27T10763 FACEPLATE (SCR-BQ)
WB27T10765 WB27T10765 FACEPLATE (SCR-WH)
WR02X10562 WR02X10562 FASTENER PUSH
WB63T10083 WB63T10083 FRAME FRT LOWER
WB02X10744 WB02X10744 GASKET FACEPLATE
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10511 WB02T10511 GASKET MAINTOP OTR
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB04T10050 WB04T10050 GASKET OVEN DOOR
WB64X0093 WB64X0093 GLASS CLEANER
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10137 WB15T10137 HANDLE PRF DRAWER (BQ)
WB15T10138 WB15T10138 HANDLE PRF DRAWER (WH)
WB15T10136 WB15T10136 HANDLE PRF DRAWER BK
WB10T10075 WB10T10075 HINGE DOOR LT
WB10T10074 WB10T10074 HINGE DOOR RT
WB24T10026 WB24T10026 INF SWITCH CONTROL (2000W)
WB24T10012 WB24T10012 INF SWITCH CONTROL (WM)
WB36T10568 WB36T10568 INSERT CNTL PNL
31-10514 31-10514 INSTRUCTION SHEET
31-10622 31-10622 INSTRUCTIONS INSTALL
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35K10024 WB35K10024 INSULATION BASE
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10126 WB35T10126 INSULATION TOP

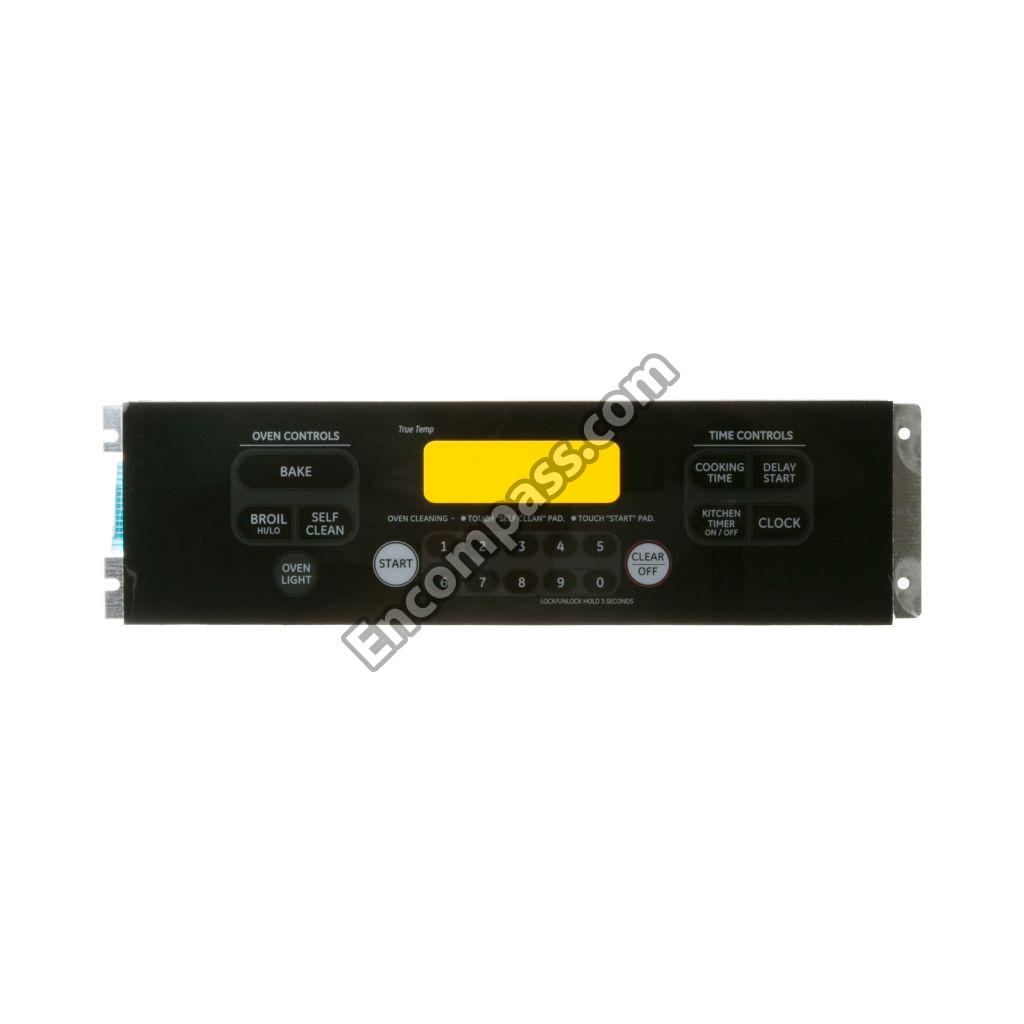

WB27T10760 WB27T10760 KEYPANEL SUPT ASM (BK)
WB27T10762 WB27T10762 KEYPANEL SUPT ASM (BQ)
WB27T10764 WB27T10764 KEYPANEL SUPT ASM (WH)
WB03T10078 WB03T10078 KNOB
WB03T10095 WB03T10095 KNOB PROFILE S/U (BISQUE)
WB03T10079 WB03T10079 KNOB PROFILE SU
WB14T10018 WB14T10018 LATCH OVN
WB25T10022 WB25T10022 LENS SNAP-IN
WB25T10048 WB25T10048 LIGHT INDICATOR
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10148 WB55T10148 LINER OVEN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB62T10697 WB62T10697 MAINTOP GLASS ASM (BK)
WB62T10698 WB62T10698 MAINTOP GLASS ASM (BQ)
WB62T10699 WB62T10699 MAINTOP GLASS ASM (WH)
31-14347 31-14347 MANUAL MINI & WD ASM
49-80499 49-80499 MANUAL USE & CARE
WB18T10349 WB18T10349 MODULE INDICATOR LIGHT
WB25T10002 WB25T10002 OVEN BULB LENS COVER-
WB27T10416 WB27T10416 OVEN CONTROL (ERC3B)
WB08T10002 WB08T10002 OVEN LAMP HO
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10667 WB36T10667 PANEL CNTL ASM
WB36T10666 WB36T10666 PANEL CNTL ASM
WB36T10668 WB36T10668 PANEL CNTL ASM
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB48T10095 WB48T10095 RACK OVEN
WB09T10002 WB09T10002 RADIANT SPRING ELEMENT
WB30T10129 WB30T10129 RANGE 6-INCH RADIANT SURFACE ELEMENT
WB30T10132 WB30T10132 RANGE 8-INCH RADIANT SURFACE ELEMENT
WB02T10371 WB02T10371 RANGE INSULATION RETAINER
WB10T10083 WB10T10083 RECEIVER HINGE
WB02X20948 WB02X20948 RETAINER INSLN BACK
WB02T10372 WB02T10372 RETAINER INSLN BTM
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10343 WB02T10343 RETAINER INSLN TOP
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WB1K5062 WB1K5062 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB1X5364 WB1X5364 SCREW MTG
WB01T10039 WB01T10039 SCREW ST 6-20X 375 TR BISQUE
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB1K5157 WB1K5157 SCREW-BLK
WB01X1118 WB01X1118 SCREW-NICKEL
WH2X941D WH2X941D SCREW-PKG 12
WB23T10015 WB23T10015 SENSOR ASM
WB34T10059 WB34T10059 SHIELD VENT ASM
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10134 WB24T10134 SWITCH INF CNTL
WB24T10079 WB24T10079 SWITCH LIMIT
WB01T10052 WB01T10052 TAPE FOAM
WB07T10496 WB07T10496 TRIM ASM
WB07K10154 WB07K10154 TRIM LOWER
WB07K10143 WB07K10143 TRIM LOWER
WB07K10139 WB07K10139 TRIM LOWER
WB07T10410 WB07T10410 TRIM VERT SDE
WB07T10409 WB07T10409 TRIM VERT SDE
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB28T10075 WB28T10075 VENT INLET DUCT
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB35T10090 WB35T10090 WB35K5116
WB63T10085 WB63T10085 WRAPPER OVEN CAV
