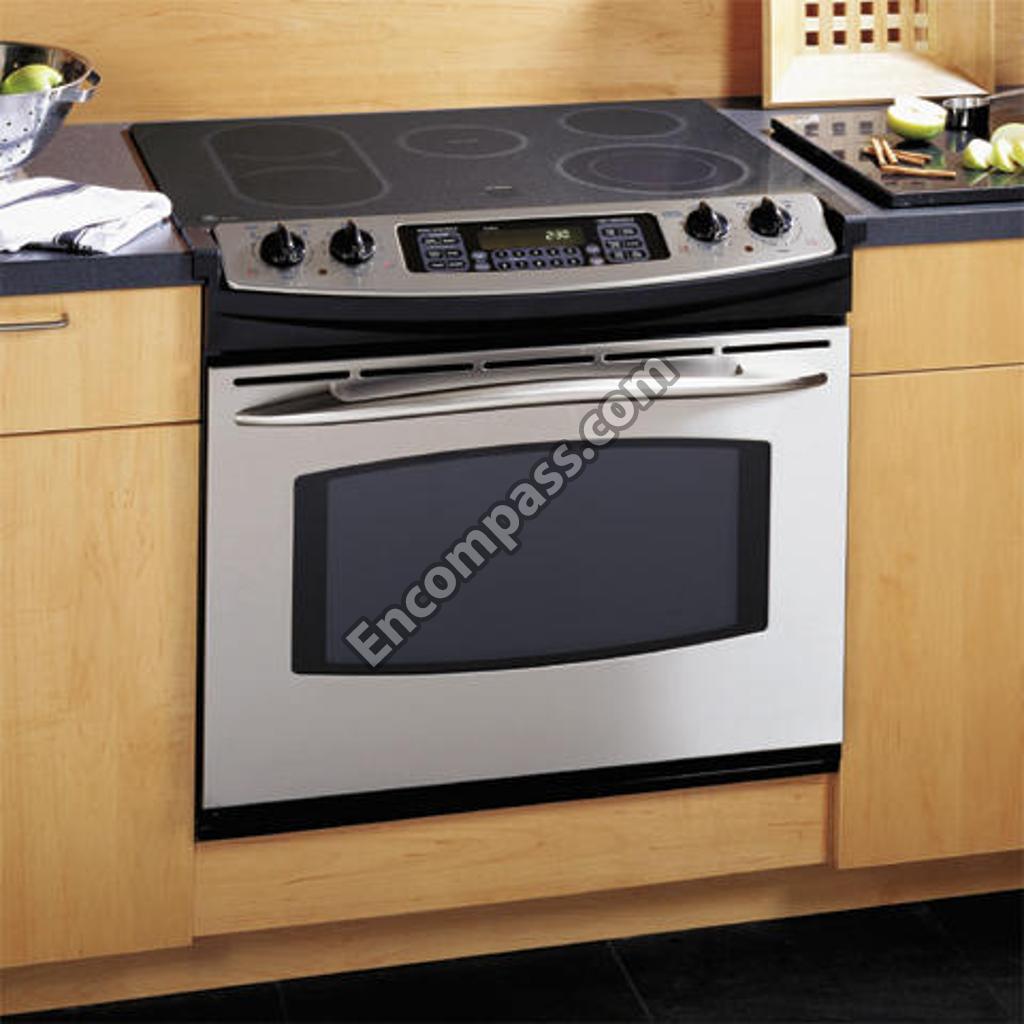

Model Image
Manufacturer

GE

Model Number

JD968SF4SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 GE 28 CERAMA BR
WB1K5200 WB1K5200 GE 340531
WB02K10048 WB02K10048 GE BASE RAIL
WB26T10039 WB26T10039 GE BLOWER ASSEMBLY
WB38T10019 WB38T10019 GE BOX VENT ASSEMBLY
WB02X10739 WB02X10739 GE BRACKET ANTI-TIP
WB02T10152 WB02T10152 GE BRACKET CAPACITOR MTR
WB61K10010 WB61K10010 GE BURNER BOX BOTTOM
WB26T10016 WB26T10016 GE CAPACITOR MOTOR
WB02X9573 WB02X9573 GE CLIP
WB01K5209 WB01K5209 GE CLIP
WB1K5209 WB1K5209 GE CLIP
WB2X9573 WB2X9573 GE CLIP
WB2K5126 WB2K5126 GE COND CLAMP
WB02K5126 WB02K5126 GE CONDUIT CLAMP
WB18K10012 WB18K10012 GE CONDUIT WIRE ASSEMBLY
WB02X10742 WB02X10742 GE CONTROL PANEL GASKET
WB2X9152 WB2X9152 GE COVER ENAM WIPE
WB26T10053 WB26T10053 GE COVER FAN (CONVX)
WB2X8309 WB2X8309 GE COVER PROBE
WB34K10046 WB34K10046 GE COVER WIRE REAR
WB02T10047 WB02T10047 GE CRYSTAL MOUNT
WB02T10046 WB02T10046 GE CRYSTAL RETAINER
WB03T10156 WB03T10156 GE DOOR BUMPER
WB01T10022 WB01T10022 GE DOOR BUMPER
WB44T10055 WB44T10055 GE ELEMENT BAKE
WB30X44826 WB30X44826 GE ELEMENT HALIANT 6
WB30T10099 WB30T10099 GE ELEMENT HALIANT 9
WB03T10088 WB03T10088 GE ELEMENT RADIANT
WB07K10137 WB07K10137 GE EXTENSION REAR
WB07T10498 WB07T10498 GE EXTENSION SIDE LEFT
WB07K10135 WB07K10135 GE EXTENSION SIDE RT
WB63T10034 WB63T10034 GE FALSE BOTTOM
WR02X10562 WR02X10562 GE FASTENER PUSH
WB63T10083 WB63T10083 GE FRAME FRT LOWER
WB02T10511 WB02T10511 GE GASKET MAINTOP
WB02T10320 WB02T10320 GE GASKET MAINTOP LH
WB02T10319 WB02T10319 GE GASKET MAINTOP RH
WB04T10021 WB04T10021 GE GASKET OVEN LIGHT
WB41T10003 WB41T10003 GE GASKET OVN DR
WB64X0093 WB64X0093 GE GLASS CLEANER
WB57T10233 WB57T10233 GE GLASS OVN DR INR
WB36T10740 WB36T10740 GE GLASS TOUCH ASM (SS)
WB01X1260 WB01X1260 GE GROUND WASHER
WB1X1260 WB1X1260 GE GRUND WASHER
WB15T10107 WB15T10107 GE HANDLE PROFILE SS
WB50T10076 WB50T10076 GE HINGE/RECEIVER KIT LF AND RT
WB02T10289 WB02T10289 GE HUB BLADE ASSEMBLY
WB24T10012 WB24T10012 GE INF SWITCH CNTL (WM)
WB36T10570 WB36T10570 GE INSERT CONTROL PNL
31-10529 31-10529 GE INSTRUCTION INSTALL
31-10459 31-10459 GE INSTRUCTIONS INSTALL
WB35T10073 WB35T10073 GE INSULATION (INR) LWR
WB35T10074 WB35T10074 GE INSULATION (OUT) LWR
WB35K10024 WB35K10024 GE INSULATION BASE
WB35K10025 WB35K10025 GE INSULATION OVEN DR SDE
WB35T10086 WB35T10086 GE INSULATION OVN DR SDE
WB35X30052 WB35X30052 GE INSULATION OVN DR TOP
WB03T10188 WB03T10188 GE KNOB PROFILE SU
WB25T10026 WB25T10026 GE LAMP HALOGEN ASSEMBLY
WB49X29679 WB49X29679 GE LAMP HALOGEN UPR
WB14T10013 WB14T10013 GE LATCH OVN
WB25T10027 WB25T10027 GE LENS OVEN LAMP
WB25T10048 WB25T10048 GE LIGHT INDICATOR
WB24T10060 WB24T10060 GE LIMIT SWITCH-UPPER(LOCK)
WB55T10147 WB55T10147 GE LINER OVEN DR ASSEMBLY UPPER
WB01K5046 WB01K5046 GE LOCKWASHER
WB02K5306 WB02K5306 GE LOWER OVN INSLN RETAINER
WB62T10528 WB62T10528 GE MAINTOP GLASS ASSEMBLY (BLACK)
31-14165 31-14165 GE MANUAL MINI & WD ASM
49-80136 49-80136 GE MANUAL USE & CARE
WB18T10349 WB18T10349 GE MODULE INDICATOR LIGHT
WB1X5572 WB1X5572 GE NUT
WB02T10017 WB02T10017 GE NUT
WB01X5572 WB01X5572 GE NUT MEAT PROBE
WB56T10122 WB56T10122 GE OUTER DR ASM
WB27T10406 WB27T10406 GE OVEN CONTROL ( CLOCK)
WB02K5310 WB02K5310 GE OVEN DOOR GLASS RETAINER
WB56T10105 WB56T10105 GE PACK WINDOW ASM
WB56X22160 WB56X22160 GE PACK WINDOW ASSEMBLY
WB36T10666 WB36T10666 GE PANEL CNTL ASM
WB02T10147 WB02T10147 GE PLATE REINFORCEMEMT
WB20T10024 WB20T10024 GE PROBE
WB02X8309 WB02X8309 GE PROBE COVER
WB26T10013 WB26T10013 GE PSC CONV MOTOR LOWER
WB48T10020 WB48T10020 GE RACK OVEN UPR
WB09T10002 WB09T10002 GE RADIANT ELEMENT SPRING
WB44T10053 WB44T10053 GE RANGE CONVECTION ELEMENT
WB10T10053 WB10T10053 GE RECEIVER HINGE
WB08T10018 WB08T10018 GE RECEPTACLE JACK
WB34T10085 WB34T10085 GE REFLECTOR HEAT
WB56T10373 WB56T10373 GE RETAINER GLASS OVEN DR
WB02X20948 WB02X20948 GE RETAINER INSLN BACK
WB56T10104 WB56T10104 GE RETAINER INSLN BACK LOW
WB02T10143 WB02T10143 GE RETAINER INSLN BTM
WB56T10147 WB56T10147 GE RETAINER INSLN OVN DR
WB02T10343 WB02T10343 GE RETAINER INSLN TOP CENTER
WB02T10172 WB02T10172 GE RETAINER OVN DR EXT
WB02T10068 WB02T10068 GE RETAINER SS PANEL
WB18T10331 WB18T10331 GE RIBBON CONNECTOR GLS TCH
WB48X5108 WB48X5108 GE ROAST RACK
WH02X0941 WH02X0941 GE SCR 8-15 A HXW 7/8 S
WB01X1116 WB01X1116 GE SCREW
WB01X1253 WB01X1253 GE SCREW
WB01X1137 WB01X1137 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WB01X1127 WB01X1127 GE SCREW
WB01X1141 WB01X1141 GE SCREW
WB01K5028 WB01K5028 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WB1X1317 WB1X1317 GE SCREW
WB1X1116 WB1X1116 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1X536 WB1X536 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WB01T10058 WB01T10058 GE SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 GE SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10053 WB01T10053 GE SCREW 8-32 TPT FLR 270
WB1X5364 WB1X5364 GE SCREW MTG
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 GE SCREW ST8-18X.500TRBRNI
WB1X1130 WB1X1130 GE SCREW-10-32
WB1X1137 WB1X1137 GE SCREW-10AB
WB1X1118 WB1X1118 GE SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 GE SCREW-8-32
WB01X1317 WB01X1317 GE SCREW-BLACK
WB01X1180 WB01X1180 GE SCREW-BLACK
WH2X941D WH2X941D GE SCREW-PKG 12
WB2K5306 WB2K5306 GE SD INSUL RET
WB23T10015 WB23T10015 GE SENSOR ASM
WB34T10059 WB34T10059 GE SHIELD VENT ASM
WB26T10015 WB26T10015 GE SUPPORT OVN CAV
WB2K5238 WB2K5238 GE SW BRACKET
WB02K5238 WB02K5238 GE SWITCH BRACKET
WB24T10063 WB24T10063 GE SWITCH INF CNTL
WB24T10119 WB24T10119 GE SWITCH INFINITE CONTROL
WB24T10065 WB24T10065 GE SWITCH LIGHT SPOT
WB24T10079 WB24T10079 GE SWITCH LIMIT
WB01T10052 WB01T10052 GE TAPE FOAM
WB01T10055 WB01T10055 GE TAPE FOAM
WB07K10139 WB07K10139 GE TRIM LOWER
WB07T10408 WB07T10408 GE TRIM VERT SDE
WB07T10407 WB07T10407 GE TRIM VERT SDE
WB07T10406 WB07T10406 GE TRIM VNT INR (BLK)
WB38X33650 WB38X33650 GE TUBE VENT
WB44T10043 WB44T10043 GE UNIT BROIL ASM (DLX)
WB48X10056 WB48X10056 GE UNIVERSAL RANGE BROILER PAN
WB28T10075 WB28T10075 GE VENT INLET DUCT
WB30X32514 WB30X32514 GE WARMER ELEMENT RADIANT
WB01X5573 WB01X5573 GE WASHER
WB1K5117 WB1K5117 GE WASHER
WB1K5046 WB1K5046 GE WASHER
WB1X5573 WB1X5573 GE WASHER
WB01K5117 WB01K5117 GE WASHER .250 ID X .812 OD
WB01T10057 WB01T10057 GE WASHER SS
WB1X681 WB1X681 GE WB01X0681
WB35T10090 WB35T10090 GE WB35K5116
WB63T10084 WB63T10084 GE WRAPPER OVEN CAV ASSEMBLY LO
