Model Image
Manufacturer

GE

Model Number

JD968SK1SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
WB02K10048 WB02K10048 BASE RAIL
WB17K10001 WB17K10001 BLOCK TERMINAL
WB26T10039 WB26T10039 BLOWER ASSEMBLY
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02X10739 WB02X10739 BRACKET ANTI-TIP
WB02T10152 WB02T10152 BRACKET CAPACITOR MTR
WB61K10010 WB61K10010 BURNER BOX BOTTOM
WB27T10503 WB27T10503 CAPACITOR MOTOR
WB02X9573 WB02X9573 CLIP
WB01K5209 WB01K5209 CLIP
WB2X9573 WB2X9573 CLIP
WB1K5209 WB1K5209 CLIP
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K10012 WB18K10012 CONDUIT WIRE ASSEMBLY
WB27T10611 WB27T10611 CONTROL ERC
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB26T10053 WB26T10053 COVER FAN (CONVX)
WB34K10046 WB34K10046 COVER WIRE REAR
WB02T10047 WB02T10047 CRYSTAL MOUNT
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB03T10156 WB03T10156 DOOR BUMPER
WB01T10022 WB01T10022 DOOR BUMPER
WB01T10026 WB01T10026 DOOR PAD
WB44T10055 WB44T10055 ELEMENT BAKE
WB44T10053 WB44T10053 ELEMENT CONVX
WB30T10096 WB30T10096 ELEMENT HALIANT 12 IN
WB30T10043 WB30T10043 ELEMENT HALIANT 1200W

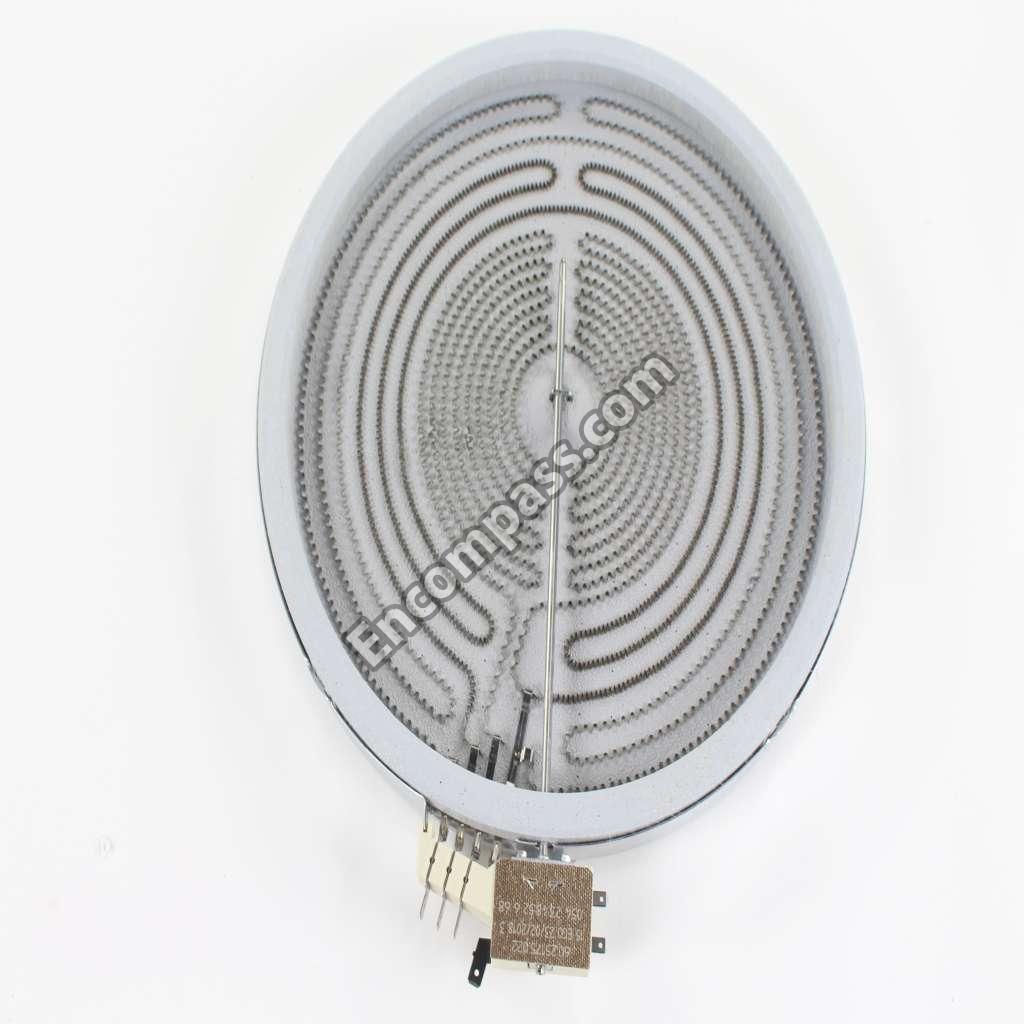

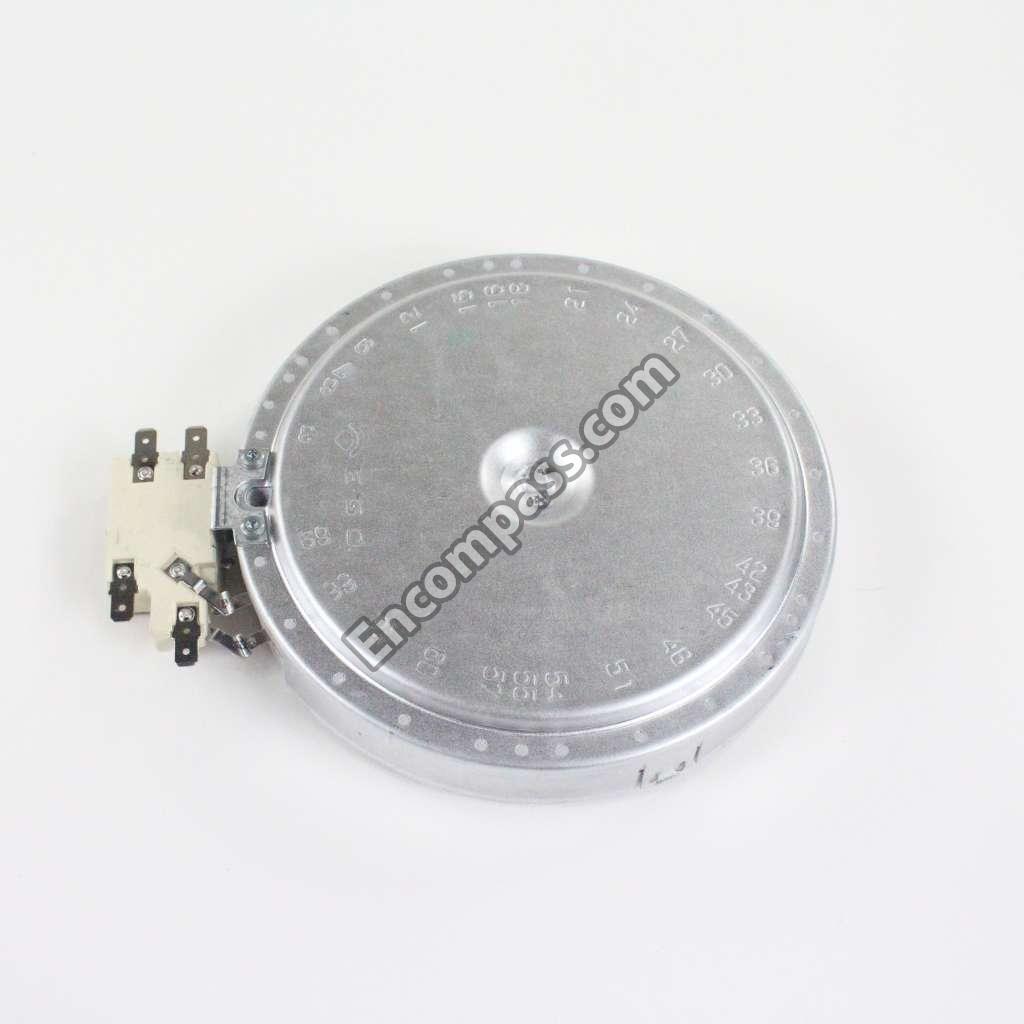

WB03T10088 WB03T10088 ELEMENT RADIANT
WB30X32514 WB30X32514 ELEMENT RADIANT 6 WARMER
WB07K10137 WB07K10137 EXTENSION REAR
WB07T10498 WB07T10498 EXTENSION SIDE LT
WB07T10497 WB07T10497 EXTENSION SIDE RT
WB63T10034 WB63T10034 FALSE BOTTOM
WR02X10562 WR02X10562 FASTENER PUSH
WB63T10083 WB63T10083 FRAME FRT LOWER
WB02T10511 WB02T10511 GASKET MAINTOP
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB04T10021 WB04T10021 GASKET OVEN LIGHT
WB41T10003 WB41T10003 GASKET OVN DR
WB64X0093 WB64X0093 GLASS CLEANER
WB57T10233 WB57T10233 GLASS OVN DR INR
WB27T10753 WB27T10753 GLASS TOUCH ASM (SS)
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER

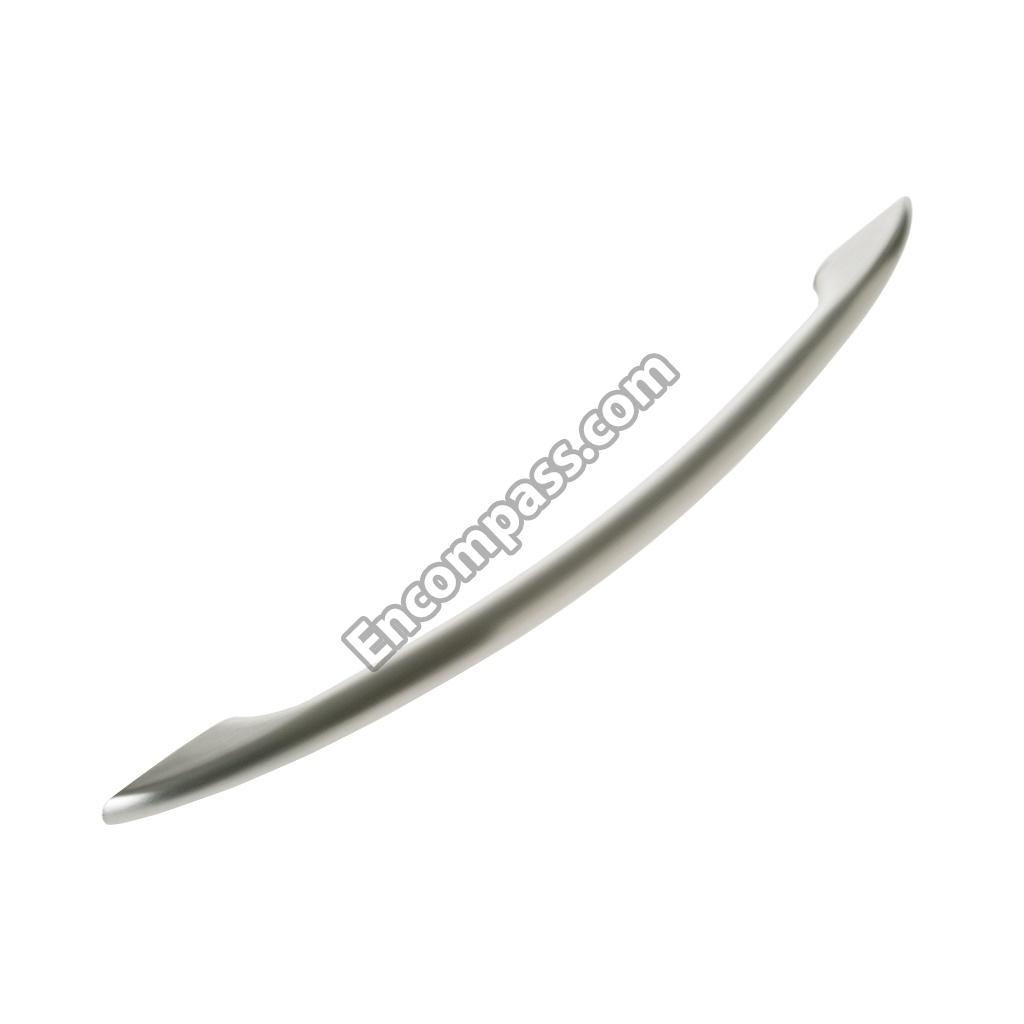

WB15T10190 WB15T10190 HANDLE PRF SS
WB10T10085 WB10T10085 HINGE DOOR LT
WB10T10084 WB10T10084 HINGE DOOR RT
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
WB24T10012 WB24T10012 INF SWITCH CNTL (WM)
WB36T10570 WB36T10570 INSERT CONTROL PNL
31-10514 31-10514 INSTRUCTION SHEET
31-10622 31-10622 INSTRUCTIONS INSTALL
WB35T10073 WB35T10073 INSULATION (INR) LWR
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35K10024 WB35K10024 INSULATION BASE
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB25T10026 WB25T10026 LAMP HALOGEN ASSEMBLY
WB49X29679 WB49X29679 LAMP HALOGEN UPR
WB14T10018 WB14T10018 LATCH OVN
WB25T10027 WB25T10027 LENS OVEN LAMP
WB25T10055 WB25T10055 LIGHT INDICATOR
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10147 WB55T10147 LINER OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER

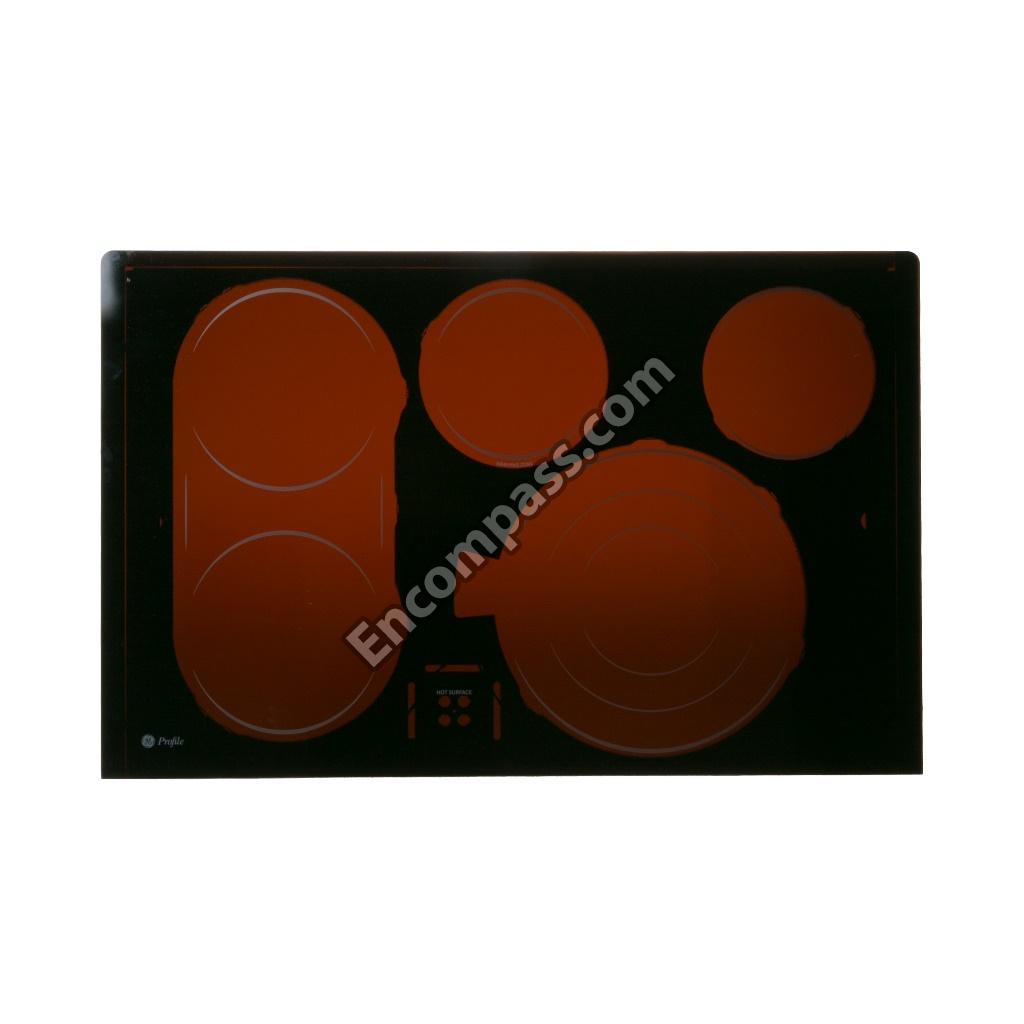

WB62T10542 WB62T10542 MAINTOP GLASS ASSEMBLY (BLACK)
31-14349 31-14349 MANUAL MINI & WD ASM
49-80317 49-80317 MANUAL USE & CARE
WB18T10349 WB18T10349 MODULE INDICATOR LIGHT
WB26T10033 WB26T10033 MOTOR PSC CONV
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE

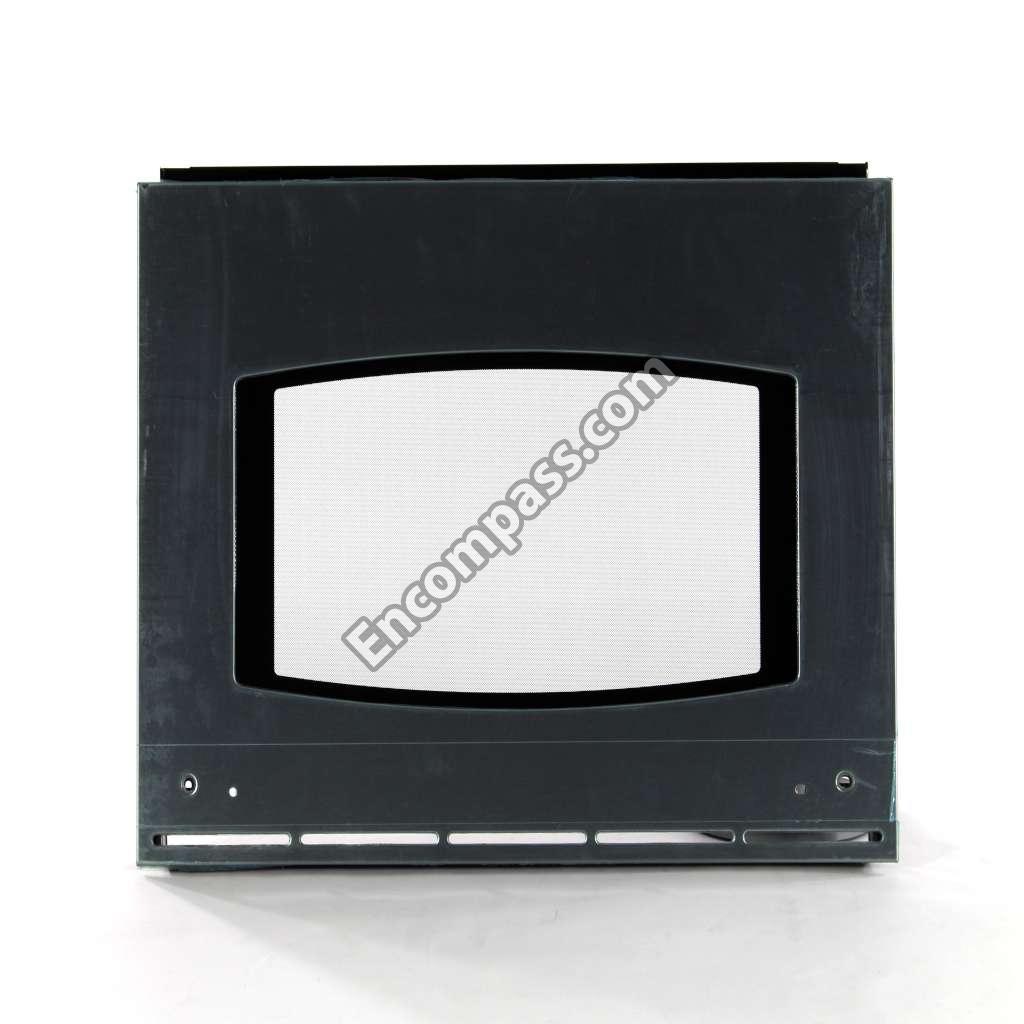

WB56T10122 WB56T10122 OUTER DR ASSEMBLY
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB02T10244 WB02T10244 PAD FELT

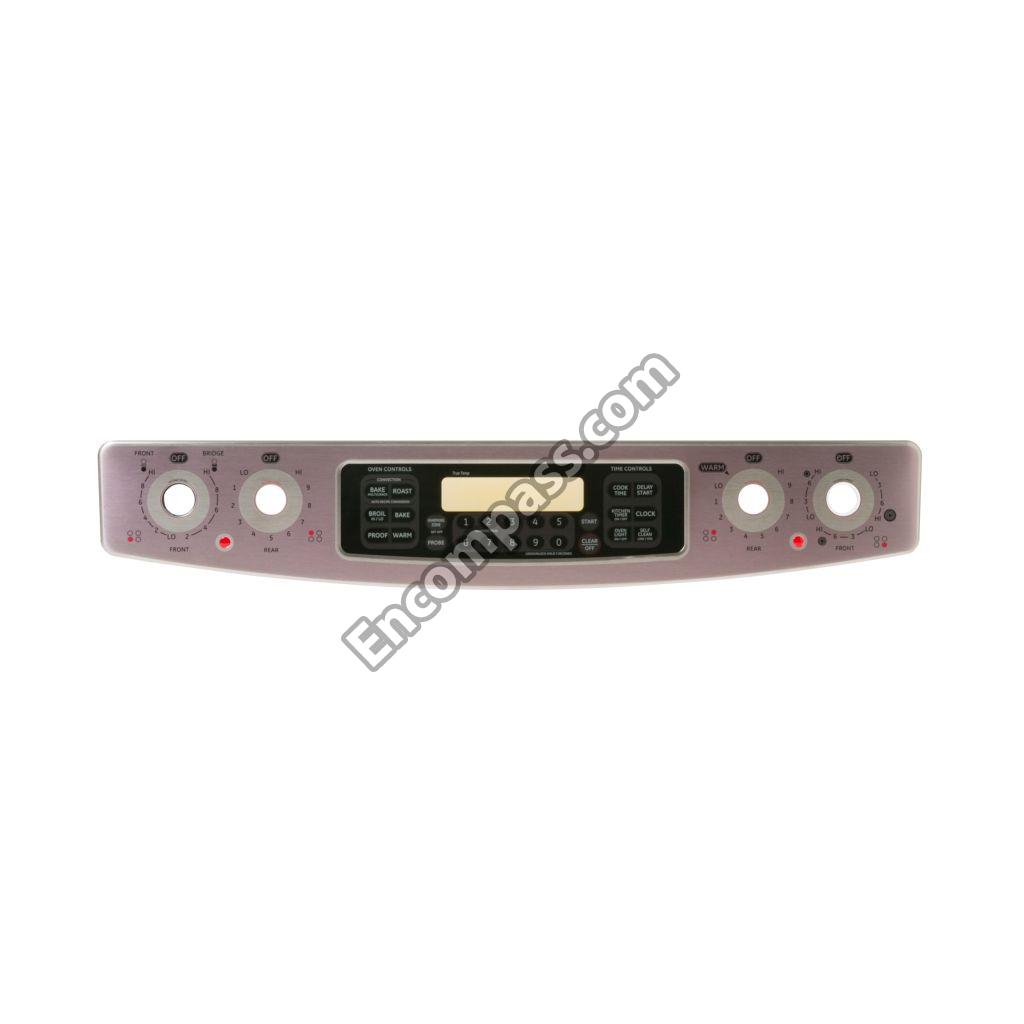

WB36T10666 WB36T10666 PANEL CNTL ASM
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB02X8309 WB02X8309 PROBE COVER
WB48T10092 WB48T10092 RACK OVEN (SC)
WB09T10002 WB09T10002 RADIANT ELEMENT SPRING

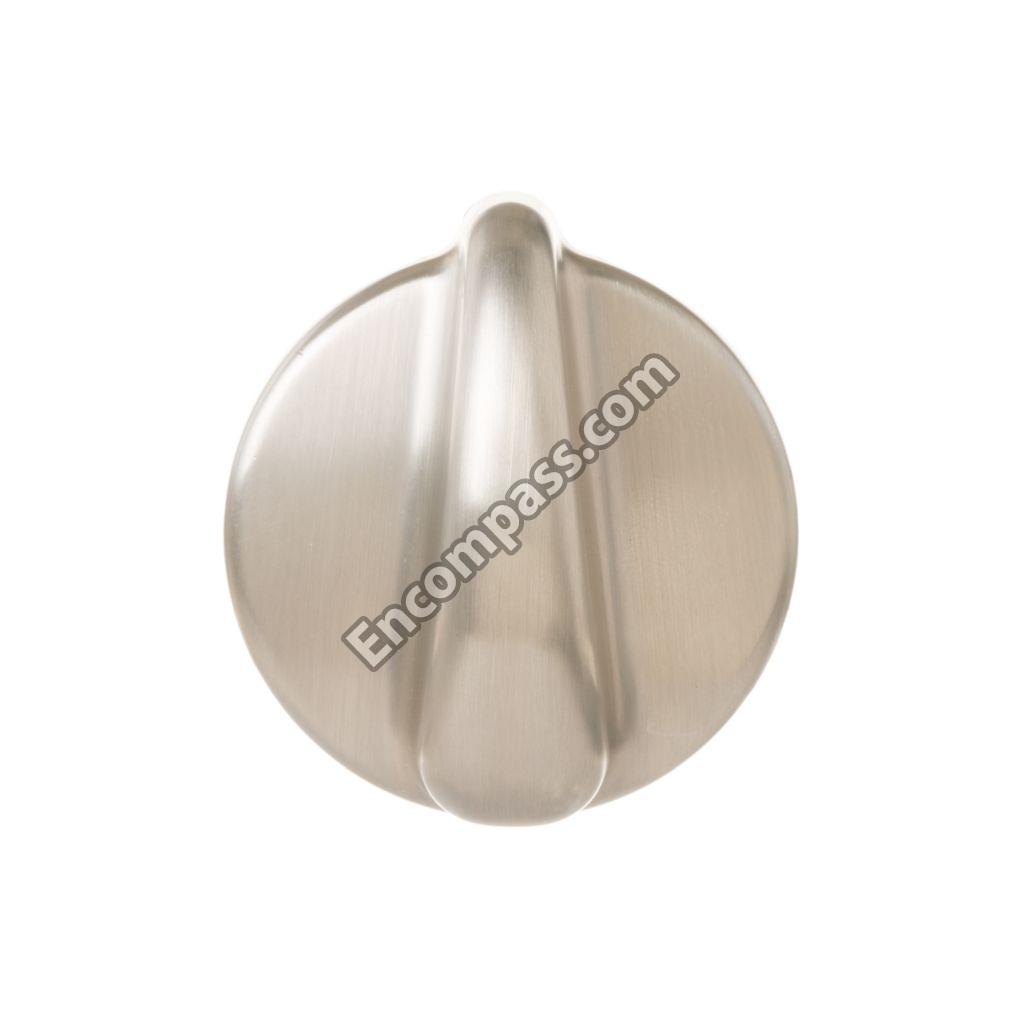

WB03T10261 WB03T10261 RANGE KNOB - STAINLESS STEEL
WB10T10083 WB10T10083 RECEIVER HINGE
WB08T10018 WB08T10018 RECEPTACLE JACK
WB34T10112 WB34T10112 REFLECTOR HEAT
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10136 WB56T10136 RETAINER INSLN BACK
WB02T10143 WB02T10143 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB02T10343 WB02T10343 RETAINER INSLN TOP CENTER
WB02T10068 WB02T10068 RETAINER SS PANEL
WB18T10370 WB18T10370 RIBBON CONNECTOR GLS TCH
WB48X5108 WB48X5108 ROAST RACK
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01X1116 WB01X1116 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1127 WB01X1127 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WB1X1116 WB1X1116 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB01X1180 WB01X1180 SCREW-BLACK
WH2X941D WH2X941D SCREW-PKG 12
WB2K5306 WB2K5306 SD INSUL RET
WB23T10015 WB23T10015 SENSOR ASM
WB34T10114 WB34T10114 SHIELD OVN DR VNT
WB34T10059 WB34T10059 SHIELD VENT ASM
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET

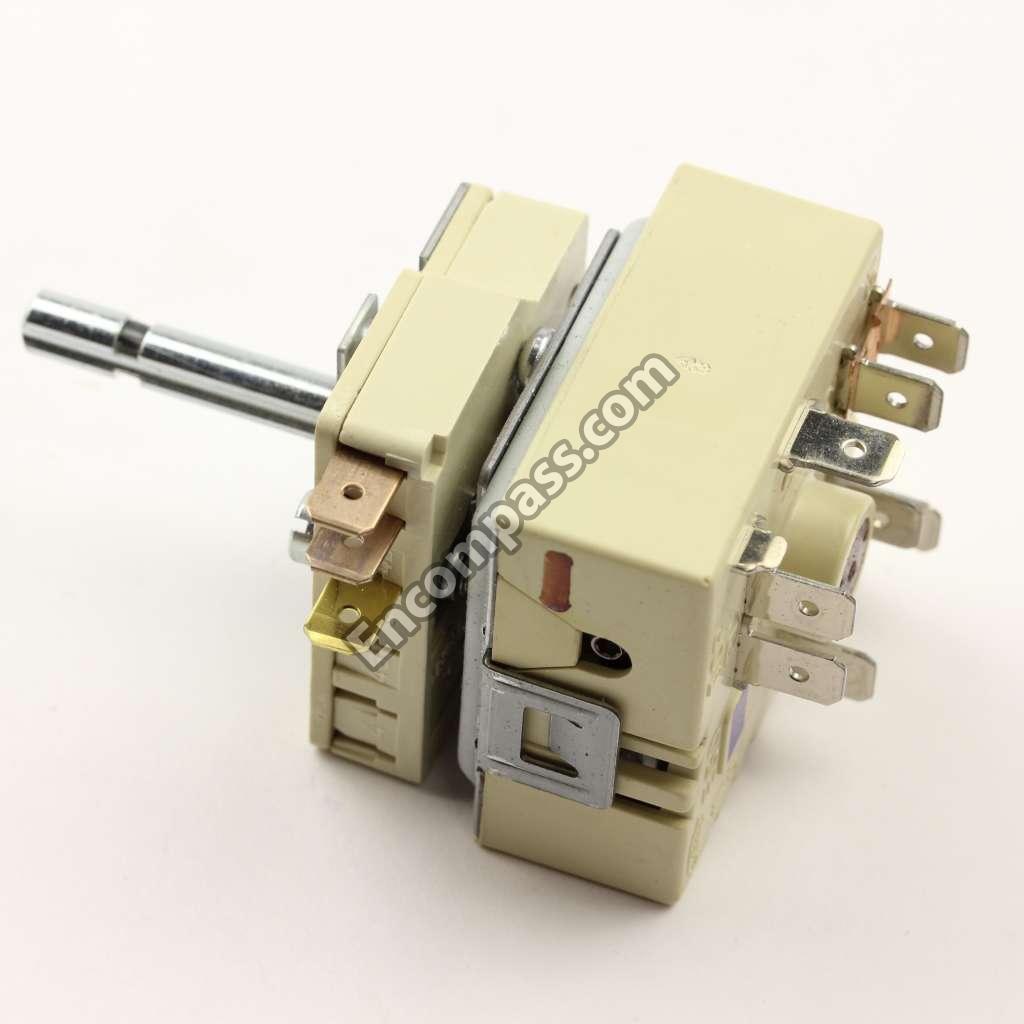

WB24T10063 WB24T10063 SWITCH INF CNTL
WB24T10119 WB24T10119 SWITCH INFINITE CONTROL
WB24T10139 WB24T10139 SWITCH INFINITE CONTROL
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB24T10079 WB24T10079 SWITCH LIMIT
WB24T10111 WB24T10111 SWITCH SPDT HIGH AMP
WB01T10055 WB01T10055 TAPE FOAM
WB01T10052 WB01T10052 TAPE FOAM
WB07T10496 WB07T10496 TRIM ASM
WB07K10139 WB07K10139 TRIM LOWER
WB07T10408 WB07T10408 TRIM VERT SDE
WB07T10407 WB07T10407 TRIM VERT SDE
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB28T10075 WB28T10075 VENT INLET DUCT

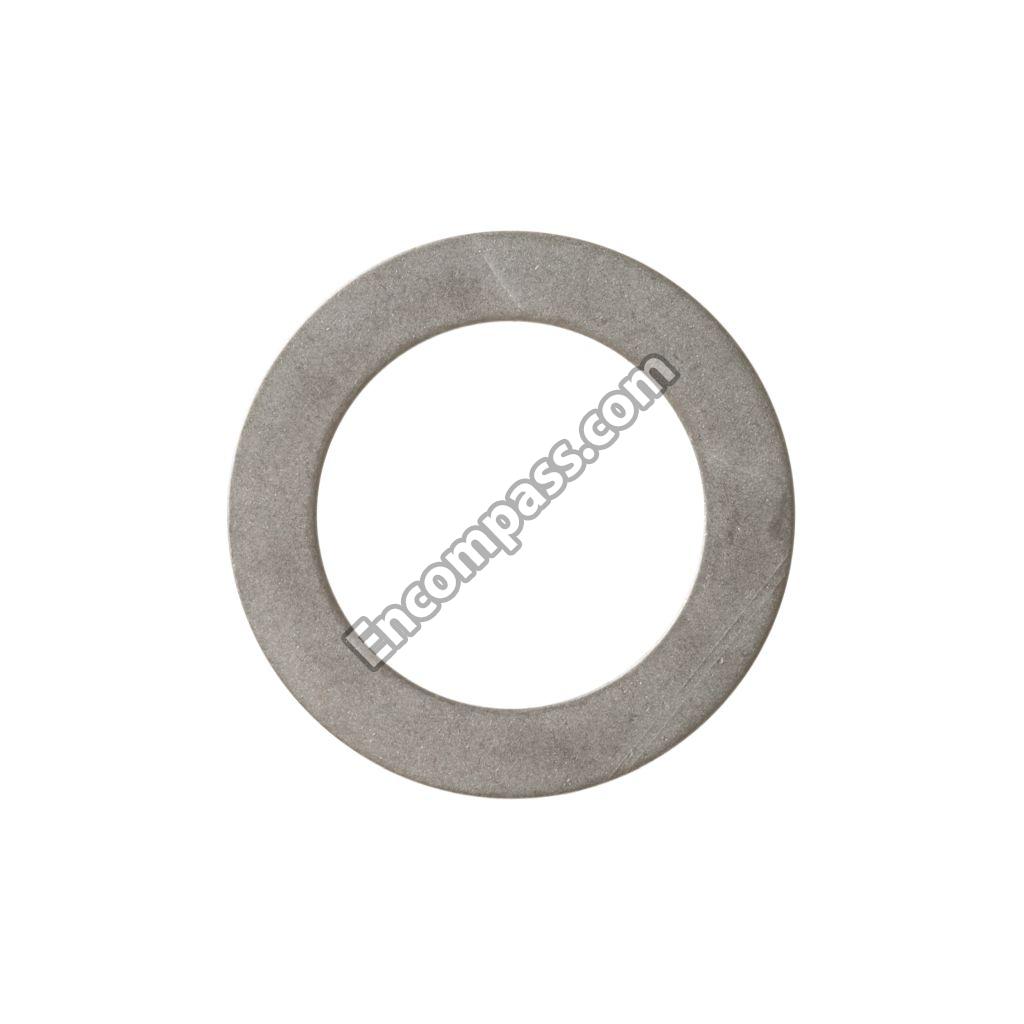

WB01X5573 WB01X5573 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB01T10057 WB01T10057 WASHER SS
WB1X681 WB1X681 WB01X0681
WB35T10090 WB35T10090 WB35K5116
WB63T10084 WB63T10084 WRAPPER OVEN CAV ASSEMBLY LO
